Apollo Command Module ELS

by Stuart Howes
3D Model License: Standard    Upgrade License
Editorial Uses Only
FORMATS
NATIVE
Lightwave 9.6  |  Default Scanline
Lightwave 9.6  |  Default Scanline
FBX
OBJ
Free file format Conversions available
Previews
Command Module ELS Splashdown.wmv
Stable 2 Floatation bags deployed.wmv
Ringsail Parachute deploy.wmv
Morph Targets for Ringsail parachute.pdf
3D Model Specifications
48,040 Polygons
66,239 Vertices
Polygonal Quads/Tris Geometry
Textures
Materials
UV Mapped
Mixed Unwrapped UVs
Animated
Product ID: 462517
by Stuart Howes
55 Products
Since 2008
Best Price
Guaranteed
Simple
Returns
$10k in
Protection

Have questions? Chat with us now.

24/7 Live Chat
3D Modelvehicles spacecraft space capsule apollo spacecraft
3D Modelnasa
PRODUCT DESCRIPTION

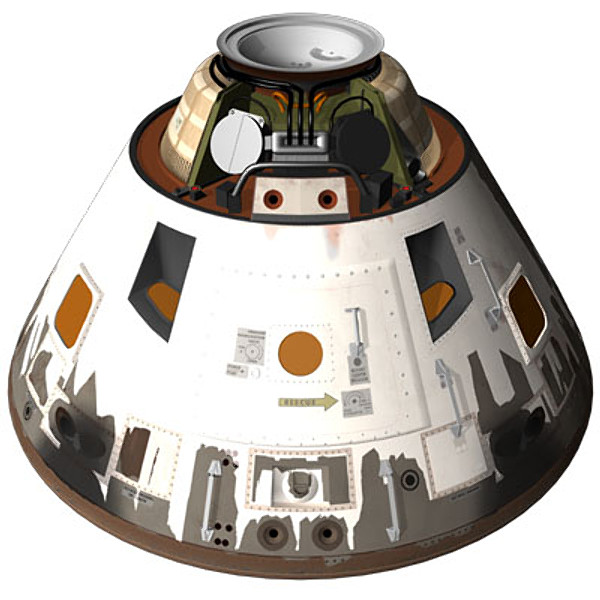

This is a High Definition 3D model of the post reentry Apollo Command Module including all Parachutes and Earth Landing Systems. Jettison of the upper heatshield along with deployment of Drogue, Pilot and Main Parachutes, recovery beacon and inflatable uprighting floatation bags enable the missions climactic splashdown into the Pacific to be rendered and animated step by step in exacting detail.

Using detailed blueprints, drawings and extensive photographic research, the model parts are accurately scaled with authentic colour and bump maps depicting the deeply etched scars of reentry on the capsule.

The ELS sequence kicks in at about 24,000 feet with the heatshield jettison and the drogue chutes are deployed which slow the plummeting CM from a speed of 325mph. After these chutes are released, 3 pilot chutes are fired horizontally outward by mortars which in turn pull out the main chutes. The large striped iconic Ringsail parachutes, developed by Northrop-Ventura, are deployed at 10,000 feet to reduce the speed of the falling spacecraft from 175 miles per hour to 22 mph upon impact with the water. These parachutes initially open in a balloon-like (reefed) state, before line cutters allow the canopy to disreef in 2 stages to full inflation.

The LightWave version of this model has preset morph targets for the parachute and uprighting bags deployment. For customers using other 3D applications, they can download the free LightWave Discovery version to view the LightWave Scene files morph setup and apply it to their preferred 3D package using the accompanying FBX or OBJ
morph target files included.

Created with Lightwave 9.6

USAGE
Suitable for HD video, high-res film close-ups and print

SPECS
Model contains the following:
21 object layers
48042 polygons (total for all objects across different scenes excluding duplicated parts)
42970 quads, 5070 tris, and 0 ngons (as above)
Standard Lightwave materials & texture maps

PRESENTATION IMAGES
HDRI skydome used in preview images NOT included in file.
No Photoshop or compositing used for previews.
Preview Images rendered with default Lightwave 9.6 scanline renderer.
The ZIP download includes multiple LW Scene files containing cameras, lights and morph target setups for animations showing each step of the ELS deployment (HDRI skydome not included).


TEXTURES
For the LWO model both XYZ Projection and UV mapped versions are included:
43 texture maps (PNG format - original XYZ projection mapped LWO model)
3 UV texture maps (PNG format - colour and bump - UV mapped LWO and non-native FBX and OBJ formats.
Textures set to varying real world scales aligned to level of detail required:
3 pixels per real size inch (main model)
12 / 48 pixels per real size inch (decals)

GENERAL
Model built to real-world scale
Units used: Feet and Inches. Model is 9 feet high and 12 feet 8 inches in diameter
Scene objects are organized by layers and groups

ANIMATIONS
Pivot points and morph targets are preset in Layout file for all animatable features/layers shown in animation preview video files. Please refer to accompanying downloadable PDF file for more detail on morph targets.

ADDITIONAL NOTES
Apollo Service Module NOT included
Apollo CM Command Module ELS canopy splashdown reentry recovery spacecraft Chute Parachute Ringsail Northrop Ventura Pilot Main Ringslot
