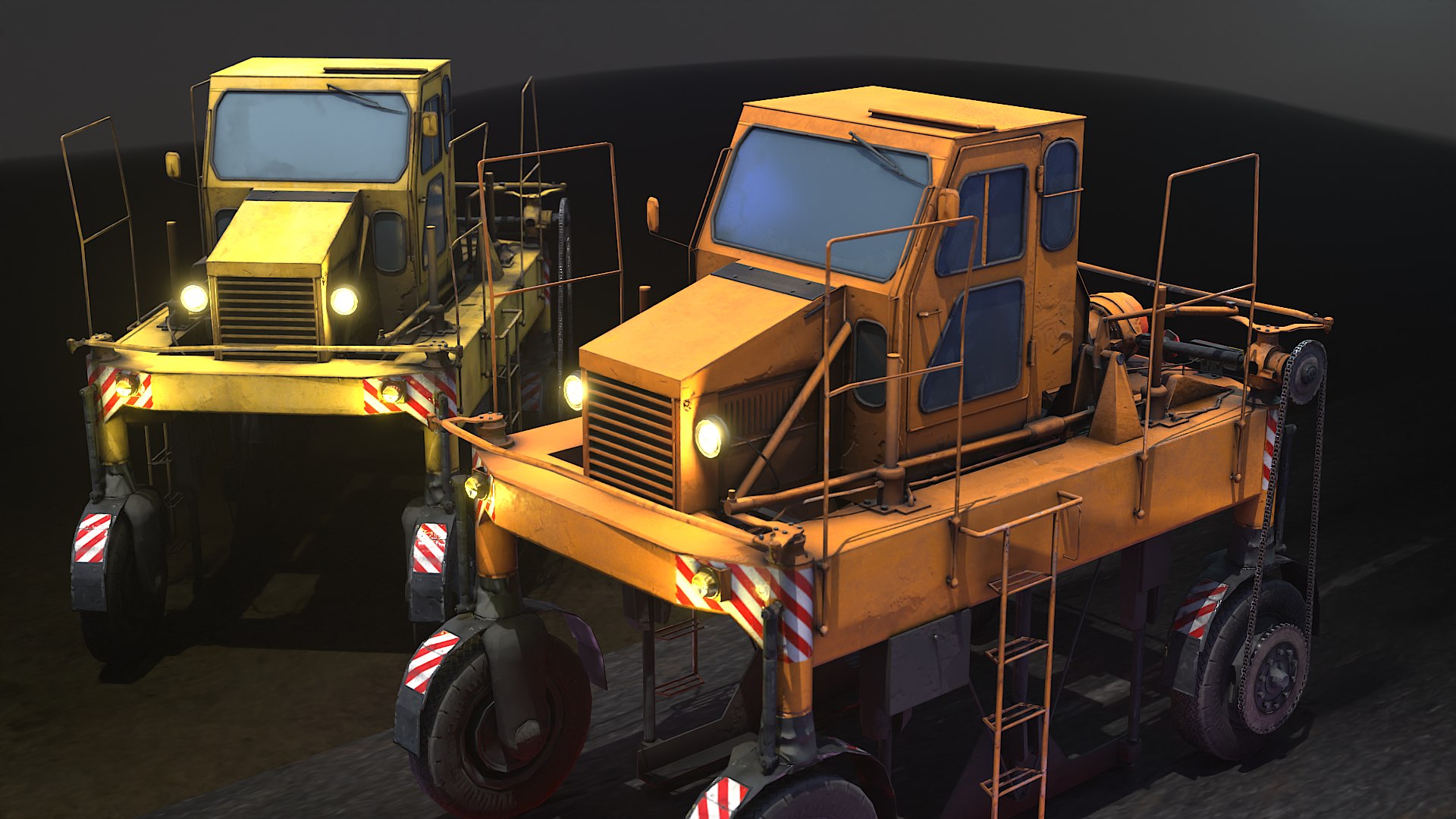

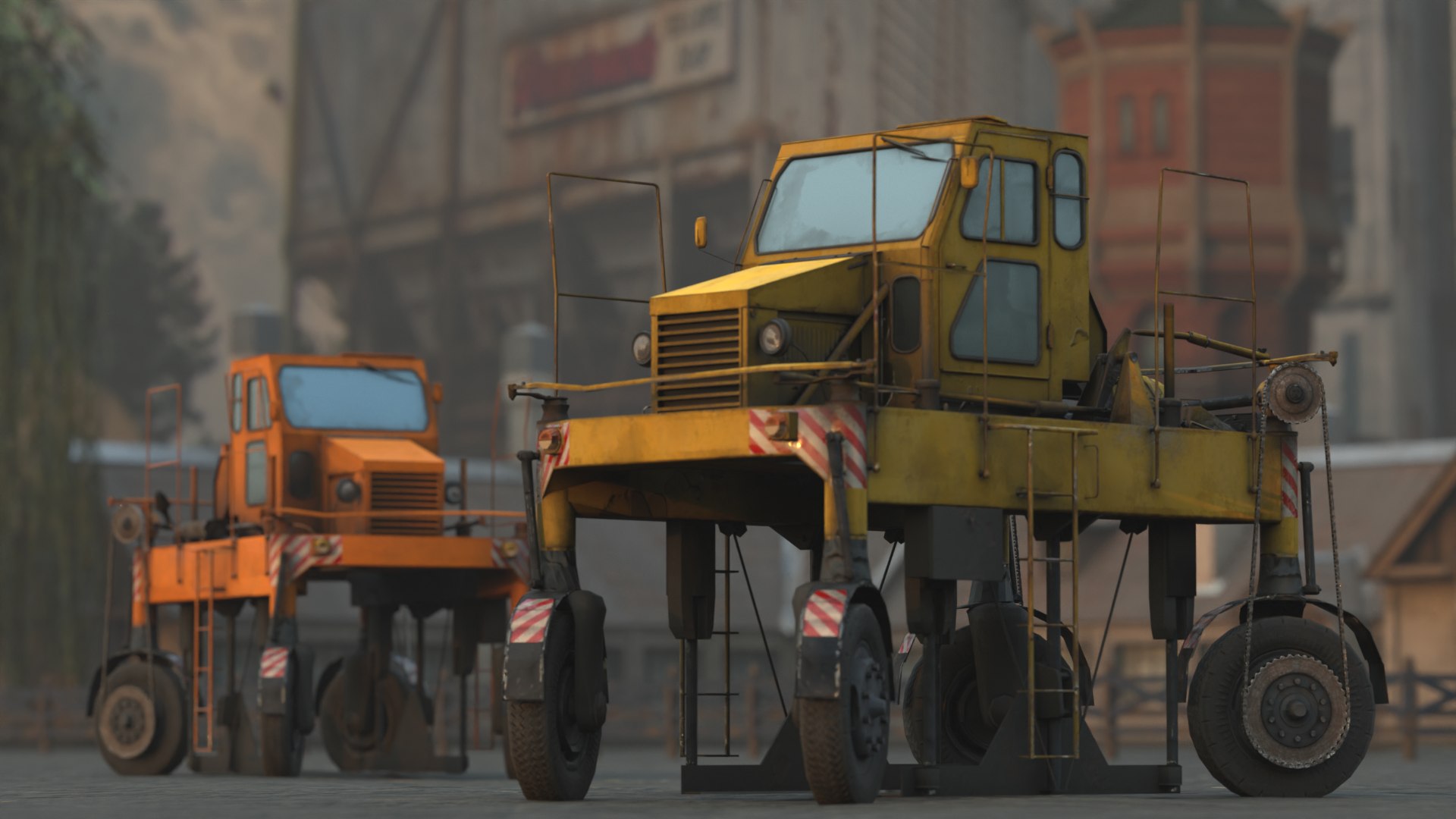

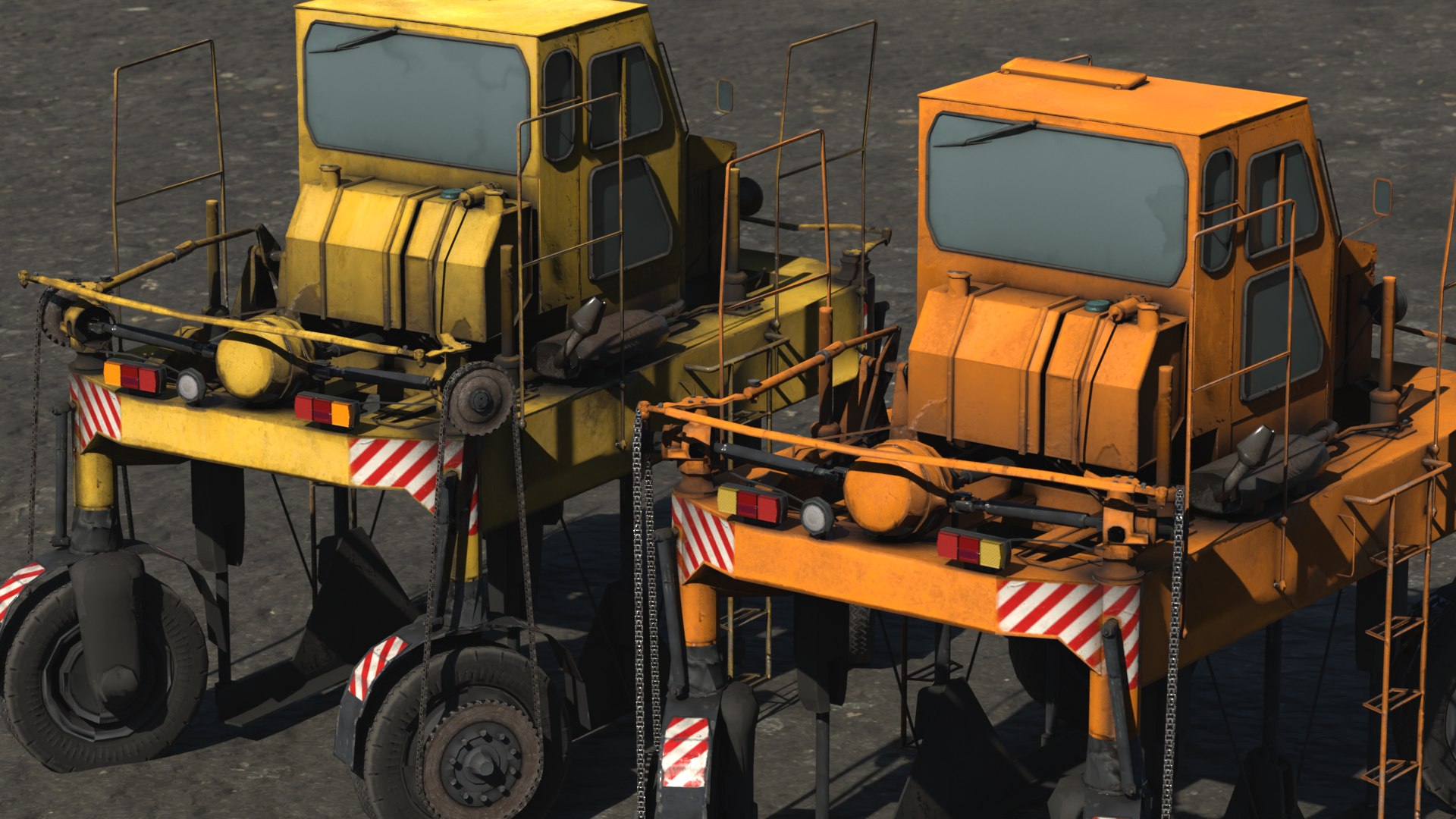

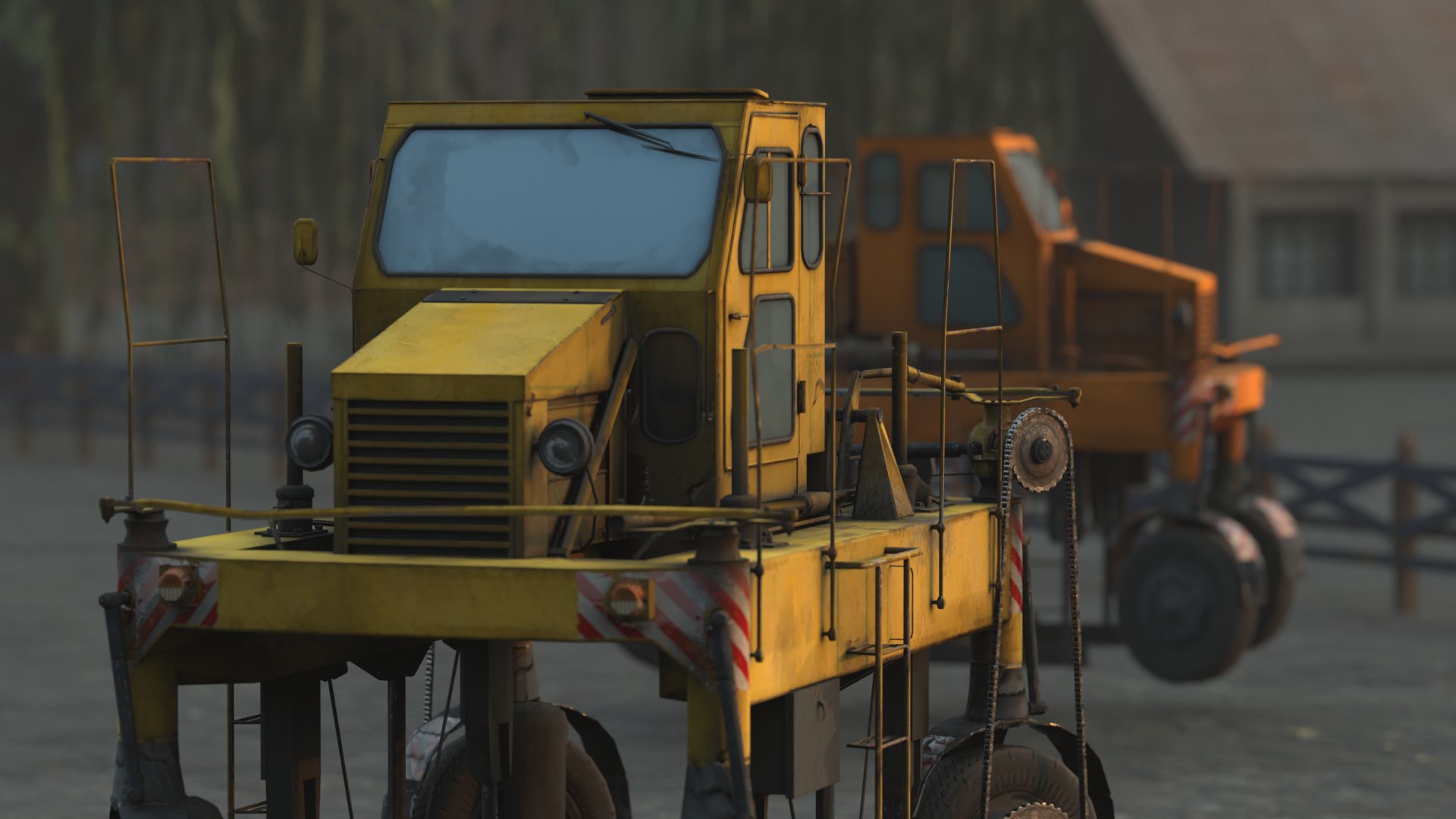

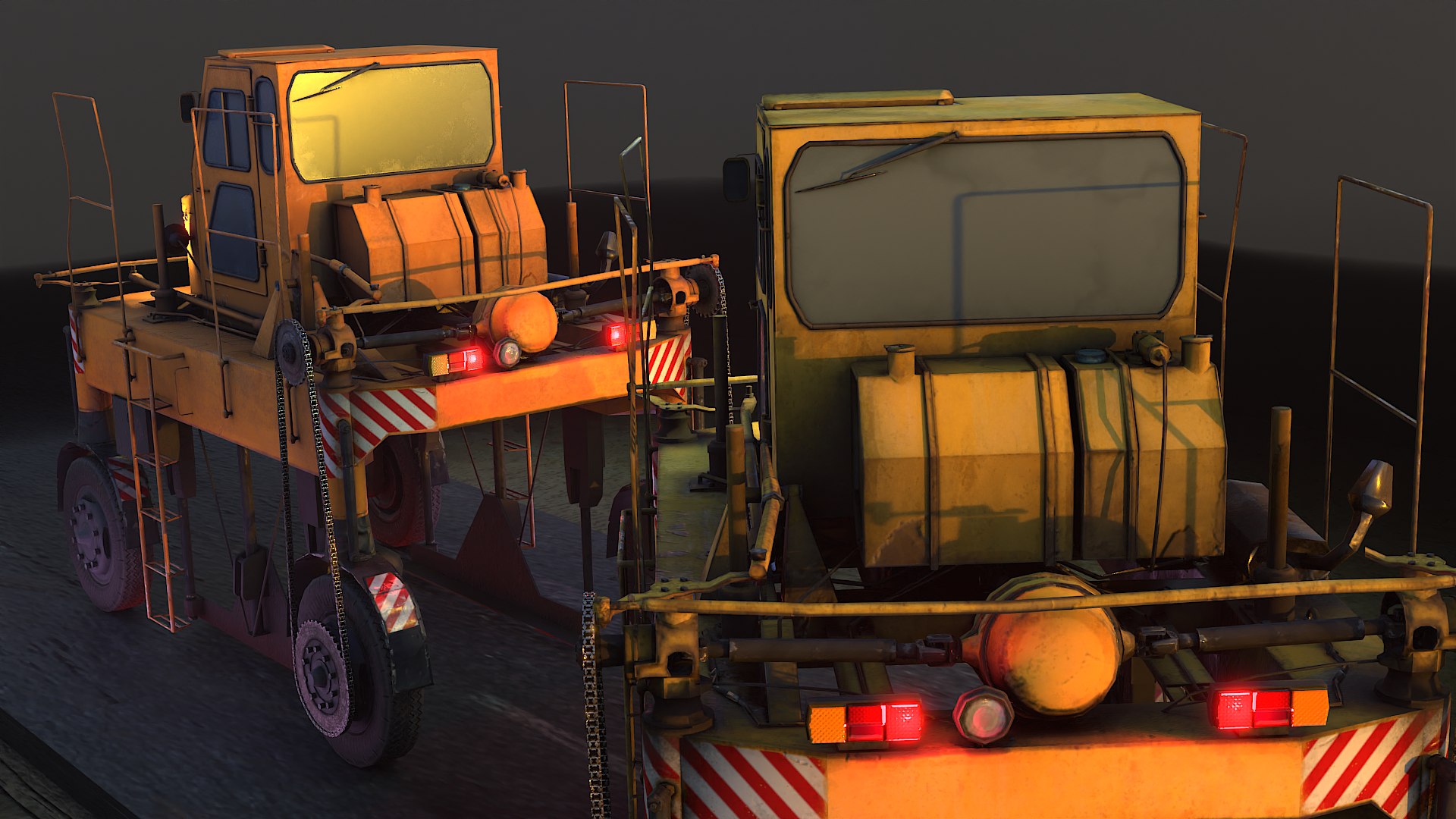

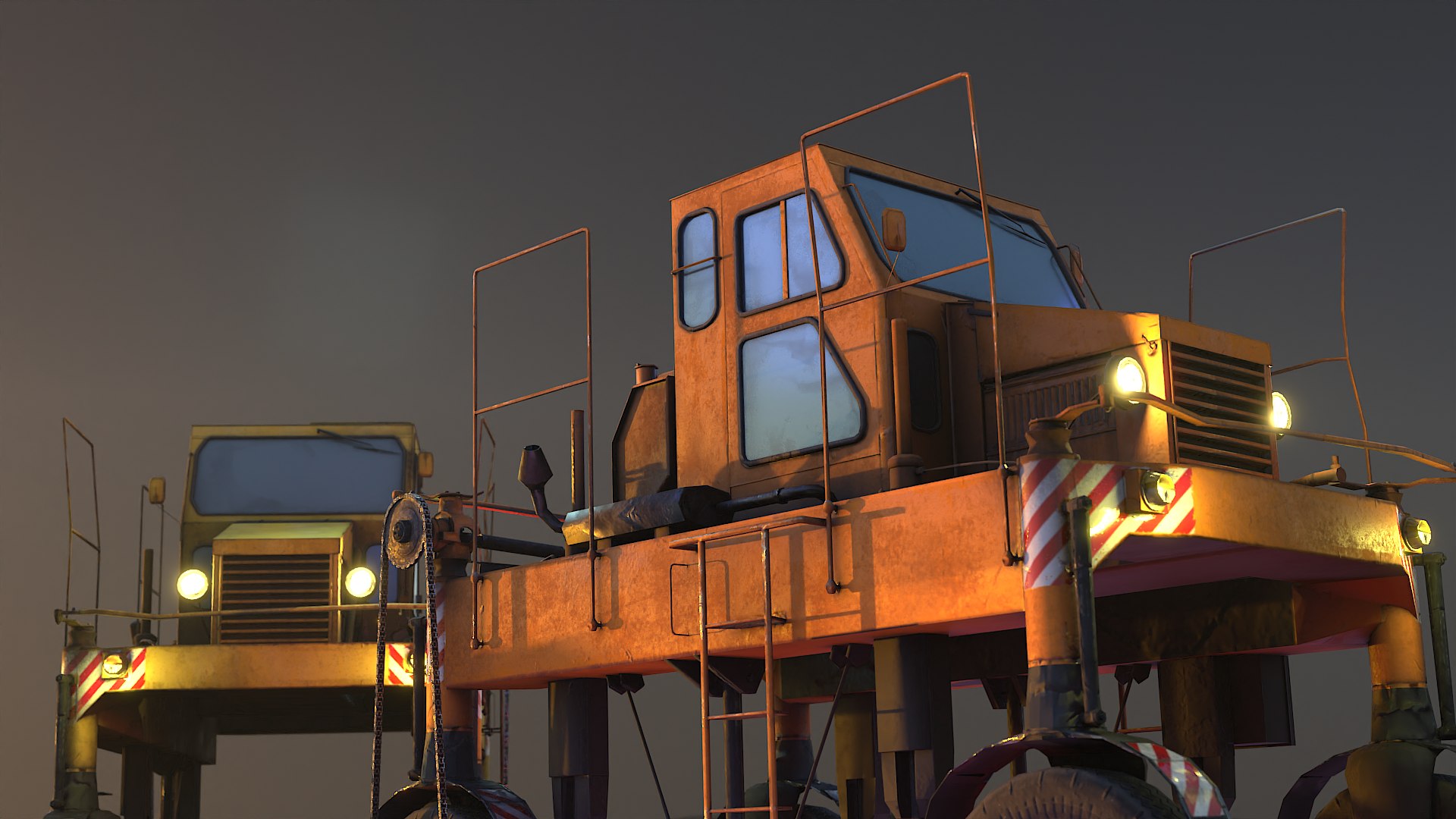

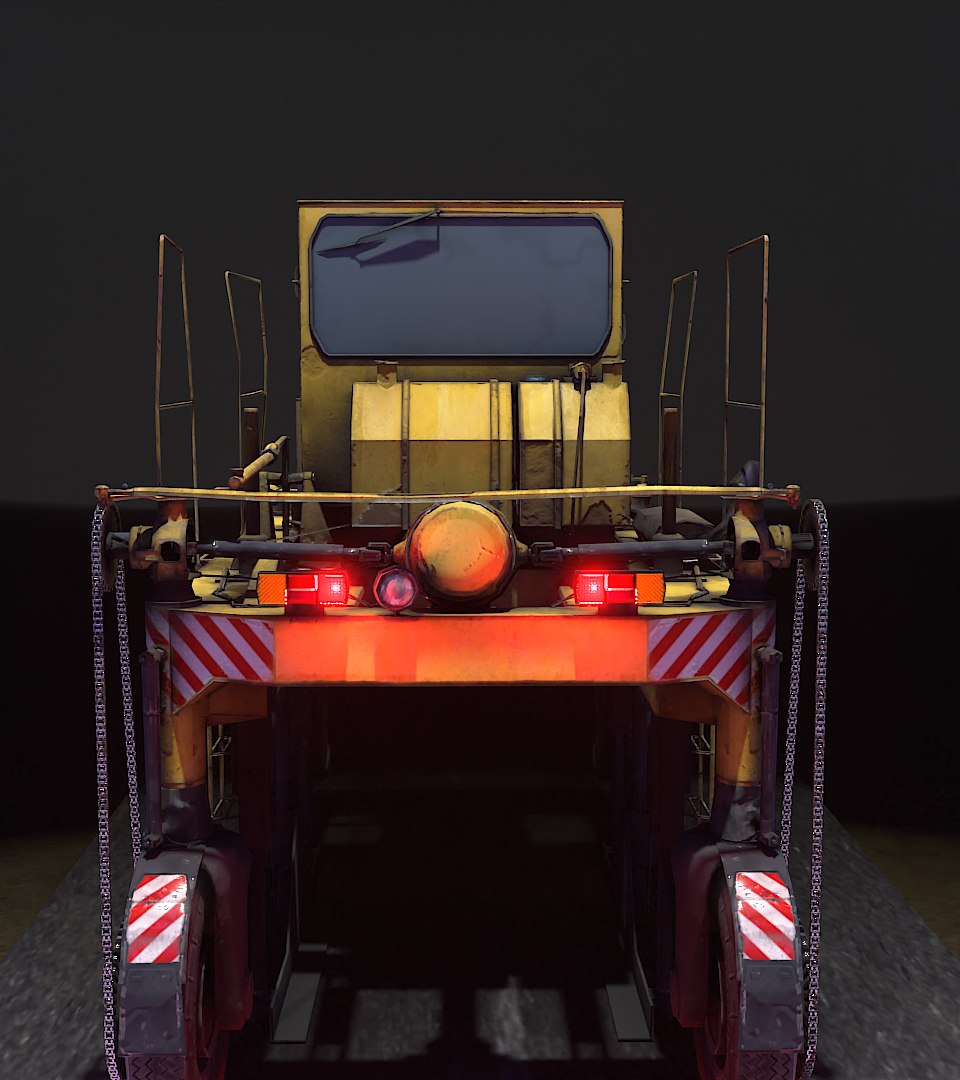

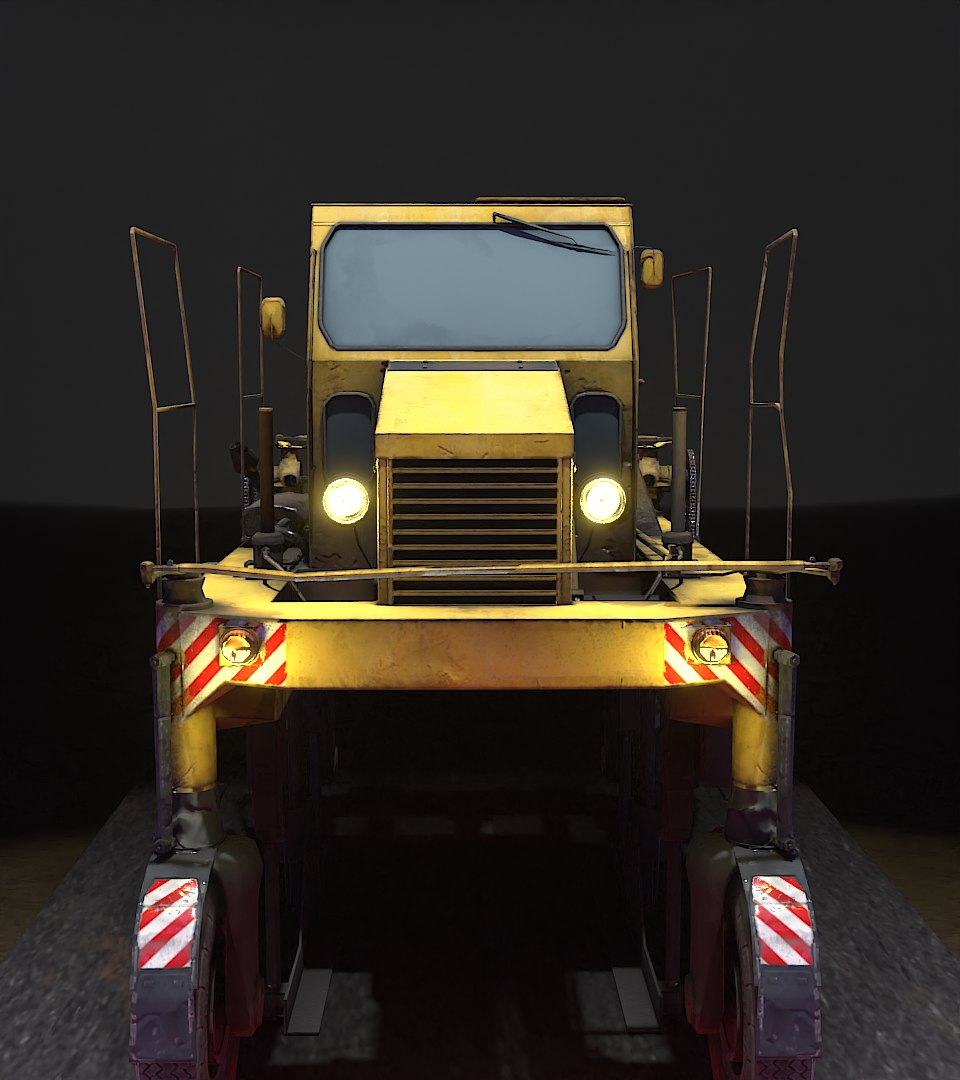

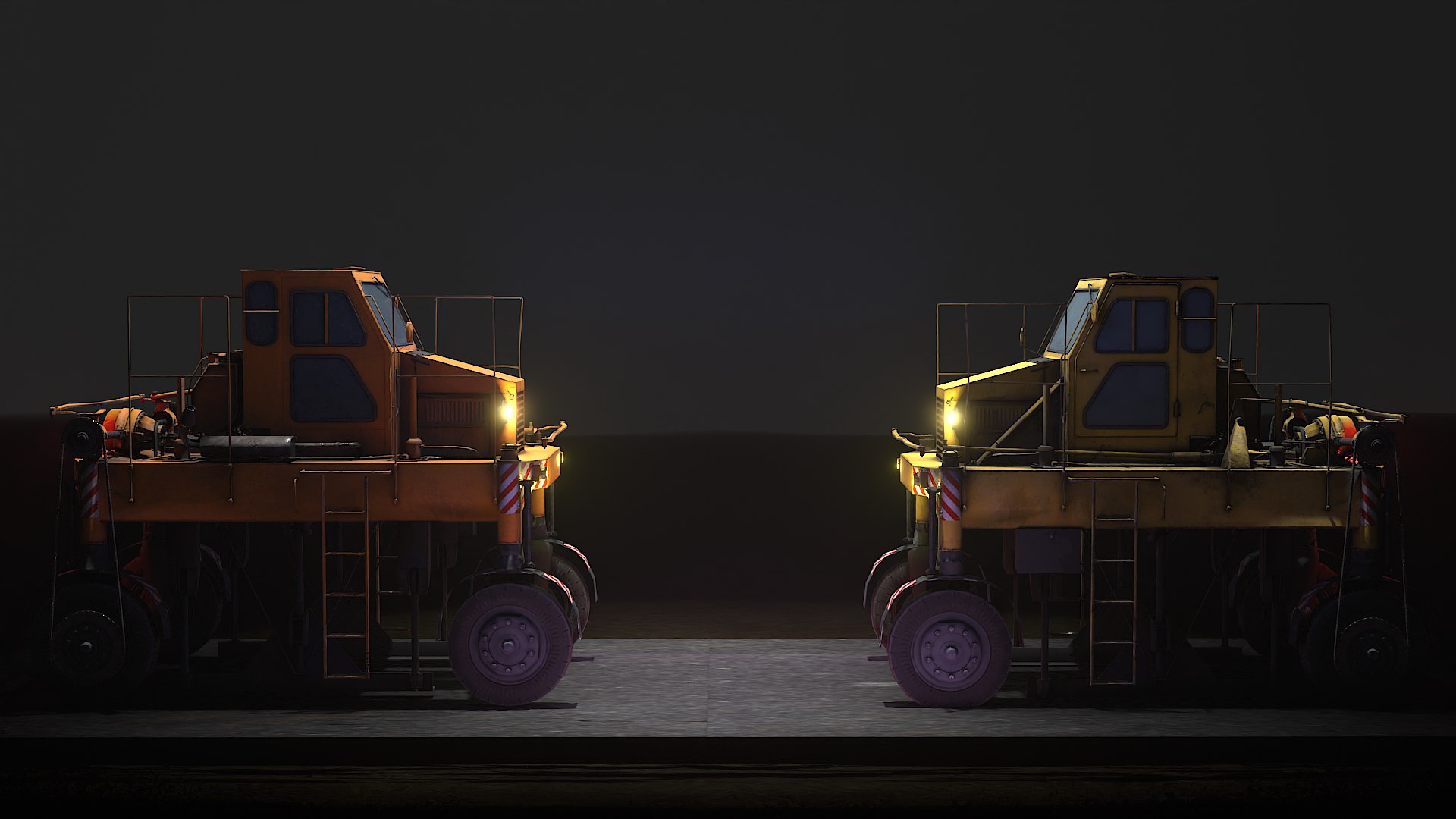

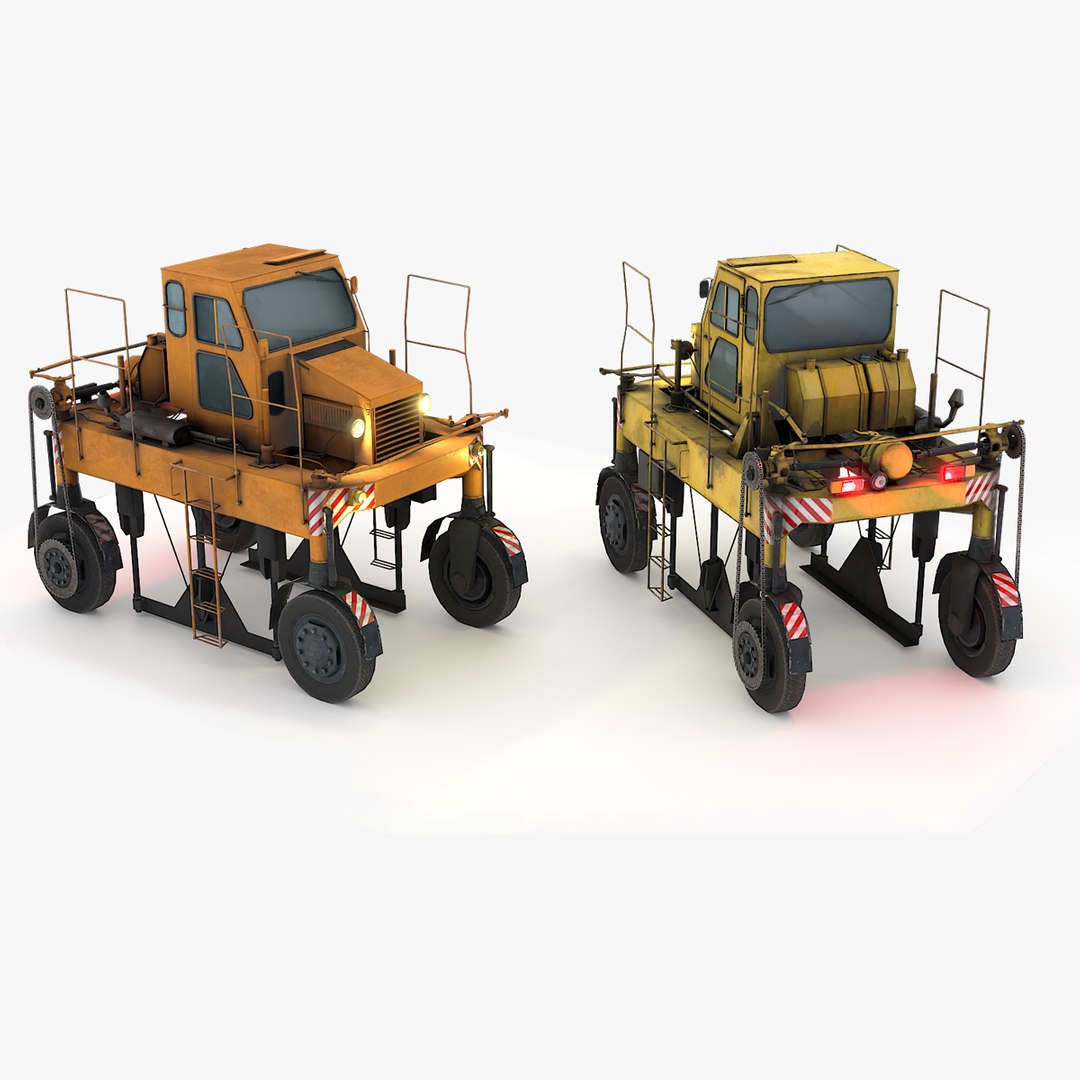

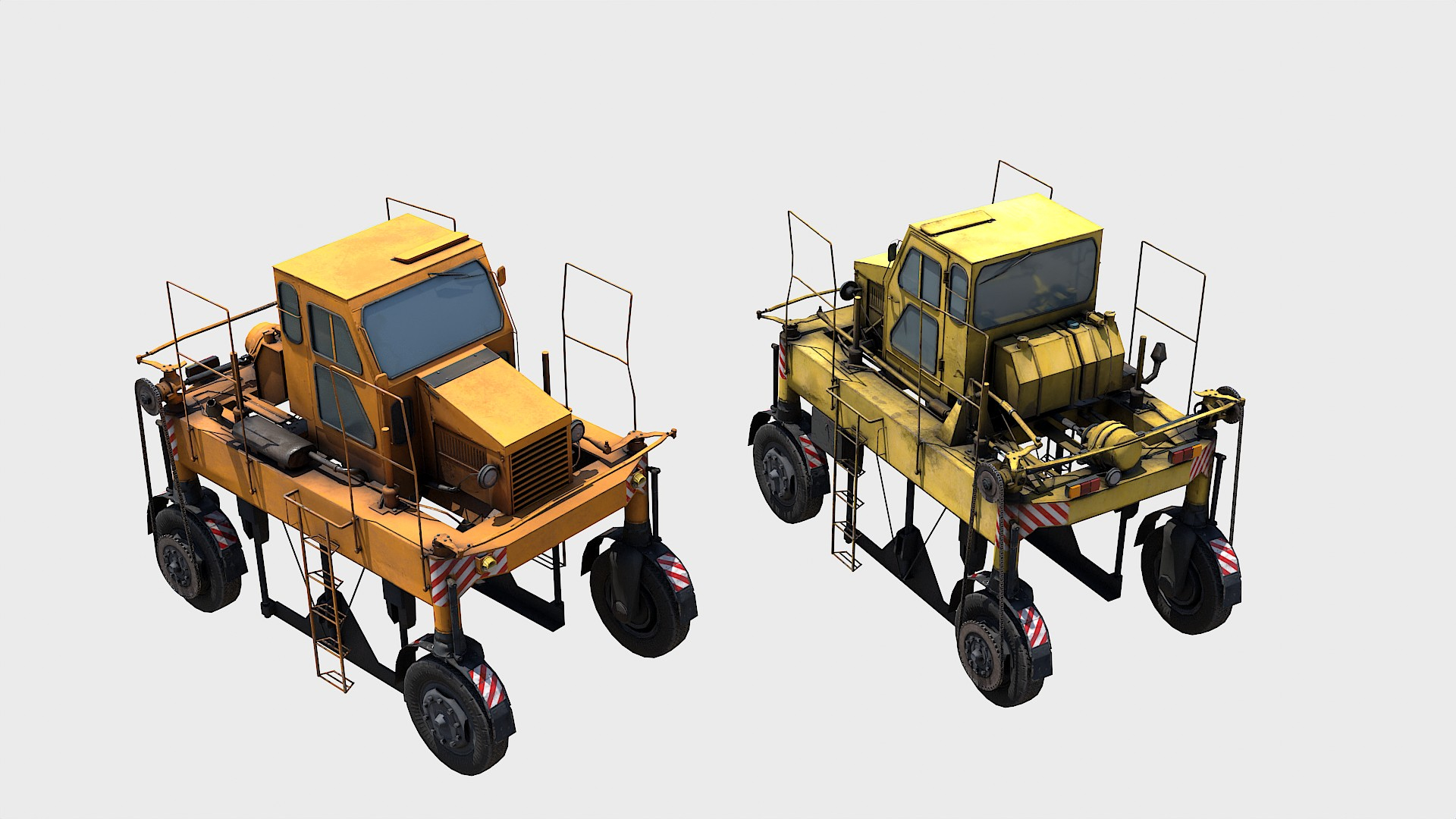

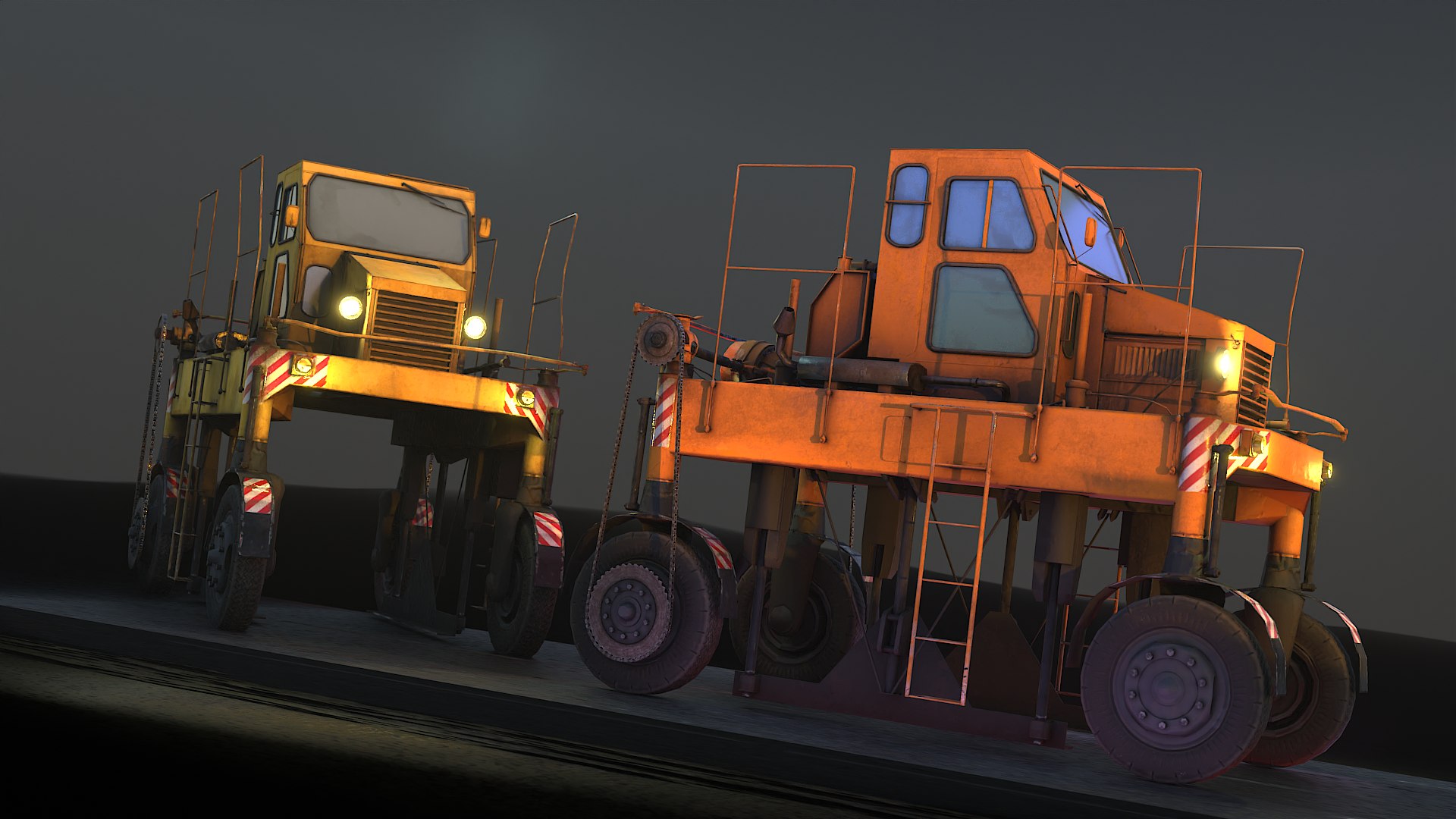

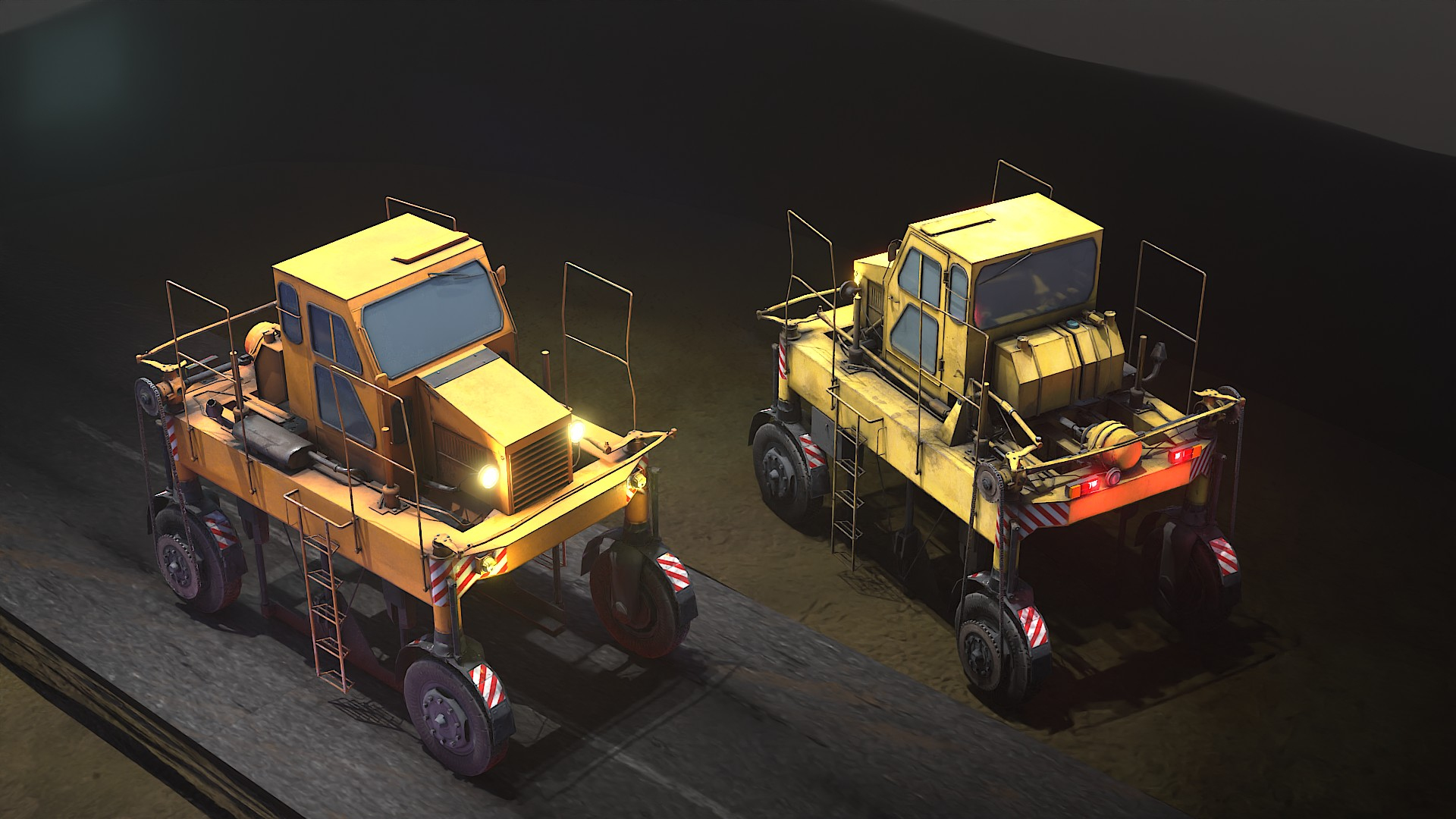

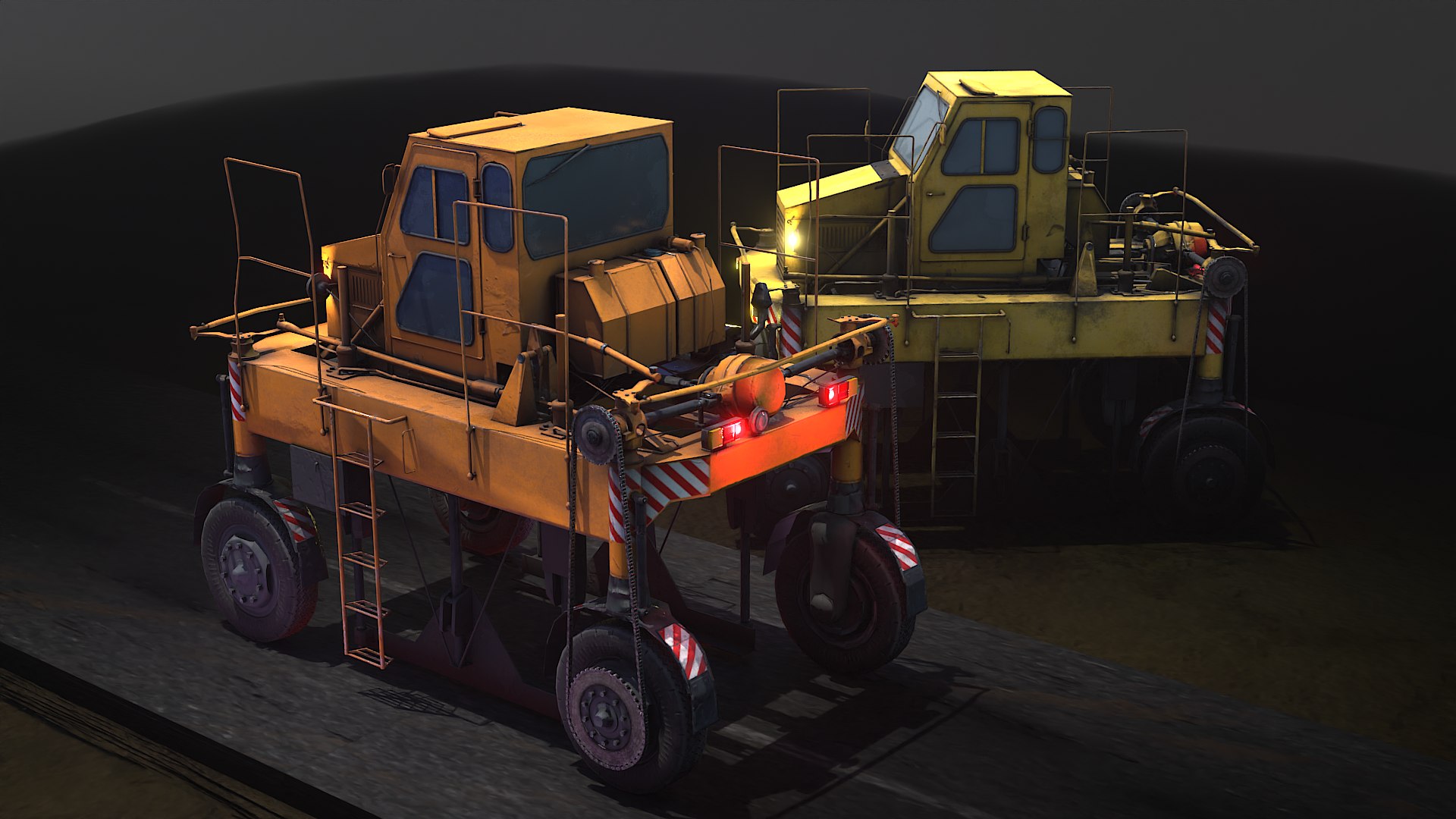

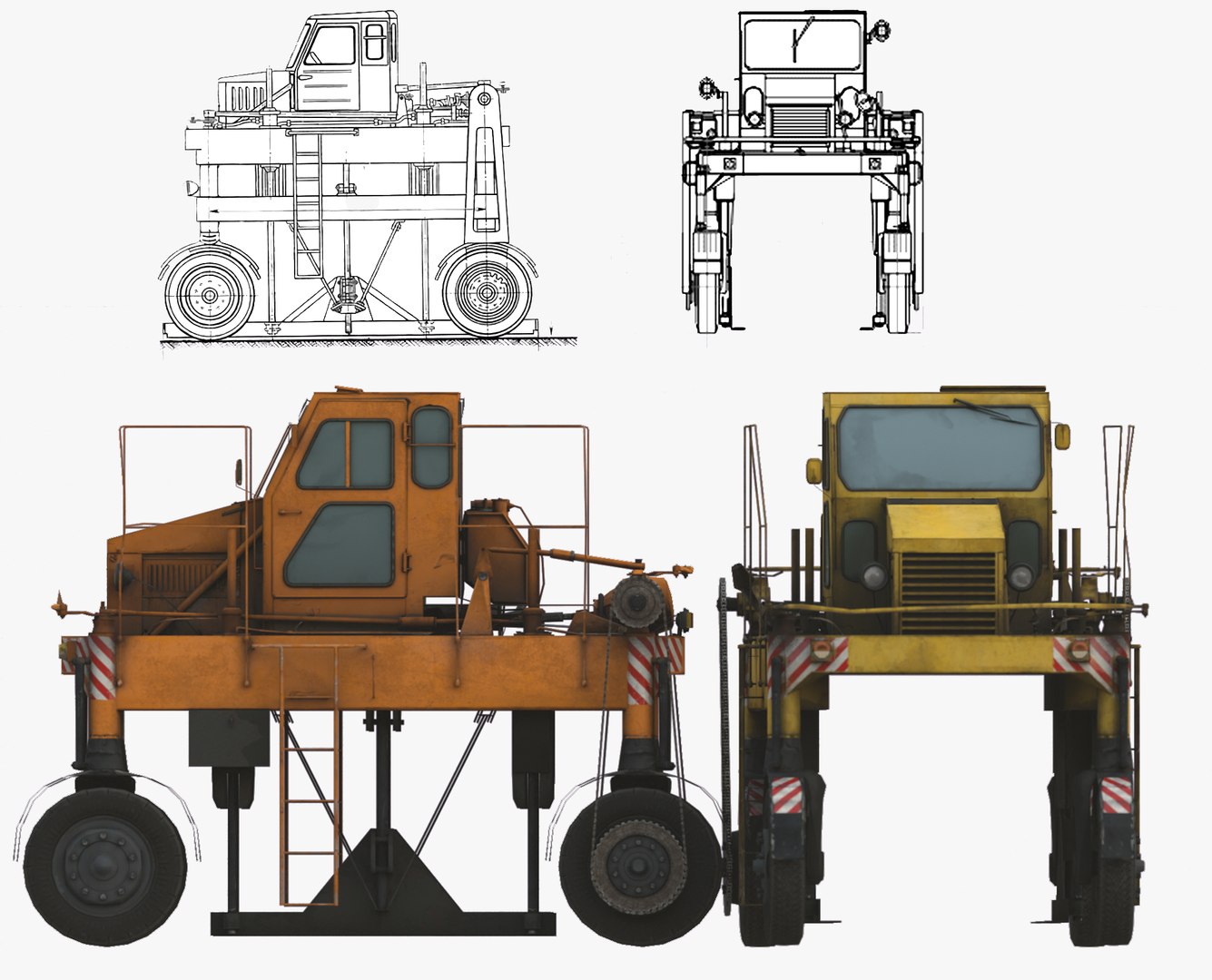

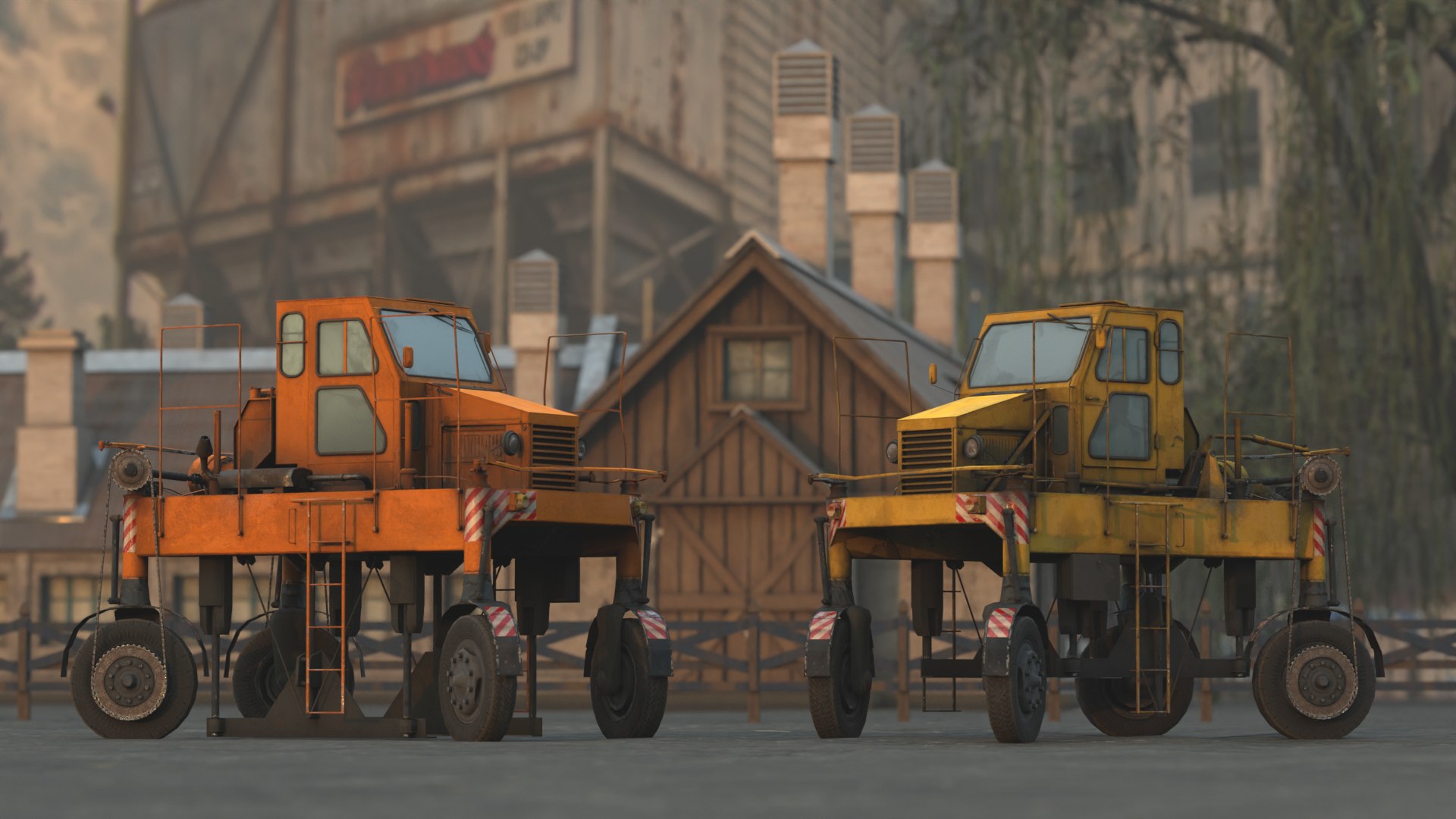

Model Description:

This vehicle was used to transport pallets with loads (most often boards) in factories and warehouses and woodworking factories.

It has a simple structure, a chain drive, four swivel wheels, and a lifting mechanism.

Produced until 2010.

Technical description:

The model for the economic strategy, for the far position of the camera. The main requirements are saving polygonal mesh resources and texture size.

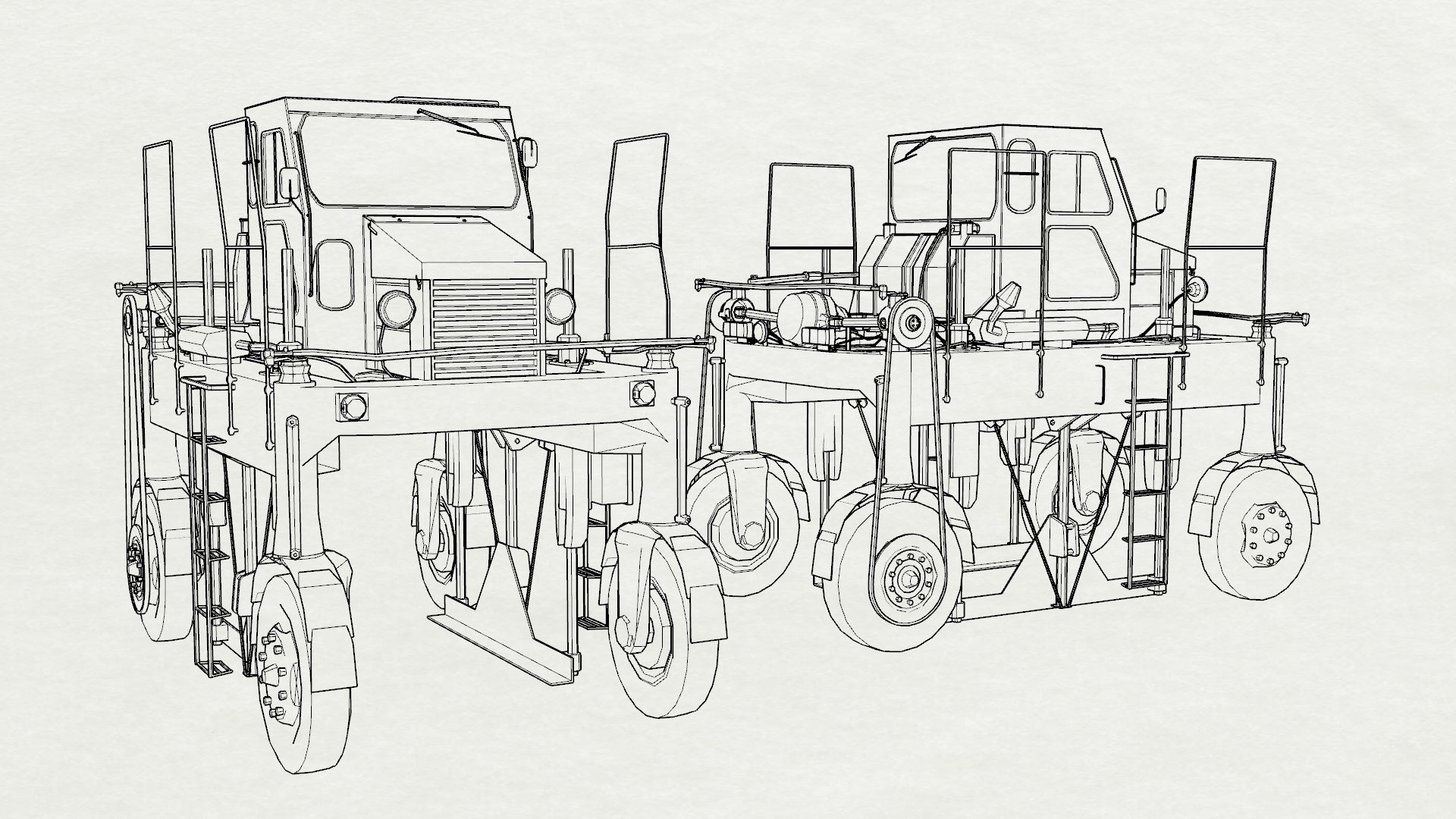

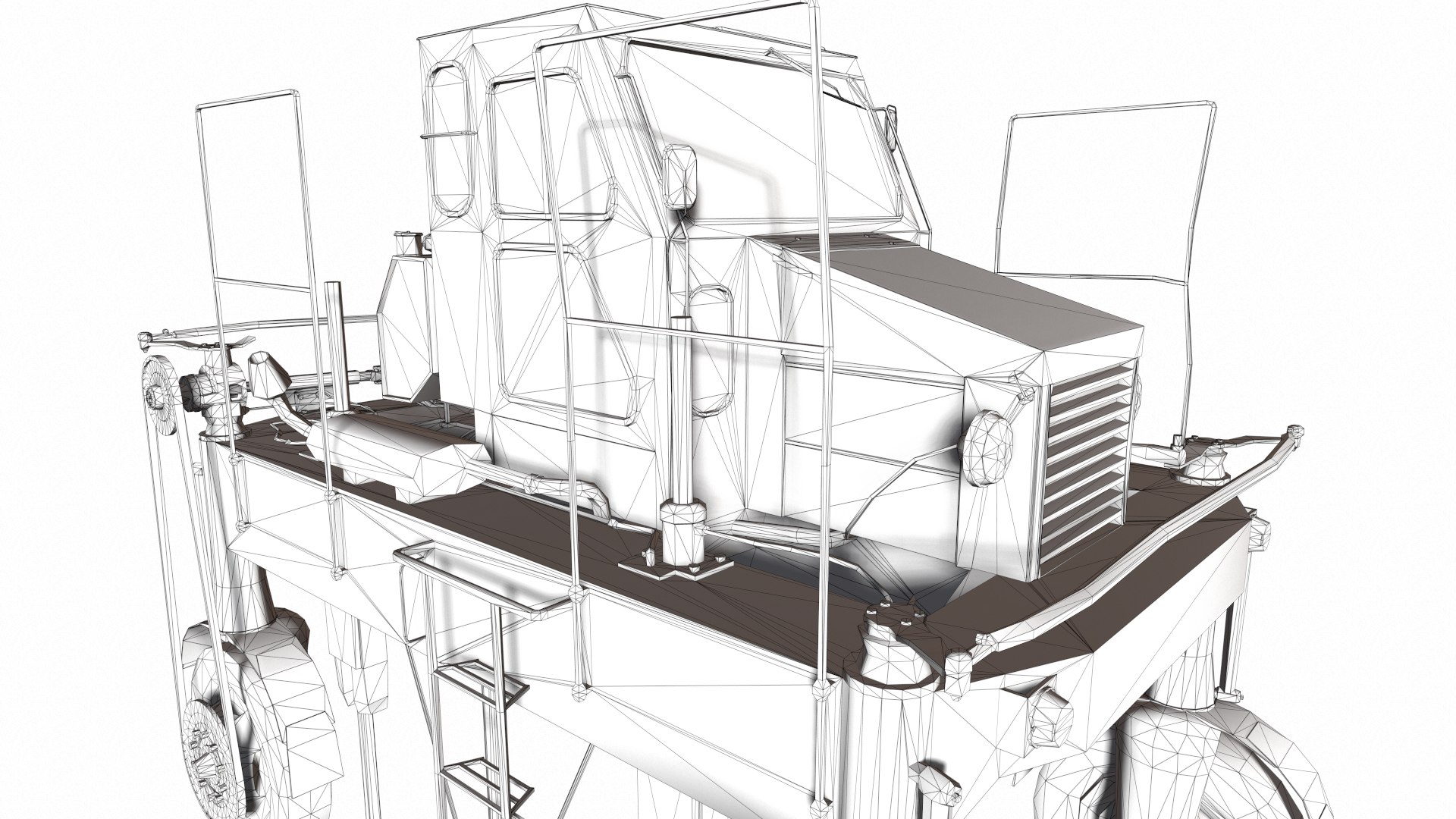

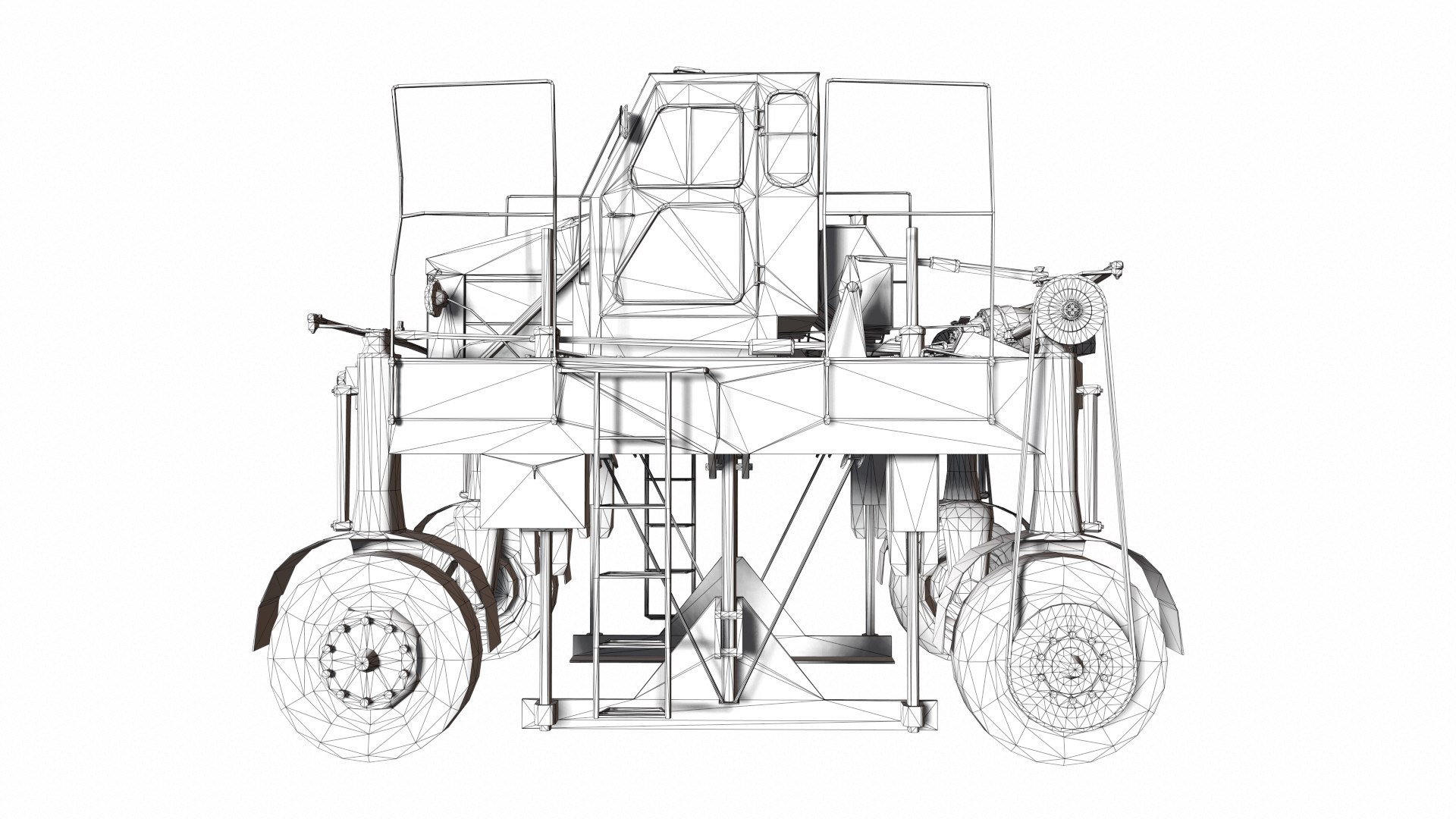

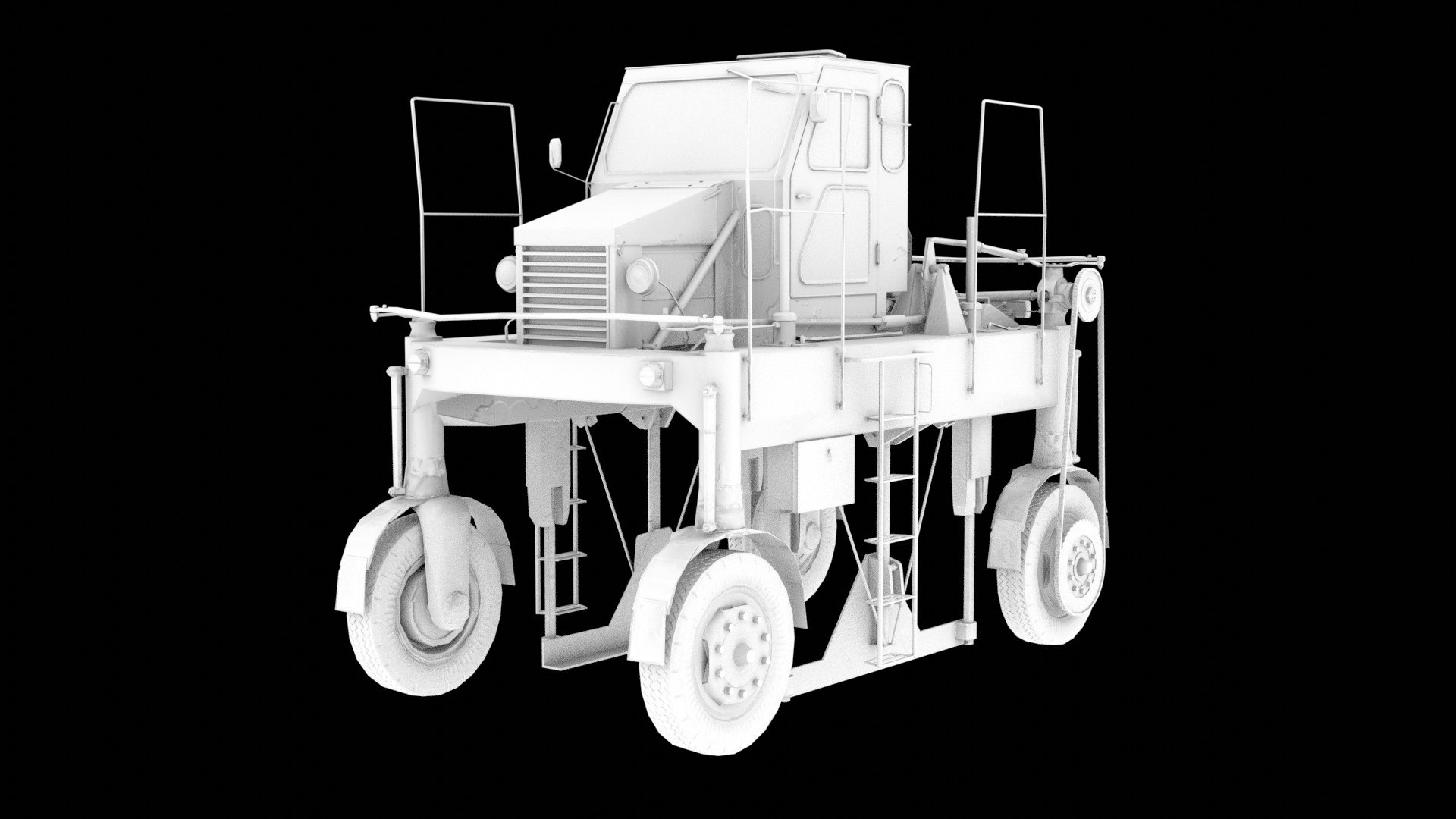

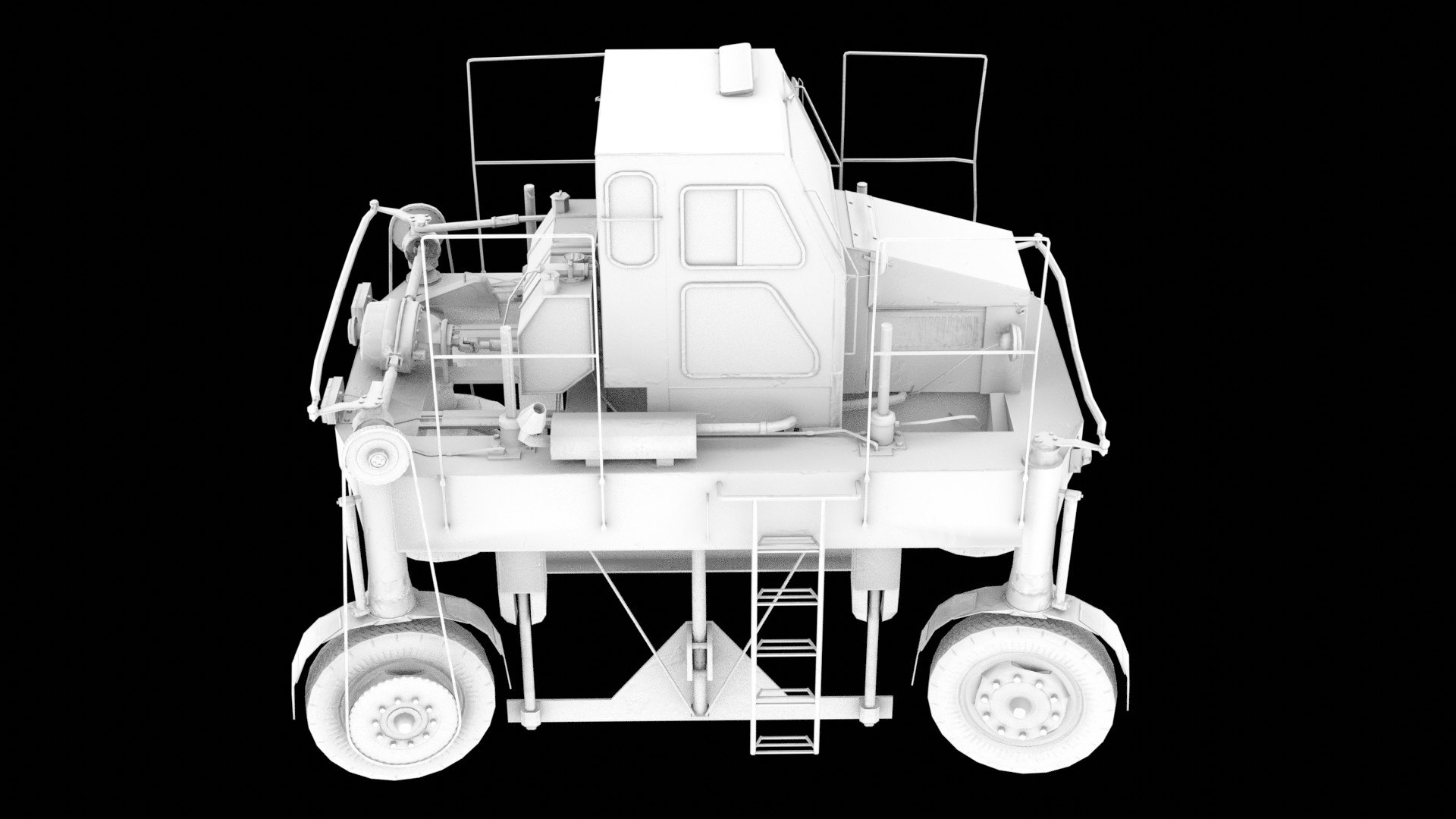

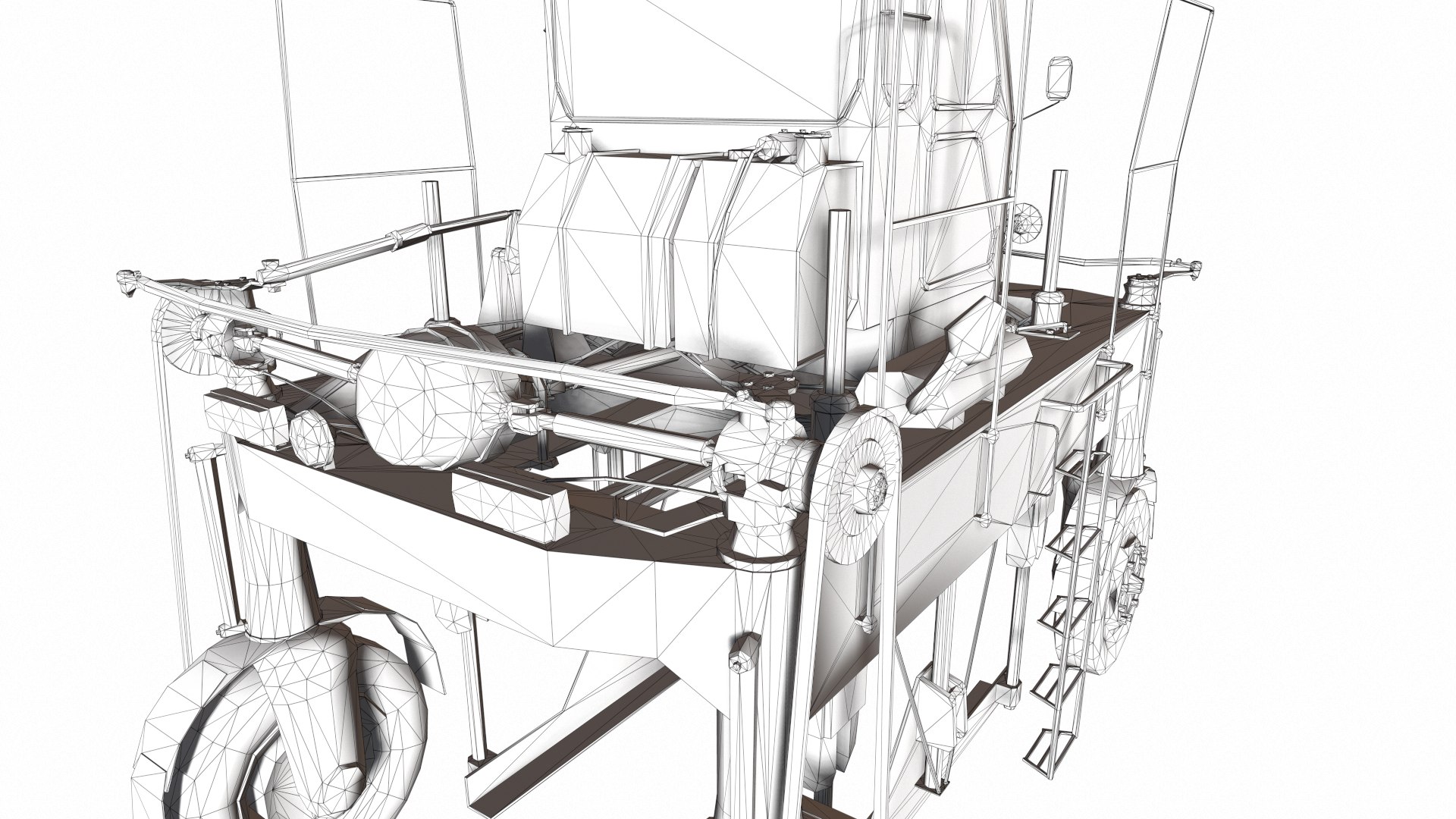

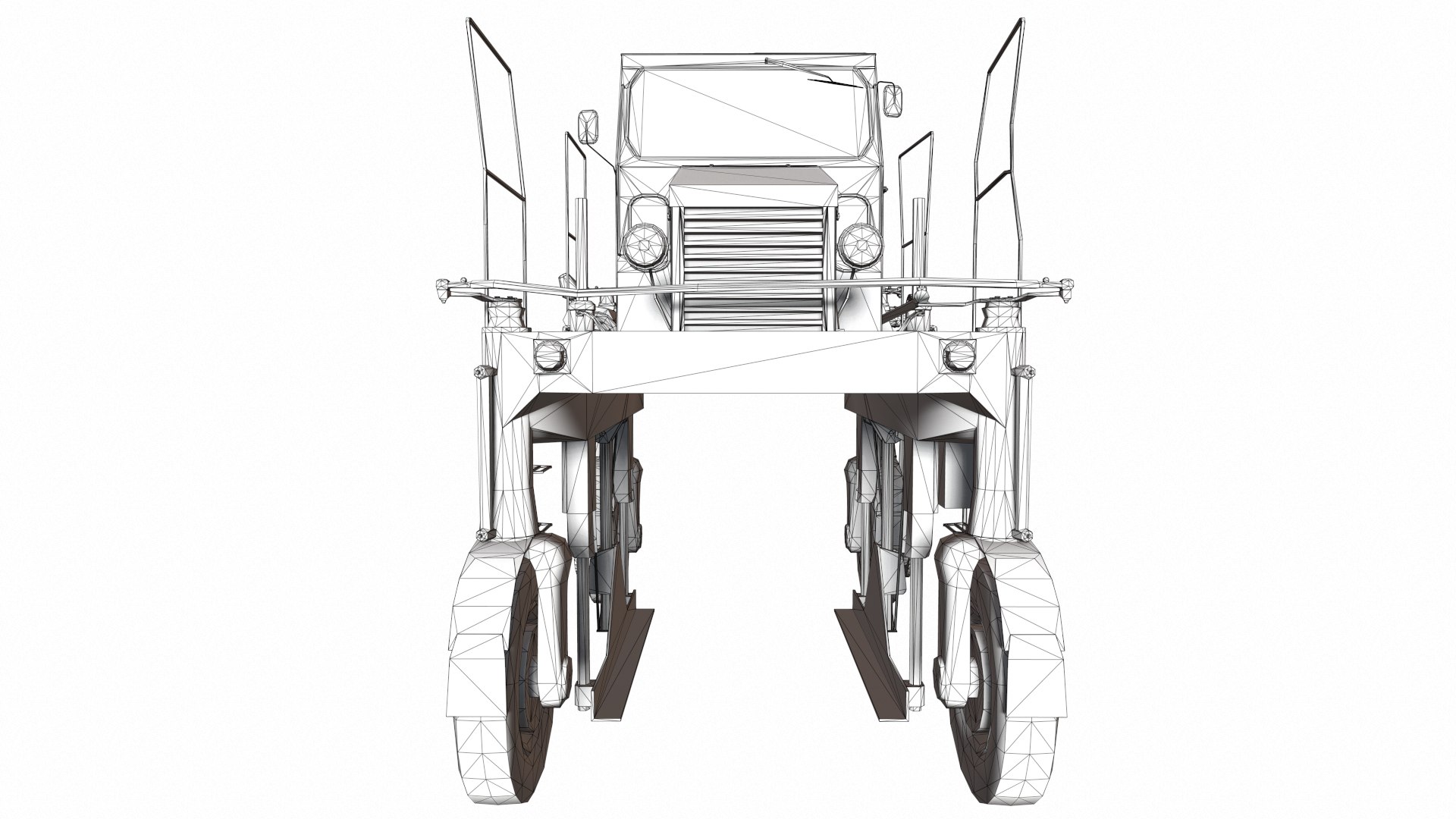

Mesh:

30,000 triangles.

15,000 vertes.

Mesh is stitched (Connected into 1 object ). Mesh-Errors cleared out. Divided in places of animation. Triangulated.

2 materials for the whole model.

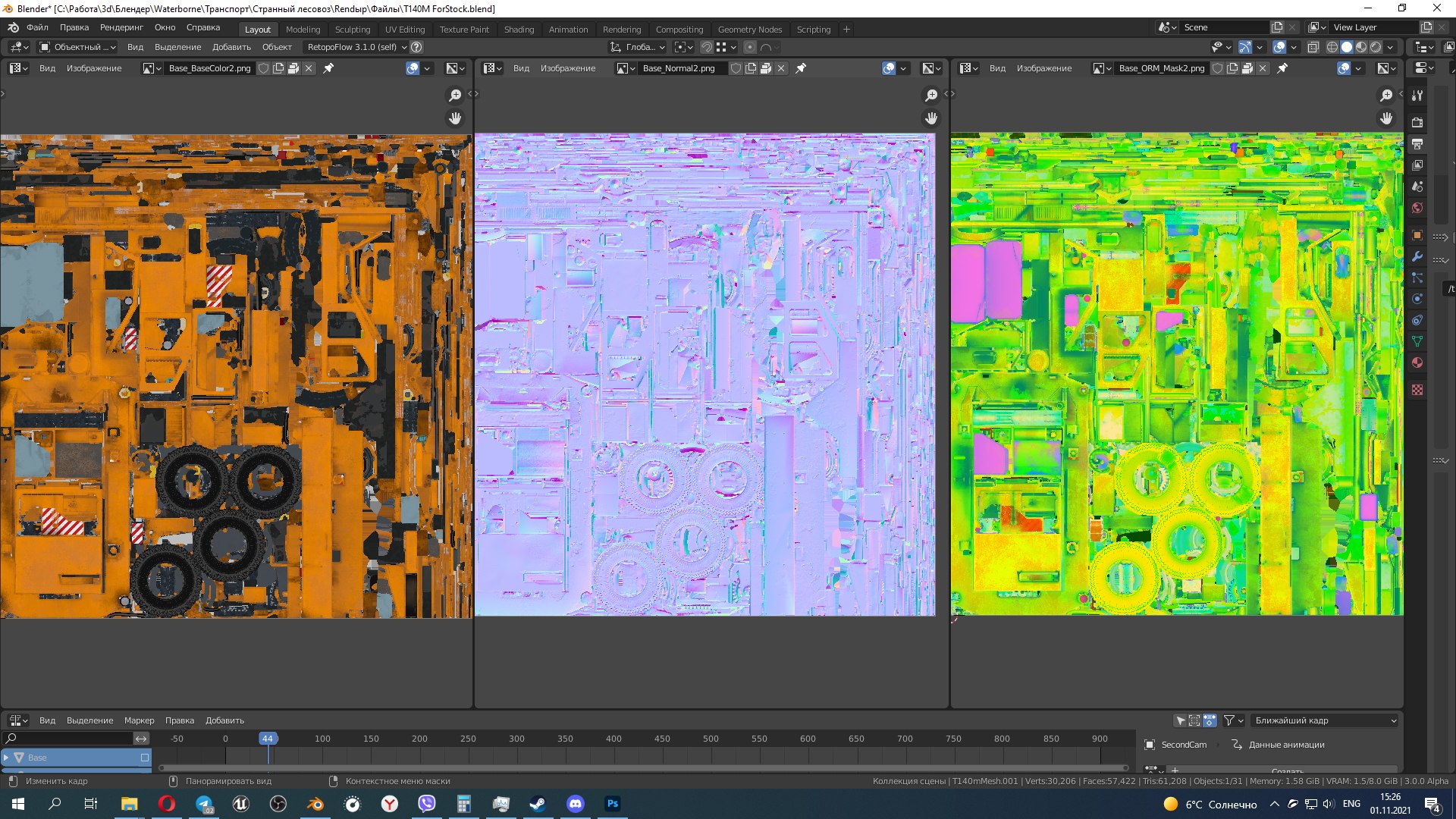

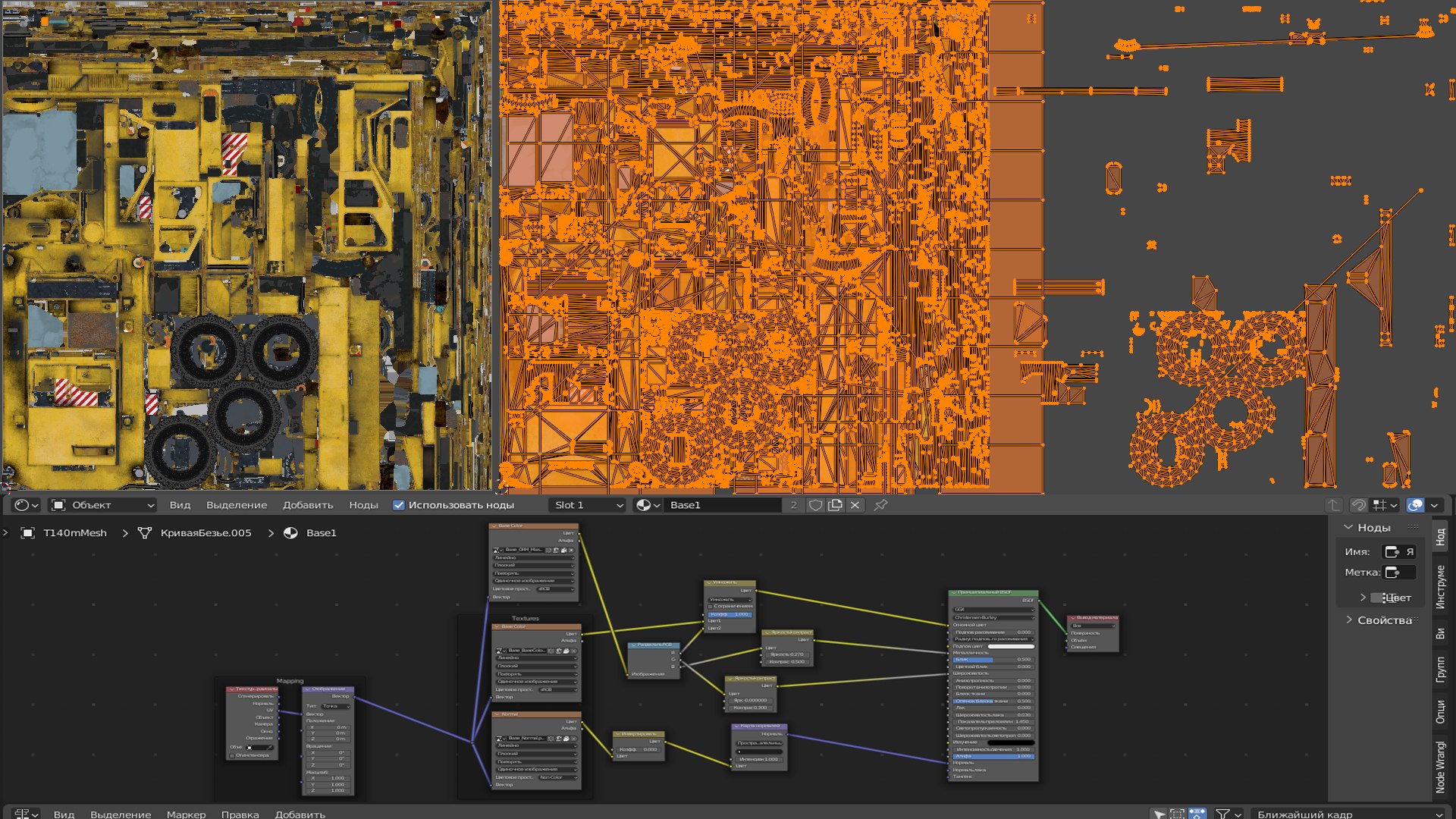

Textures:

2 sets of textures:

1) 2048x2048 - Car body. Base, normal, ORM.

2) 1024x1024 - Chain and gear trims. Base, normal, ORM.

40% textural overlaps (to save texture space).

Full LP and HP and complete baking of the entire model.

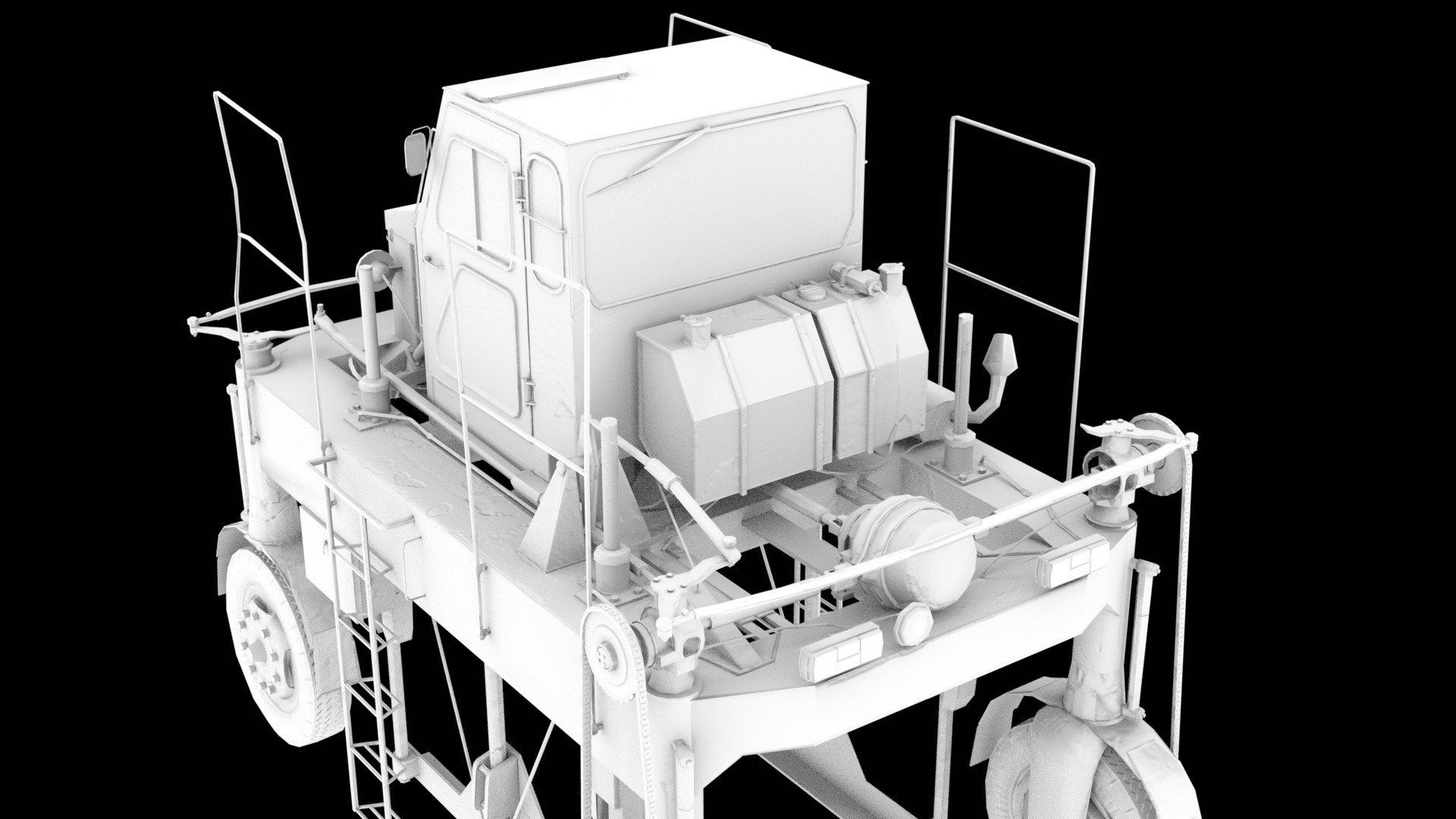

Complete PBR maps + complete map of AO.

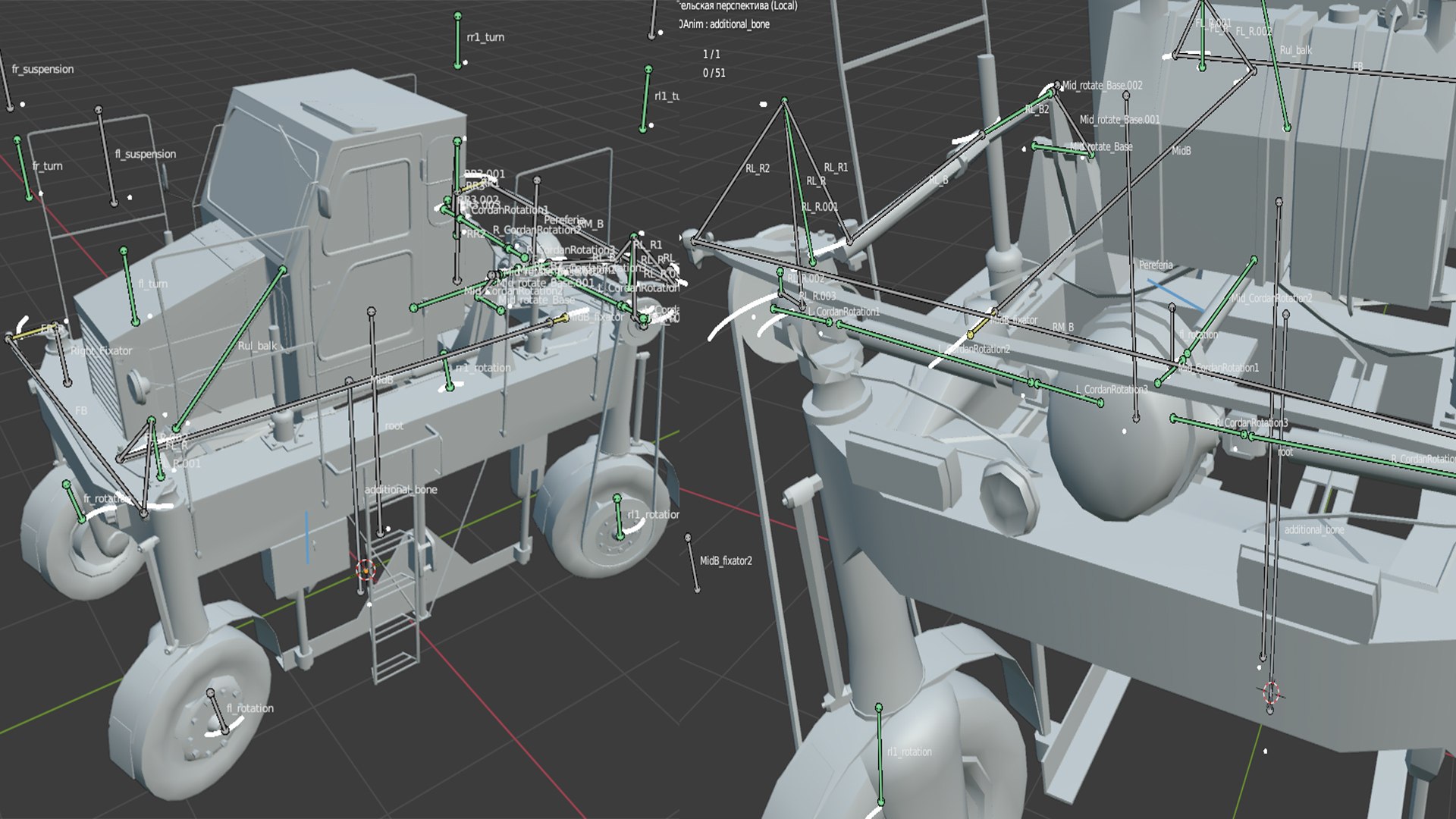

Animation:

Complete skeleton. Physically correct control of the steering levers. Direct and inverse kinematics. Vertex painting of deformable places.

Animated:

Wheels, swing arms, longitudinal beams, cardan shafts, lifting mechanism, steering rack.

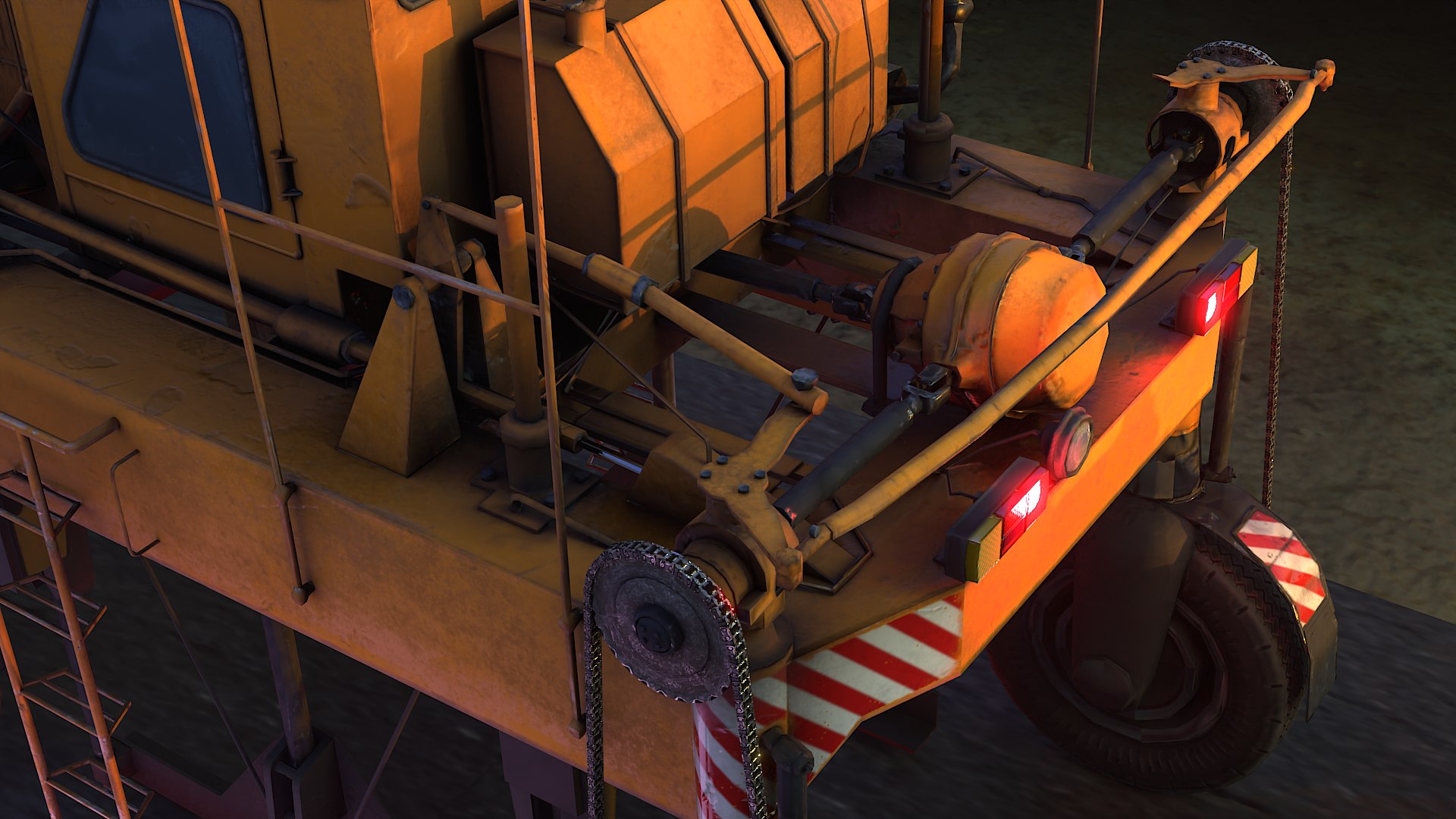

The chain and gears are animated using trims.

The work took me 180 working hours.
