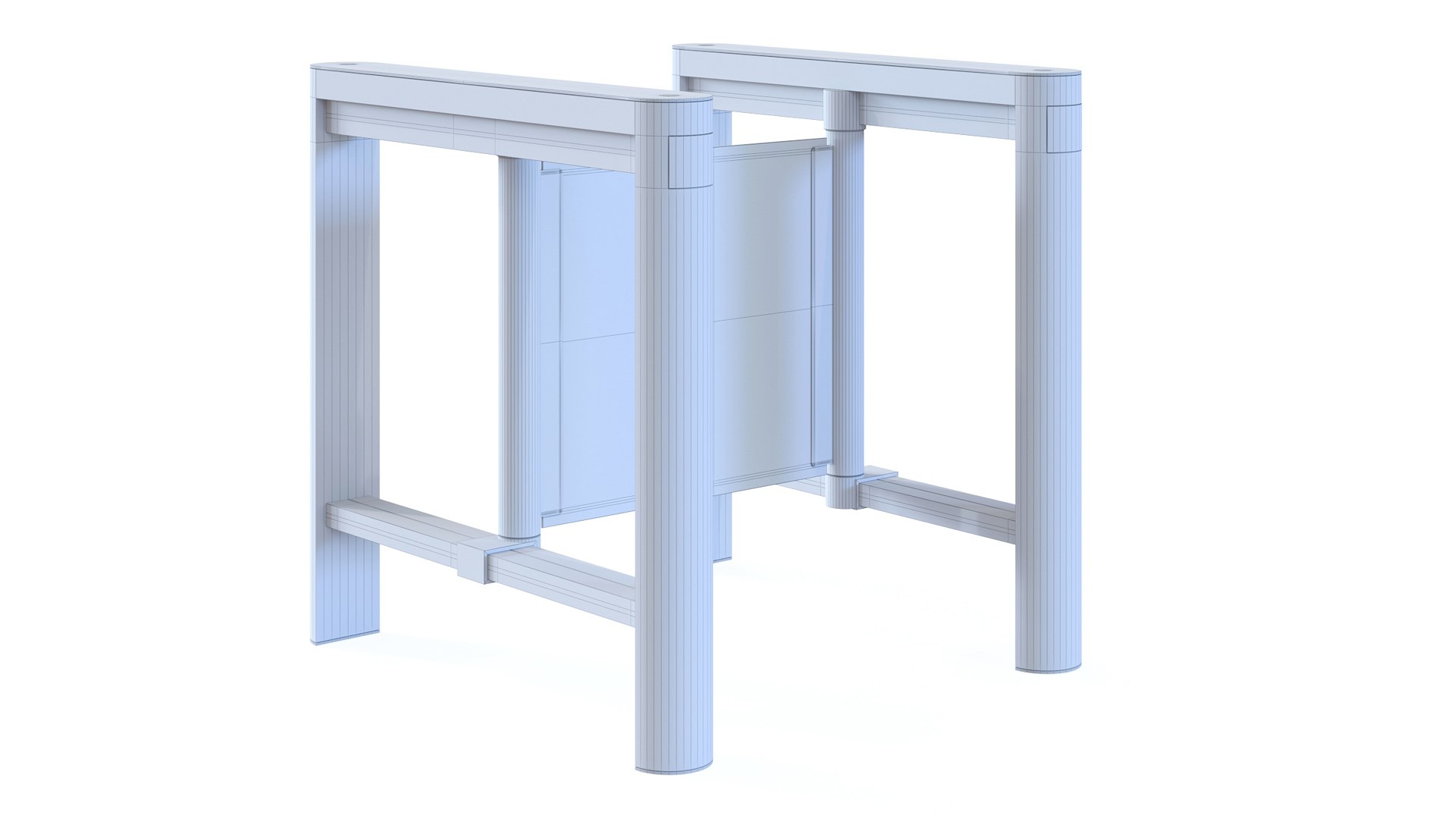

Motorized swing smart turnstile "SG1000/835mm" from EasyGate.

**S W I N G T E C H N O L O G Y**
combines the slim design of the EasyGate cabinet
with a high speed drive unit. Our designers focused
on fitting swing speed gates to any location whilst
keeping the ability to implement a wide range of
optional accessories without limitation. Moreover our
technology offers different Swing models for indoors,
as well as outdoor installation with the additional
option of altering the cabinet length and glass wing
barrier height which provides the perfect solution for
all projects.

**Type**
Swing technology
• 1 000 (length of cabinet in mm)
• 1 wing / 2 wings
• SG model - round front
• SR model - square front

**Safety & Security Detection**
• 24 pairs of IR sensors
• Safety & Security levels
• Tailgating / Cross over detection

**Special features**
Wide passage lane
Arc layout
Staggered/diagonal layout

**Operating Environment**
Indoor
** Drive Mechanism**
Magnetic Direct Drive motor
MCBF 20 000 000
**Stand-by Power Consumption**
83,4 W
**Emergency Mode**
Open automatically
**Optional Accessories**
RFID reader bracket (flush mounted)
Access Light / Lane Light / Wing Light (only for 940 model)
WAV player
Pressure sensing top
USB convertor / Ethernet convertor
RF remote control
EasyTouch / TouchPanel / T-MON SW
SuperCap (emergency power back-up)
Alternative surface finishes / Optional top finishes
Integration of LiftCall / Card collector / BarCode scanner
Ramp LT
