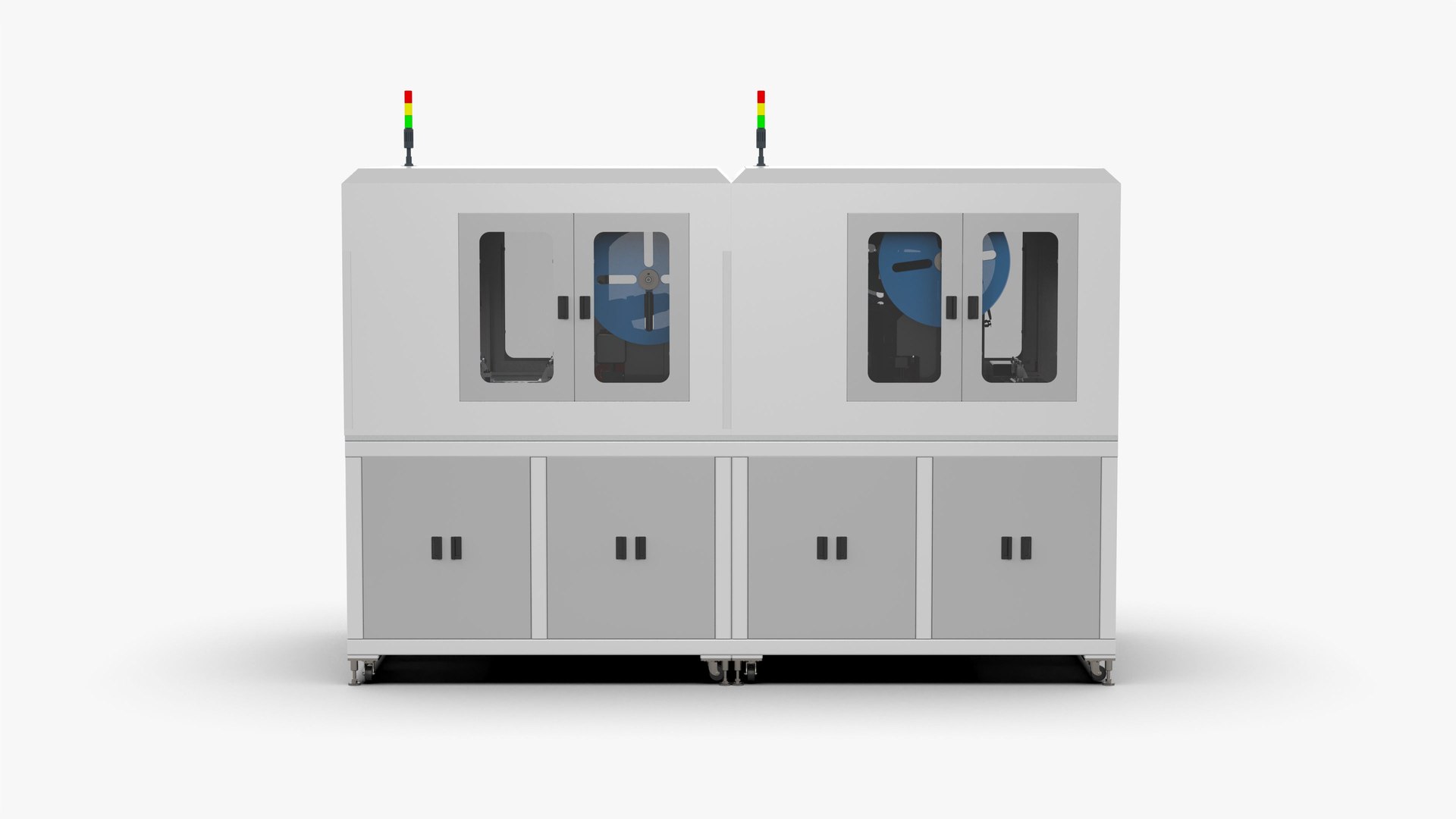

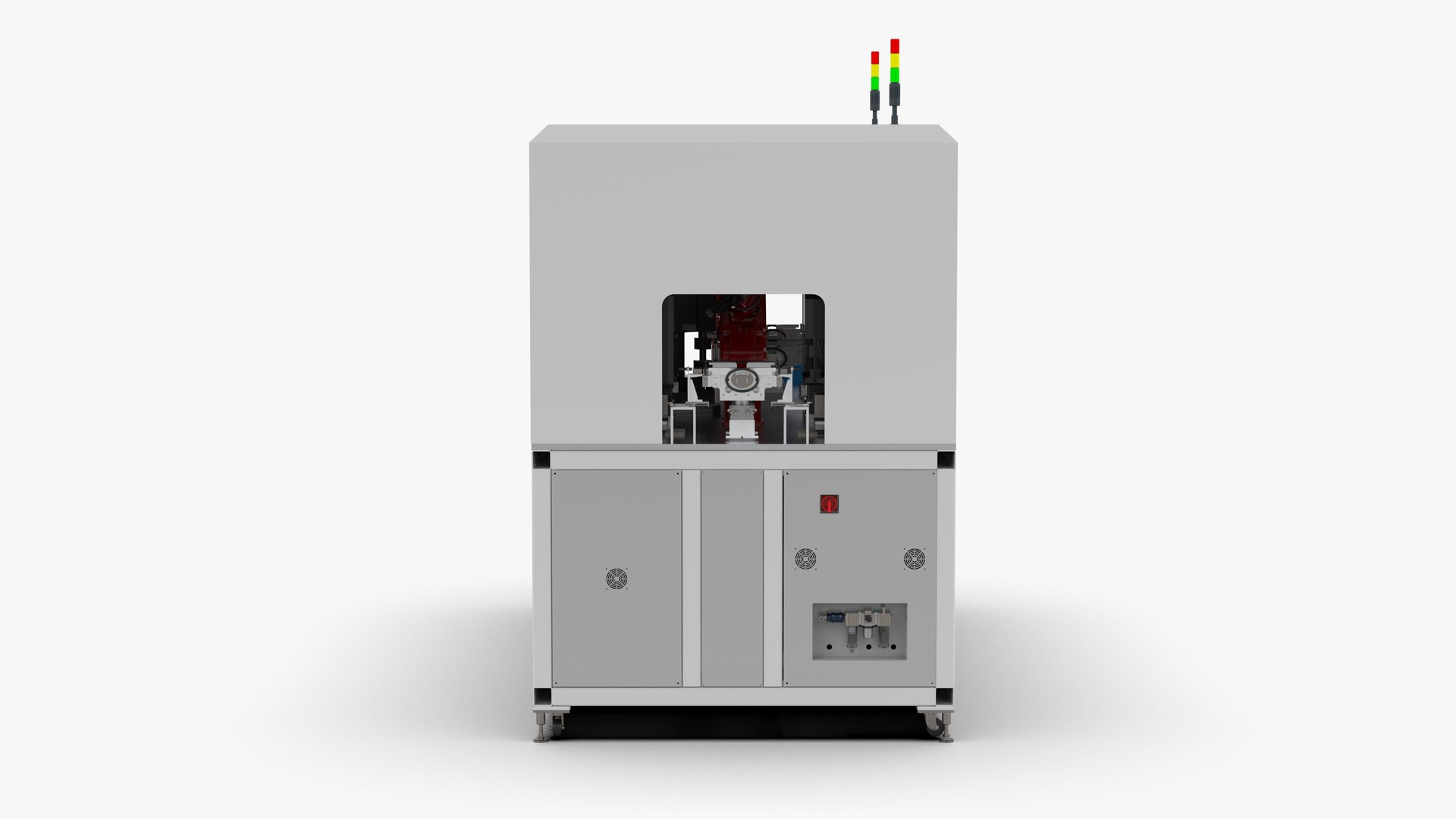

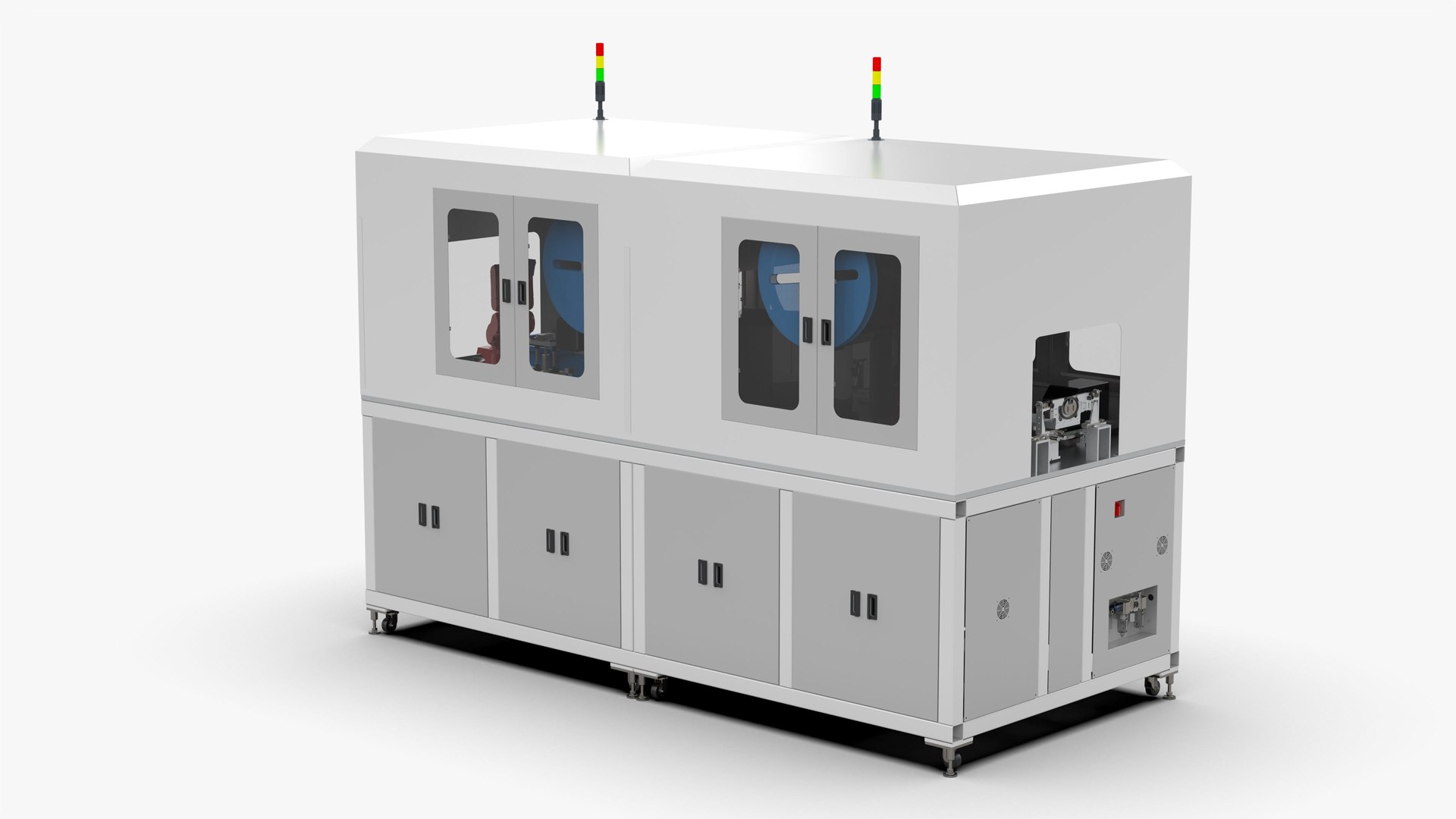

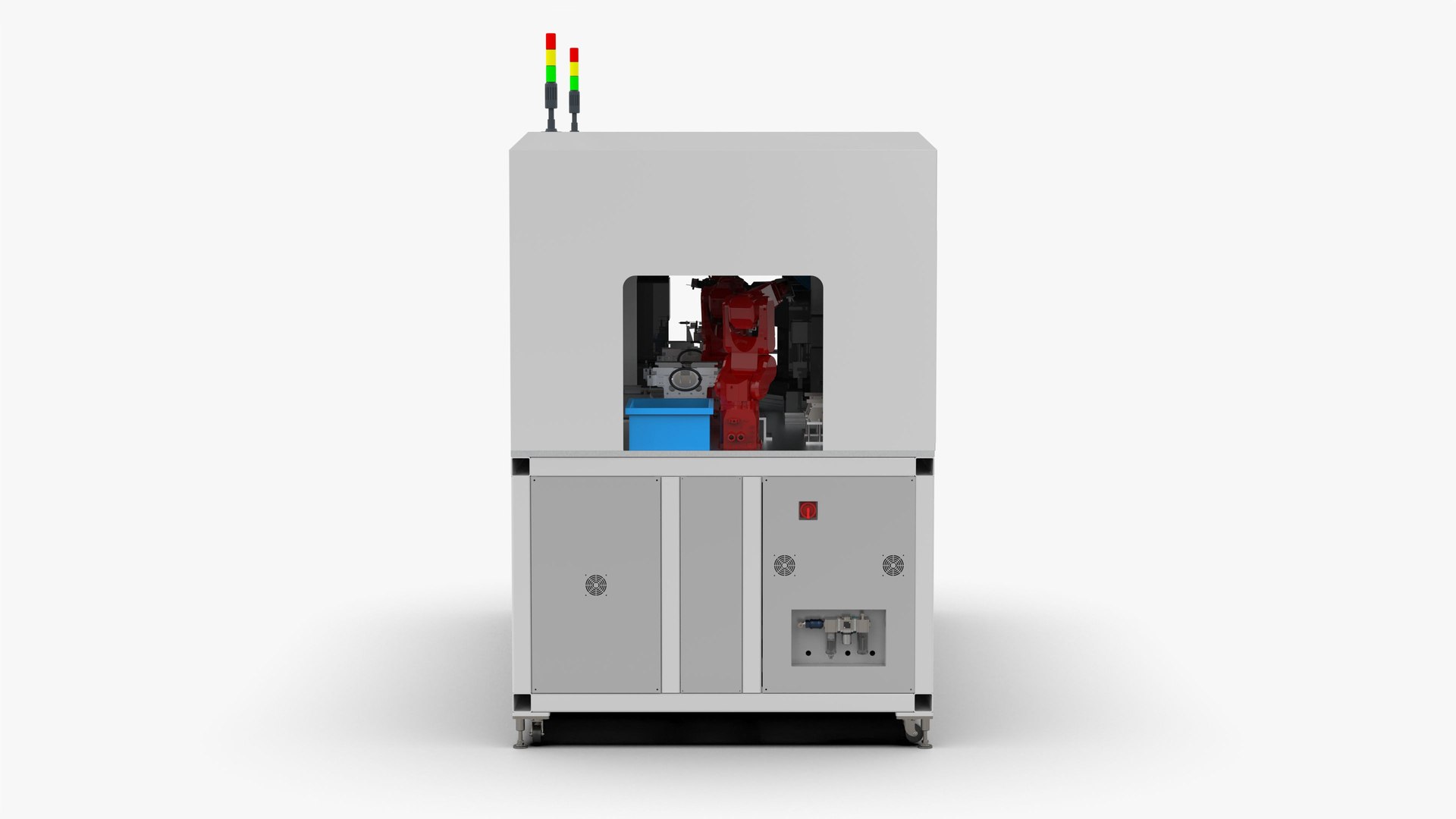

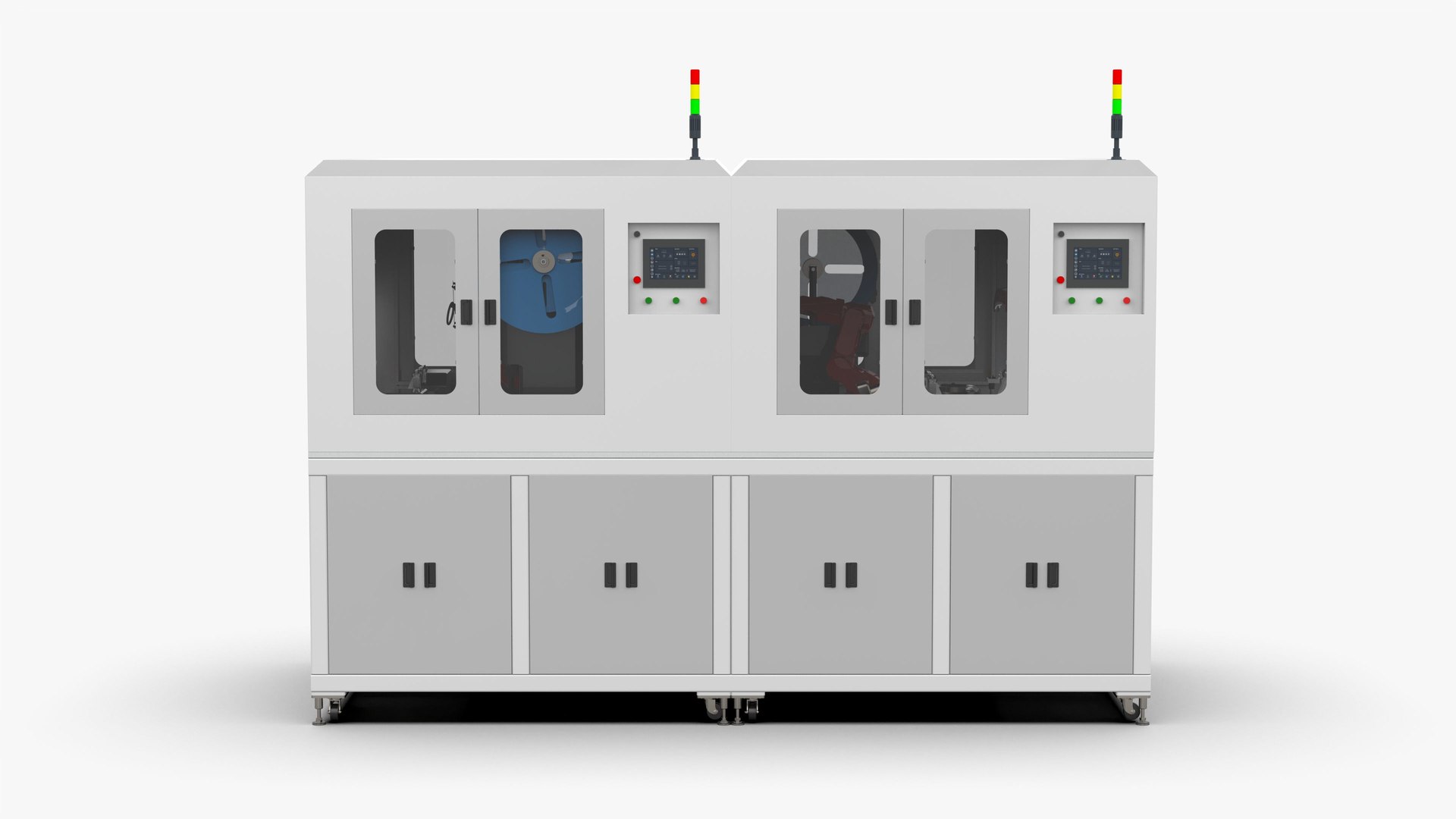

Automatic Wire Processing Machine

Introduction

Wire processing equipment:
1. Dimensions: length (L) × width (W) × height (H) = 3700mm × 1700mm × 2485mm
2. Power supply voltage: 220V;
3. Air pressure: 0.4~0.6MPa.

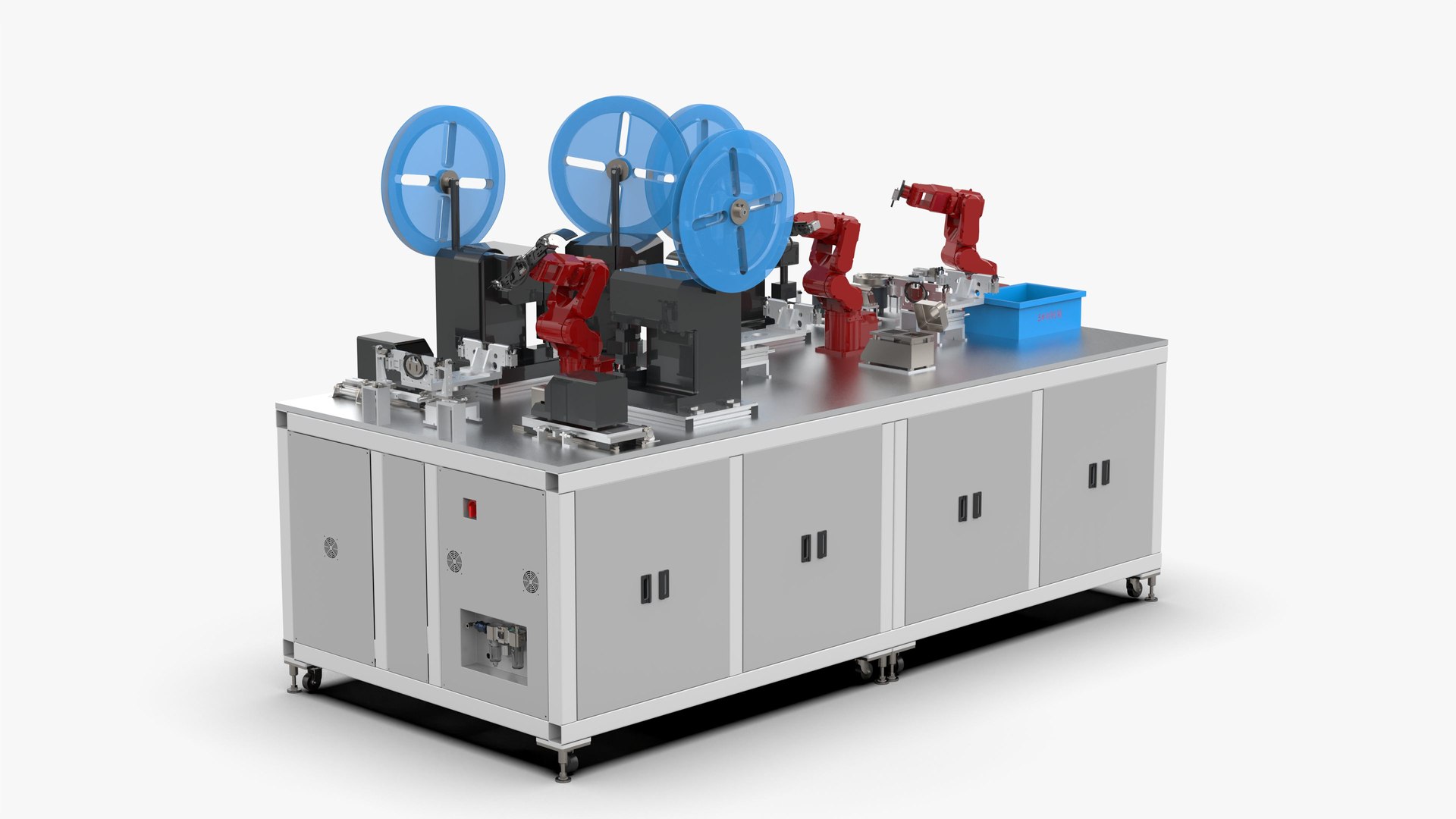

Working principle:
1. Loading
2. Stripping wire
3. Manipulator A action assists in crimping terminal copper sleeve
4. Relay table 1 discharges and rotates
5. Manipulator B assists crimping terminal sticking tin
6. Relay table 2 discharges and rotates
7. Manipulator C takes Auxiliary assembly of plug accessories
8. Plug assembly
9. Receiving

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 2,602,222
– Vertice: 7,806,666
