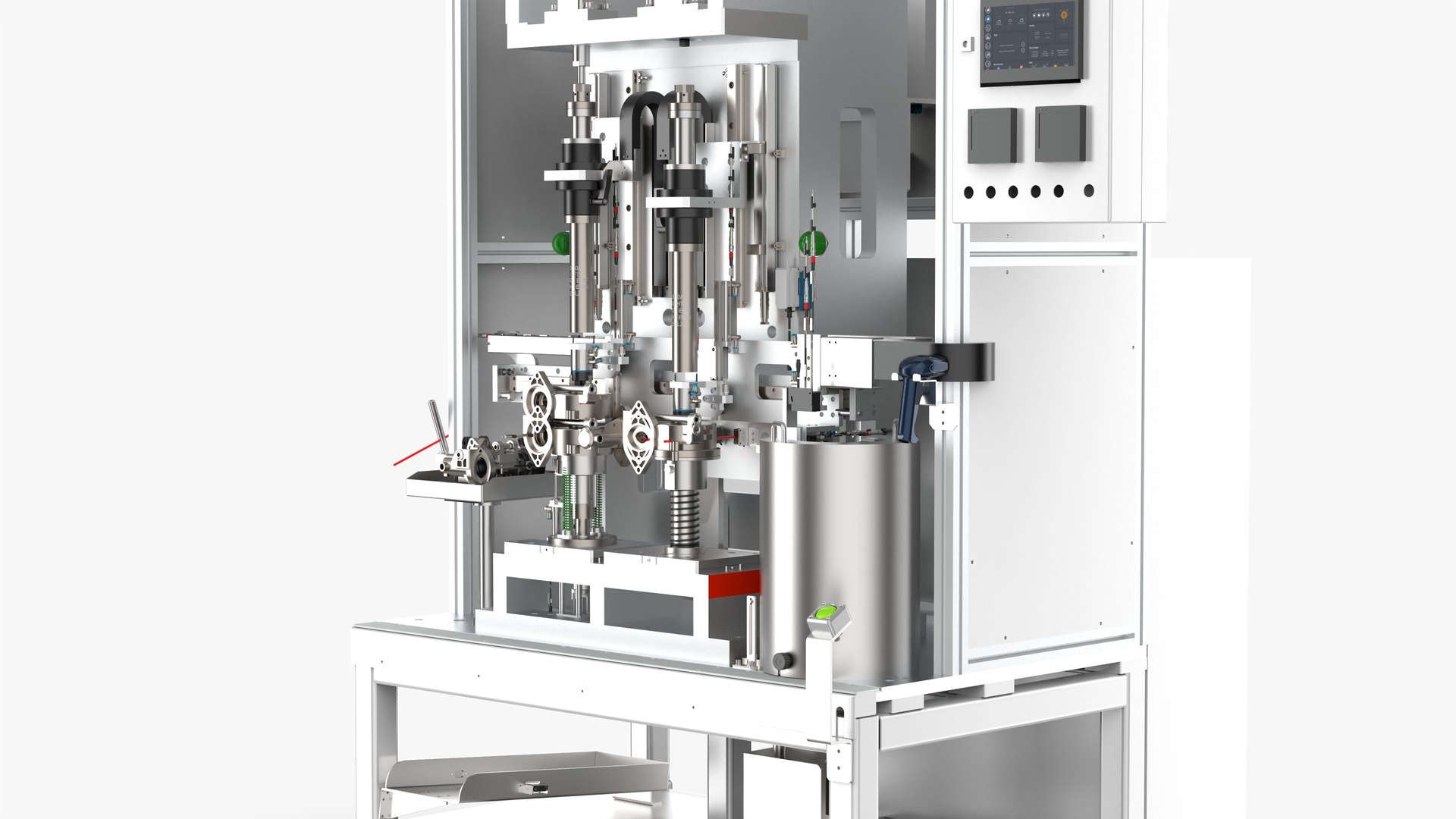

Automatic Bearing and Circlip Press Fitting Machine

Introduction

Press-fitting of OP40A housing bearings and circlips:
1. Purpose: To realize the press-fitting of circlips, bearings and turbine housings.
2. Compatible products: ES8D, ES8F, ES8H, ES8N, ES8L2.

File Formats

– Inventor 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

– x_t (Parasolic Model Part File)

Geometry

– Polygons: 9,702,166
– Vertice: 29,106,498
