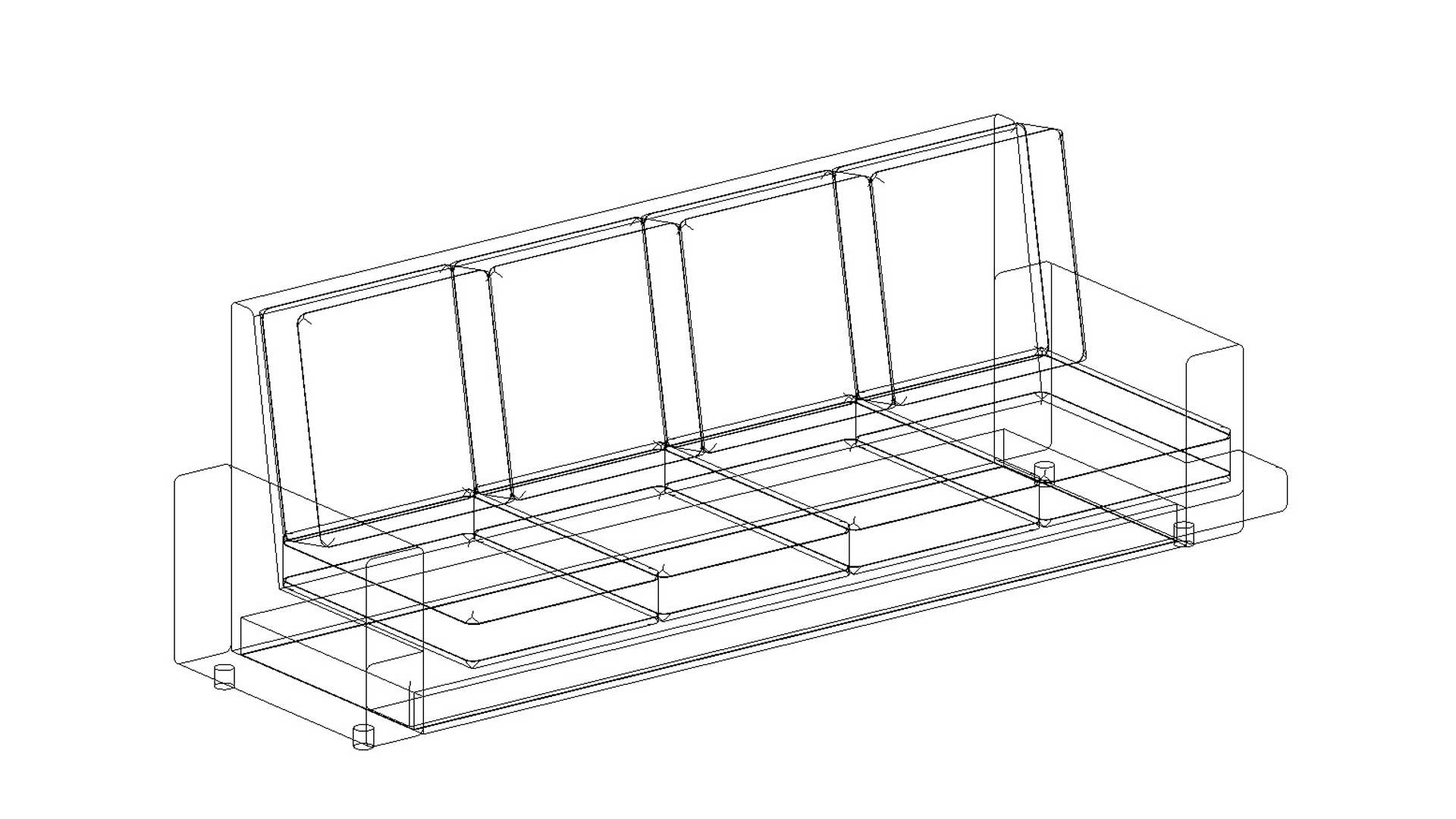

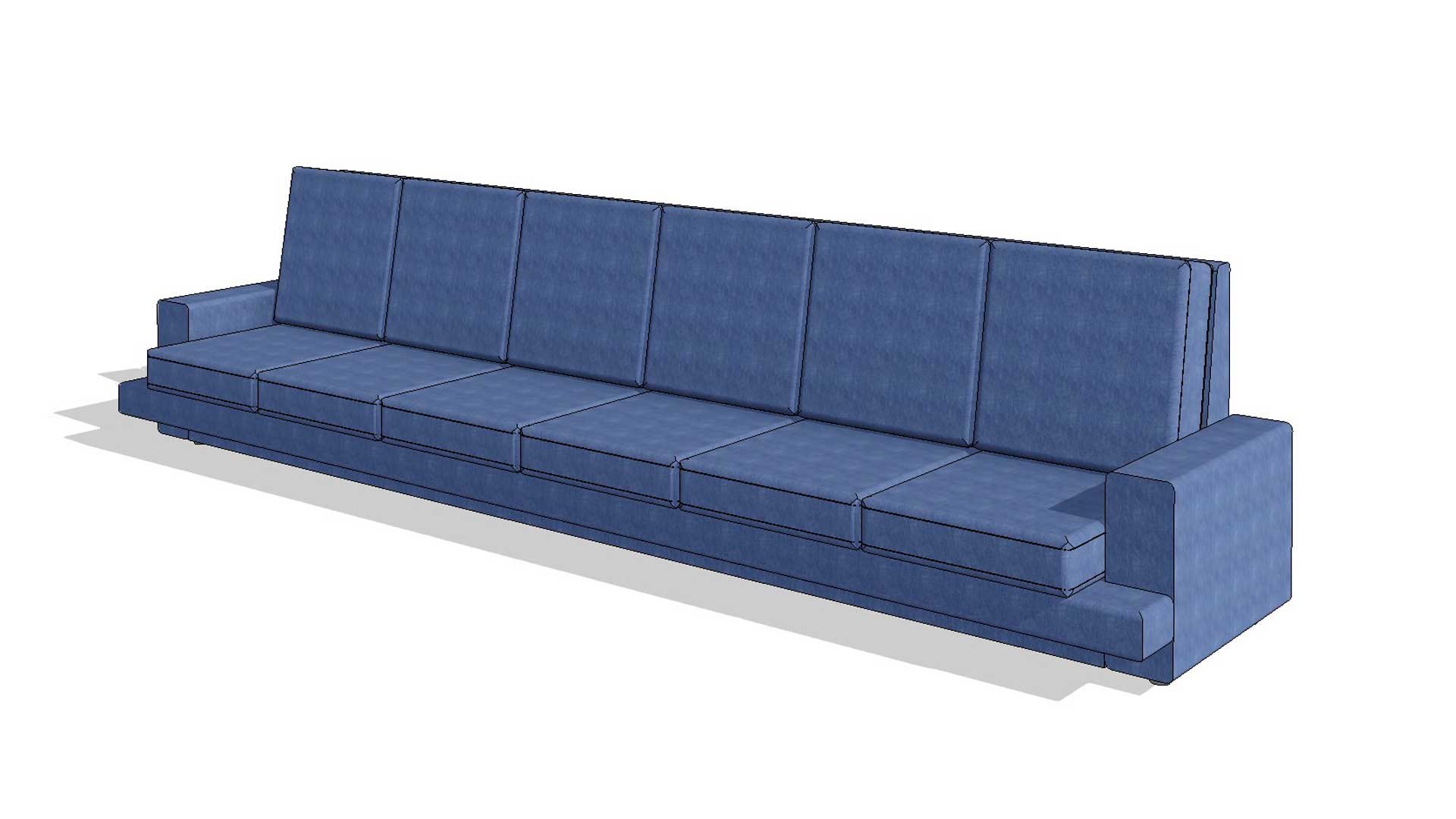

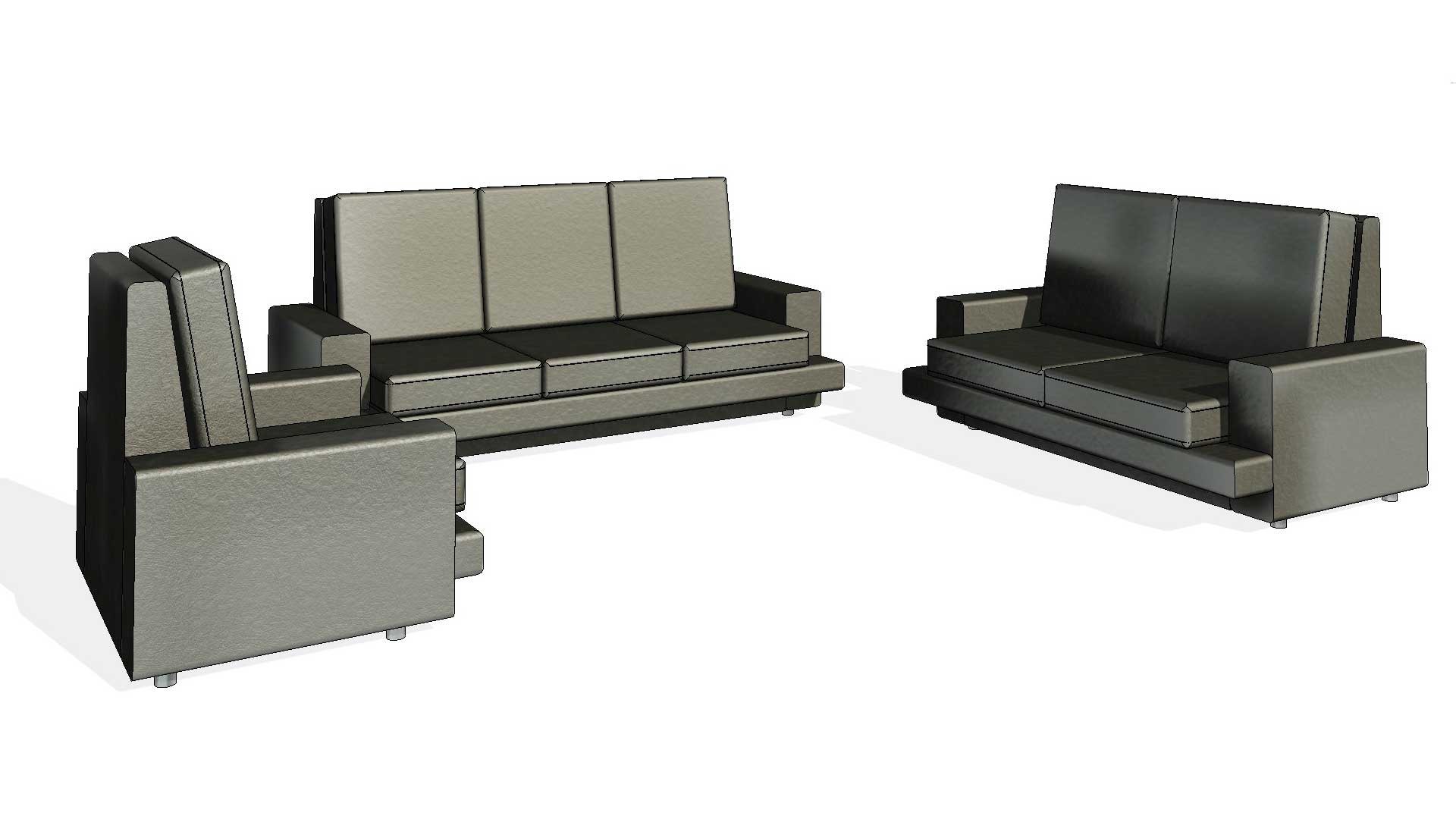

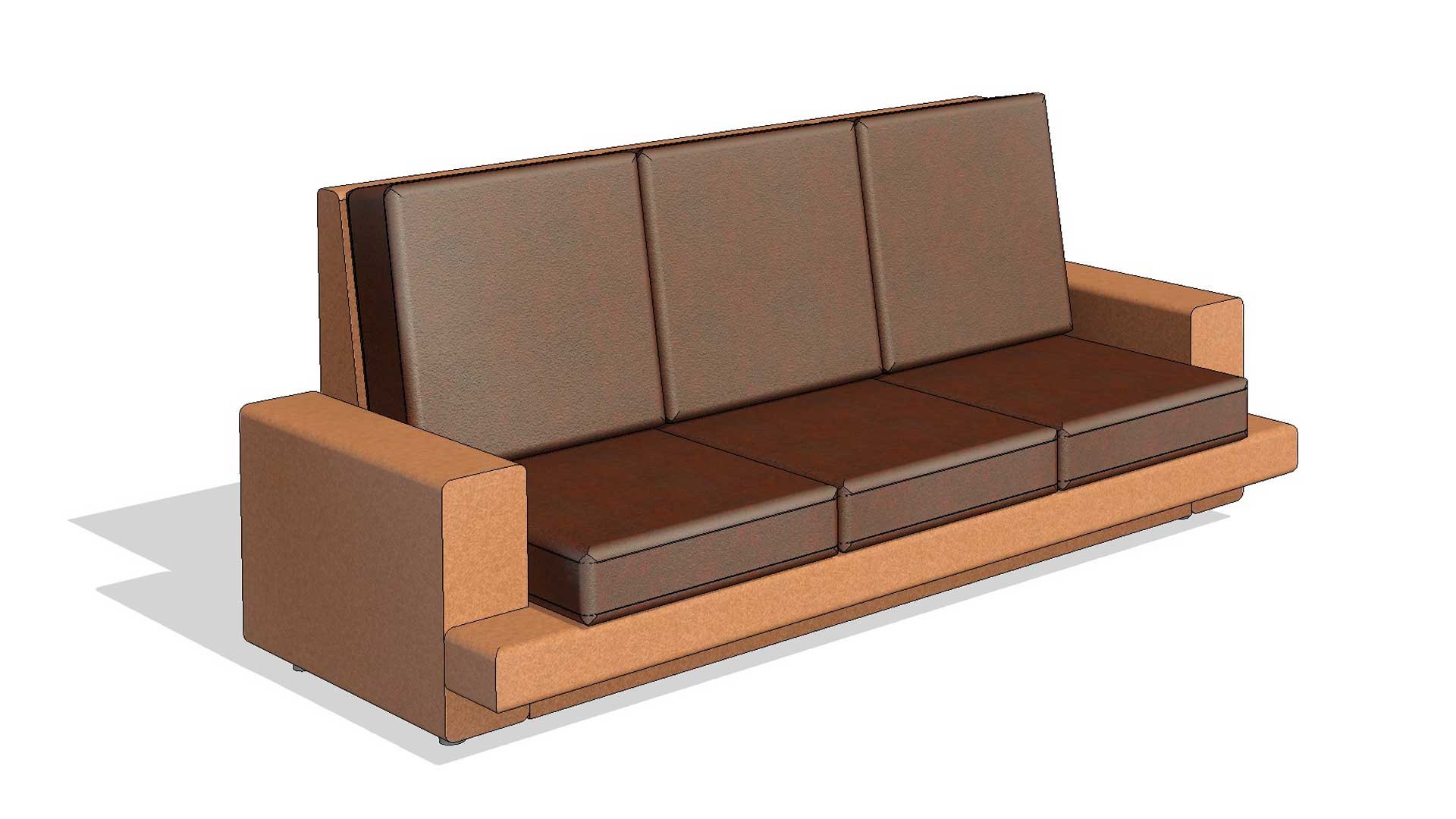

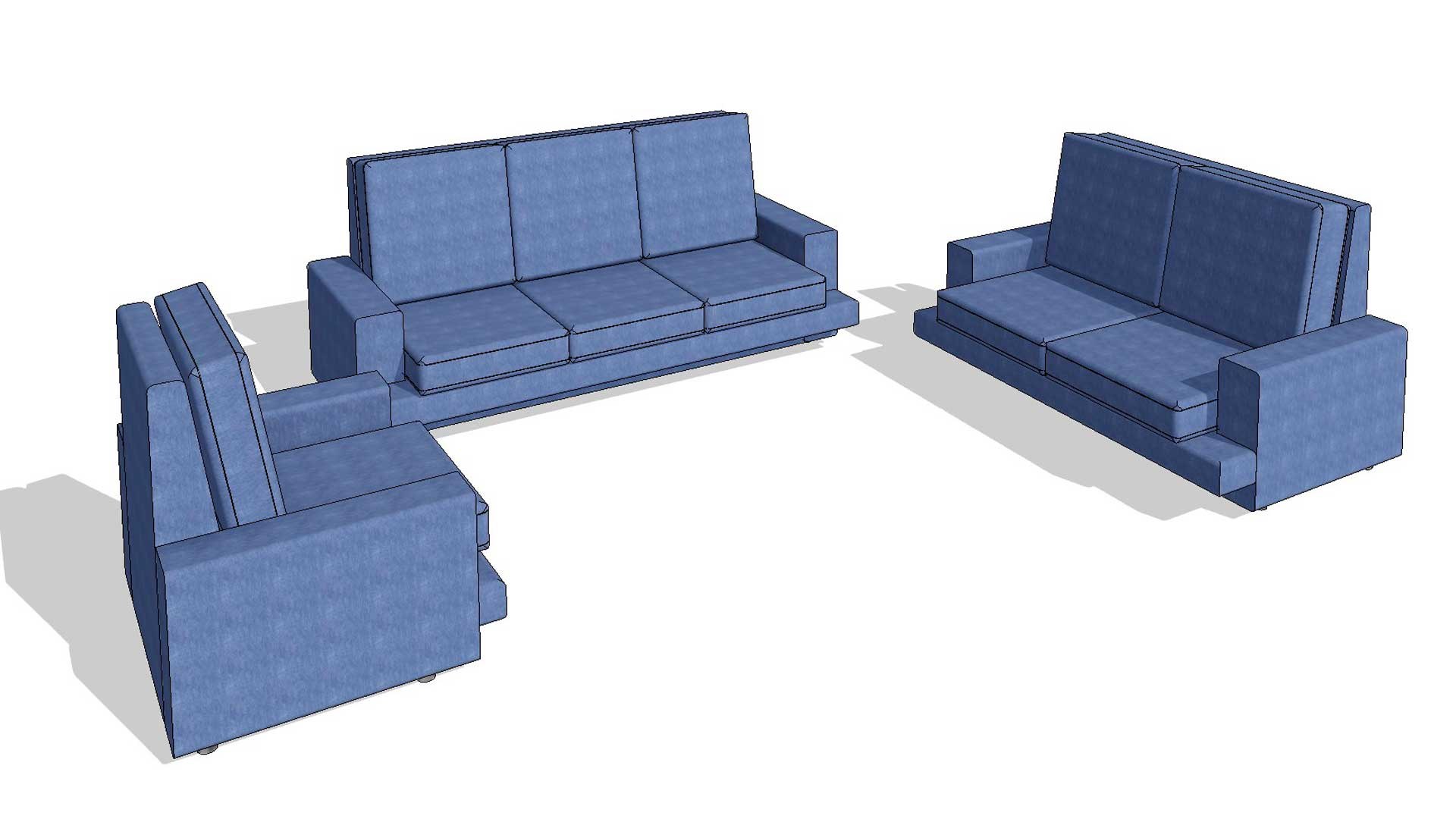

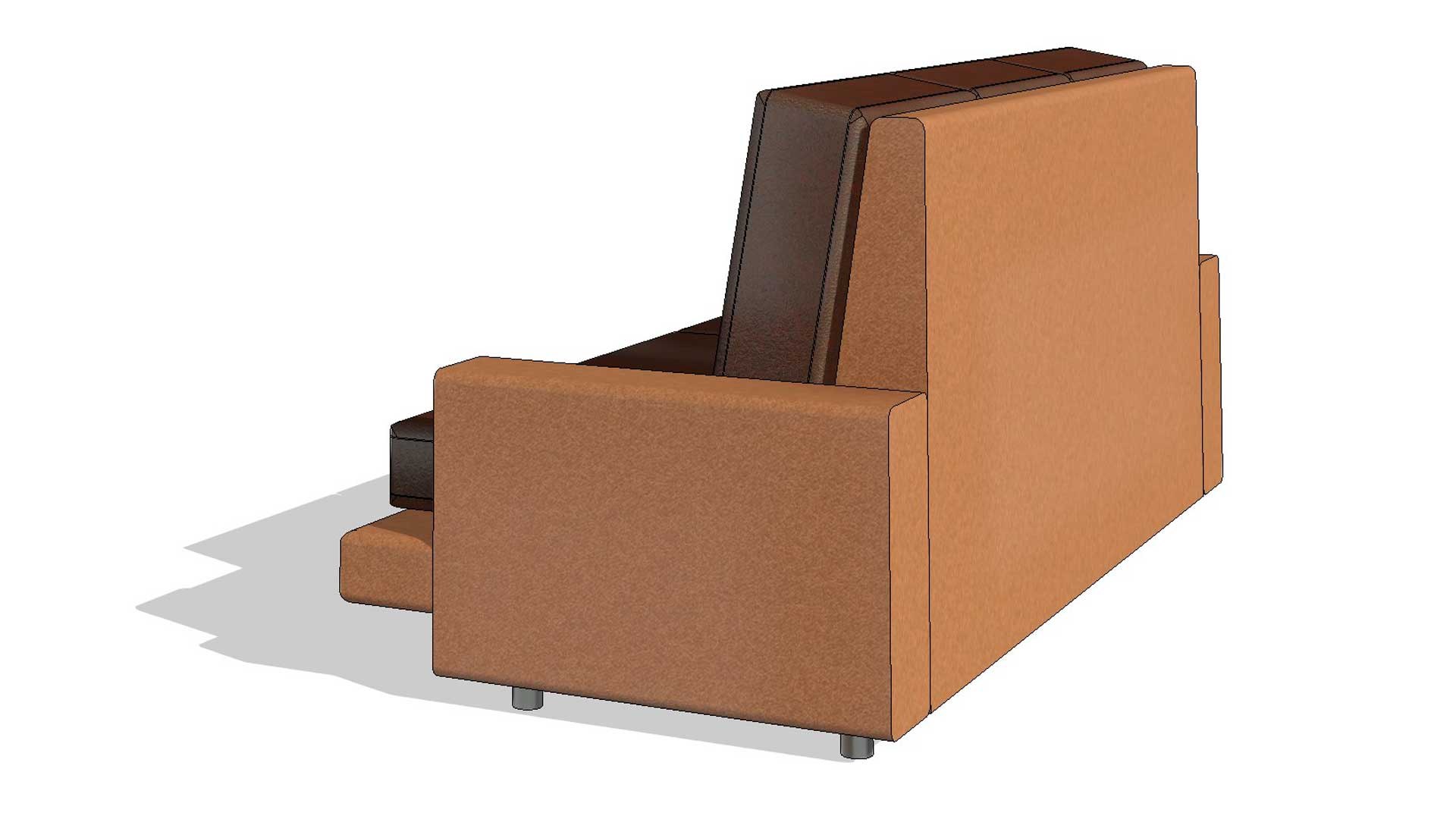

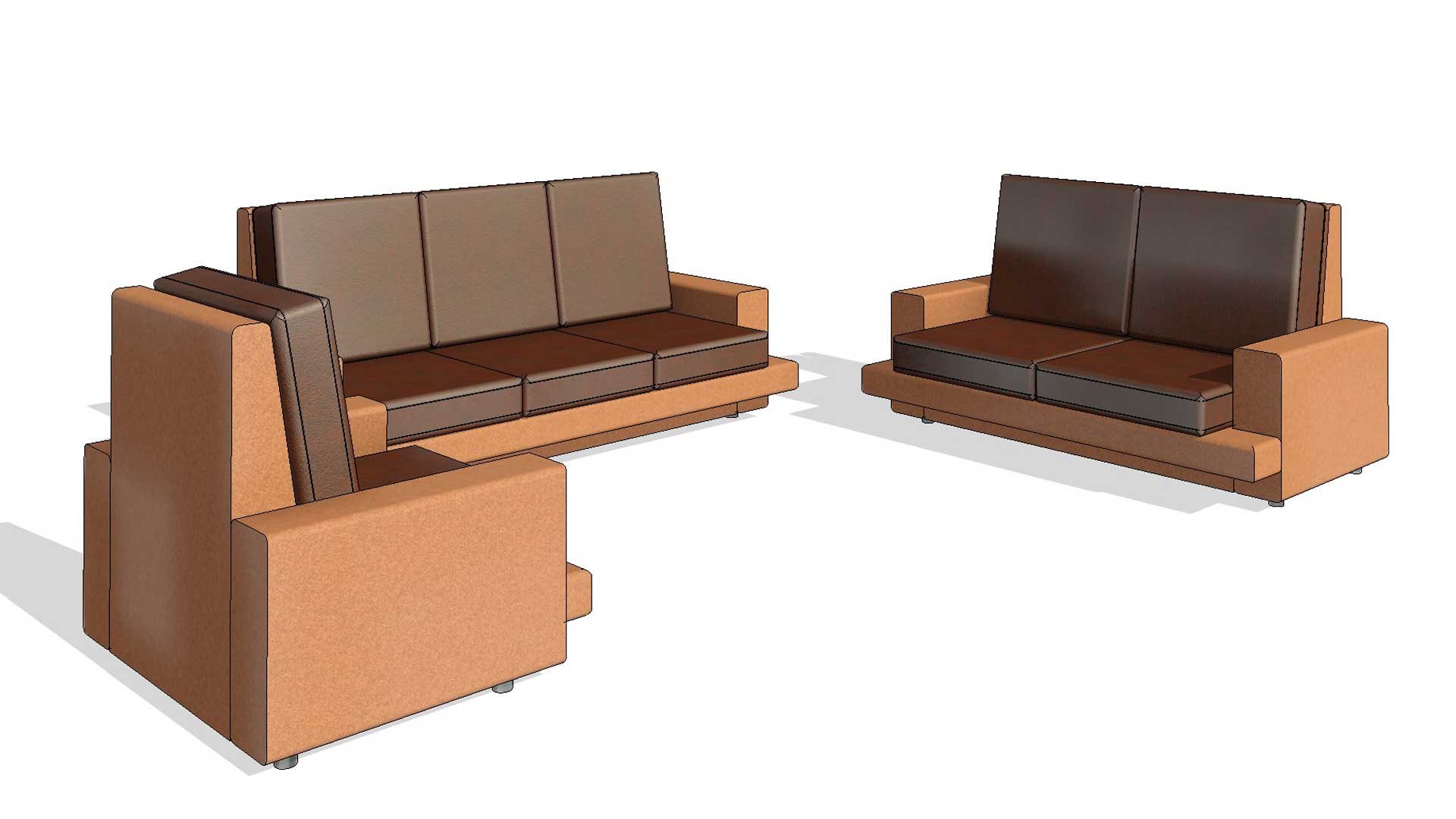

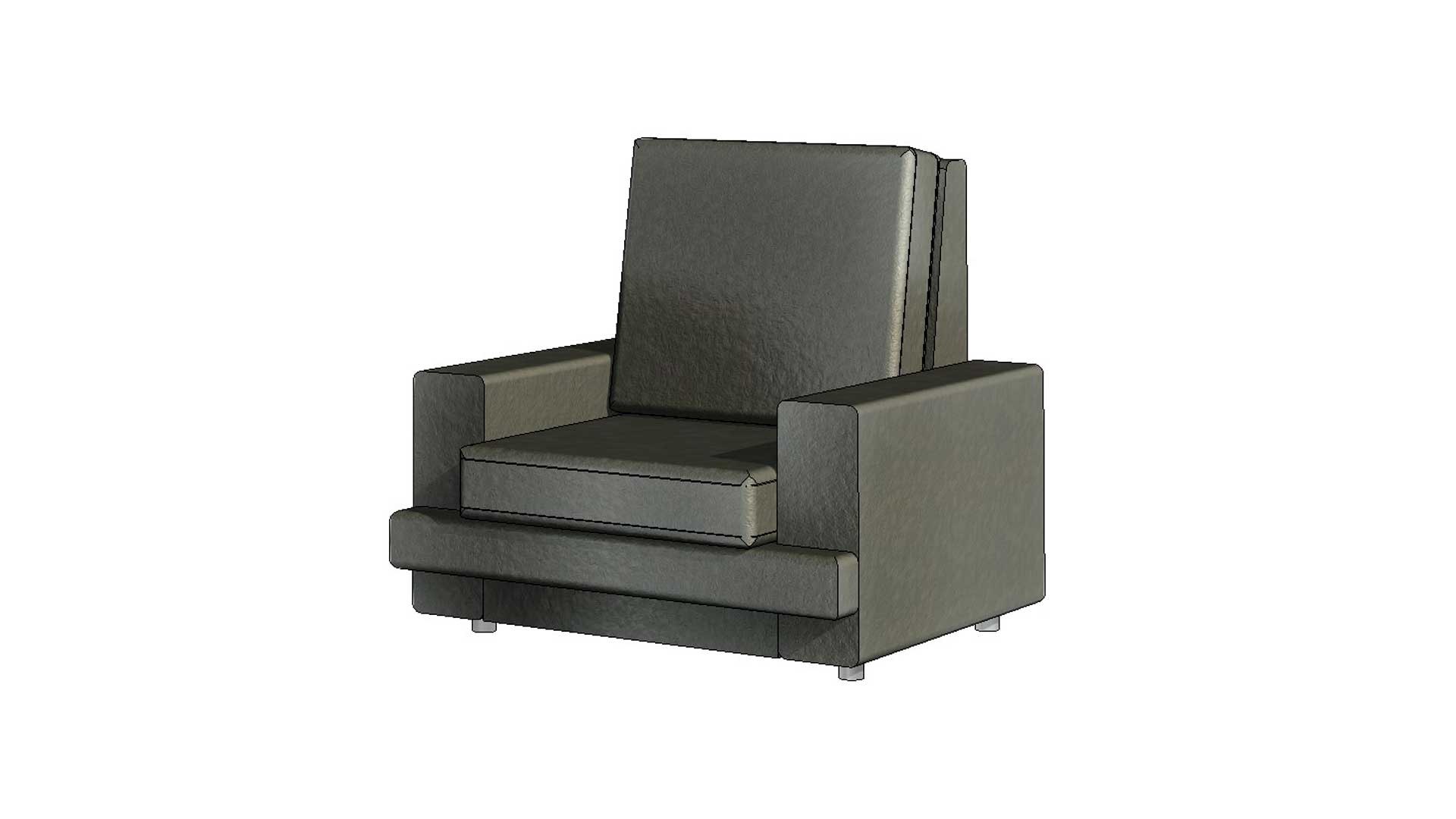

Fully Parametric Revit Family 3D model for a sofa or armchair furniture fitting. Parameters control the number of seats for each family type allowing the user to create any variation from single armchairs to multiple seater sofa furniture.
This is a generic model which can be placed into any Revit project and adjust the required design parameters to match your project requirements. Users can create unlimited number of variation family types to create any furniture size needed. Available parameters include number of seats ( ranging from 1 to any integer number ), Seat Cushion Width to adjust the width for each seat and make it as comfortable as possible, the legs height, the seat cushion depth, the backrest cushion height and thickness as well as all materials.
ATTRIBUTES:
- Revit Version : 2022
- Family Type : Generic Model
- File Extension : .rfa

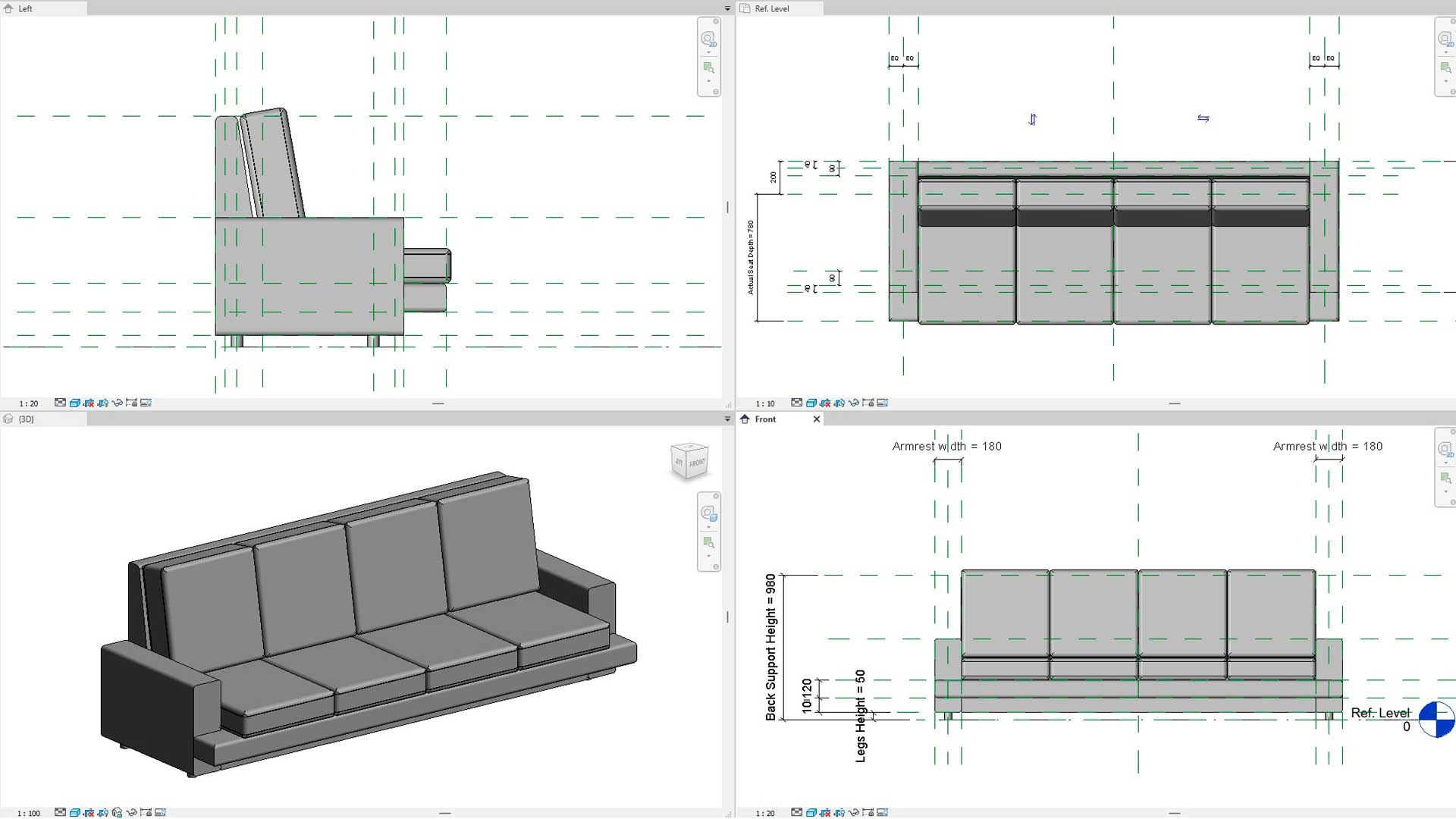

PARAMETERS:
- Number of Seats
- Seat Cushion Width and Depth
- Backrest Cushion Height and Thickness
- Armrest width
- Legs Height
- All Materials ( sofa/armchair material, seat cushion material, backrest cushion material and legs material )
FAMILY TYPES:

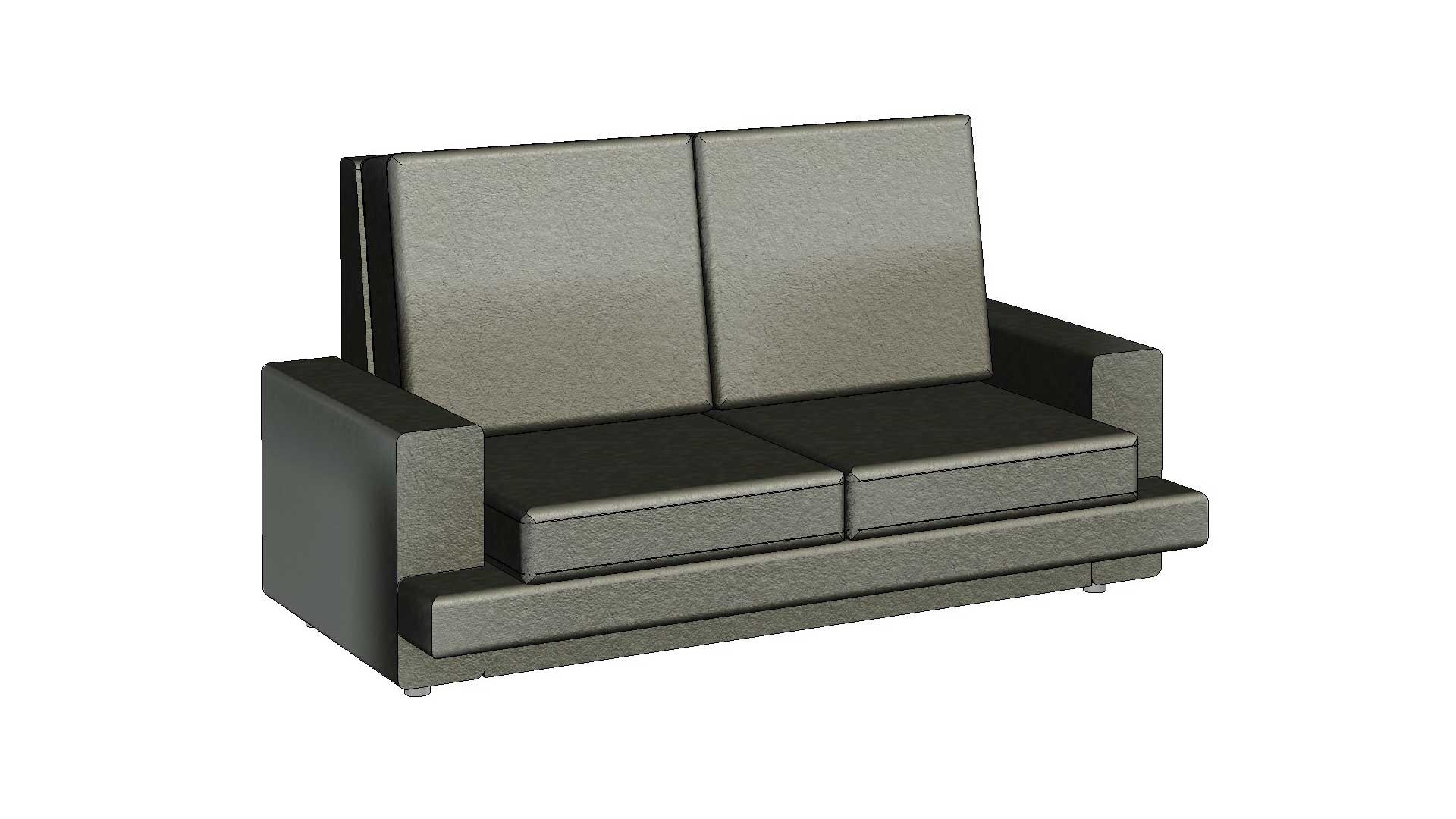

- Armchair, Seat 700mm, Width 1060mm
- Armchair, Seat 800mm, Width 1160mm
- 2 Seater Sofa, Seats 700mm, Width 1760mm
- 2 Seater Sofa, Seats 900mm, Width 2160mm
- 3 Seater Sofa, Seats 600mm, Width 2160mm
- 3 Seater Sofa, Seats 800mm, Width 2760mm
- Armchair, Seat 600mm, Width 960mm

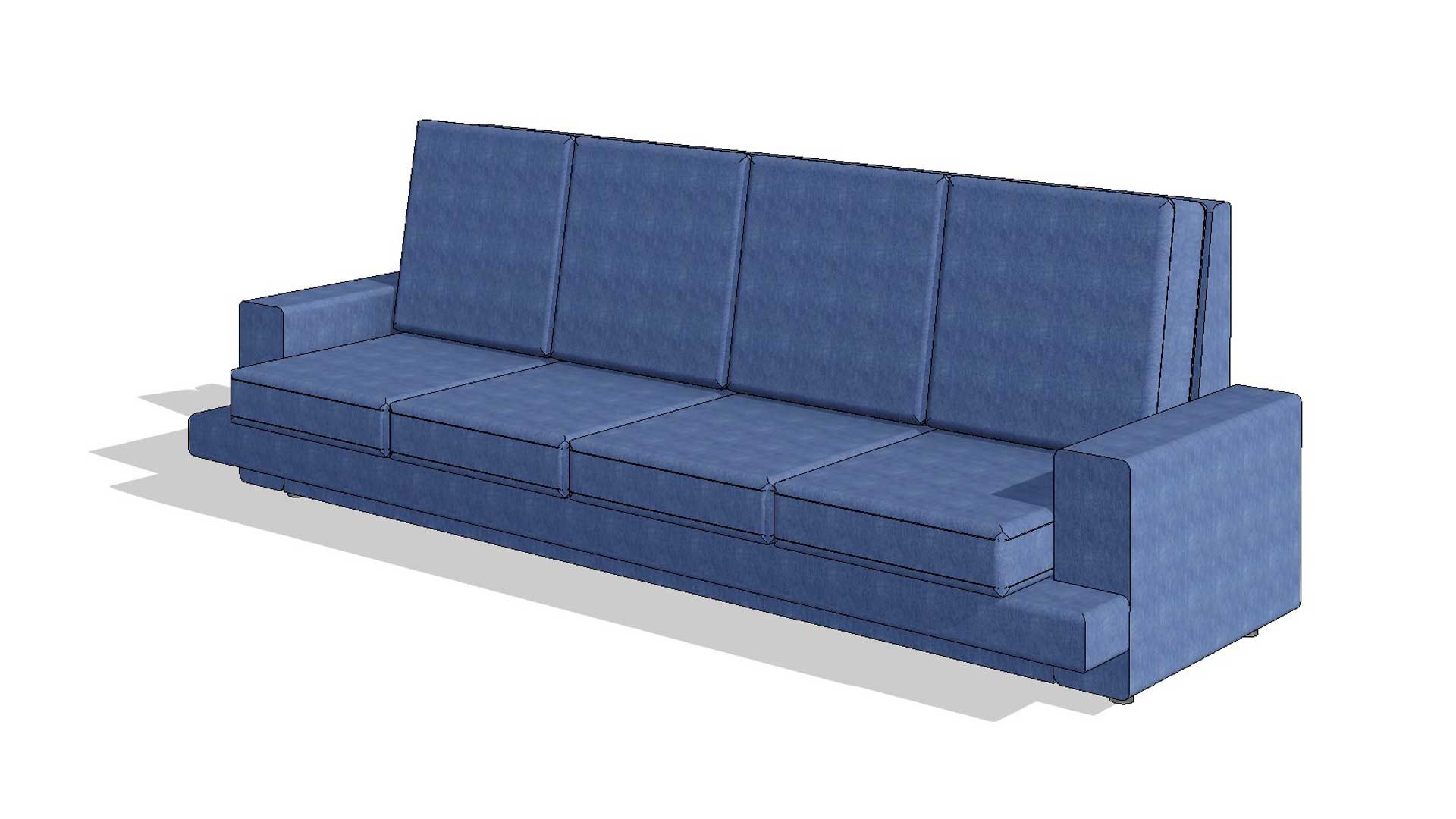

- 4 Seater Sofa, Seats 700mm, Width 3160mm
- 4 Seater Sofa, Seats 600mm, Width 27600mm
Users can create unlimited number of family type variations to match any design possible.
