This is a fully standardized part and conforming to ISO 4014 (2022).

All aspects of the geometry are correlating to ISO 4014.

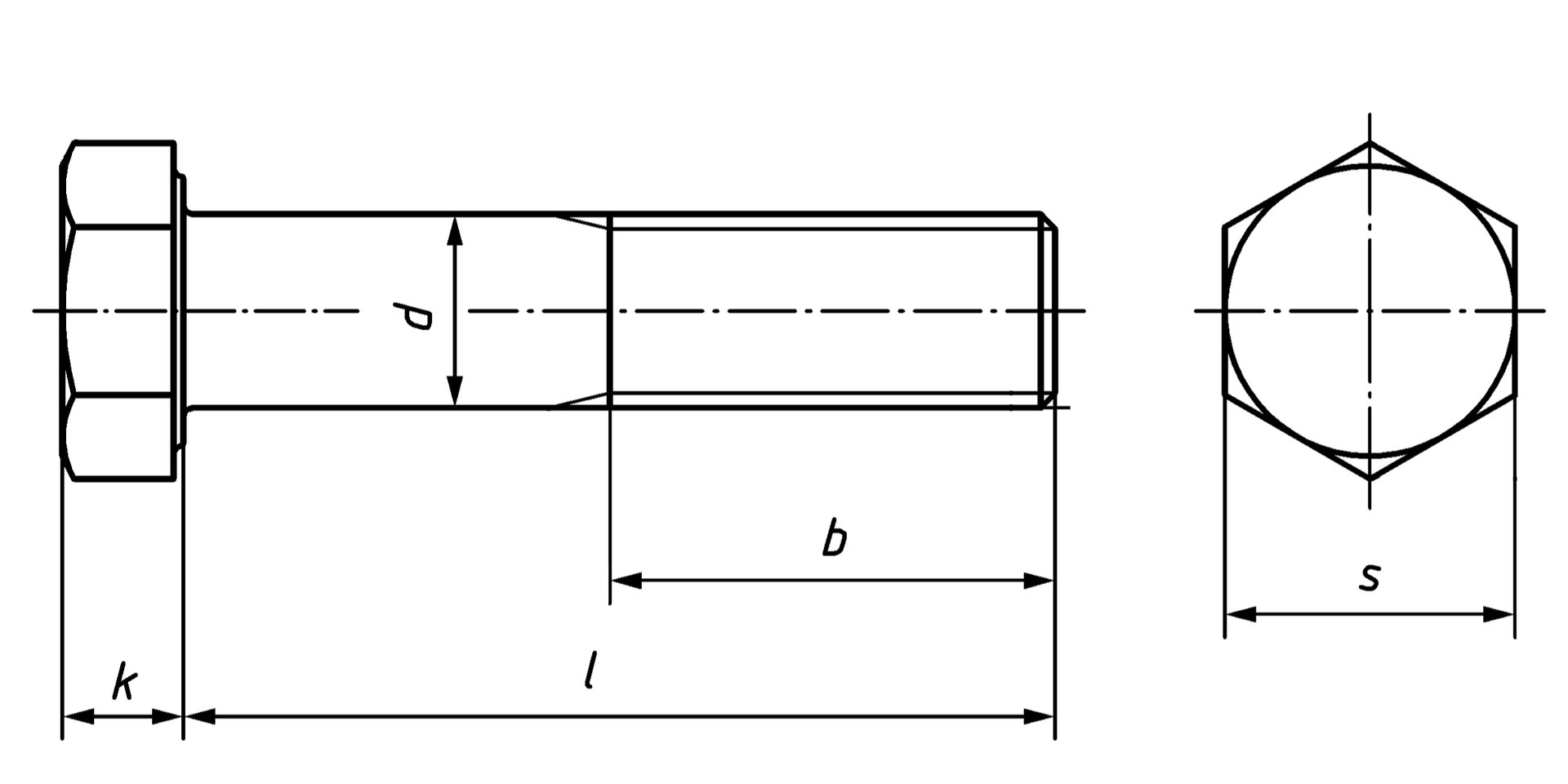

The main measurements (picture 4):

• M5 (ISO metric thread )
• l = 25 mm (0.98 in)
• d = 5 mm (0.20 in)
• b = 16 mm (0.63 in)
• k = 3.5 mm (0.14 in)
• s = 8 mm (0.31 in)

Further information:

• STEP file is provided with as many details as possible.
• STL file provides even better resolution than OBJ file.
• Inch values are rounded to two decimal places.
