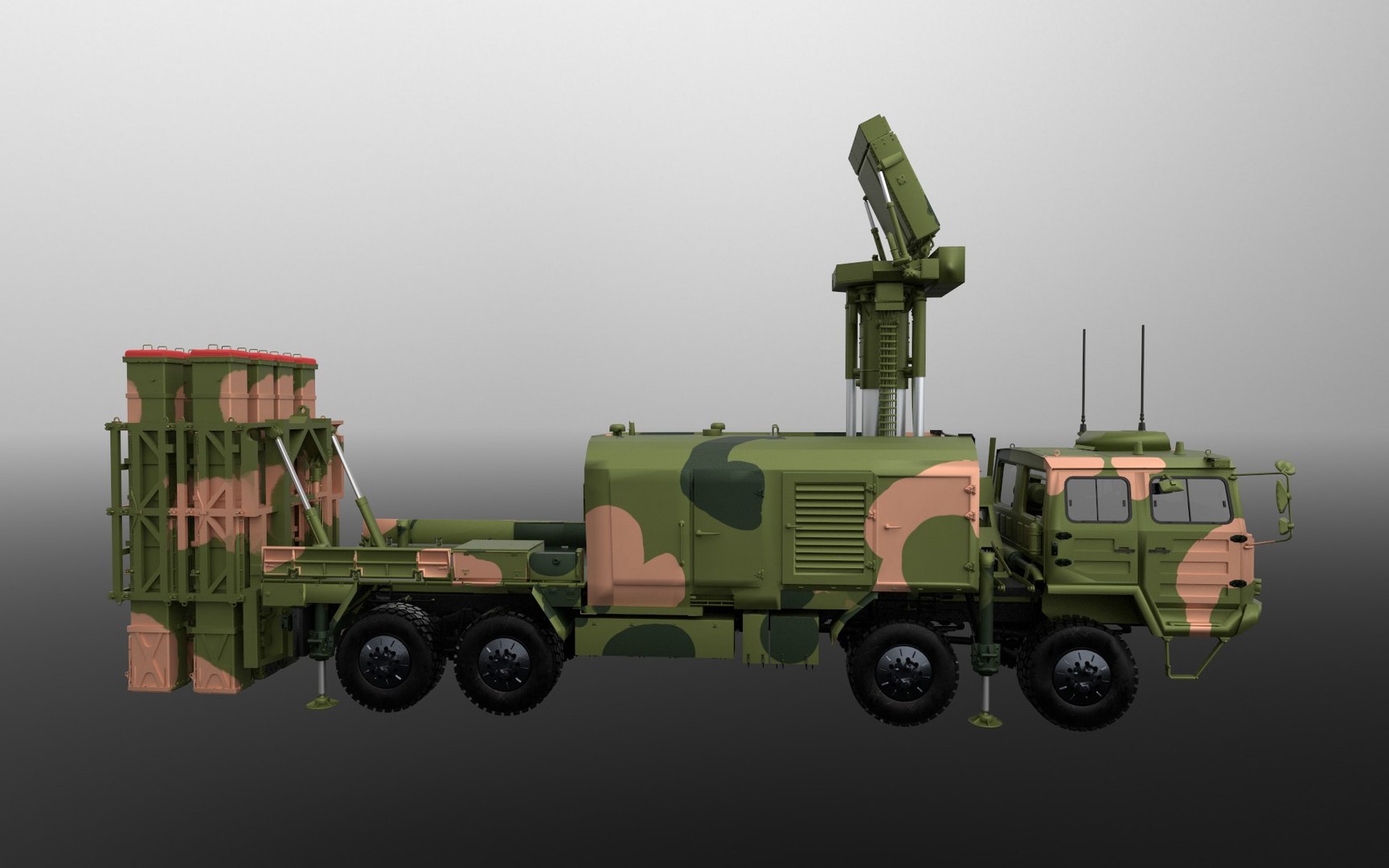

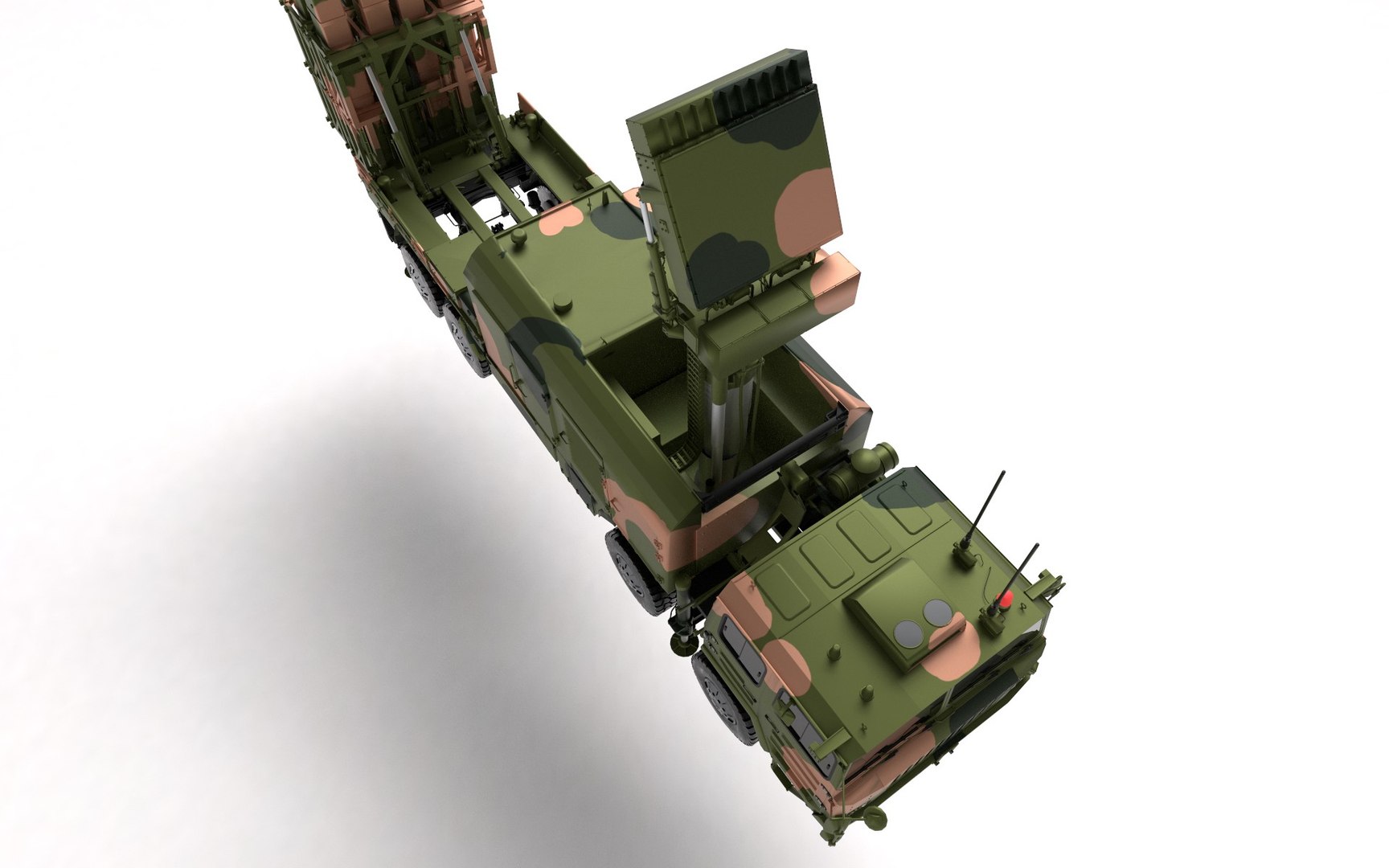

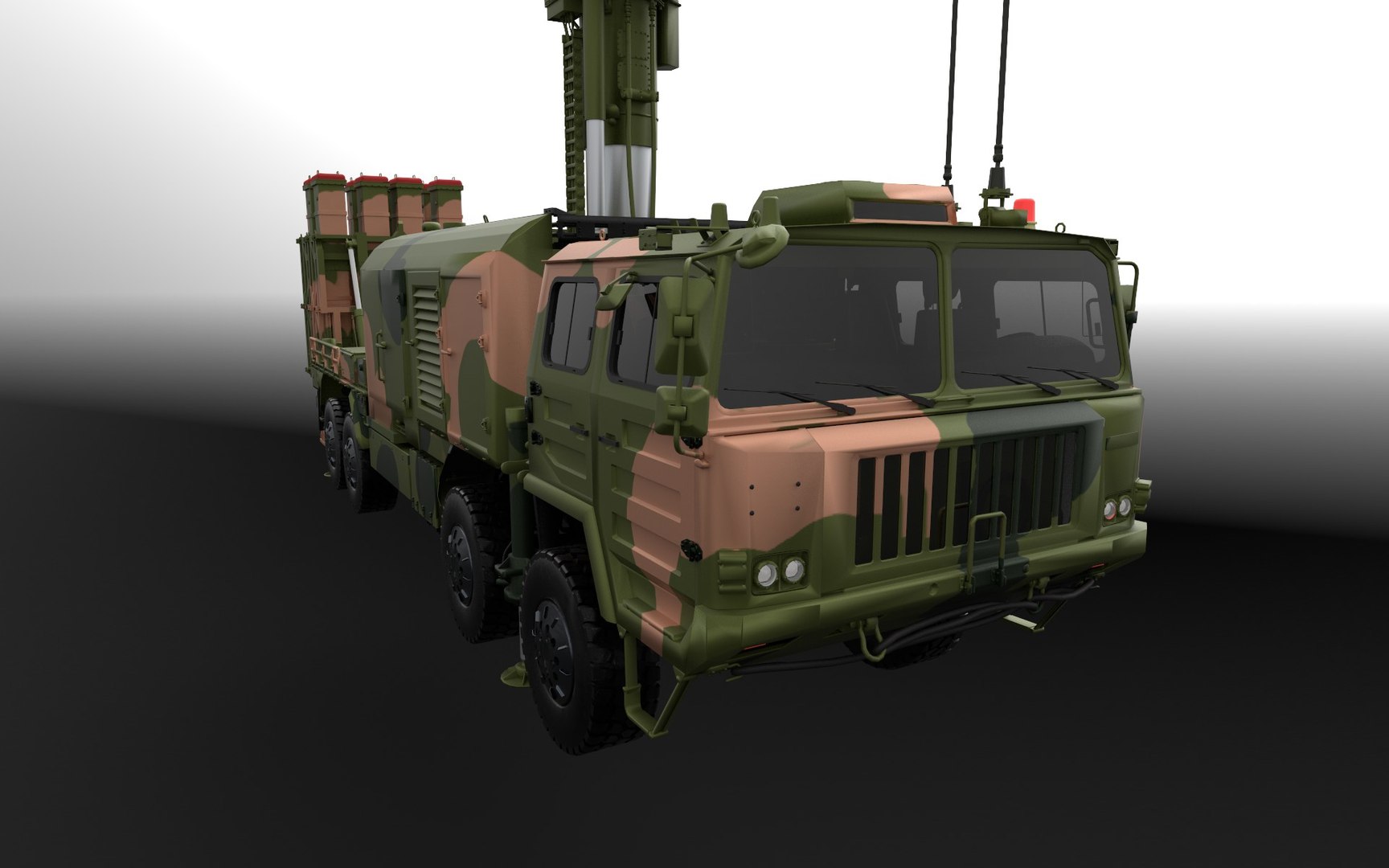

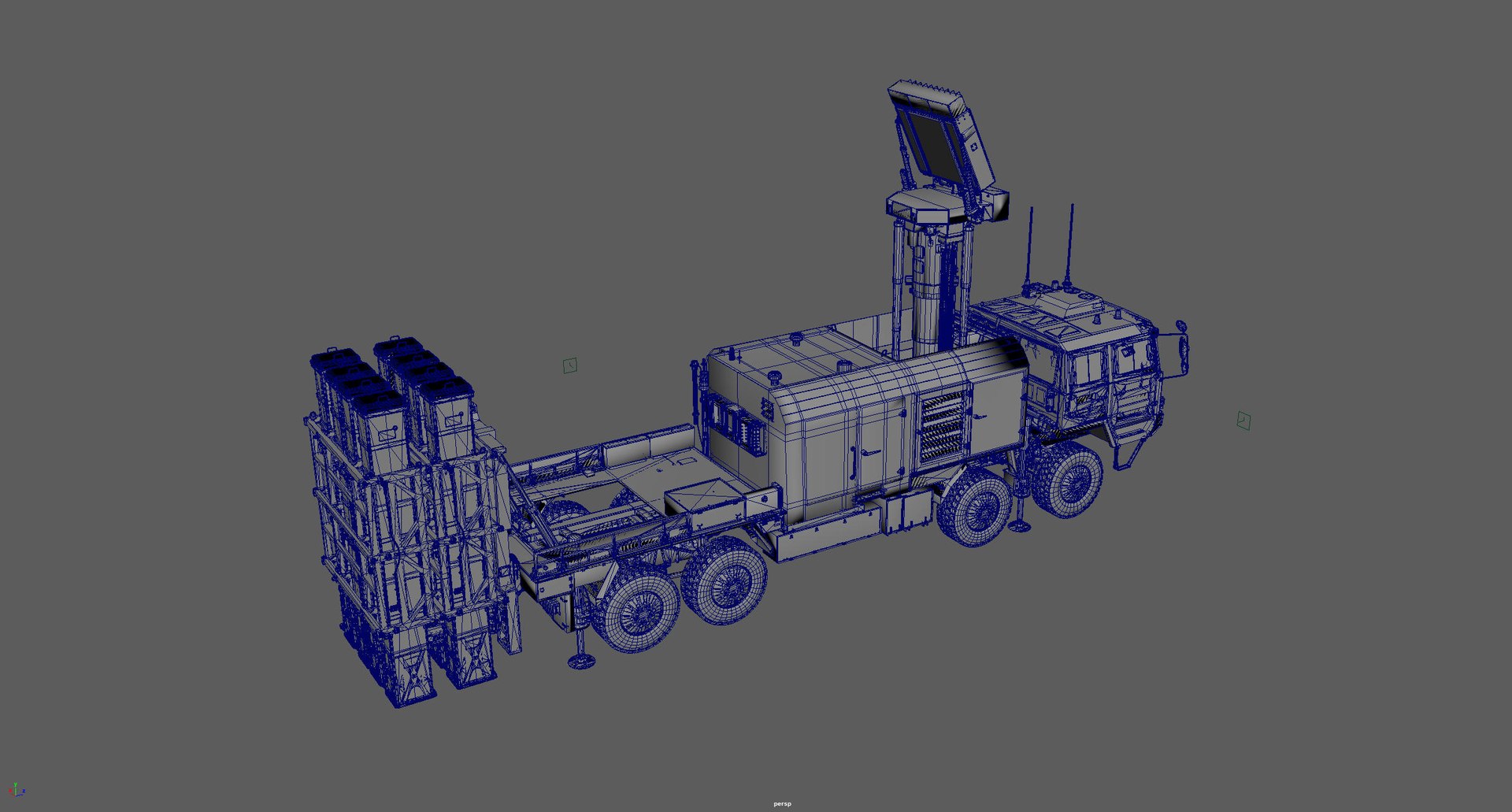

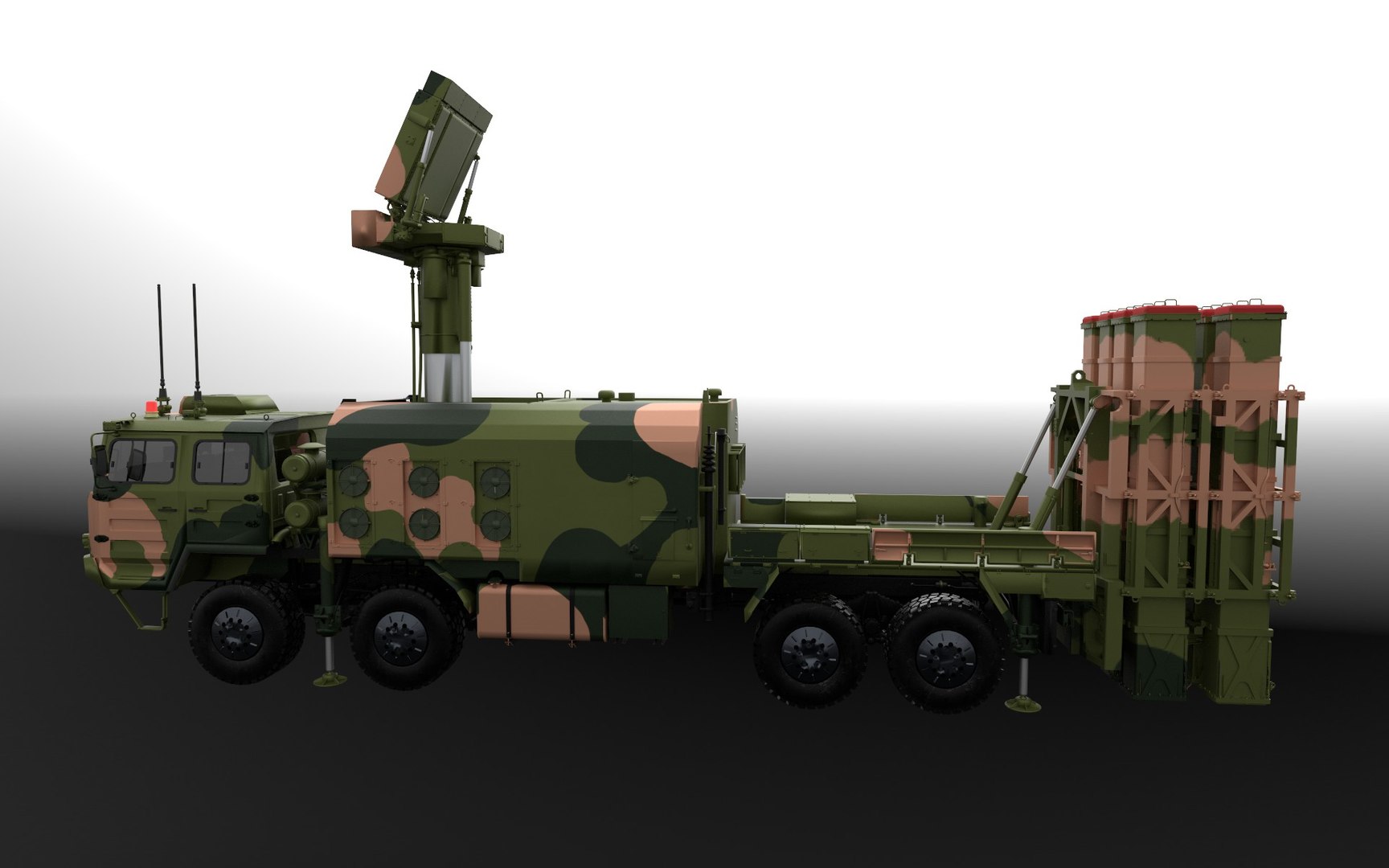

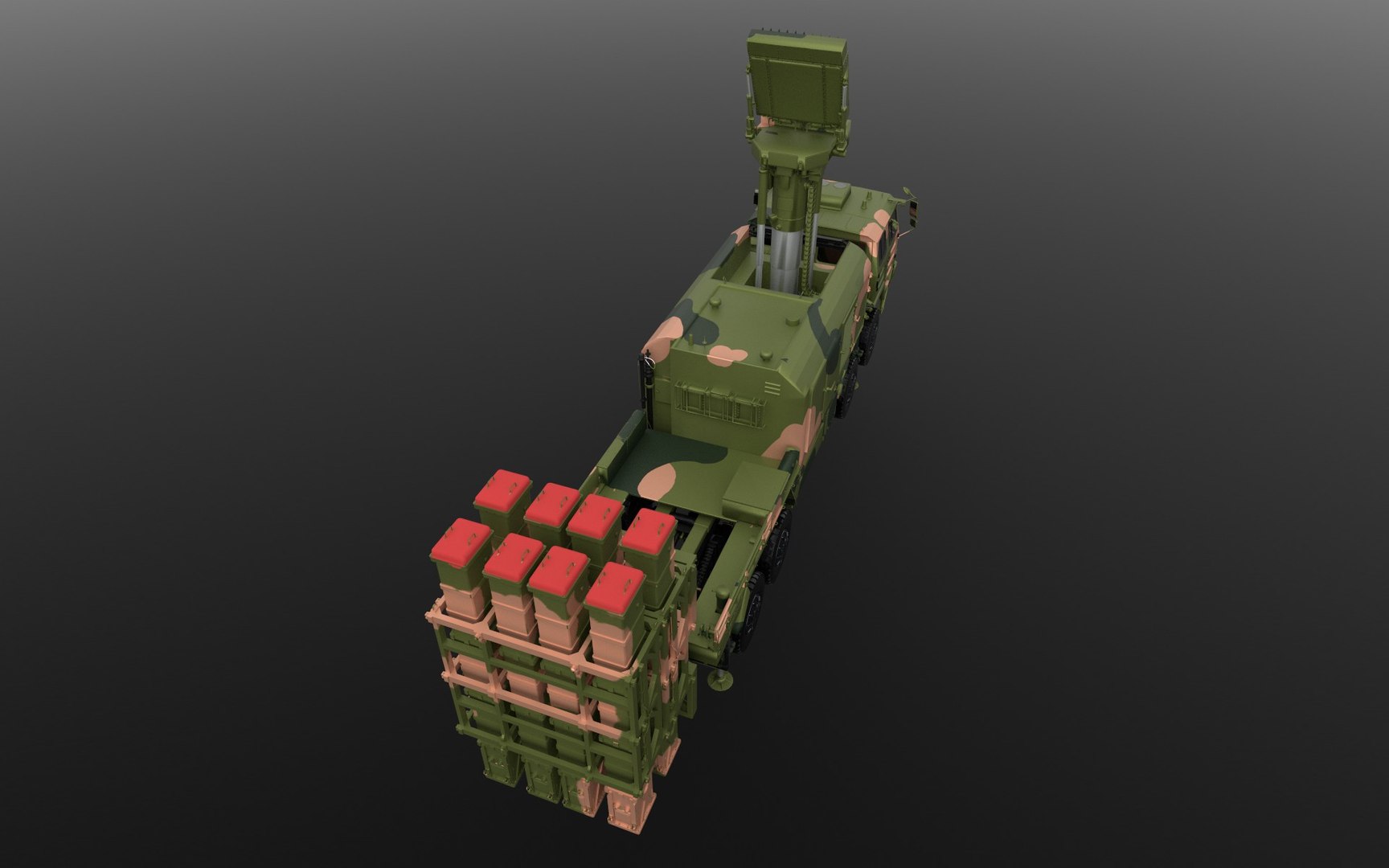

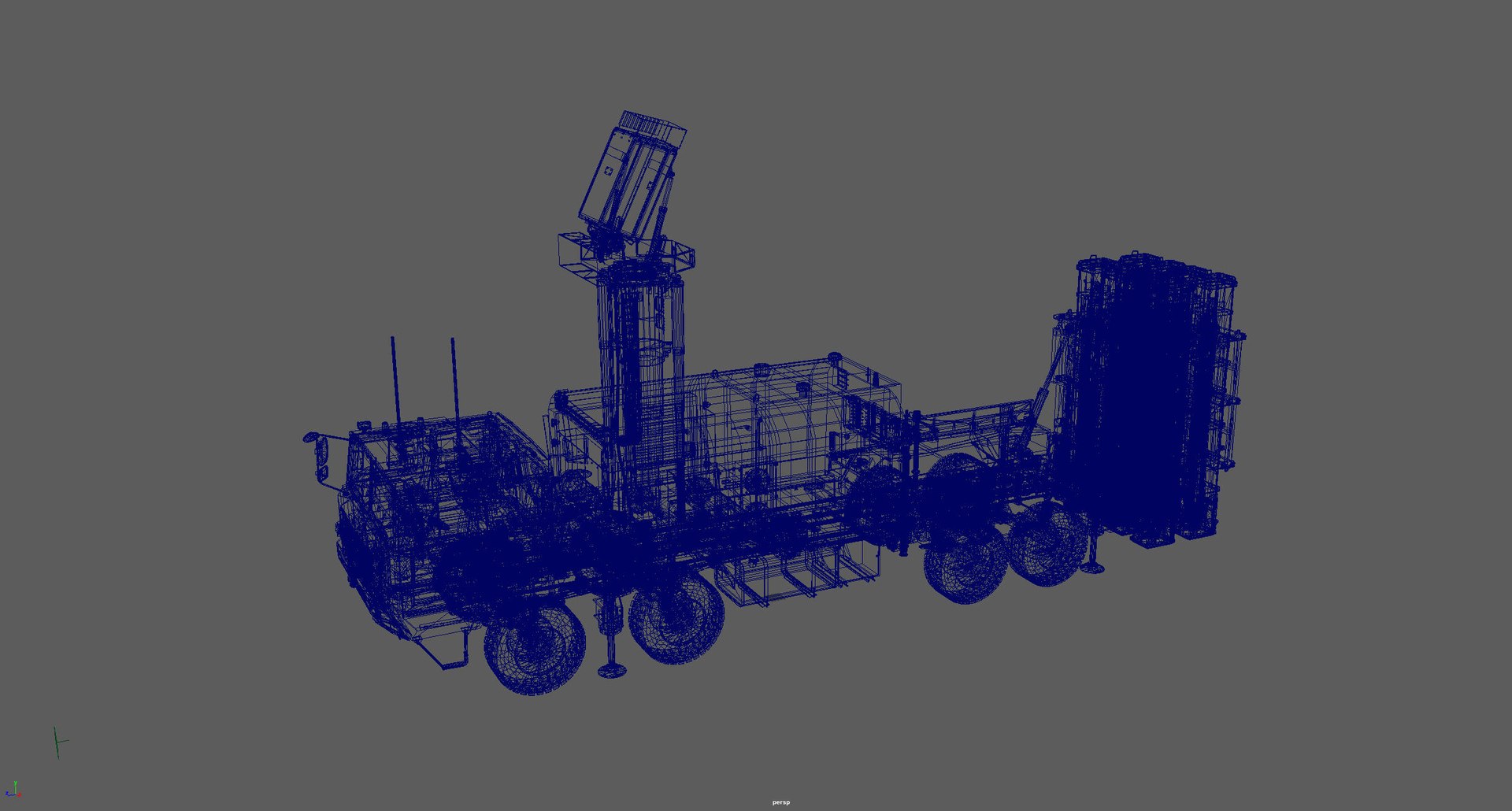

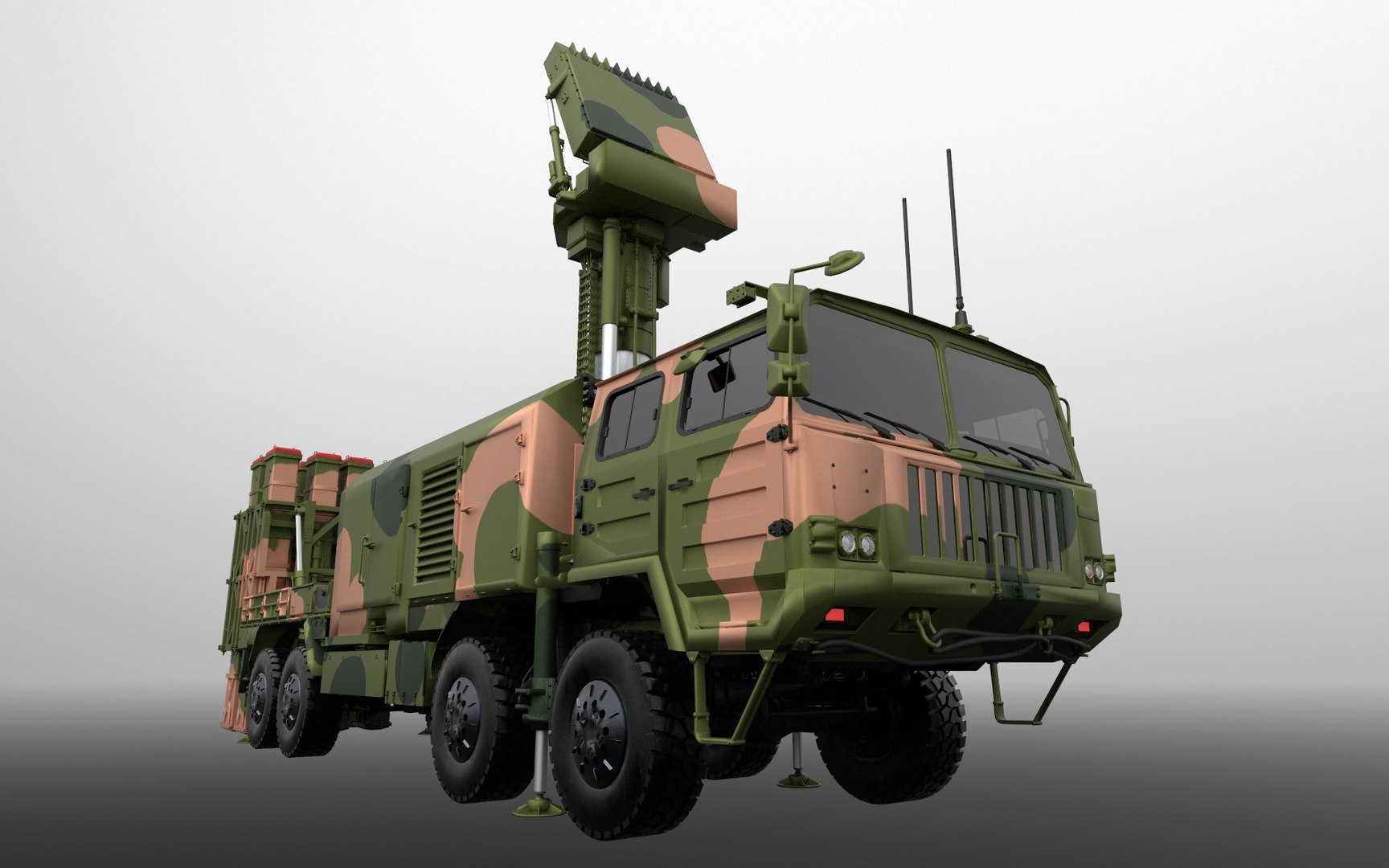

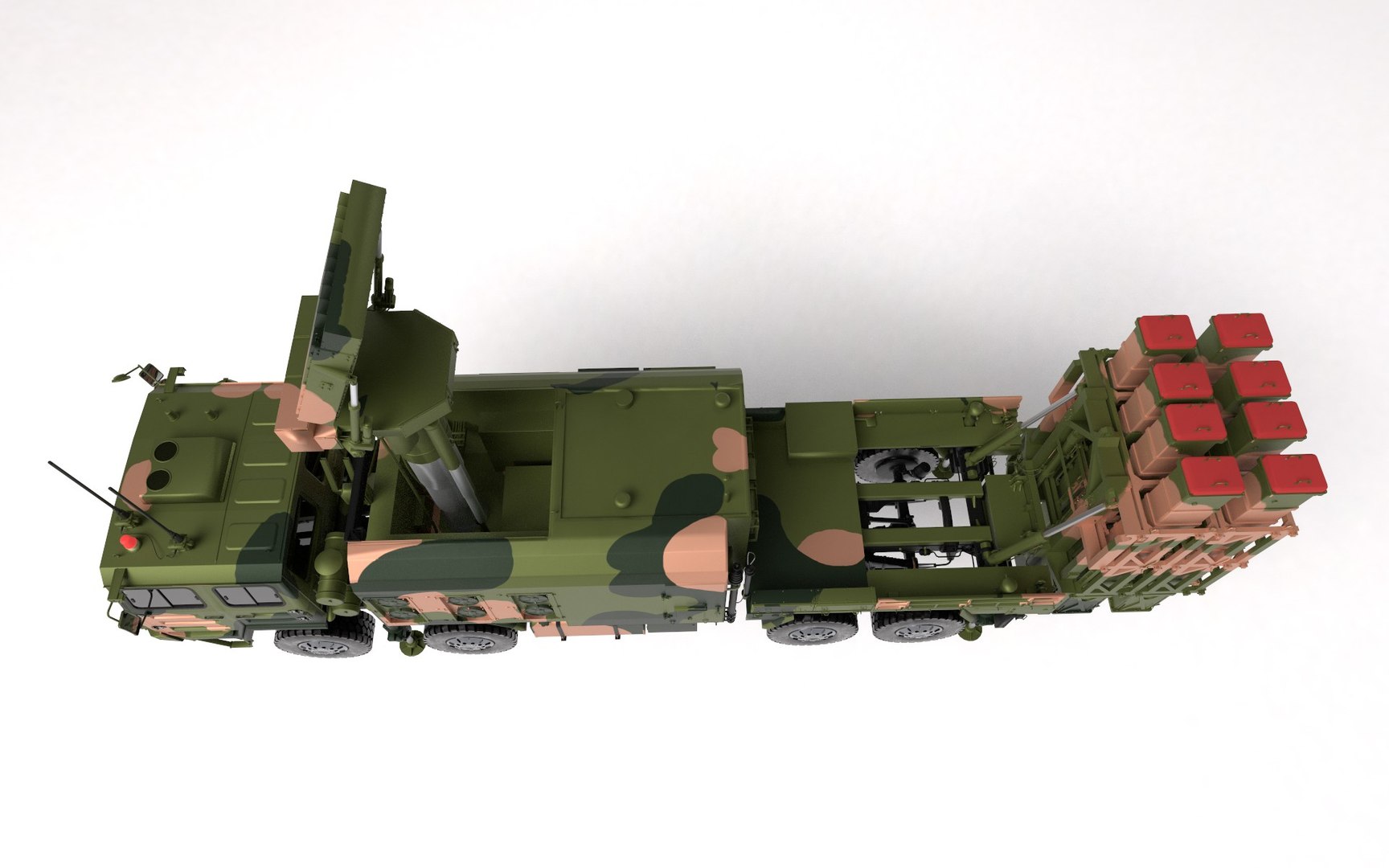

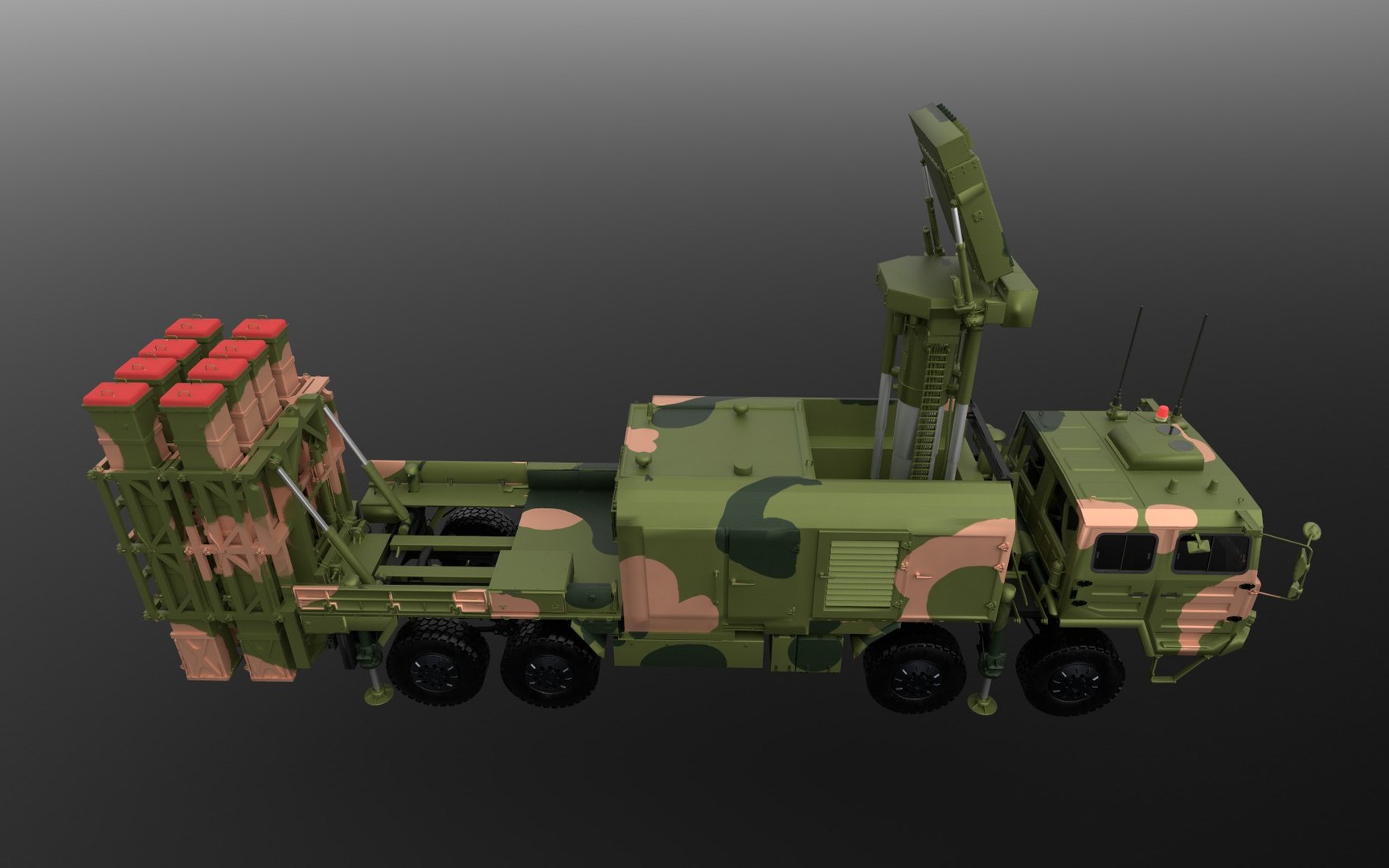

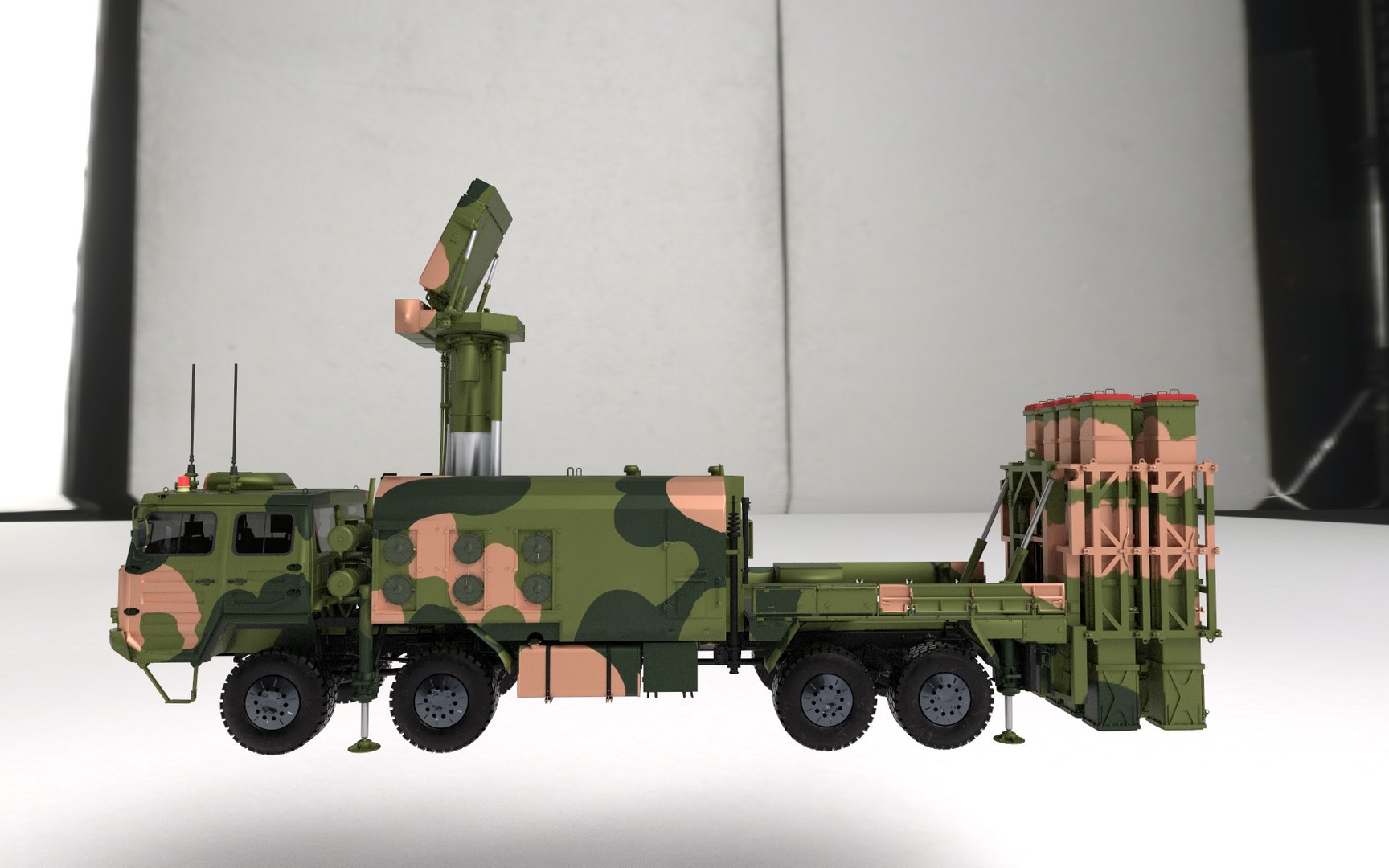

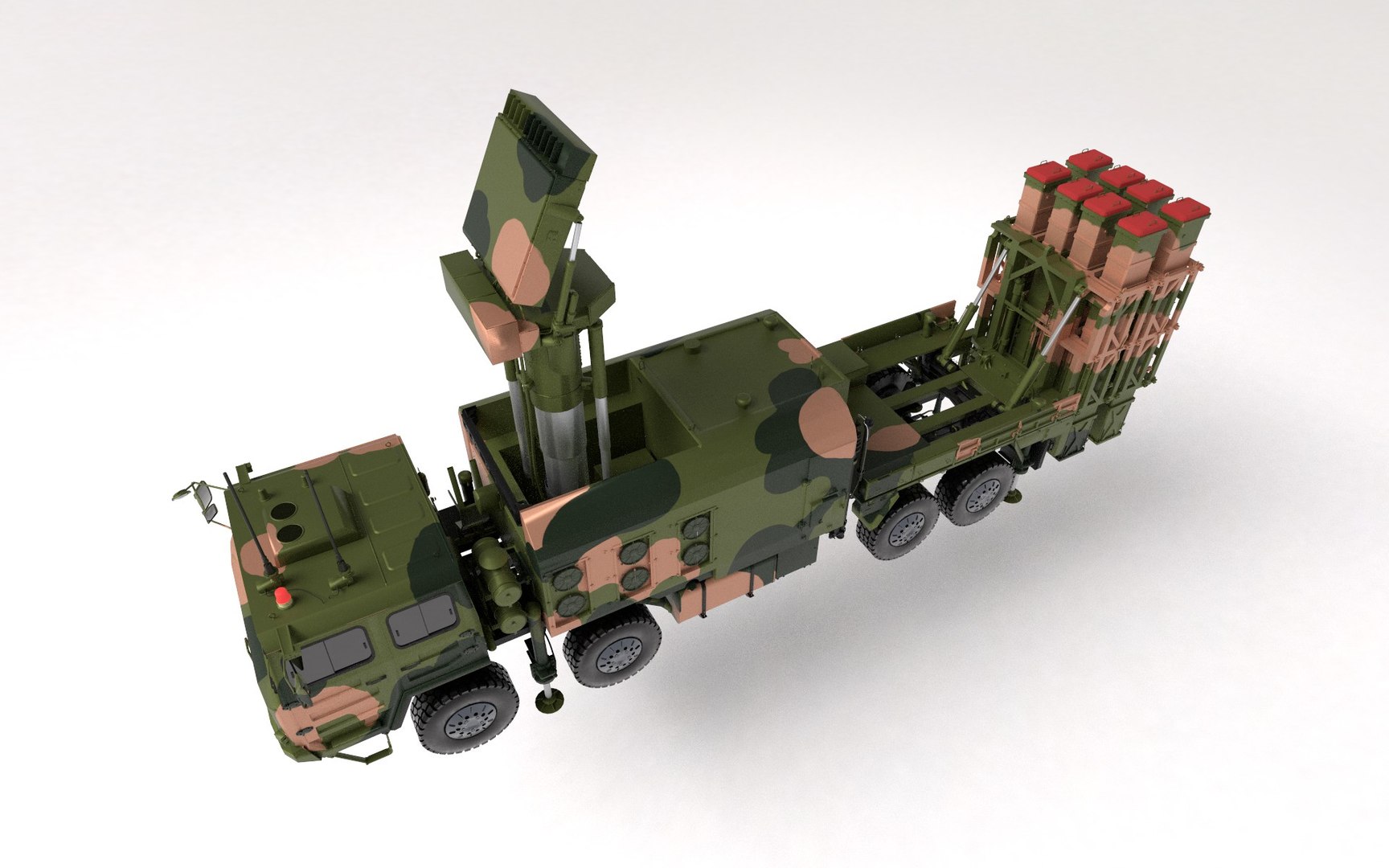

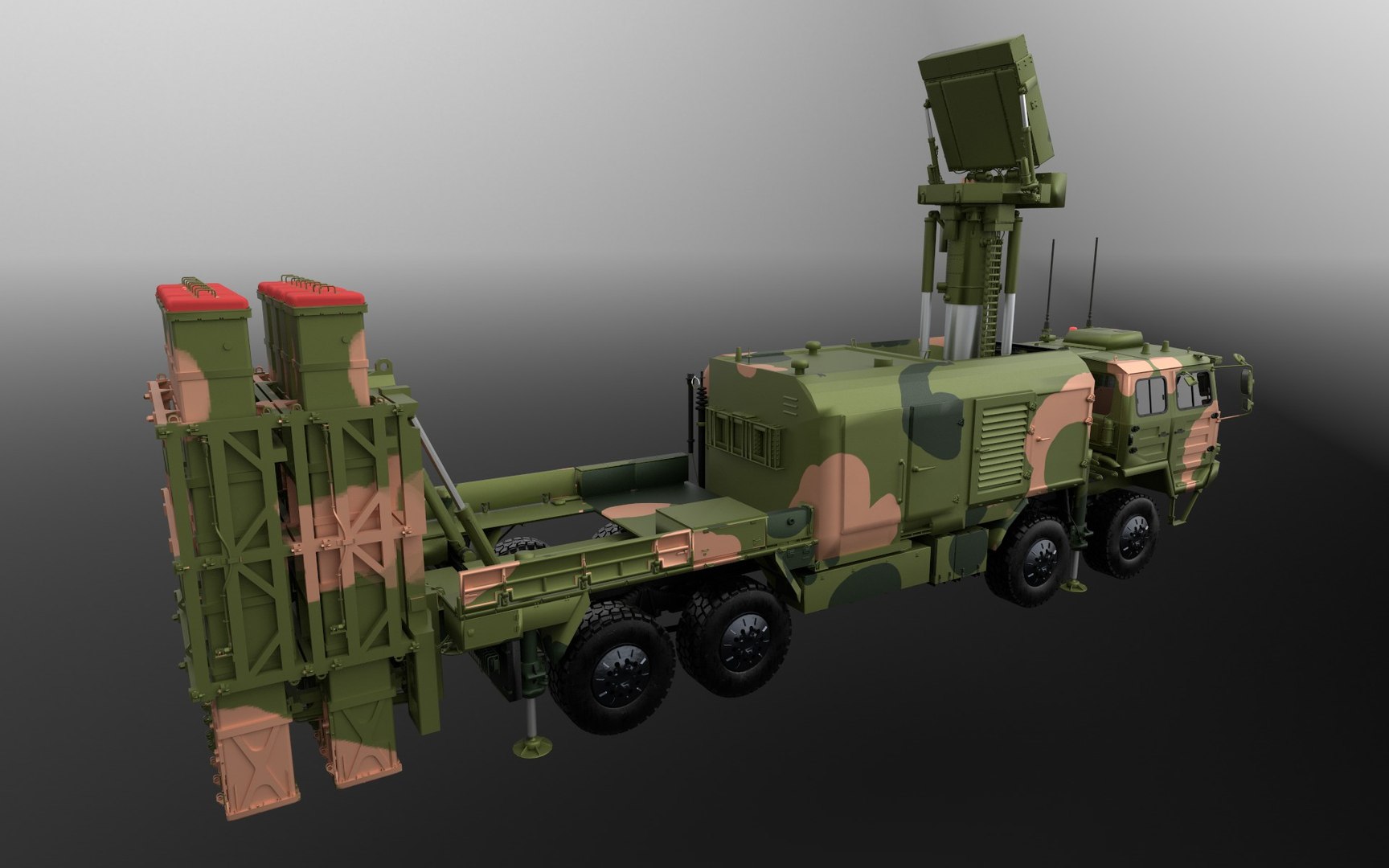

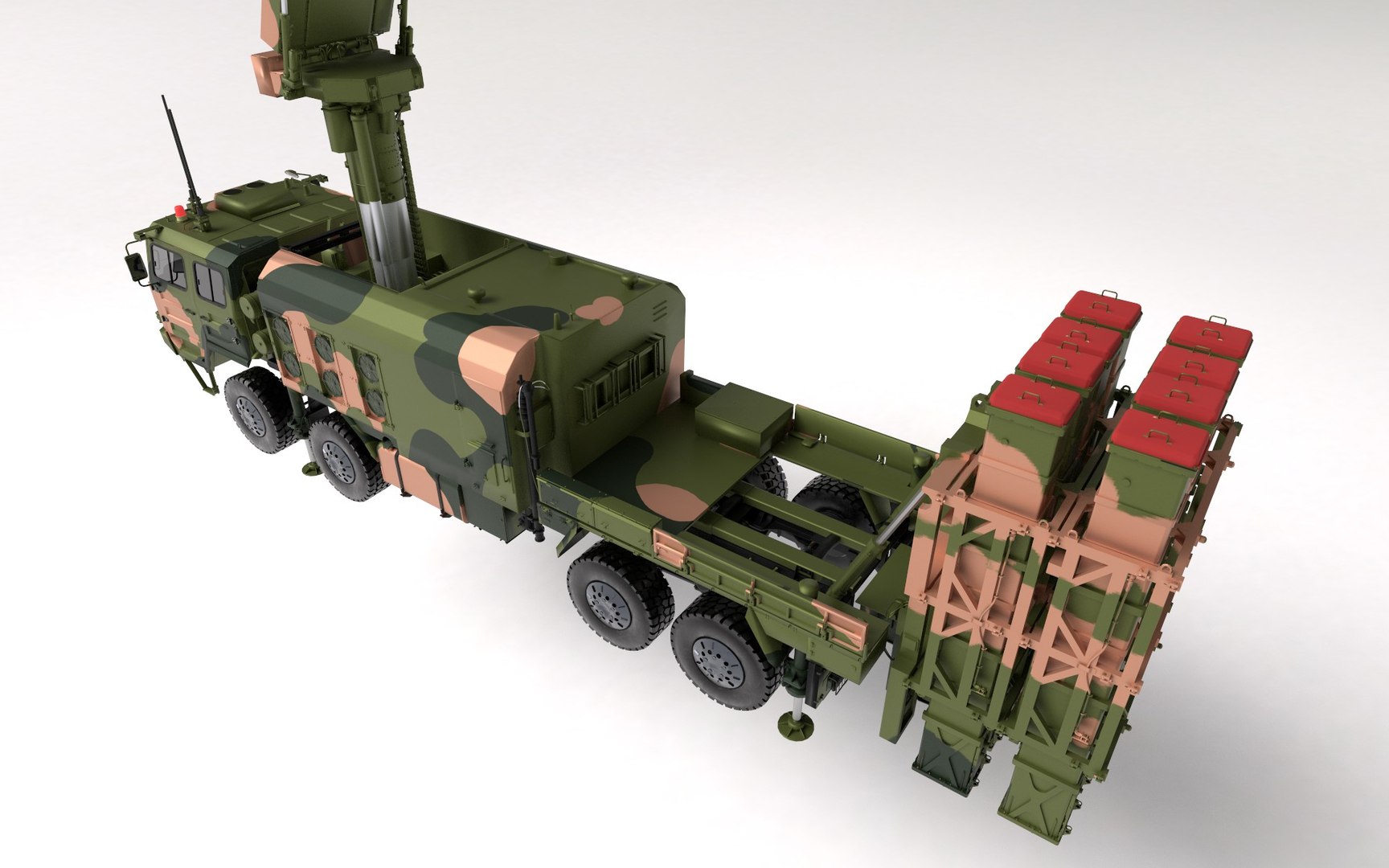

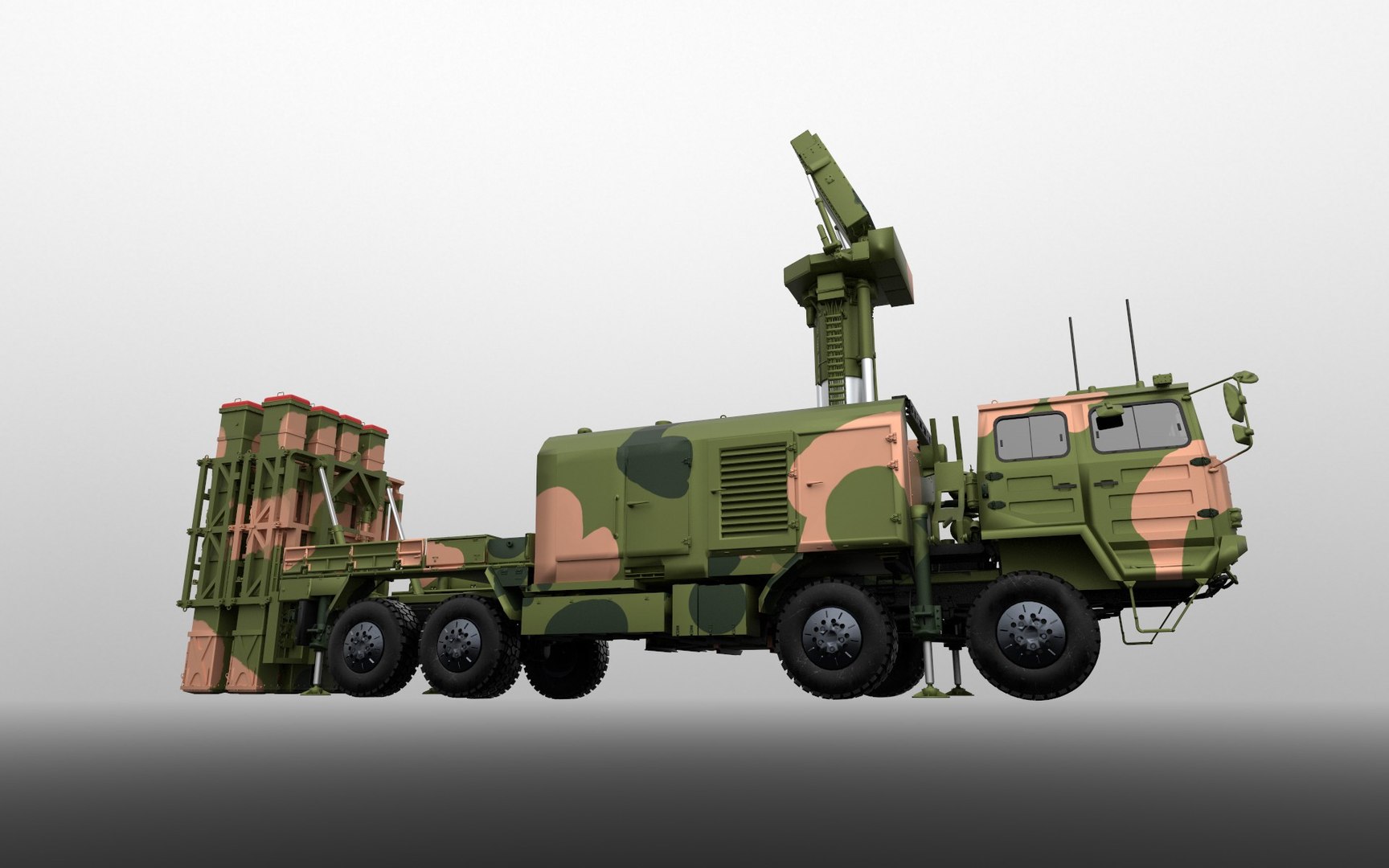

HQ-11 Air Defense System is created in Maya 2025, rendered in Substance Painter 11

Included file format: Maya, FBX, 4K PBR texture, .SPP.

World scale unit: Centimeters

Supported platform: Windows, Linux, Mac

The HQ-11 terminal defense system consists of a missile launcher vehicle, LD-3000 (Type 1130) close-in weapon system and a radar surveillance vehicle. The carrier vehicle of the missile launcher is an 8×8 wheeled transporter erector launcher (TEL), which is fitted with eight square canisters as vertical launch cells.
The engagement range is 30 kilometres (19 mi) against aircraft and 20 kilometres (12 mi) against missiles. Each air defense battery has a rotating rotary phased-array radar and four launch vehicles and can handle 32 different targets simultaneously. Guidance system for the missile included inertial guidance, command guidance, and terminal active radar homing.
The HQ-11 is meant to replace HQ-6A air defense system with better target engagement capability, as the latter is not armed for increased threats from missiles and unmanned aerial vehicles on the battlefield. The HQ-6A system has three vehicles: a canted 4-cell launcher vehicle with HQ-6D missiles, a close-in weapon system (CIWS) vehicle with a 6-barrel LD-2000 anti-air gun, and a search vehicle with mechanical radars. The HQ-11 system reduced the formation to two vehicles; the primary vehicle combines a more responsive 8-cell vertical launch system with onboard active electronically scanned array (AESA) radar and air surveillance control room, and the secondary vehicle is equipped with an 11-barrel LD-3000 CIWS gun. Both components of the HQ-11 is mounted on the Taian 5450B chassis.
