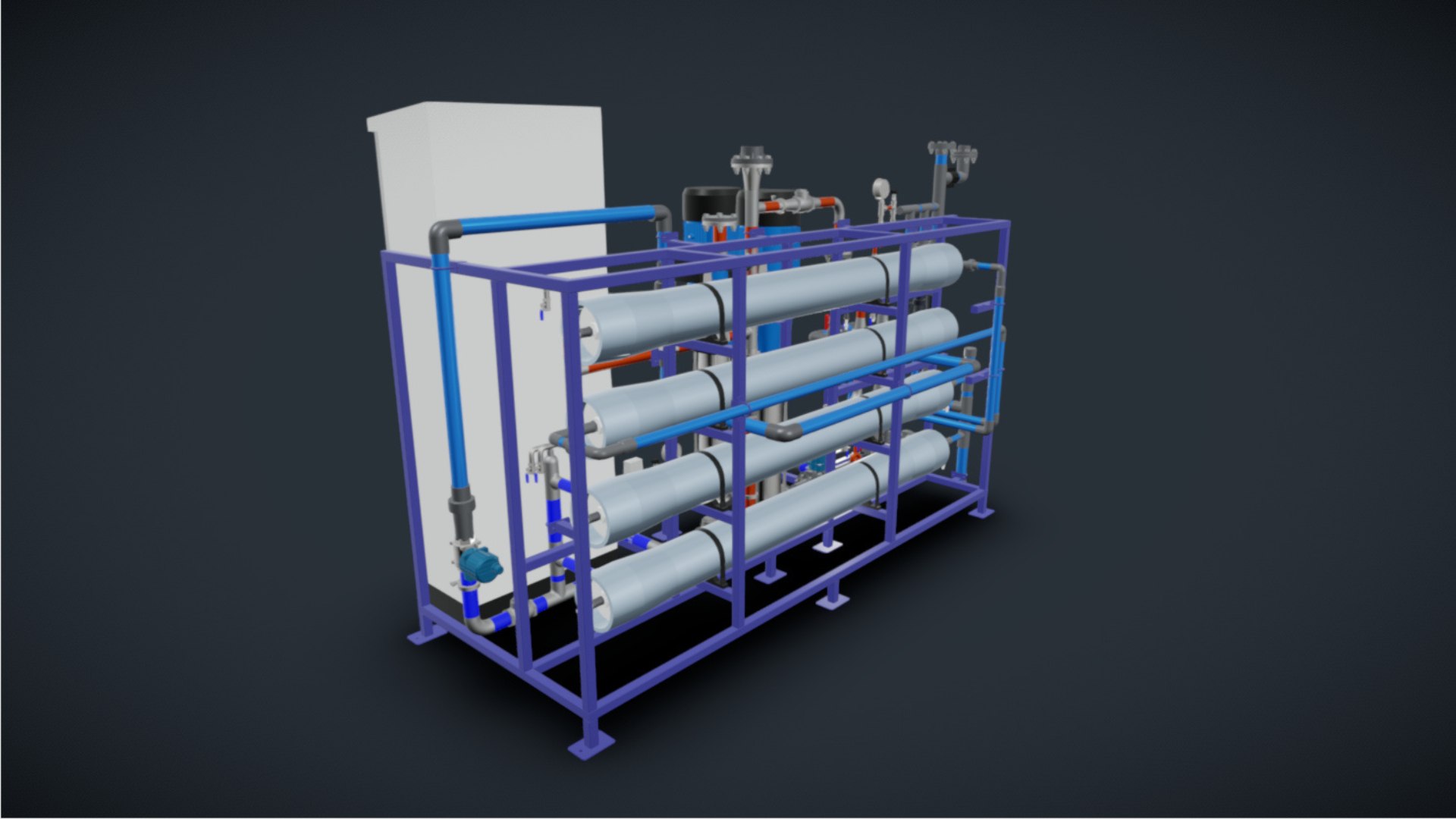

8m3h 3Stage RO System

High-capacity 2-stage reverse osmosis system (8 m³/h) designed for beverage manufacturing, continuous 24/7 operation, and real-time quality control.
The system integrates dual high-pressure RO stages, advanced sensors, smart automation, and a complete CIP loop for hygienic maintenance.
________________________________________
System Includes
RO Membrane Assembly
• 3 × 8040 membrane pressure vessels
• Each vessel holds 3 high-recovery 8040 RO membranes
• Total: 9 membranes arranged for industrial-grade efficiency
• Optimized for beverage and food-grade water processing
________________________________________

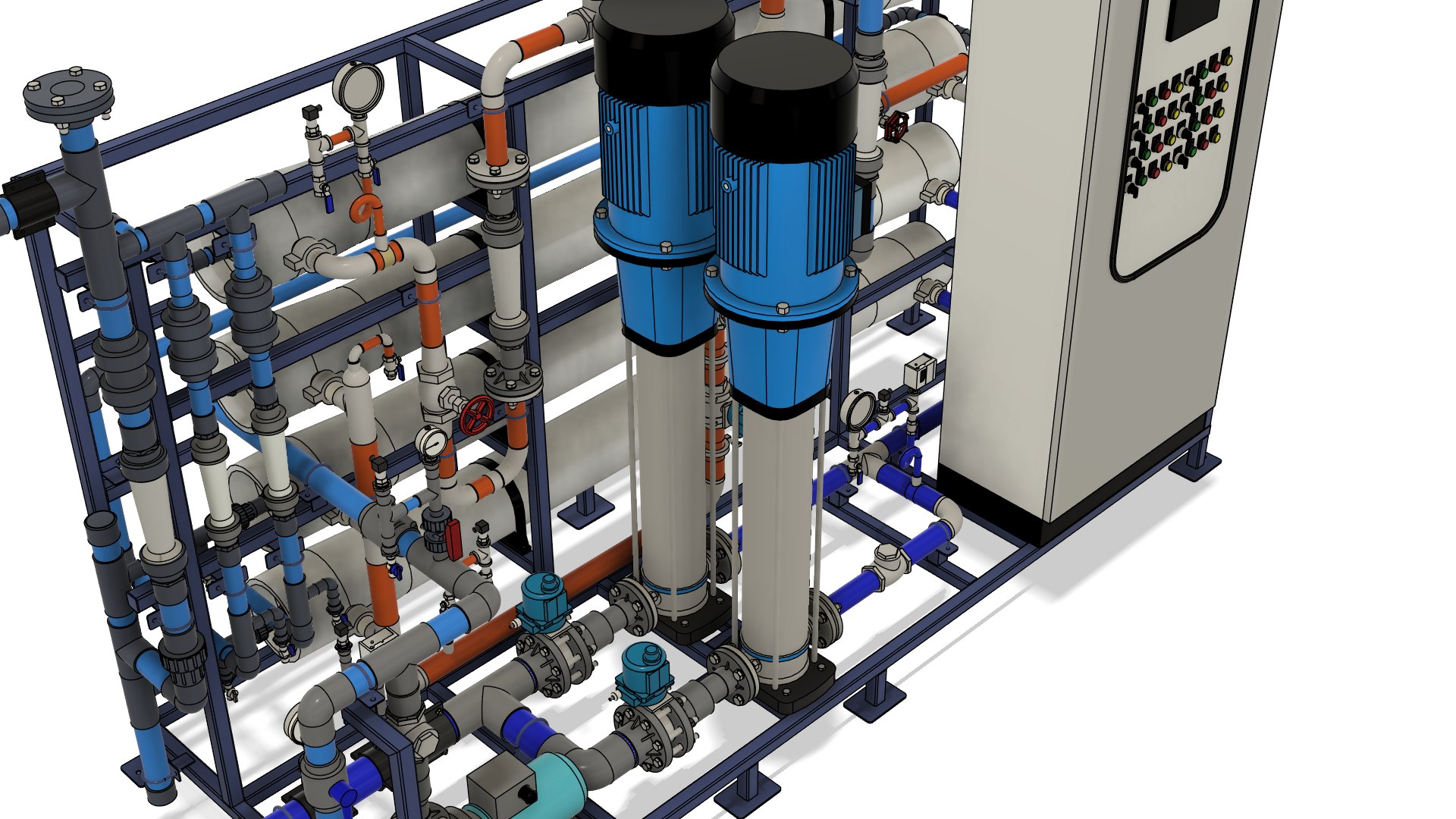

Dual High-Pressure Pumping System
• Two high-pressure pumps configured for 2-pass RO
• Ensures stable pressure, redundancy, and continuous operation
• Automatic switchover and pressure balancing logic
________________________________________
Automation & Control
• Automatic membrane flushing valves (startup + shutdown)
• Full CIP cleaning loop designed for quick connection and chemical circulation
• Pressure sensors at:
o RO Feed
o After RO Stage 1
o After RO Stage 2
• Enables precise differential pressure monitoring for membrane health
________________________________________
Water Quality Monitoring
• pH sensor
• Electrical conductivity (EC) sensor
• Pressure sensors at critical points
• Real-time display via IoT platform
________________________________________
IoT Smart Monitoring
• Remote dashboard
• Live status for pressure, quality, pump load
• Instant phone alerts for deviations or downtime
• Ideal for factories requiring strict QC and traceability
________________________________________
Modeling & File Formats
• Modeled entirely in Autodesk Inventor (high accuracy, engineering-grade)
• Delivered in .glb and .usdz formats
• Suitable for:
o Layout planning
o Instructional animation
o Industrial presentations
o VR/AR equipment placement
________________________________________
Ideal For
• Beverage factories
• Food processing plants
• Filling and bottling lines
• Industrial RO water production requiring hygienic, stable output
