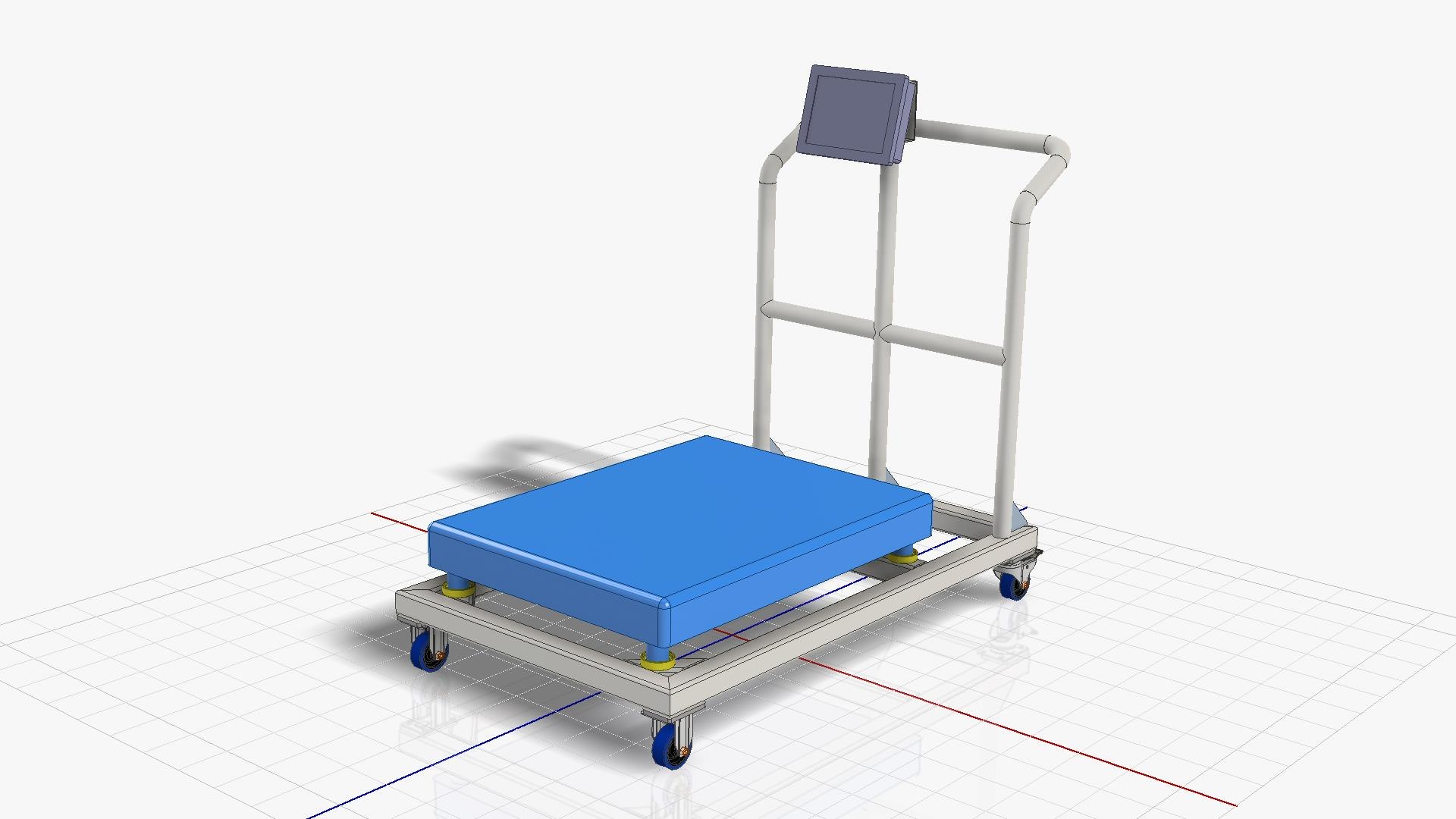

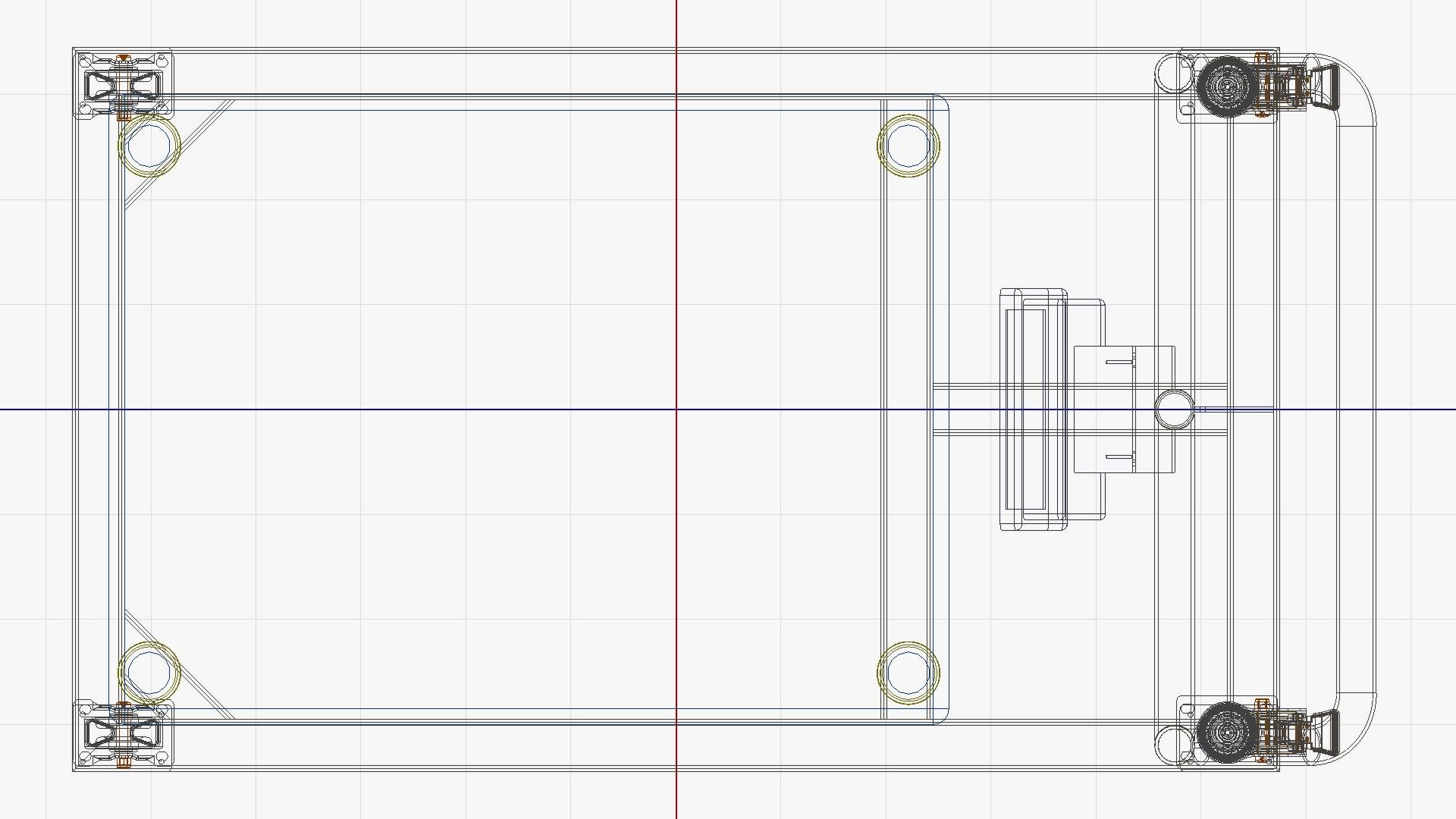

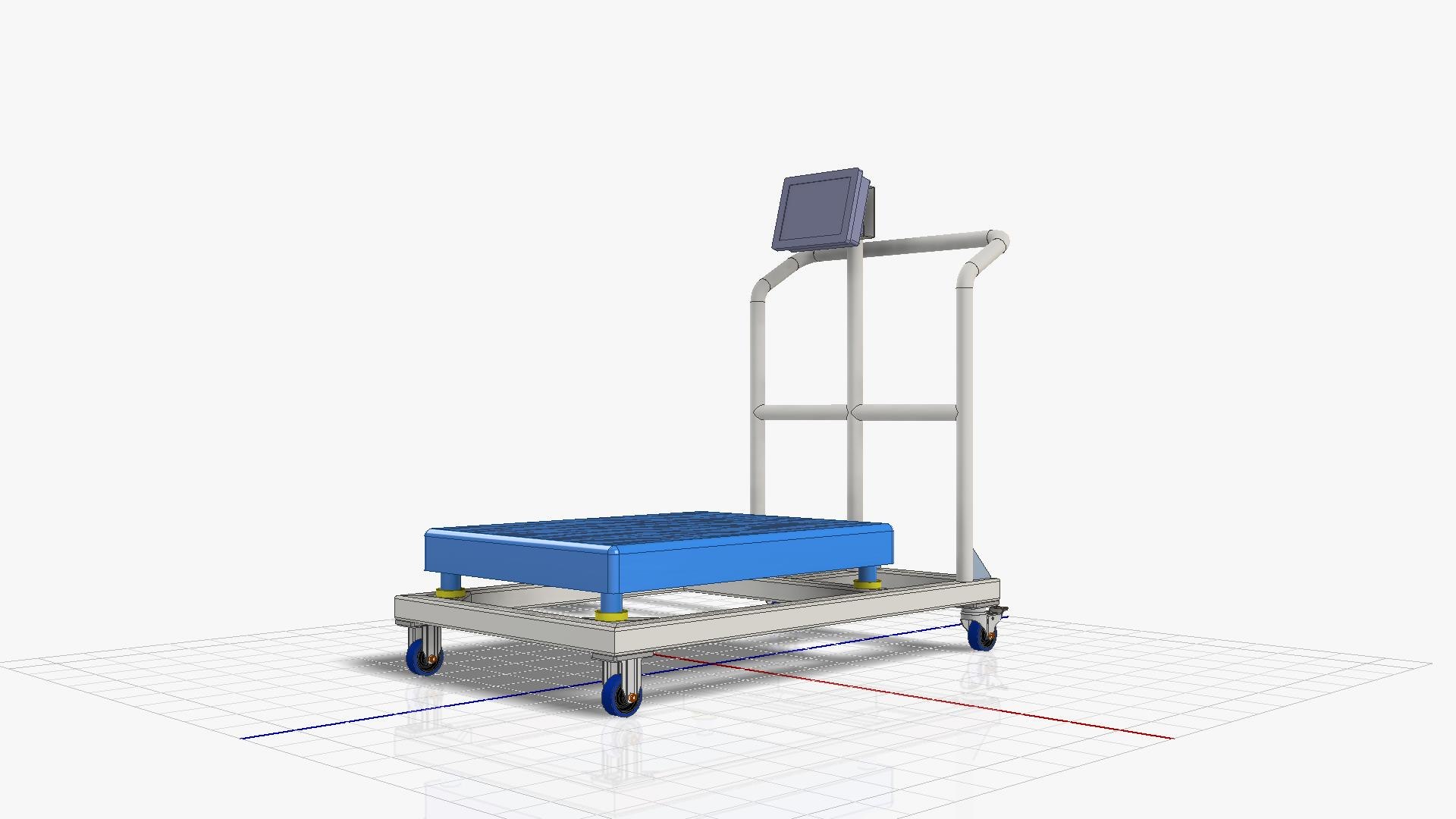

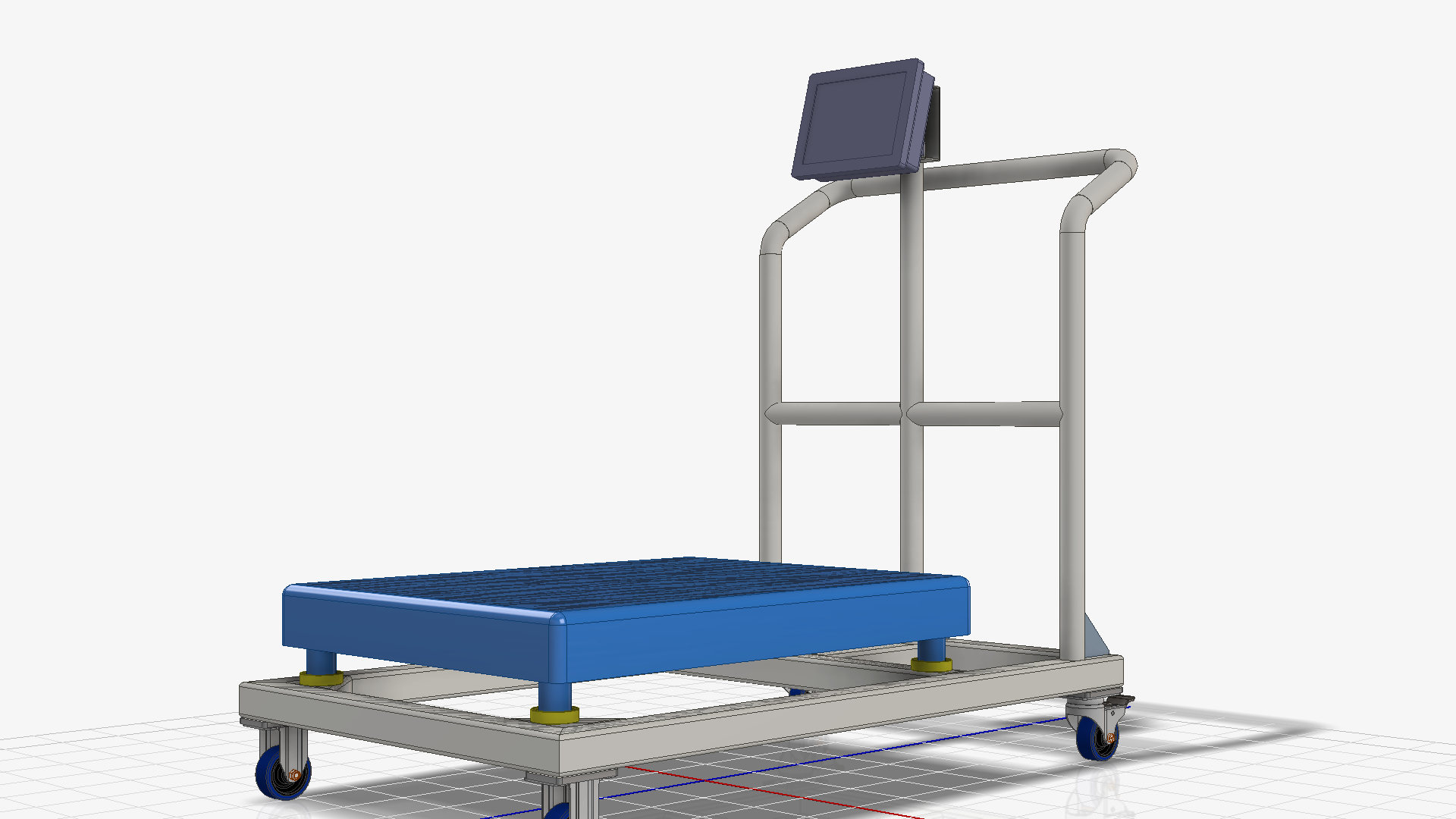

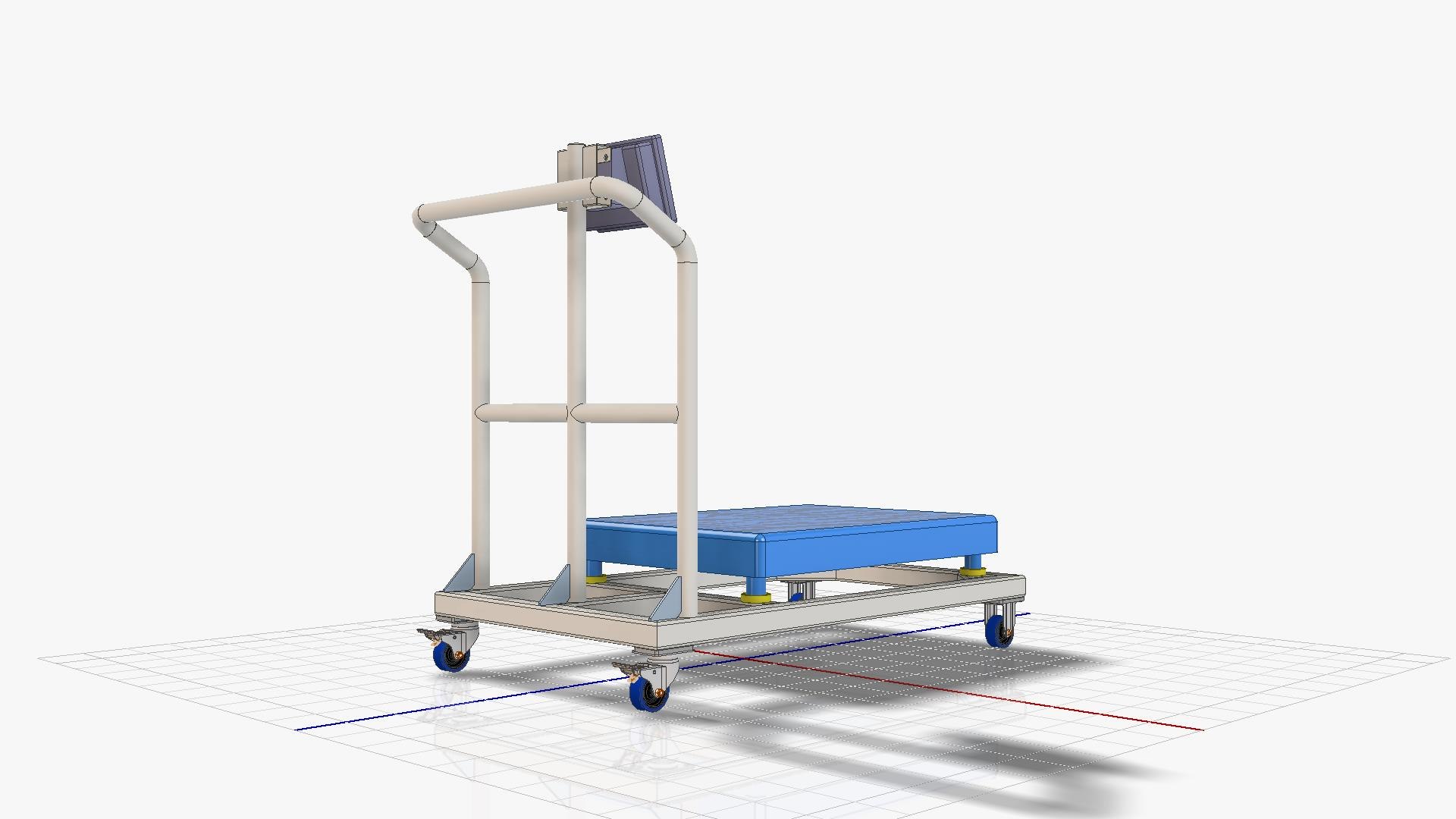

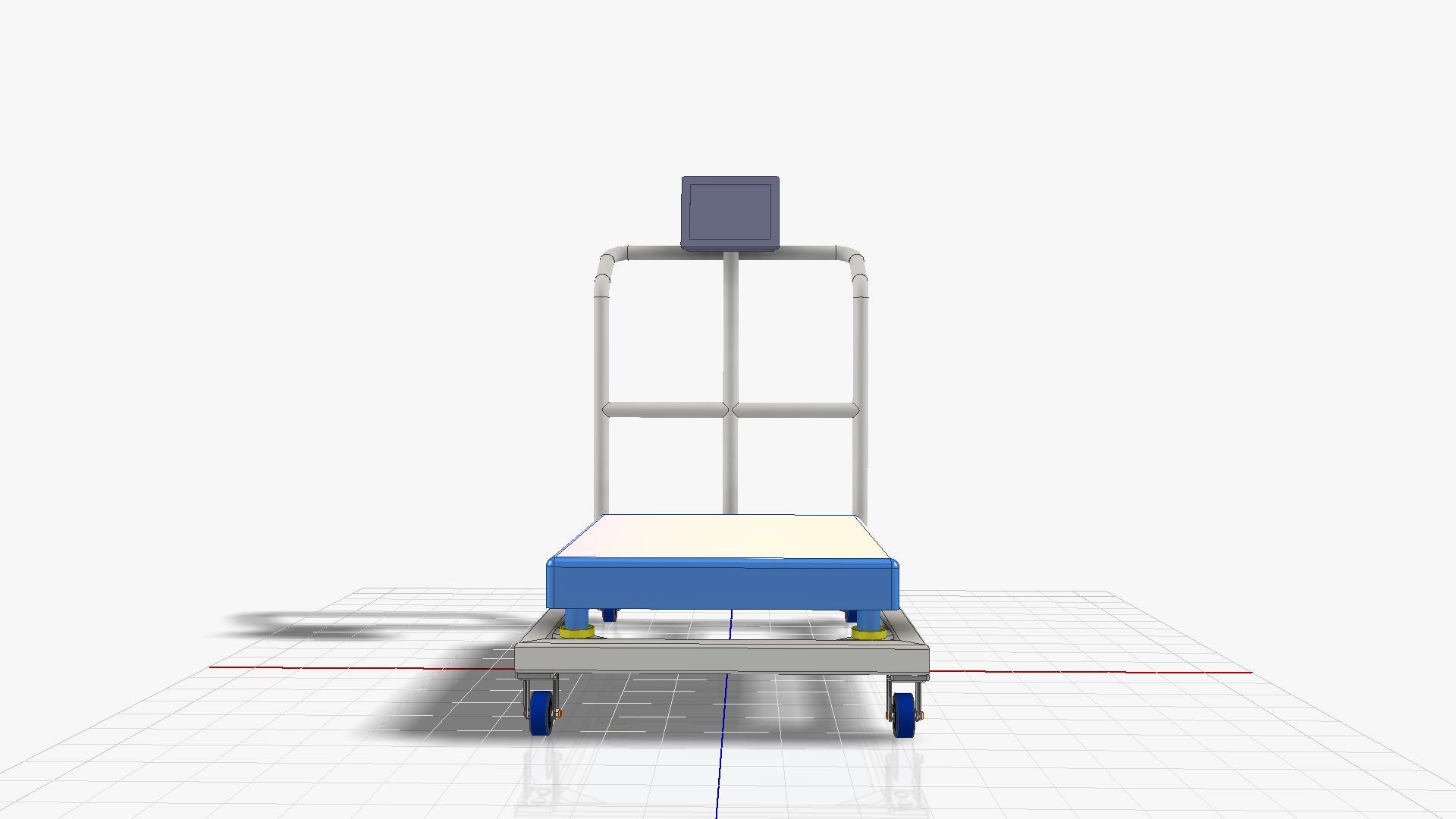

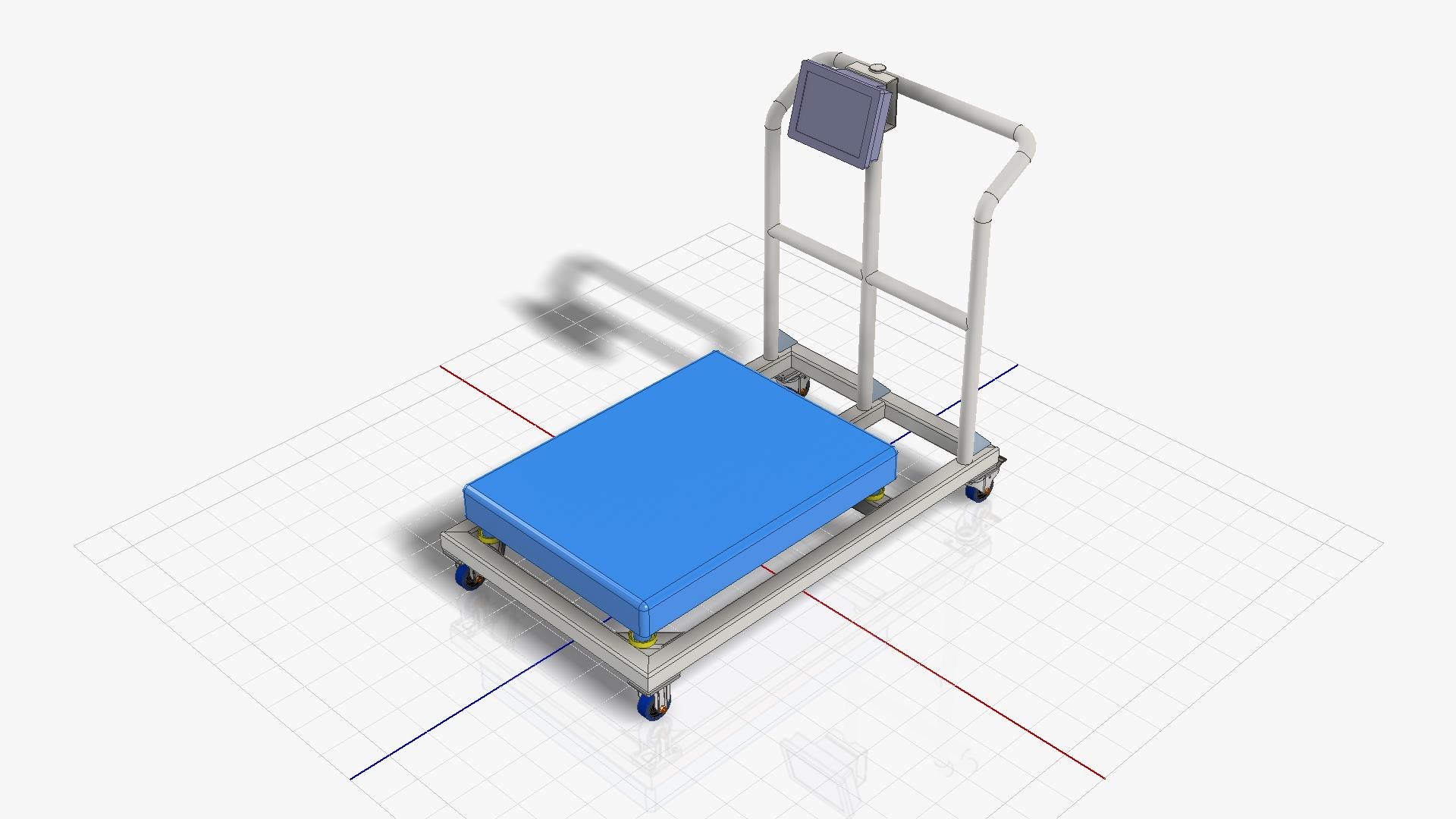

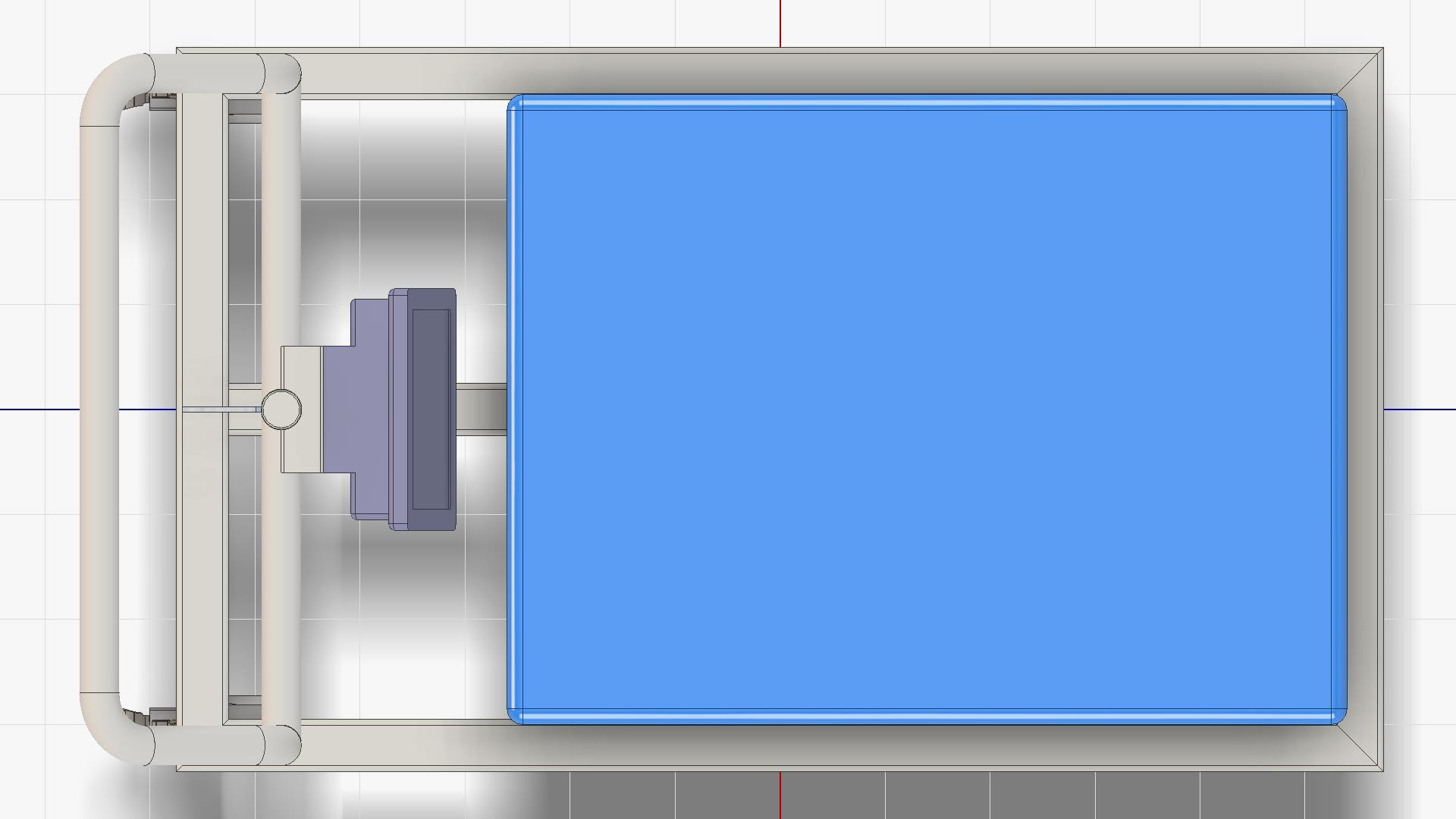

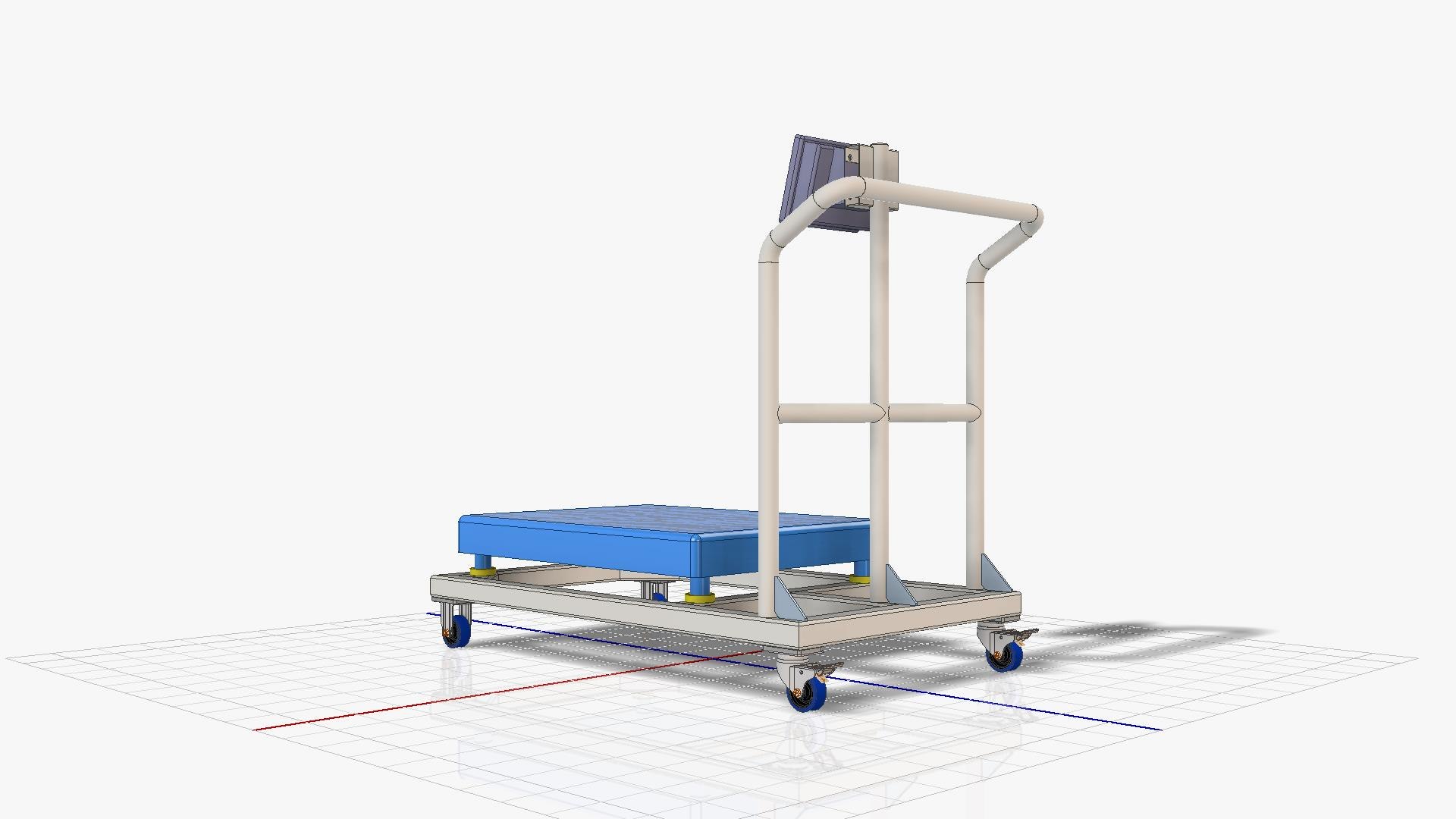

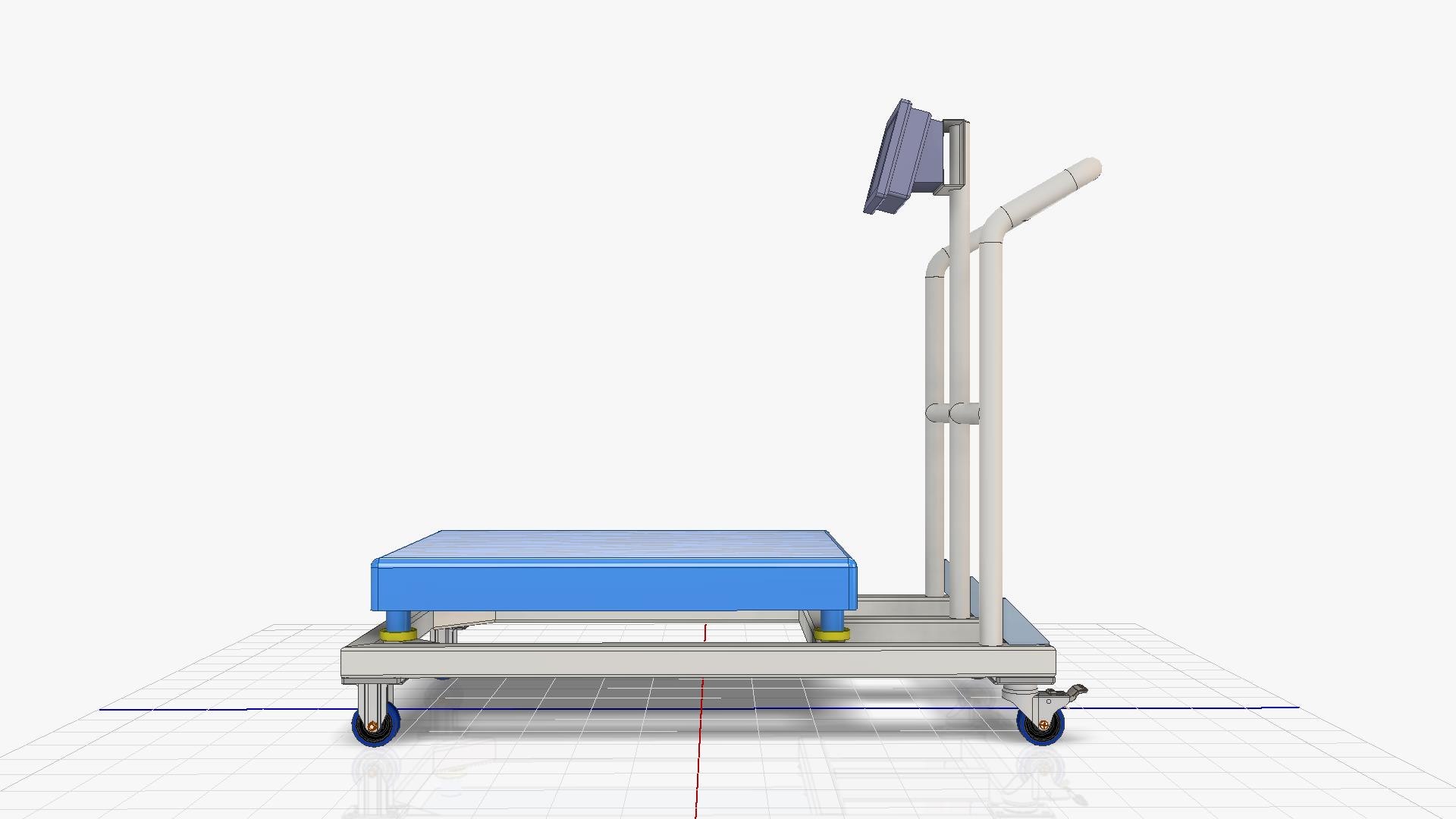

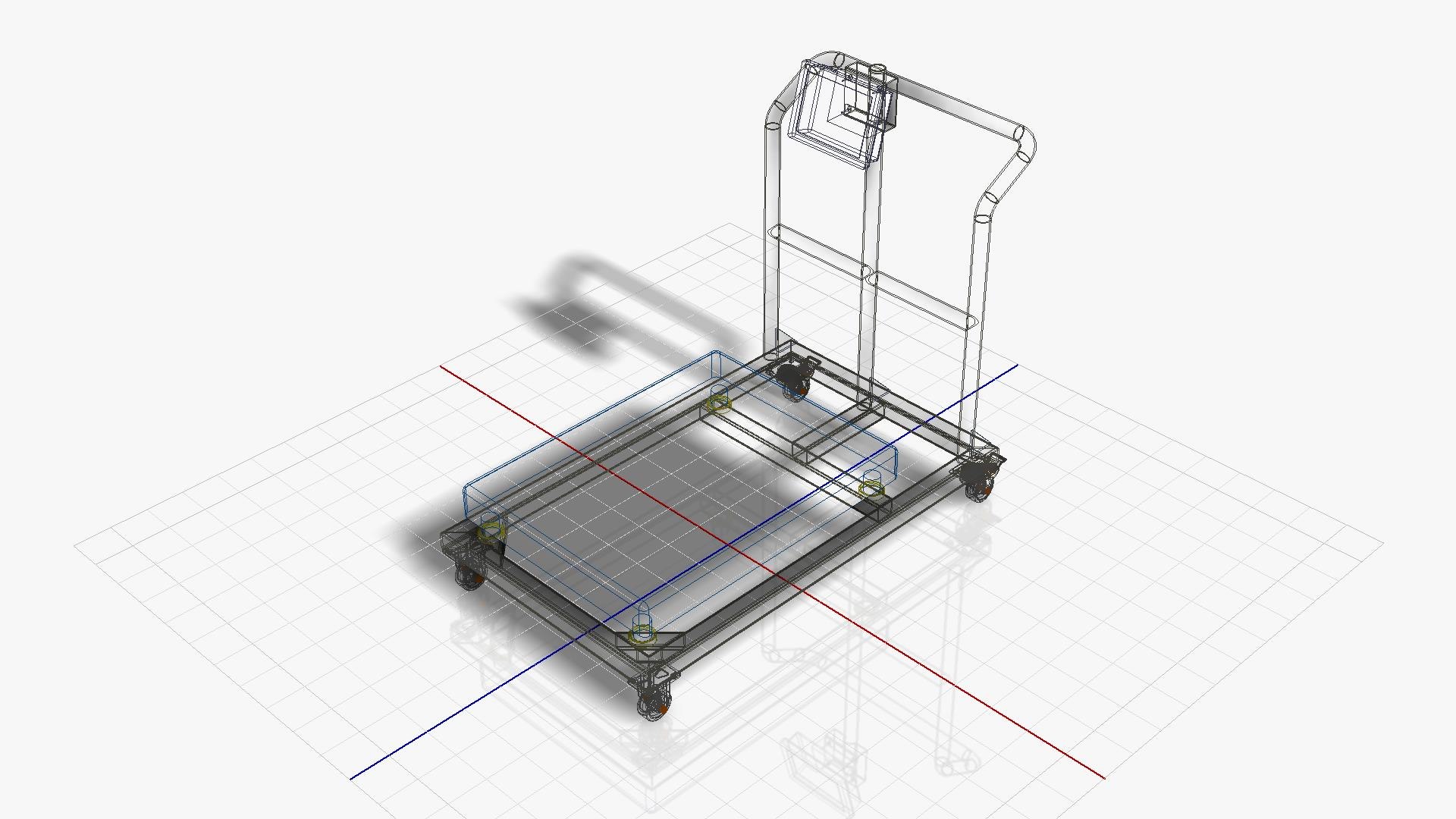

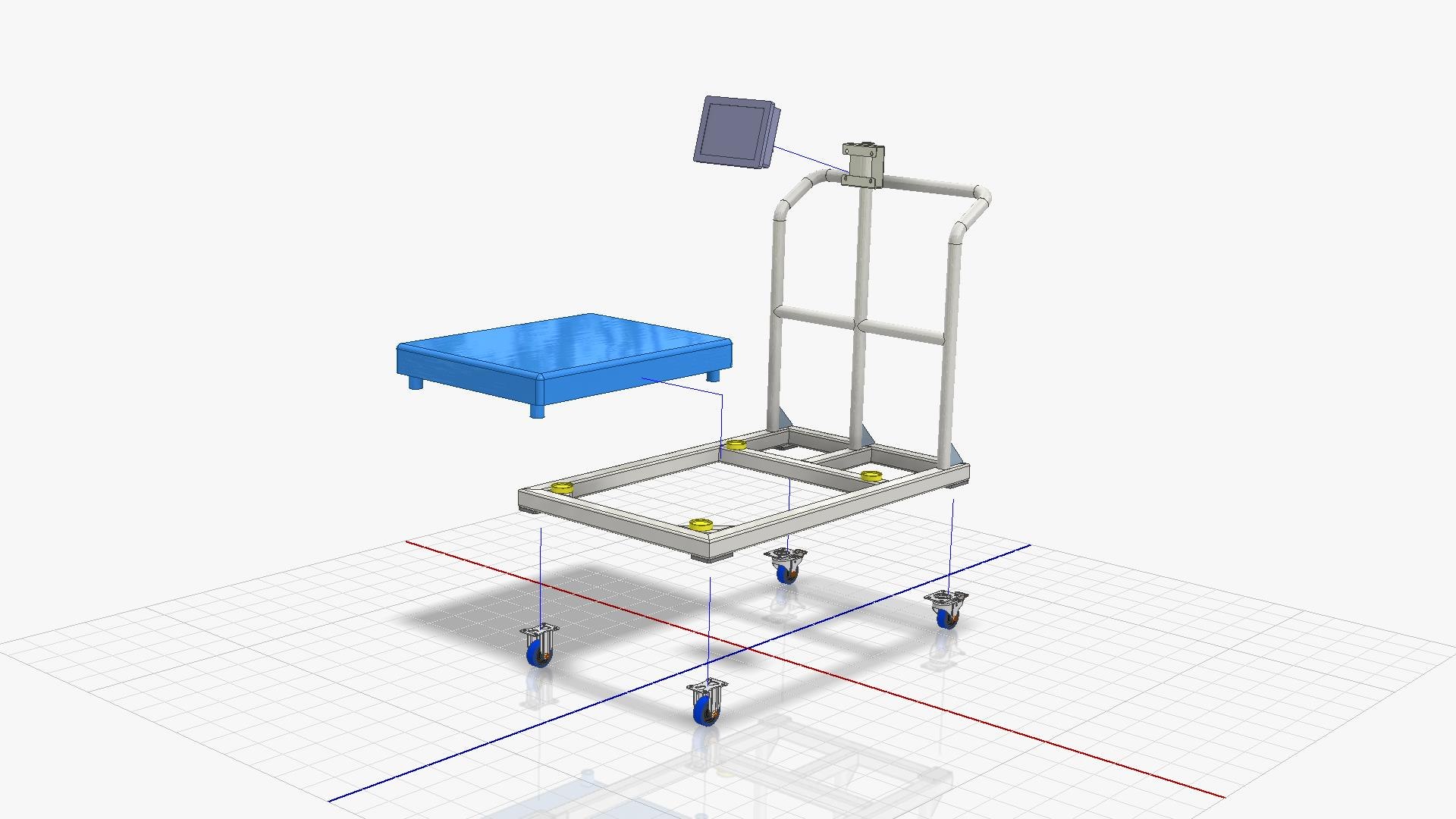

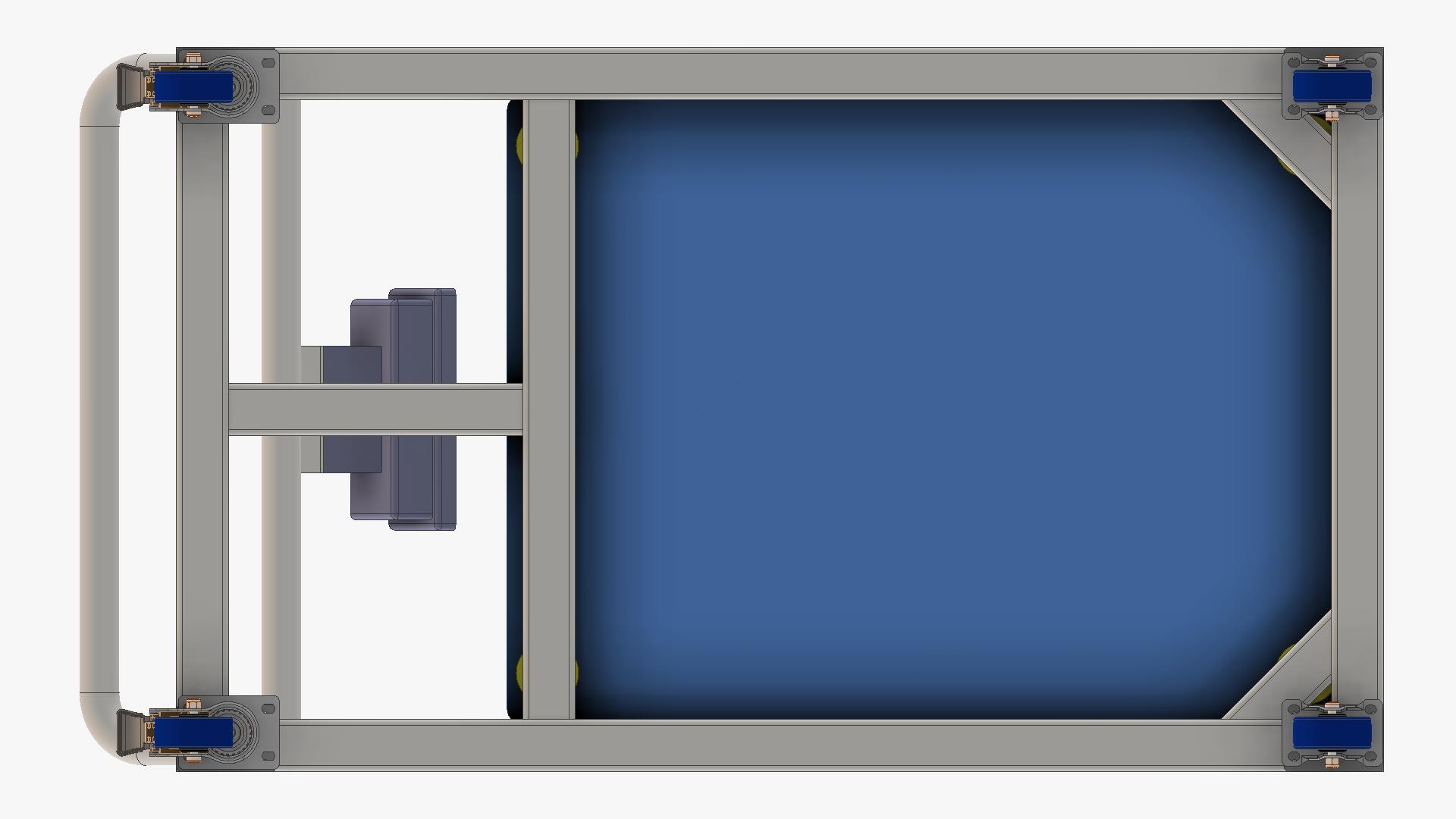

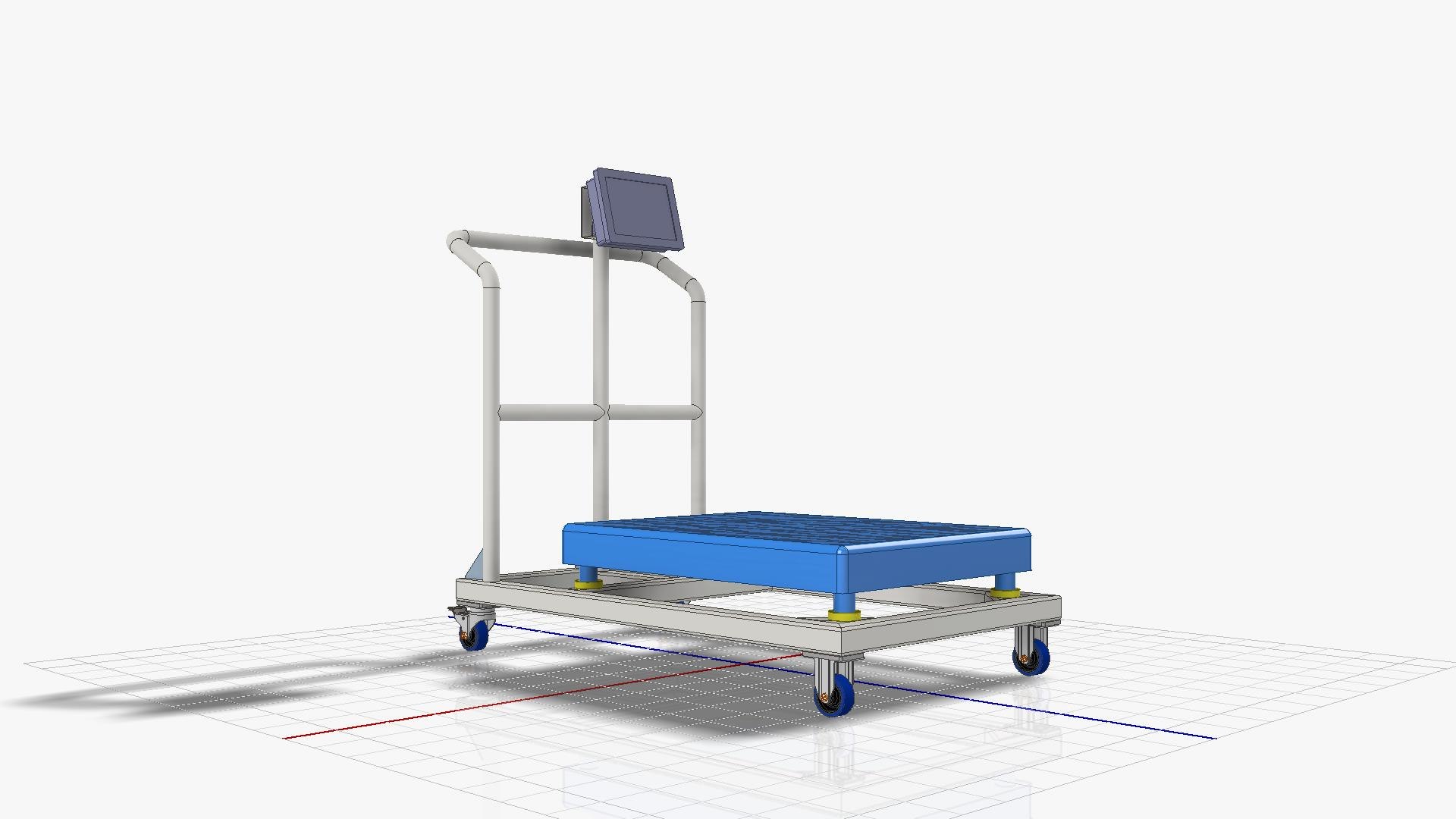

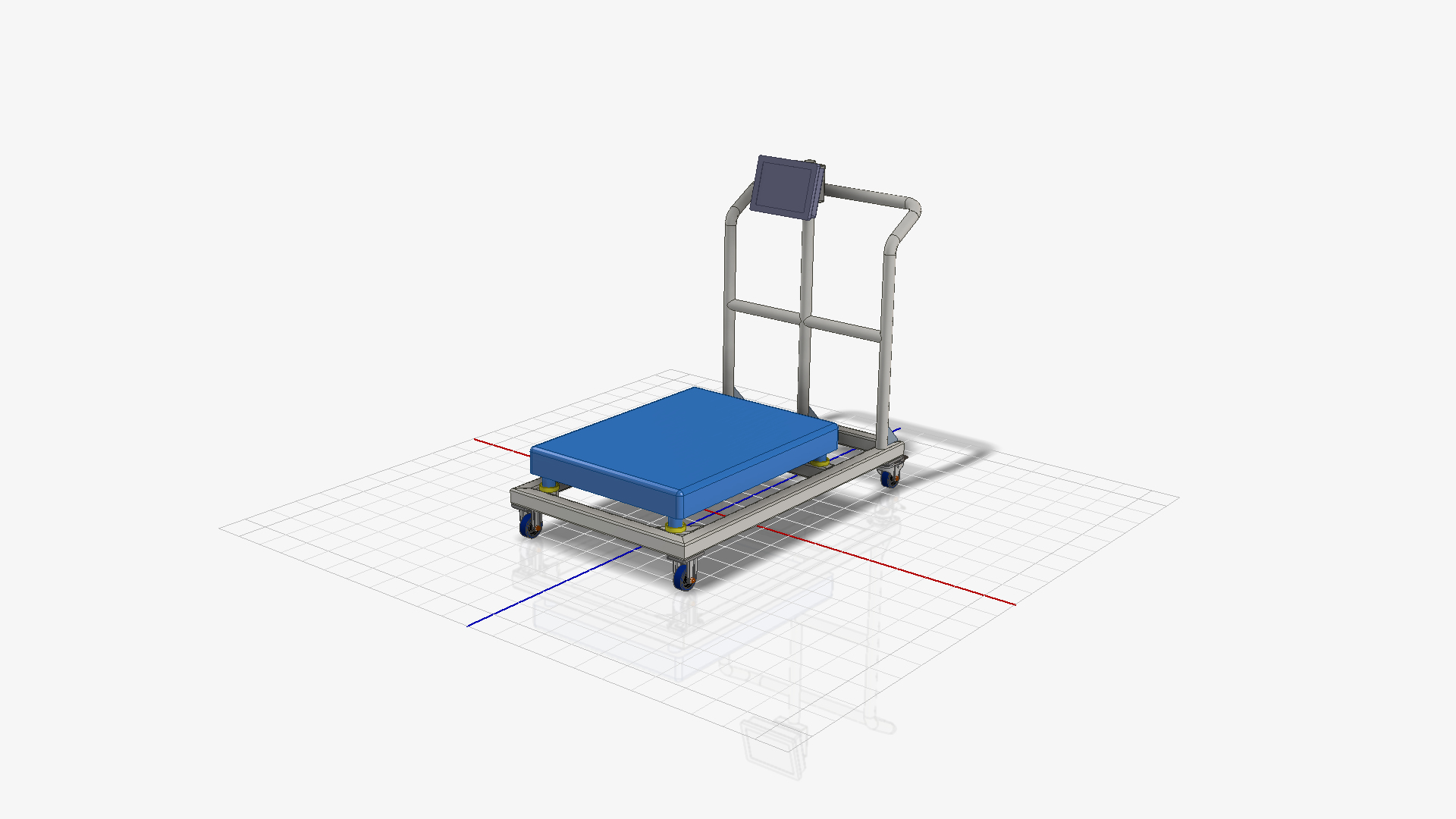

TROLLY CHECK WEIGHT METTLER TOLEDO

(We use the program inventor 2021 to do)

and we have file Pack n go Full drawing customer

can make part for Manufacturing Process

File formats:

- Inventor All File and Pack and go file Inventor

- Inventor ( iam = Assembly file)

- Inventor ( idw = Drawing file)

- Inventor ( ipt = Part file)

- Inventor ( ipn = UV file)

Export File Other.

- 3D model file ( STL , OBJ - file )

- Solid model 3D (STEP , X_T )

- PDF file for review drawing (PDF)

- DWG file & PDF file for manufacuring all process

Description Concept Design

1.Material All Design Food grade Hygienic = Stainless steel 304
2.Support Product Maximam 400 kg. (we design SF=2.5)

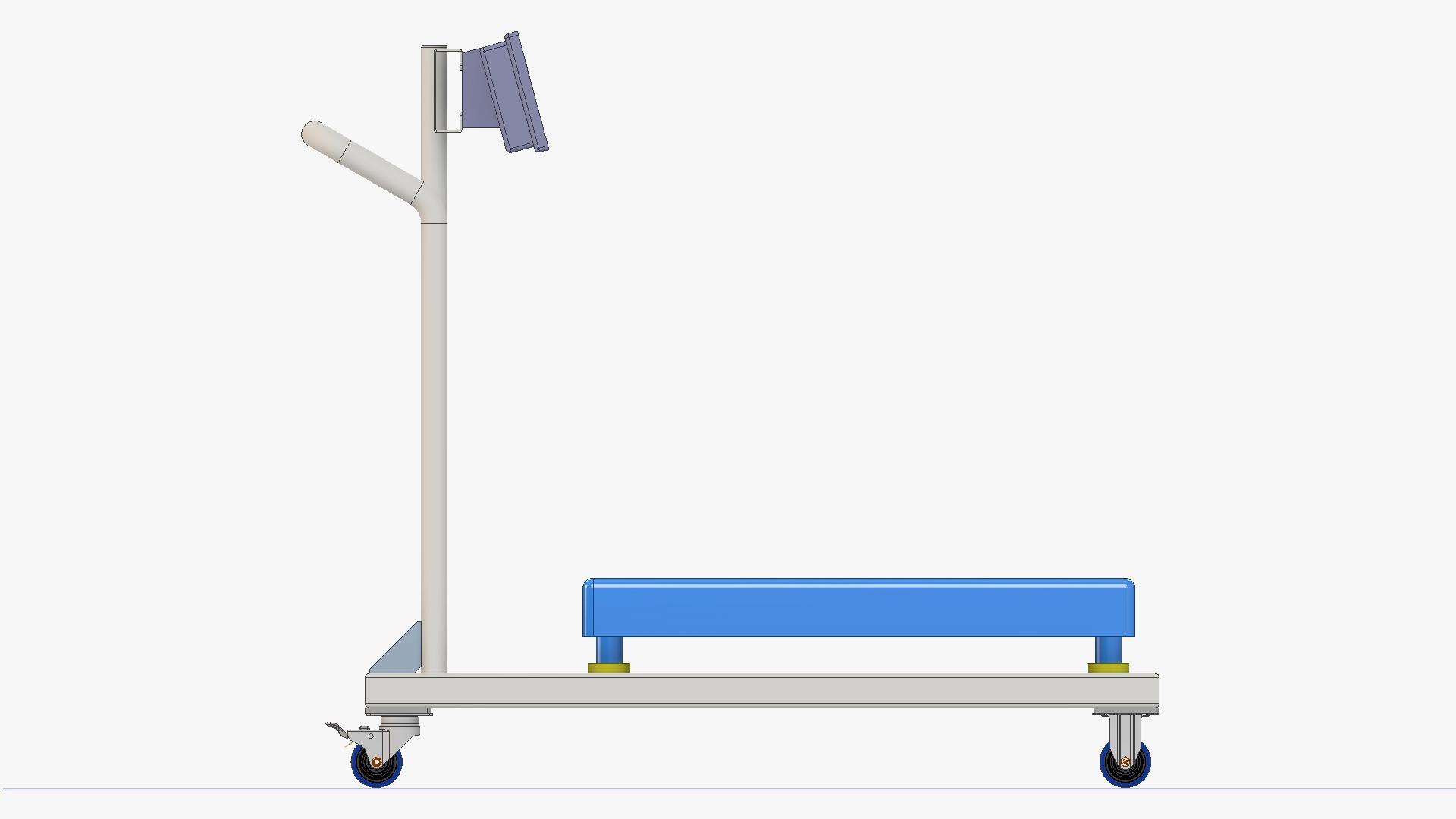

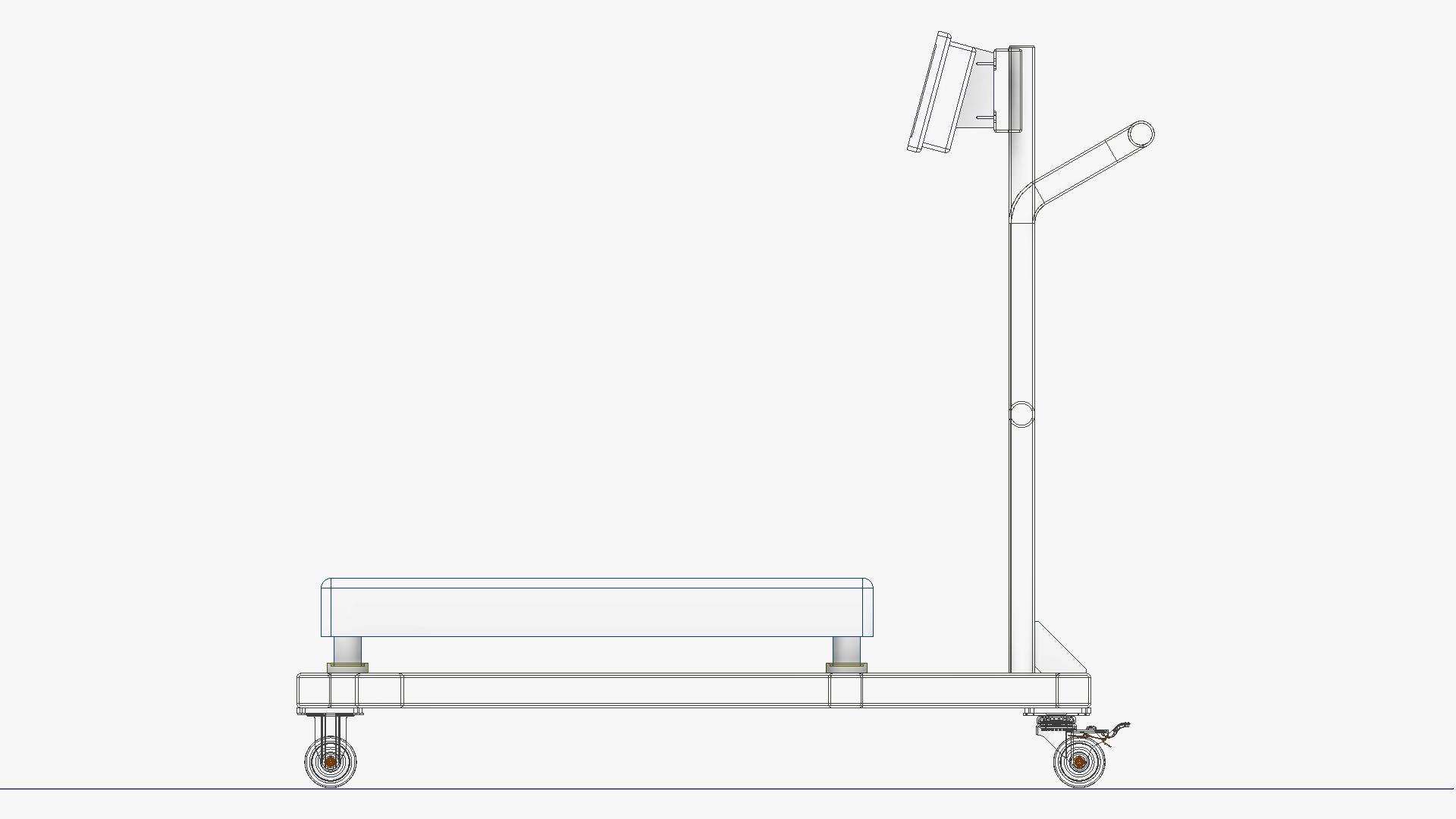

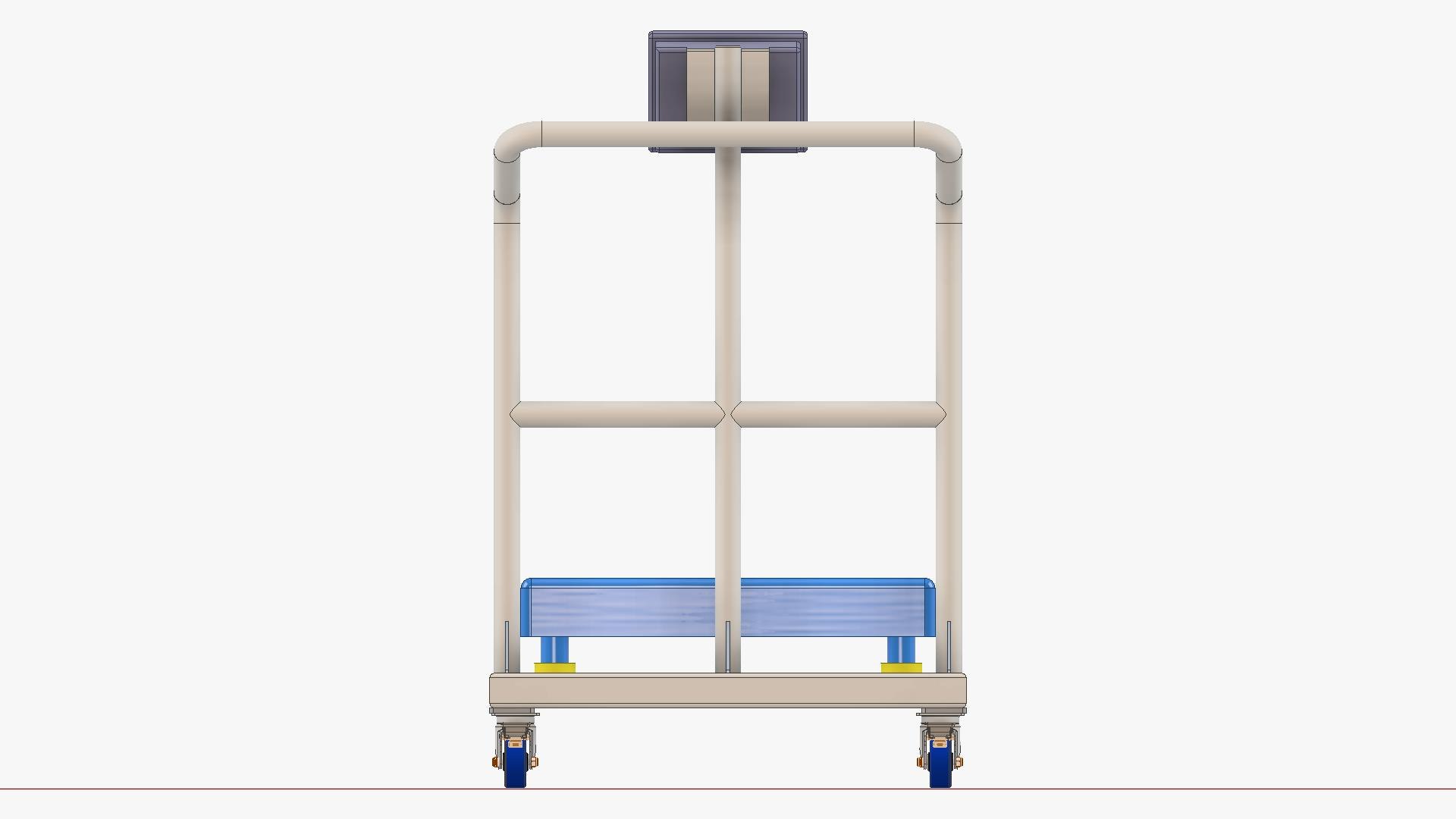

3.Castors Front view 3"= Fixed Type-(2x)

4.Castors Back view 3"= Swivel With stopper Type-(2x)

5.Check weight METTLER TOLEDO Platform PBA4XX-CC300

6.Screen METTLER TOLEDO IND256x

If you have questions, you can ask.

• Thanks for interesting
