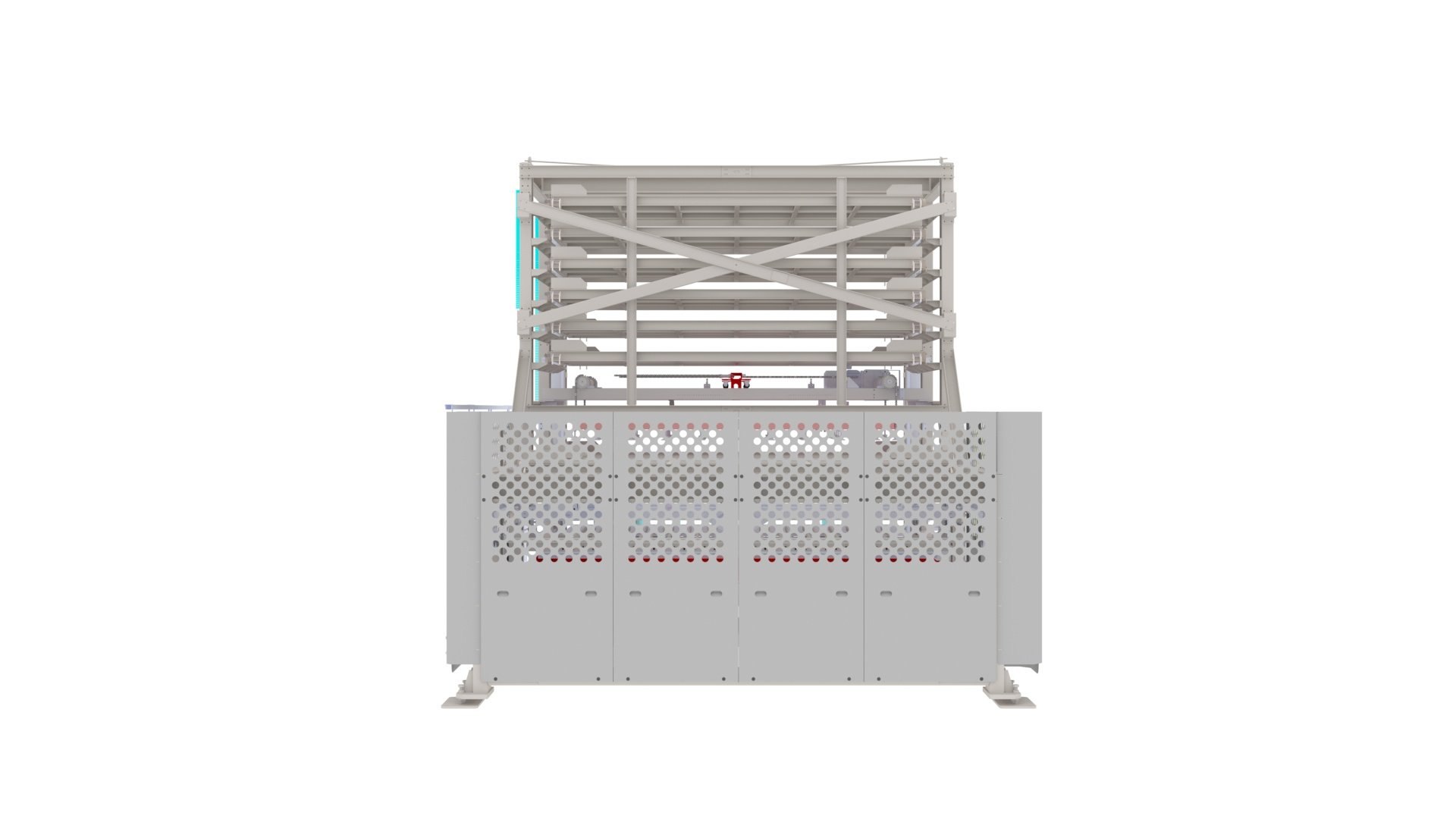

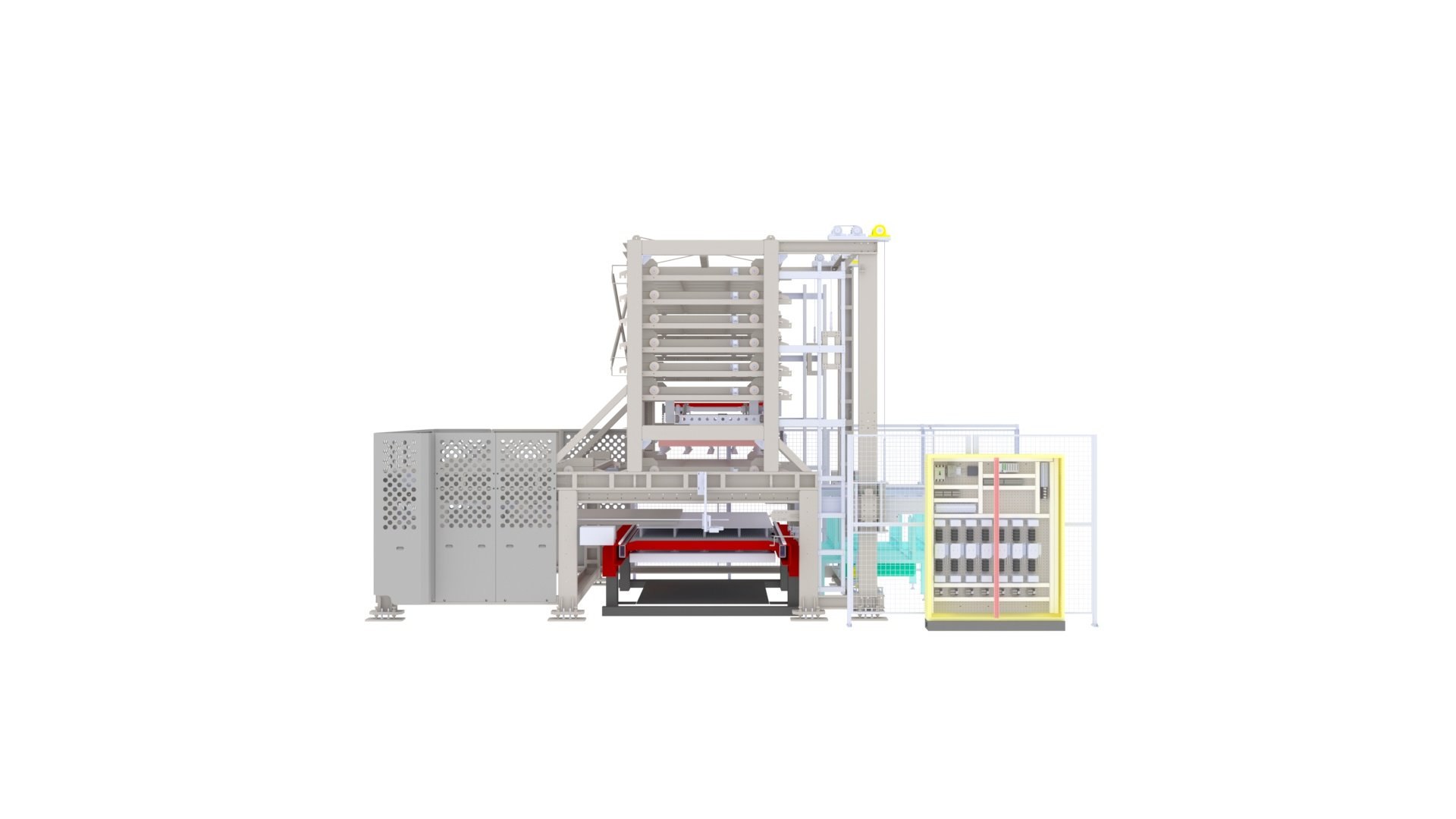

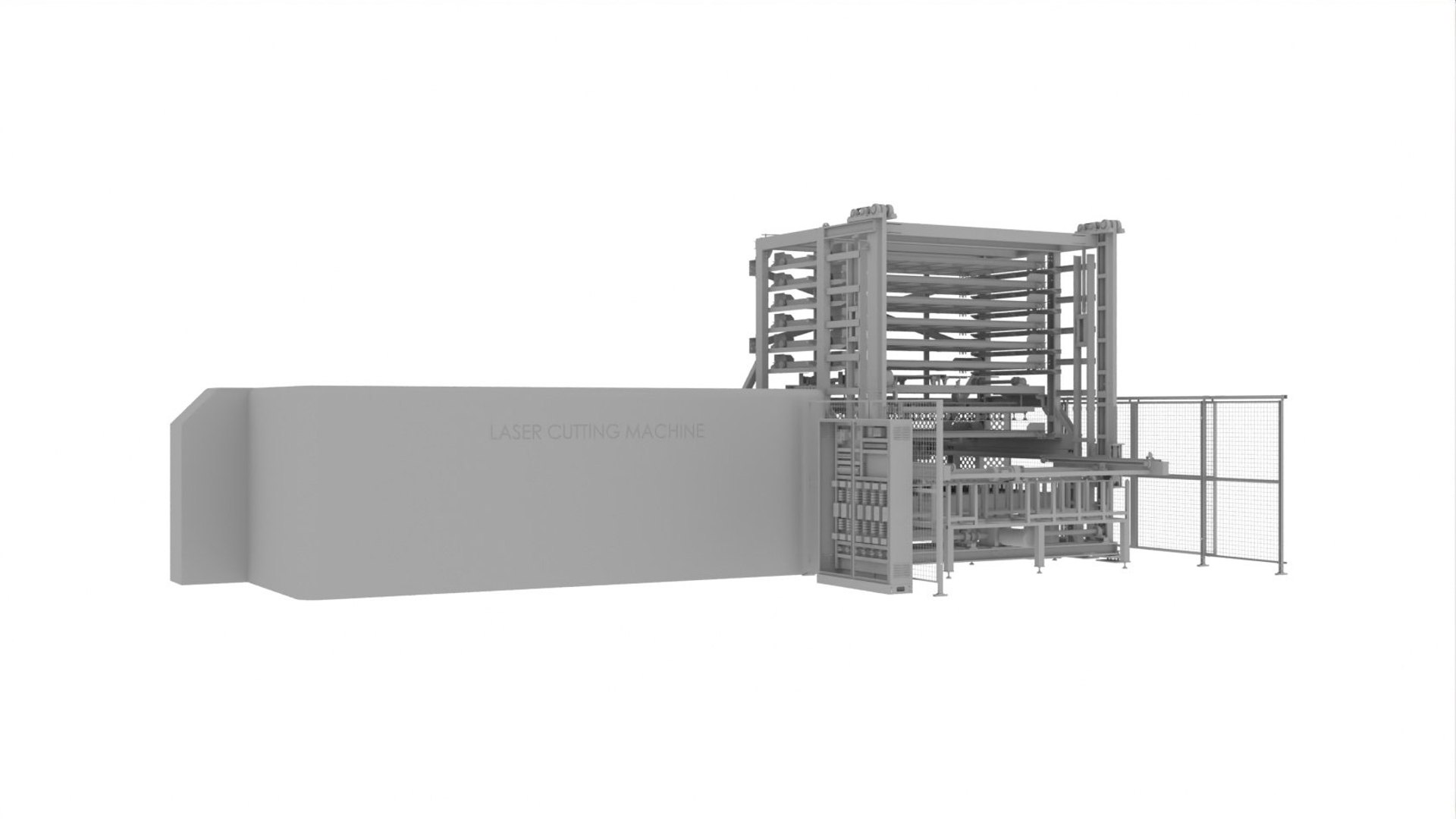

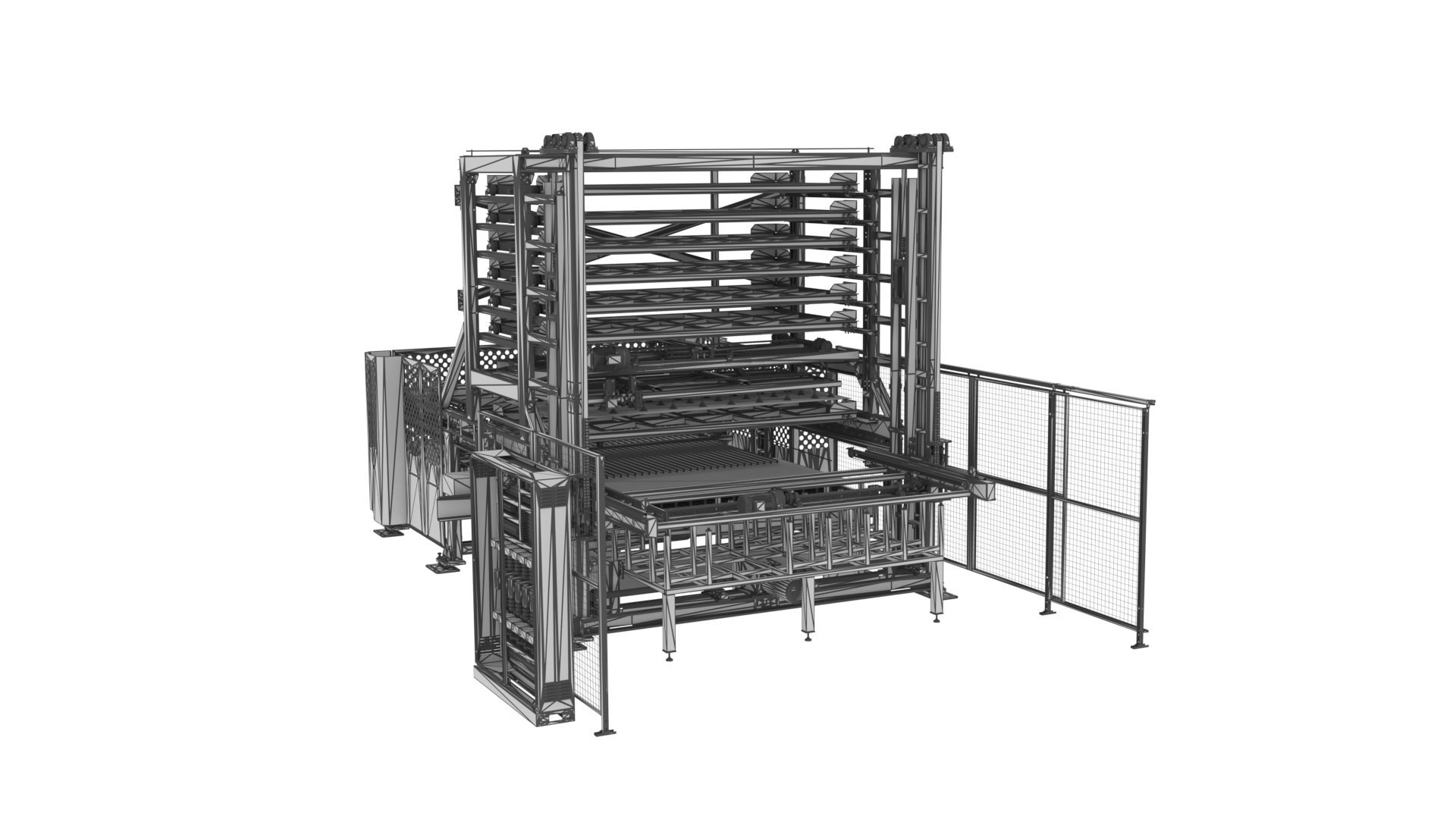

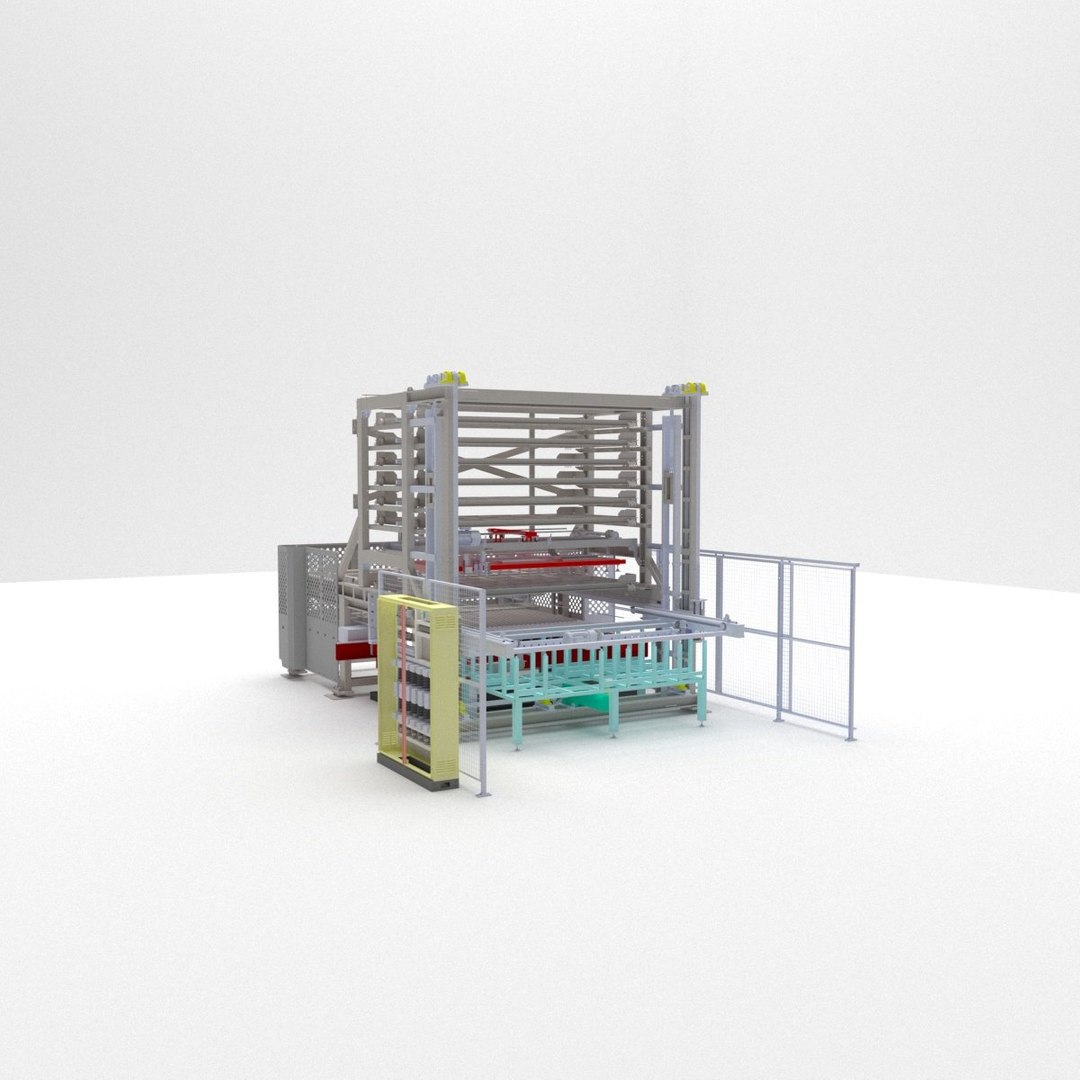

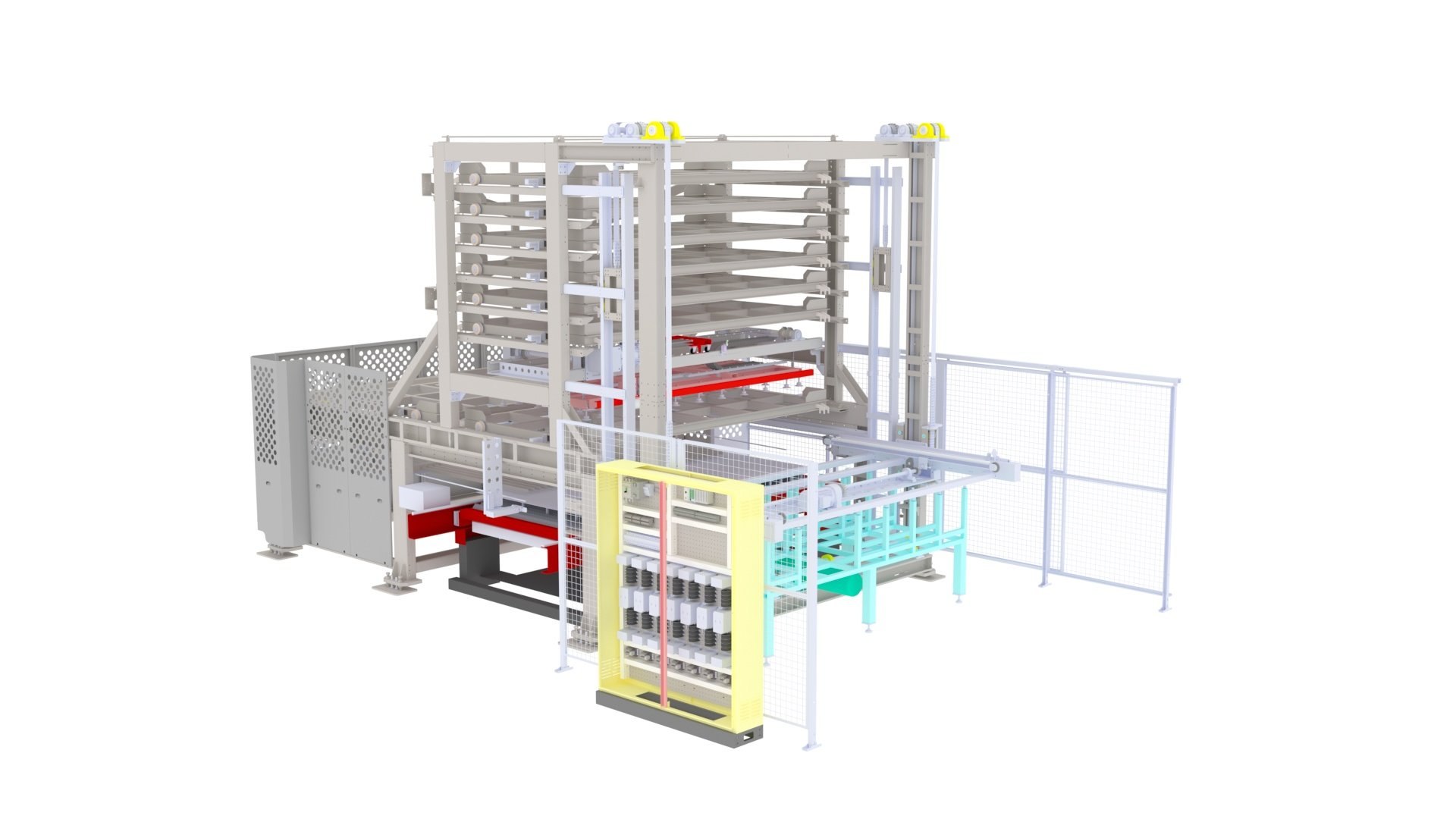

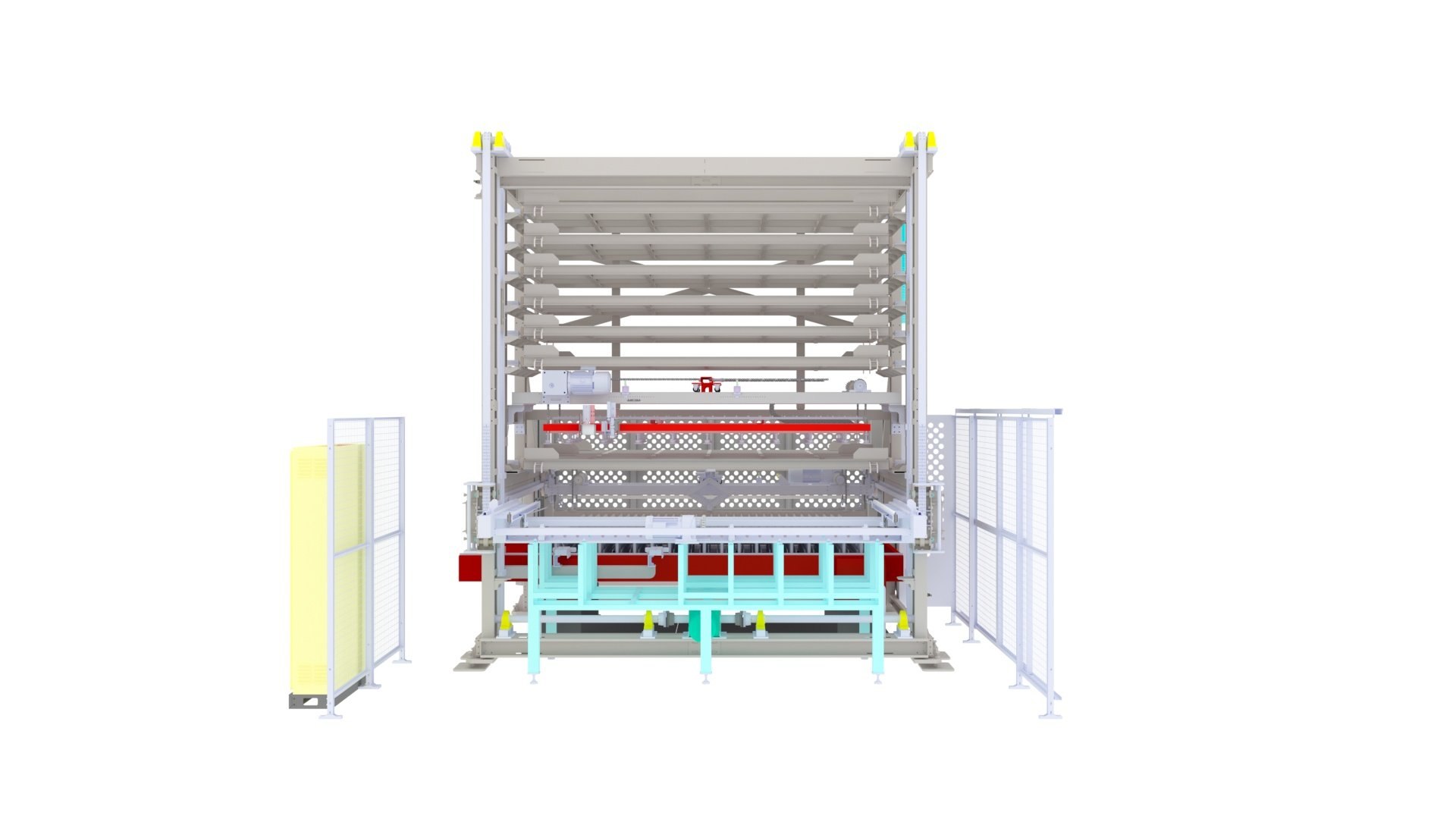

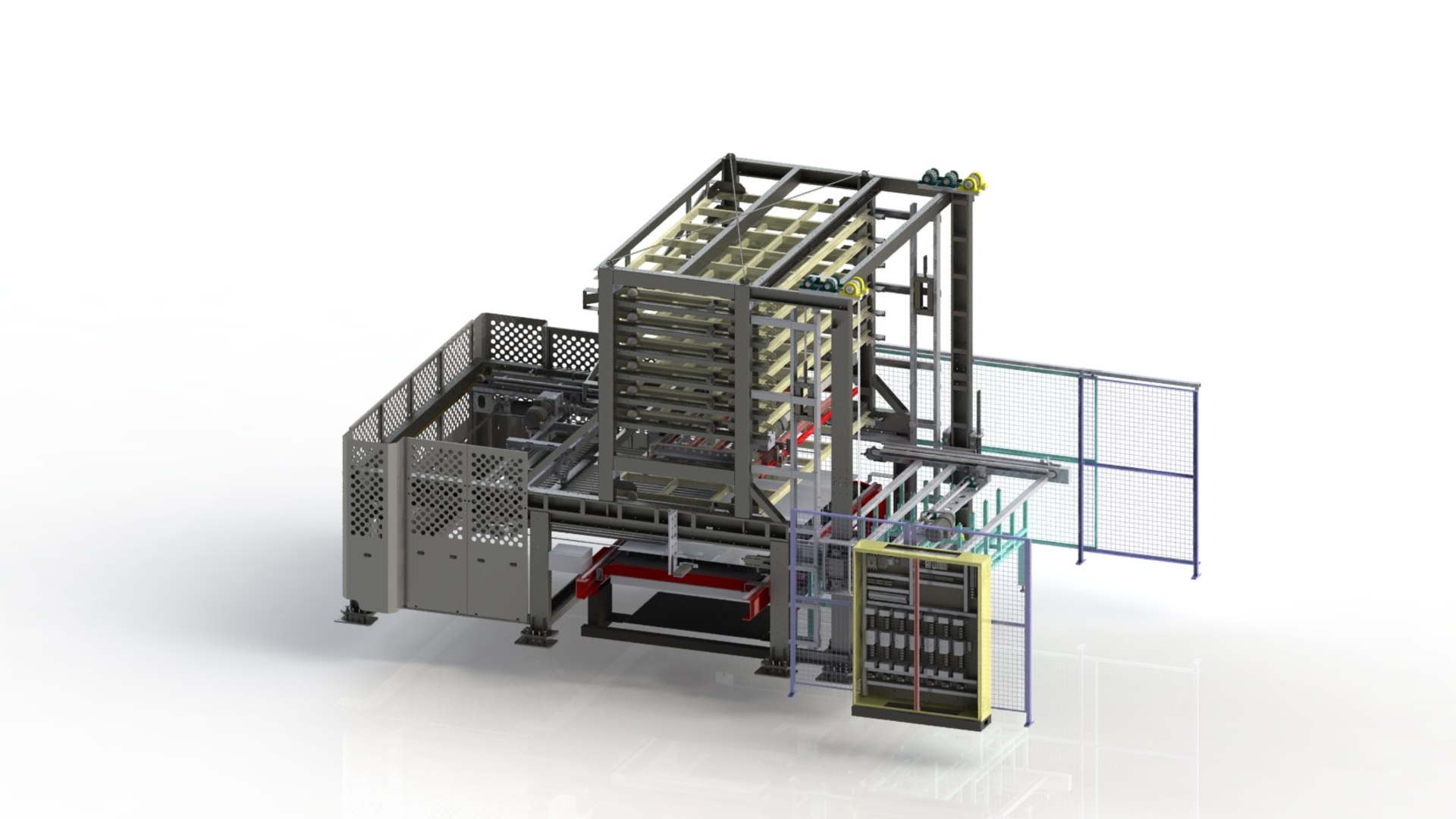

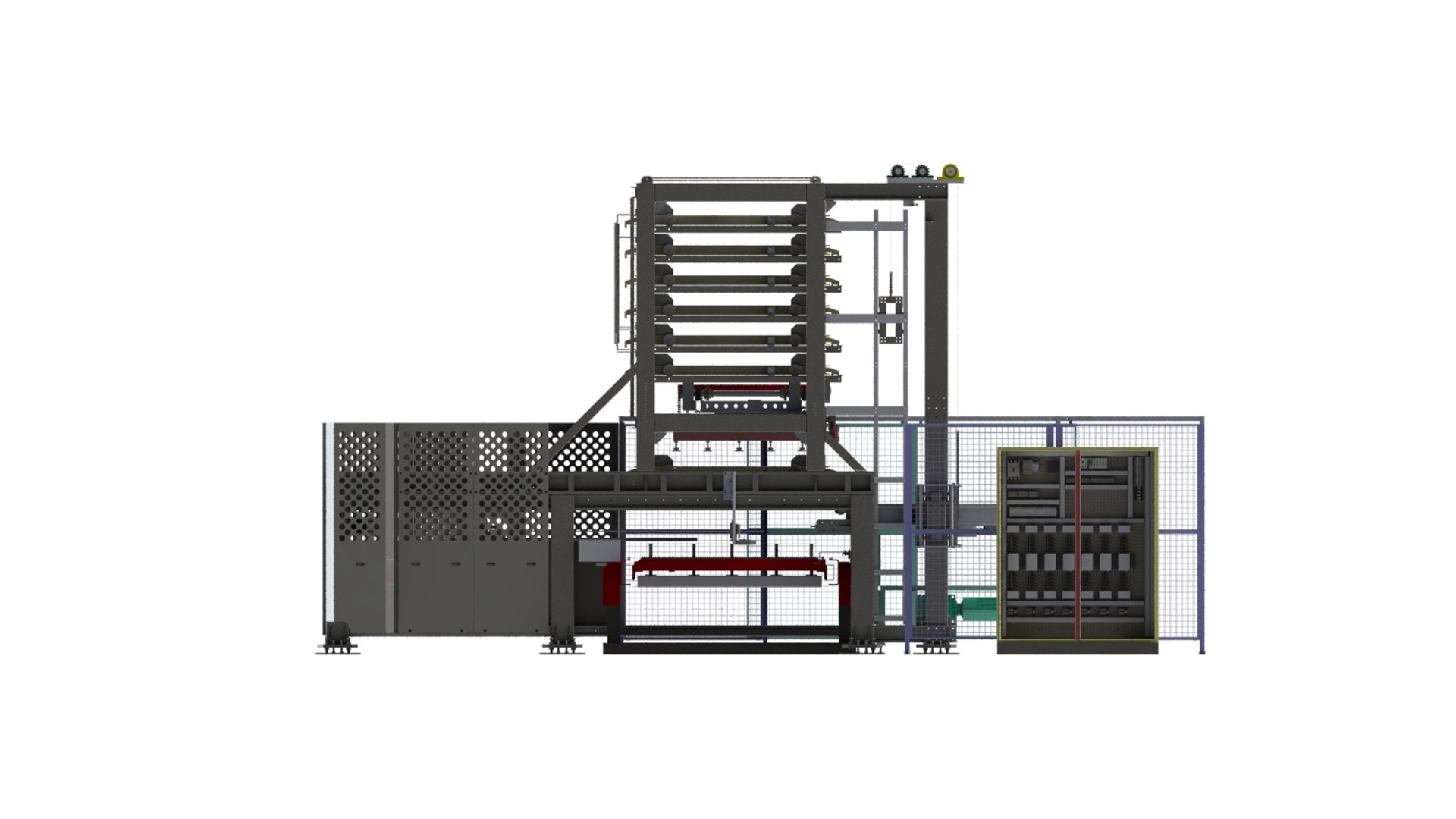

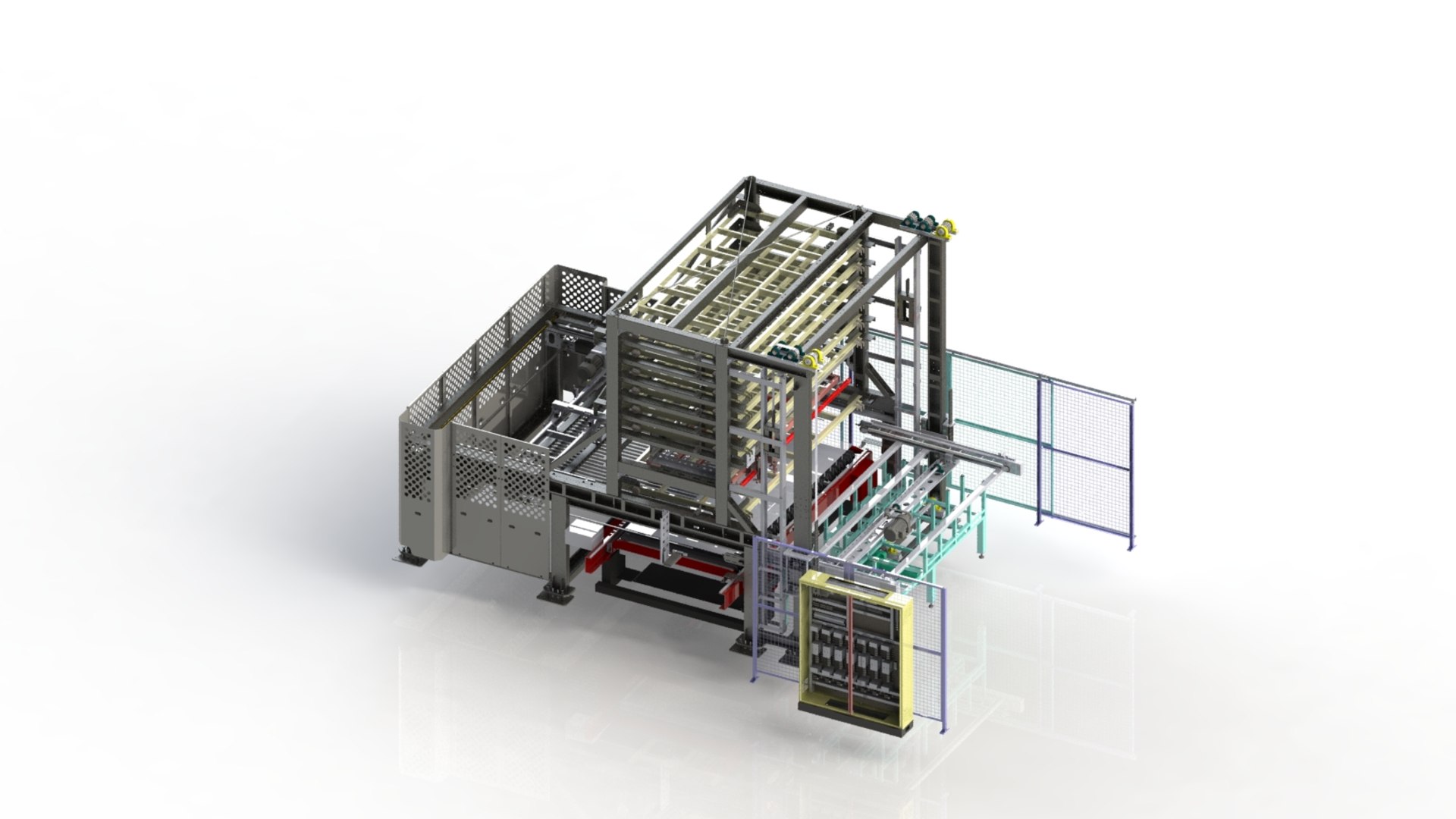

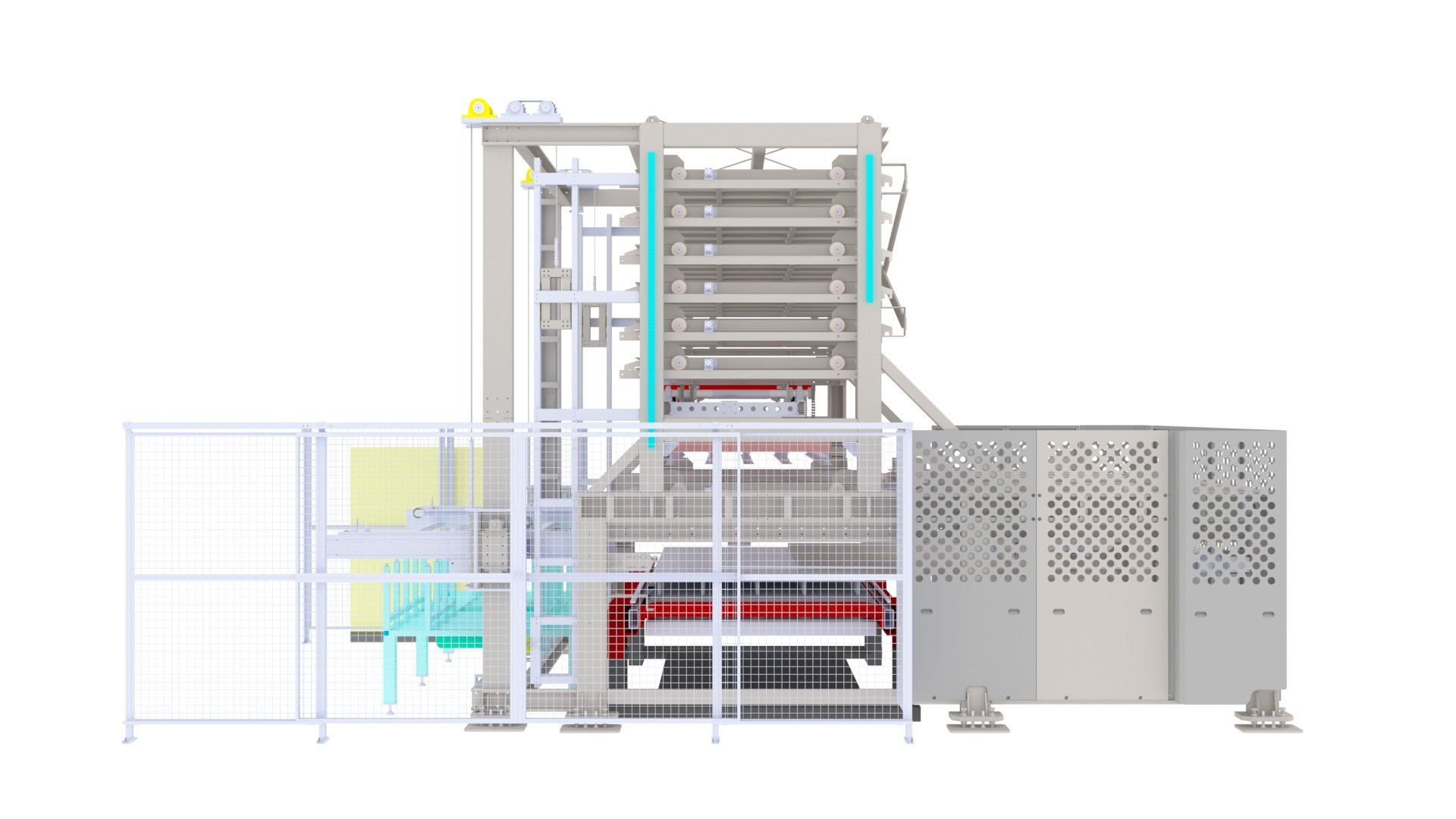

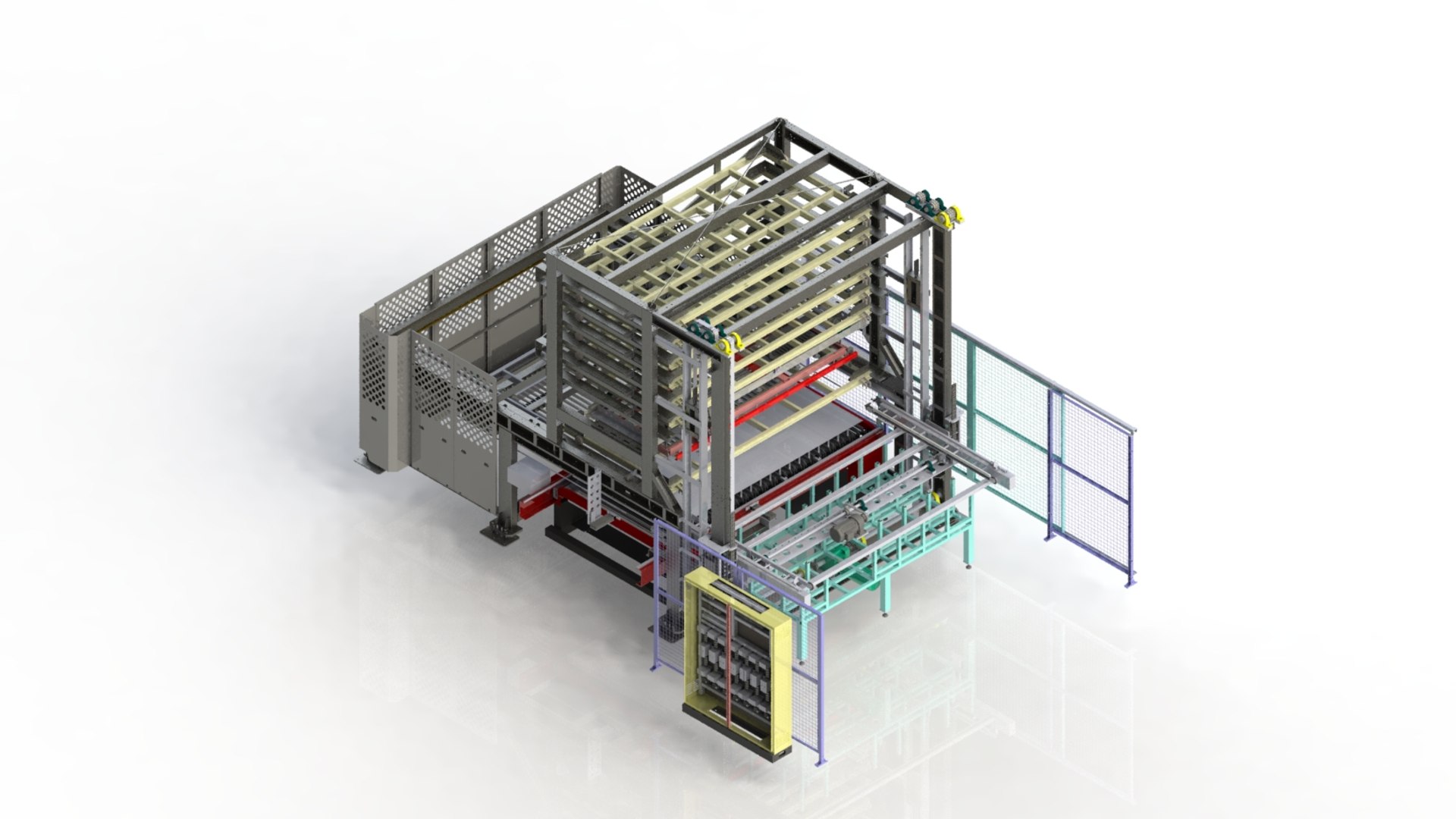

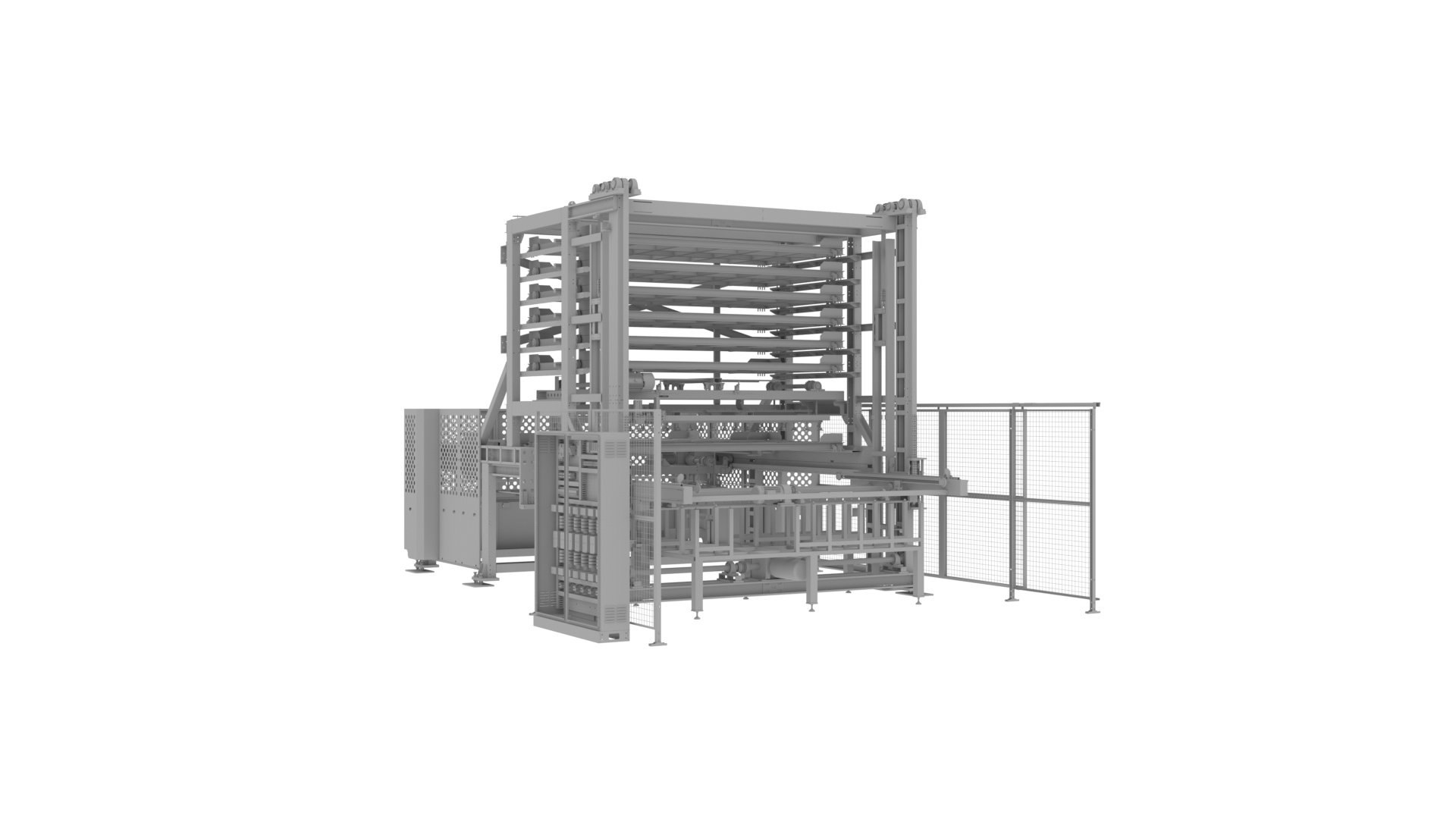

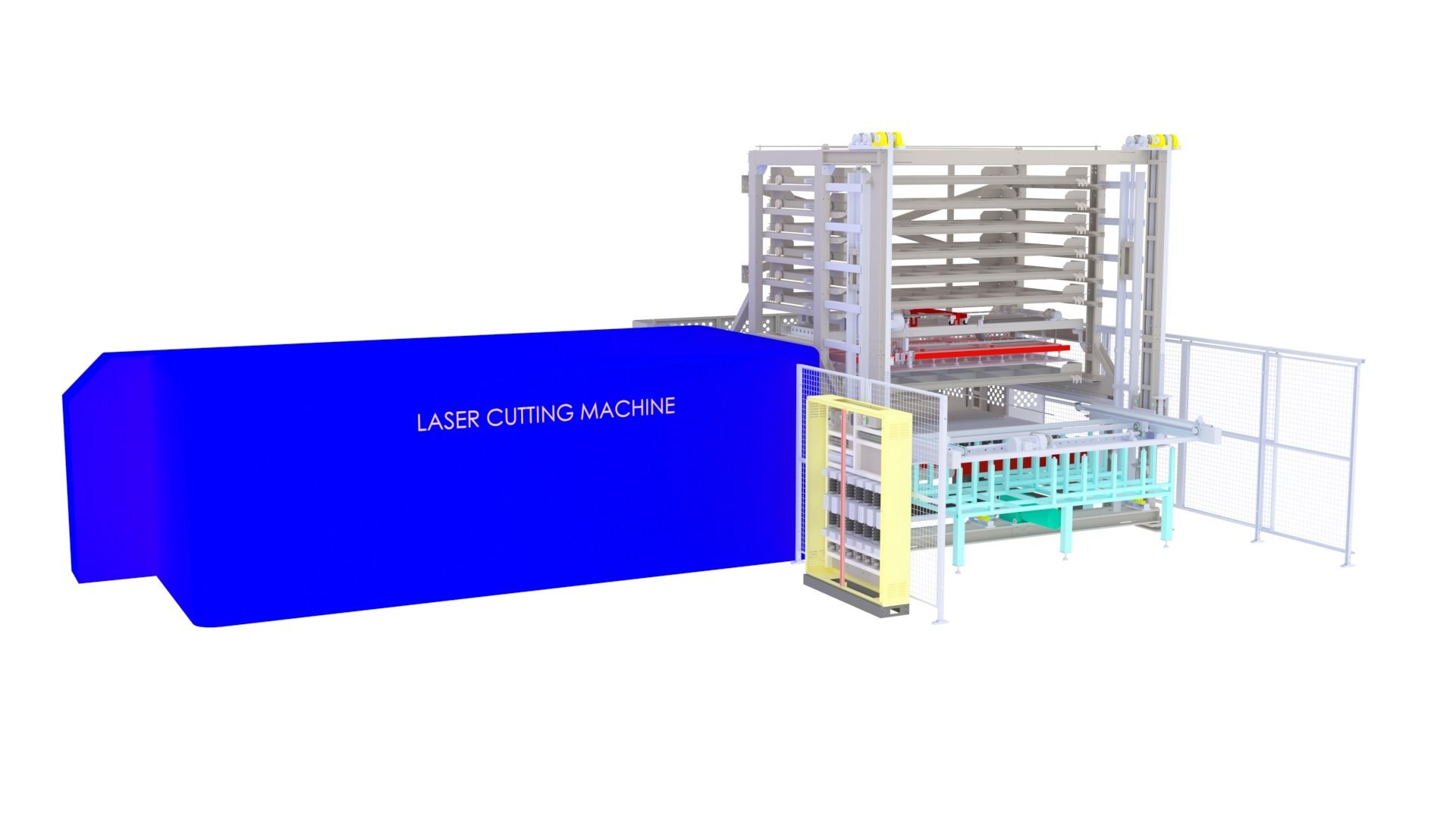

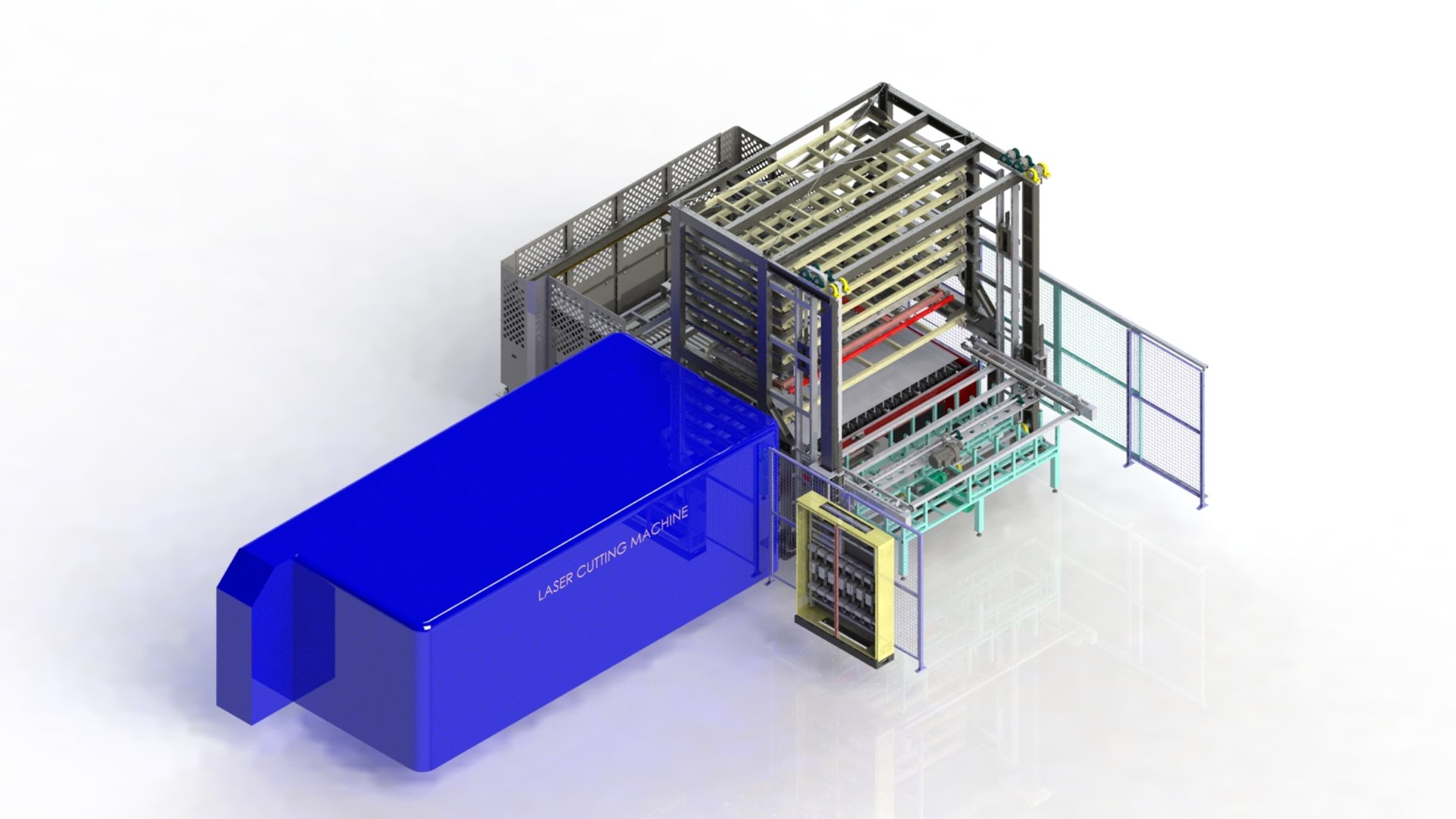

The sheet metal storage and feeding system is designed with 7 floors for the purpose of storing sheet metal and synchronously with the laser cutting machine to feed the sheet metal to the laser cutting machine.

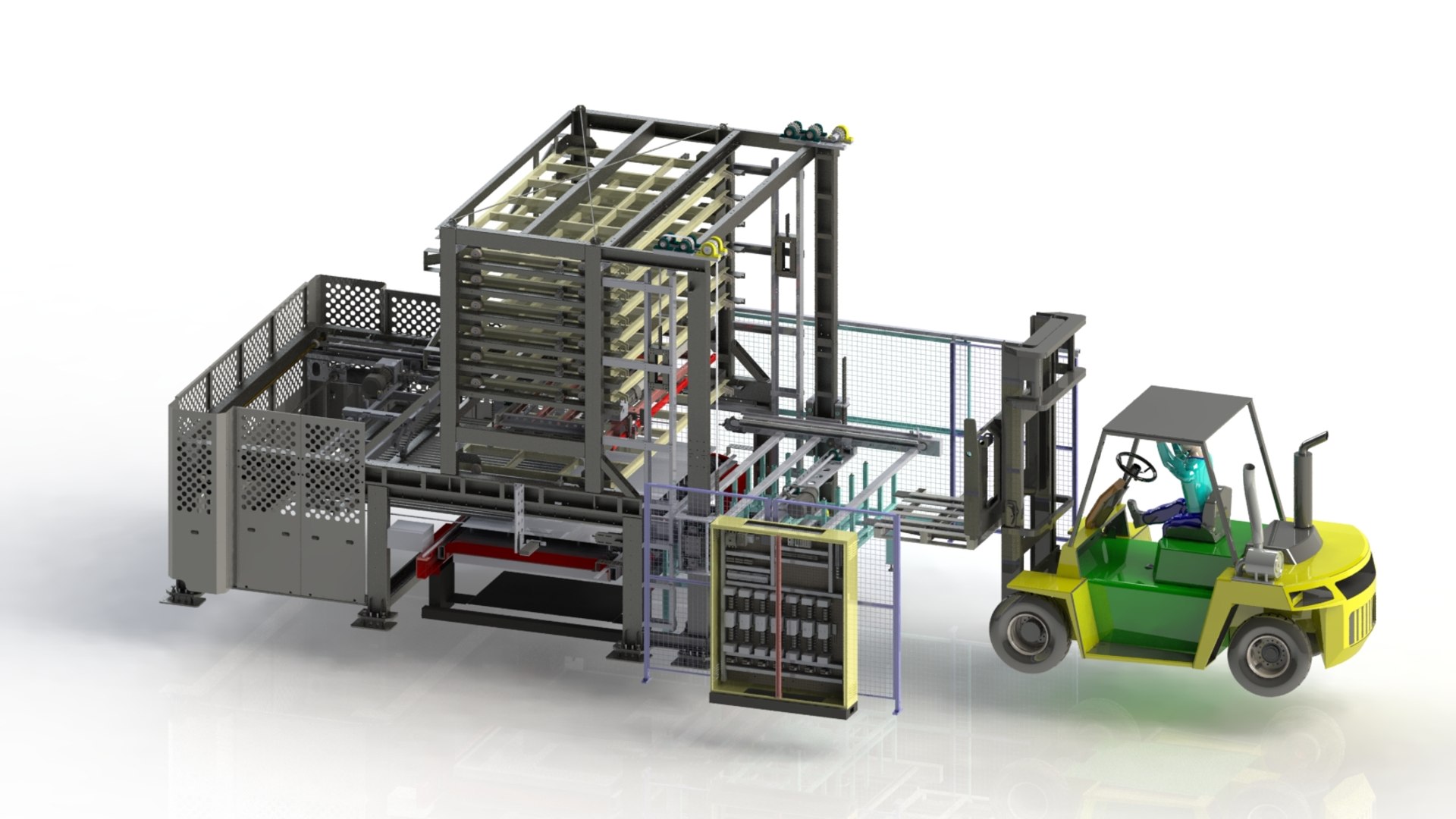

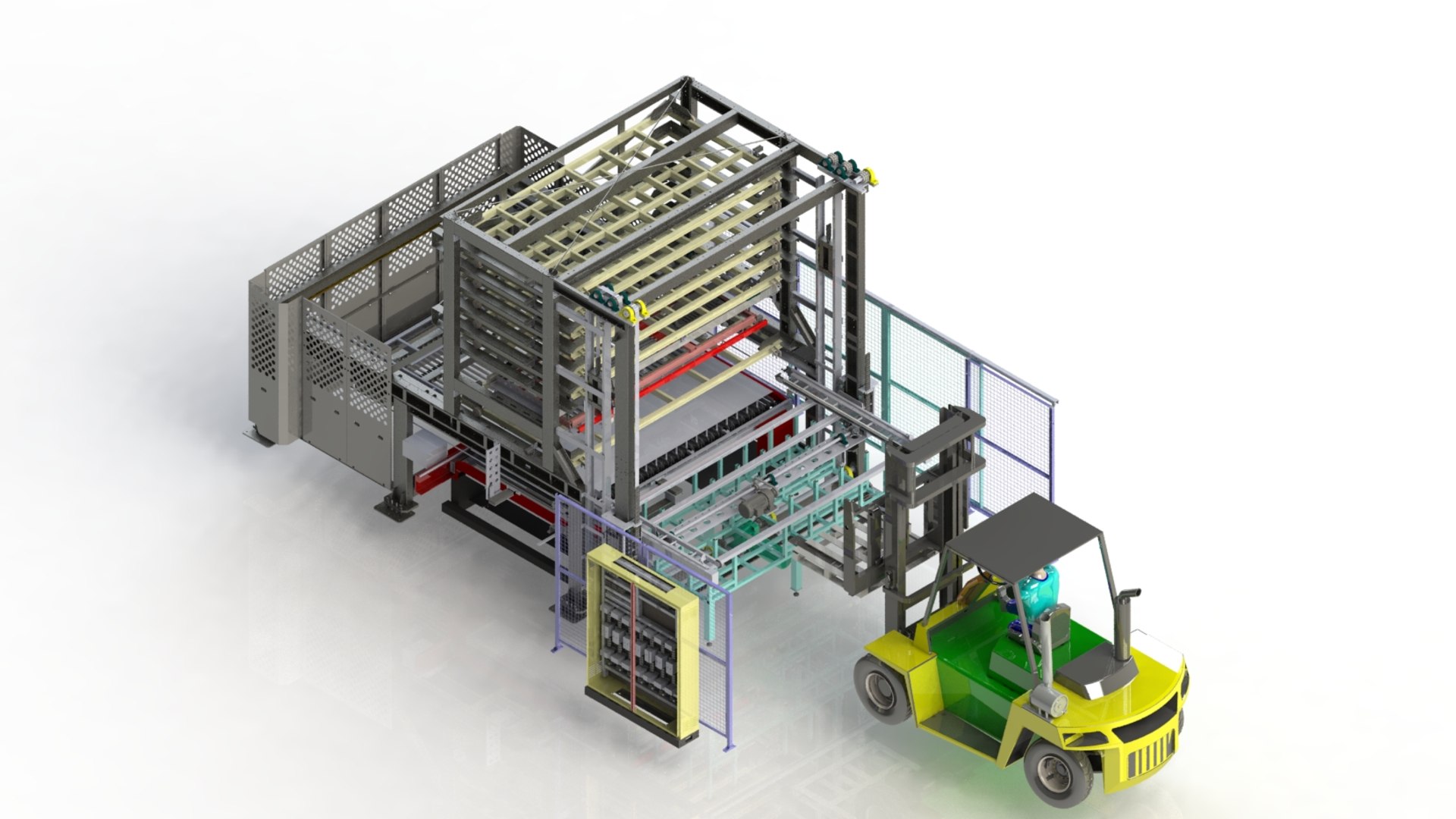

sheet metal is put into the working position by the forklift, the system will automatically pick up the workpiece, arrange it in the compartment, feed the workpiece to the laser cutter, take the product, put the product in the drawer, store the product, through the control program previously selected by the operator.
Specifications :
Height : 4200 mm
Length: 6500 mm
Width : 4000 mm
Load capacity per floor: 3000 kg.
allowable sheet metal dimensions : 1250 x 2500 x (1-5) mm
The system saves space for storing materials for the factory, saves time to get and supply materials for laser cutting machines, and saves labor.
Design files are designed on solidwork software.
