Car Park Ventilation System
As Car Parks are most commonly closed
(underground) structures, natural or
assisted natural ventilation are usually not
possible. The use of complex ventilation
strategies has therefore become the general
standard, also as every car park has its
unique structural and individual criteria.

STATES
Off State (GREY COLOR)
On State (GREEN COLOR)
Alarm State Animation (RED COLOR With Alarm Symbol)
Stage Animation (Air Flow Arrow Animation, Cooling coil animation)
GIF Animation (Fan Running/Trip Animation)

3D DESCRIPTION

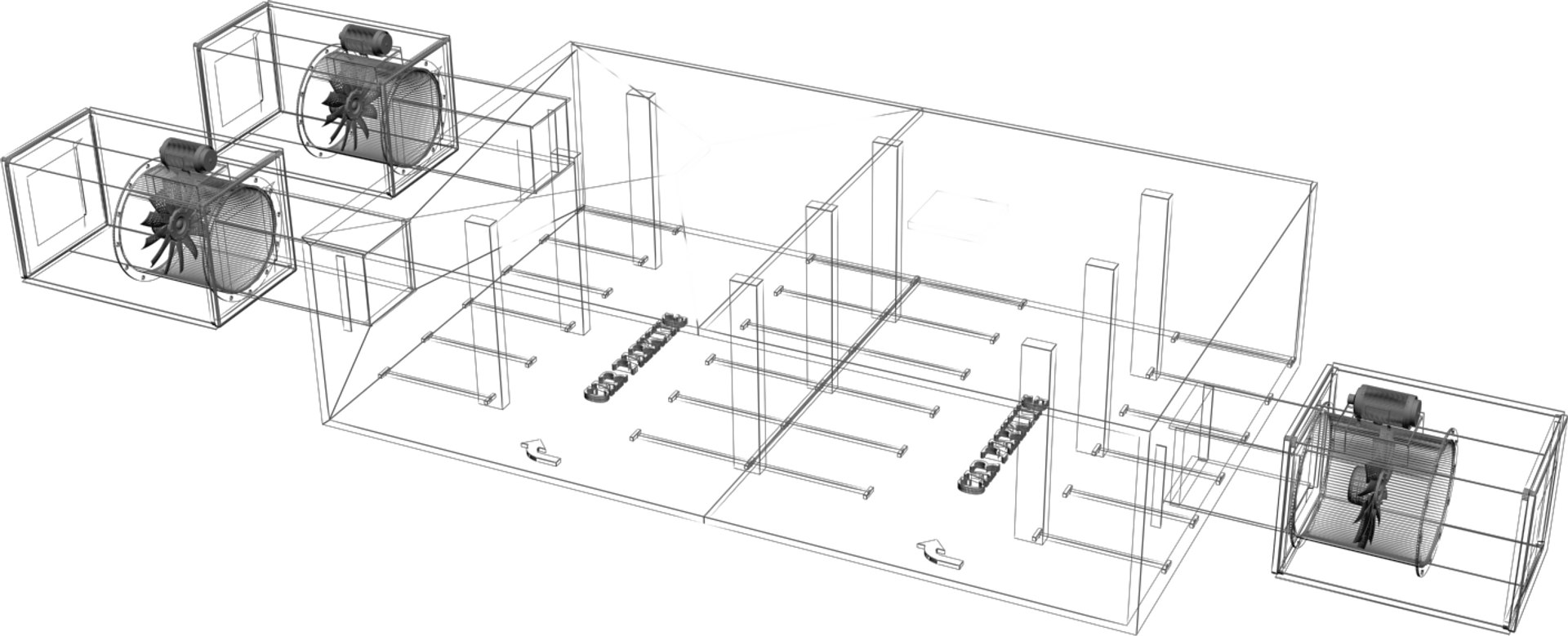

3D Model of Ventilation System

Model is created in 3dsmax2009
Rendered with Vray

* Materials included
*Polygonal geometry (quad/tris)
*All vray material are included

Model is highly detailed and is suitable for close-up

You can create a larger composition

Fully detailed, textured model. Detailed enough for close-up renders. Comes with detailed normal materials,

This set will allow you to collect the ventilation system of any complexity in a few minutes.

Originally modeled in 3ds Max 2009. Final images rendered with V-Ray.

The 3ds Max zip file contains also V-Ray and standard materials scenes.

- Easy to convert model in other formats.
- No need for any special plug-in to open the model.
- Useful for BMS, BAS, high resolution renders, magazines and production.

- No multi/Sub-Objects materials.
- Materials, textures and objects are clearly named.
- Export formats works correctly.
