Automatic CG Inner Ring Detection Line

Introduction

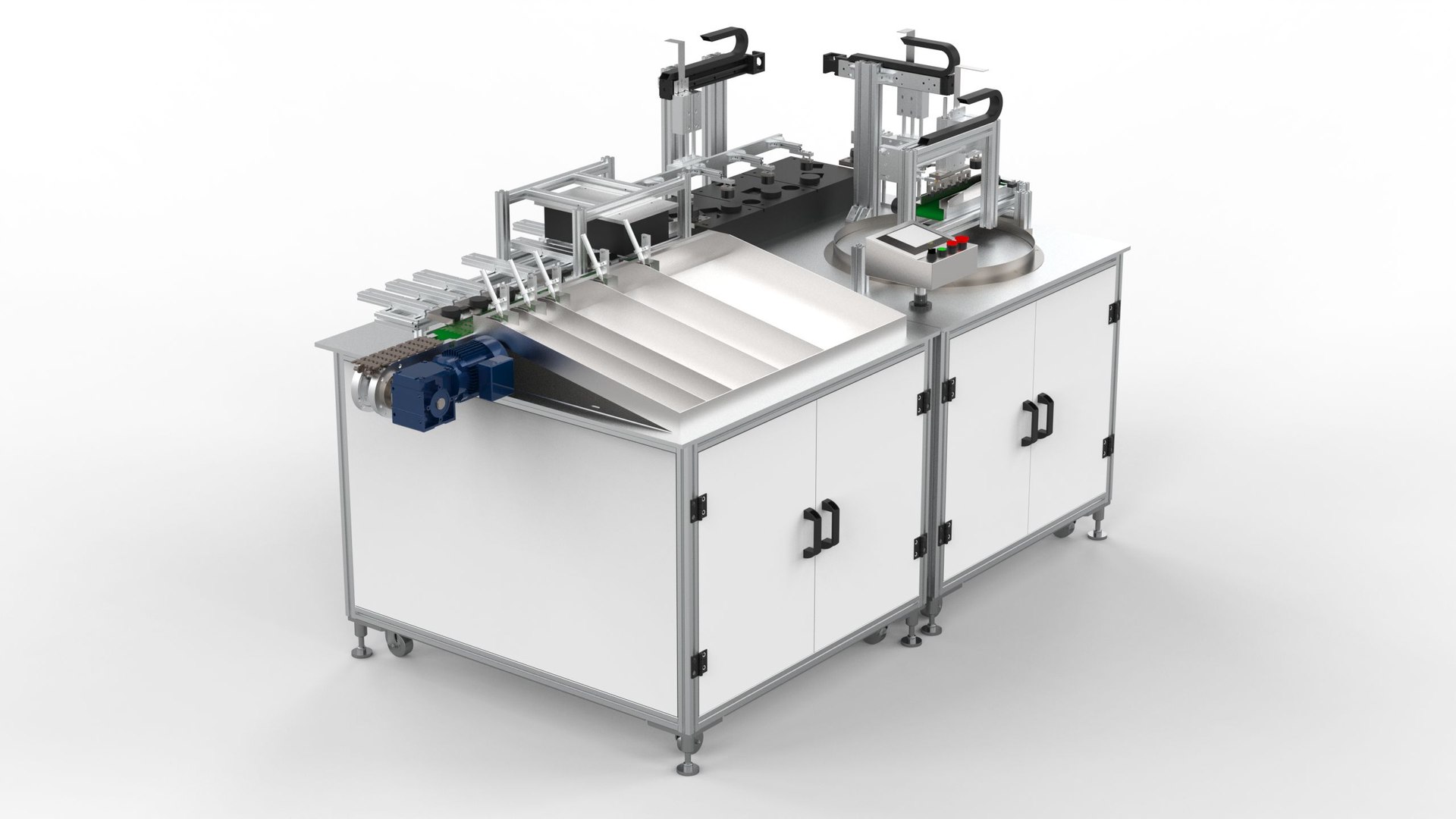

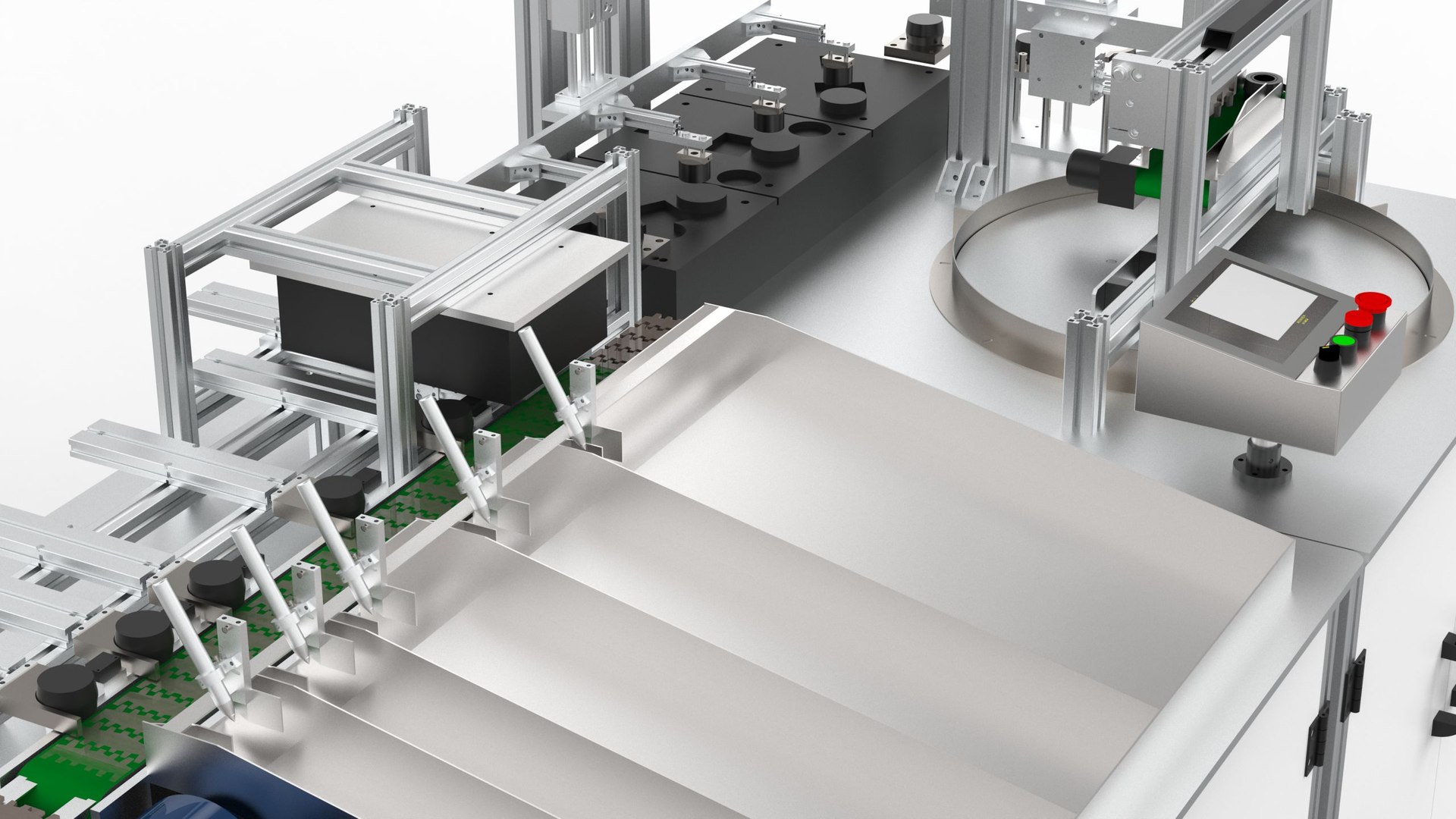

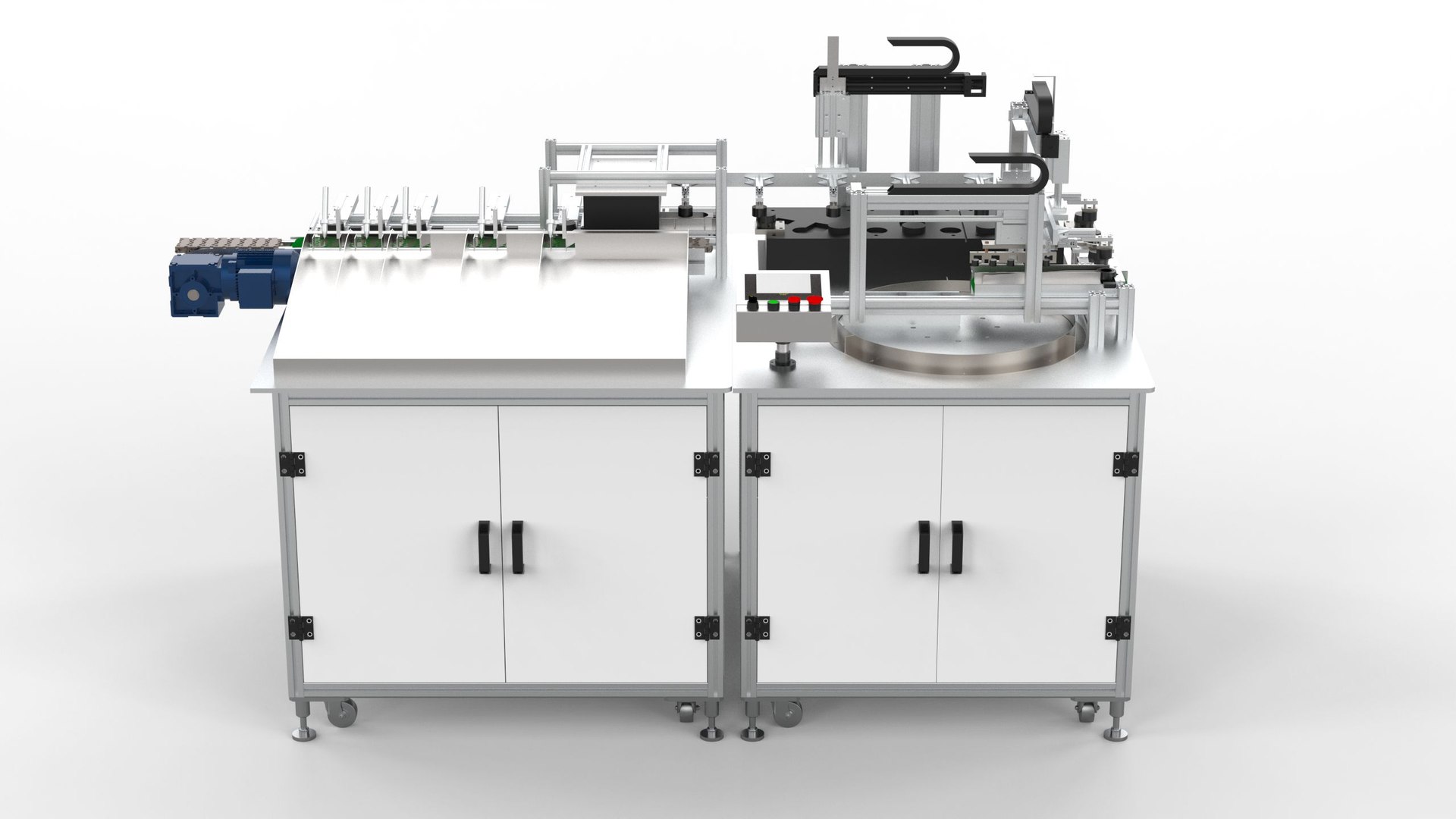

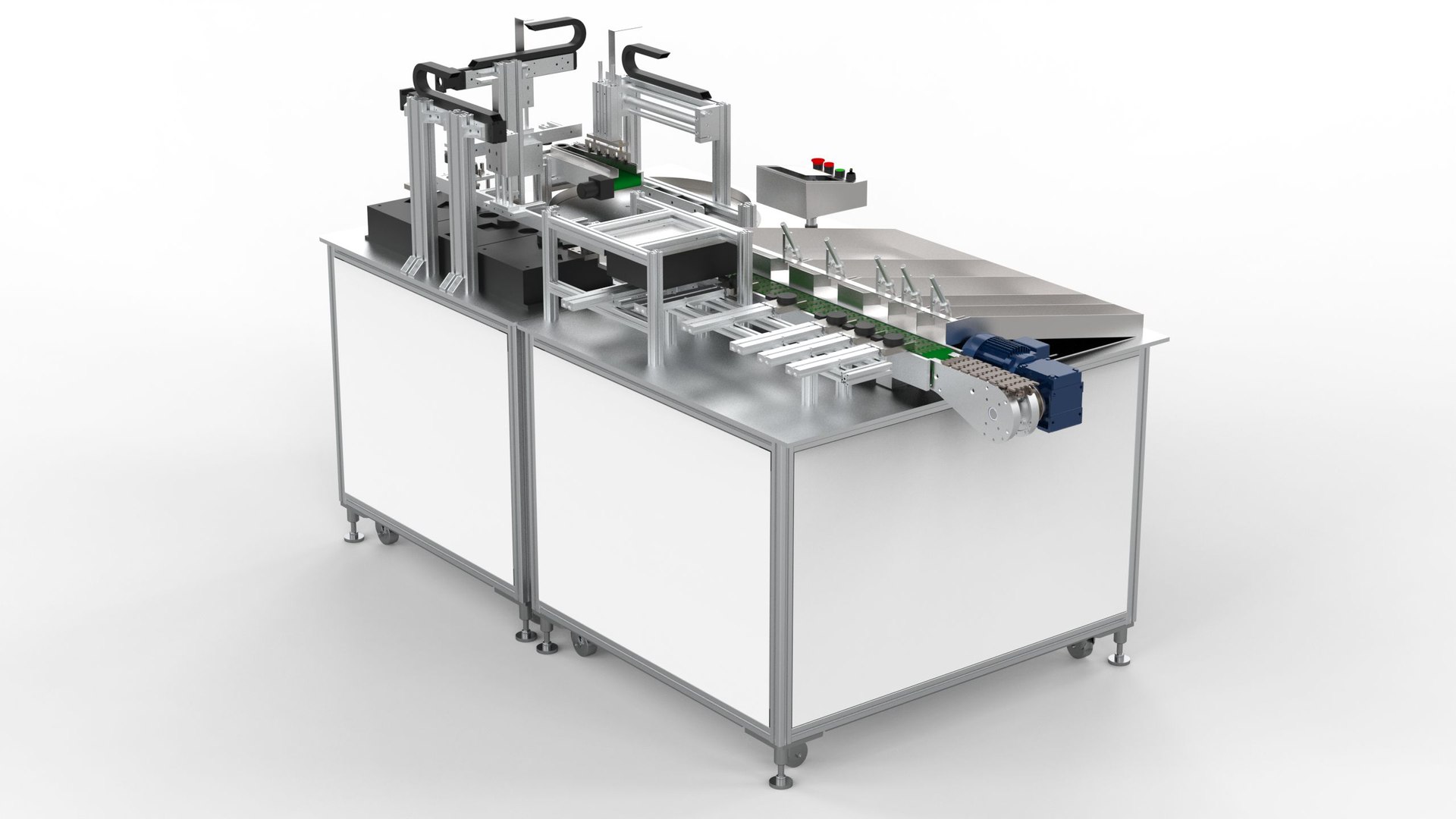

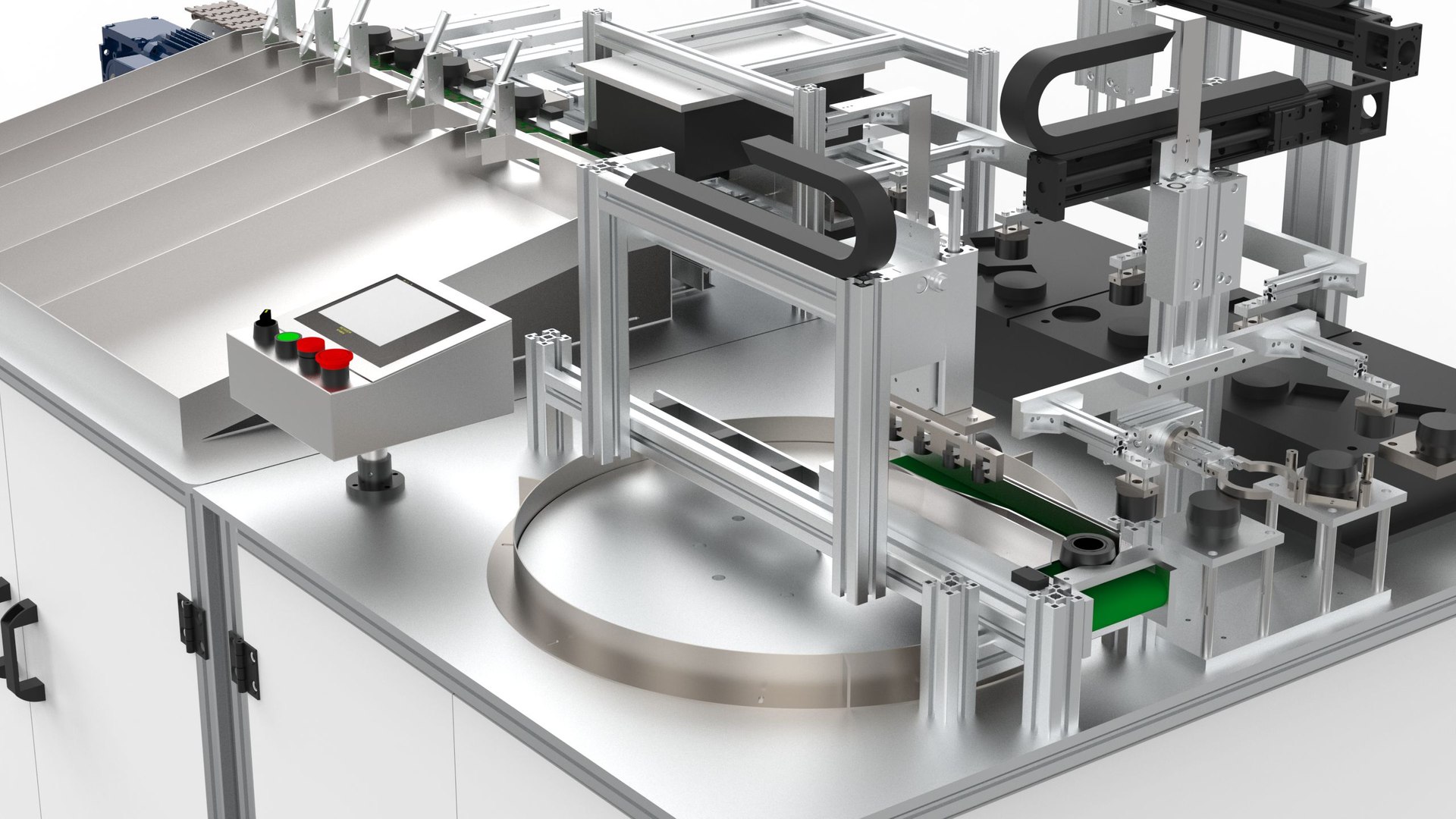

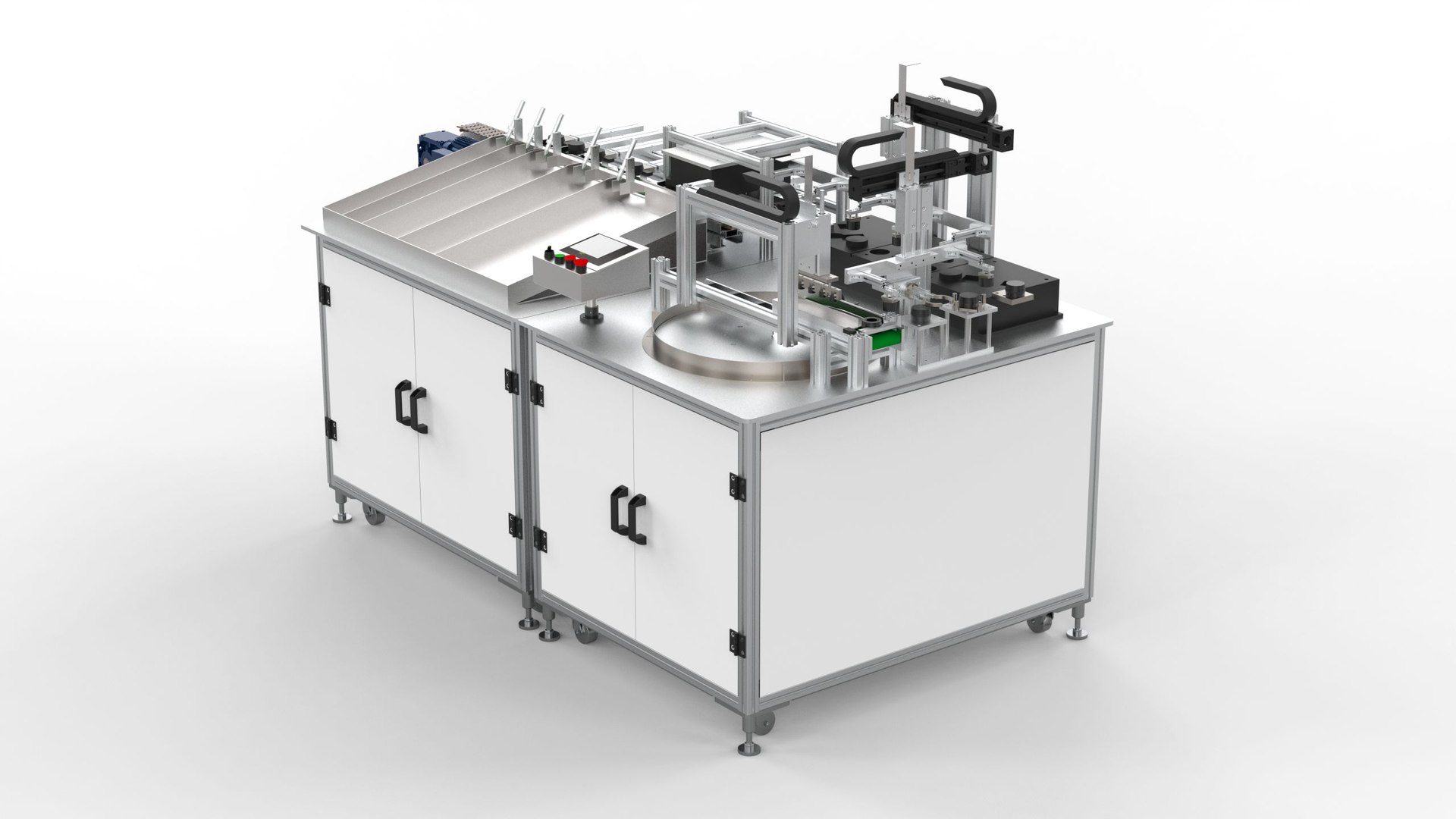

Accuracy testing equipment for the inner and outer semicircular grooves (like spline grooves) of the CG inner ring, manual feeding - automatic feeding - front and back inspection and adjustment - inner and outer groove inspection - product degaussing - classification and placement according to the accuracy interval Qualified products are presented. It includes a complete set of technical documents such as Creo 3D digital model can be edited with parameters, caxa engineering drawing can be edited with parameters, PLC and industrial control panel electric control program and wiring drawings.

Word manuals and other technical documents.

File Formats

– CREO Parametric 5.0 (editable) | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard for the Exchange of Product Data)

Geometry

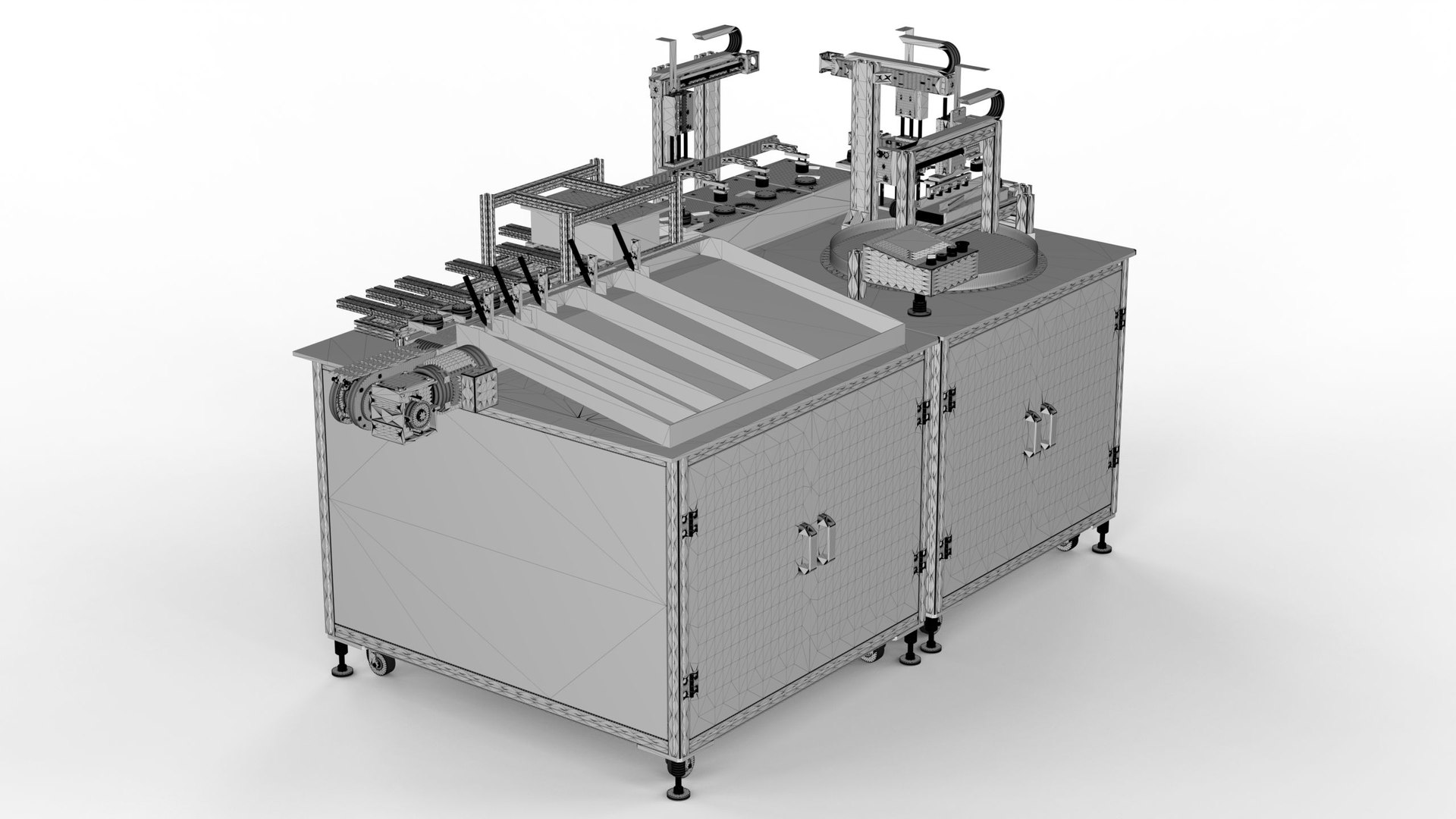

– Polygons: 843,153
– Vertice: 2,529,459
