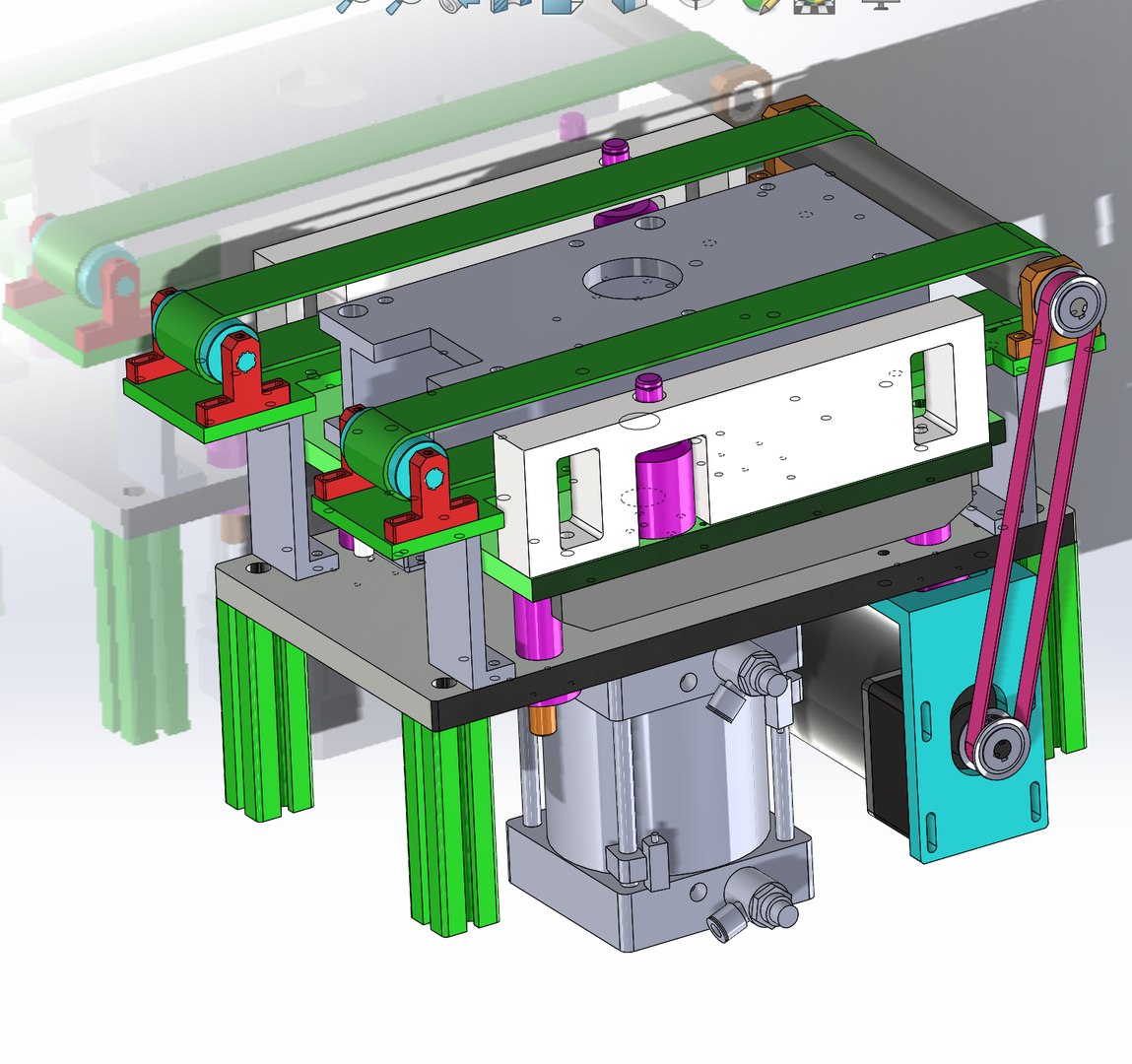

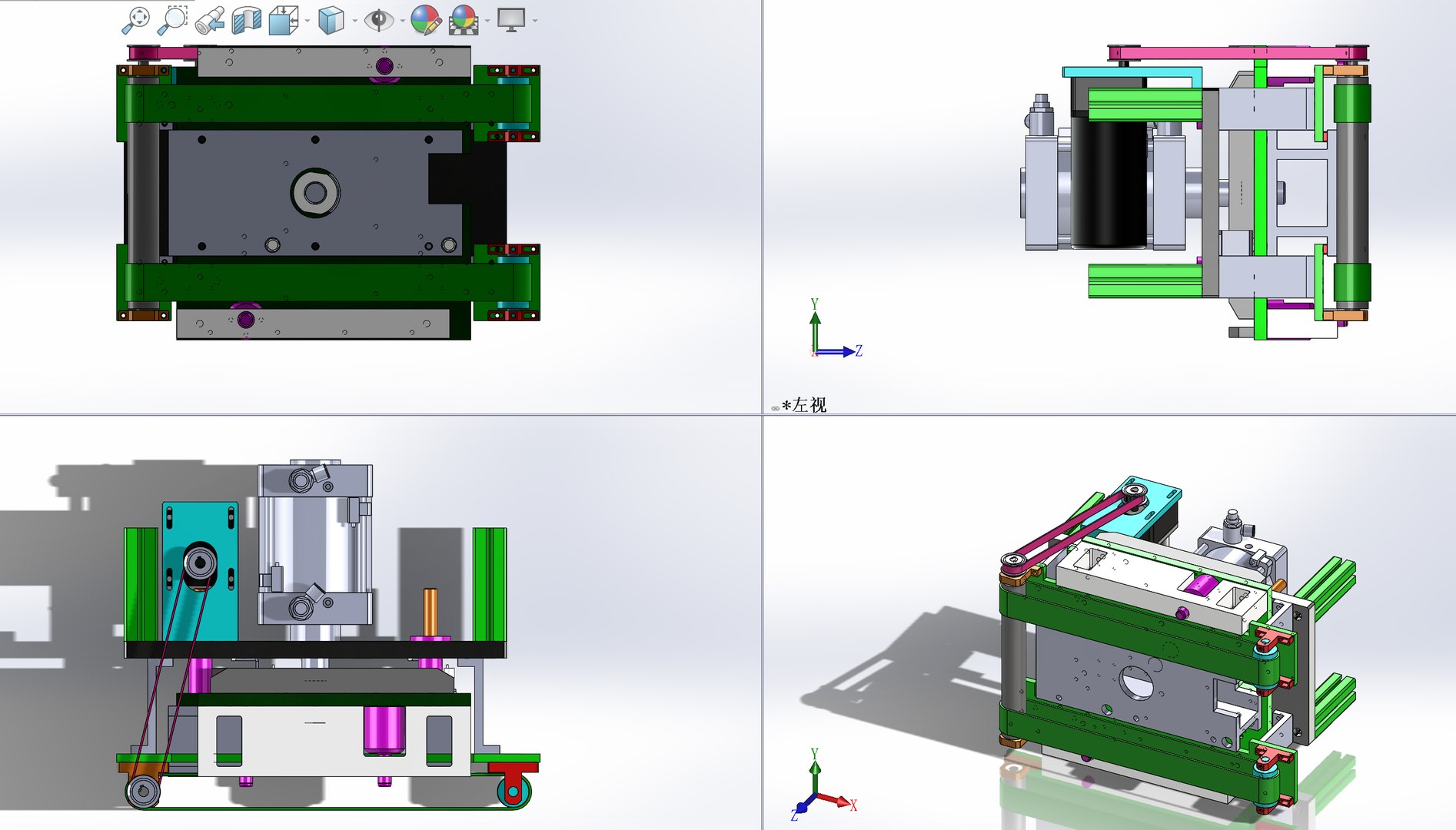

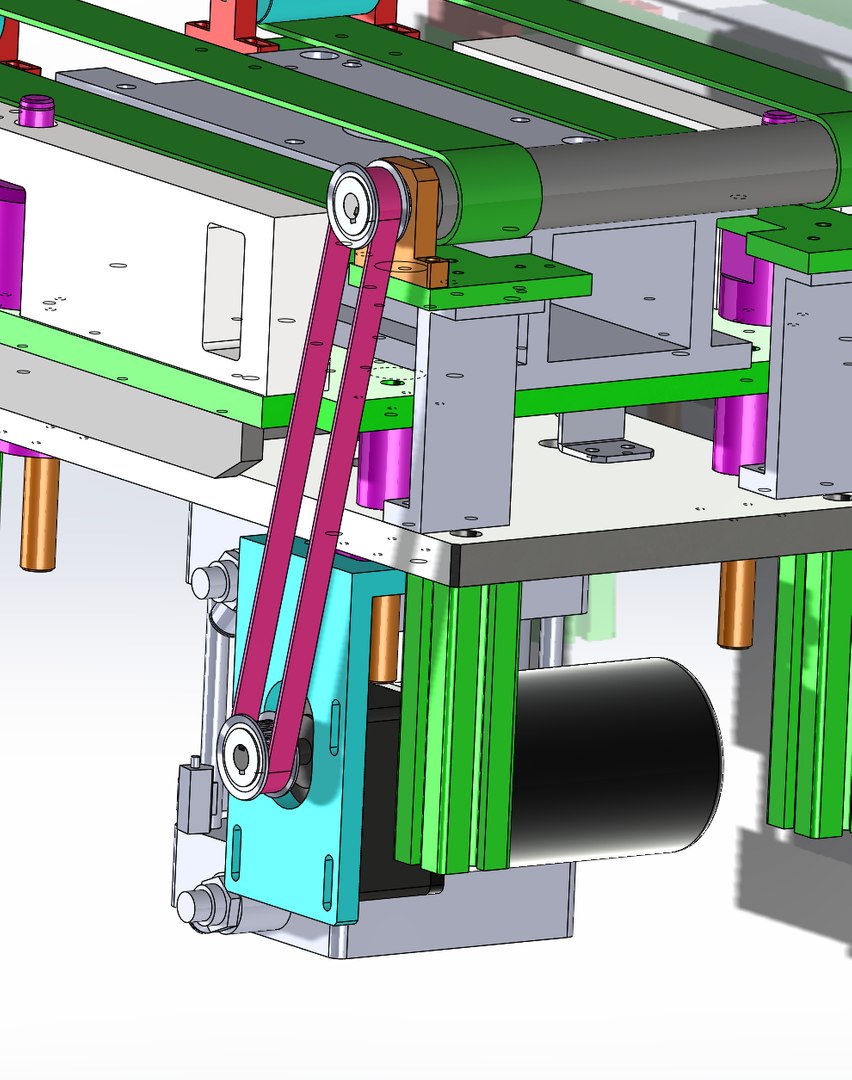

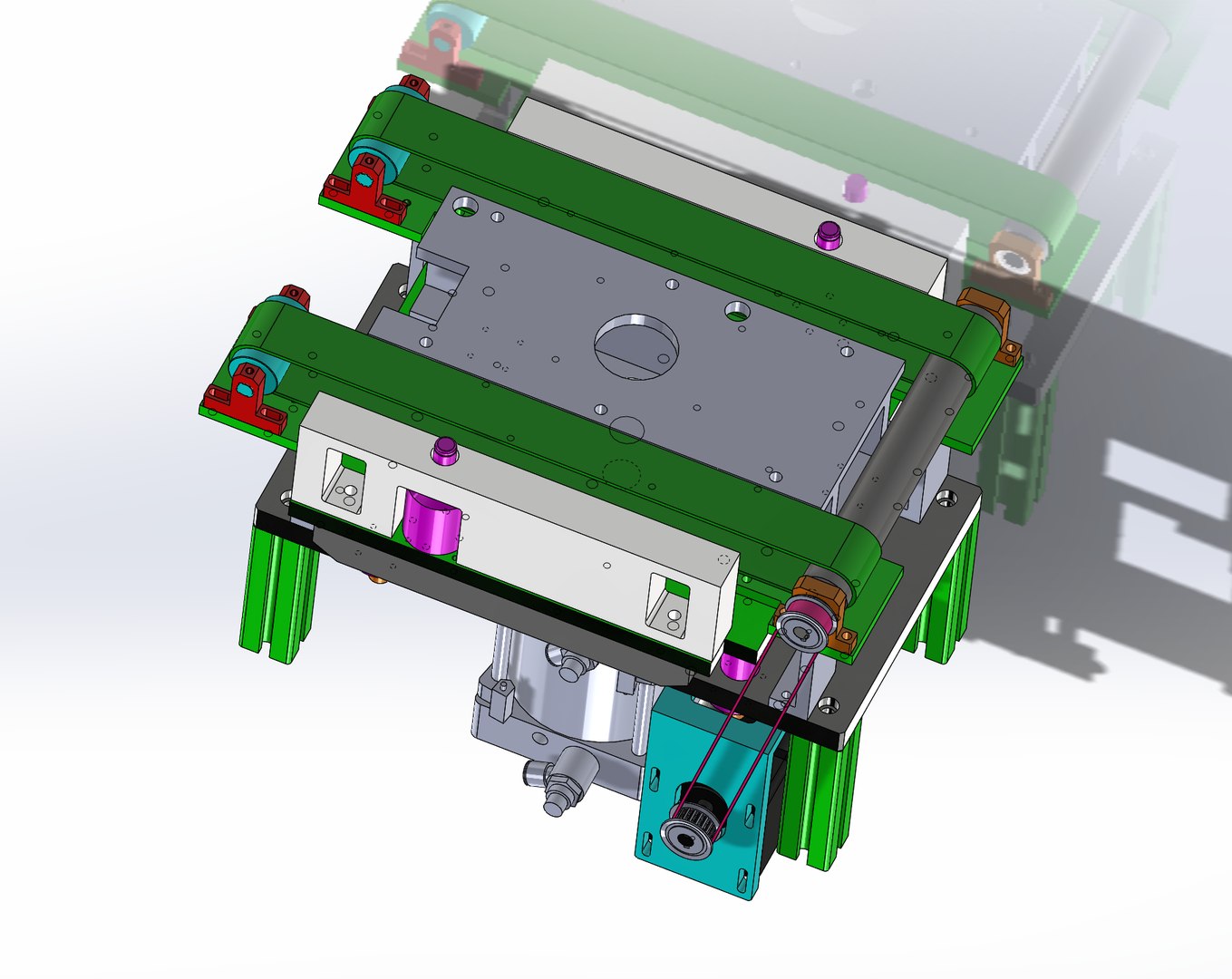

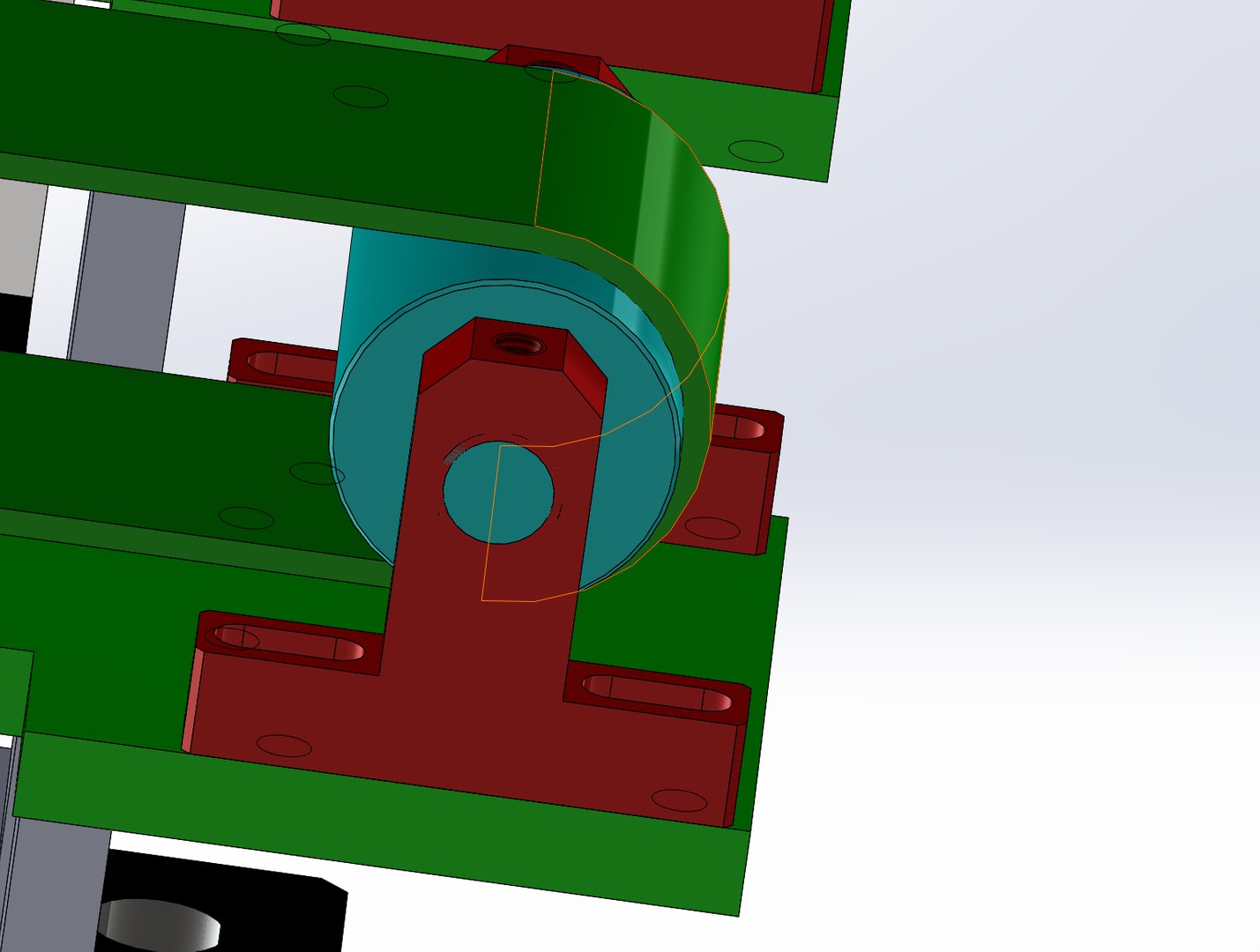

Conveyor belt with top lifting mechanism, the mechanism through the lines in the process of transmission, block was carried out on the transmission mechanism, at the same time through the cylinder top institutions positioning fixture, a transmission constraints, the linkage of the positioning action, in the structure of automation is the use of the typical mechanism include:
1. Conveyor mechanism
2. lifting mechanism
3. Limit mechanism
4.transfer mechanism
**************************************
Files format contains
-solidworks 2017
-step
-iges
-stl
-obj
-3ds
-Fbx
-3dmax
- and other formats
**************************************
If you like,you can paypal for you to get this models or if you have any questions also you can email to me.

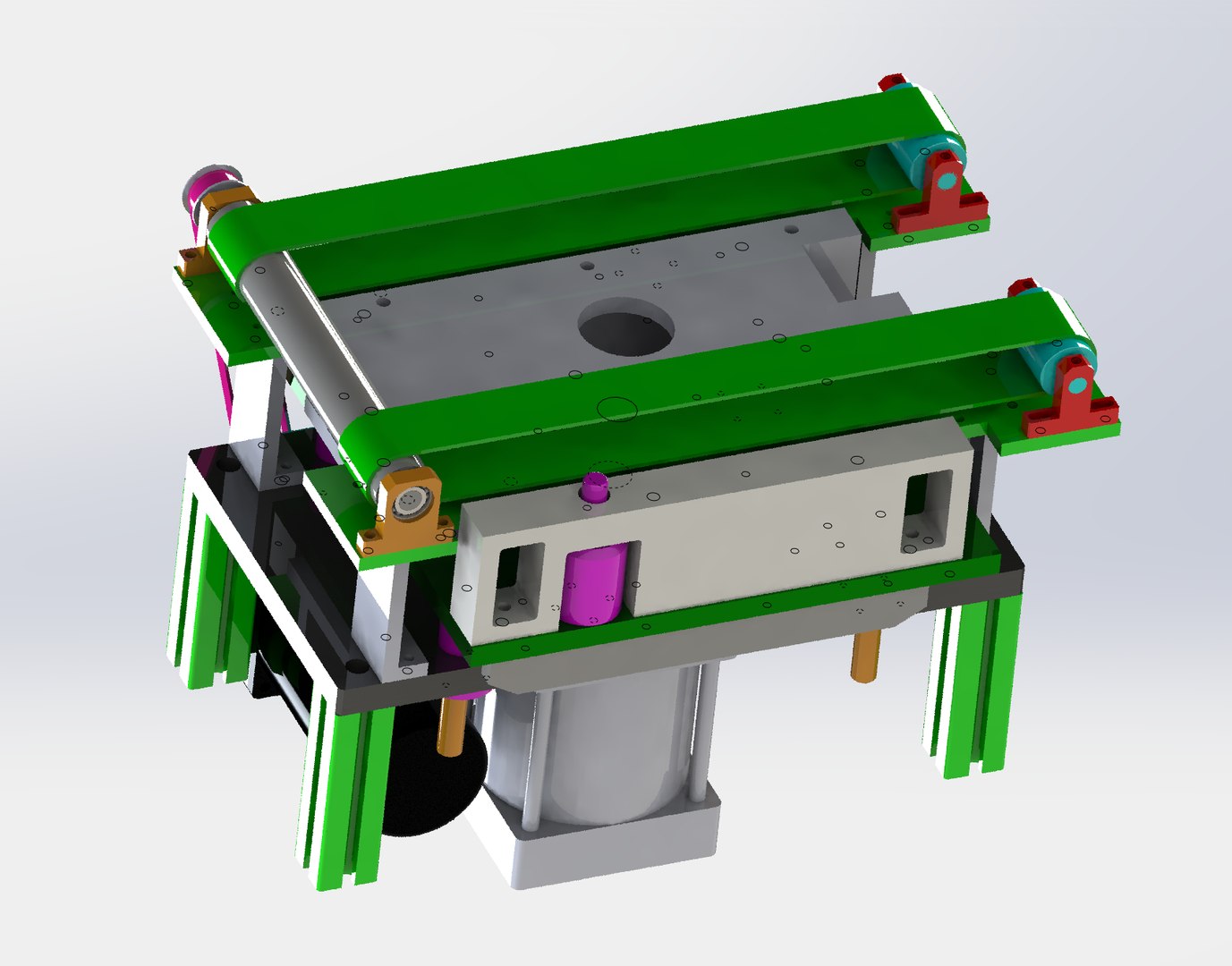

Designed with SolidWorks 2017, render with PhotoView 360
**************************************
