PRODUCT DESCRIPTION

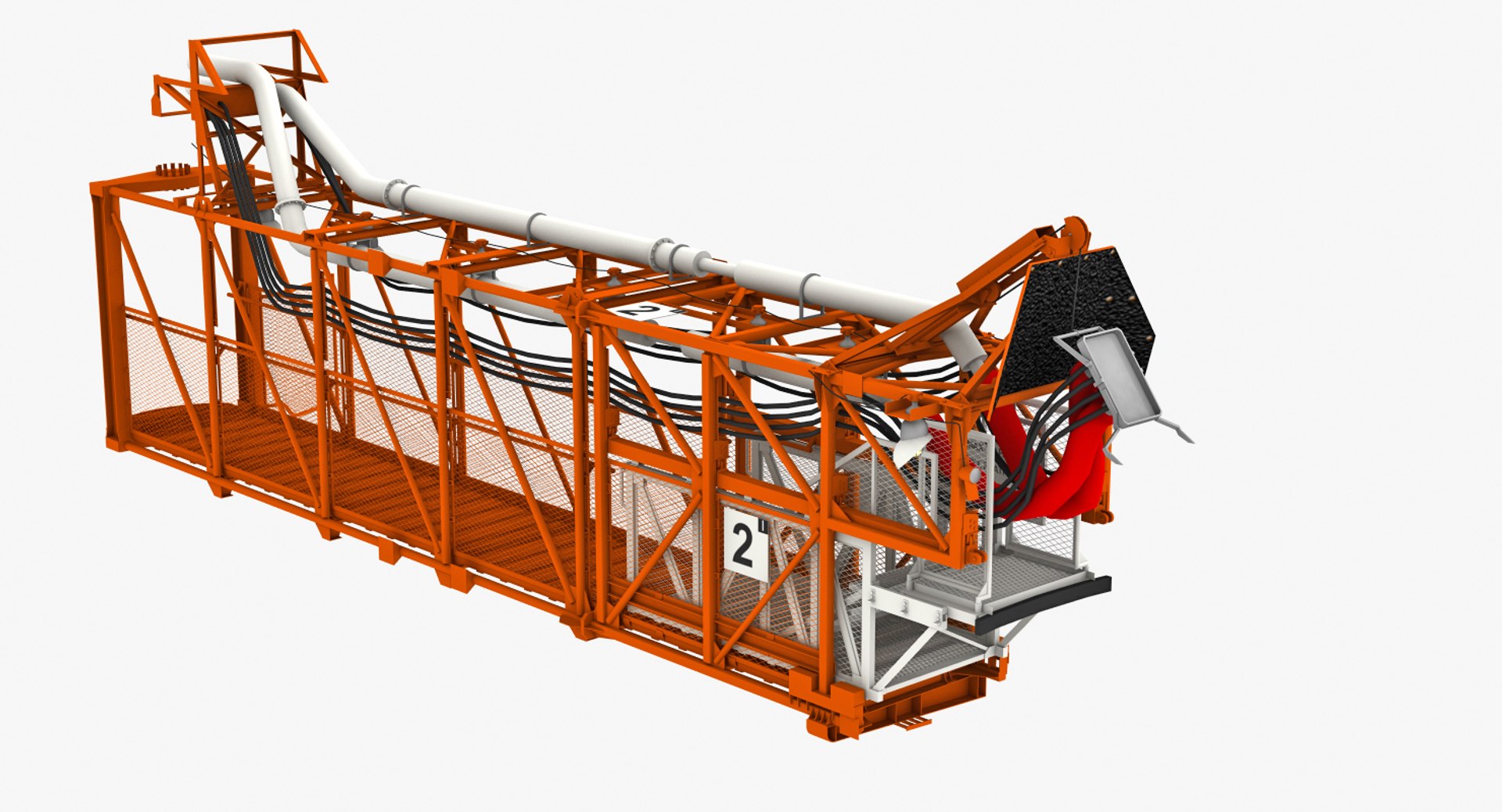

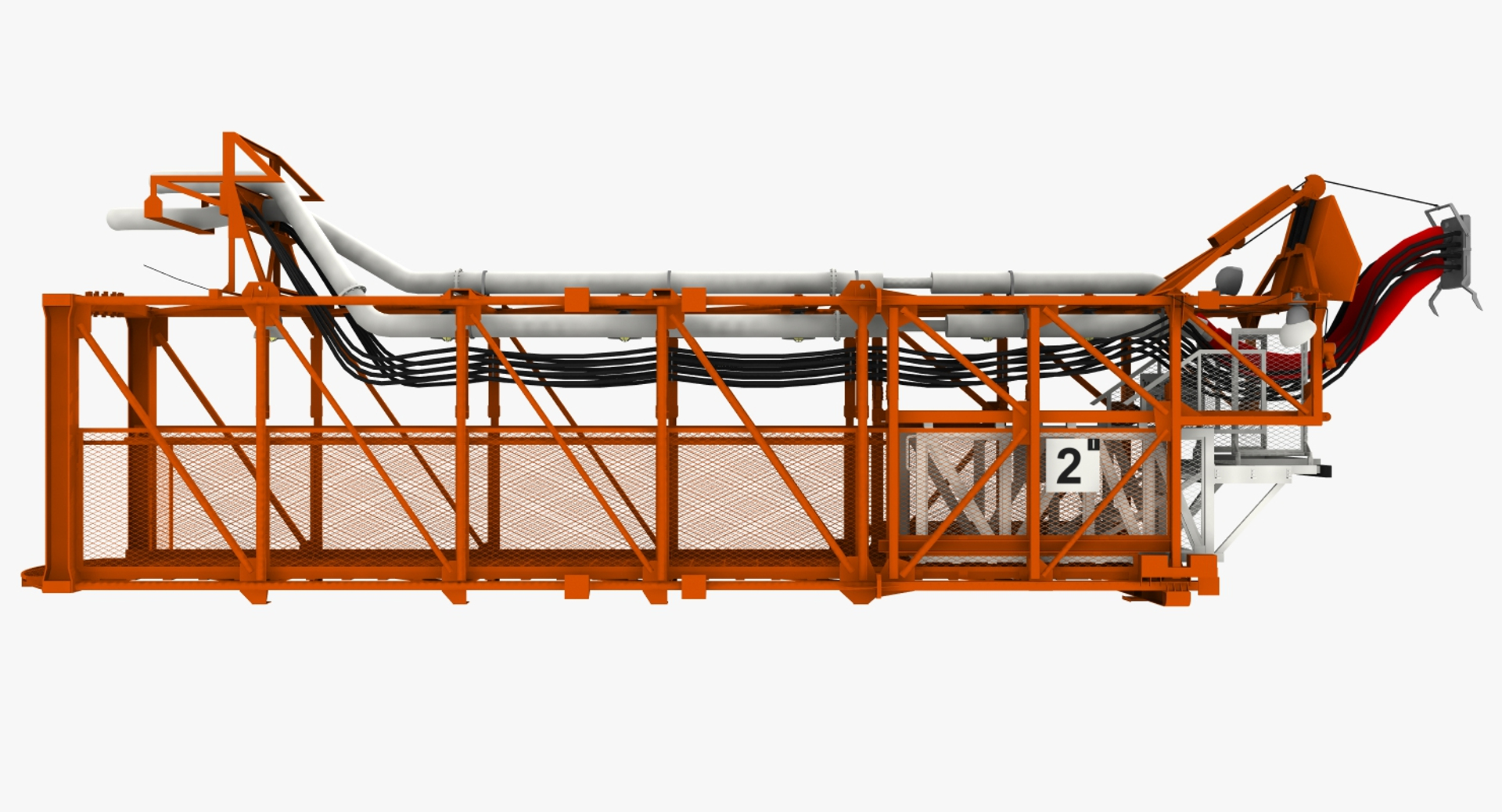

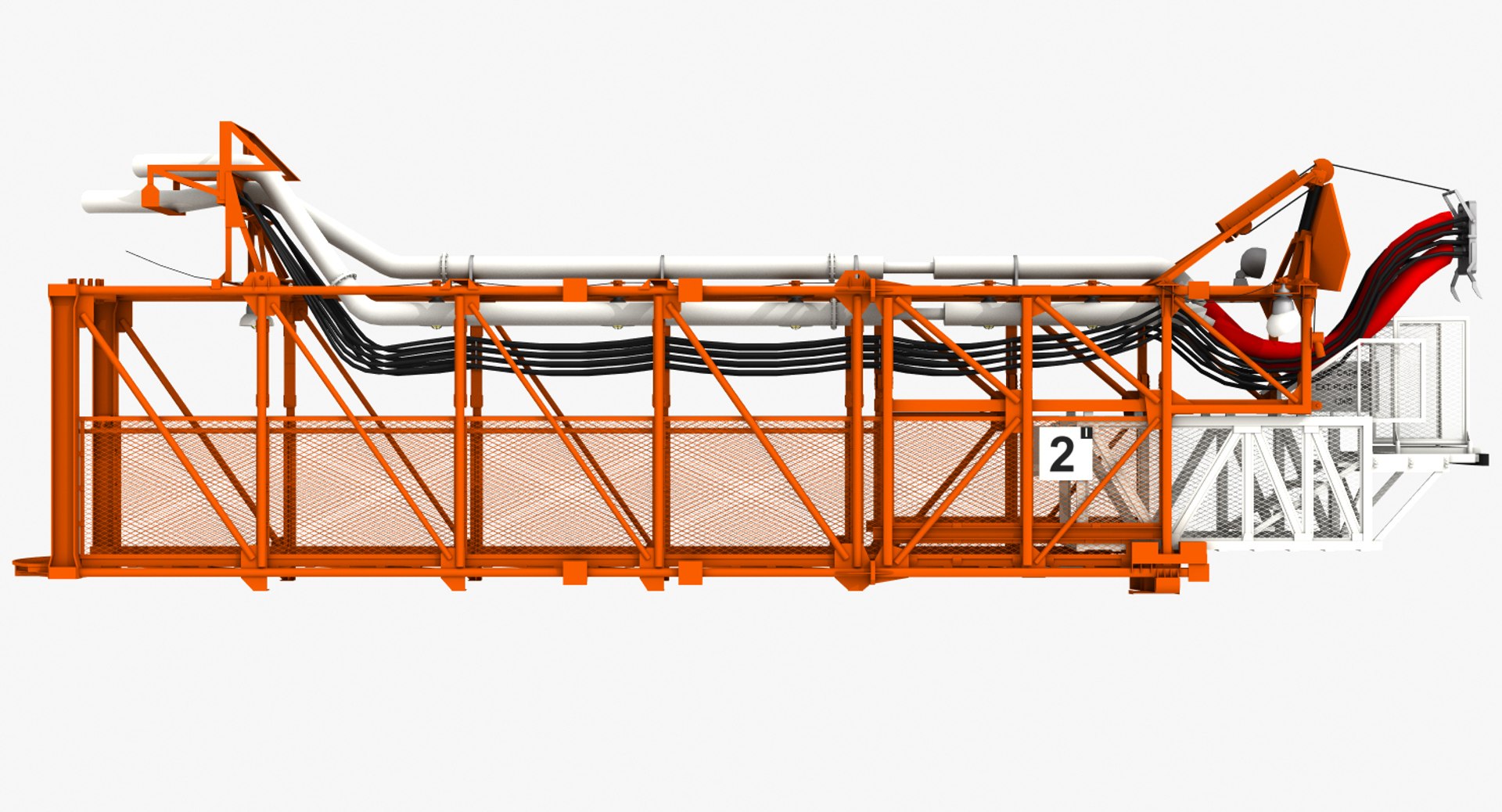

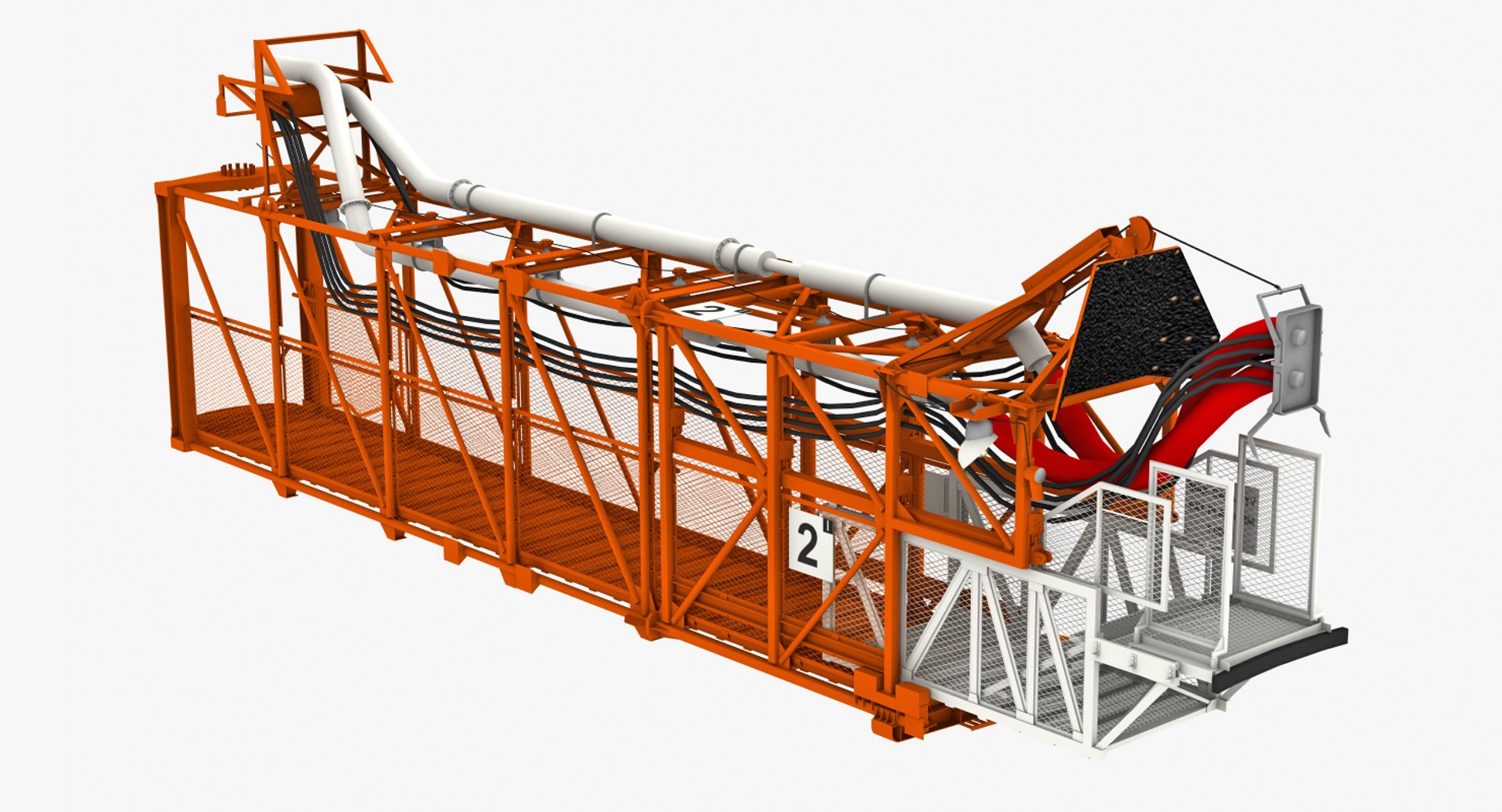

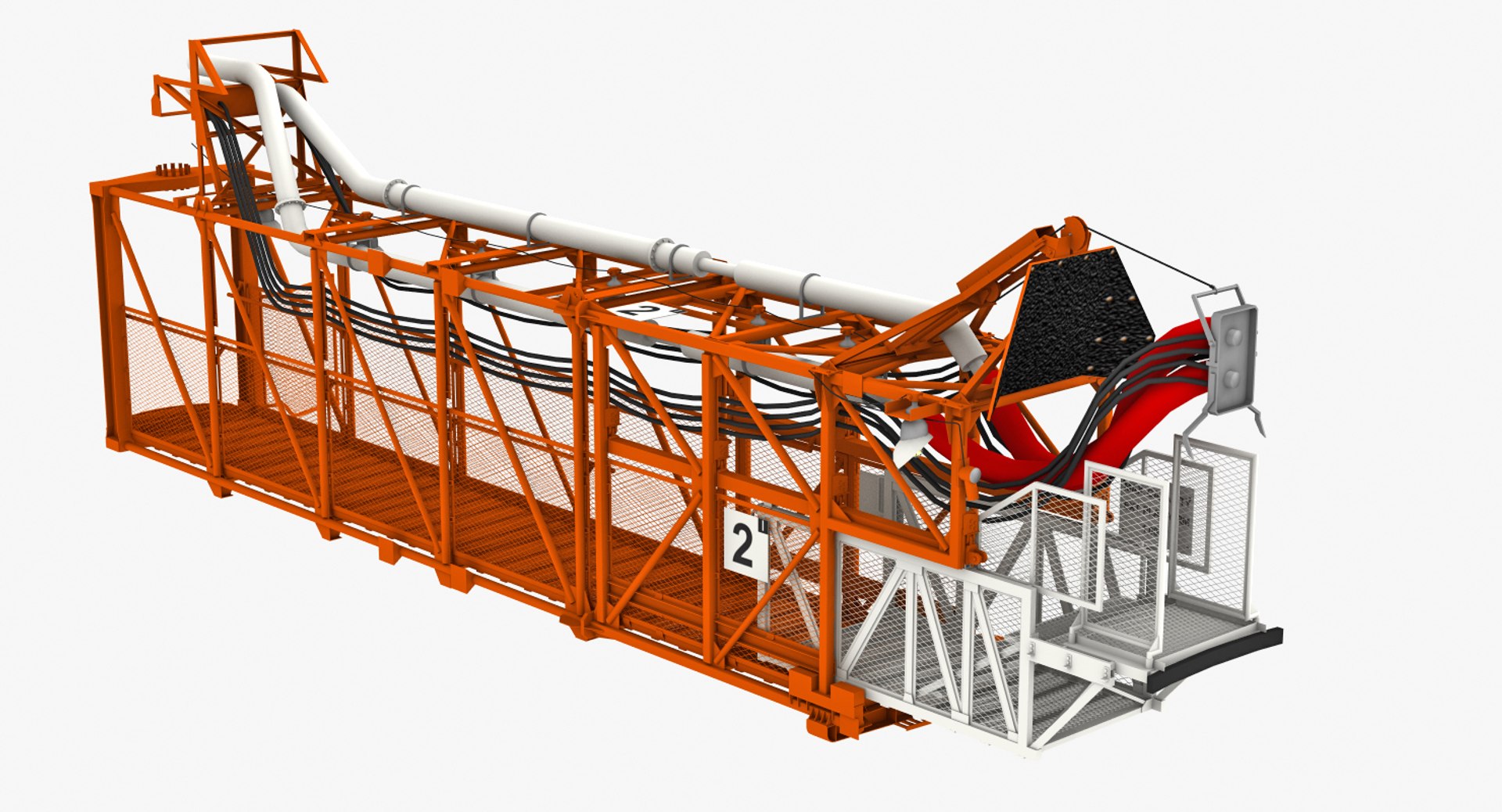

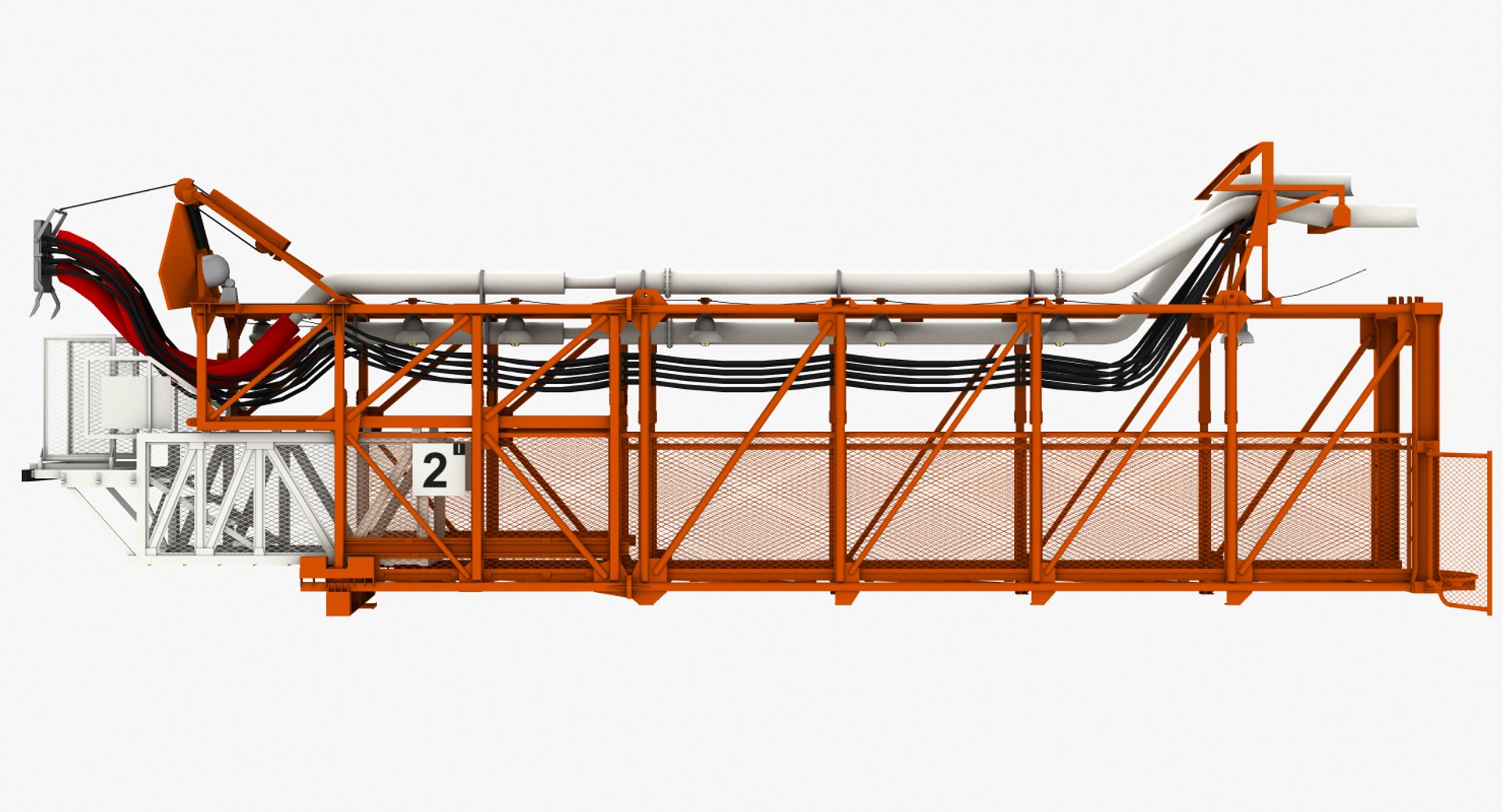

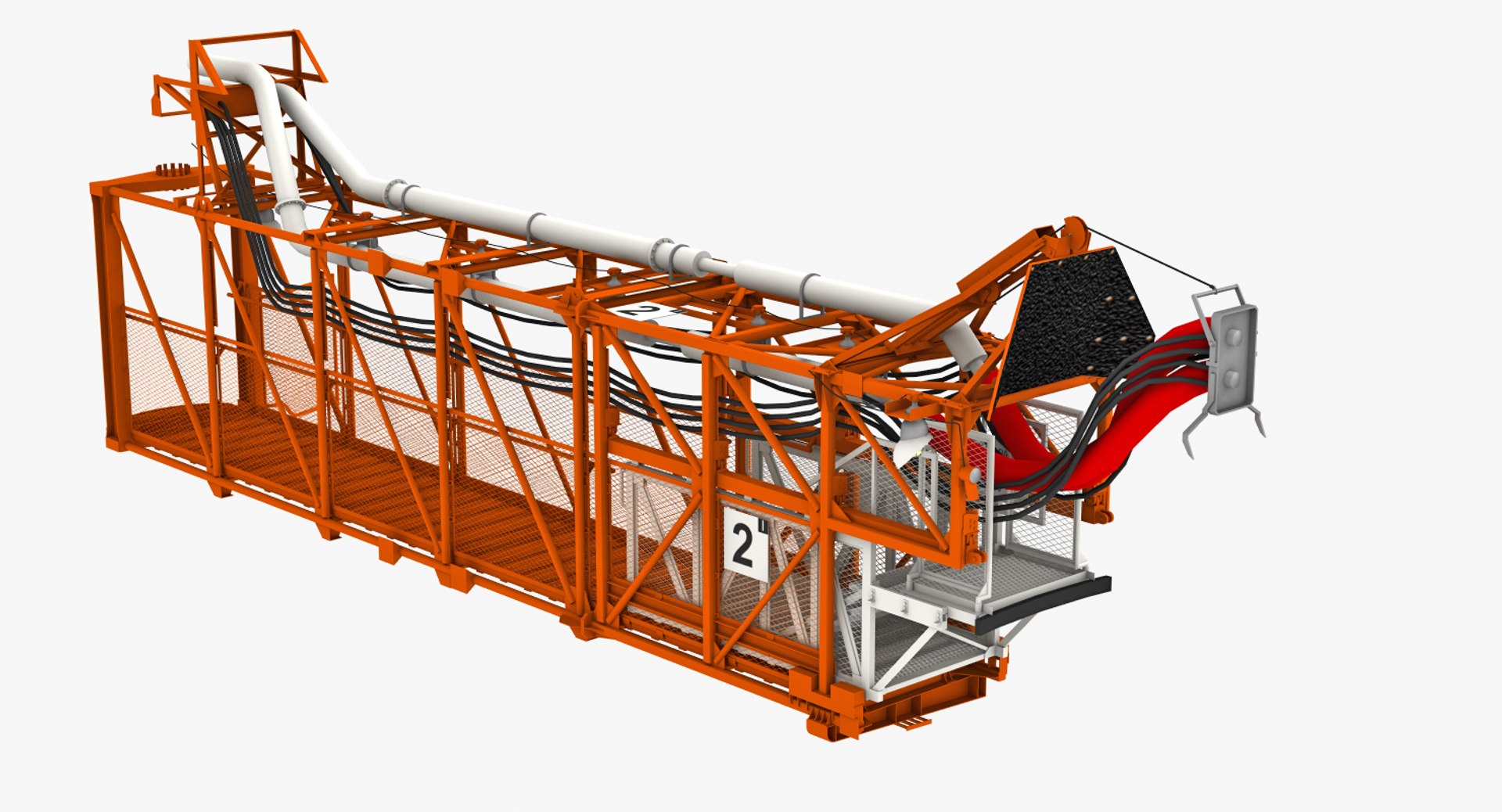

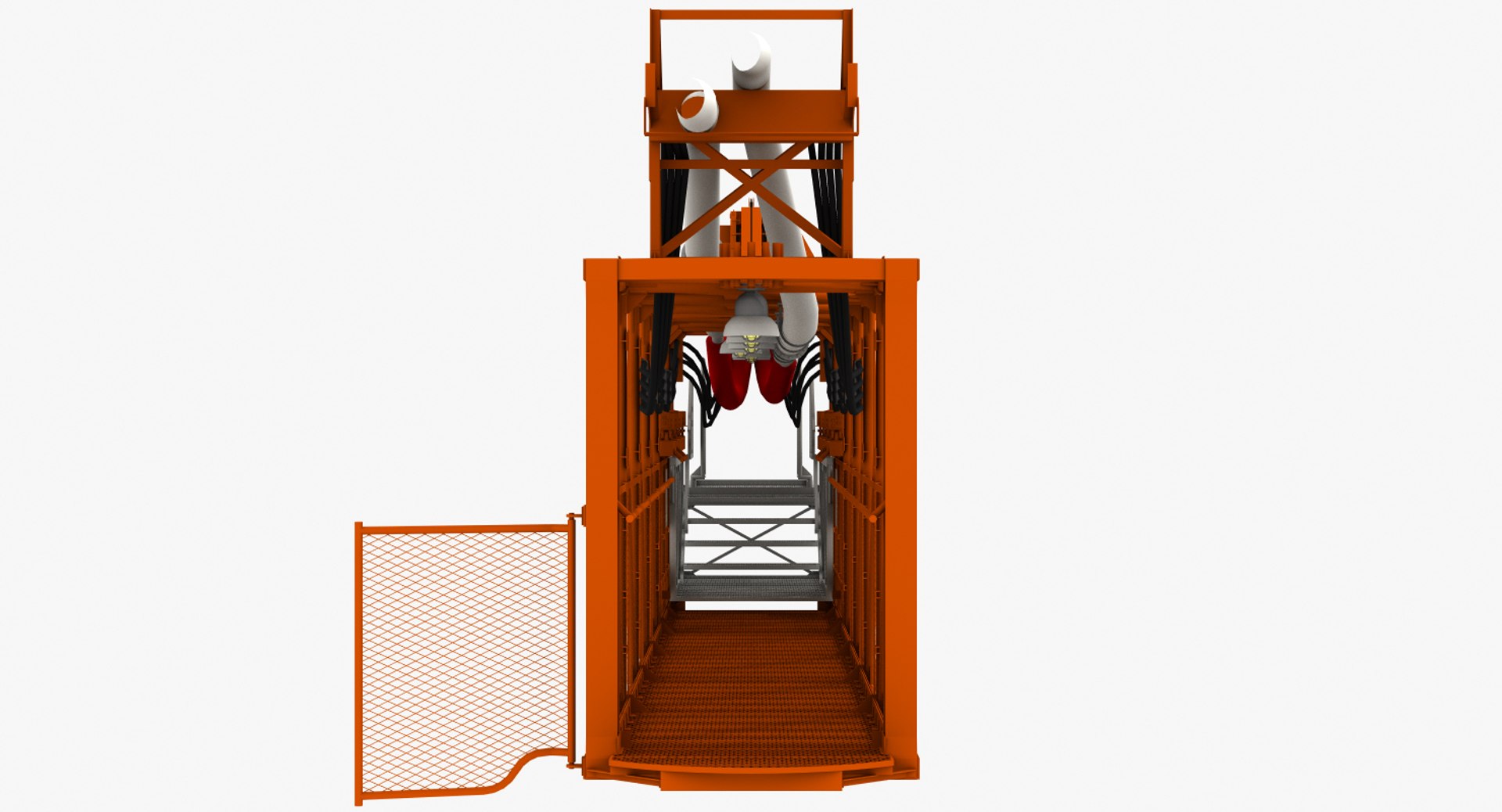

This is a High Definition model of Swing Arm number 2 (S-1C Forward) used to fuel and service the Saturn Apollo and Skylab S-1C launches between 1967 and 1973.

This swing arm has been built to accurately align with both my Saturn Apollo and Saturn Apollo Lite models allowing close up rendering of the iconic launch scene where the umbilical connections break away and the arm retracts (without the need to purchase the whole Apollo Mobile Launcher product). It can also be used as a generic service arm to connect other launch towers to rockets of a fiction based nature.

Modelled with precision using the original architect's scaled drawings, along with extensive photographic and video research.

Modelled with LightWave 9.6

USAGE

Suitable for HD video, high-res film close-ups and print

SPECS

Model contains the following:
4 object layers (including interchangeable extension platform)

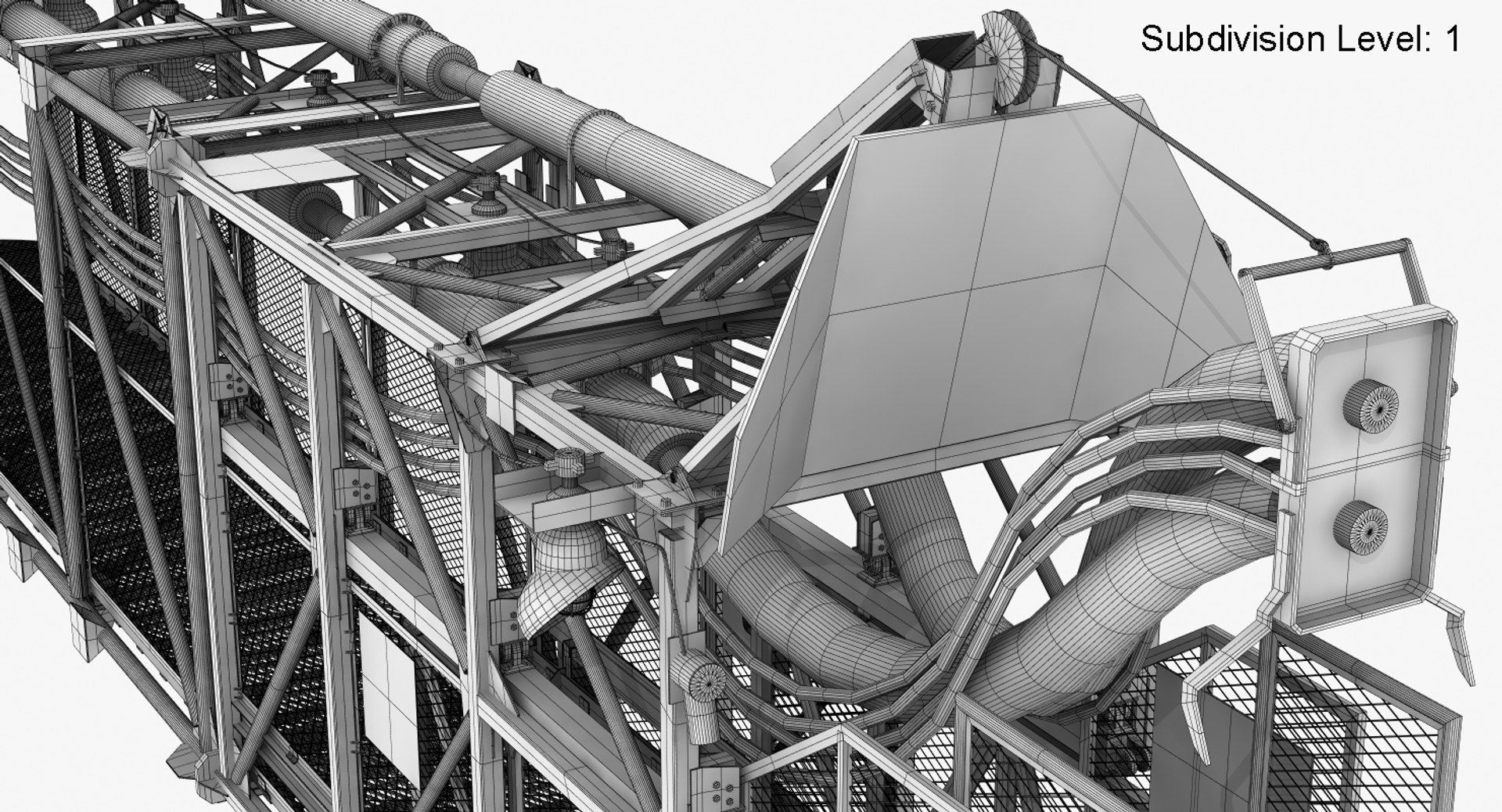

39133 polygons
33265 quads, 5868 tris, and 0 ngons
Standard Lightwave materials & texture maps

PRESENTATION IMAGES

HDRI skydome used in preview images NOT included in file.
Preview Images rendered with default Lightwave 9.6 scanline renderer.

TEXTURES

For the LWO model both XYZ Projection and UV mapped versions are included:
3 texture maps (PNG format - original XYZ projection mapped LWO model)

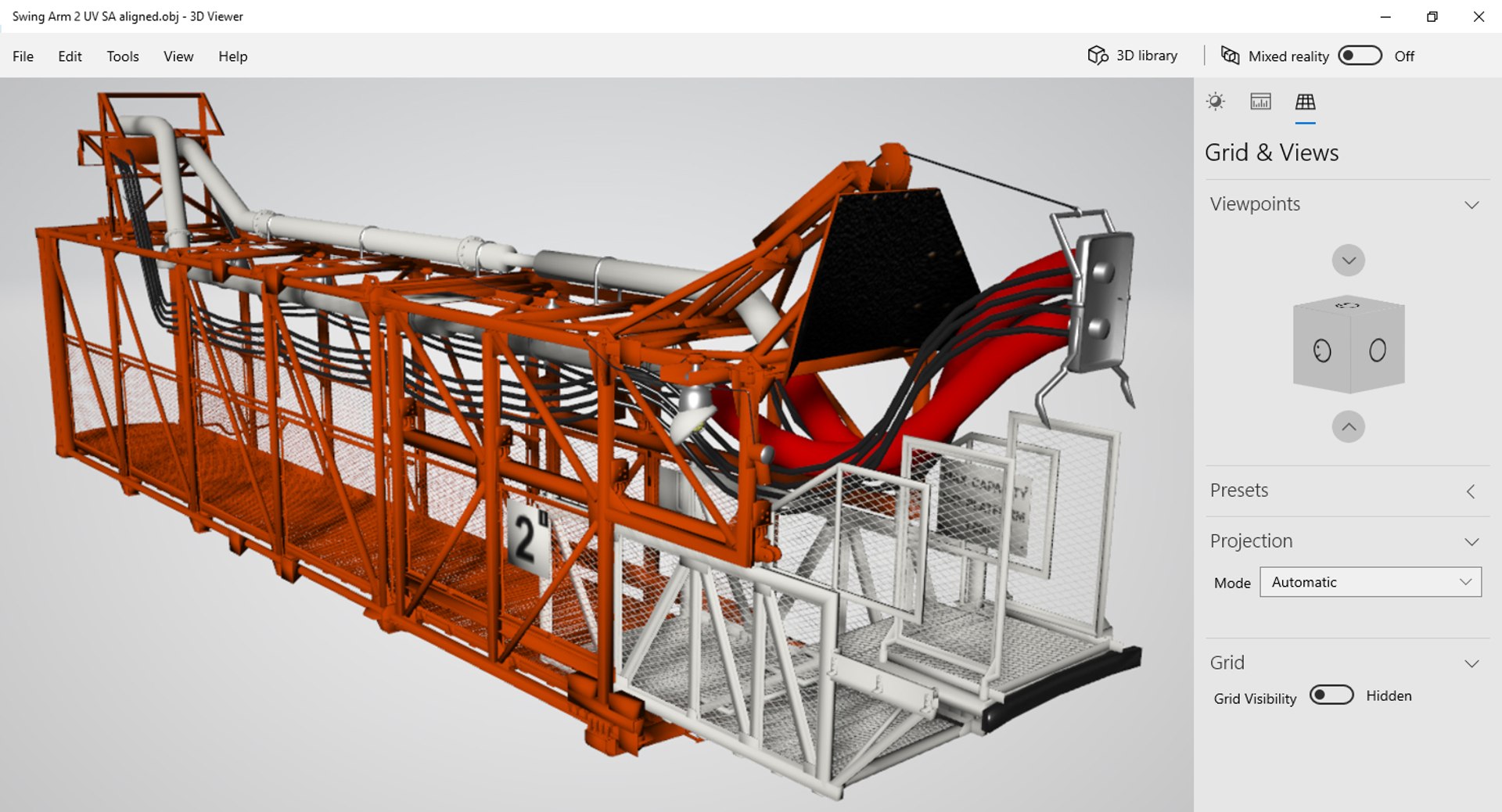

1 UV texture map (PNG format - UV mapped LWO and non-native FBX and OBJ formats.

GENERAL

Model built to real-world scale
Units used: Feet and Inches. Swing Arm is approx 42 feet long.

ANIMATIONS

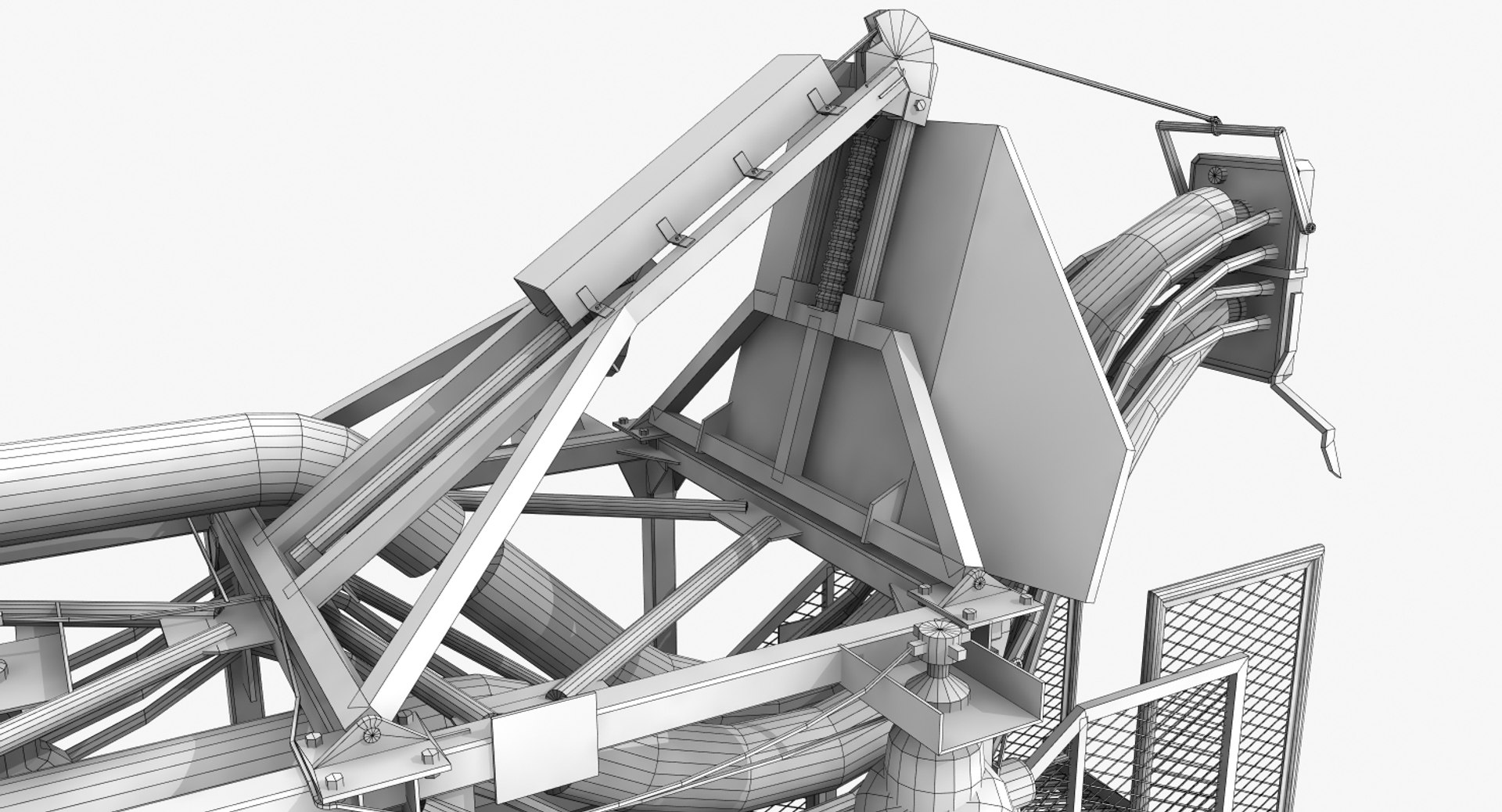

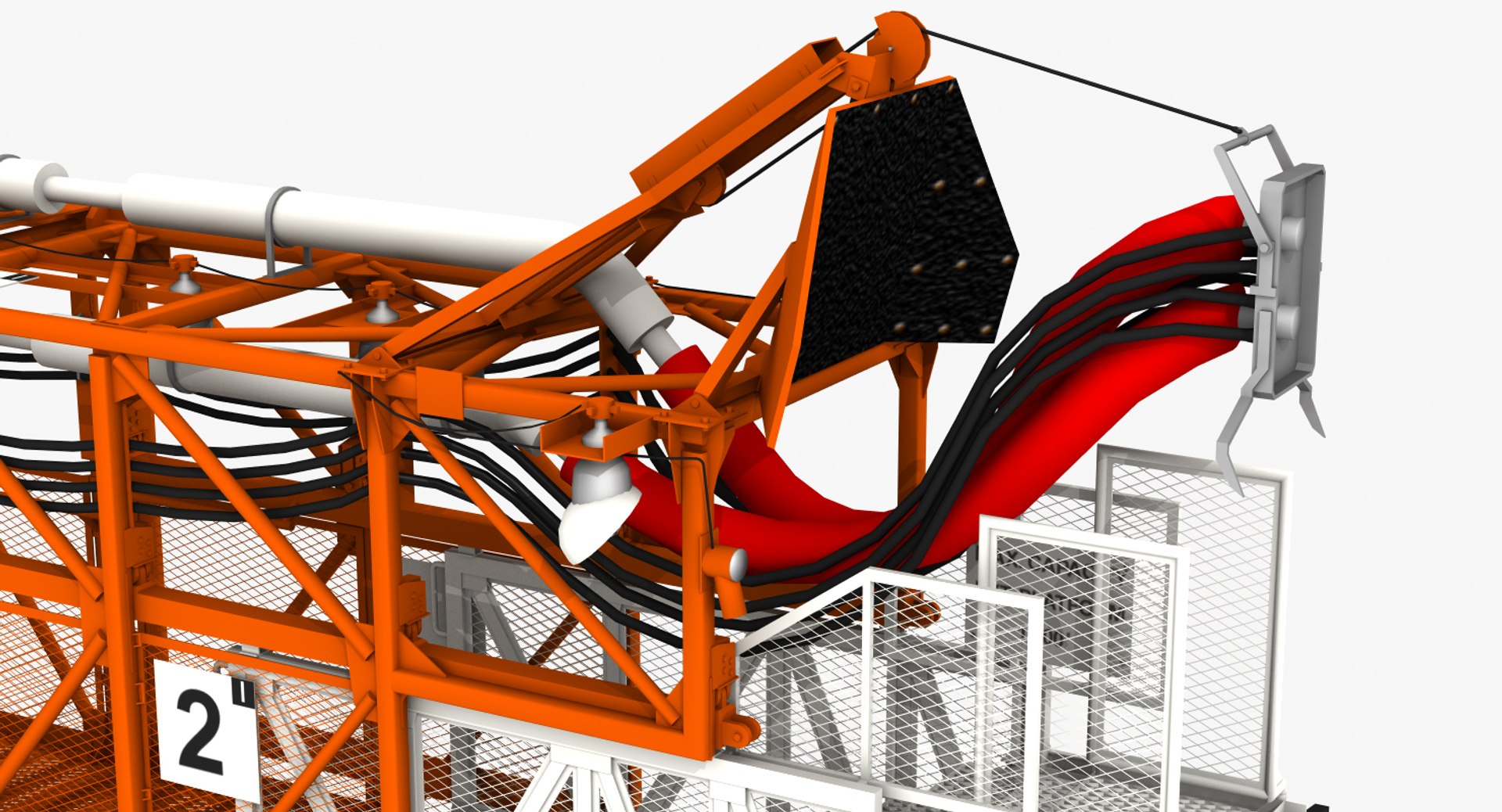

Pivot points and morph targets are preset in Layout file for umbilical release mechanisms and arm retractions shown in animated preview files and downloadable videos.

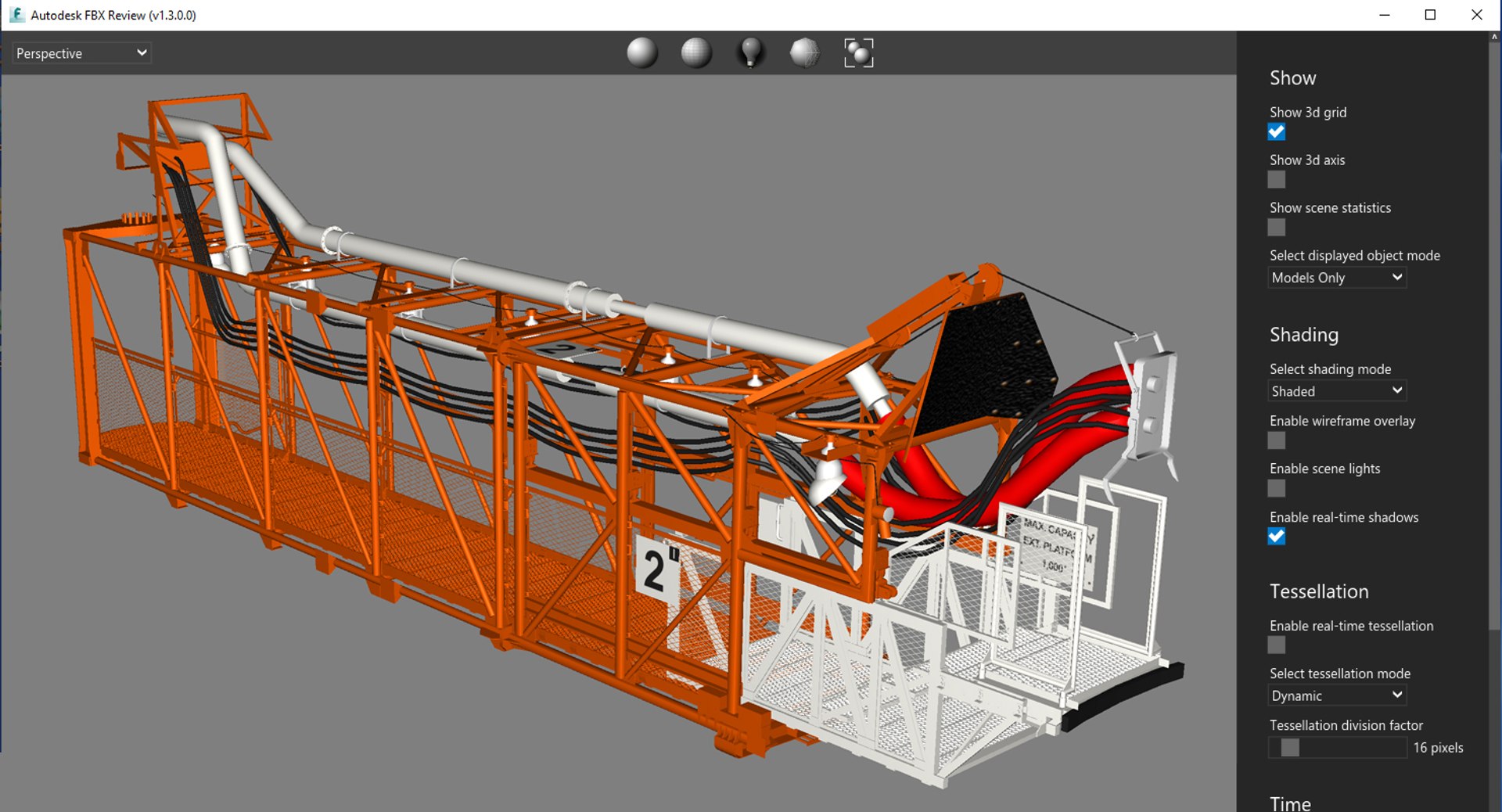

'Swing Arm 2 SA aligned.lwo' model is set up to exactly align with the Saturn Apollo launch vehicle. The arm is also available as a separate standalone model (with morphs set) to be repositioned as required when matched to other launch vehicle scenes. Separate morph target layers/models are also available for the FBX and OBJ products to allow morphs to be setup in other 3D programs

ADDITIONAL NOTES

Fully compatible with my Saturn Apollo models (NOT INCLUDED)
Complete Apollo Mobile Launcher model NOT included

Modelled on 64-bit OS - i7 5960X CPU - 3.00GHz - Windows 7 Professional 64GB RAM
