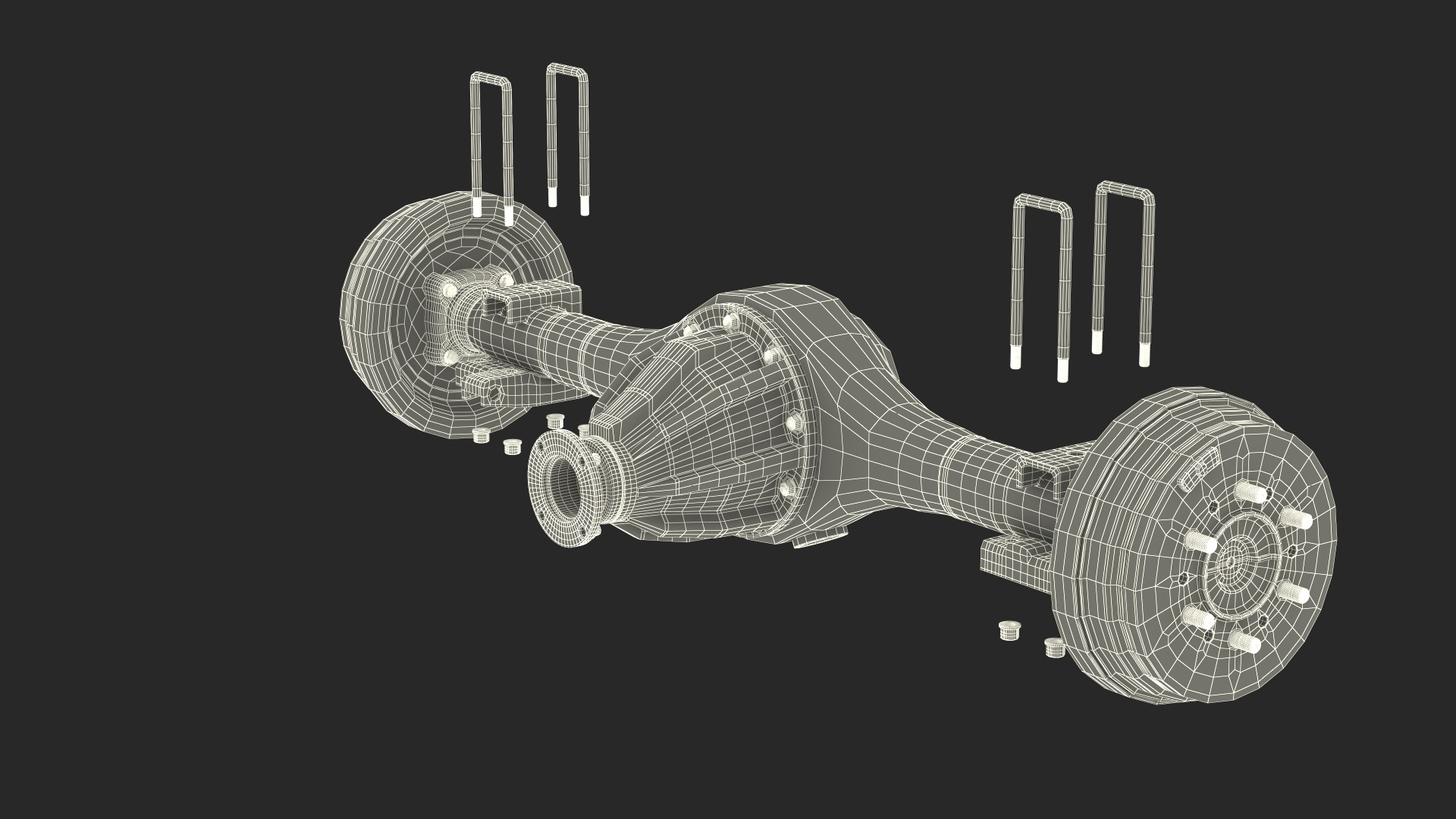

Solid Rear Axle Drum Brake Exploded View is a three-dimensional model of vehicle drum brake system featuring a solid rear axle assembly.

The solid rear axle drum brake system is a traditional automotive braking configuration often used in trucks, SUVs, and older model cars. This system combines a rigid axle housing with internal drum brake components such as brake shoes, wheel cylinders, return springs, and the drum itself. The solid axle ensures durability and load-bearing stability, especially for rear-wheel-drive vehicles.

For automotive education, mechanical engineering training, vehicle maintenance instruction, automotive repair workshops, heavy-duty vehicle component training, transport industry technical support, classic vehicle restoration, brake system diagnostics, chassis and suspension study, vocational schools, automotive museums, and car parts manufacturers.

Solid Rear Axle Drum Brake Exploded View is a high quality, photo real 3d model that will enhance detail and realism to any of your rendering projects. The model has a fully textured, detailed design that allows for close-up renders, and was originally modeled in 3ds Max 2020 and rendered with V-Ray. Renders have no postprocessing!

Hope you like it!

*****
Features:
- High quality polygonal model, has real dimensions. Easy to merge into your scene.
- Units: cm

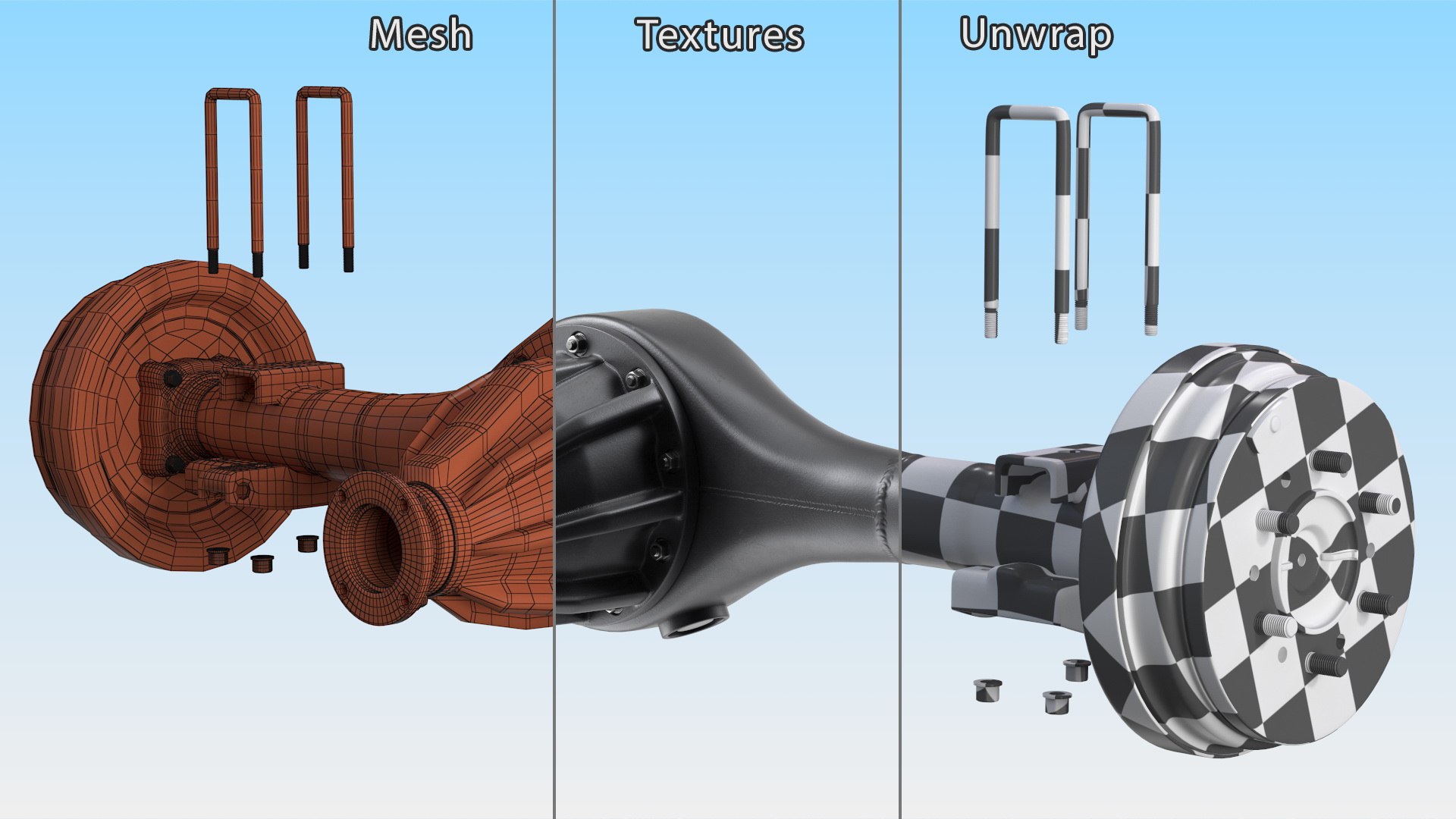

- The model was created with the optimal number of polygons. (The Meshsmooth modifier is assigned to the original mesh. Easy to increase mesh resolution if necessary.)
- All the objects come with complete UVs
All textures and materials are included and mapped. (All colors can be easily modified.)
- All objects are logically named and grouped for ease of objects selection and scene management.
- No part-name confusion when importing several models into a scene.
- No cleaning up necessary (Model does not include any backgrounds or scenes used in preview images.) - just drop model into your scene.
- No special plugin needed to open scene.
- PBR Materials

*****
File Formats:
- 3ds Max
- Cinema 4D
- Maya
- Blender
- OBJ, 3DS, FBX
*****

Textures Formats:
-4 png (8192x8192)
- Dimensions 177,68 x 54,17 x H58,31cm

*****
3d Molier International is a team of 3D artists with over a 15 years of experience. The company participated in various projects allowing us to learn our clients needs. Every model we build goes through thorough Quality assessment both visual and technical to make sure the assets look realistic and the models are of the best quality, which you can tell by looking at the renders - none of the has any postprocessing.

We produce 3D models. This is our main activity. Our goal is to create a 3D copy of all objects on the world.
Buy 3D models from professionals!
Also check out our other models, just click on our user name to see complete gallery.
