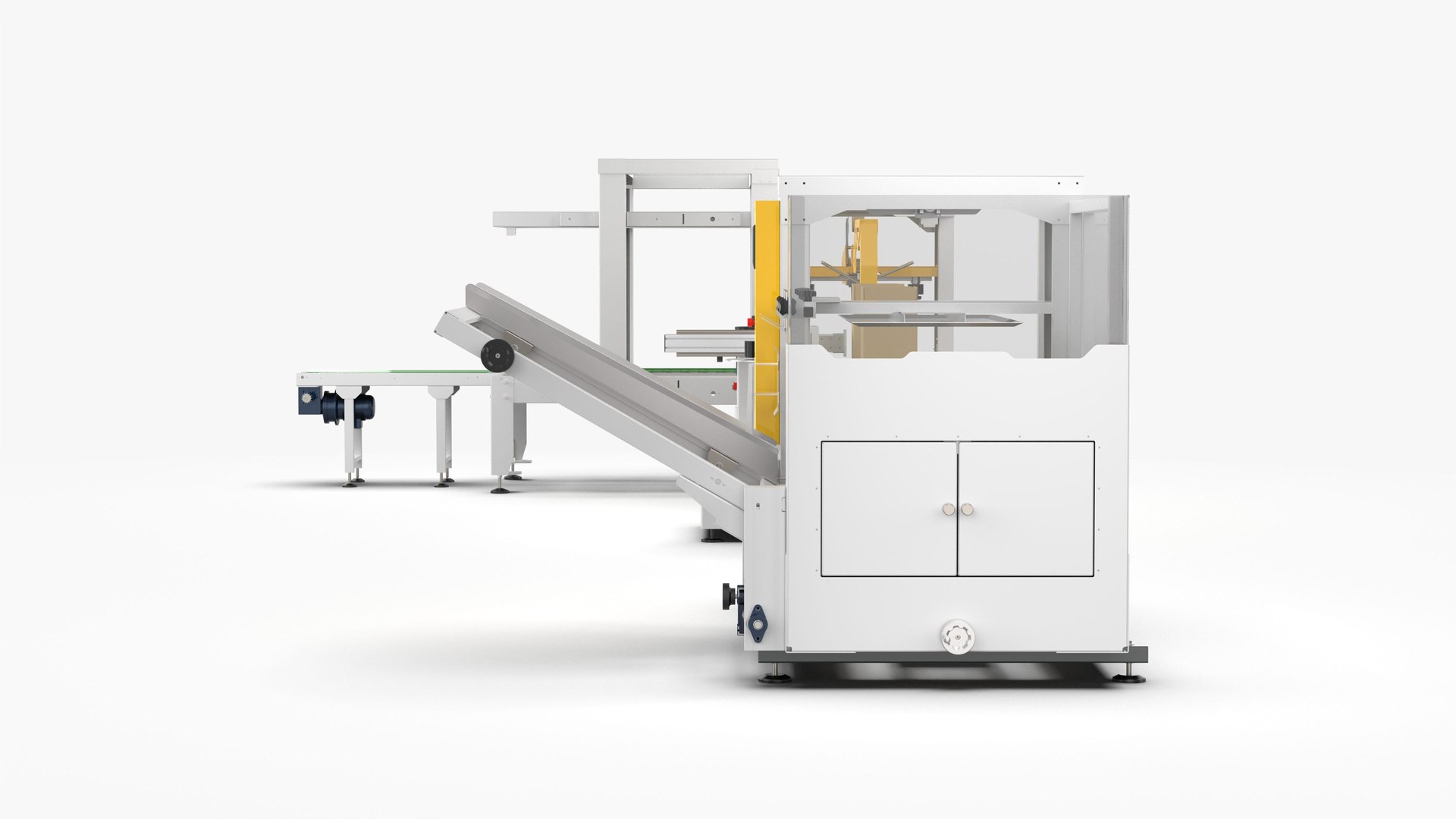

Automatic Unpacking and Sealing Line for Audio Factory

Introduction

This drawing is the product unpacking and sealing scheme of a large audio manufacturer. The equipment includes a box unpacking machine, which is fully automatic, a box sealing machine, a labeling machine, etc., and the structure is relatively complete.

File Formats

– Pro E 5.0 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 2,477,952
– Vertice: 7,433,856
