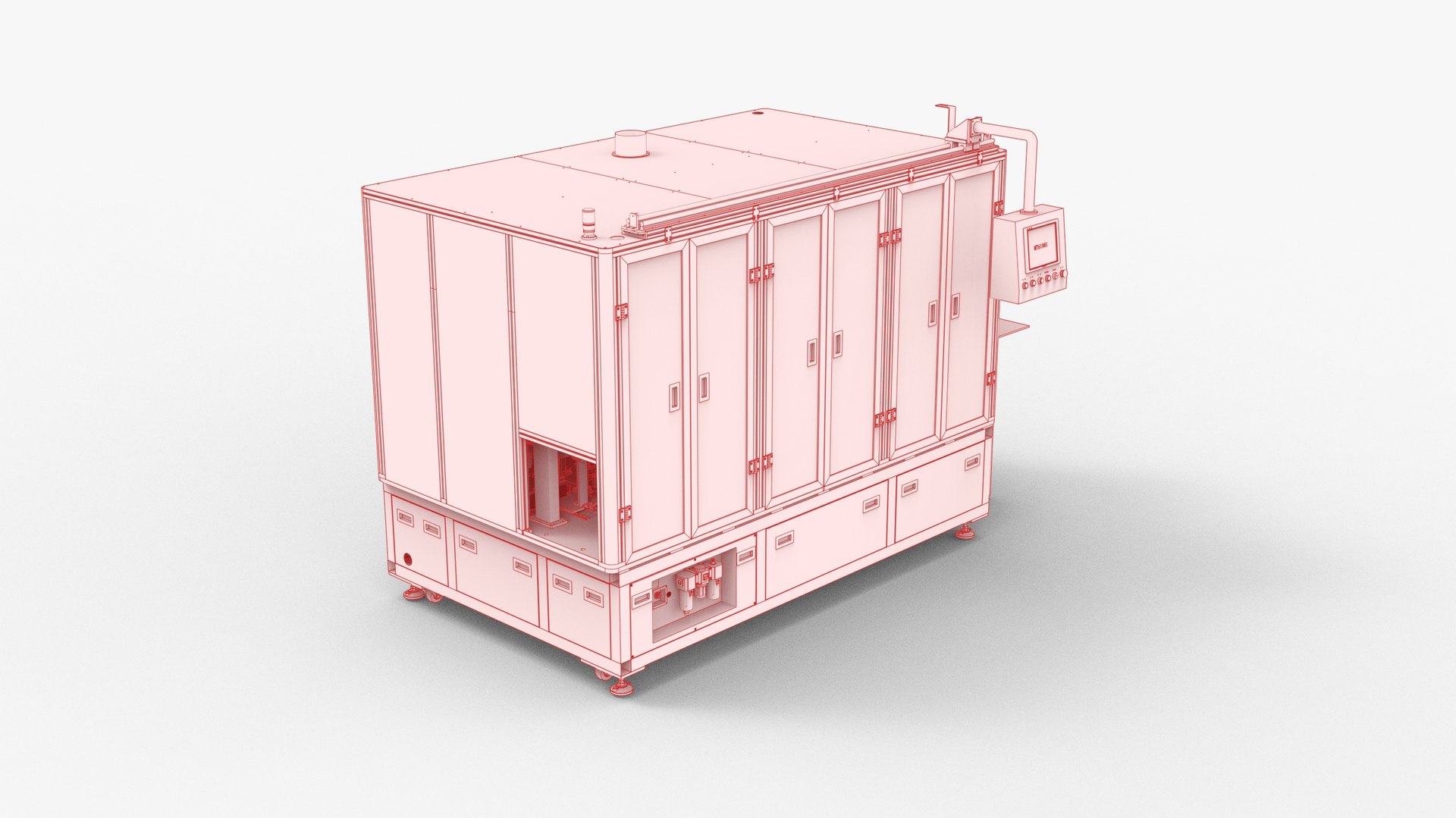

Automatic Lithium Battery Cell Sticking Narrow Glue Machine

This equipment is mainly used for the sticking and fixing of lithium battery cells. Working principle: The manipulator automatically takes out the battery cell from the fixing fixture from the material pull belt, and sticks the battery cell to fix the narrow glue. The glue is divided into four stations.

The four-station pastes two narrow glues on the tail of the cell. After the paste is completed, the cell is clamped under the clamp, and the cell is transferred to the cell cold pressing station by the manipulator. The equipment drawings are complete, including engineering drawings, including parts and purchased parts list. This glue machine equipment has been mass-produced, the design of each institution is mature and stable, and the production has been stable at the customer's place. It has good reference and practical value.

Welcome to download and learn!

---------------------------------------------------------
Files format contains
- Solidworks 2017
- STEP

-IGES

- STL
- Other formats
---------------------------------------------------------
Polygons: 33855211
Vertice: 578846384
---------------------------------------------------------
If you like, you can buy for you to get this models.

Designed with SolidWorks 2017 [editable, without parameters] , render with KeyShot 10.
