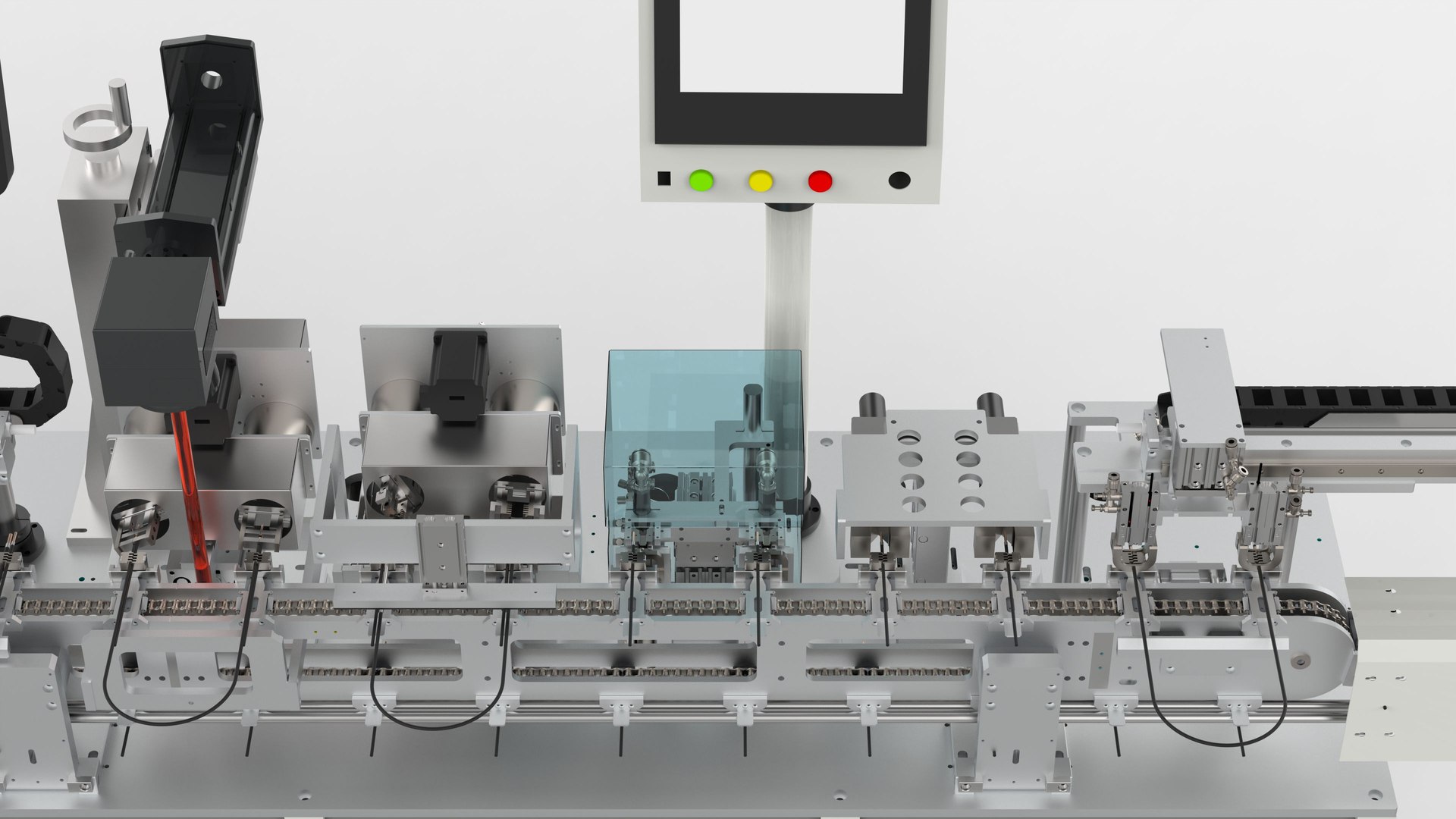

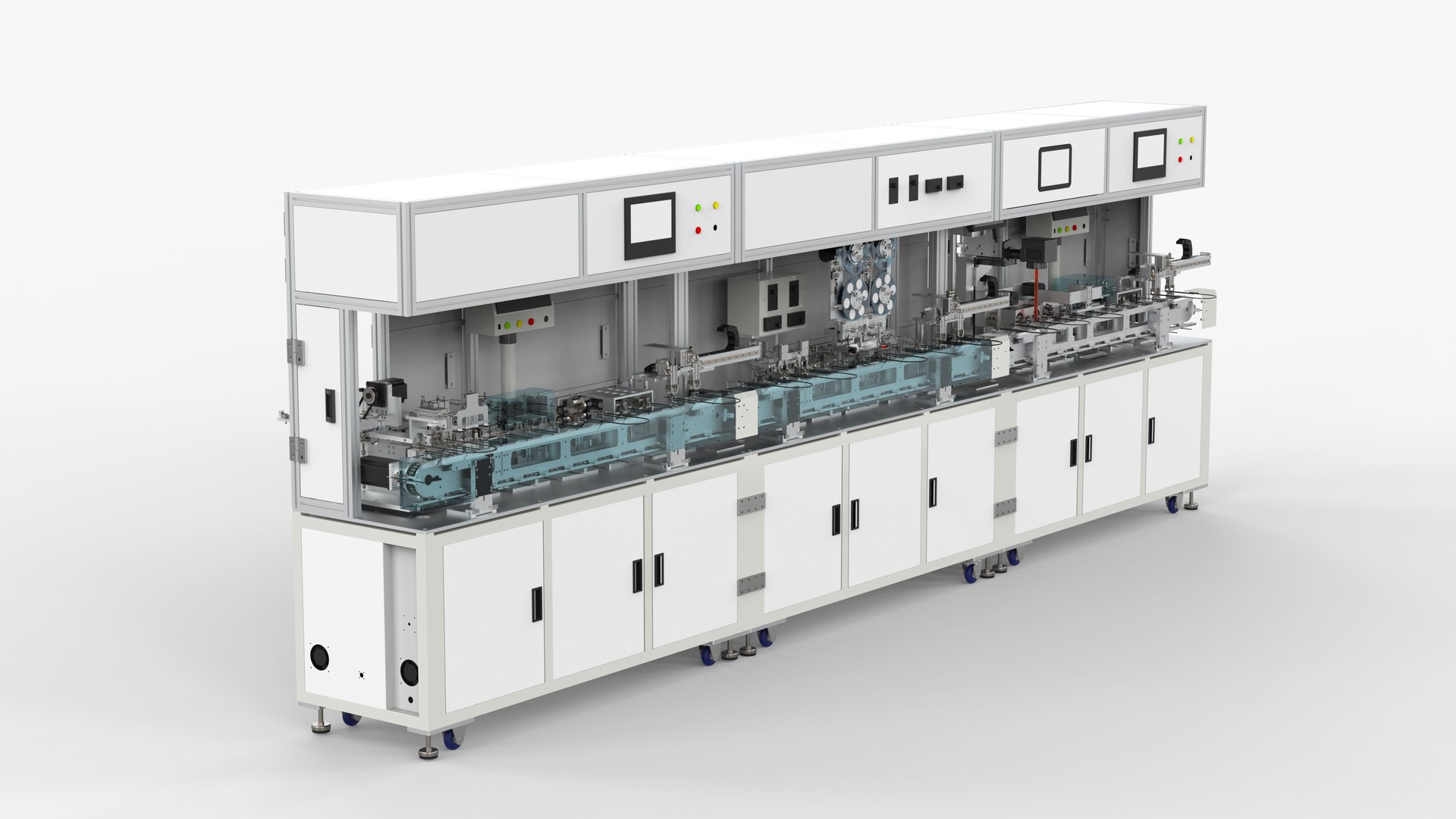

Automatic Front-End Processing Line Production

Introduction

Front-end processing automatic machine for data line production, automatic wire feeding - peeling - brush weaving - rational weaving - shearing and weaving - copper foil - removing aluminum foil - removing cotton thread, as well as thread cutting mechanism, conveying line mechanism, aluminum foil breaking station, and aluminum foil removal mechanism , copper foil mechanism, laser cutting aluminum foil mechanism, peeling mechanism, cotton thread cutting mechanism, unloading station, rotating aluminum foil mechanism, breaking aluminum foil rotating mechanism, scissors mechanism, ascending thread clamping mechanism, brushing weaving station, baking nylon Silk mechanism, cotton silk recycling system, clip release mechanism, etc.

File Formats

– Solidworks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard for the Exchange of Product Data)

Geometry

– Polygons: 13,418,496
– Vertice: 40,255,488
