Detonator Pack

Description:

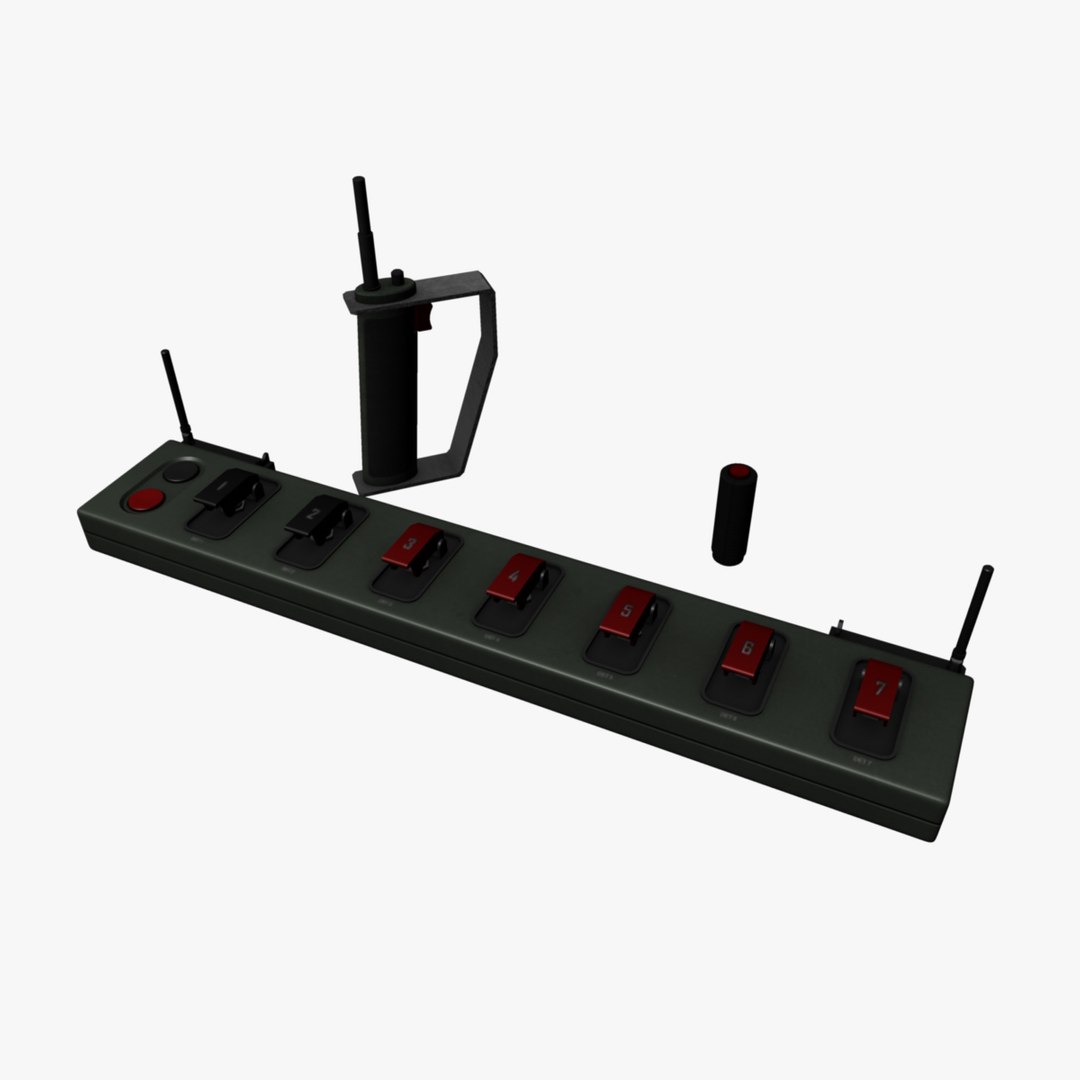

Set of 3 Detonators ranging in size, functionality for different situations.
- Thumb Spring
- Triggered
- Switchboard

The first 2 in the set are relatively simple, where as the switch board has many moving parts and will function properly with everything named correctly and in a proper hierarchy eg: SwitchCover1, Switch1, which will align with the textured numbers on corresponding geometry.

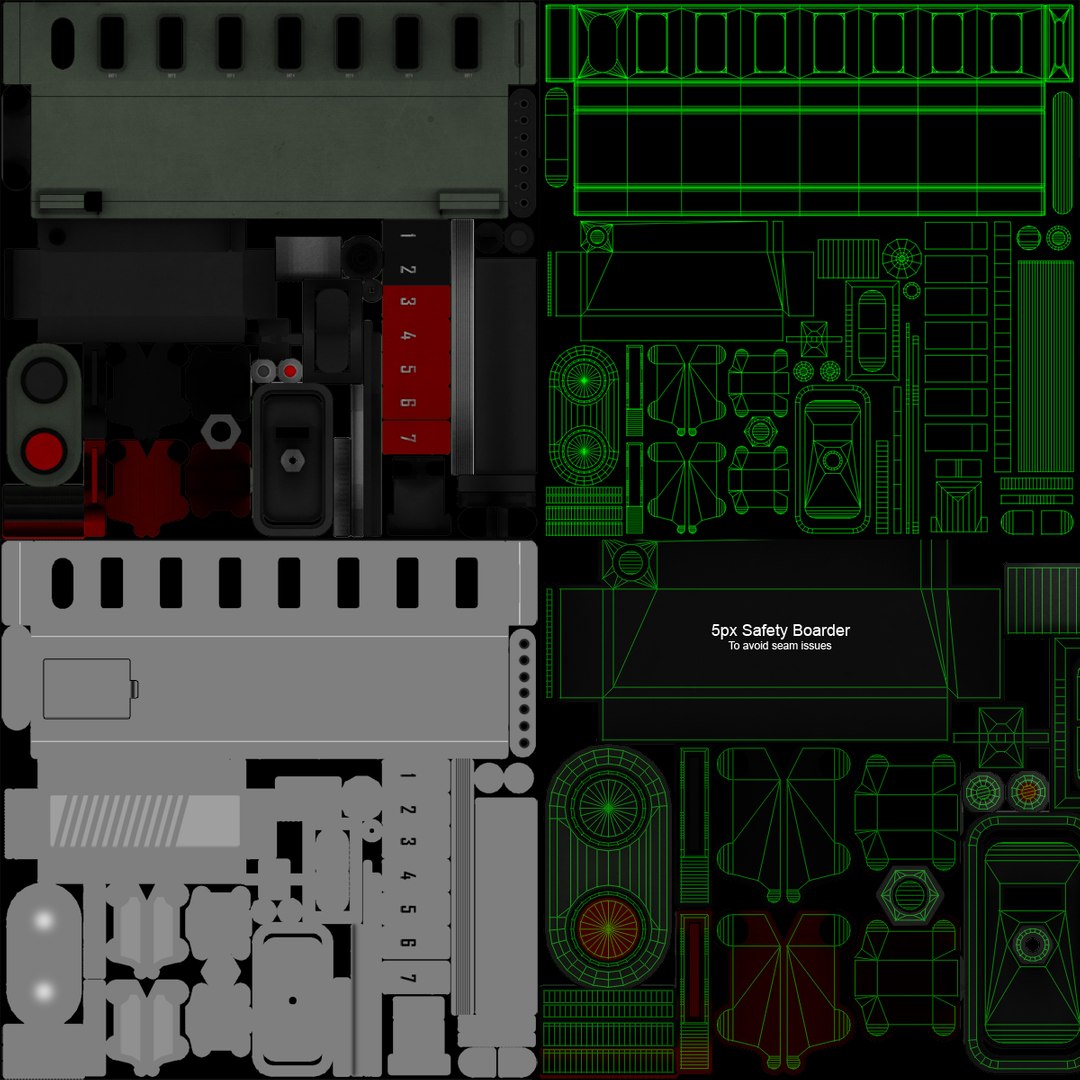

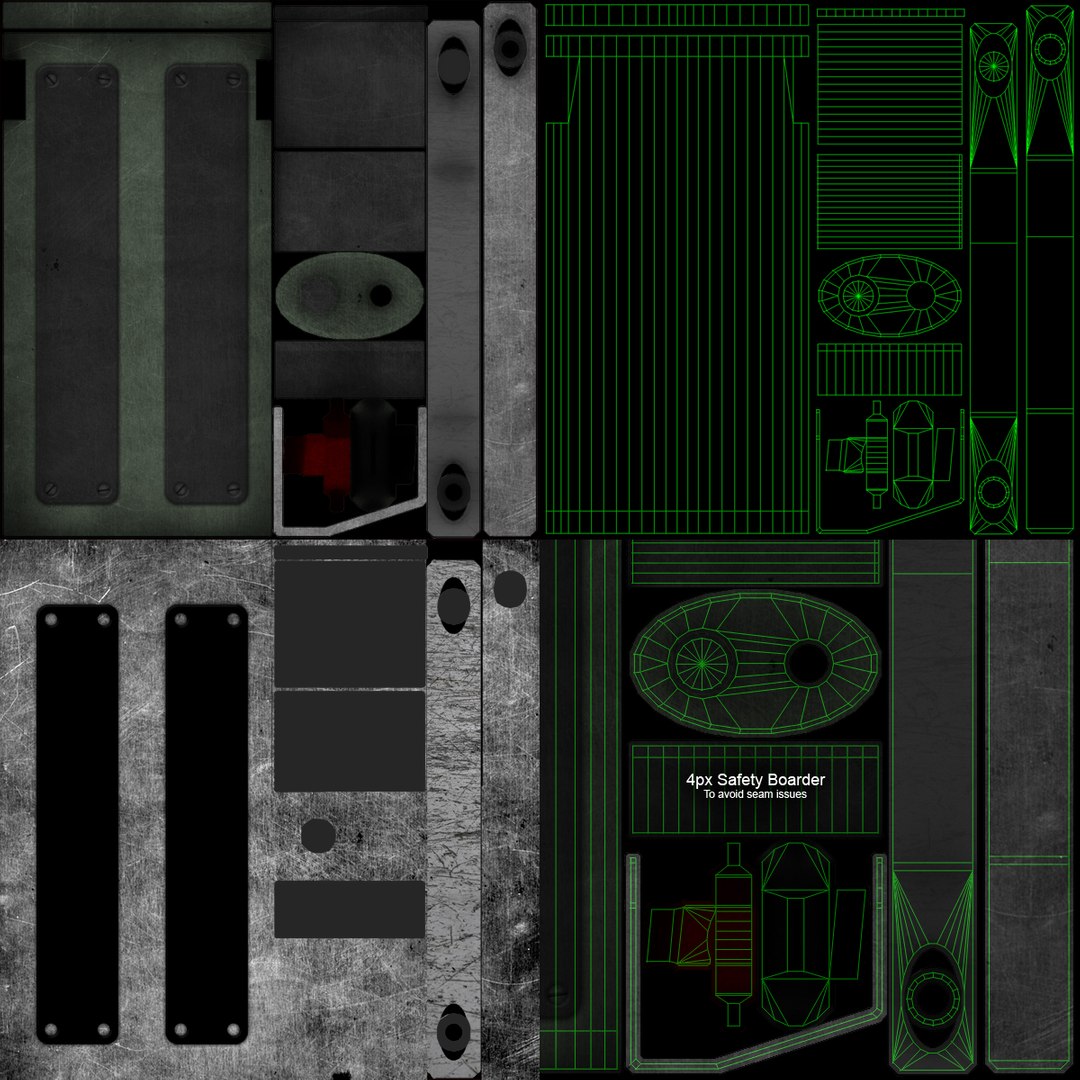

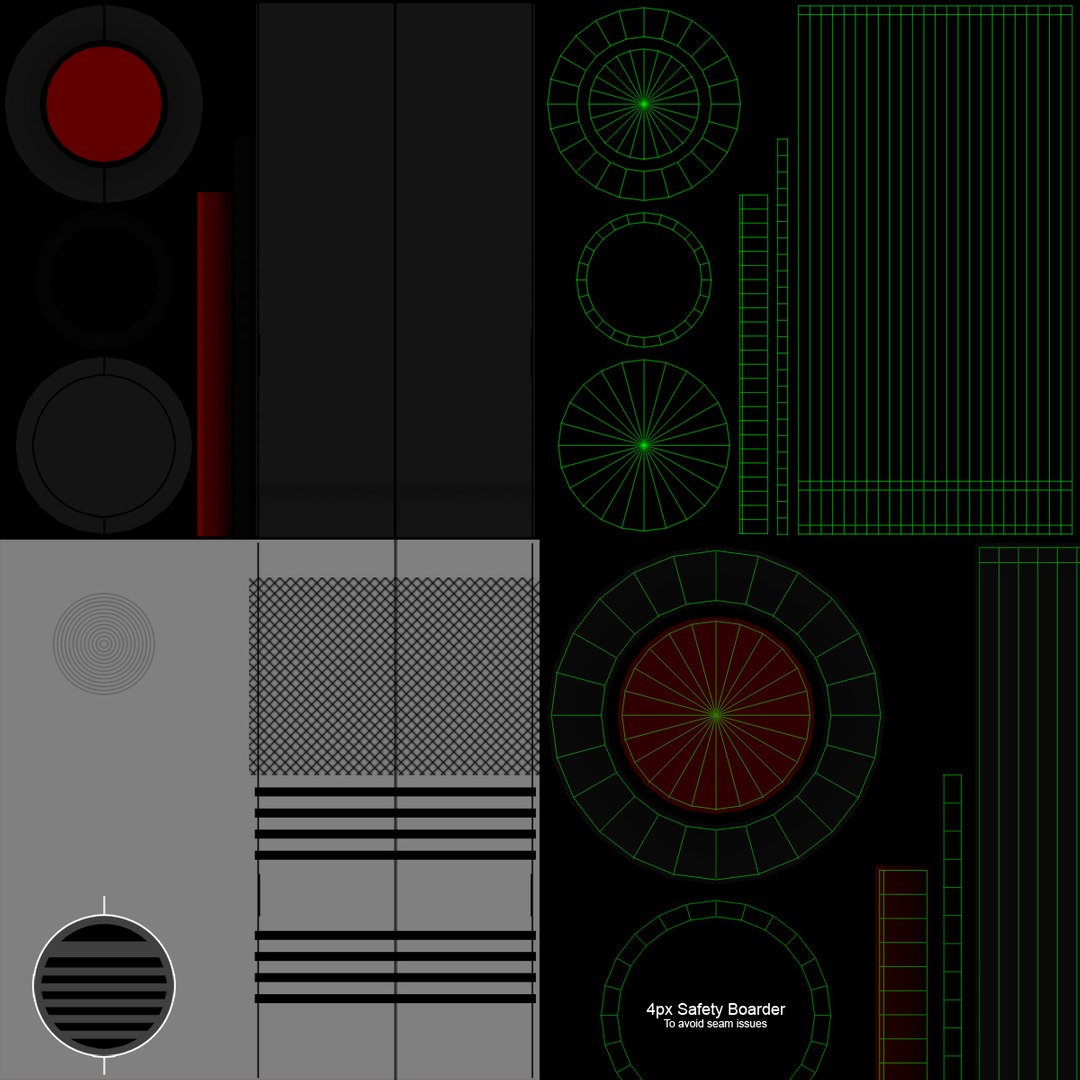

UV:
There are 3 UV sets in this pack, 1 for each of the Detonators.

Third-Party Materials or Plug-ins:
No third party materials or plug-ins required, all examples shown are rendered with the software"s default engine with no lighting setup in the scene.

Textures:
Includes 6 textures at 1024 x 1024 (3x Diffuse and 3x Bump Maps) with a 4px safety boarder to avoid seam issues.
Textures include baked ambient occlusion passes.
Texture Formats are “Targa” “.tga”

File Formats:
Modelled in Maya 8.5
- Maya mb
- FBX

Real World Scale:

Thumb Spring
Length – 2.43 Inches / 6.175cm
Height – 2.43 Inches / 6.175cm
Width – 0.78 Inches / 2cm

Triggered
Length – 3.64 Inches / 9.25cm
Height – 7.57 Inches / 19.25cm
Width – 0.98 Inches / 2.5cm

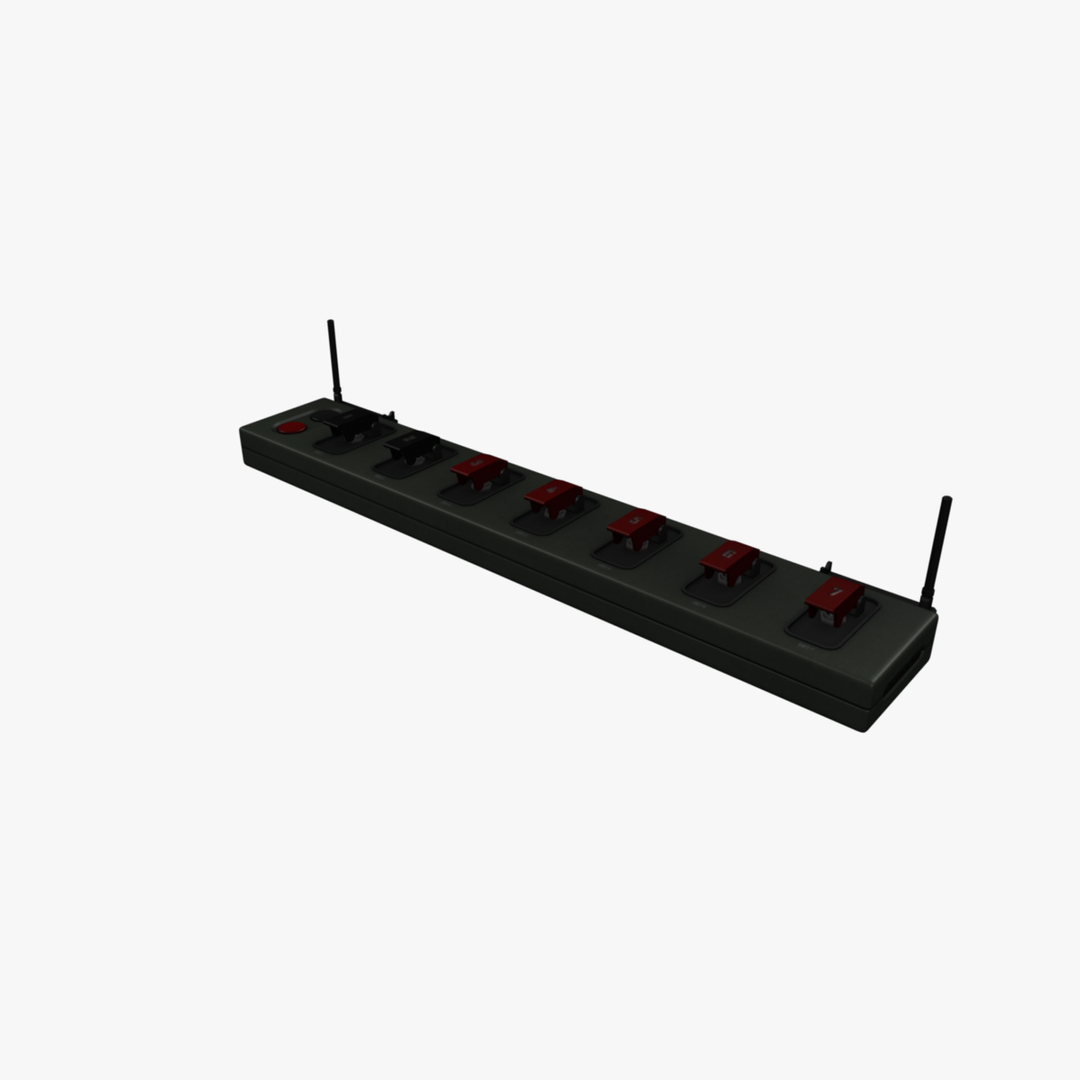

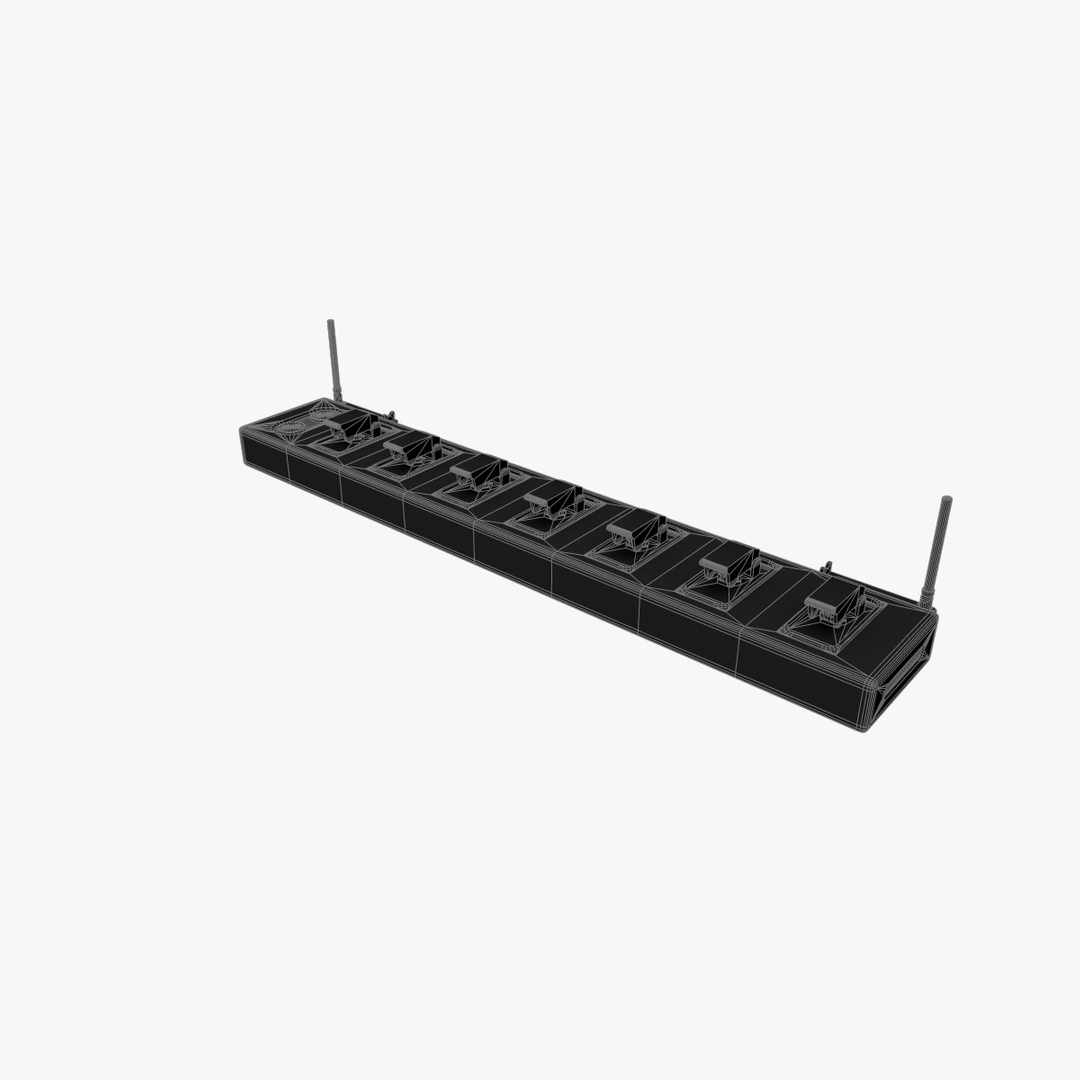

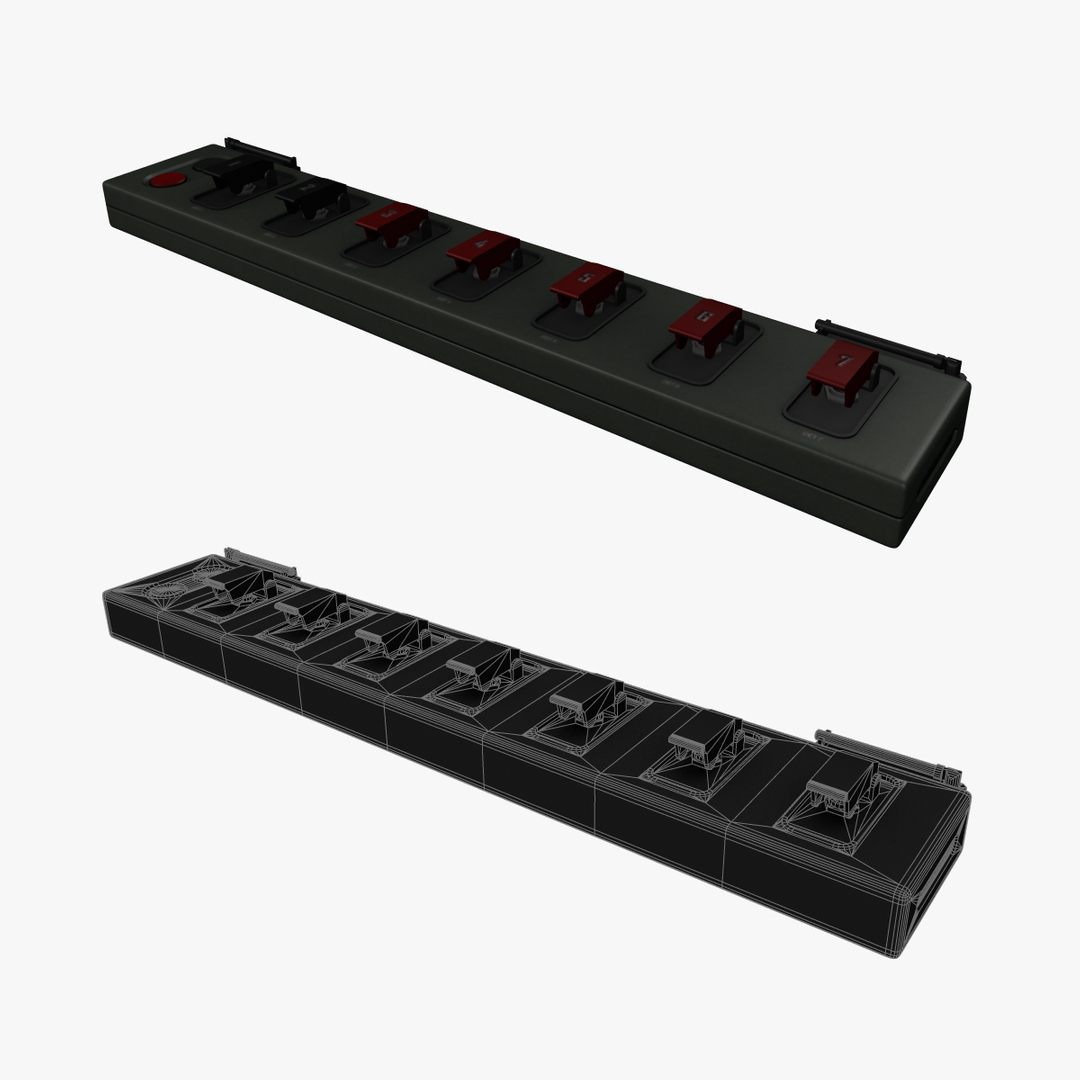

Switchboard
Length – 18.89 Inches / 48cm
Height – 1.86 Inches / 4.725cm
Width – 3.54 Inches / 9cm

(Please see thumbnails for a visual representation)
