Single-screw mini hose clamp — 3D Model

Single-screw mini hose clamp — a compact single-bolt clamp for secure fastening of small-diameter hoses. Designed for quick installation and removal, it provides a leak-proof connection in automotive, household, and industrial systems. Suitable for diameters 18–20 mm. Features a simple design, corrosion resistance, and durability.

Ideal for use in product design, engineering presentations, VR/AR applications, and automotive CGI renders.

Key Features:

• Highly detailed geometry, optimized for close, up shots.
• Detailed physically accurate 3D model conforming to size 18-20 standards. Dimensions: inner diameter 2,0 cm, metal band thickness 0,05 cm, width 0,7 cm. Optimized for technical design and simulation.
• The design includes a nut , and an M4 bolt .
• Realistic threads on stud and nuts created with actual geometry (not simulated via normal maps).
• Mid-poly mesh prepared for Turbosmooth modifier — ensures a clean, polished look while maintaining efficient polycount.

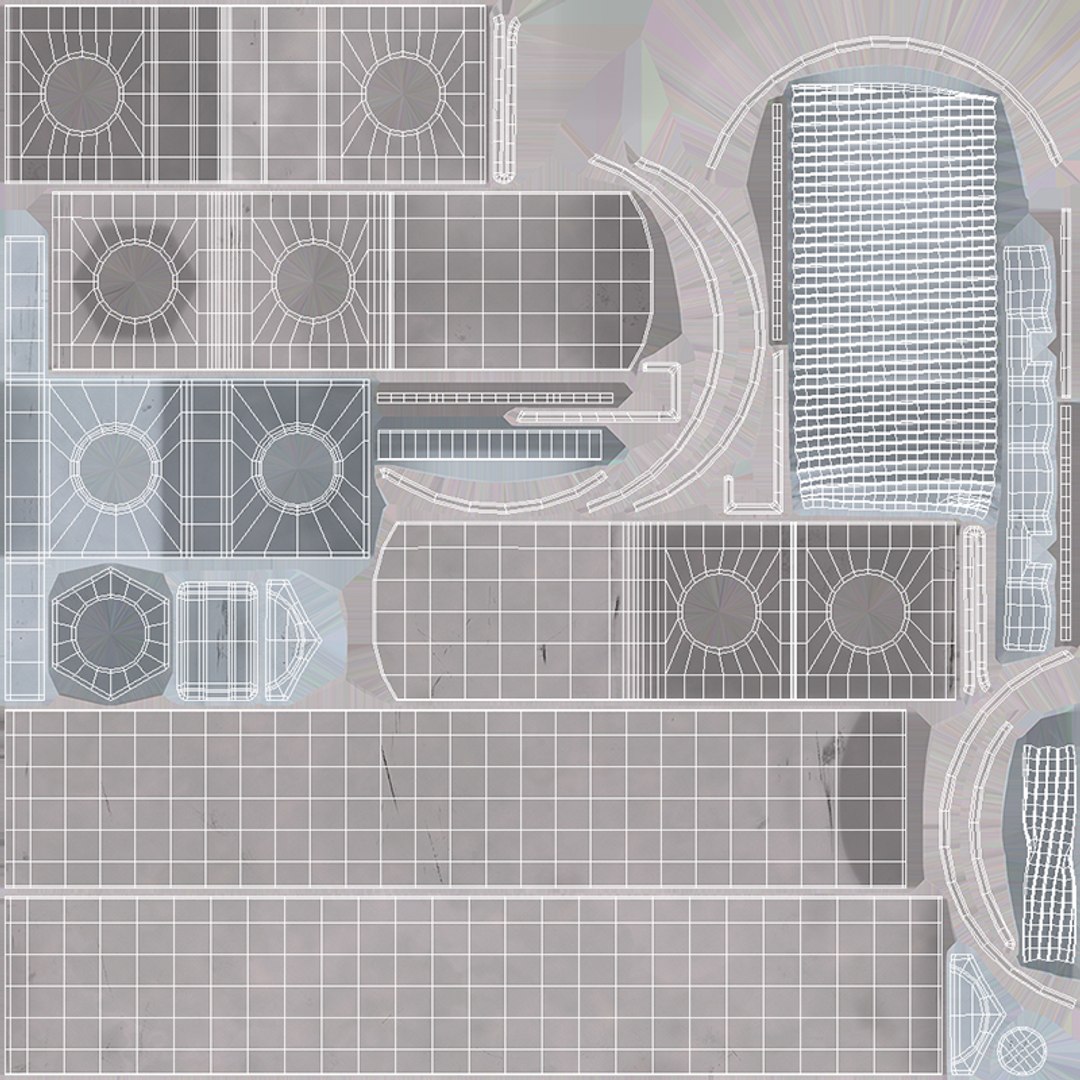

• Clean UV layout with no overlaps.

Technical Specifications:

• Polycount: 5516 polygons (editable, quads, dominant).
• Formats: 3ds Max 2020 (with Turbosmooth stack), FBX, OBJ.
• Textures: 4K PBR (4096×4096 px, .png): Base Color; Normal; Roughness; Metallic.
• Units: centimetres (cm).
• Origin: model positioned at world origin, front view oriented.
• Materials: V-Ray Mtl (detailed metallic shader).
• Scene: clean, no extra objects or lights.
• Renders: provided without post-processing.

Perfect for automotive designers, engineers, and 3D artists needing a realistic, production ready clamp model. Ready for integration into larger assemblies or standalone product shots.

All objects grouped; group pivot aligned to world coordinates, centered in the scene.

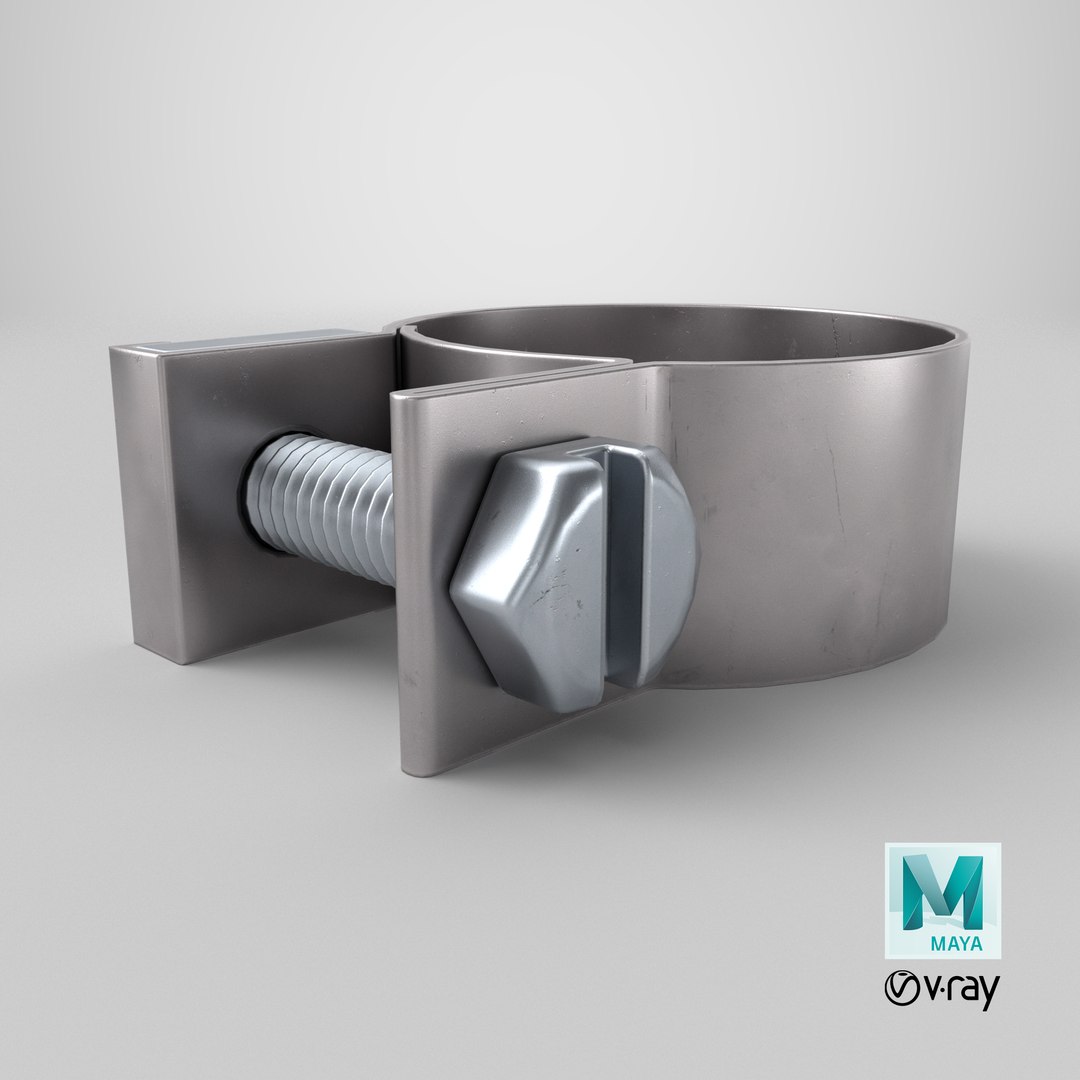

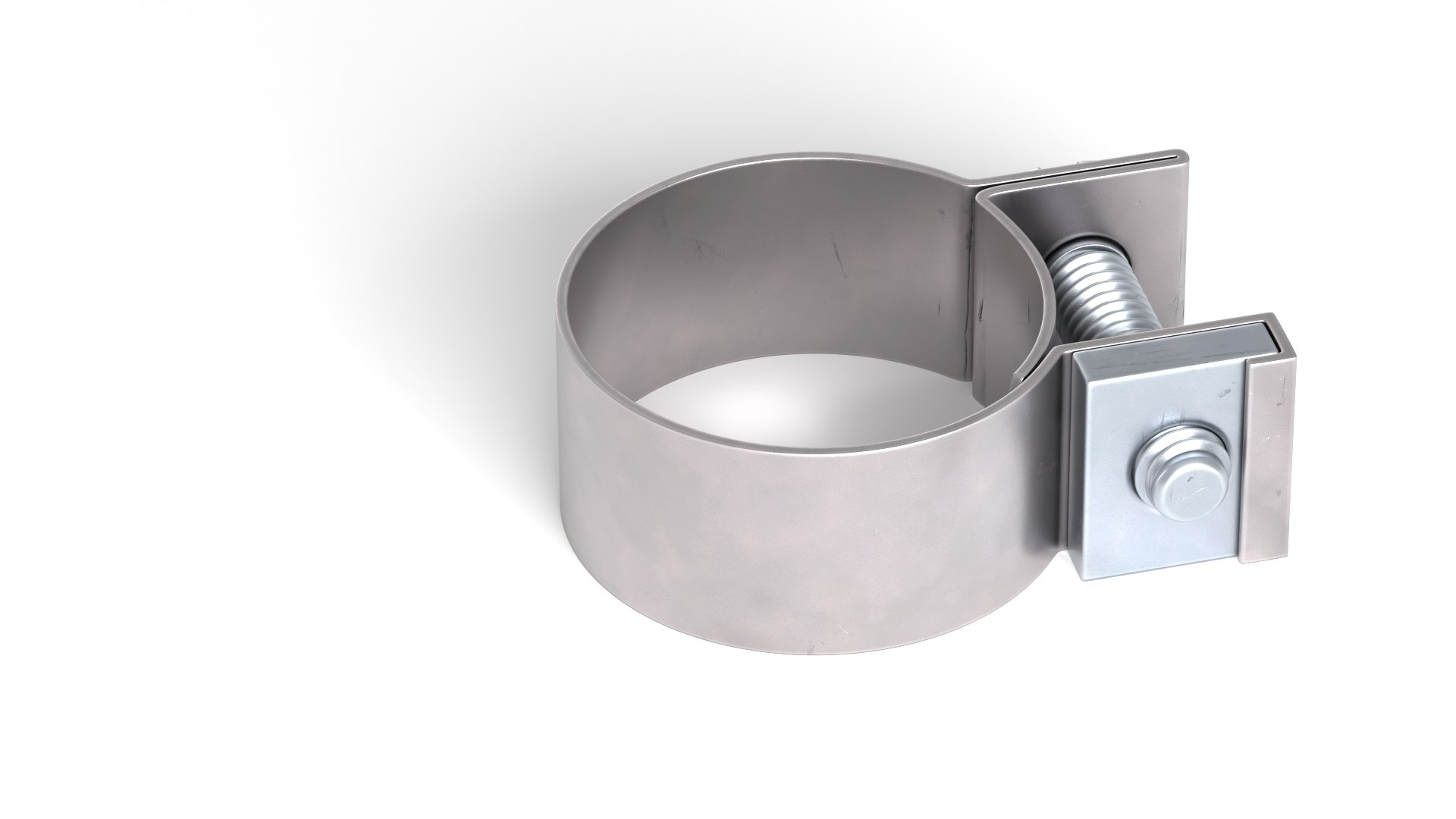

Within the scene, the model is presented in its fully assembled state, exactly as seen in the preview image. Additional images depicting the model in a disassembled state clearly demonstrate the design feature that allows each individual component to be utilized separately from the rest of the set.

Additionally, the files include two texture maps: BaseColor_notAO and AO. This enables independent correction of the light and shadow pattern using blending modes in a graphics editor or 3D software.

------------------------------------------
