Steel Structure - Tsunami And Flood Evacuation Tower


Box Type Column

H Type Beam

Named Objects


1. Floor height : 3,0 mt.

2. Floor height : 3,0 mt.

3. Floor height : 3,0 mt.

4. Floor height : 3,0 mt.

Total Height : 12,0 mt.

Evacuation Upper Platform : width 16,0 mt. * lenght 40,0 mt.

Evacuation Lower Platform : width 8,0 mt. * lenght 32,0 mt.



Raft Concrete : width 21,95 mt * length 45,7 mt. * height 1,0 mt.



Railings Box Profile

Column And Beam With Bolted Connection

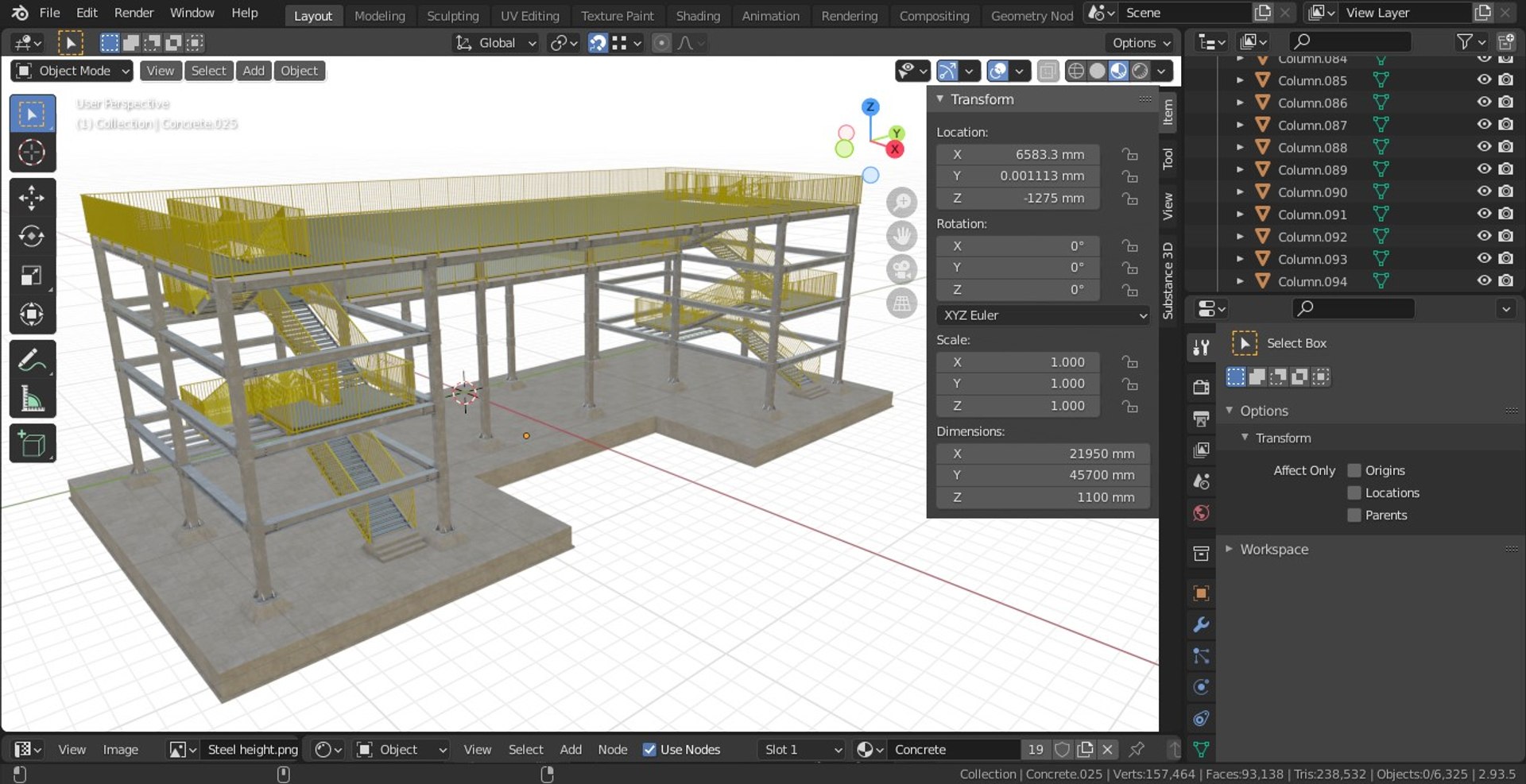

Prepared With BLENDER Version 2.93.5

Polygons : 93138

Vertices : 157464

Objects : 6325
