Ultra-detailed 3D model of a high-performance piston and connecting rod assembly, accurately reproducing every real-world component and manufacturing detail.

Crown coated with a ceramic heat?barrier to improve piston durability.

Skirt treated with a molybdenum?based anti?friction coating to reduce wear.

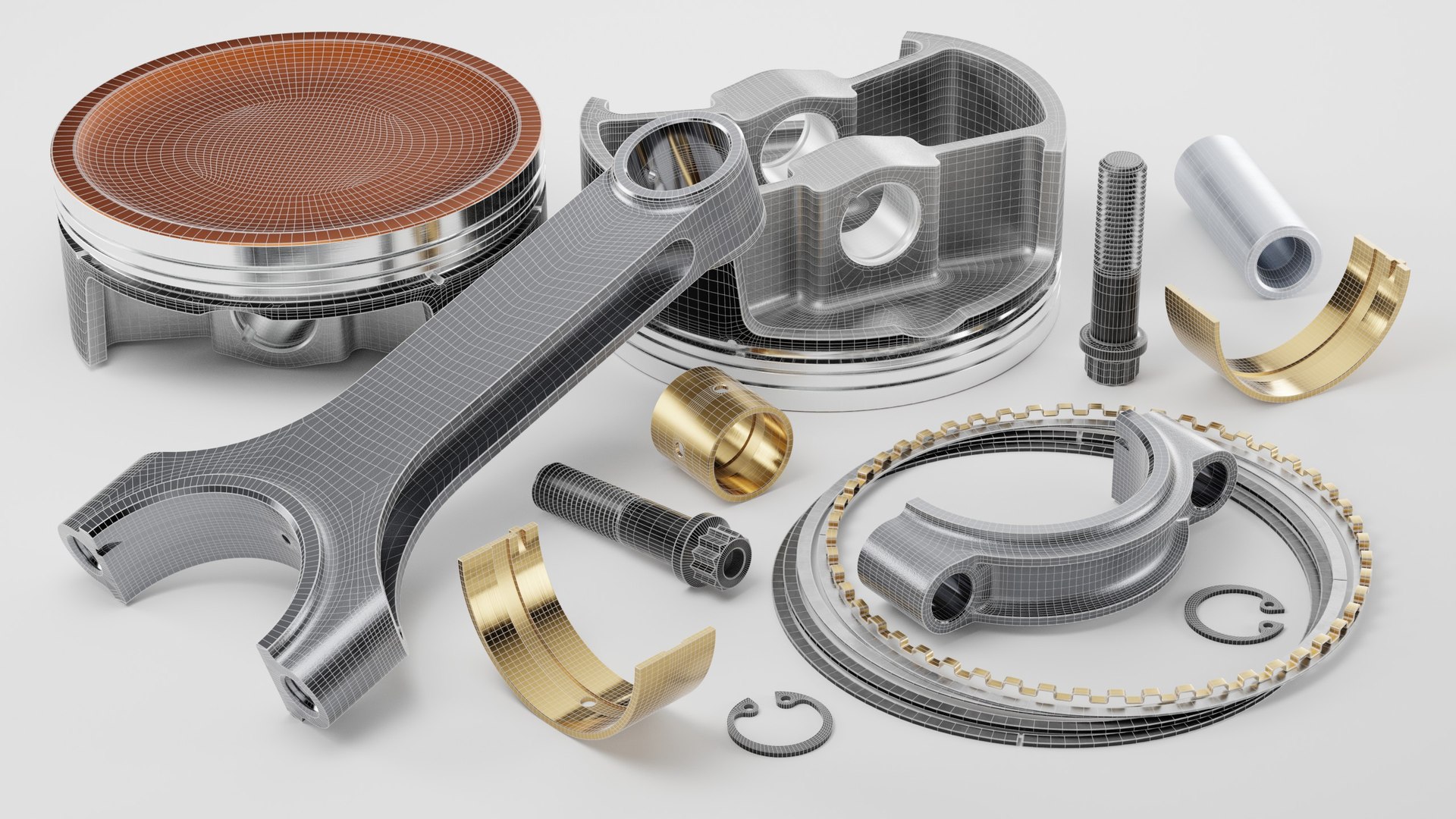

Model includes pin, circlips, wrist pin bore, oiling passages, wrist-pin bushings, precise fillets, machining arks, realistic material textures and sectional renders.

Important Note: All textures must be reassigned to their respective materials.
Textures must be downloaded separately, because are not included in the 3D file formats.

FEATURES:

• High quality polygonal model. All components are fully modeled, as in reality.
• The dimensions reflect the real components.
• Perfect for CAD review, engineering demonstrations, educational purposes, high-quality visual presentations, renderings, films,
  advertising campaigns, etc.
• The model is highly accurate and based on original manufacturer's dimensions and technical data.

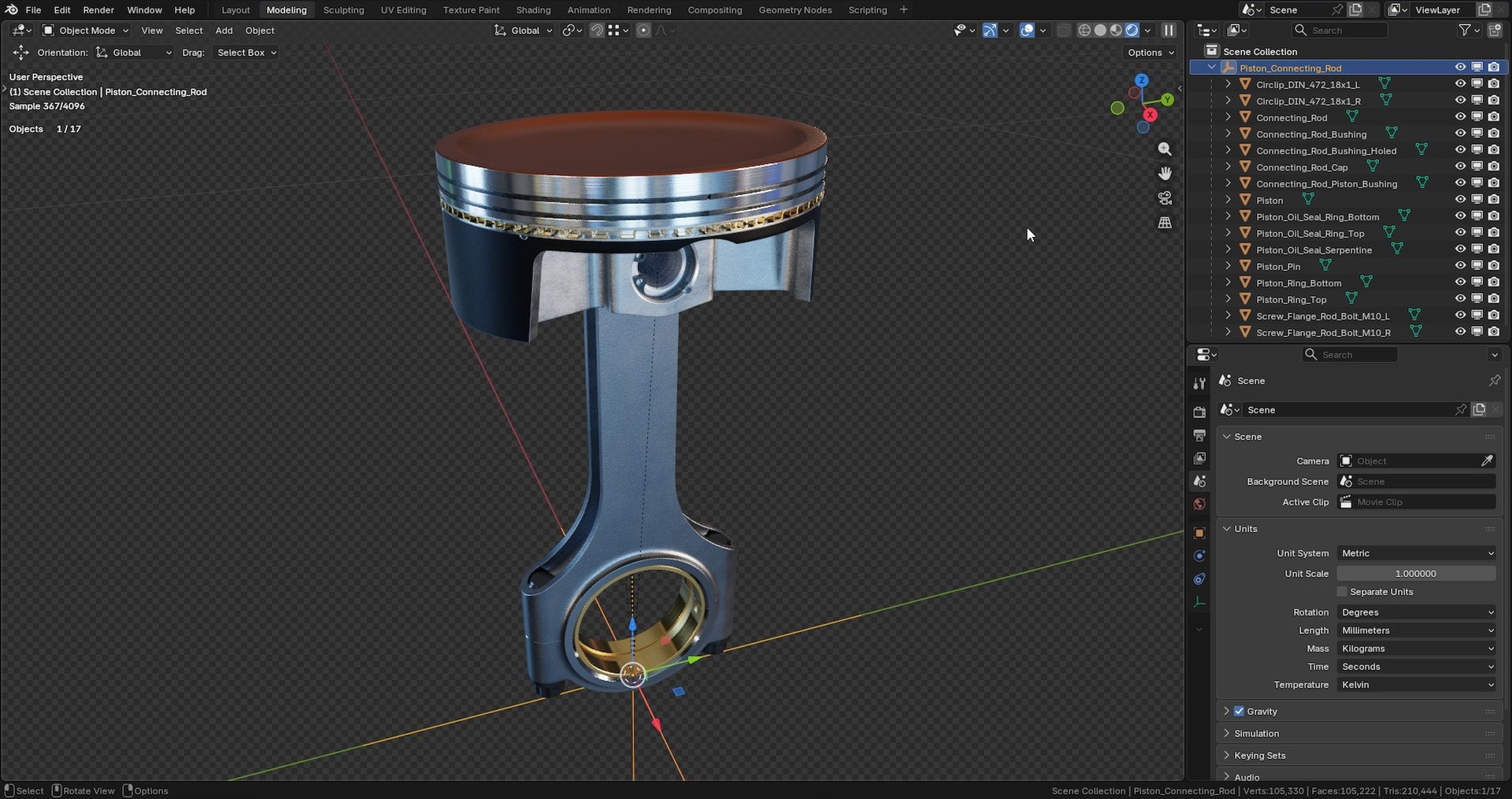

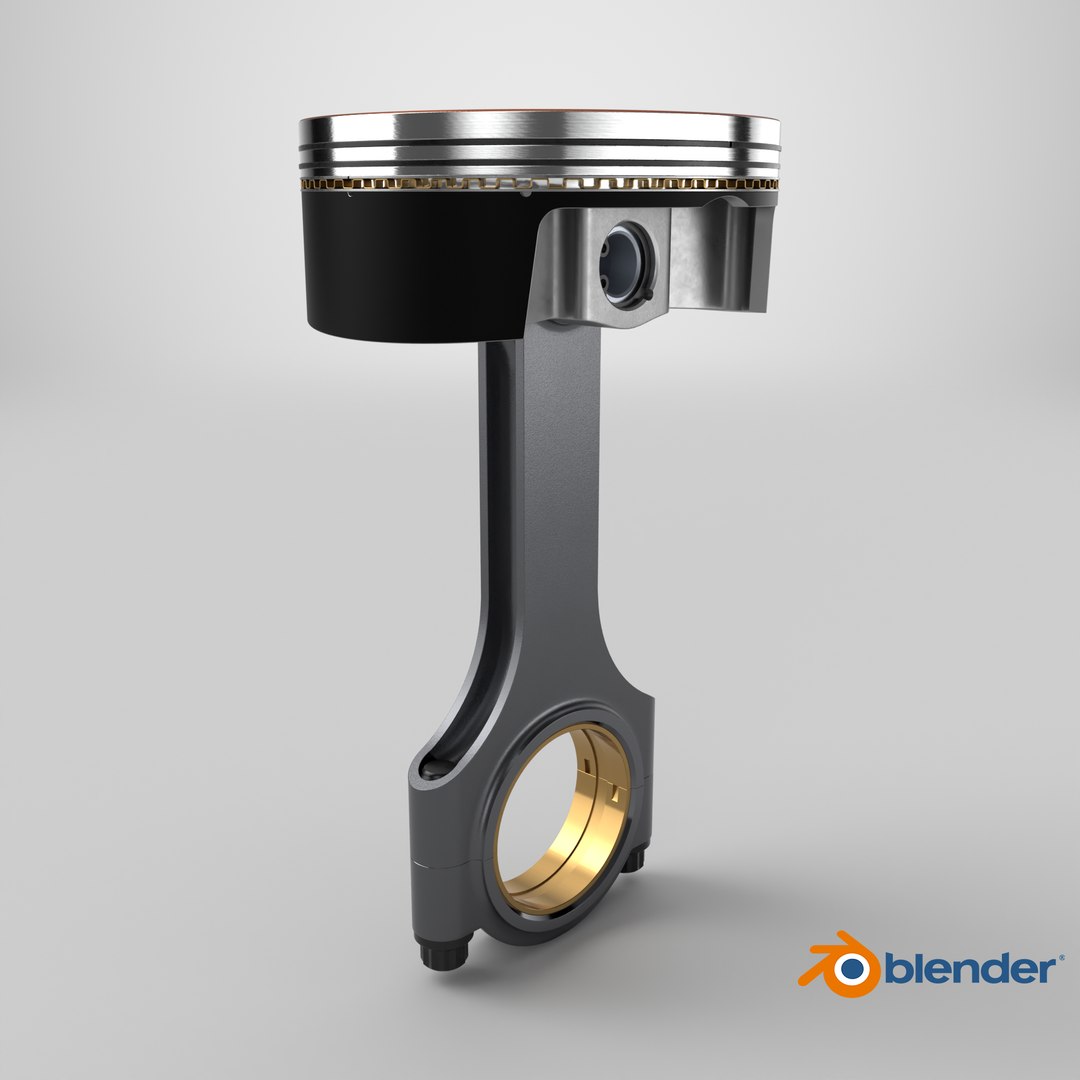

• Native format: Blender 5.0.1 Rendering engine: Cycles.

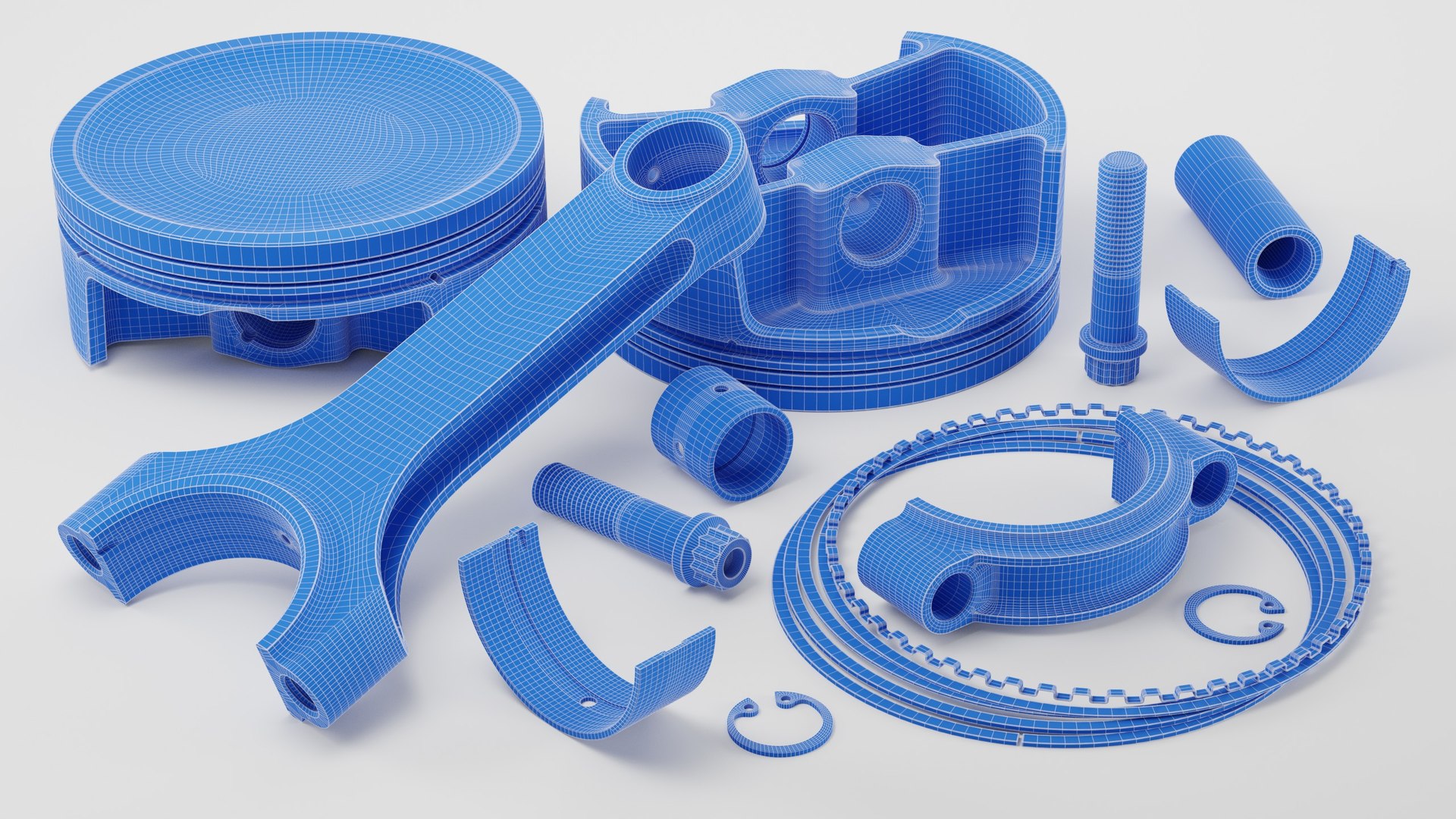

• Clean and optimized topology model resolutions for polygon efficiency.
• Model does not include any backgrounds, cameras, or scenes used in preview images.
• All objects, materials and textures are grouped and named according to their actual functionality.
• No post-processing of renders in all presentation video and images.
• No special plugin needed to open scene.
• Quads topology only.
• Units: cm (Centimeters).
• Dimensions: 10.5 x 10.5 x 19.7 cm.
• Correctly real-world scaled and centered at 0, 0, 0 coordinates.
• Textures: Yes.
• Materials: Yes.

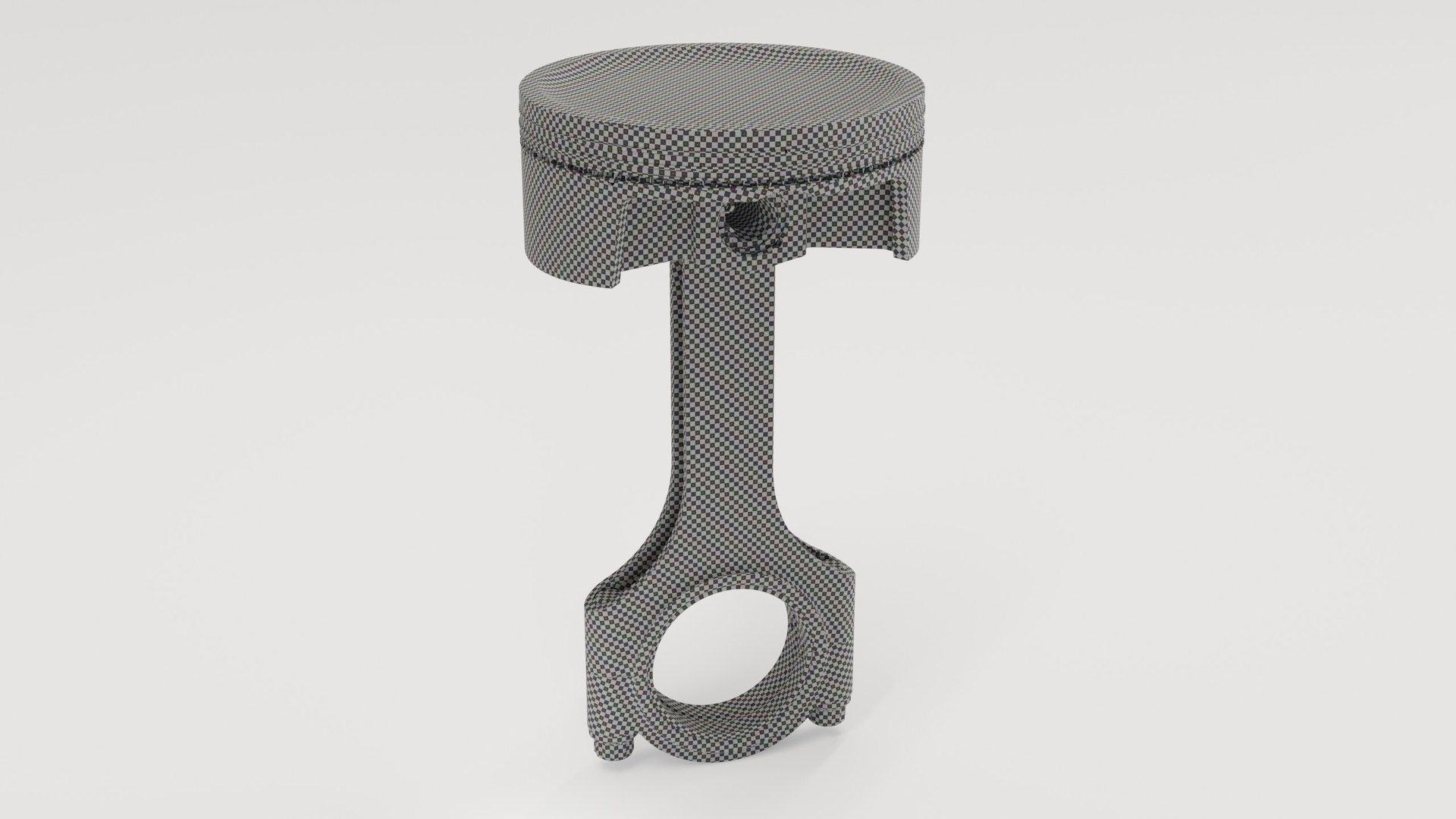

• UV Mapped: Yes.

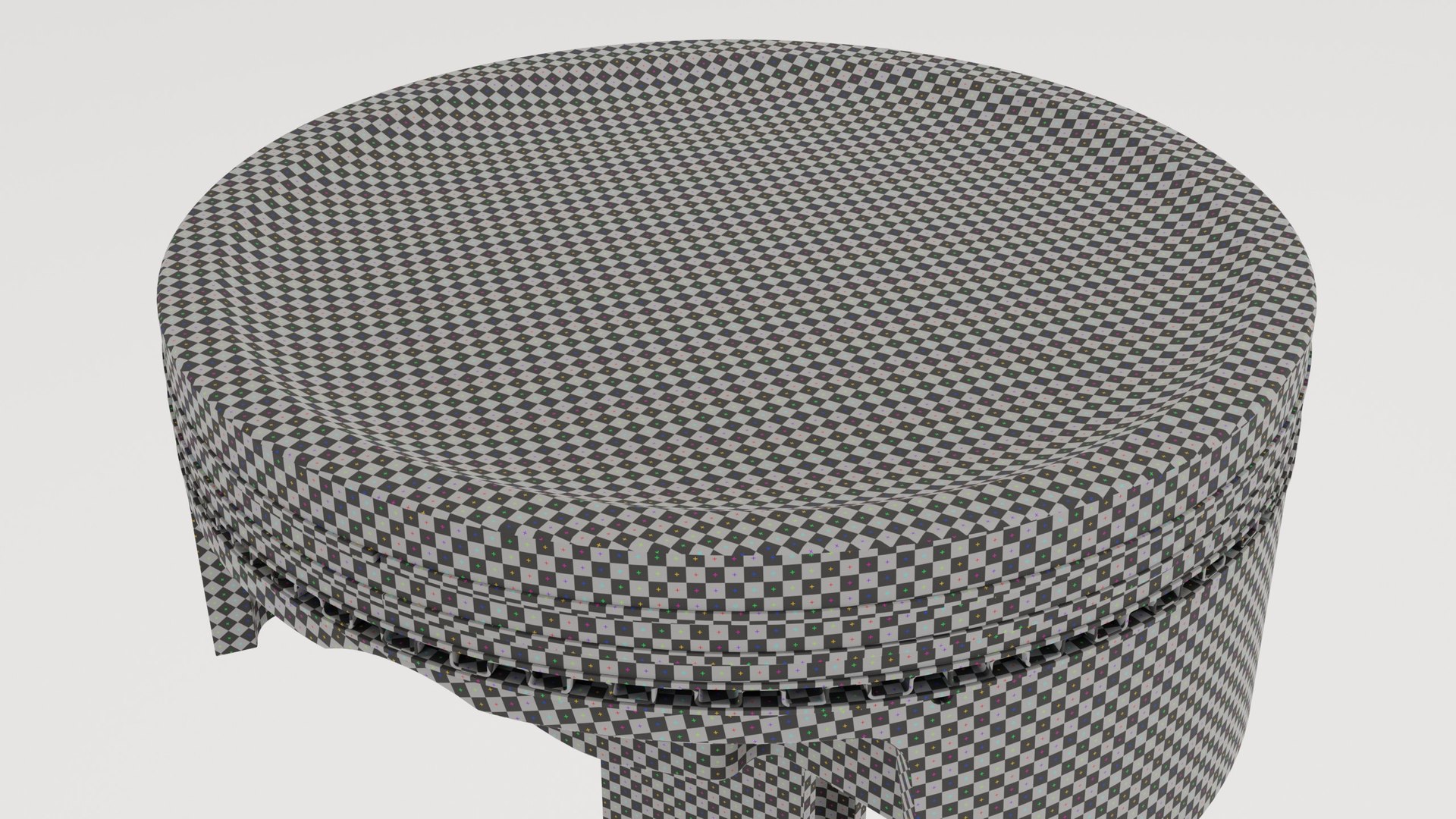

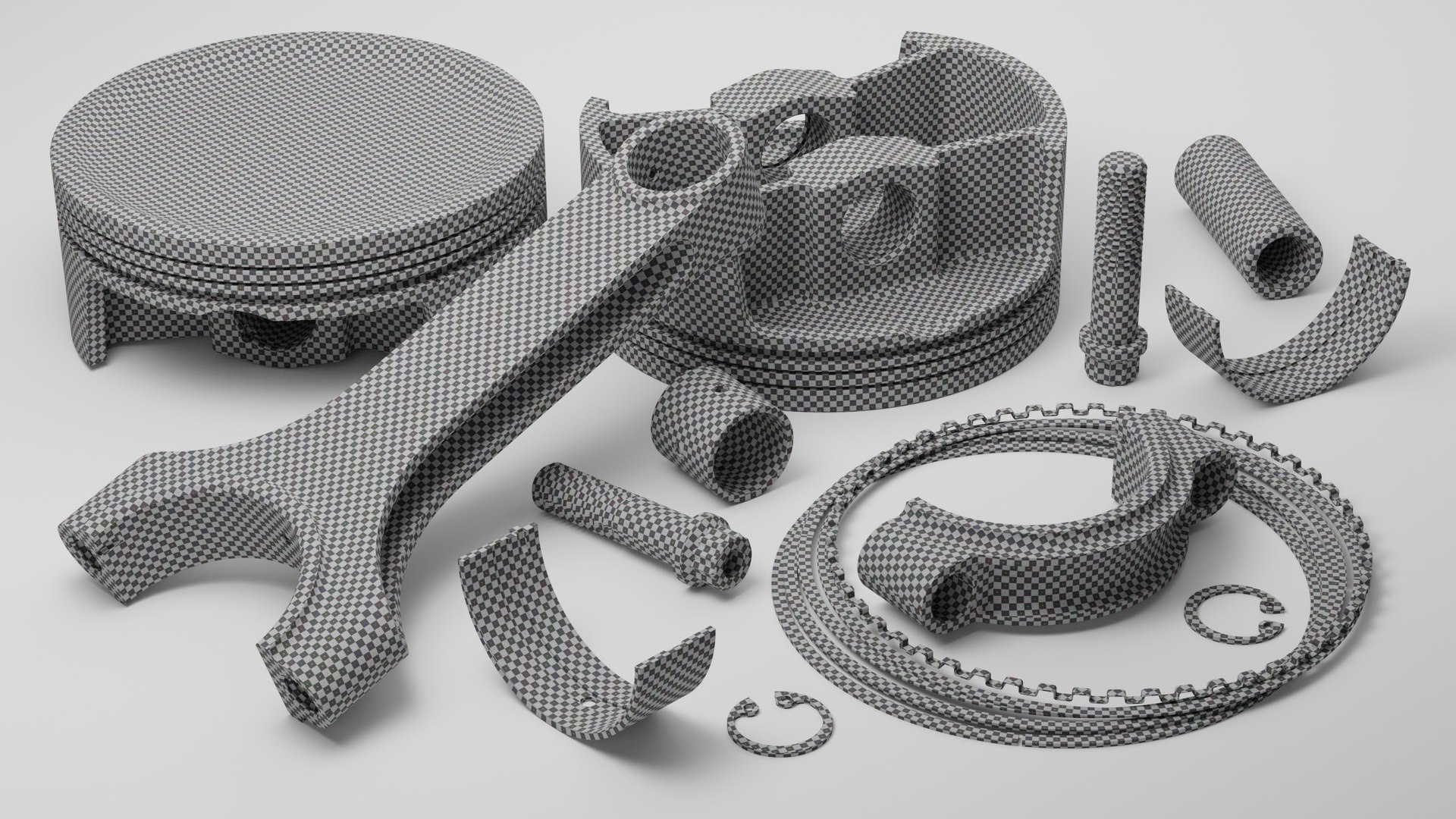

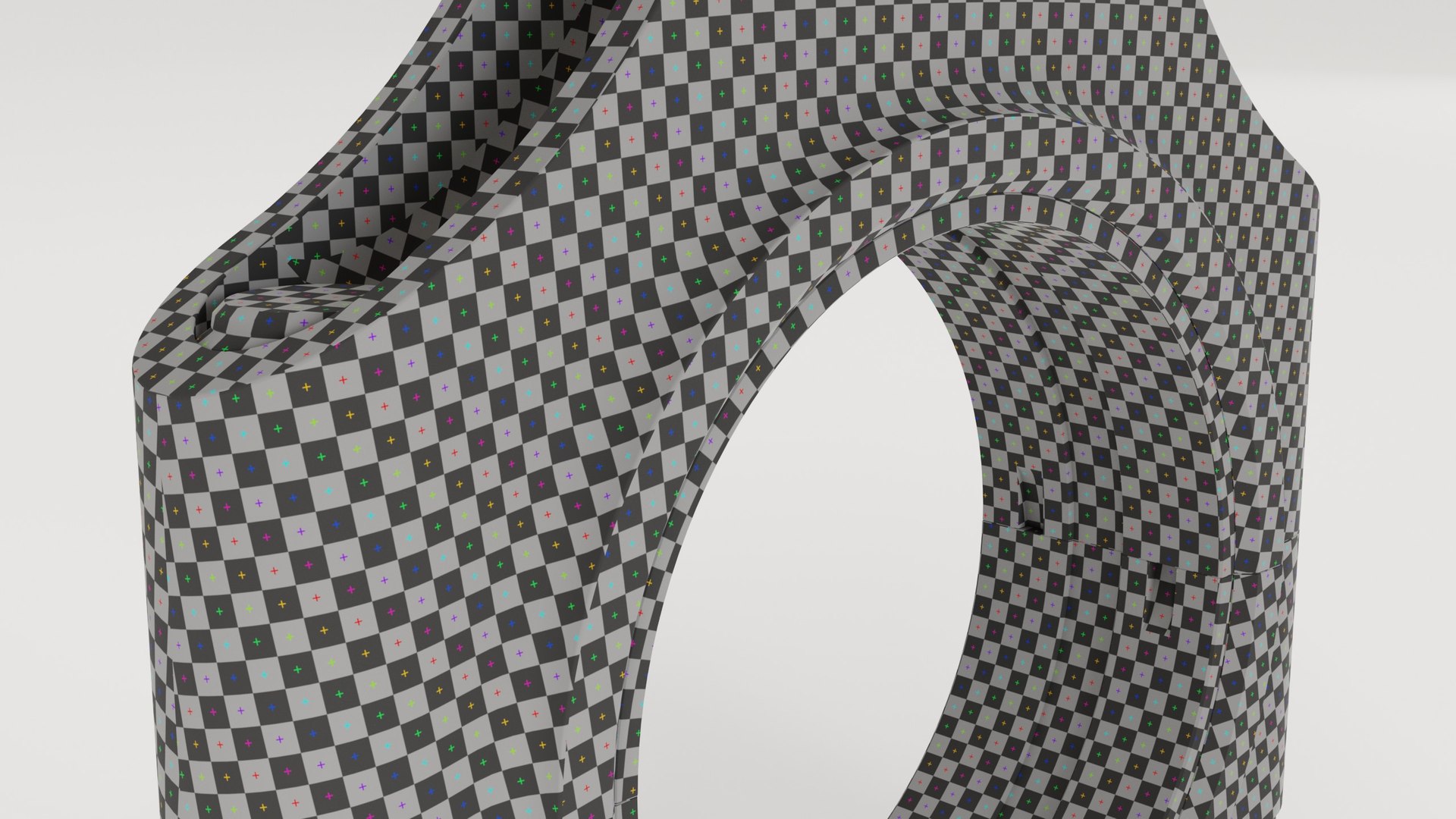

• Unwrapped UVs: Yes, non-overlapping.
• Rigged: No.
• Animated: No.

TEXTURES:

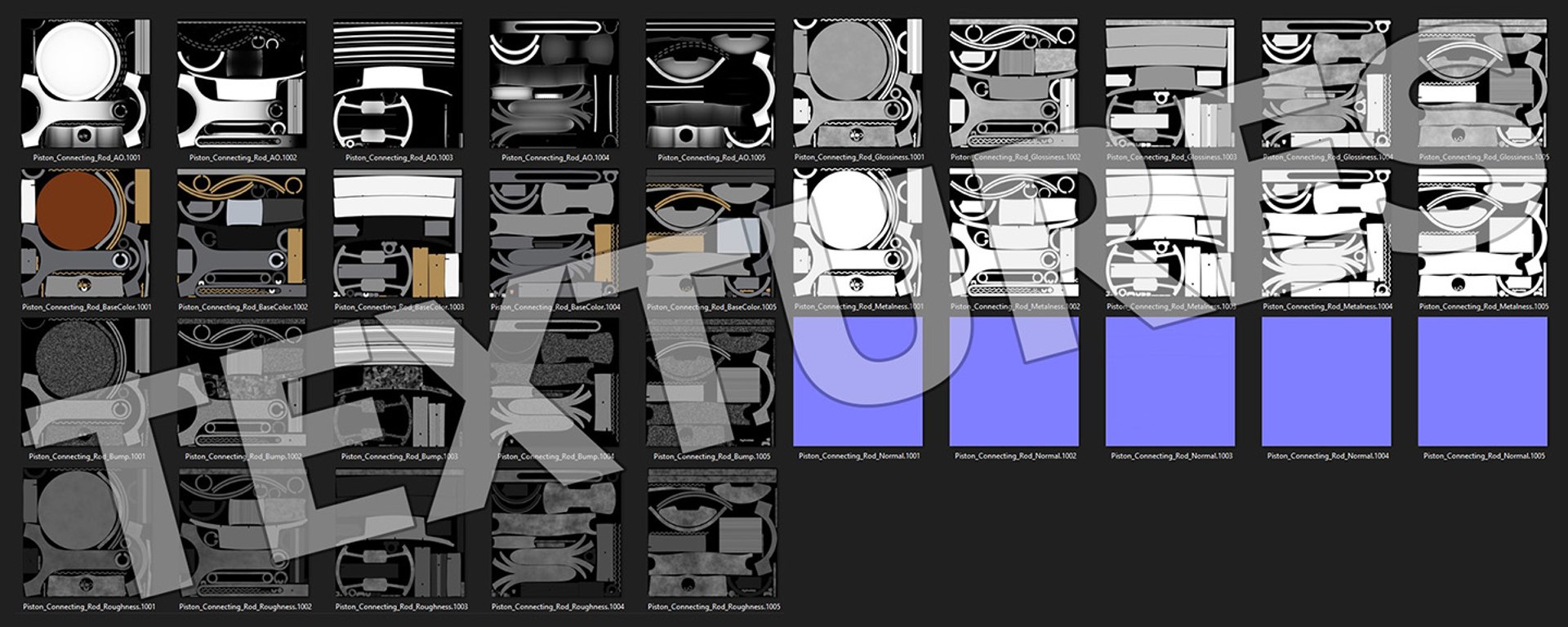

• High quality PBR textures are included in five map tiles (5x7) each with 4096x4096 resolution.
• BaseColor
• Roughness
• Metallic
• Normal
• Glossiness
• Bump
• AO

MODEL SPECIFICATIONS:

• Polygons count: 105,222
• Vertex count: 105,330

AVAILABLE FILE FORMATS:

• BLEND (Blender 5.0.1, Cycles) Native format
• FBX, OBJ, MB (Maya) (Exchange formats)
• PNG (Textures Image format)
