The model represents a heavy duty field rack mount case (8 rack units vertical capacity) dedicated to use with appropriate 19-inch rack mounting equipment (radio, electronics etc).

Specifications:

Quads only topology, fully subdividable.

Units: Metric

Bounding dimensions (with both covers mounted):

Width: 56 cm
Height: 46 cm
Depth: 93 cm

Objects hierarchy [ vertices / faces ]:

(#1) Case8U [ 3566 / 3566 ] - the case itself, parent of all objects

1.1 (#2) Cover.Front (same as 1.2) [ 1126 / 1124 ] - front cover of the case

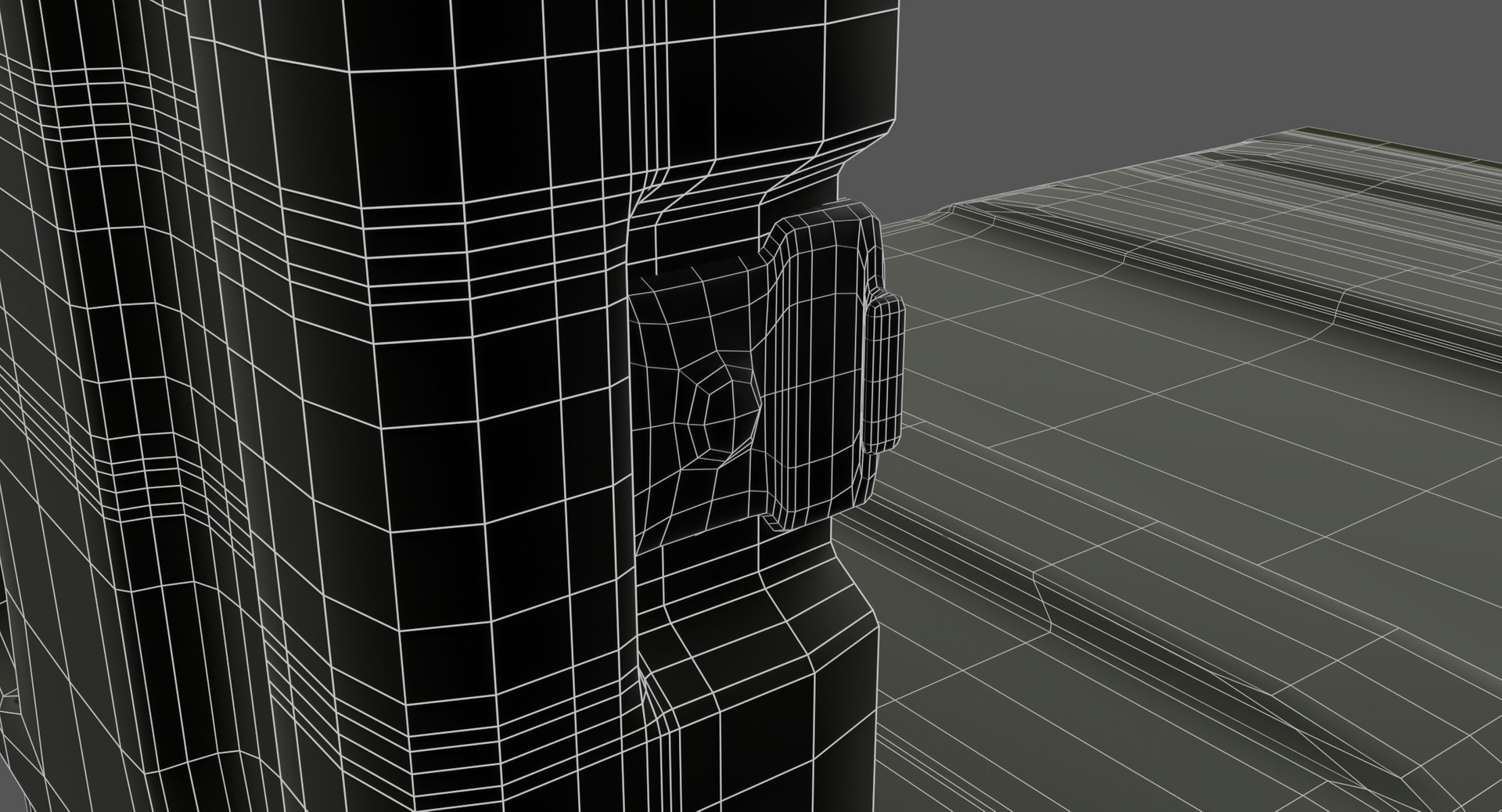

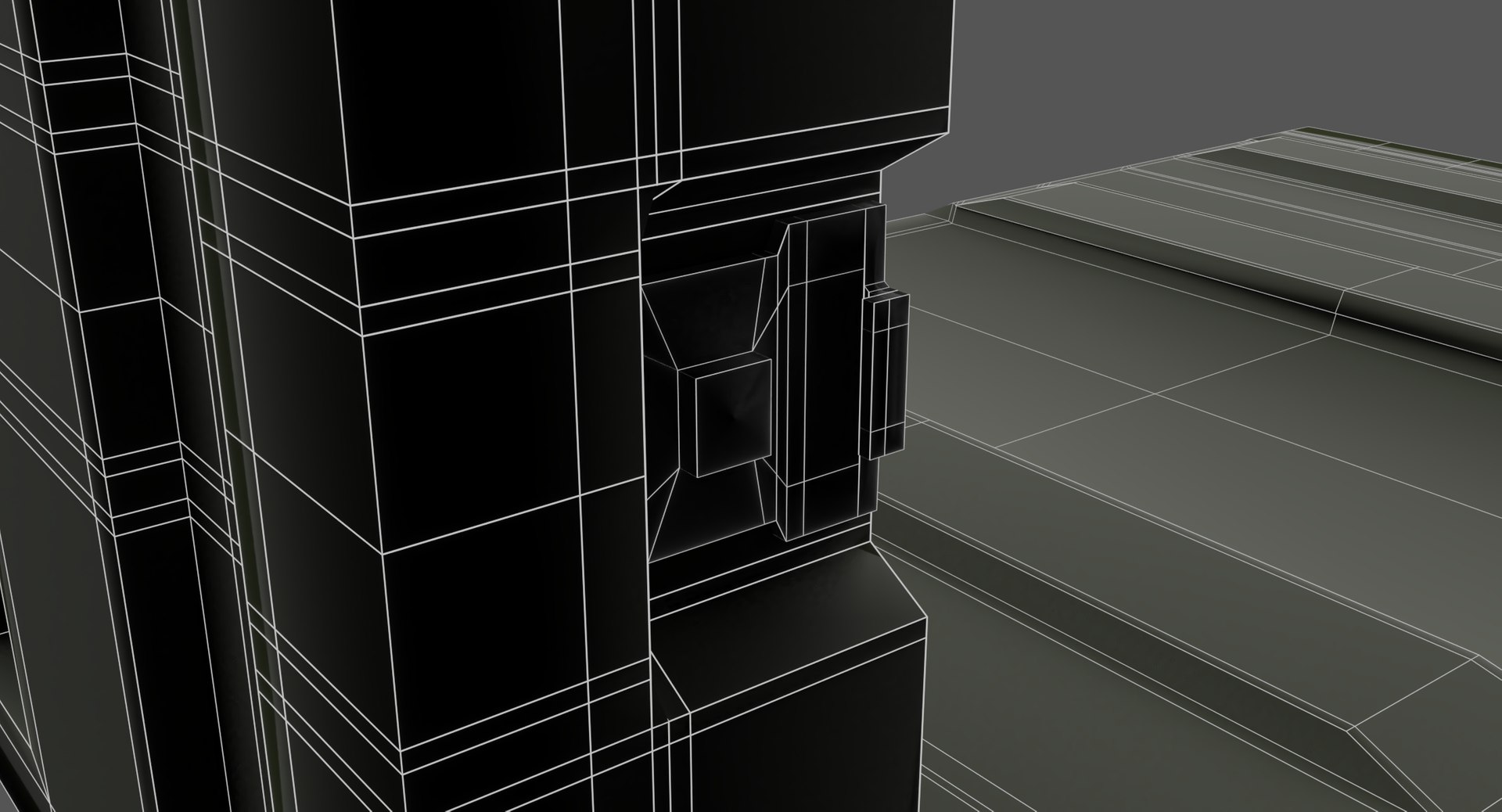

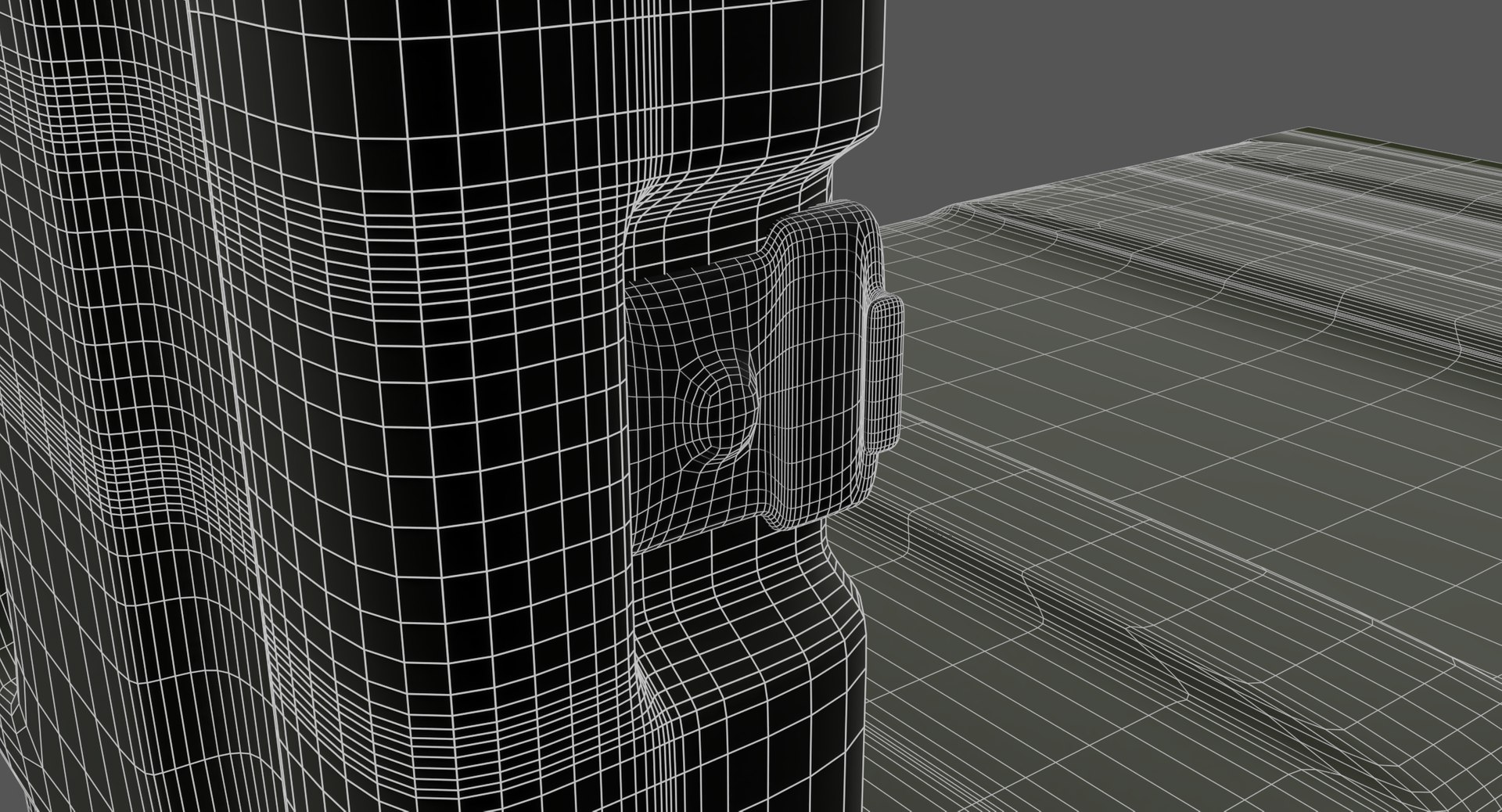

1.1.1 (#3) lock_receptacles.Front [ 512 / 504 ] - four lock receptacles of the cover

1.2 (#4) Cover.Rear (same as 1.1) [ 1126 / 1124 ] - rear cover of the case

1.2.1 (#5) lock_receptacles.Rear [ 512 / 504 ] - four lock receptacles of the cover

1.3 (#6) Frame [ 224 / 216 ] - rails bounding frame

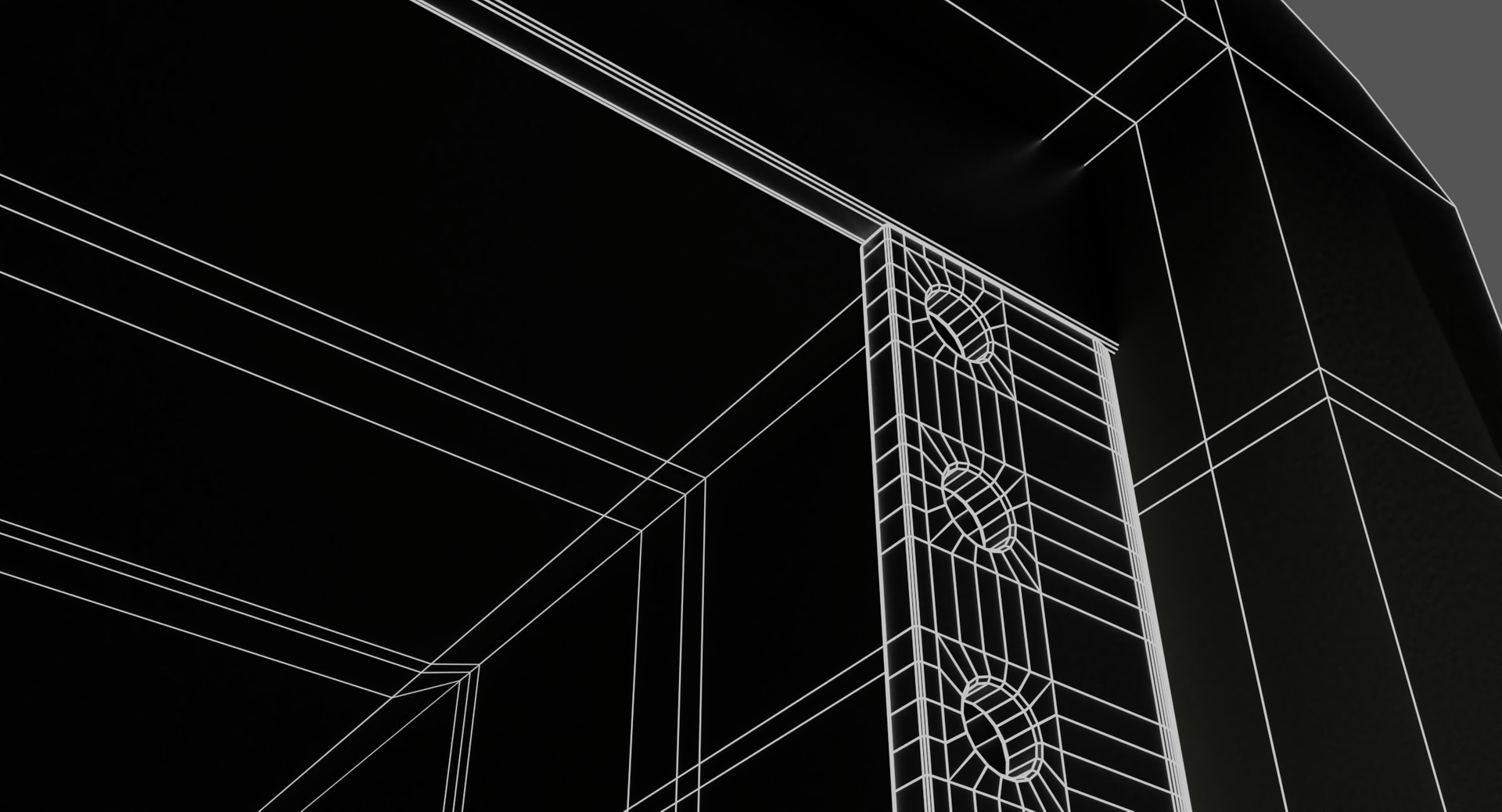

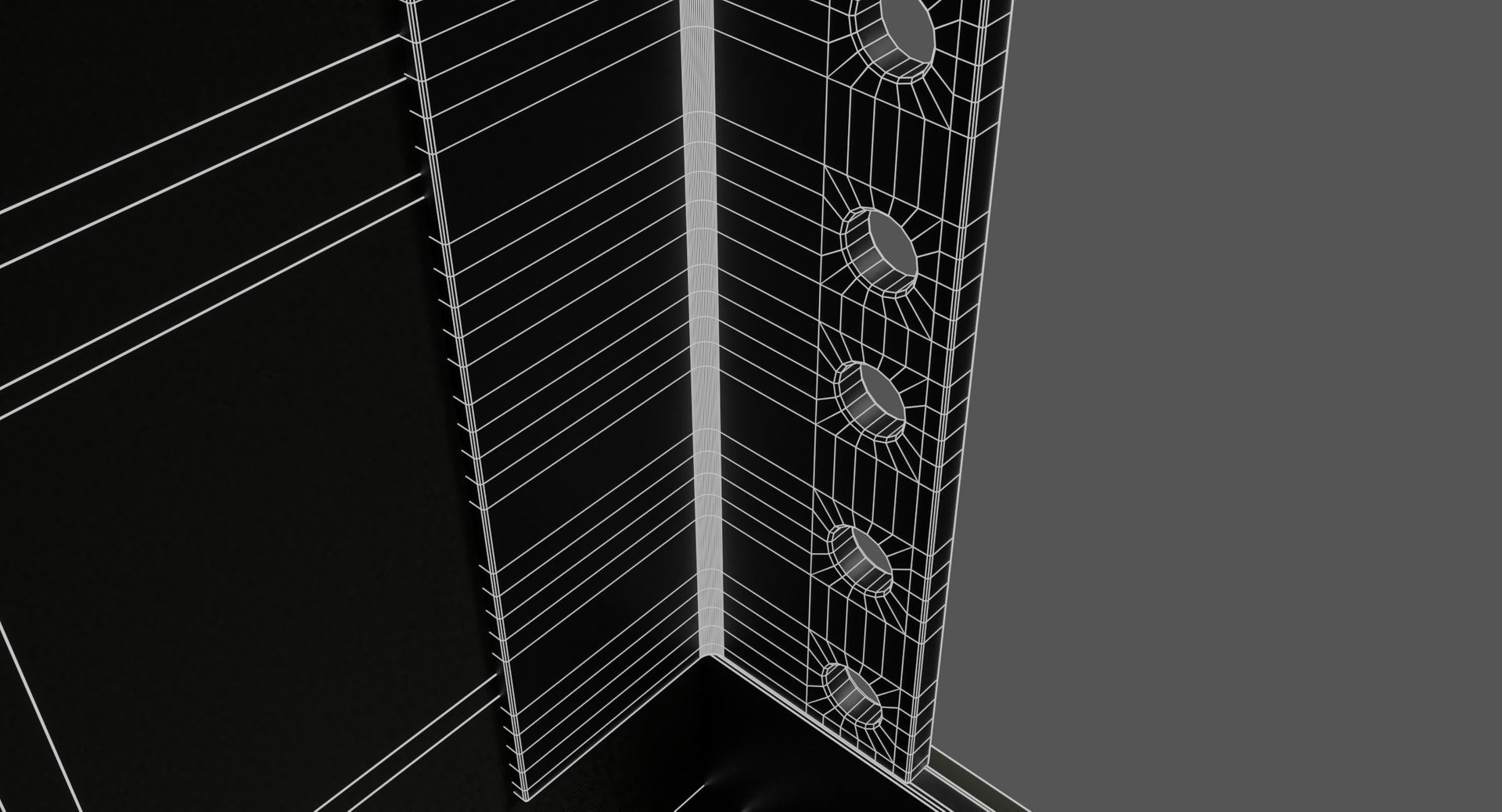

1.4 (#7) RailsRound8Ufront (same as 1.5) [ 17896 / 17988 ] - a front pair of 8U mounting rails

1.5 (#8) RailsRound8Urear (same as 1.4) [ 17896 / 17988 ] - a rear pair of 8U mounting rails

1.6 (#9) handle_base.FrontL (same as 1.7, 1.8, 1.9) [ 456 / 454 ] - a front left handle base

1.6.1 (#10) holders.002 [ 264 / 260 ] - handle holders, min/max rotation angle constraint set

1.6.1.1 (#11) handle.002 [ 352 / 350 ] - handle

1.7 (#12) handle_base.FR (same as 1.6, 1.8, 1.9) [ 456 / 454 ] - a front right handle base

1.7.1 (#13) holders.003 [ 264 / 260 ] - handle holders, min/max rotation angle constraint set

1.7.1.1 (#14) handle.003 [ 352 / 350 ] - handle

1.8 (#15) handle_base.RearL (same as 1.6, 1.7, 1.9) [ 456 / 454 ] - a rear left handle base

1.8.1 (#16) holders.001 [ 264 / 260 ] - handle holders, min/max rotation angle constraint set

1.8.1.1 (#17) handle.001 [ 352 / 350 ] - handle

1.9 (#18) handle_base.RR (same as 1.6, 1.7, 1.8) [ 456 / 454 ] - a rear right handle base

1.9.1 (#19) holders.000 [ 264 / 260 ] - handle holders, min/max rotation angle constraint set

1.9.1.1 (#20) handle.000 [ 352 / 350 ] - handle

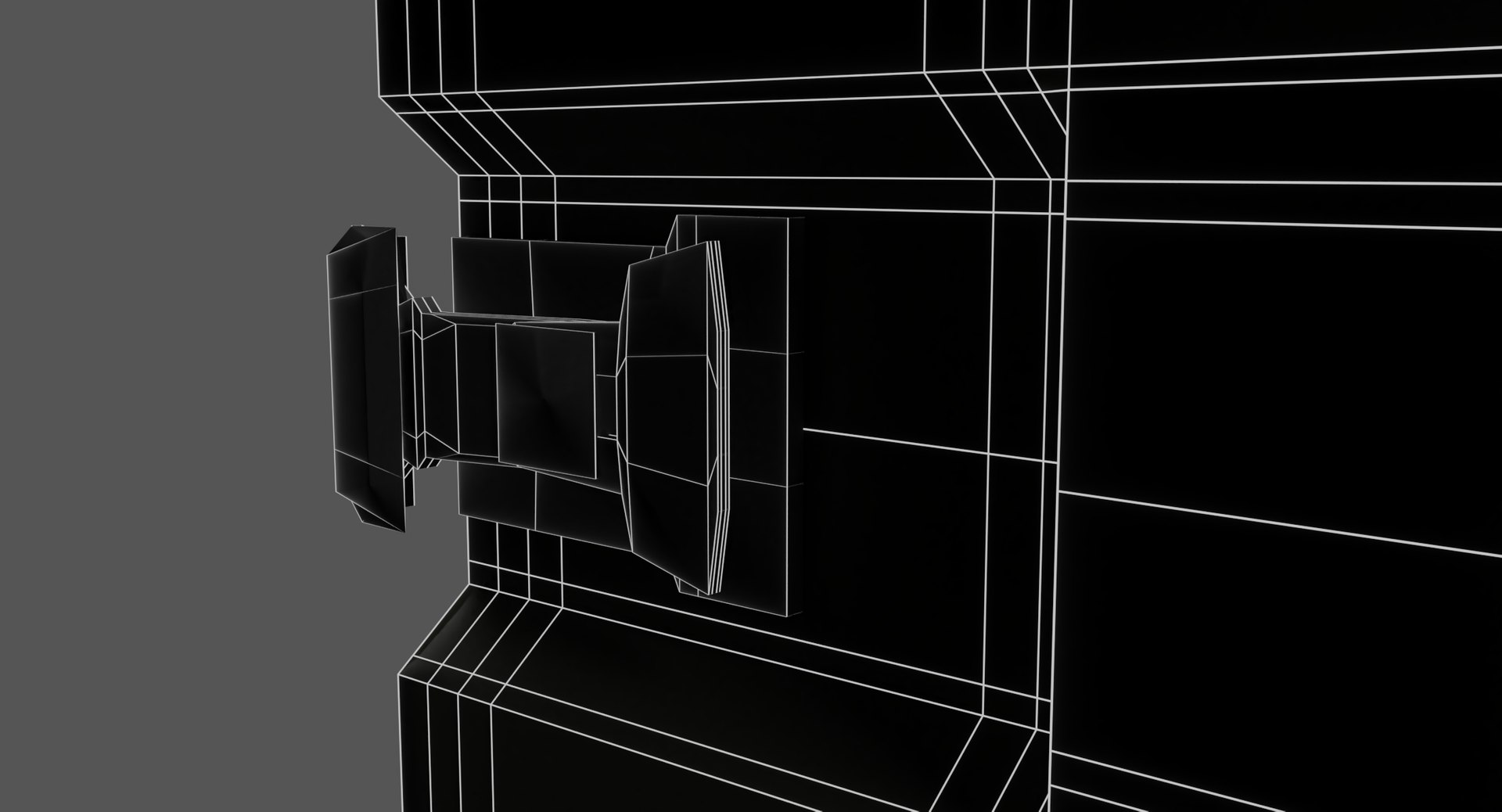

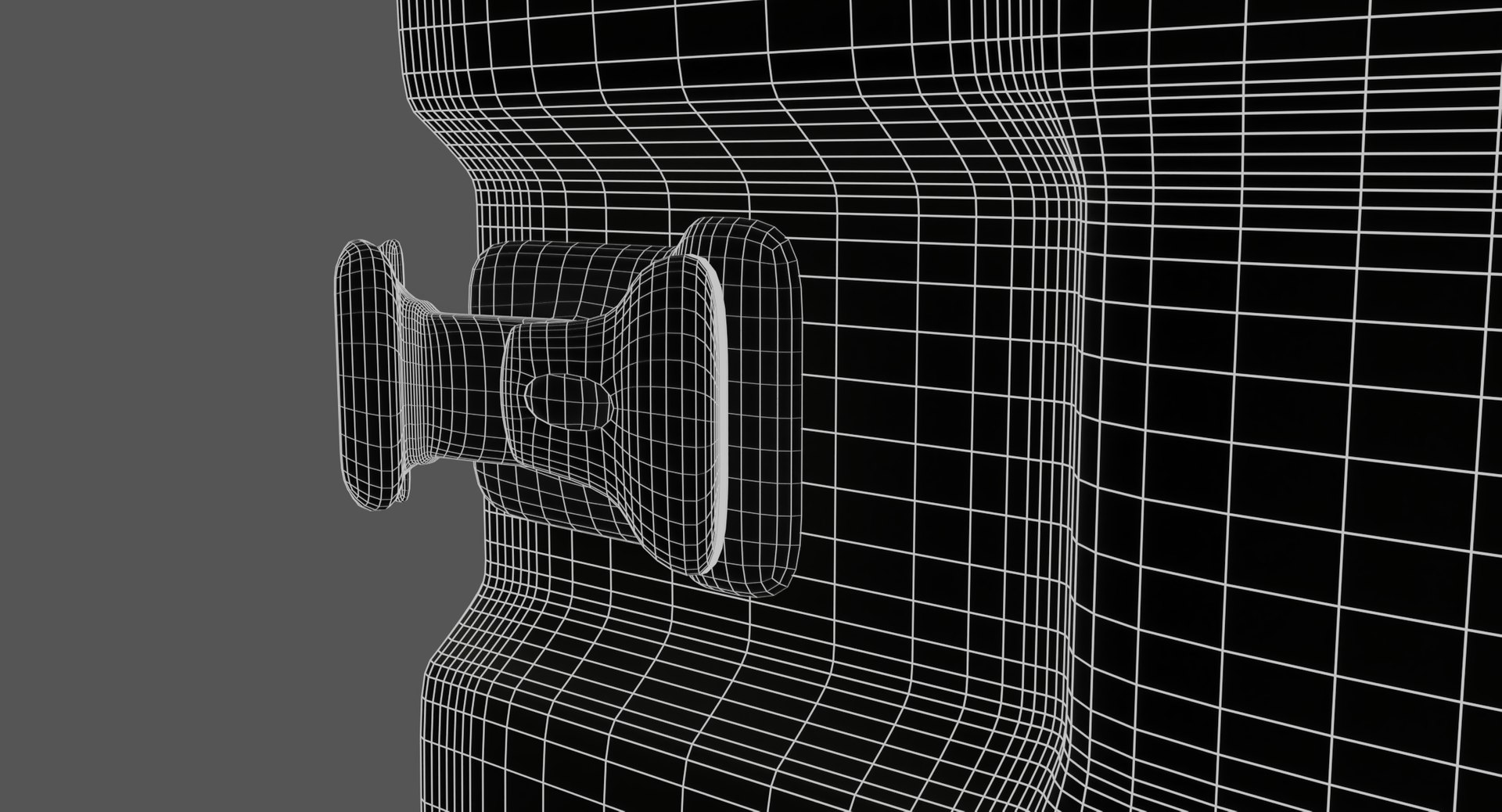

1.10 (#21) lock_bases [ 624 / 608 ] - eight lock bases

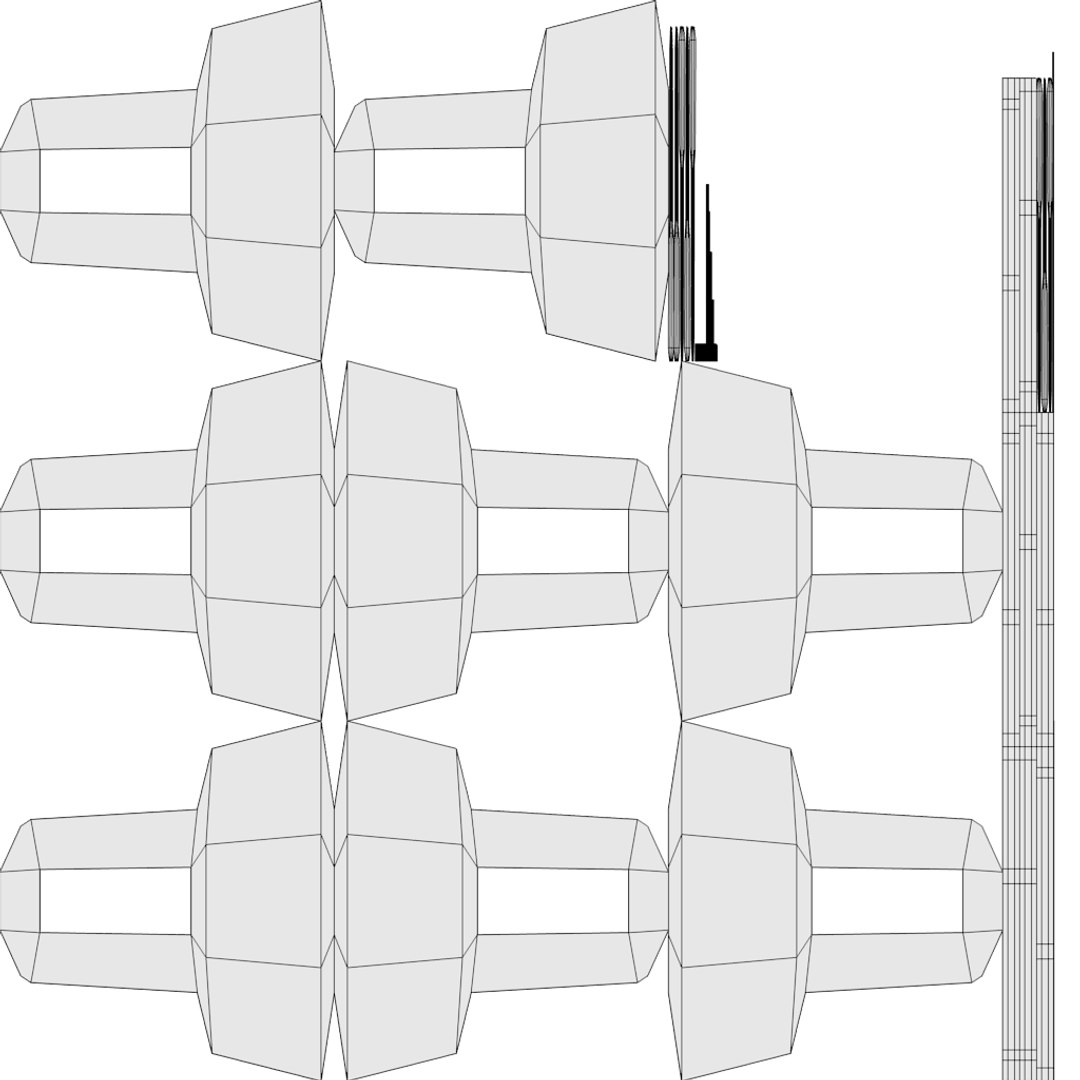

1.10.1 (#22) lock_leafs [ 640 / 608 ] - eight lock leafs

1.10.2 (#23) lock_lockers [ 992 / 976 ] - eight lock lockers

Please note that objects 1.10, 1.10.1 and 1.10.2 are essentially eight objects each, combined for convenience yet still can be easily split by loose parts into individual meshes if you need to.

Please also note that mounting rails are quite high-polygonal models (suitable for whatever close-up look youd wish), thus depending on your scene, removing unnecessary pair of them (or even both) would reduce overall polygons count significantly.

All objects are grouped into single group for easier appending / linking.

Materials:

All procedural PBR, based on Principled shader, thus compatible with modern PBR renderers. No textures used.

UVs unwrapped for extended use.

All imagery is done via Cycles / Filmic (Base Contrast profile), no post-processing.
