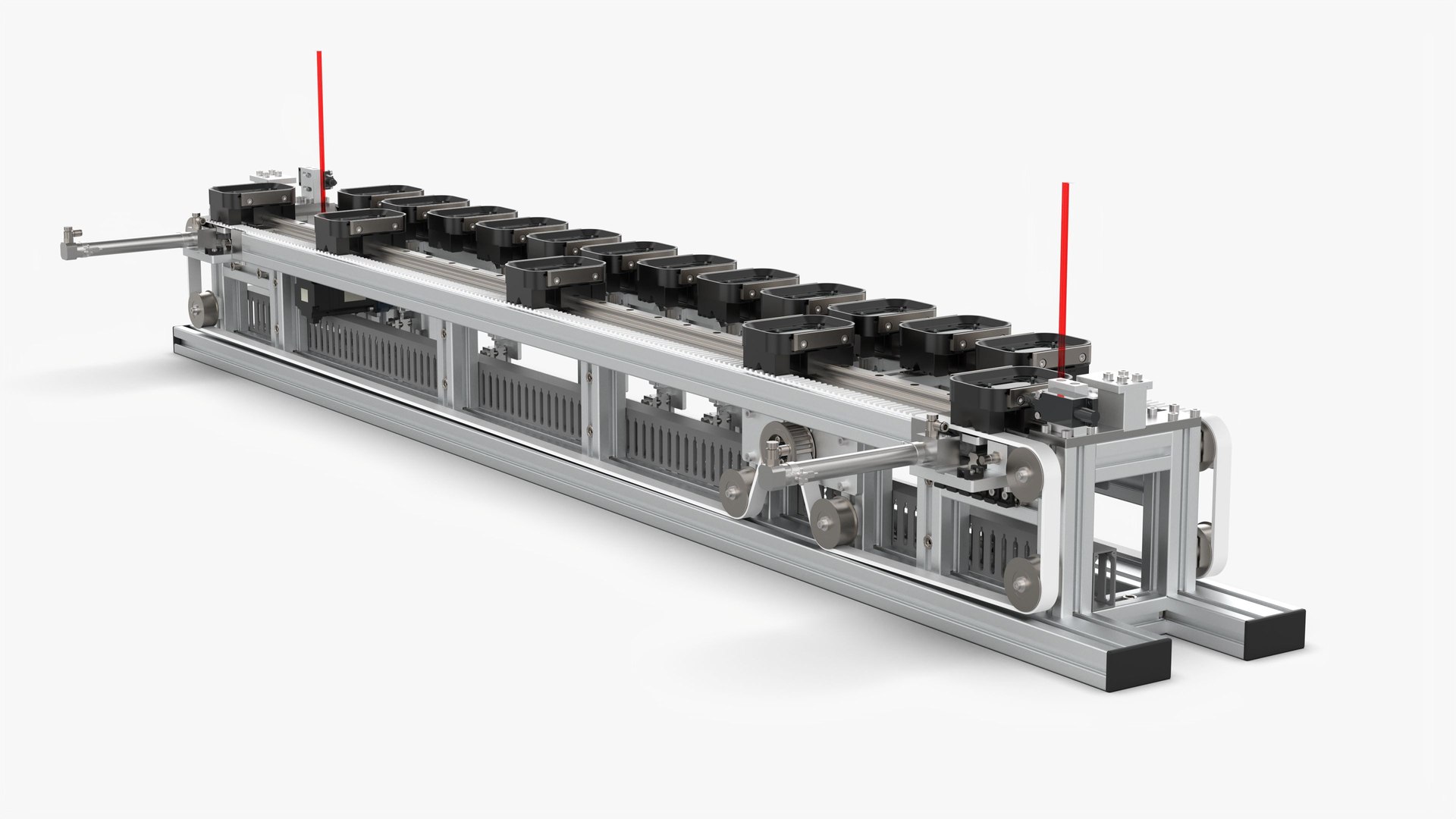

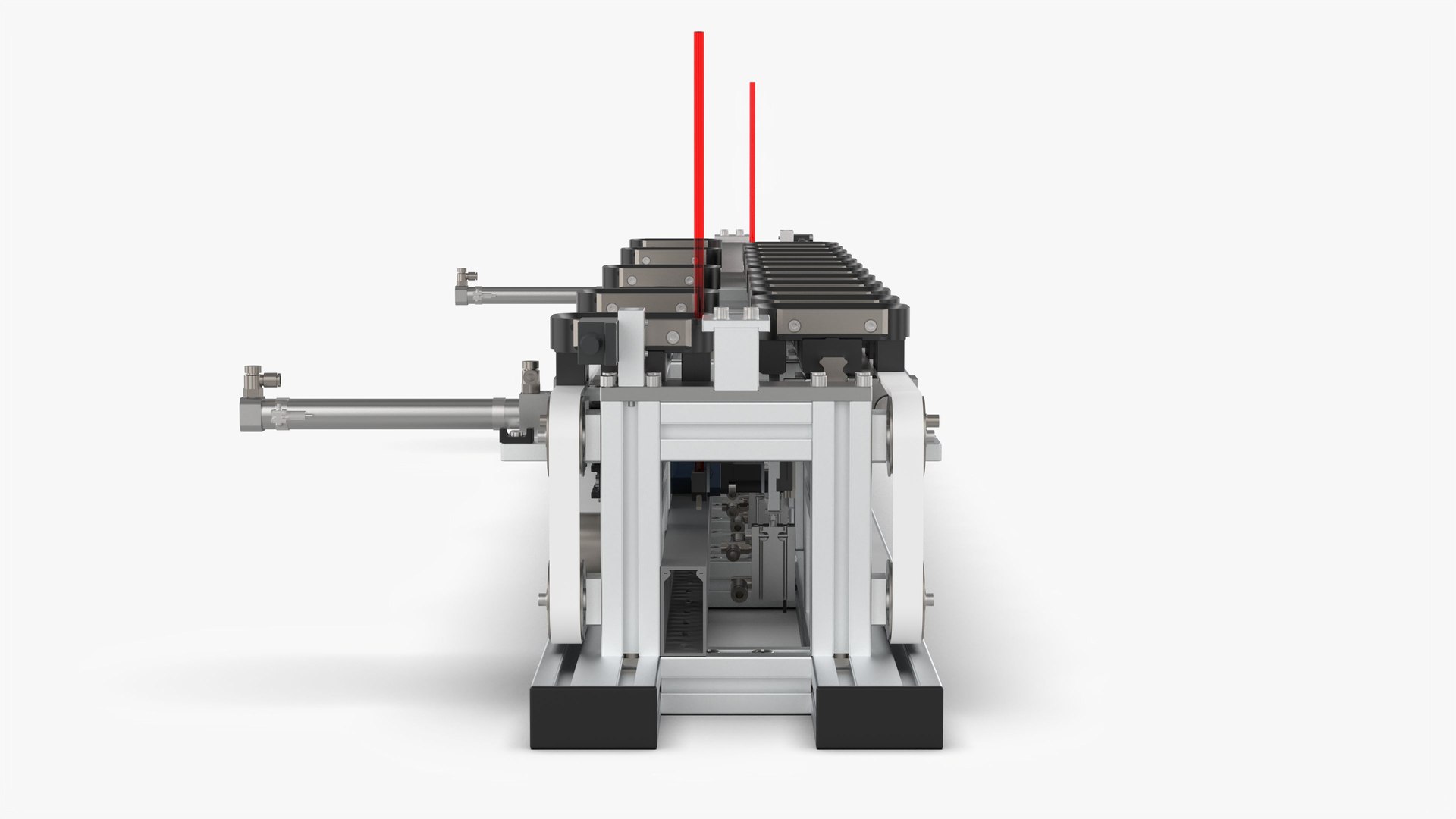

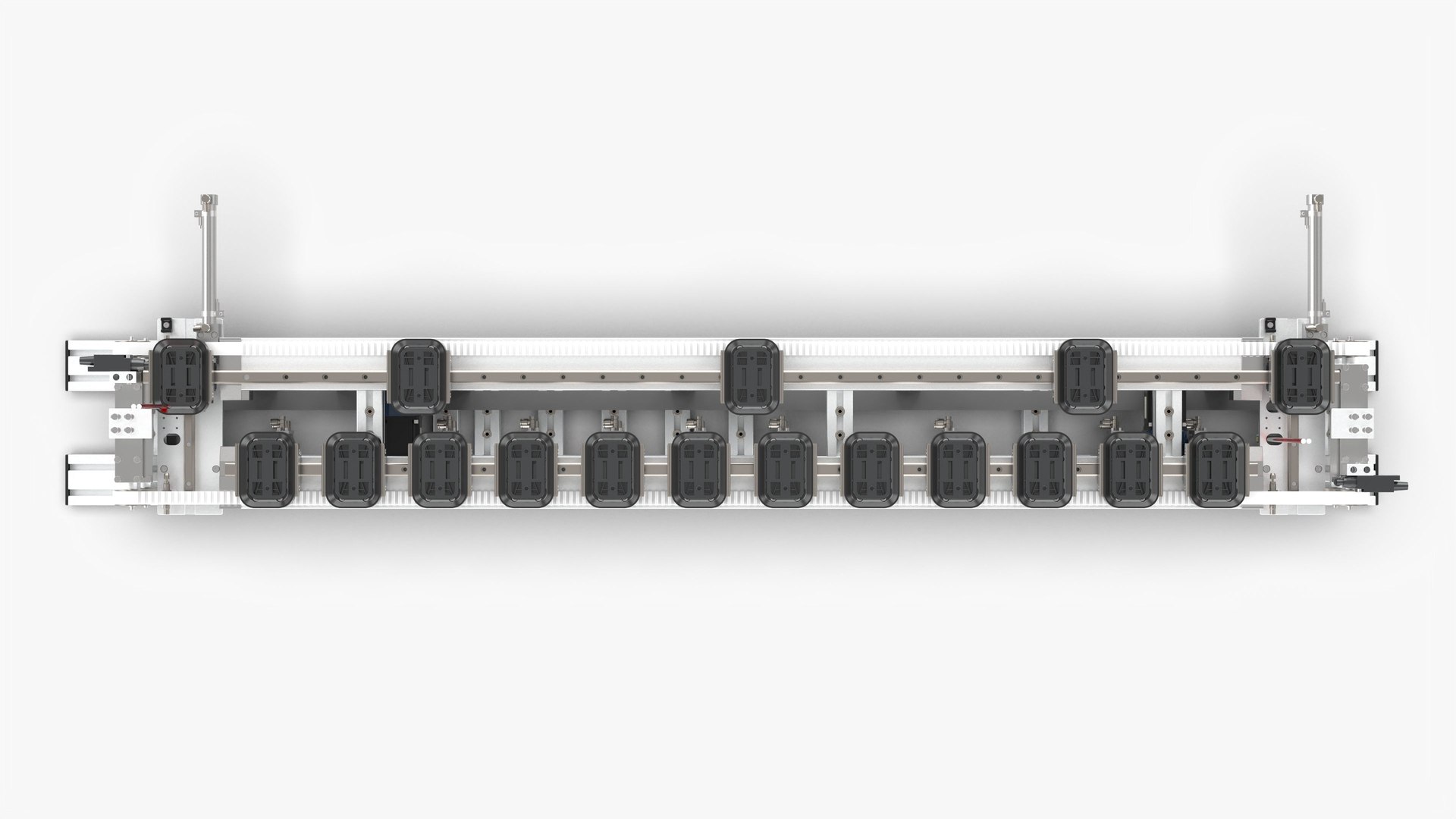

Automatic Ring Tooling Line Accompanying Conveyor

Introduction

This mechanism is a ring-shaped tooling line developed by ourselves in our project. The accompanying tooling conveyor uses commonly used devices, and two sets of power components are used on both sides. Compared with the tooling line of ring guide rails and linear motors, the hardware price is much lower. , plus the secondary positioning mechanism, the positioning accuracy can be guaranteed.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 3,340,114
– Vertice: 10,020,342
