This is a model of sports bottle,also can be called a tea bottle, a mixer or shake similar to a real Lock & Lock product,.
This model was made to present as more details as possible using reasonable number of faces/vertexs.In most case it is unnecessary to use a turbosmooth , meshsmooth or HSDS tools .
------------------------------------------------------------------------------------

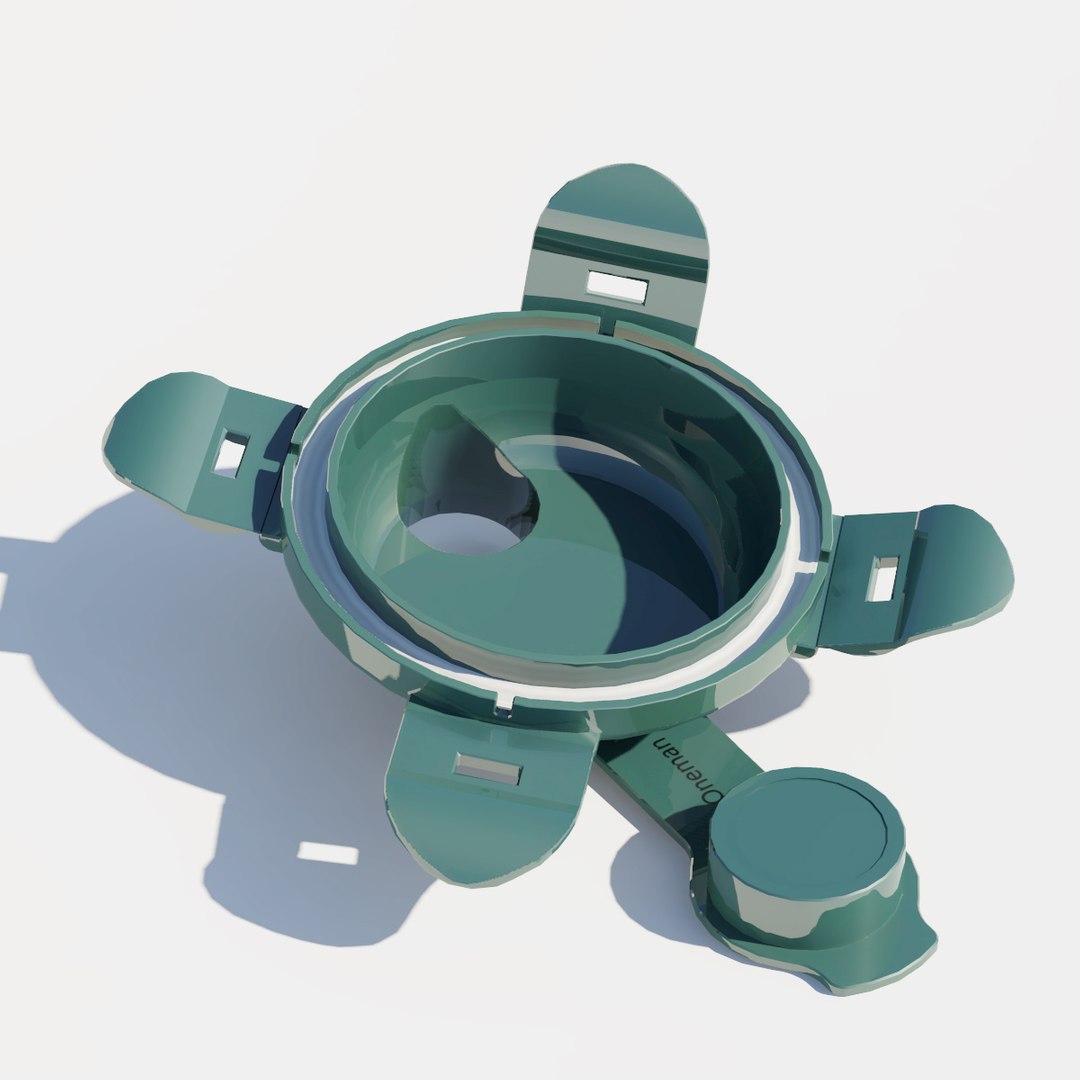

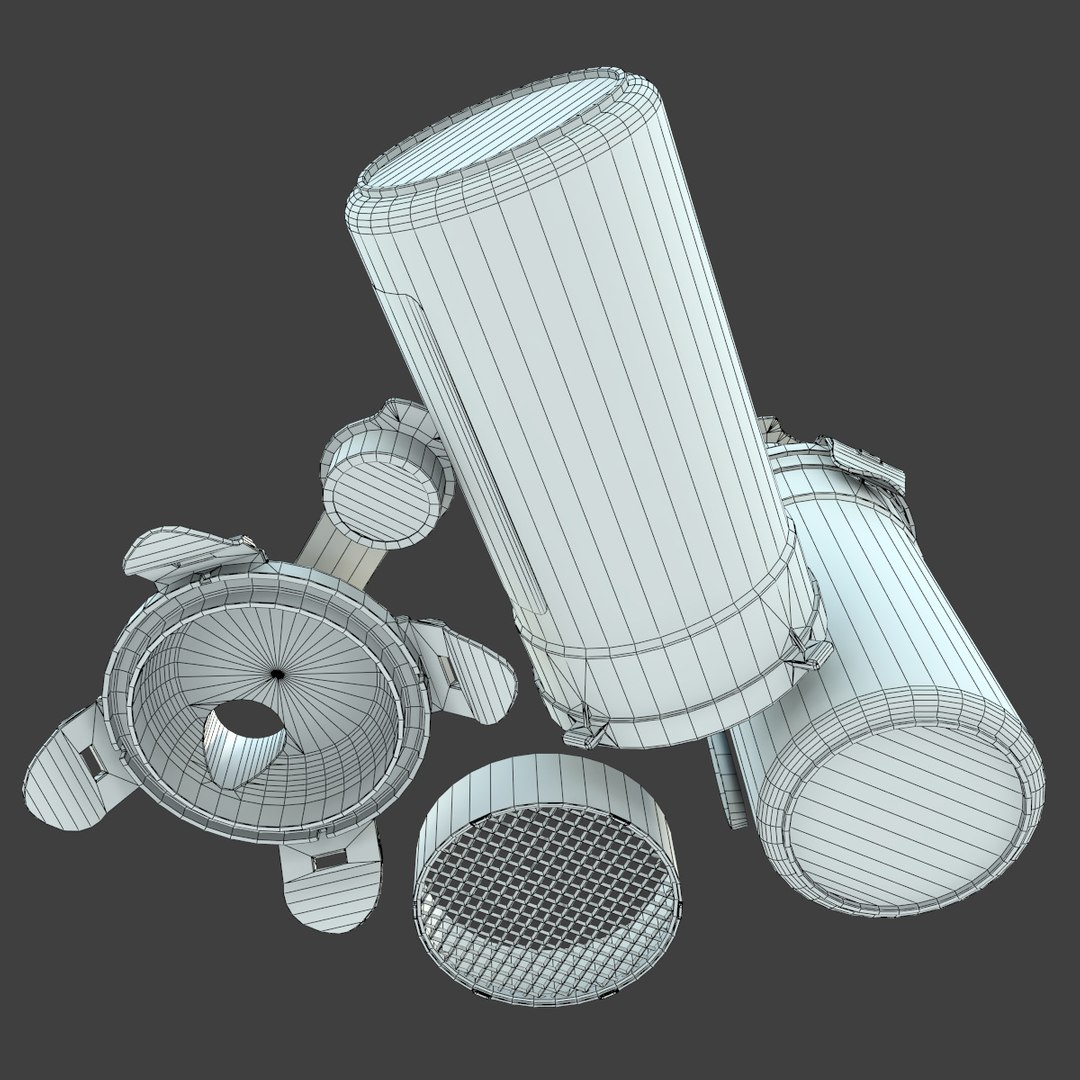

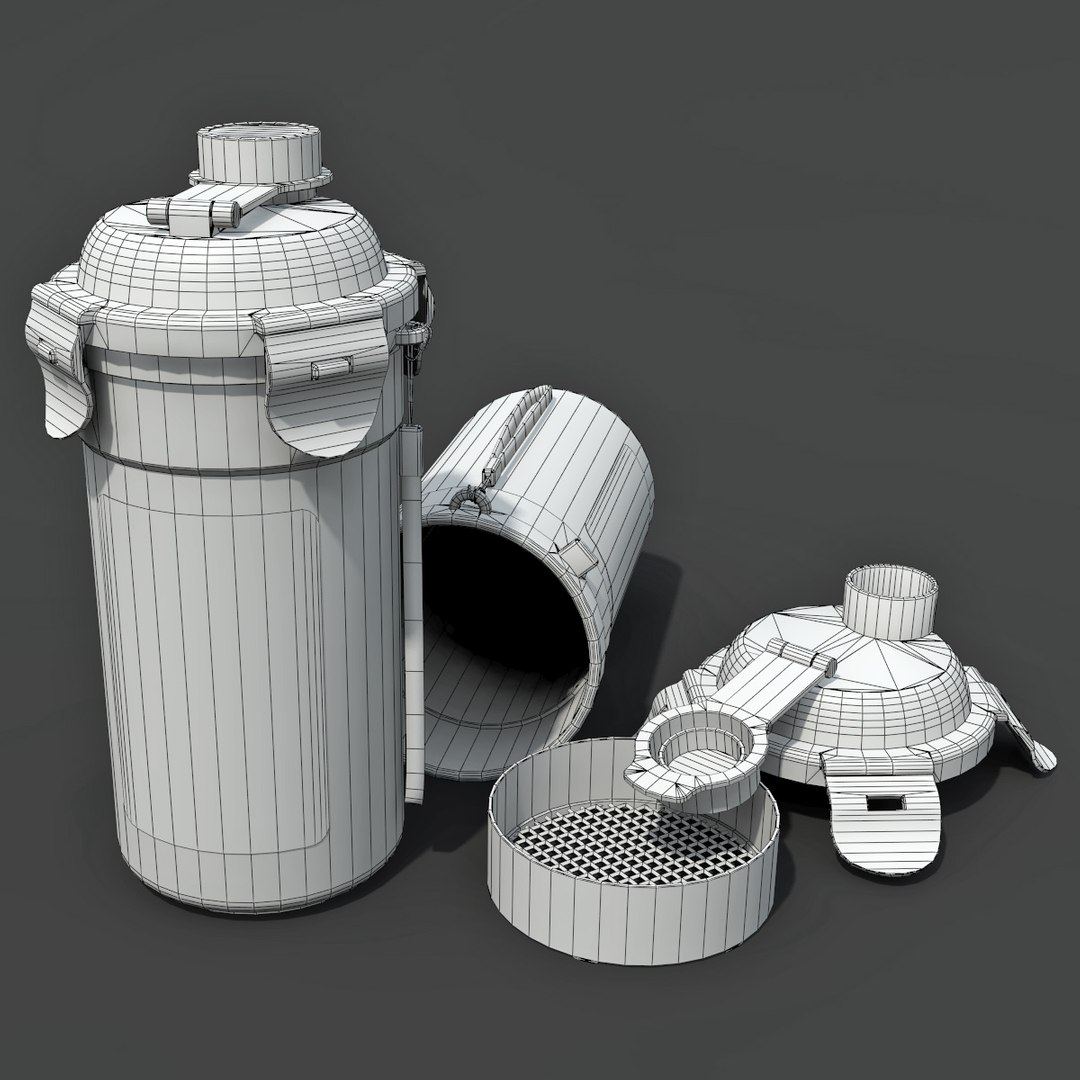

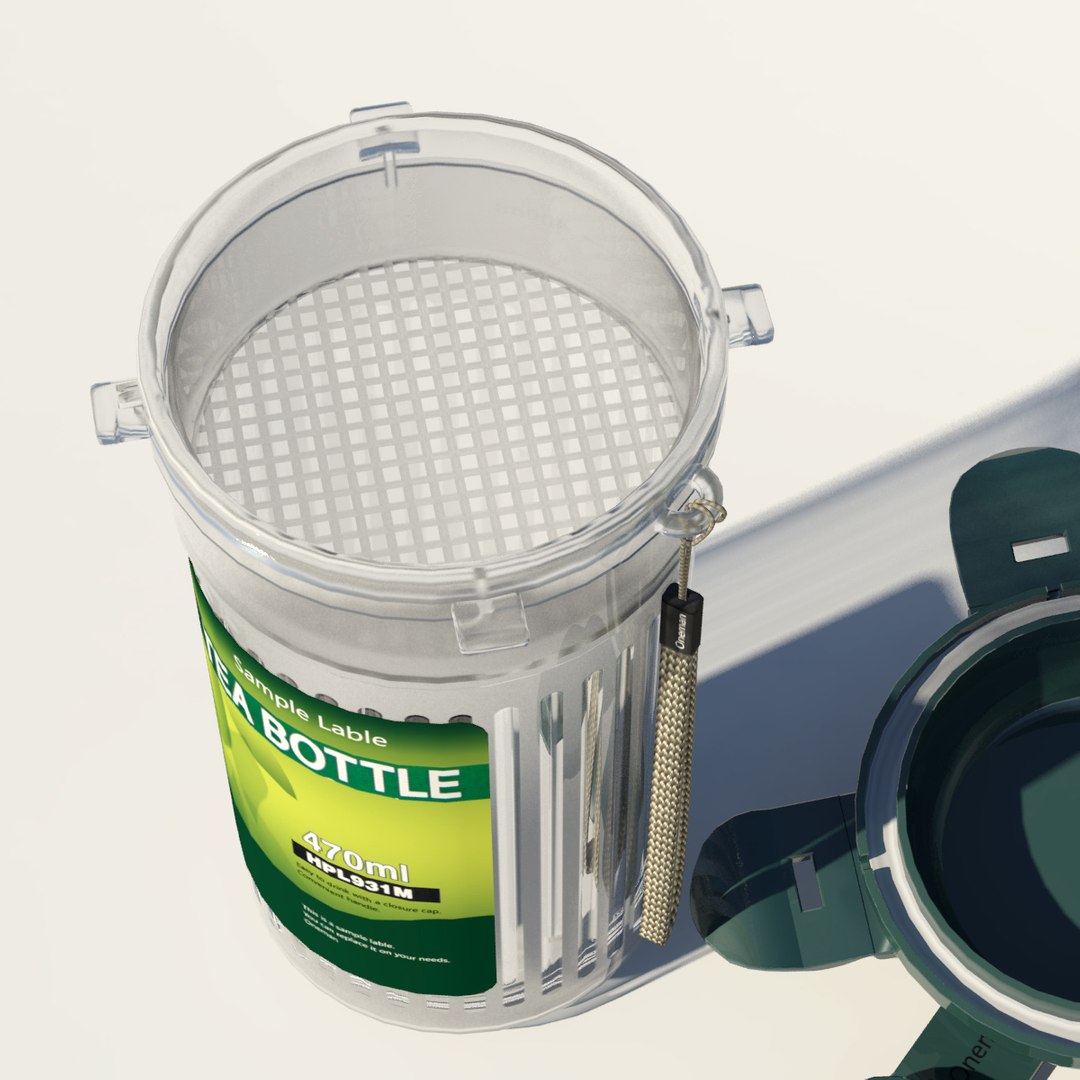

PRESENTATION IMAGES
All preview images are rendered with Mentalray Renderer.
------------------------------------------------------------------------------------
General infomation:
Model is built to real-world scale
Units used: millimeter. Model is 200mm tall, 100mm in diameter
Scene objects are organized by parent children link and groups.
No third-party renderer or plug-ins needed.
------------------------------------------------------------------------------------
Mesh Totals:
Verts: 8031
Faces: 9213
------------------------------------------------------------------------------------
Scene Totals:
Objects: 13
Shapes: 0
Cameras: 0
Lights: 0
Helpers: 1
Space Warps: 0
Total: 14
------------------------------------------------------------------------------------
Scene Objects list
Objects Name Verts Faces
lock-on_lid 1752 1865
seal 288 288
latch04 136 141
latch01 136 141
latch02 136 141
latch03 136 141
flip_top_lid 688 714
bottle_body 1691 1812
lable 64 62
handy_strap_thin_string 280 556
handy_strap_connector 80 140
handy_strap_thick_string 100 196

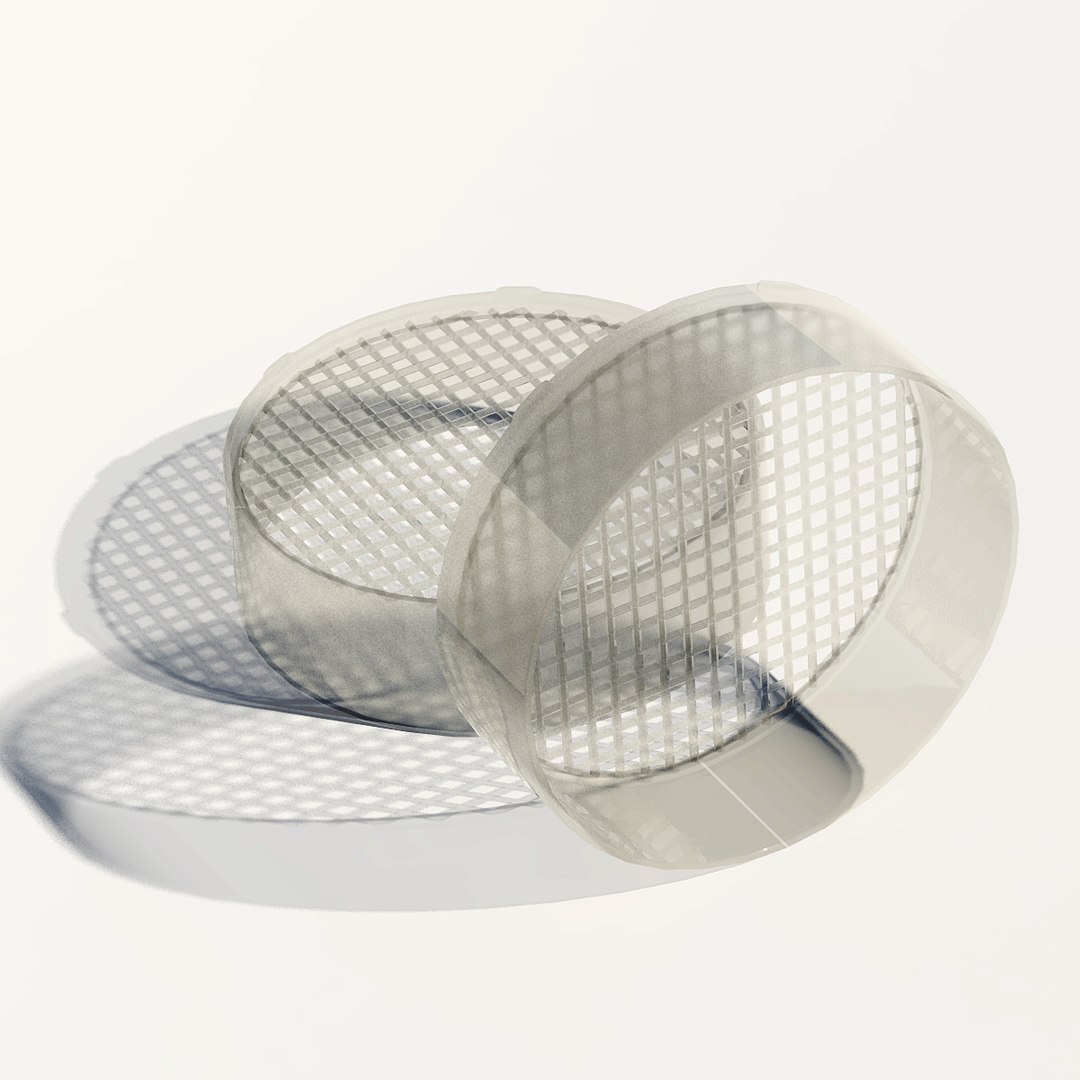

strainer 2544 3016
------------------------------------------------------------------------------------

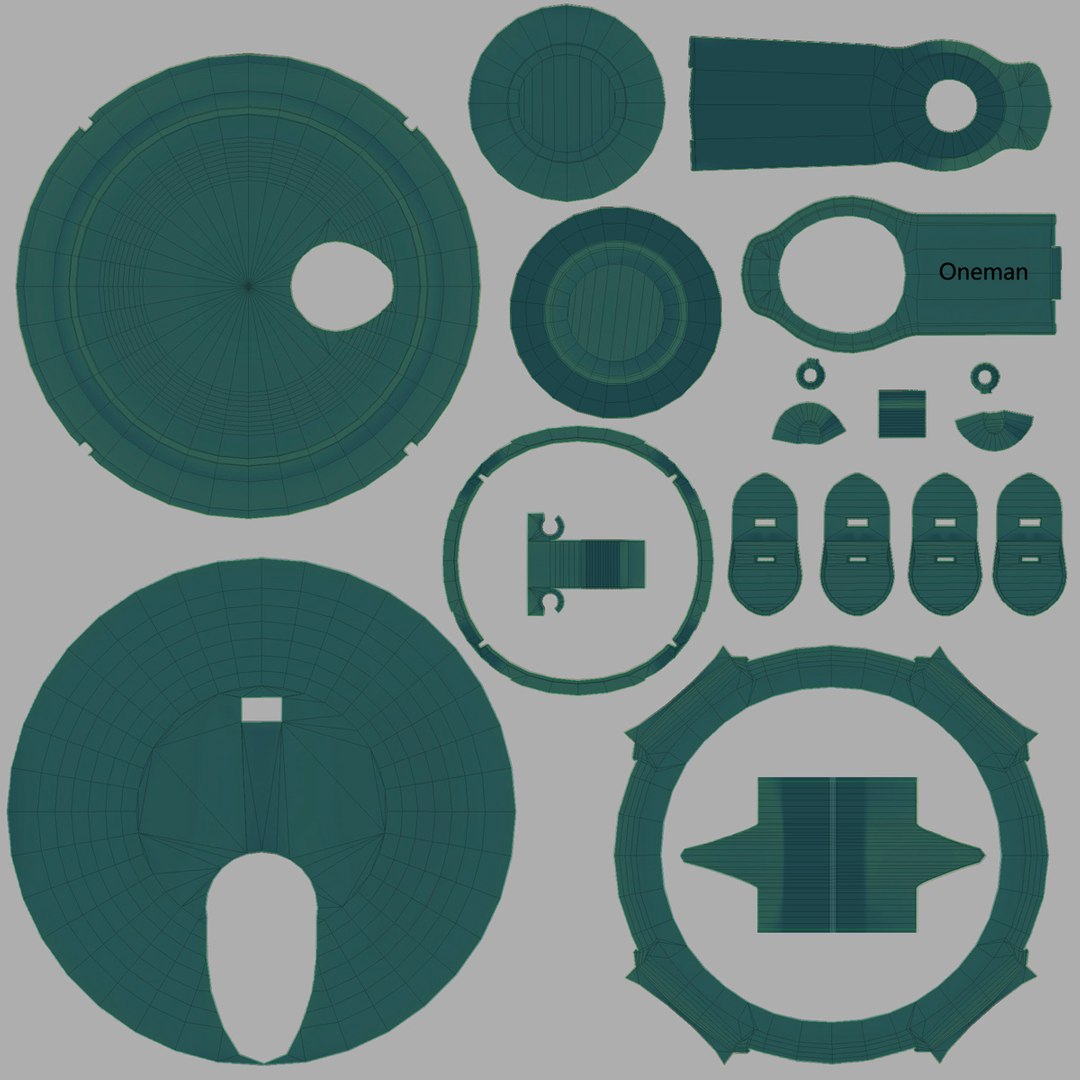

Materials and Textures

lid(plastic)
seal(rubber)
bottle_body(plastic)
lable(papper)
string_thin(fiber)
strap_connector(plastic)
string_thick(fiber)
strainer(plastic)
Note:
1,Due to the restriction of 3ds format, some texture names and some material
names are difference in 3ds format package.
2,All textures are created from original photographs or drawings
3,The DXF file format does not have textures/materials applied and will not
render like the preview images.
------------------------------------------------------------------------------------
Helpers/Dummies/Groups:
sports_bottle_4latches-lid
