PWHT Process Model Educational 3D Asset for Welding & Metallurgy

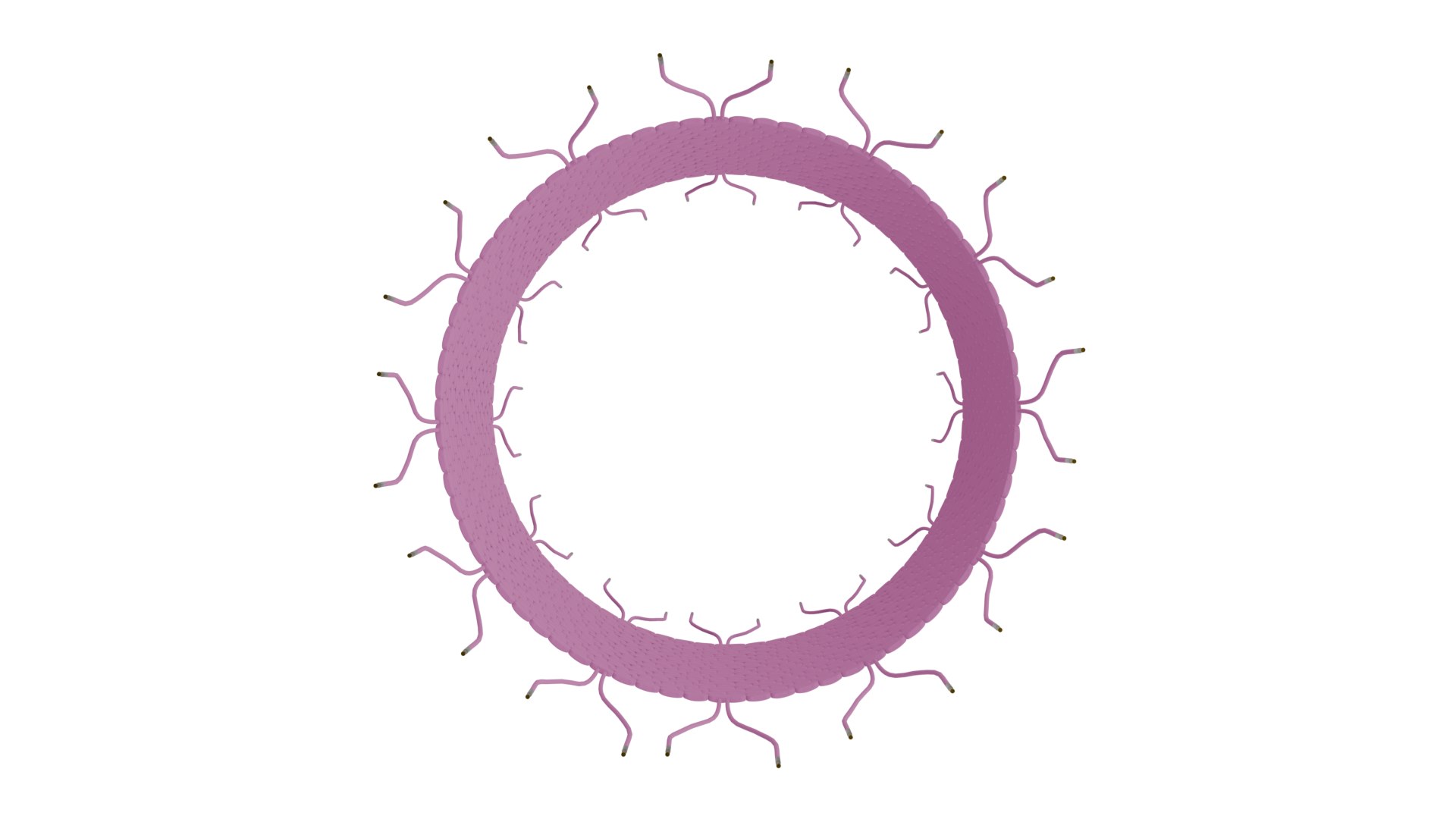

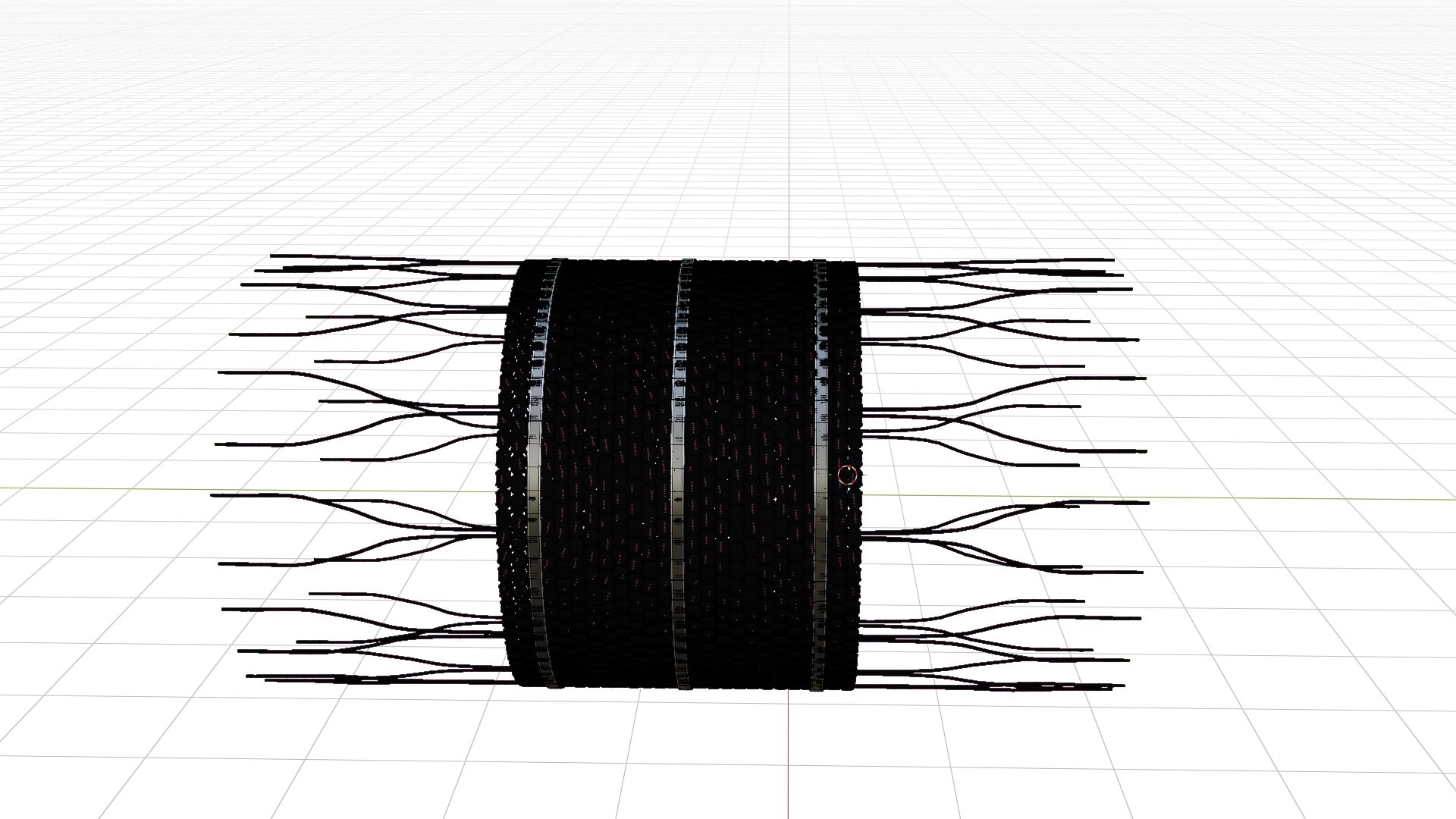

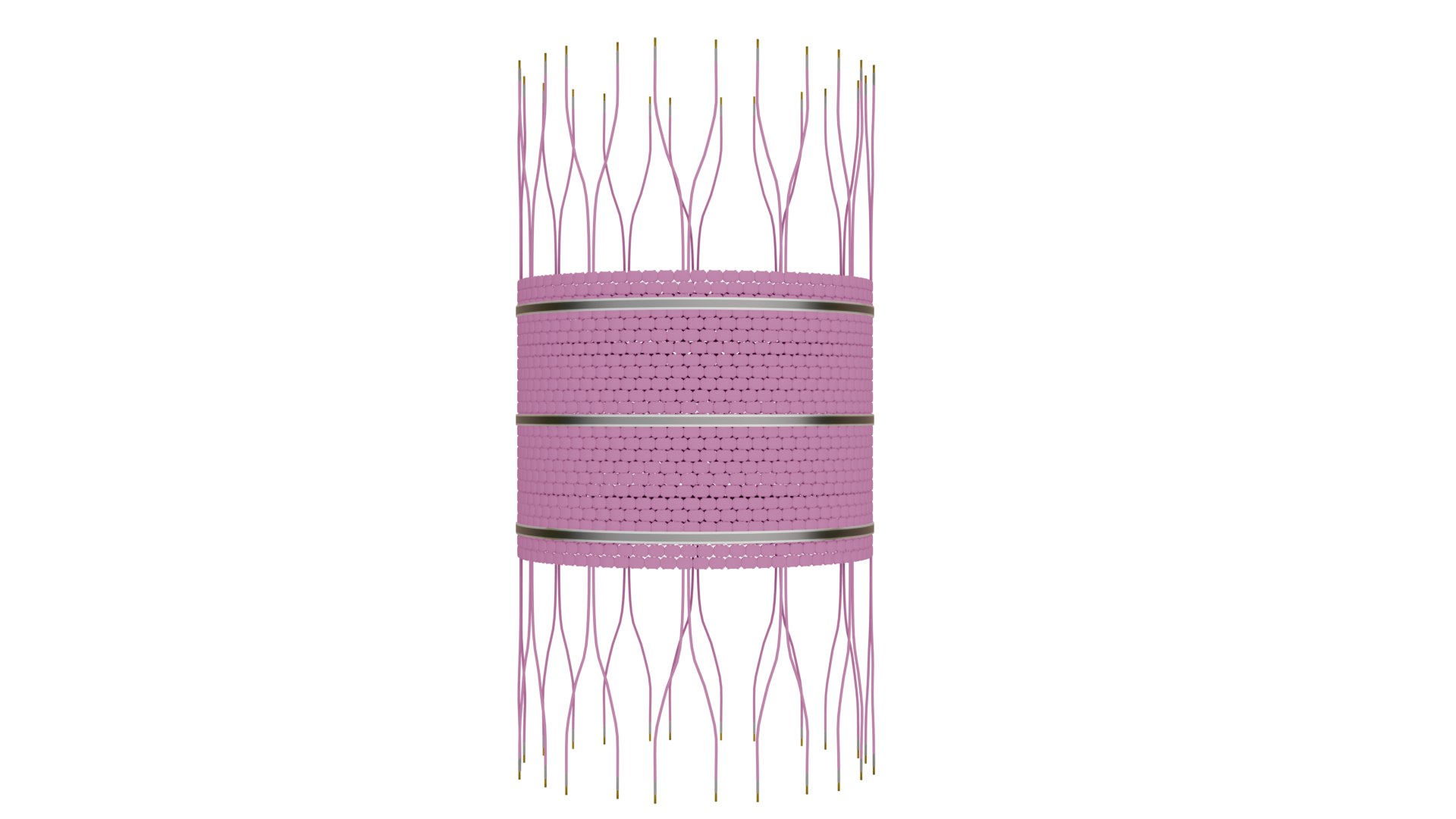

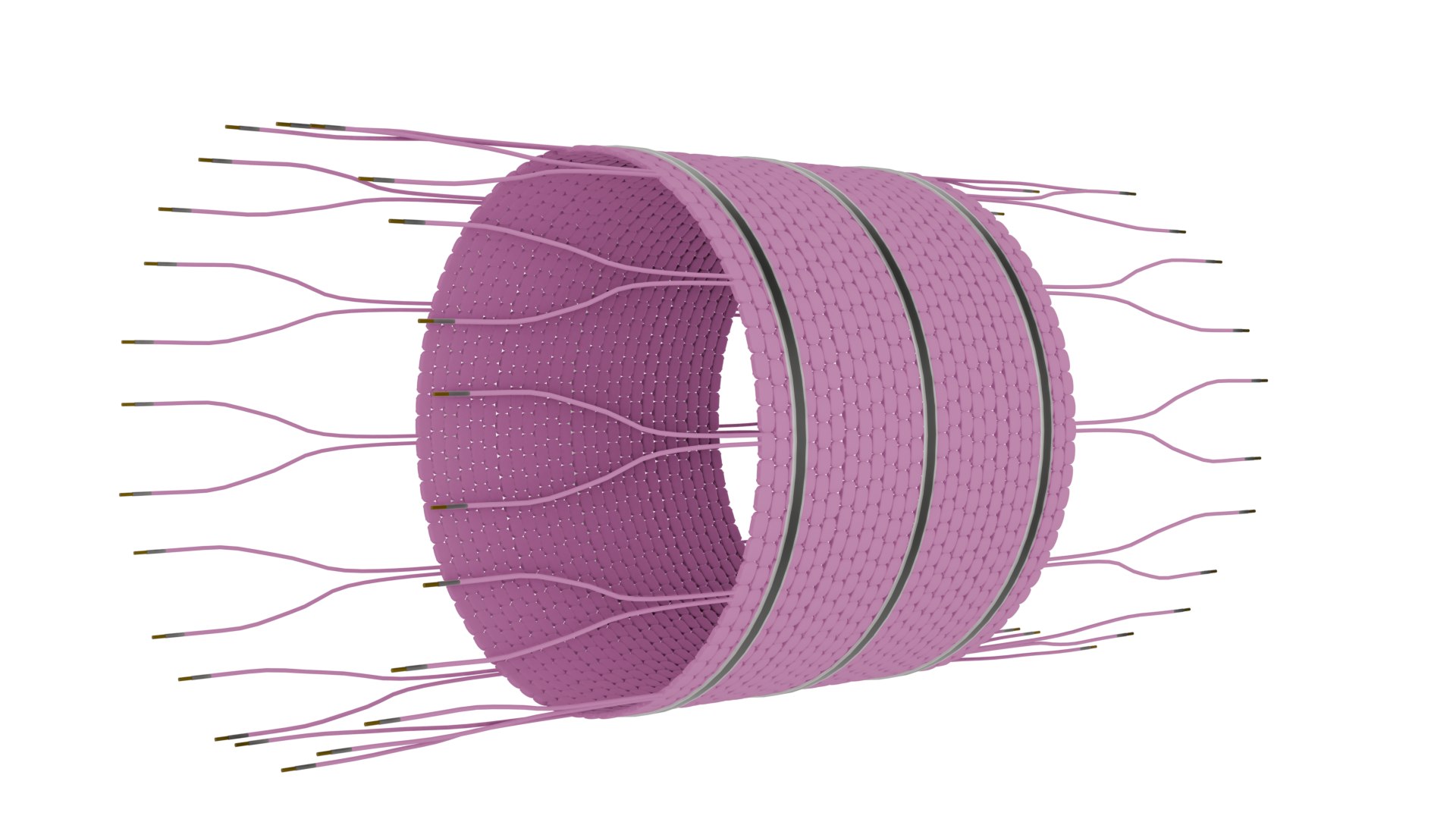

High-quality 3D model of a Post Weld Heat Treatment (PWHT) pipe section, designed for industrial visualization, training, and engineering simulations. This asset features realistic detailing of welded joints and treatment zones, making it ideal for educational demonstrations, technical presentations, or integration into AR/VR environments. Optimized for clarity and accuracy, it’s a versatile model for professionals in welding, metallurgy, and mechanical engineering.

• This model was developed in Blender 5.0
• Unwrapped Non-overlapping and UV Mapping
• Beveled Smooth Edges, Including Subdivision modifier.
• Plugins used.

File Formats: Blend, FBX, OBJ & STL etc.

#PWHT #Welding #heat #treatment
