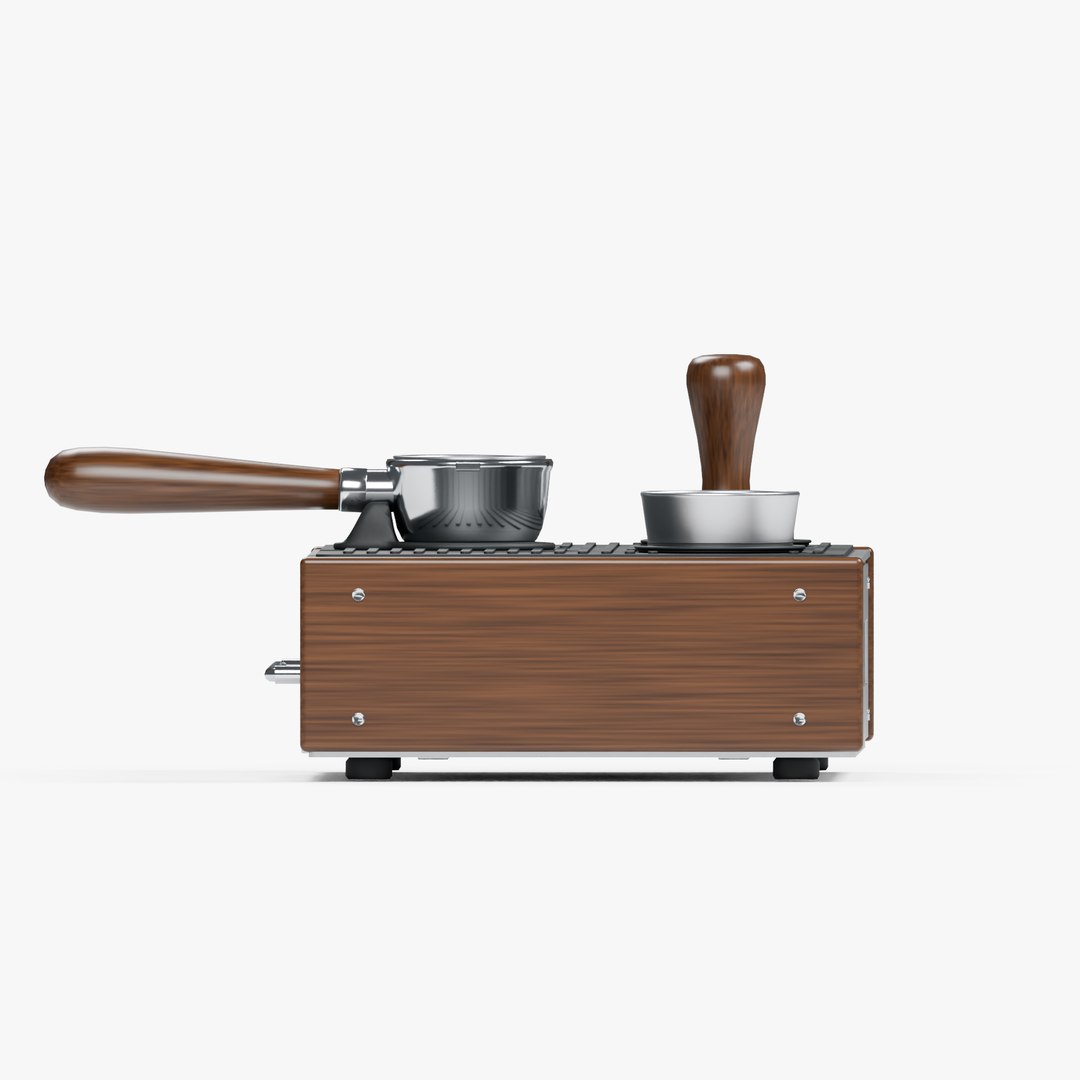

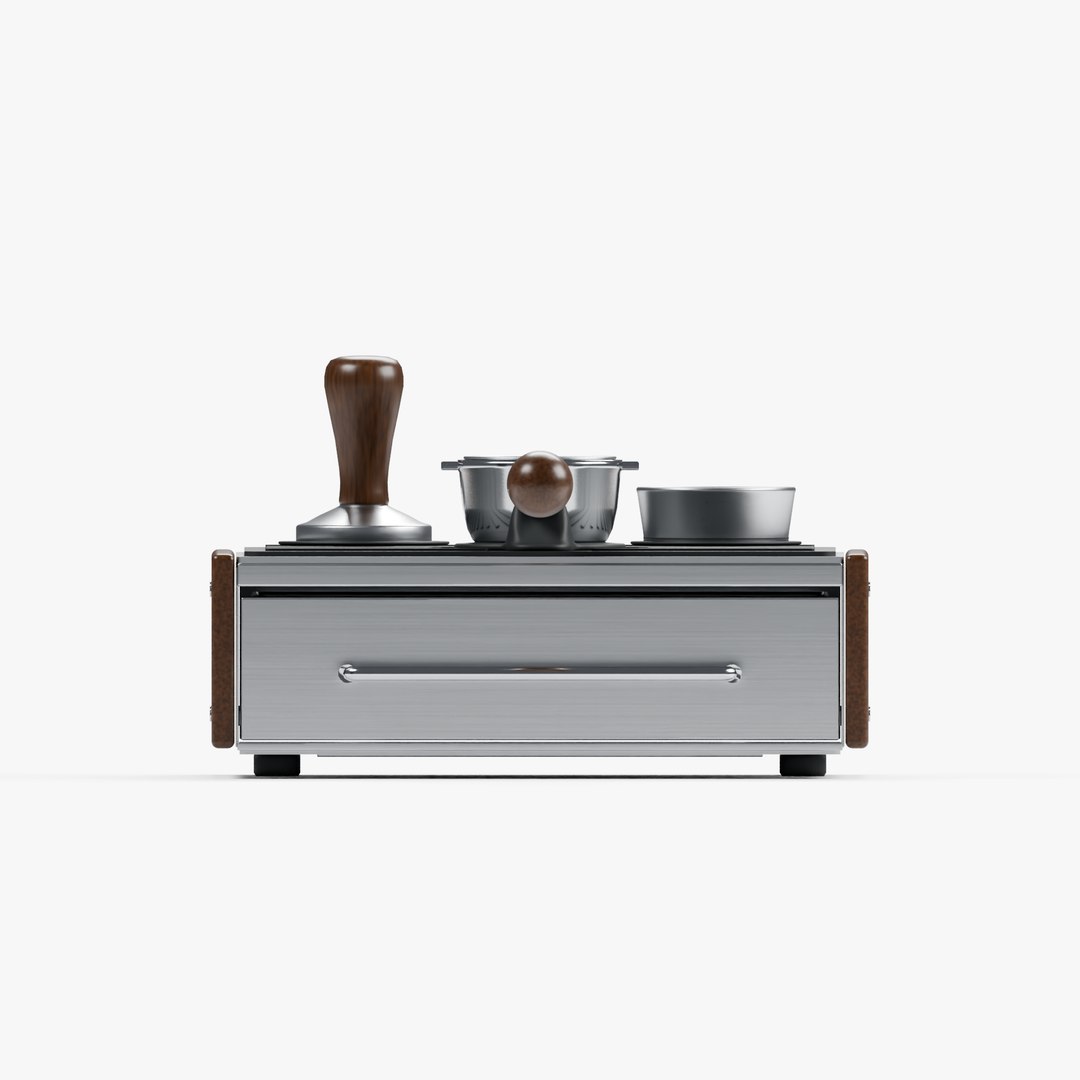

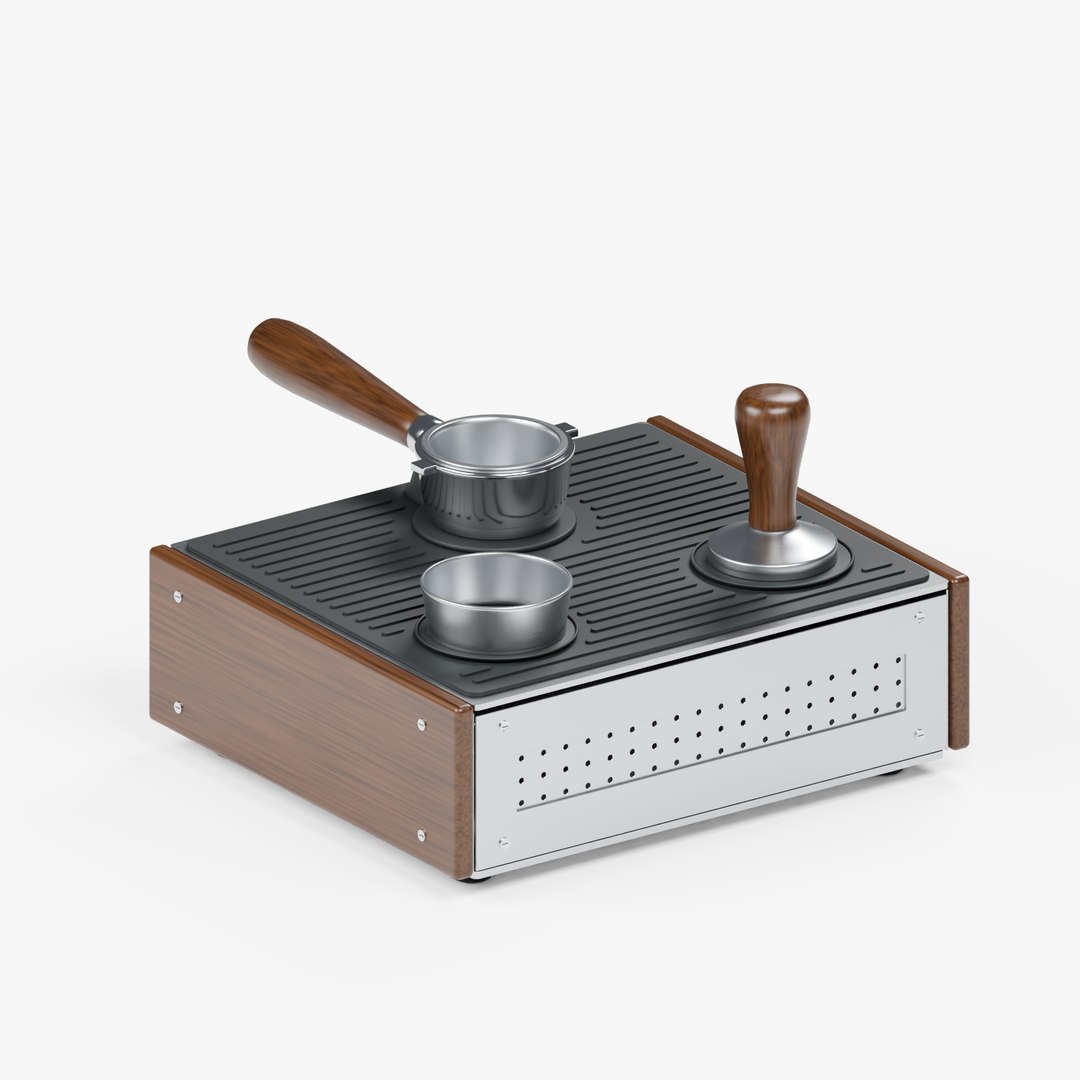

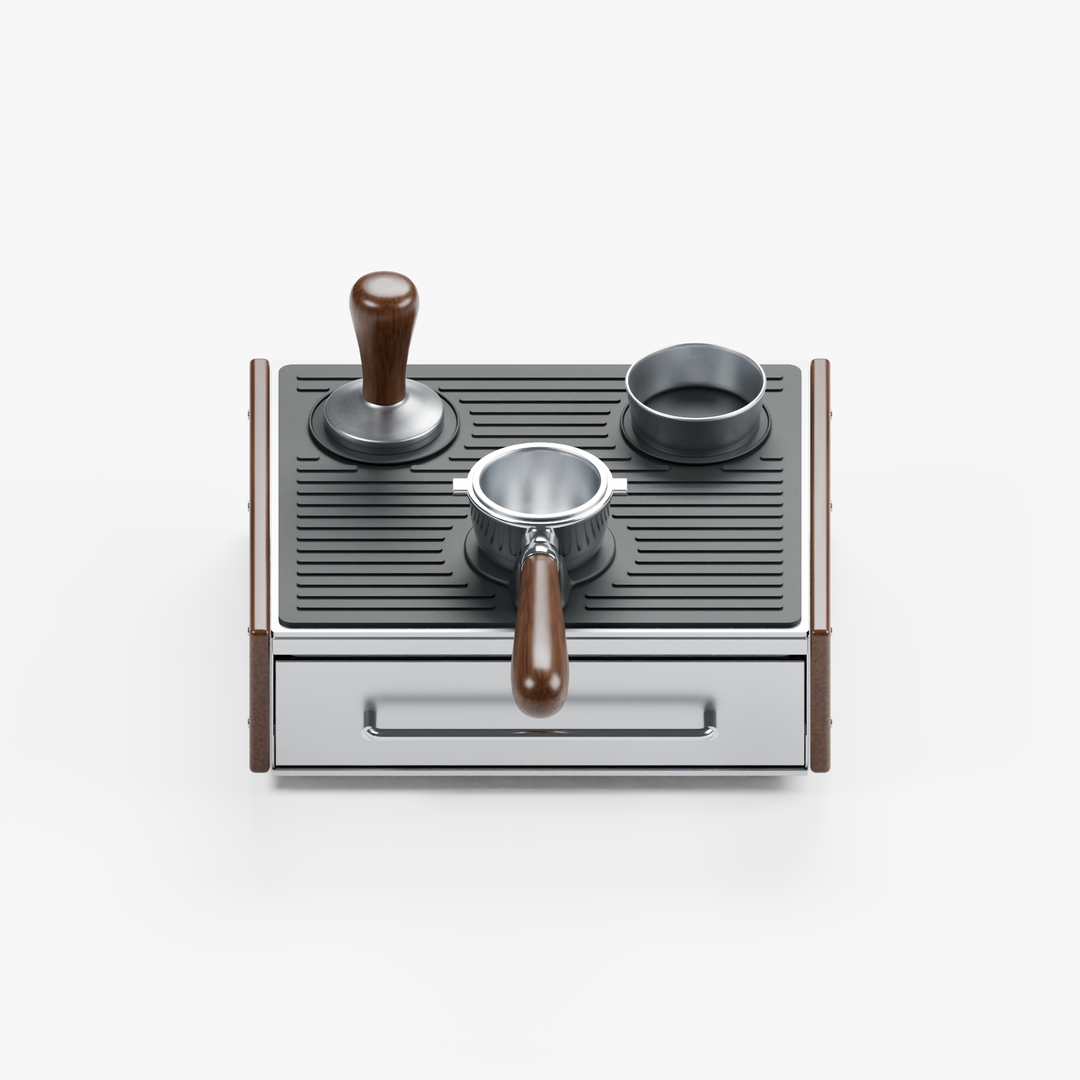

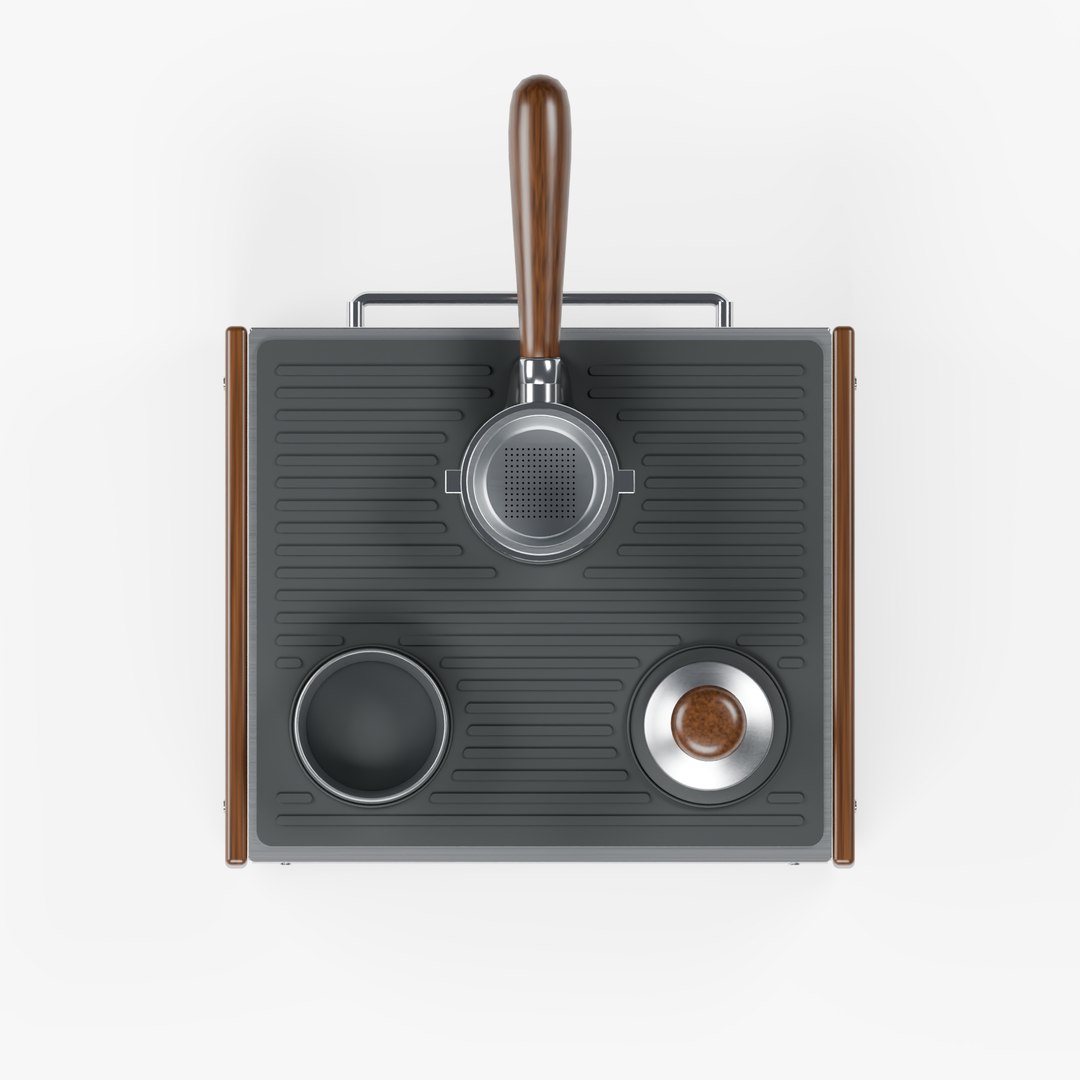

An original unbranded barista preparation station for kitchen, coffee bar and hospitality scenes. The brushed steel cabinet has walnut-colored side cheeks and a molded black rubber top mat, with a separate wood-handled tamper, open dosing funnel and bottomless portafilter.

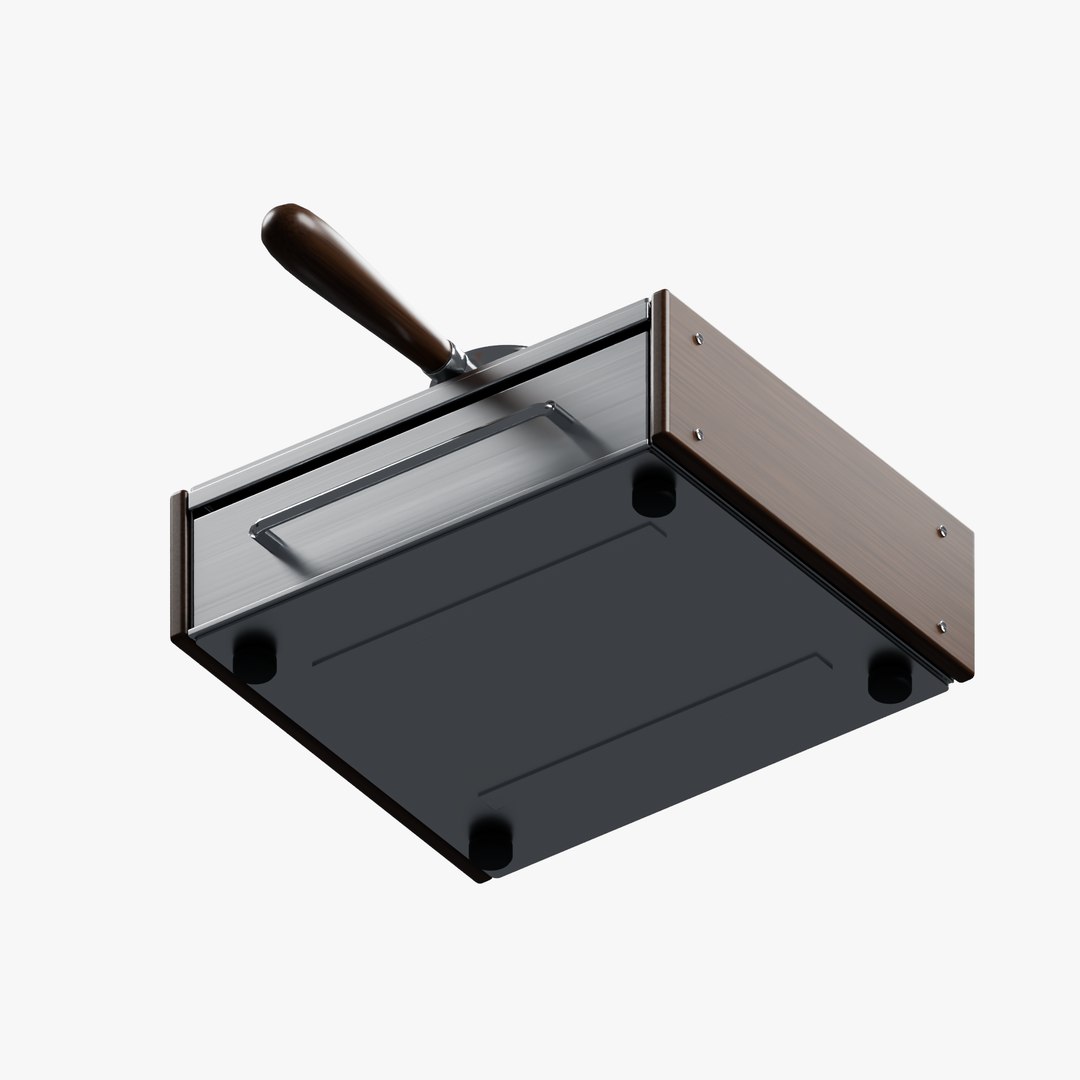

Close-up construction includes a hollow knock drawer with a metal pull, rubber-covered knockbar, end fittings and slide supports; rear ventilation; rubber feet; underside stiffeners; a ribbed tamping mat and padded tool rests. A connected rubber cradle supports the portafilter with an open bearing and rounded neck saddle. The portafilter basket is removable and has 169 modeled apertures. Named meshes and component families support separate accessory arrangements and manual drawer posing.

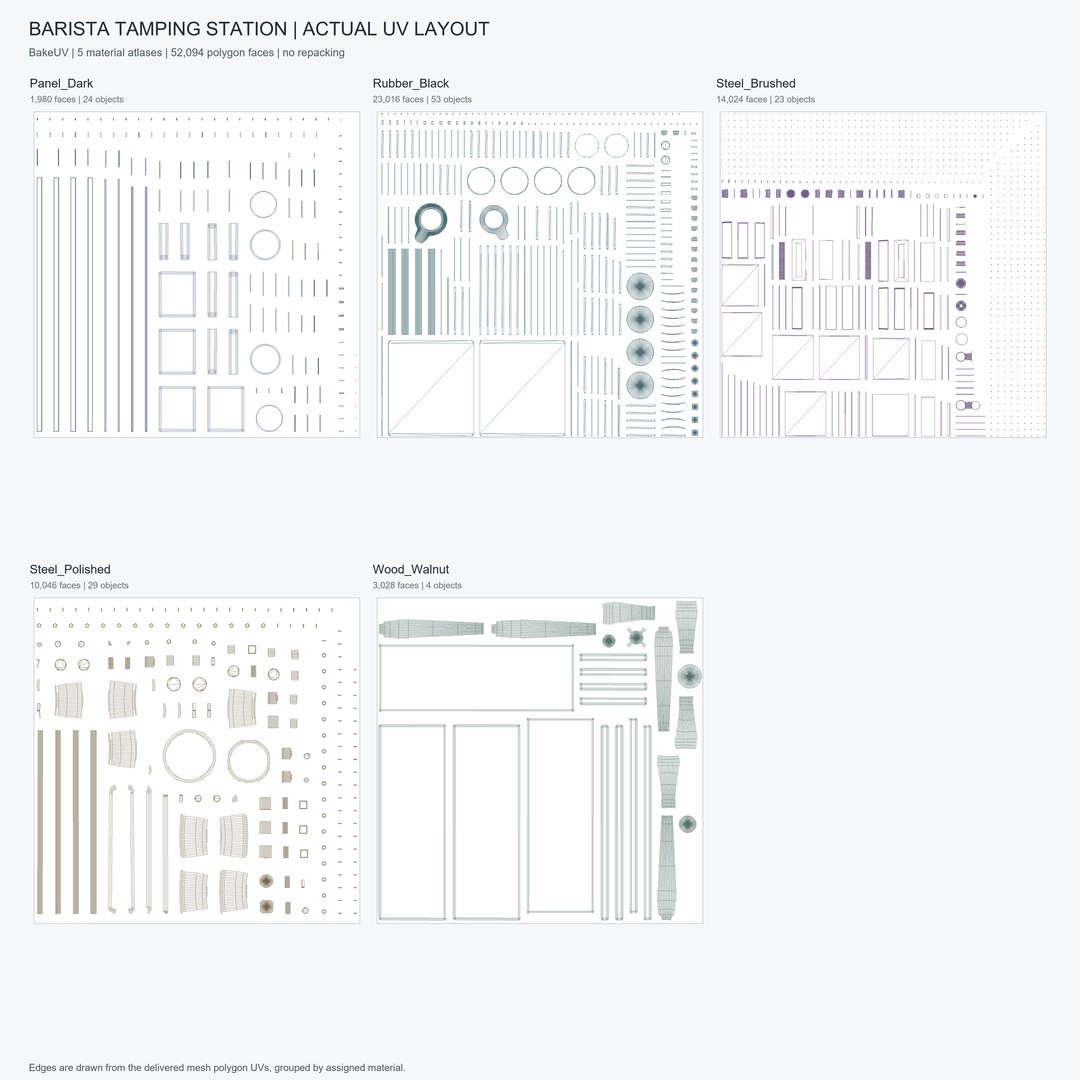

The native Blender 4.2.23 LTS / Cycles model and GLB interchange model include five PBR material sets with 20 texture maps. Brushed steel, walnut and rubber maps are 4K; polished steel and dark fittings are 2K. Each set includes Base Color, Roughness, Metallic and OpenGL +Y Normal maps, with nonoverlapping material atlases.

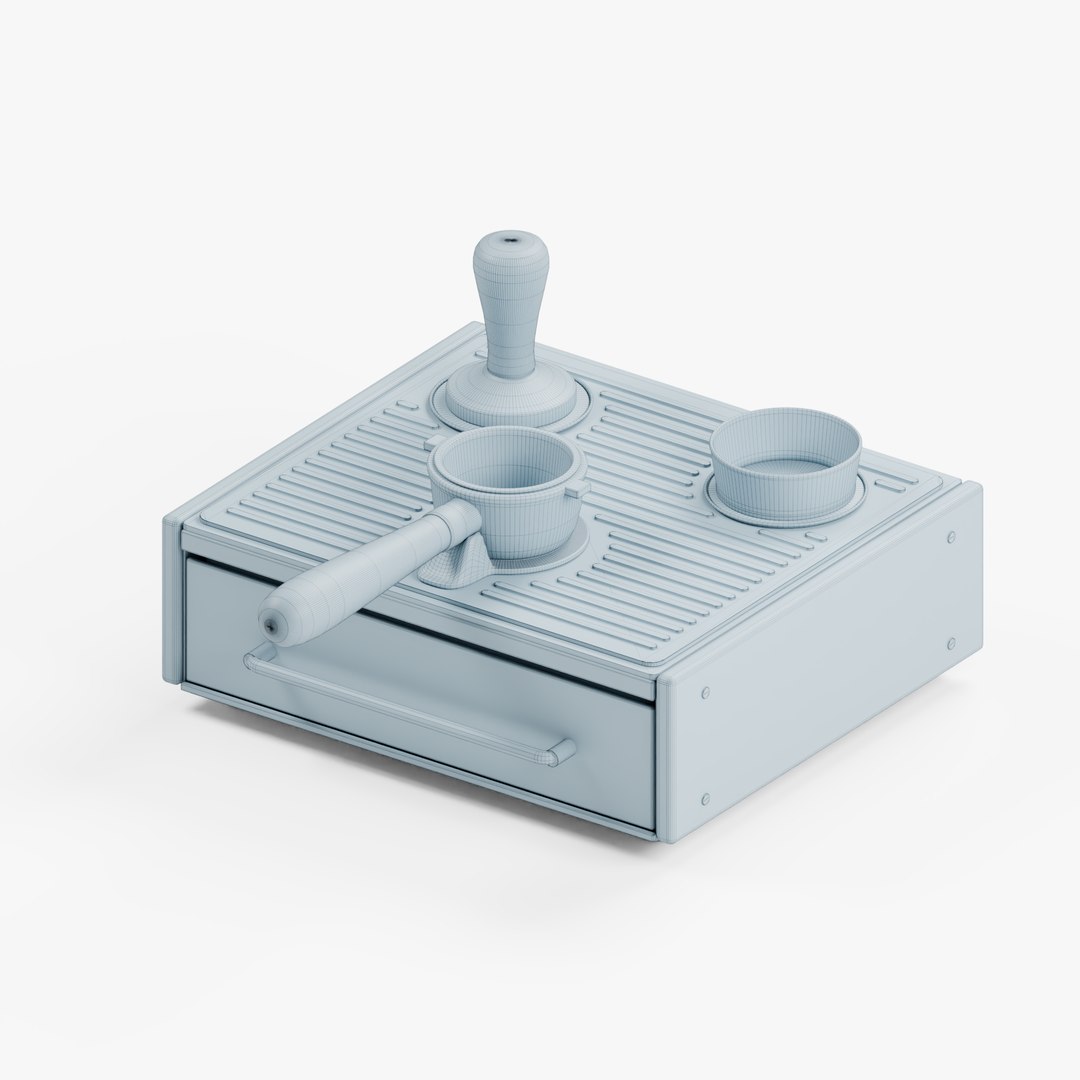

The native model has 133 meshes, 48,714 vertices and 52,094 polygons: 45,734 quads and 6,360 triangles, with no n-gons. The triangulated total is 97,828. The GLB roundtrip retains the mesh count, triangles and bounds. Use the native Cycles file as the material appearance reference when adapting the asset to other renderers.

The nominal housing measures 280 x 240 x 95 mm. Full assembled dimensions are approximately 281.59 x 351.389 x 178 mm including accessories and protruding fittings. Metric units; front -Y and up +Z. The drawer opens along -Y with a 150 mm illustrated travel range. The file is static, without animation or a mechanical rig.

This is a visualization asset, not a manufacturing specification or a guaranteed fit for a physical espresso machine. The companion espresso machine and coffee grinder are separate assets.
