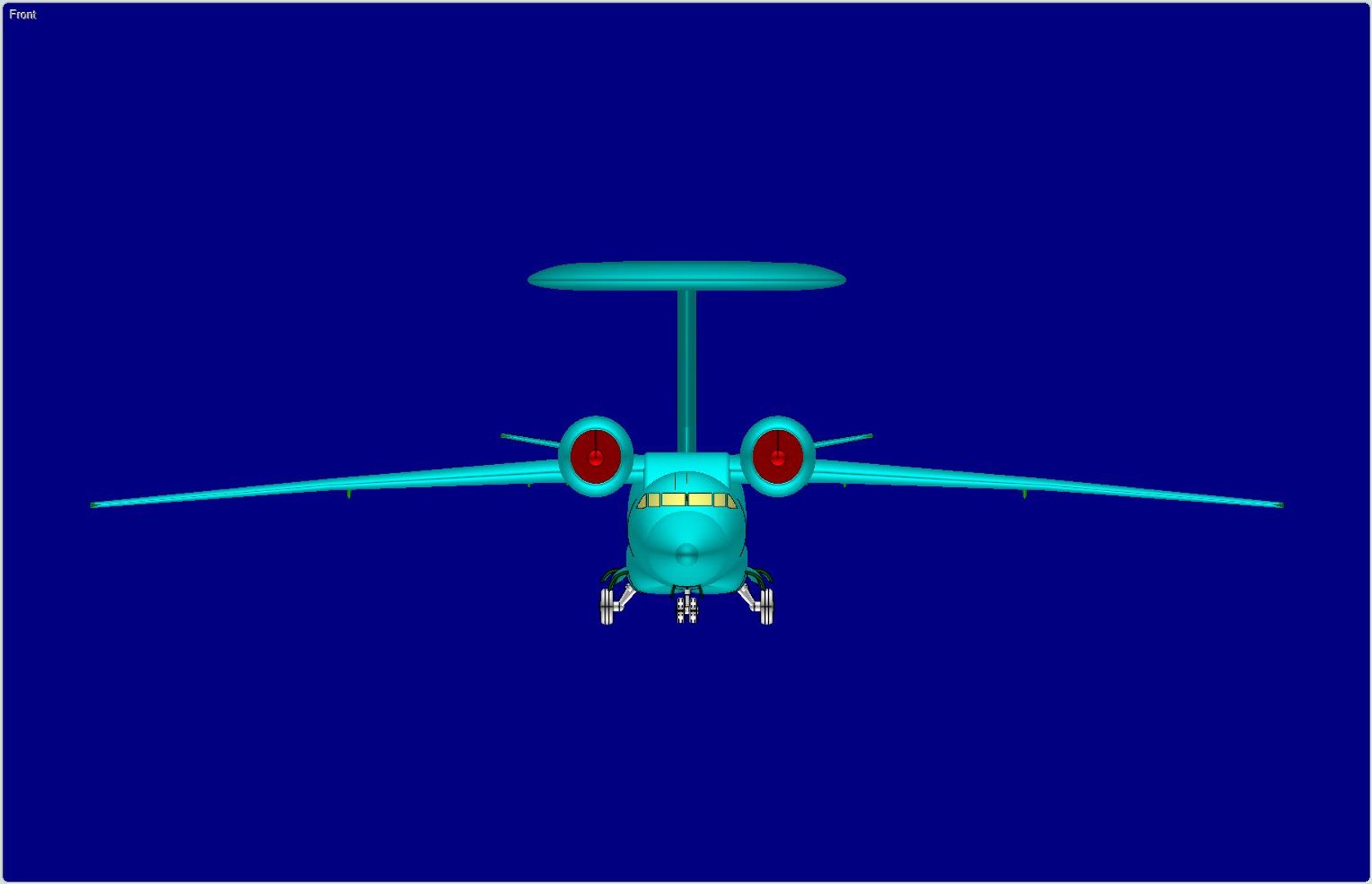

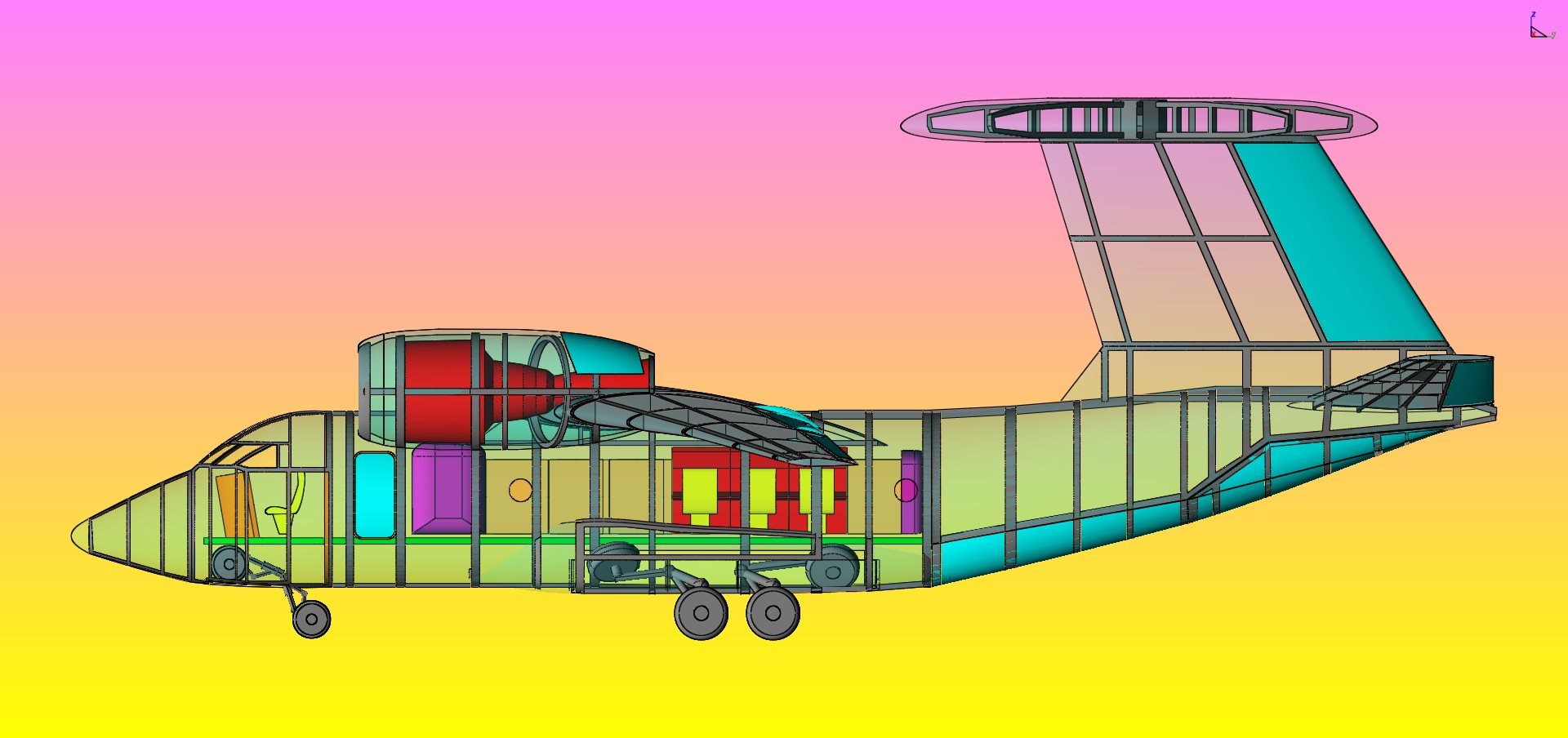

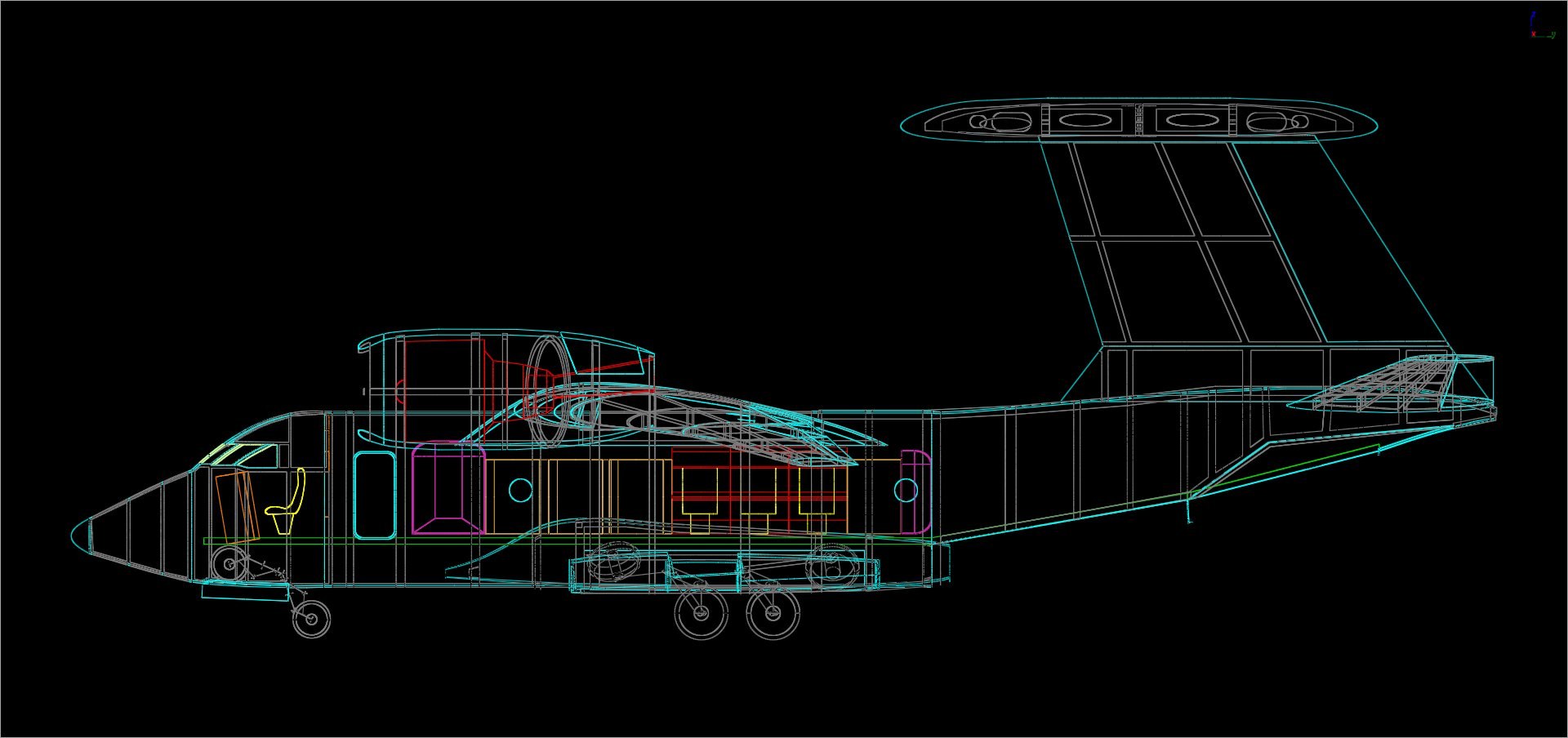

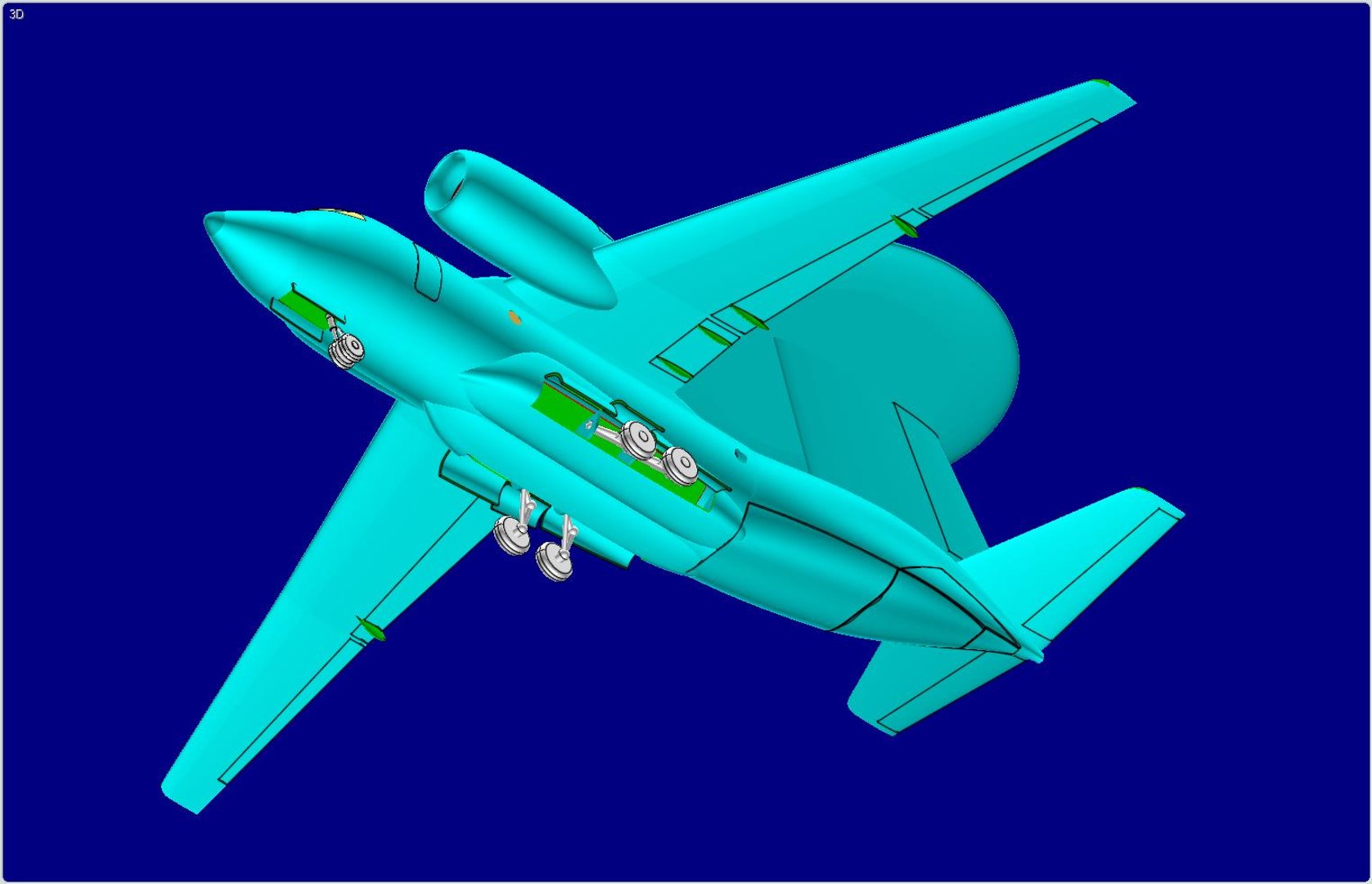

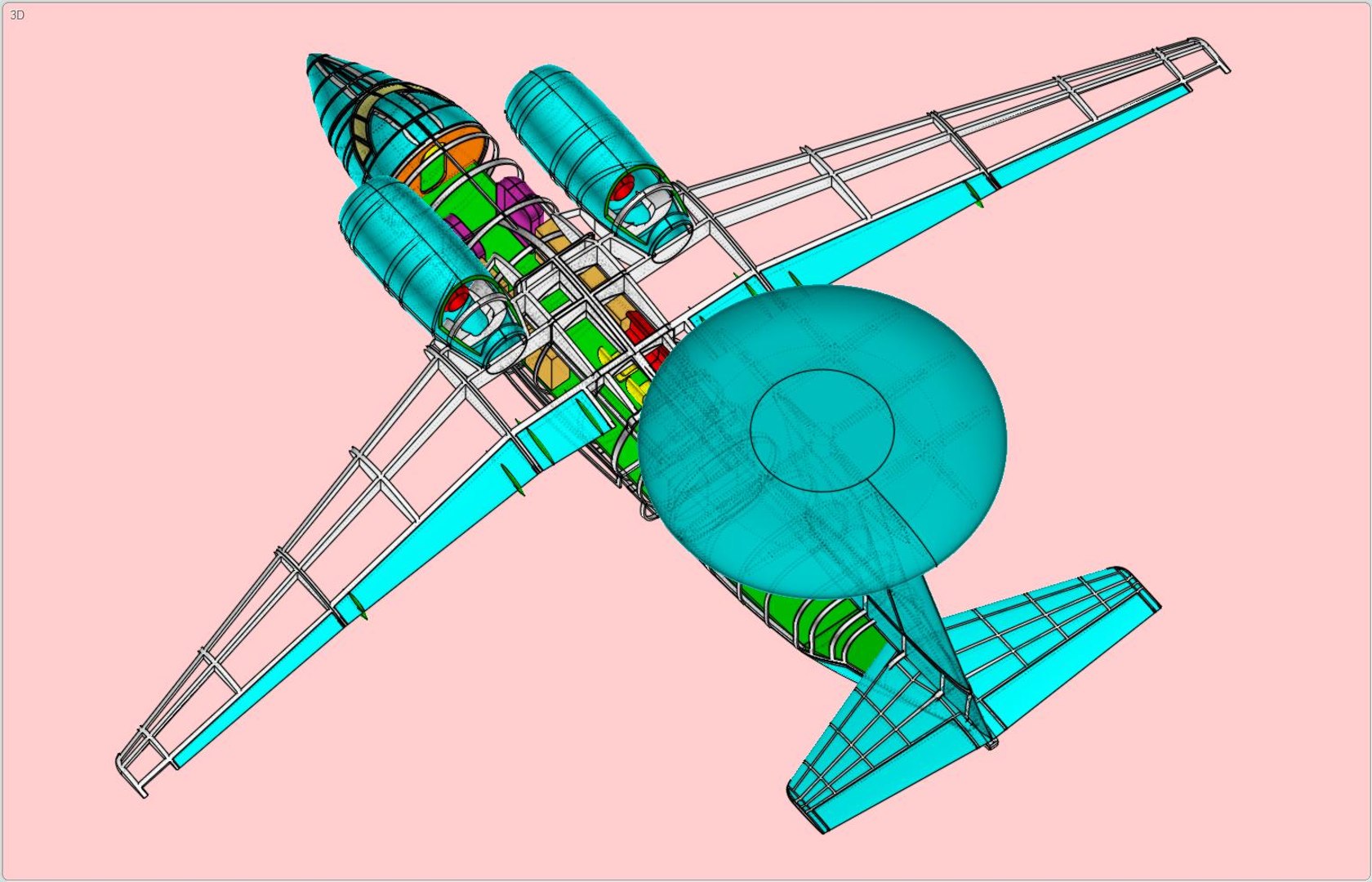

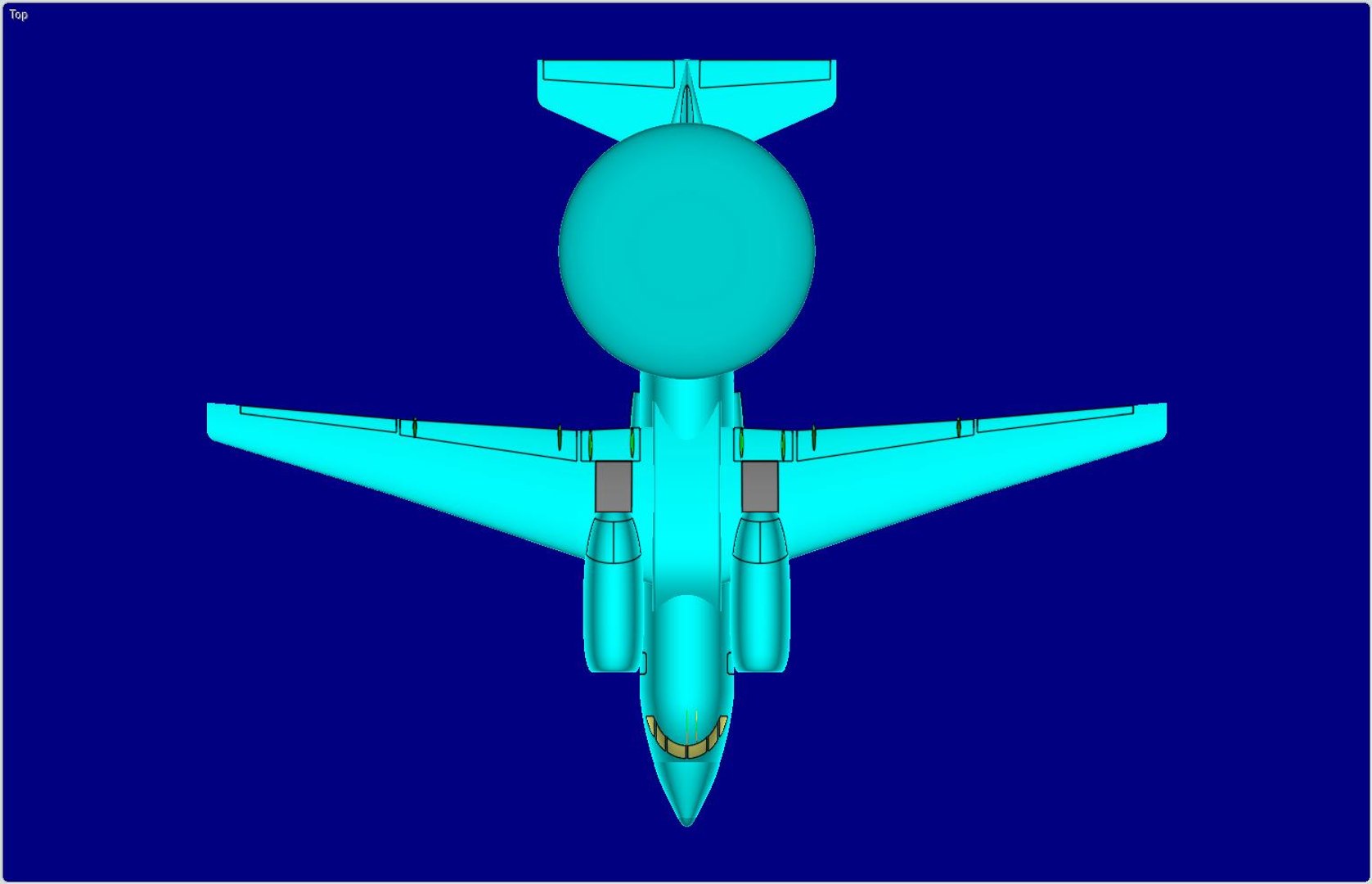

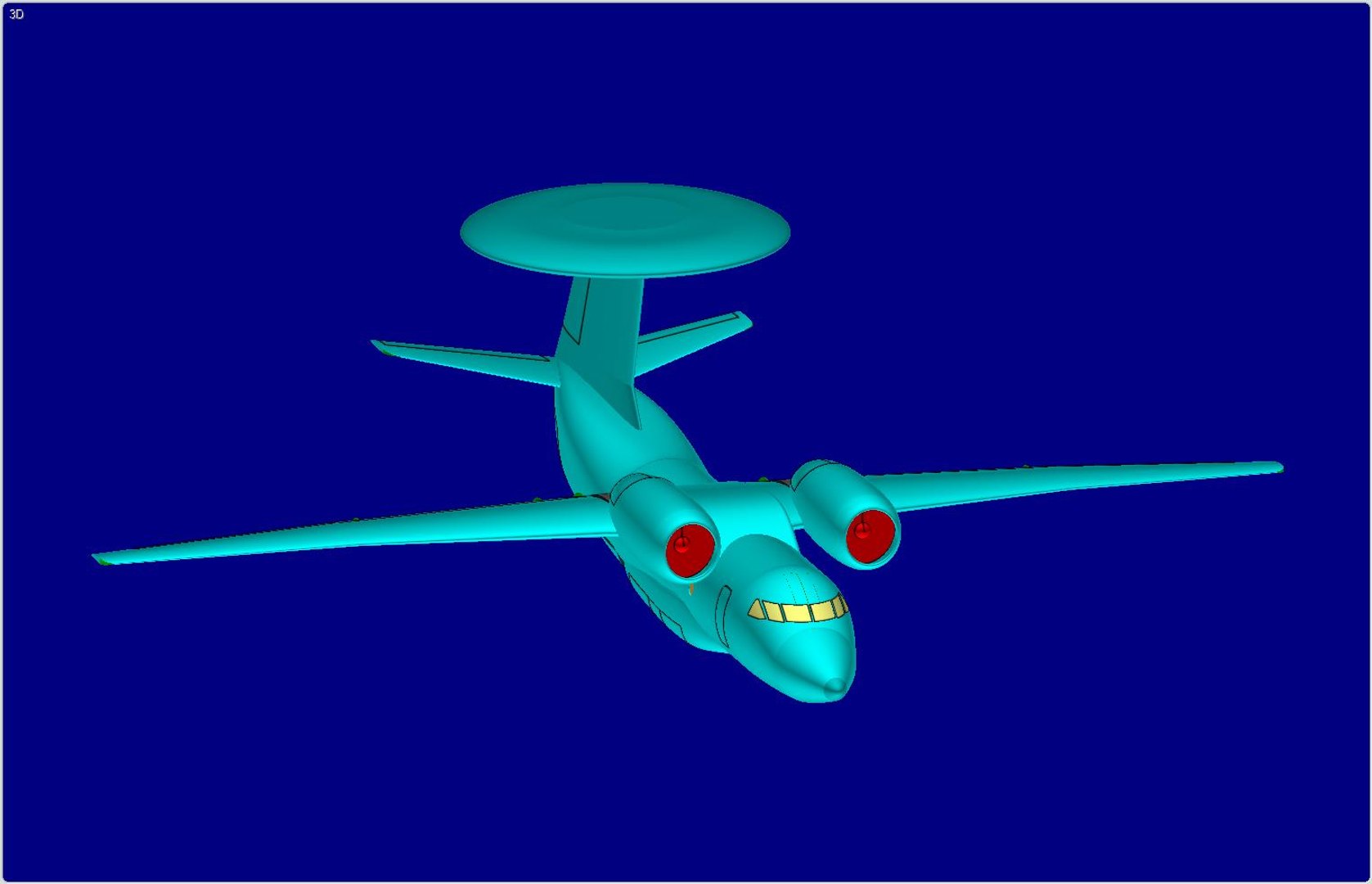

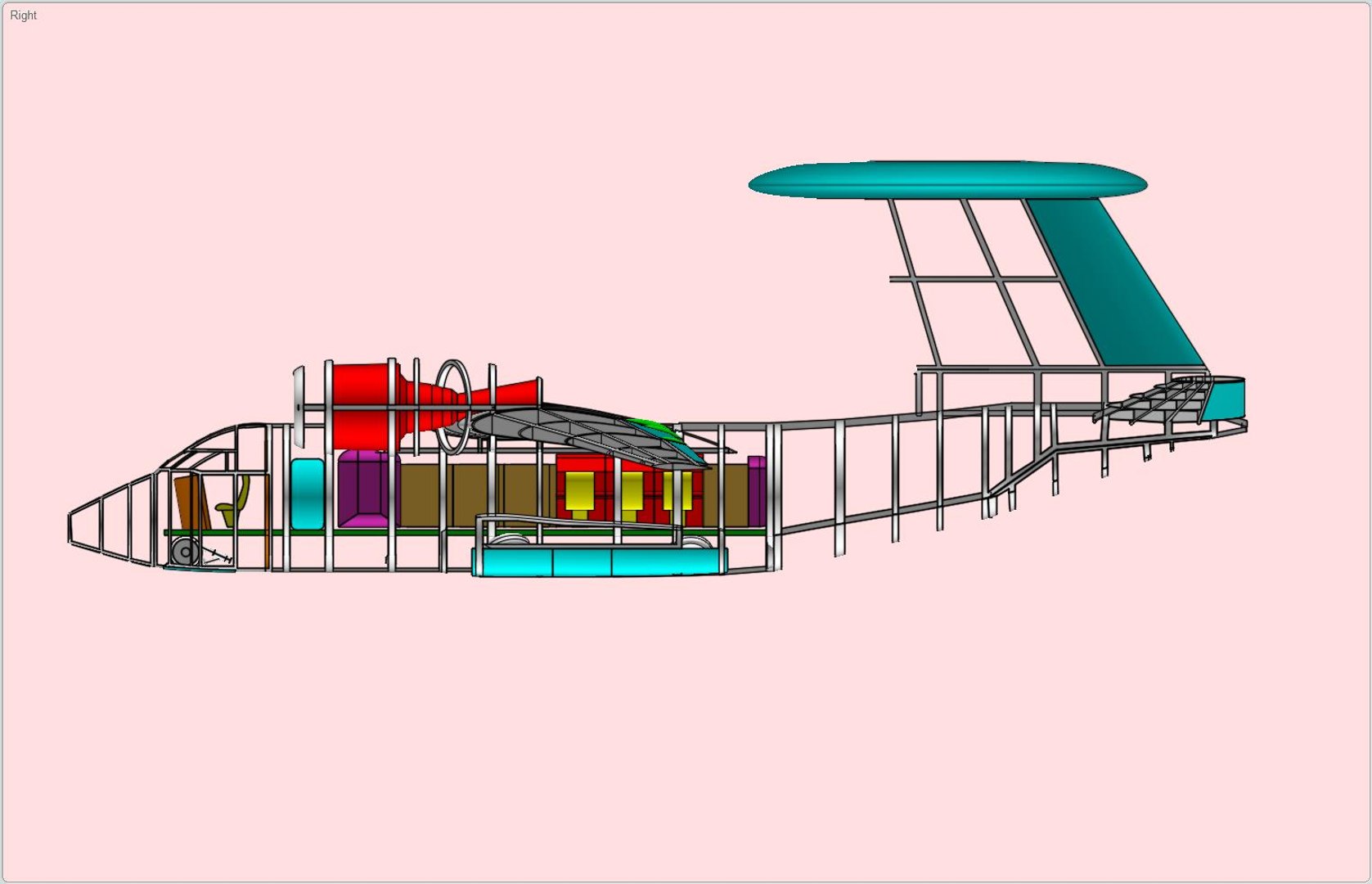

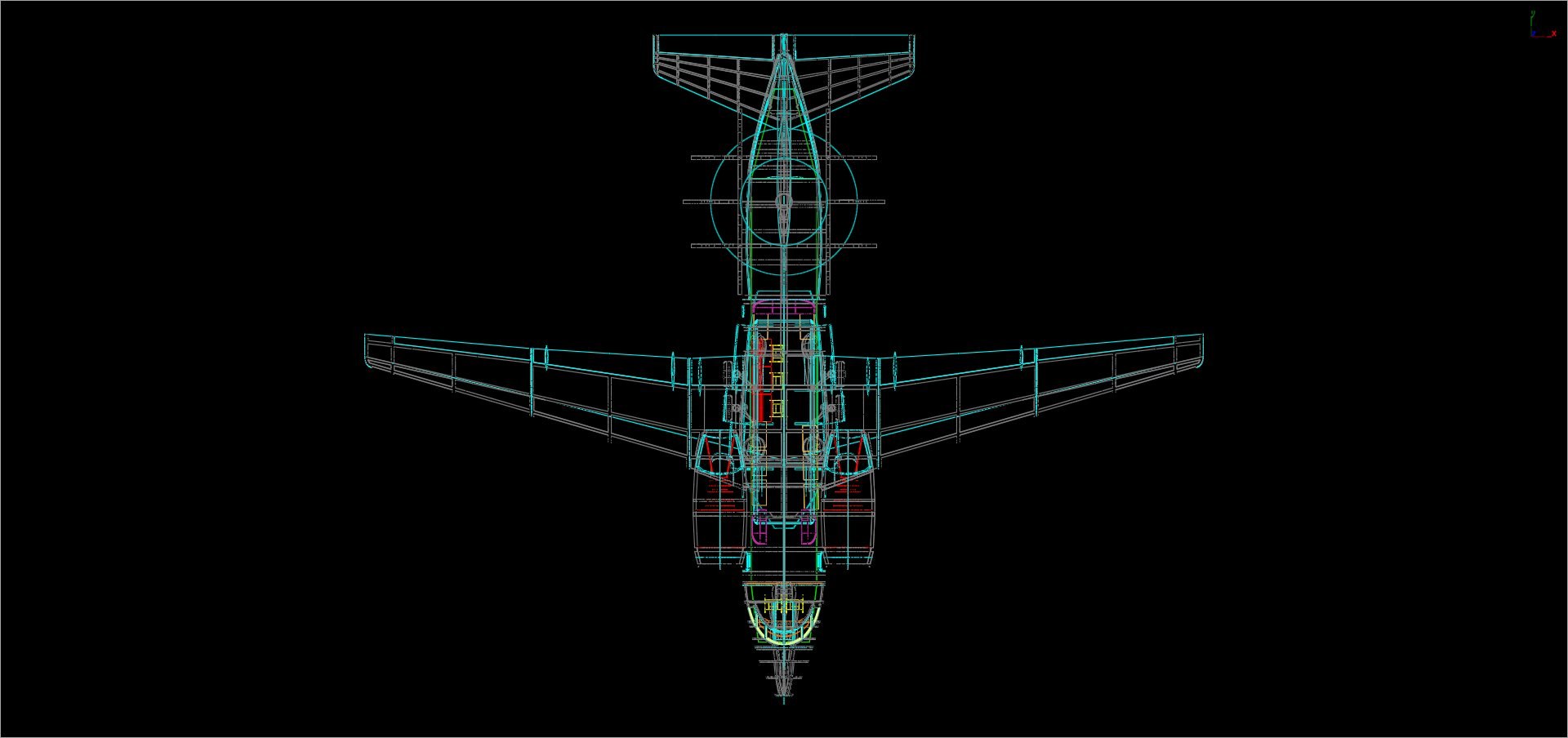

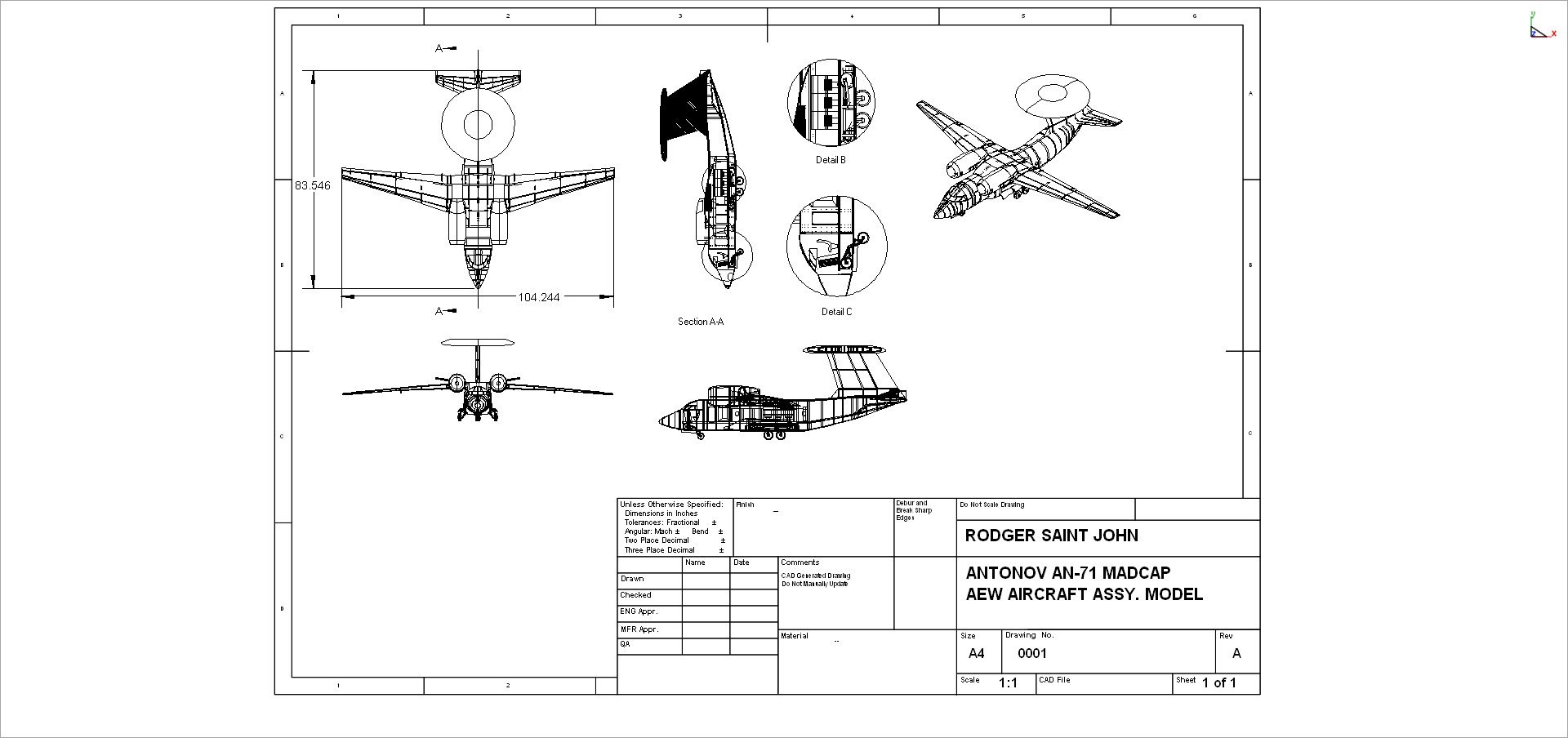

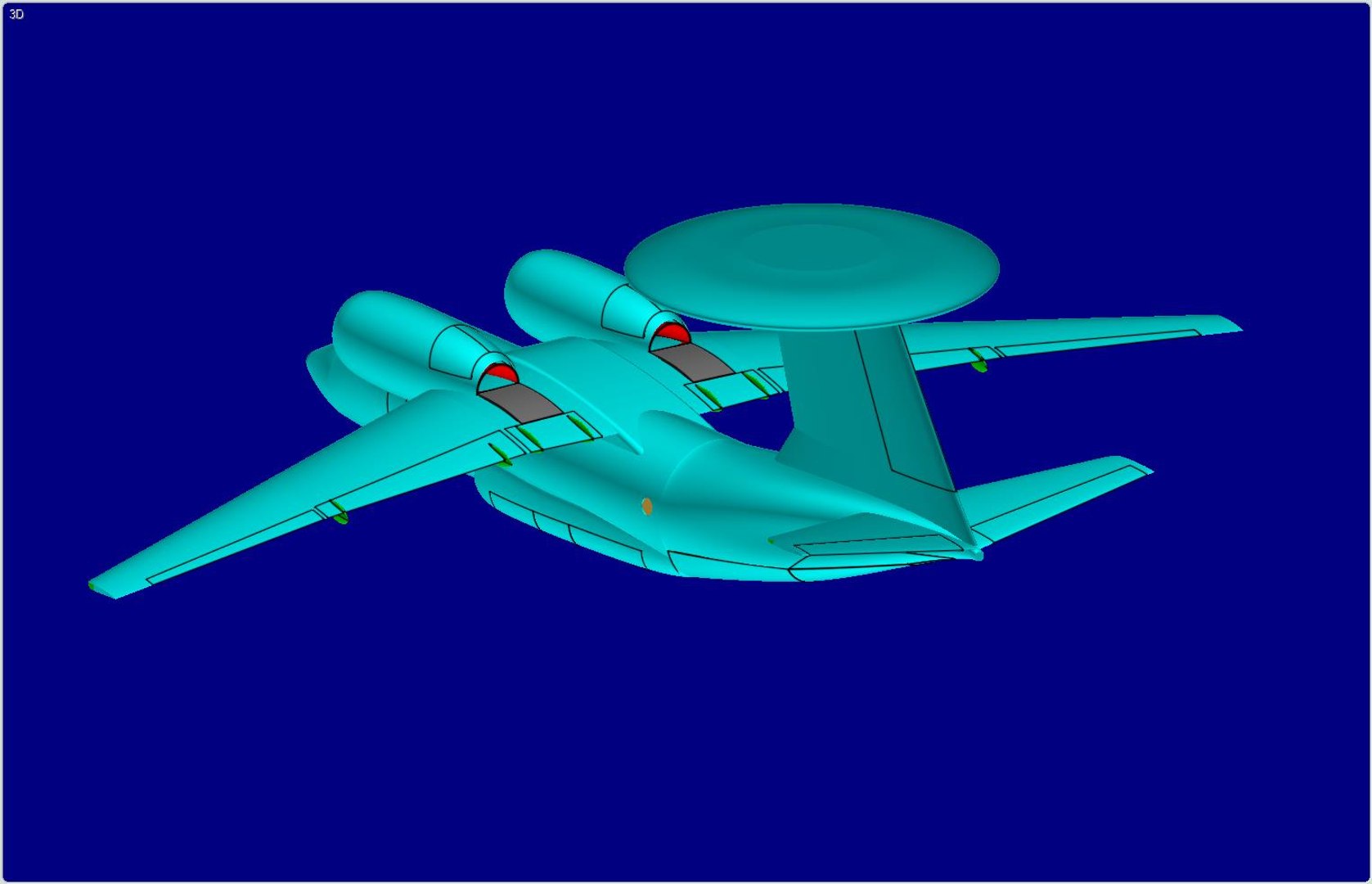

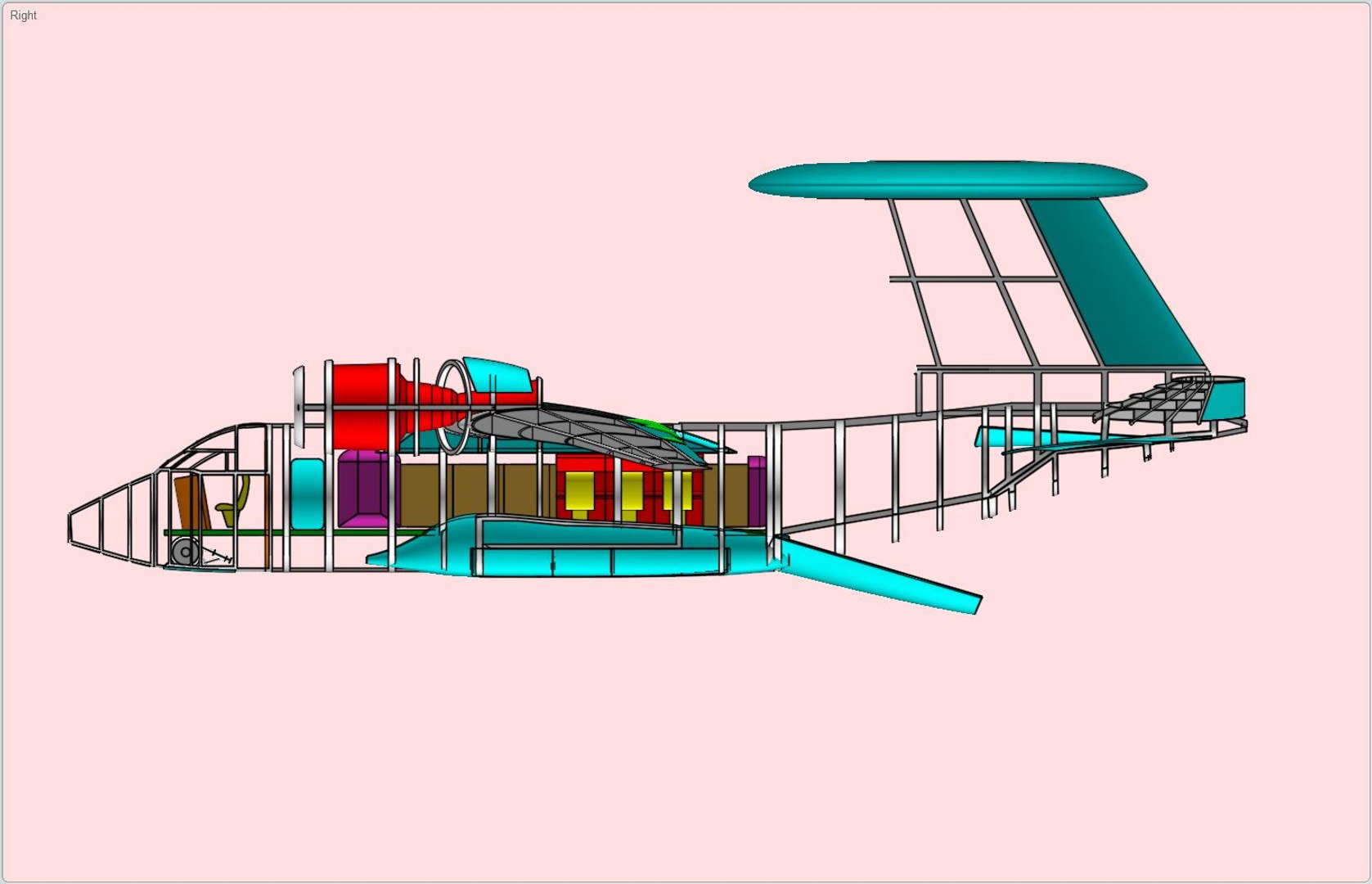

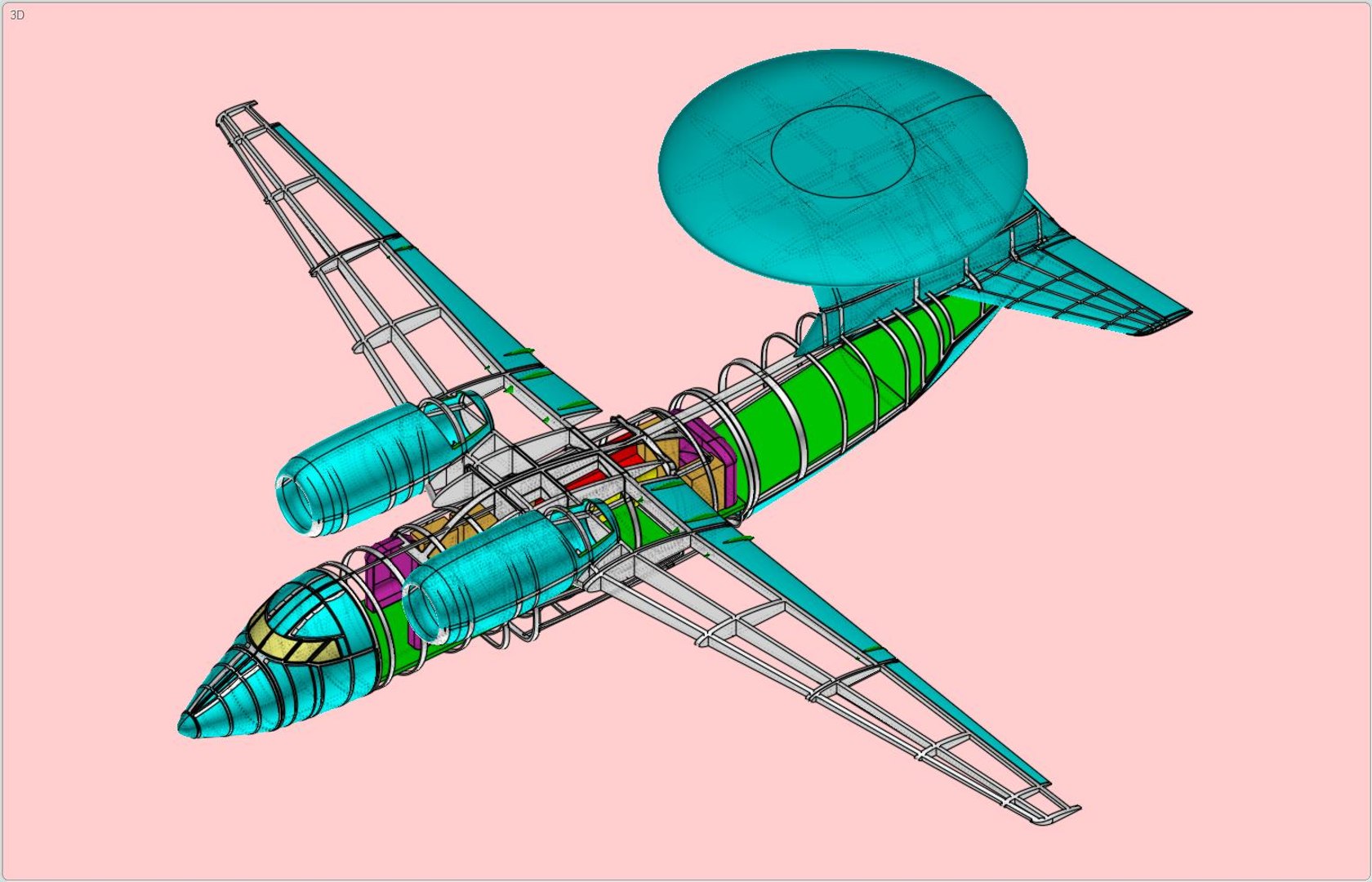

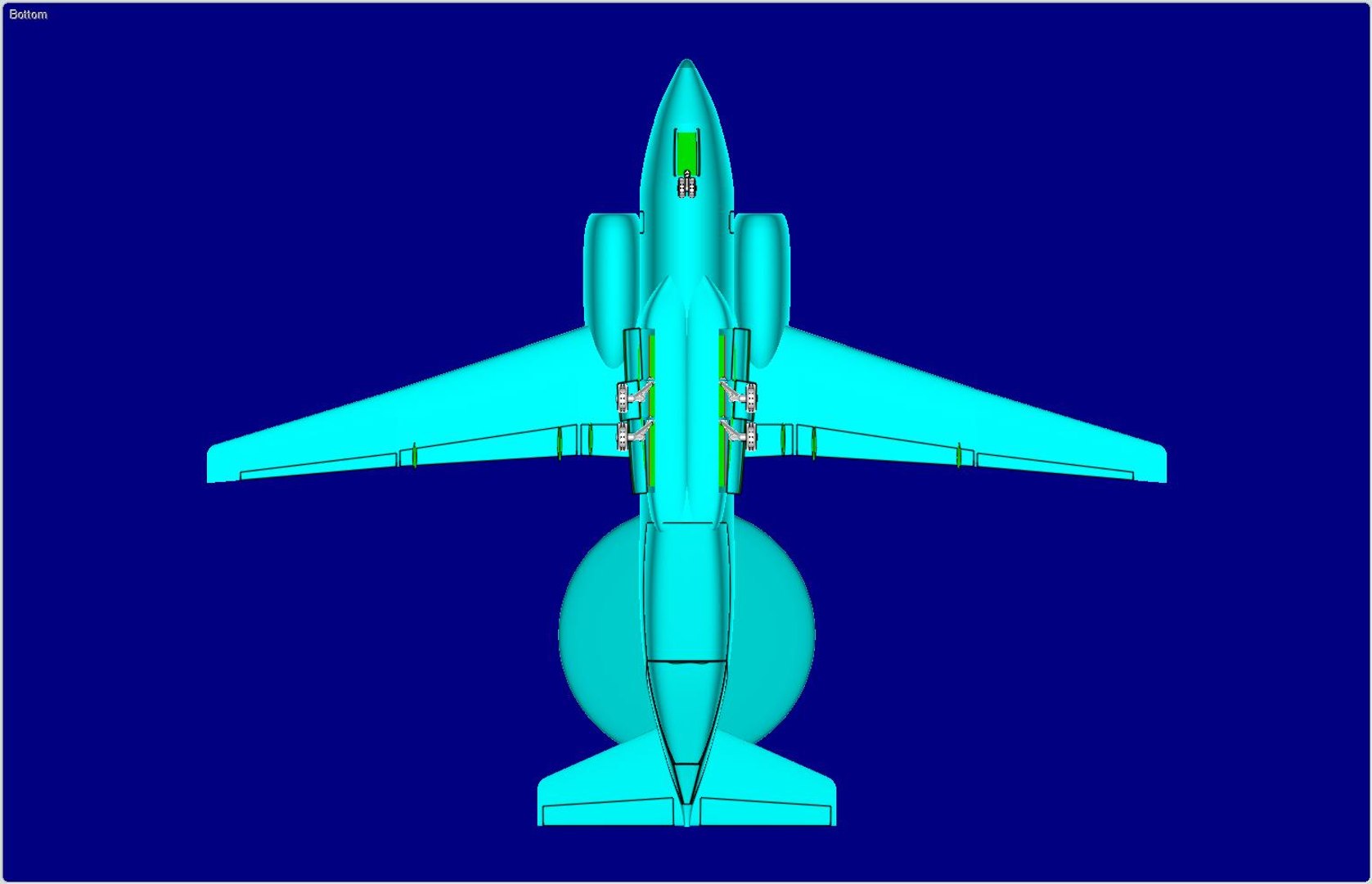

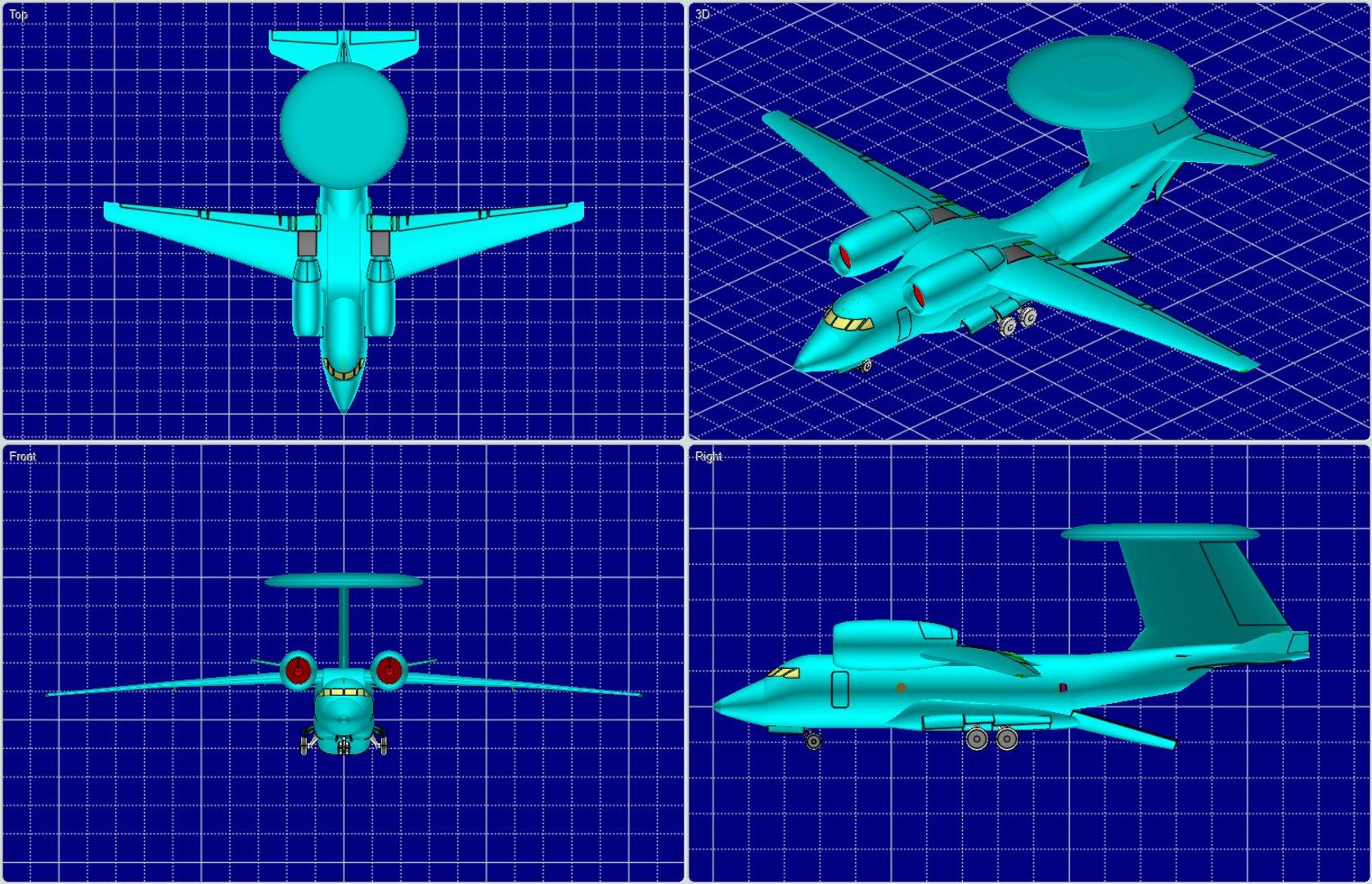

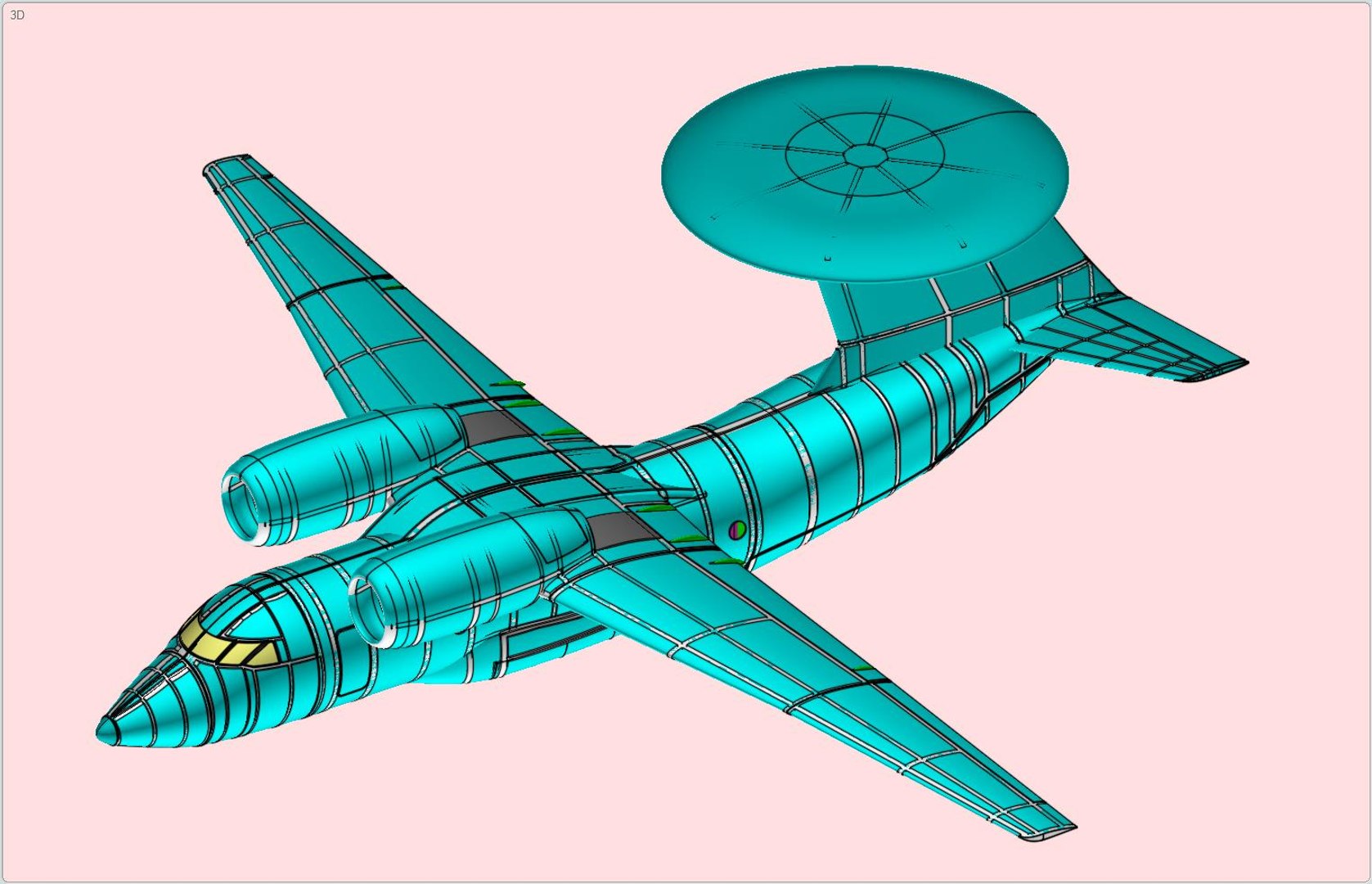

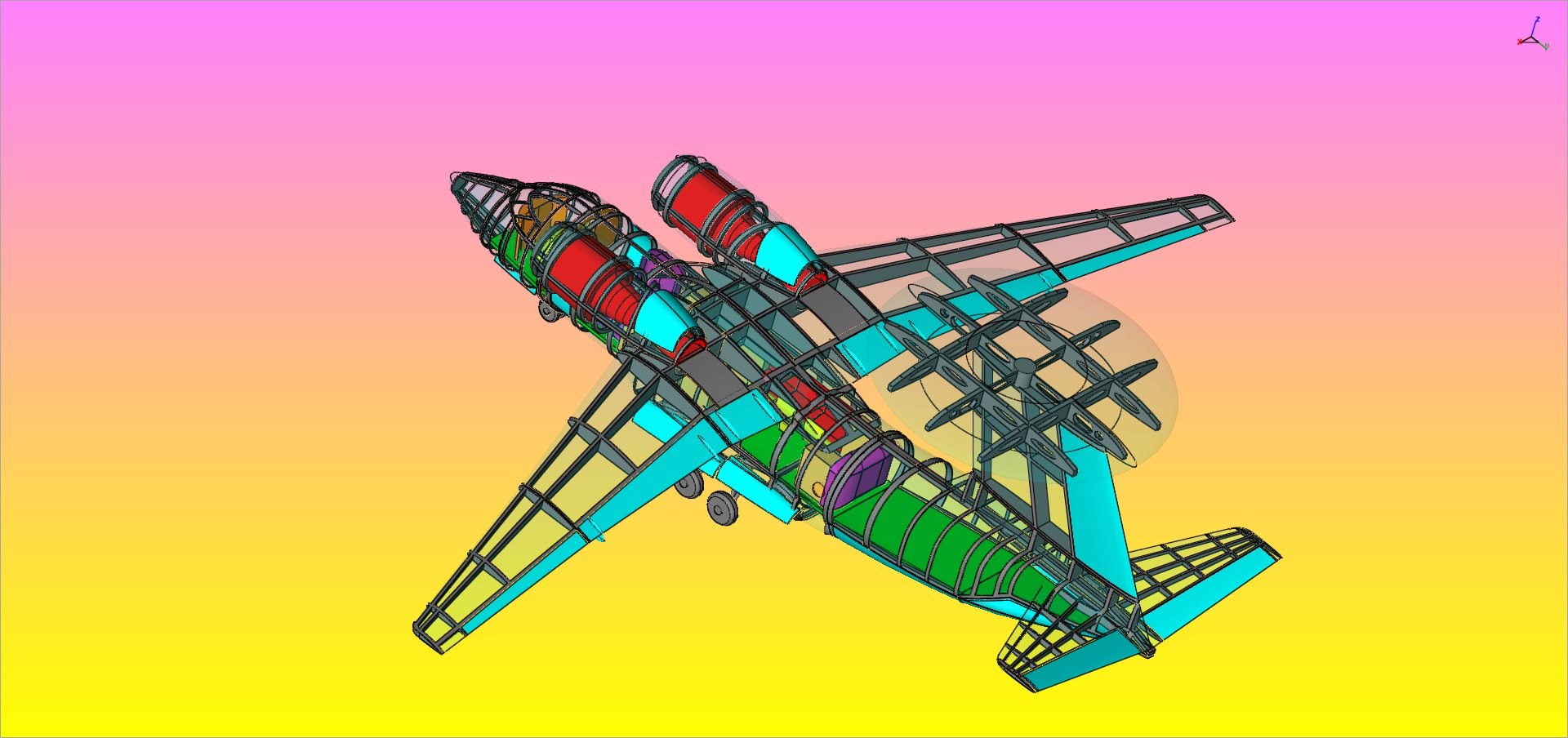

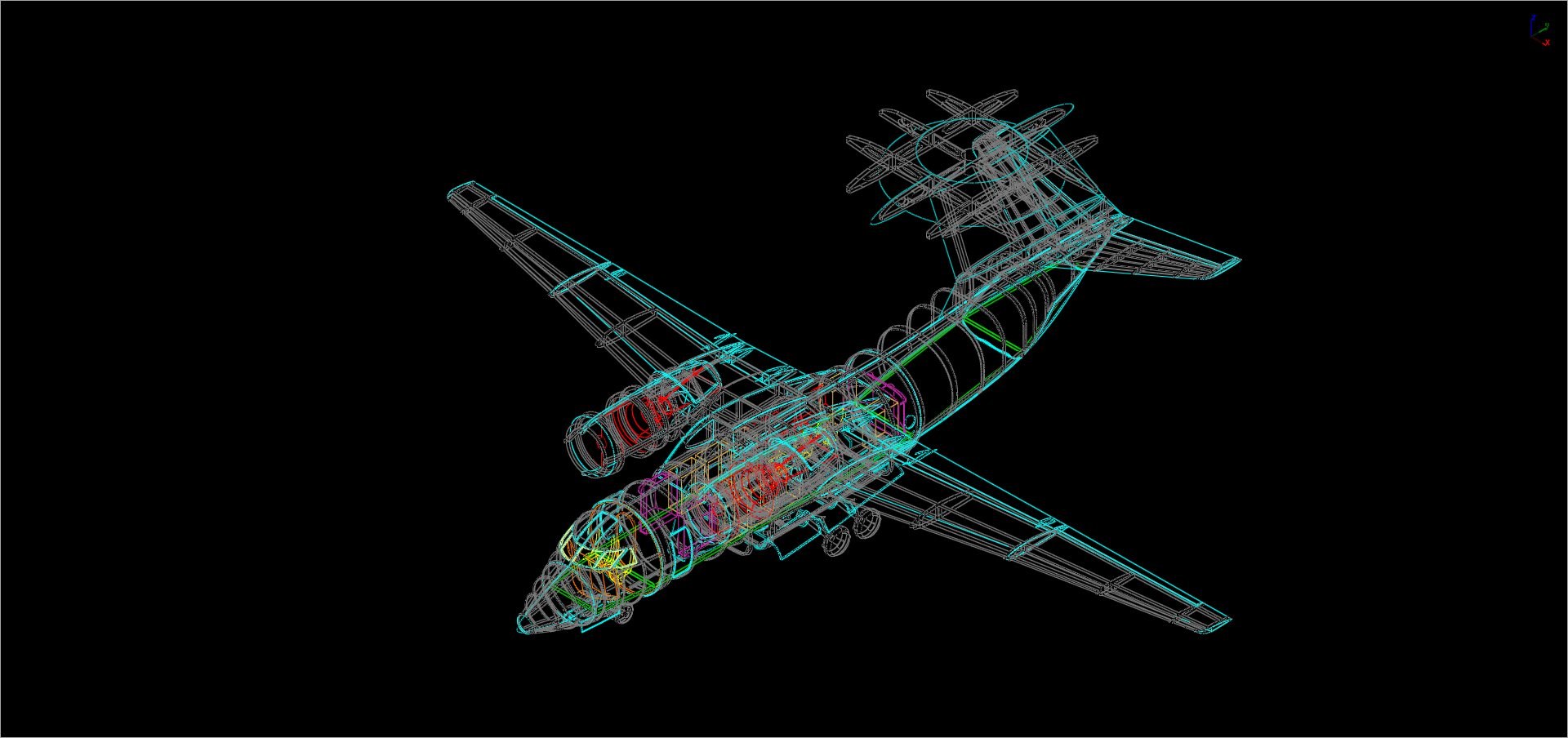

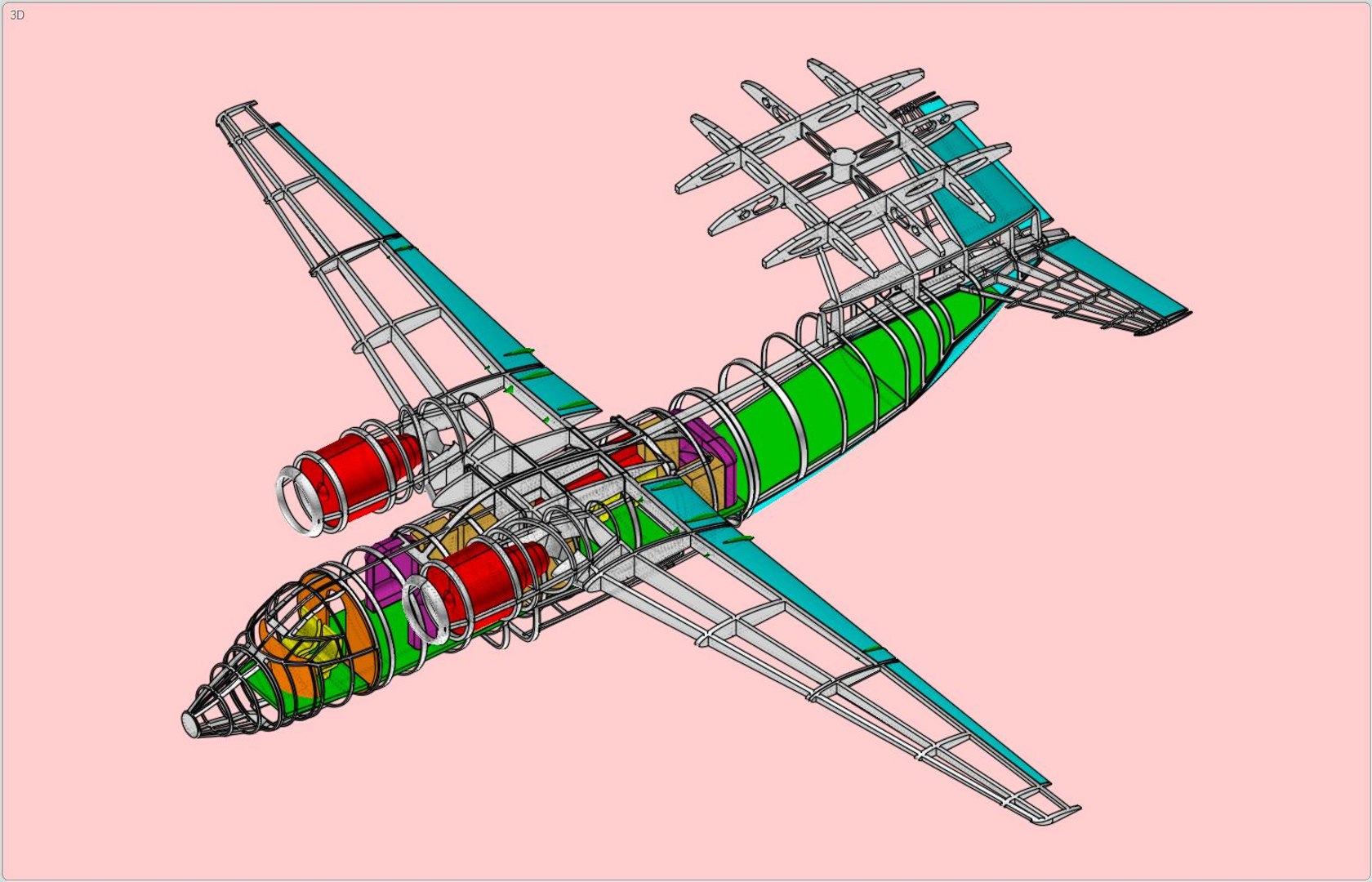

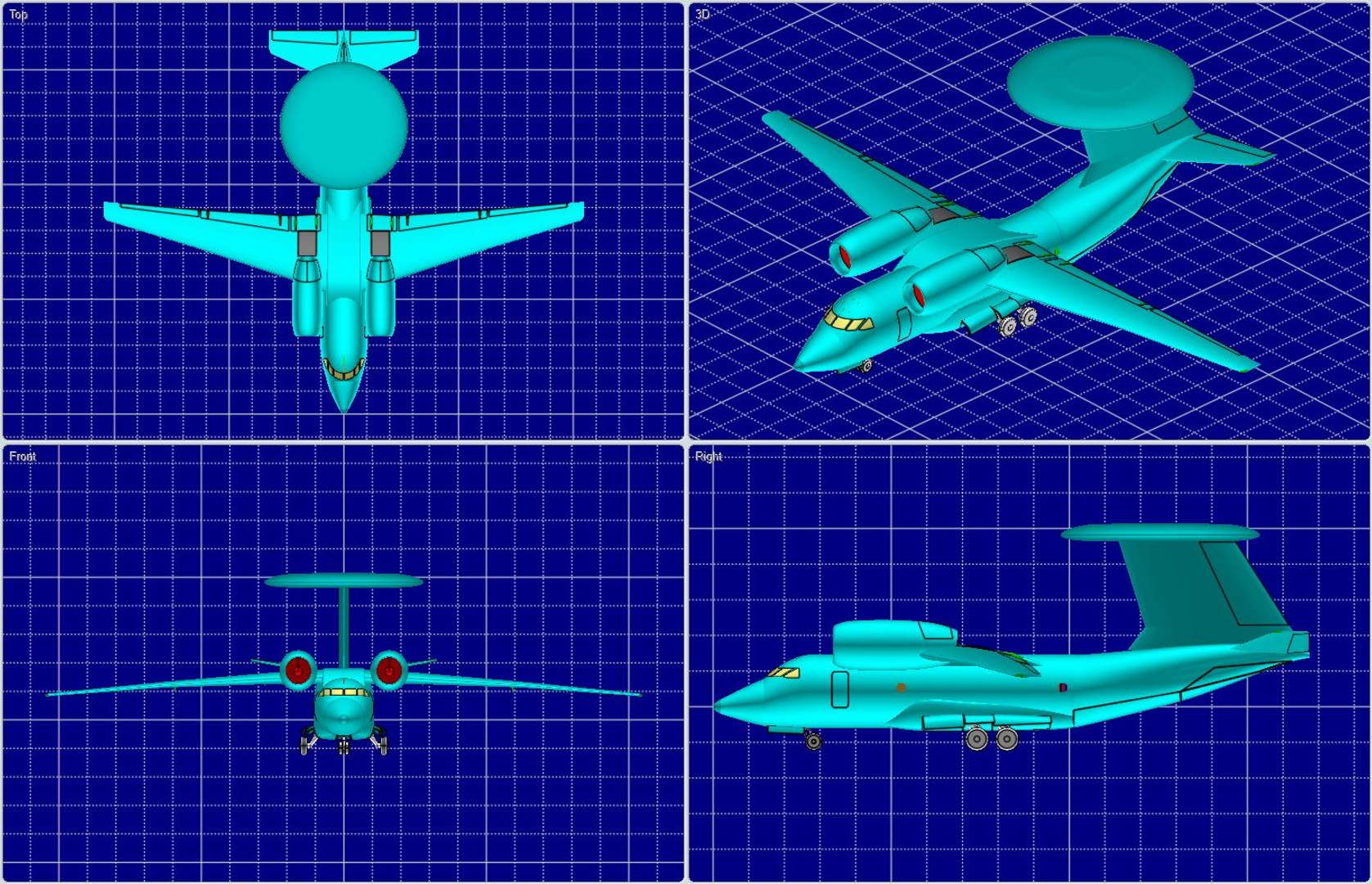

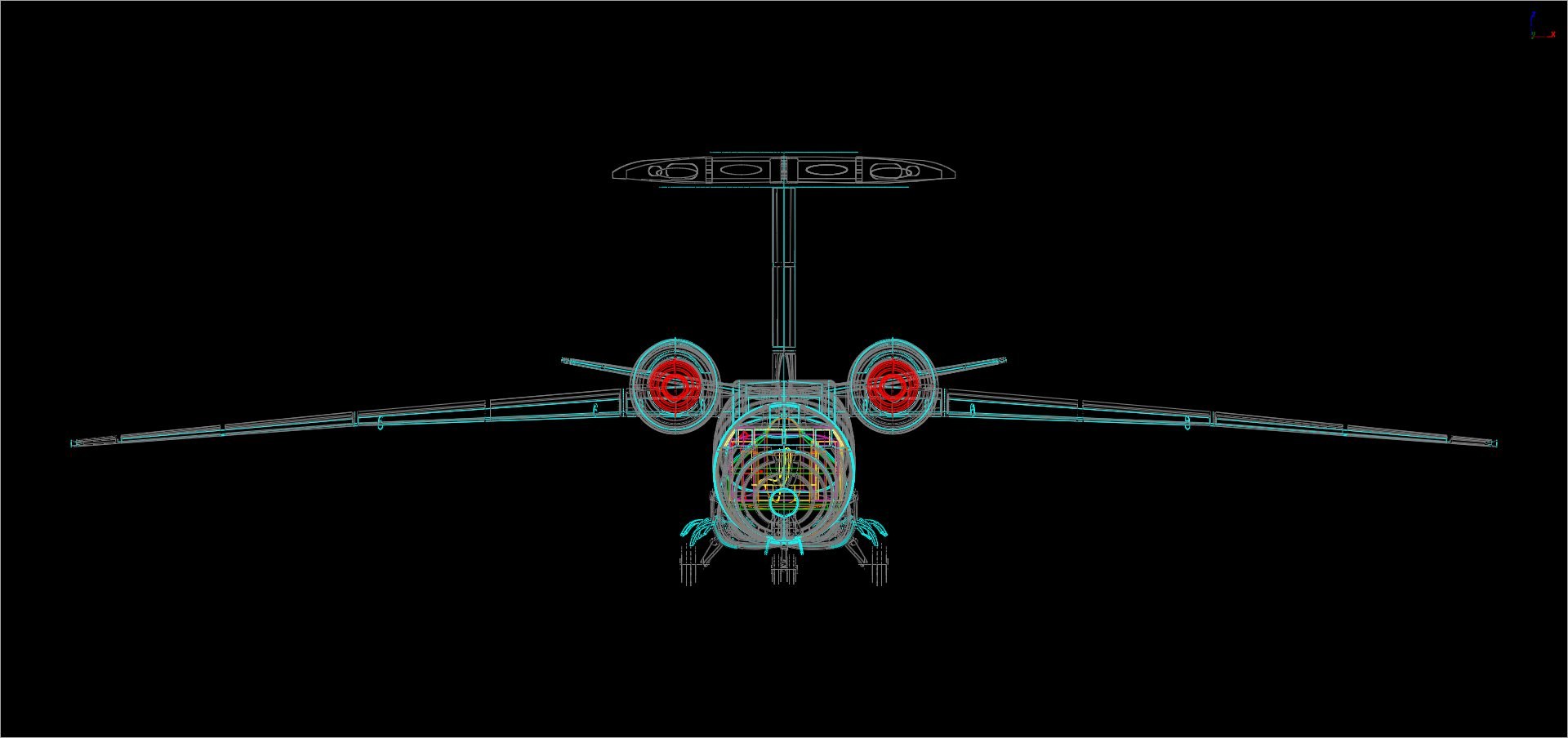

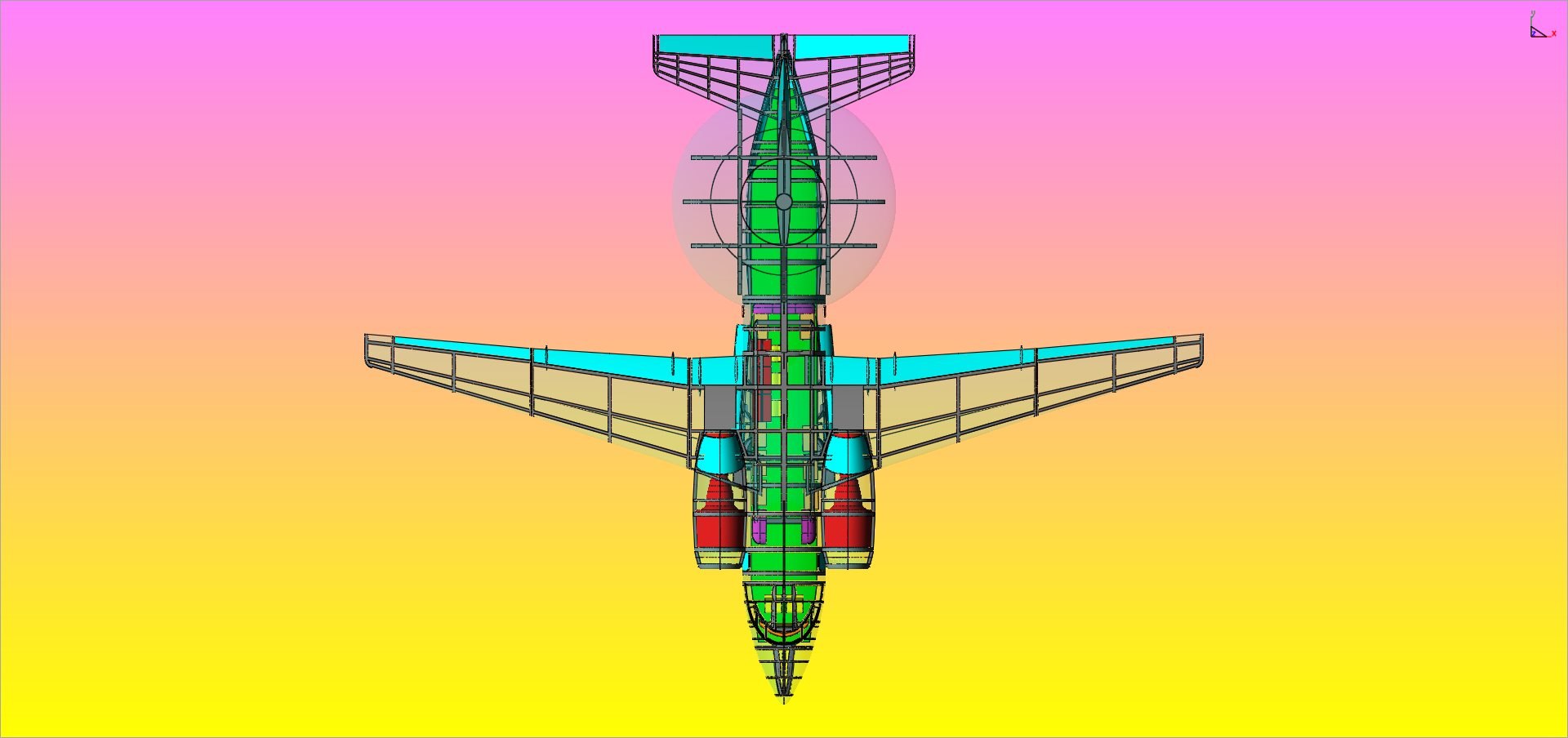

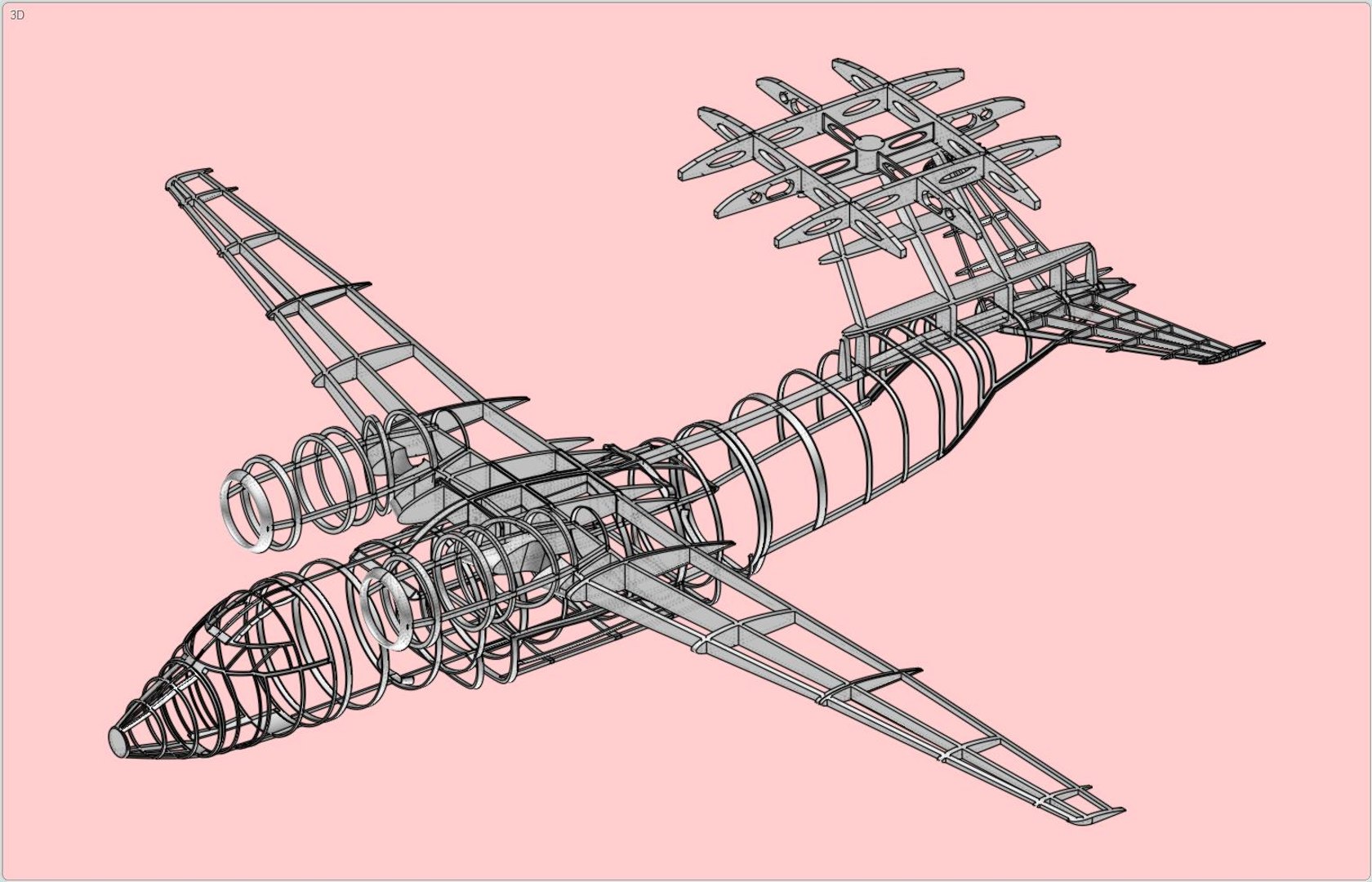

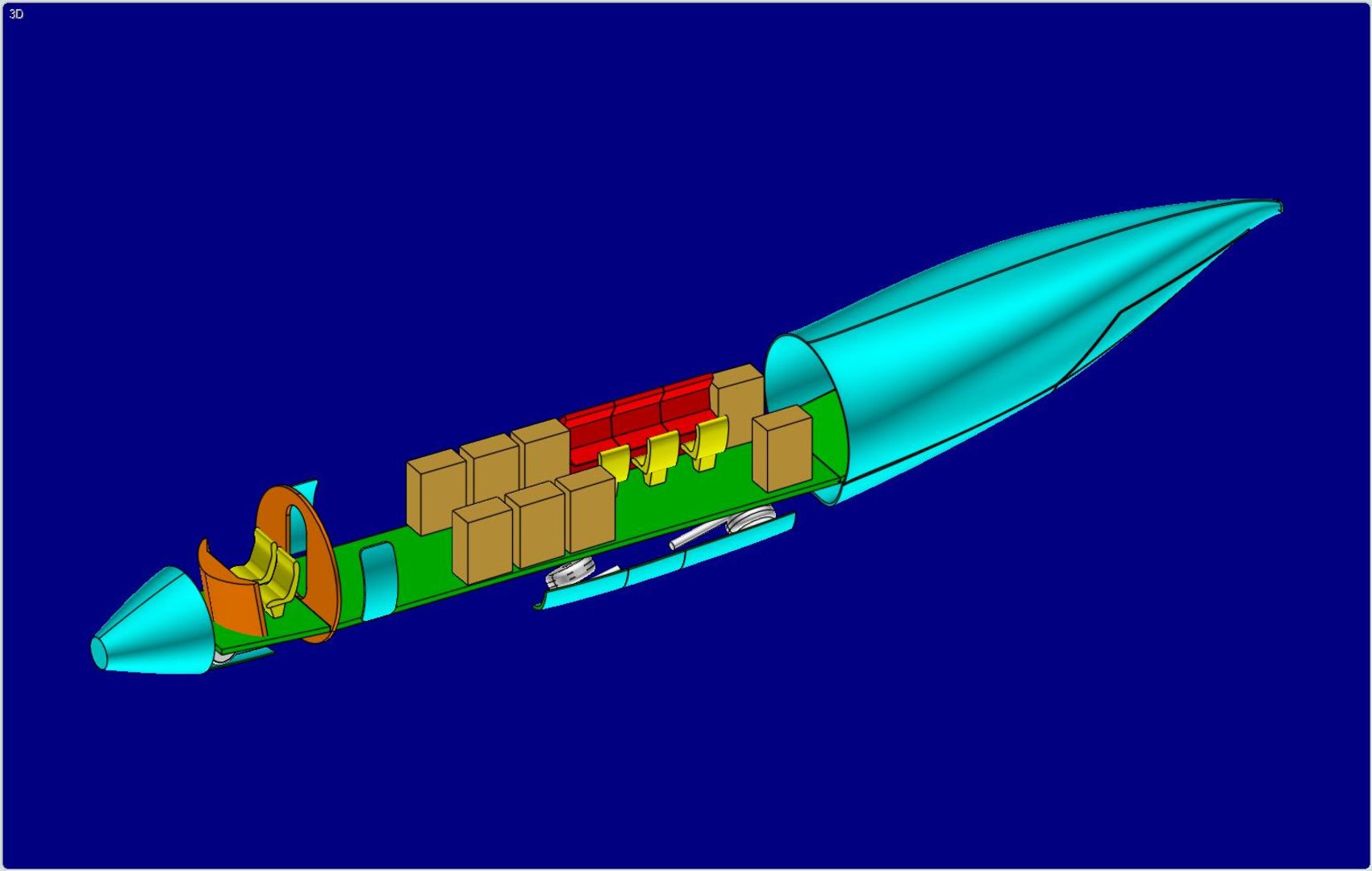

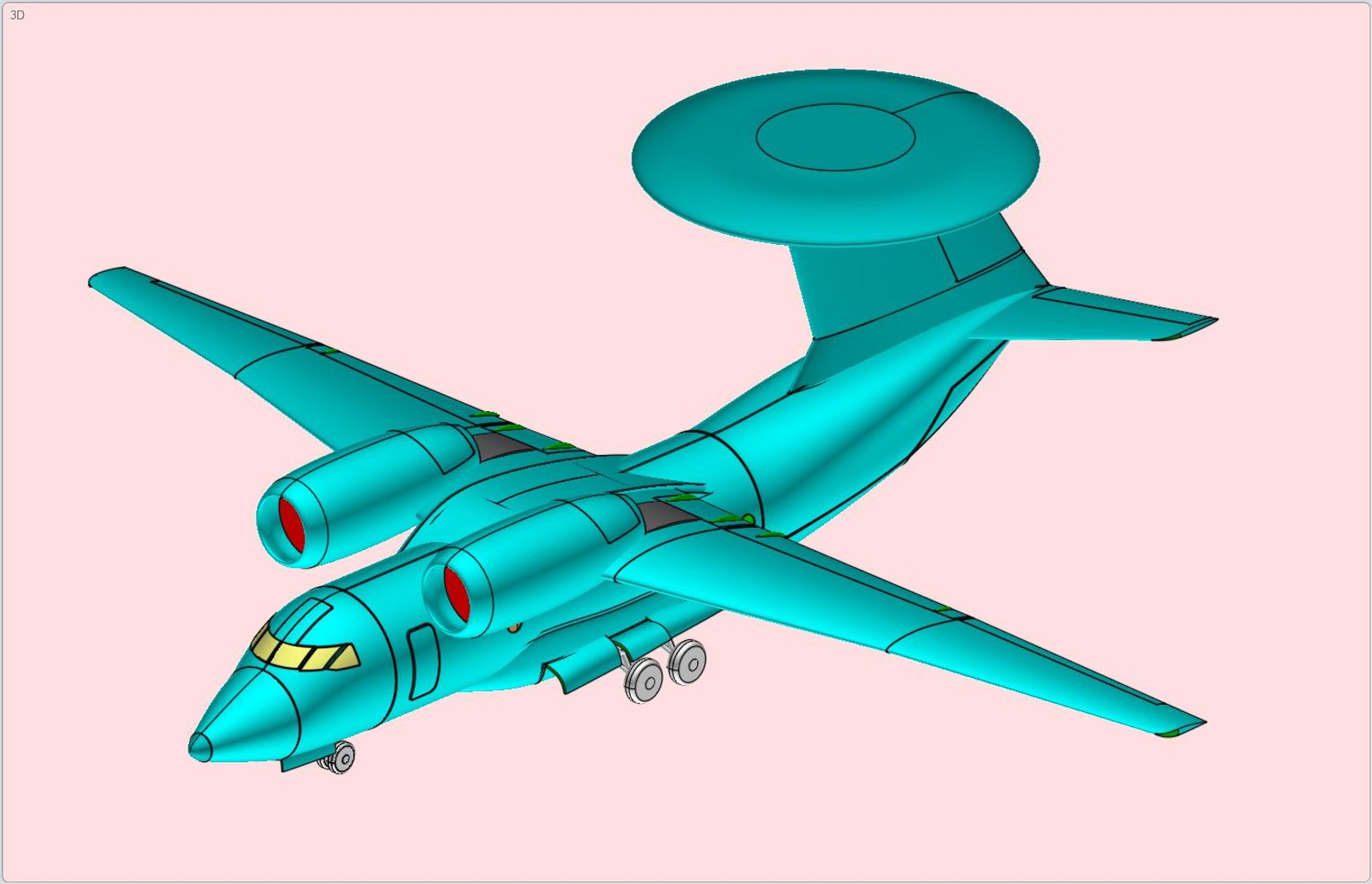

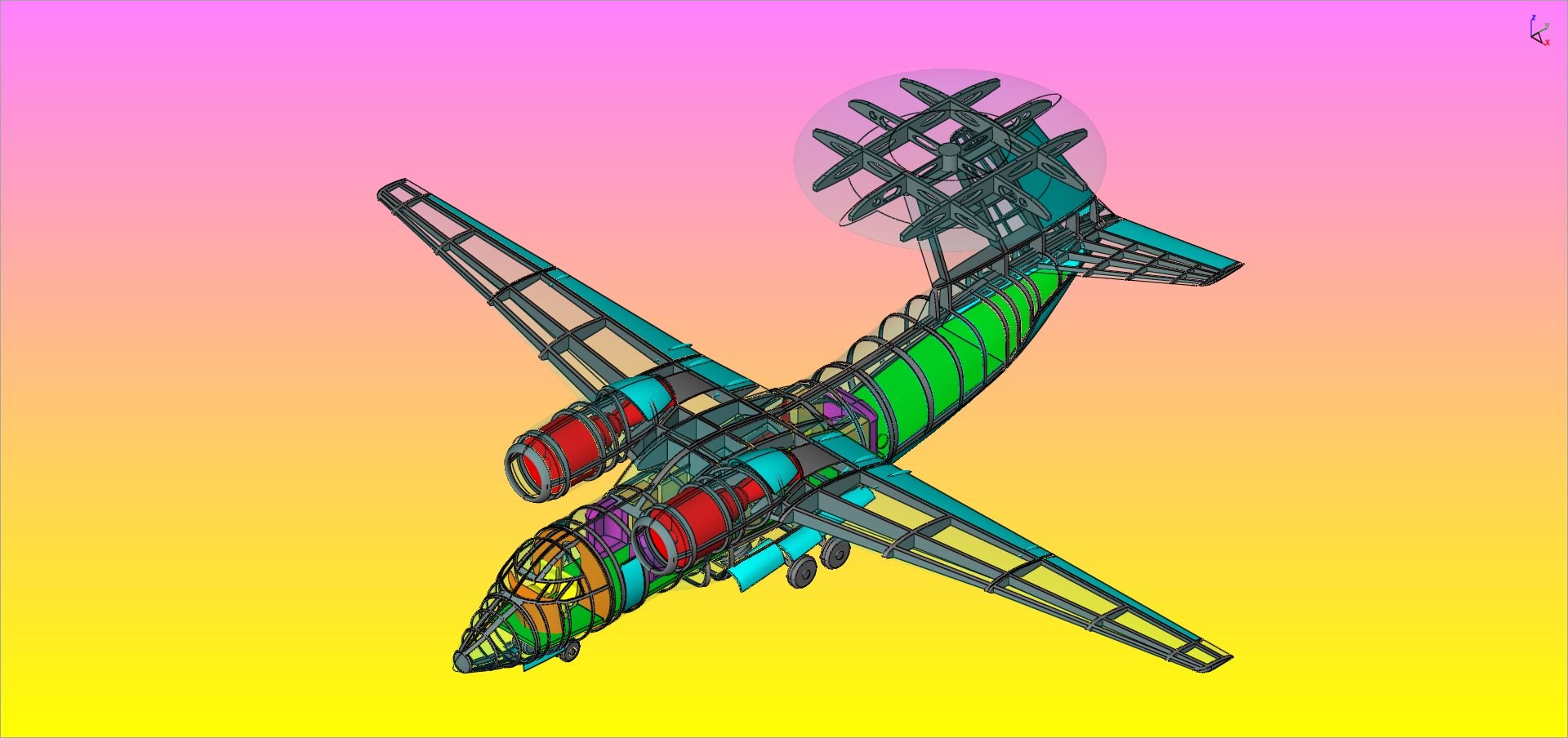

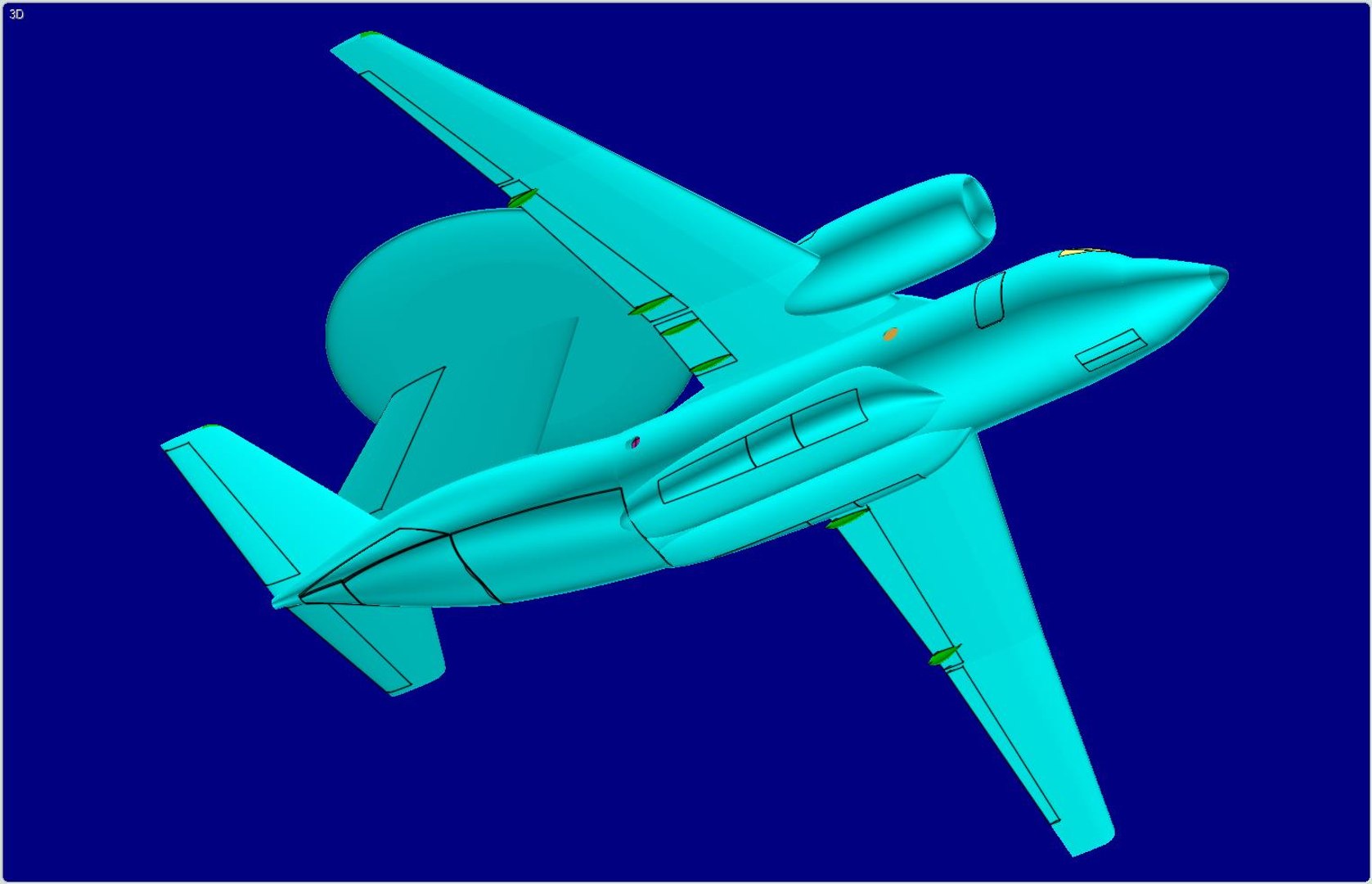

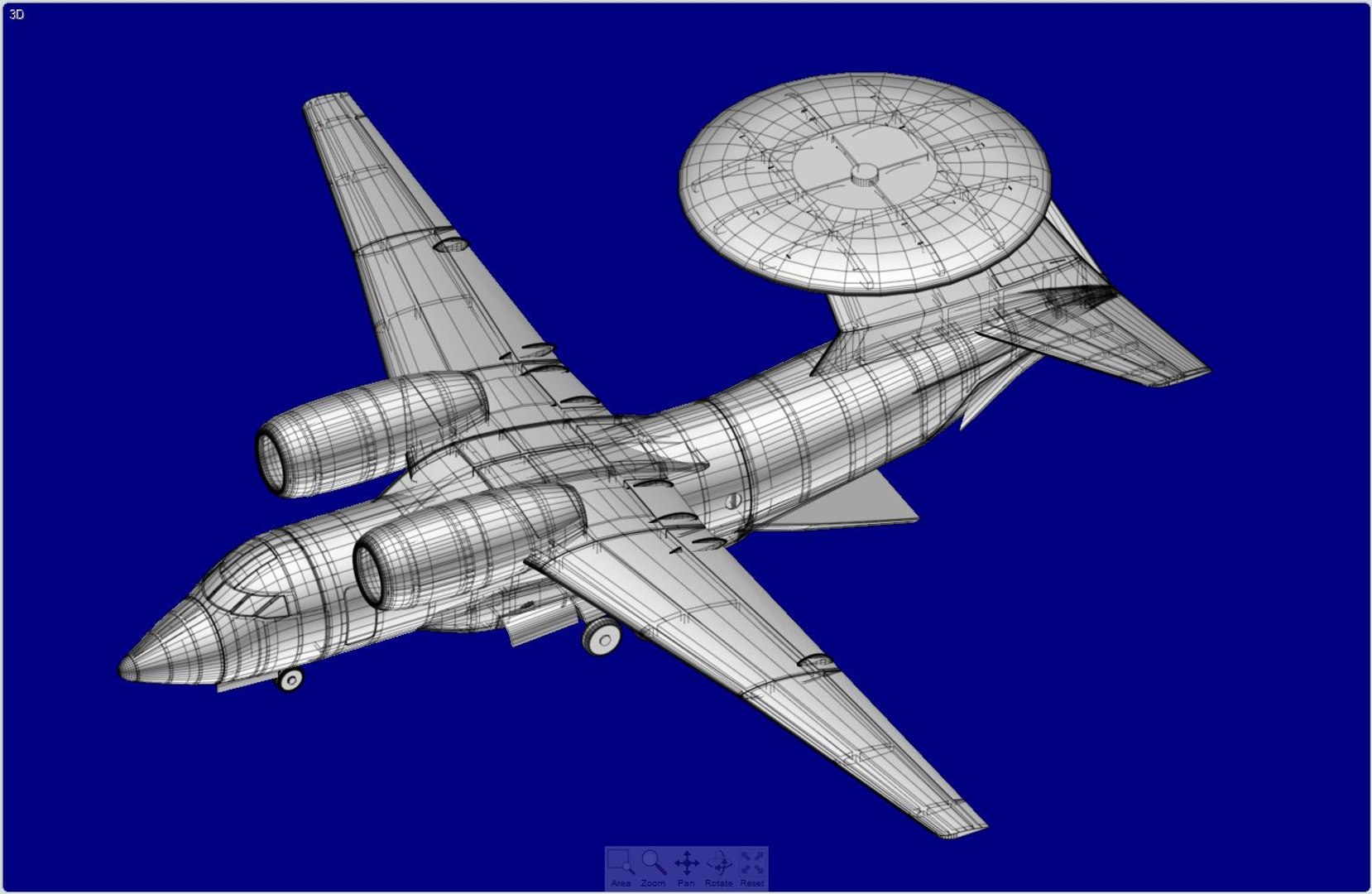

The Antonov An-71 Madcap (Rev) AEW Aircraft Solid Assembly Model consists of 237 solid part primitives collected into 32 sub assembly modules.

All of my models are developed specifically for use by conceptual designers, experimenters, educators, students and hobbyists. The models are constructed from scratch employing scaling of publicly released simple 3 view drawings and experienced based imagination. Although general representation is very good - detail accuracy and accountability are compromised by this approach.

I have successfully applied this tactic in classrooms wherein the models serve as points of departure for a large variety of student projects involving part redesign, concept alteration and new concept evolution.

Please enjoy!
