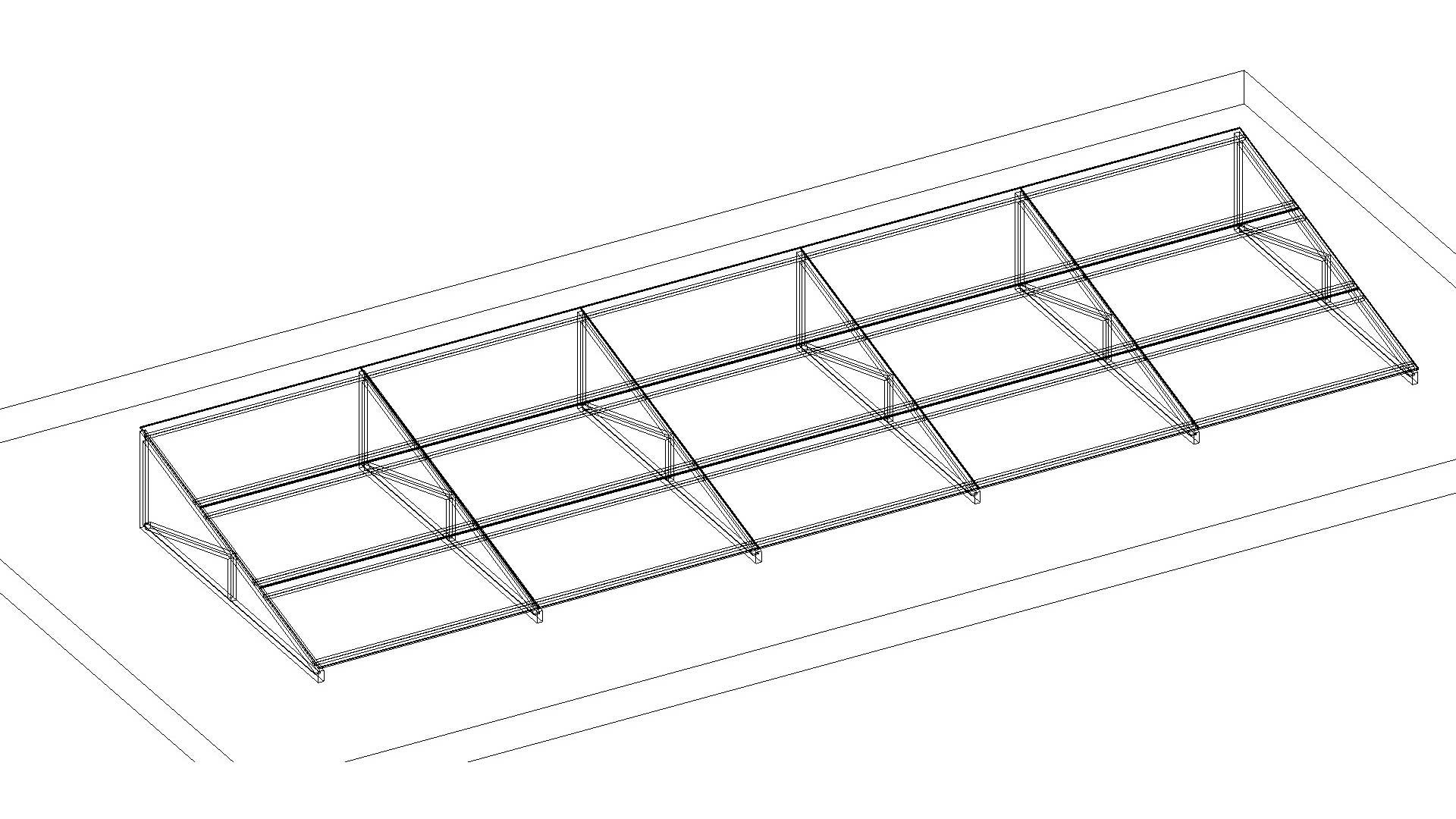

Fully Parametric Photovoltaic Solar Panel Setup systems Revit Family Model. This is a face based generic model, that can be placed onto any project face ( slab, roof, floor and any other surface ). Large variety of solar panel setups can be created including flat surface mounted systems or flat surface frame mounted.

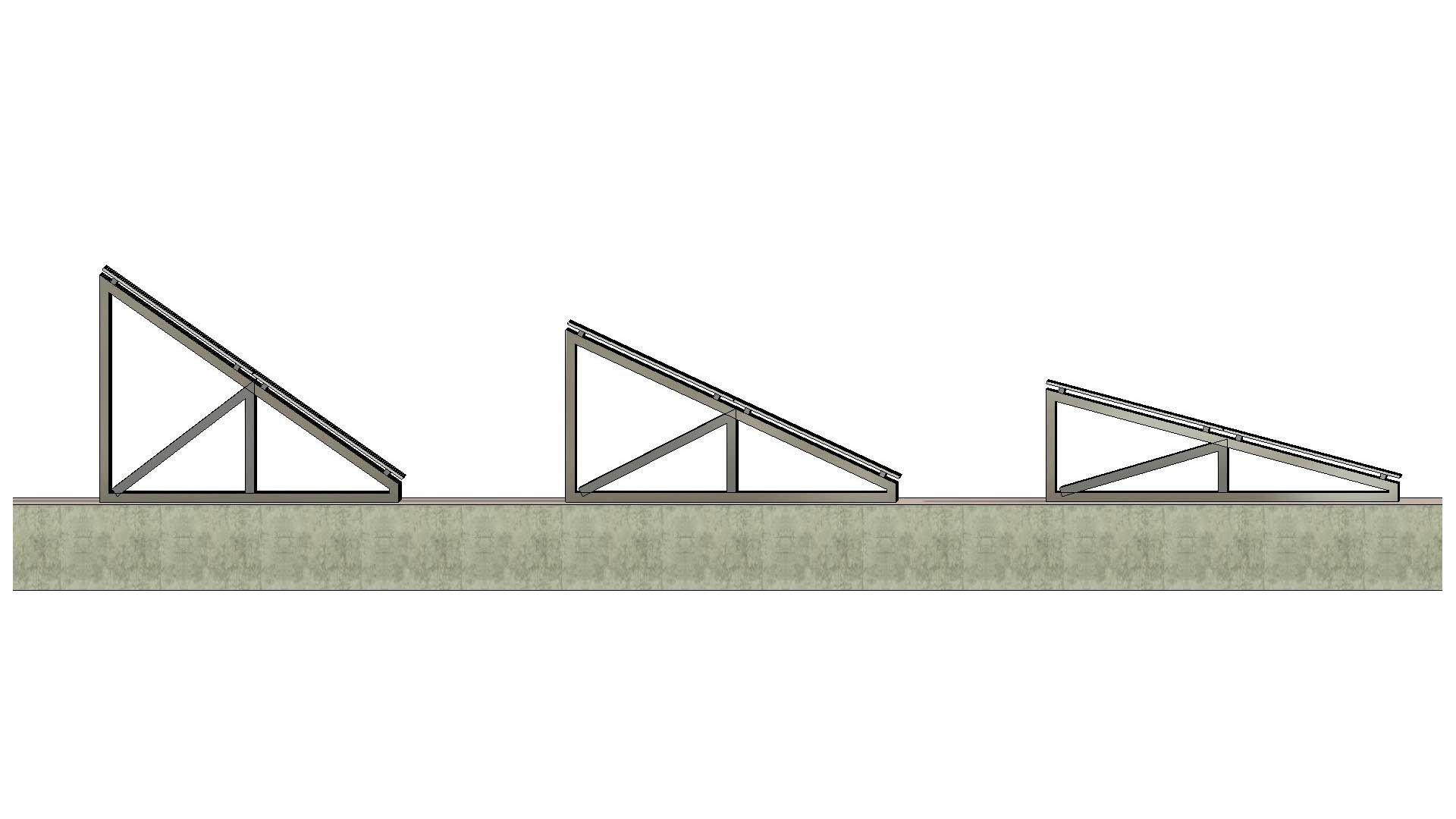

This face based parametric can be placed almost anywhere. Family parameters allow the user to create any variation of solar panel setup necessary. Panel size, mounting angle, panel rows and number of panels per row as well as all materials are parametric.

By changing the number and size of panels, all other dimensions are automatically calculated and displayed.

ATTRIBUTES:

- Revit Version : 2022

- Family Type: Face Based Generic Model

- File Extension : .rfa

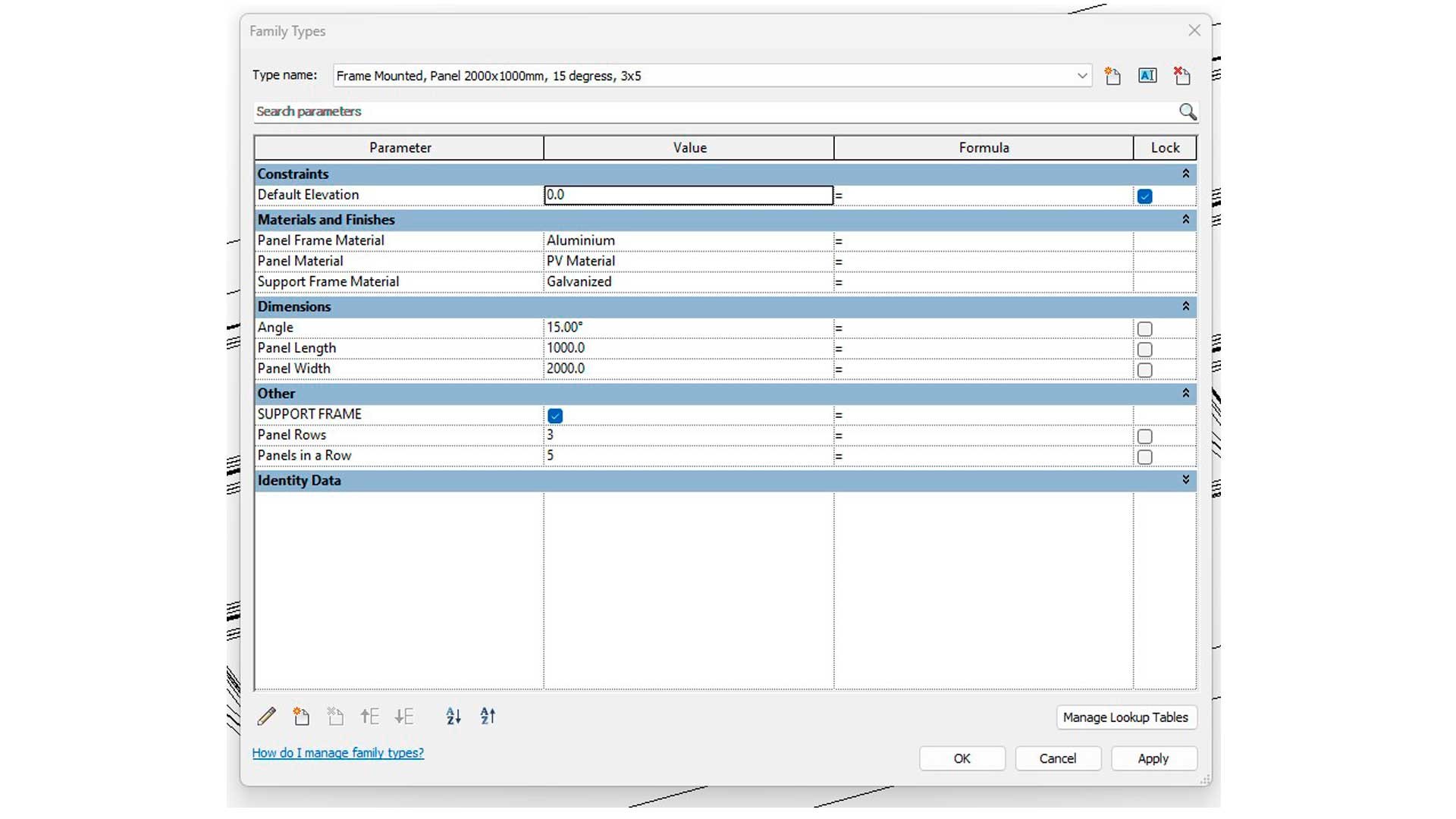

PARAMETERS:

- Panel width

- Panel Length

- Angle

- Rows of panels

- Panels per row

- Option for surface mounted or frame mounted

- All Materials

FAMILY TYPES:

All family types pre-built ready to be used are included with this package as a text file that can be automatically read by REVIT. By importing the model, the system opens the list of available family types to be imported. User can select, one or multiple types or even all of them to be imported.

Many more system setups can be created by the user.
