soepele EDRATEEN leiding 110 gr C-H05GG-F 3G1.5mm2

Flexible cable for temperatures up to 110 °C

NEN: GMgL 300/500 V
CLC: H05GG-F

Application:
· Connection of non-fixed electrical appliances and lighting fittings, where high temperatures may occur locally
· Connection and control of boilers in central heating systems

General properties:
· Good resistance to high temperatures (conductor temperature max. 110 °C)
· Good resistance to weather influences (including ozone)

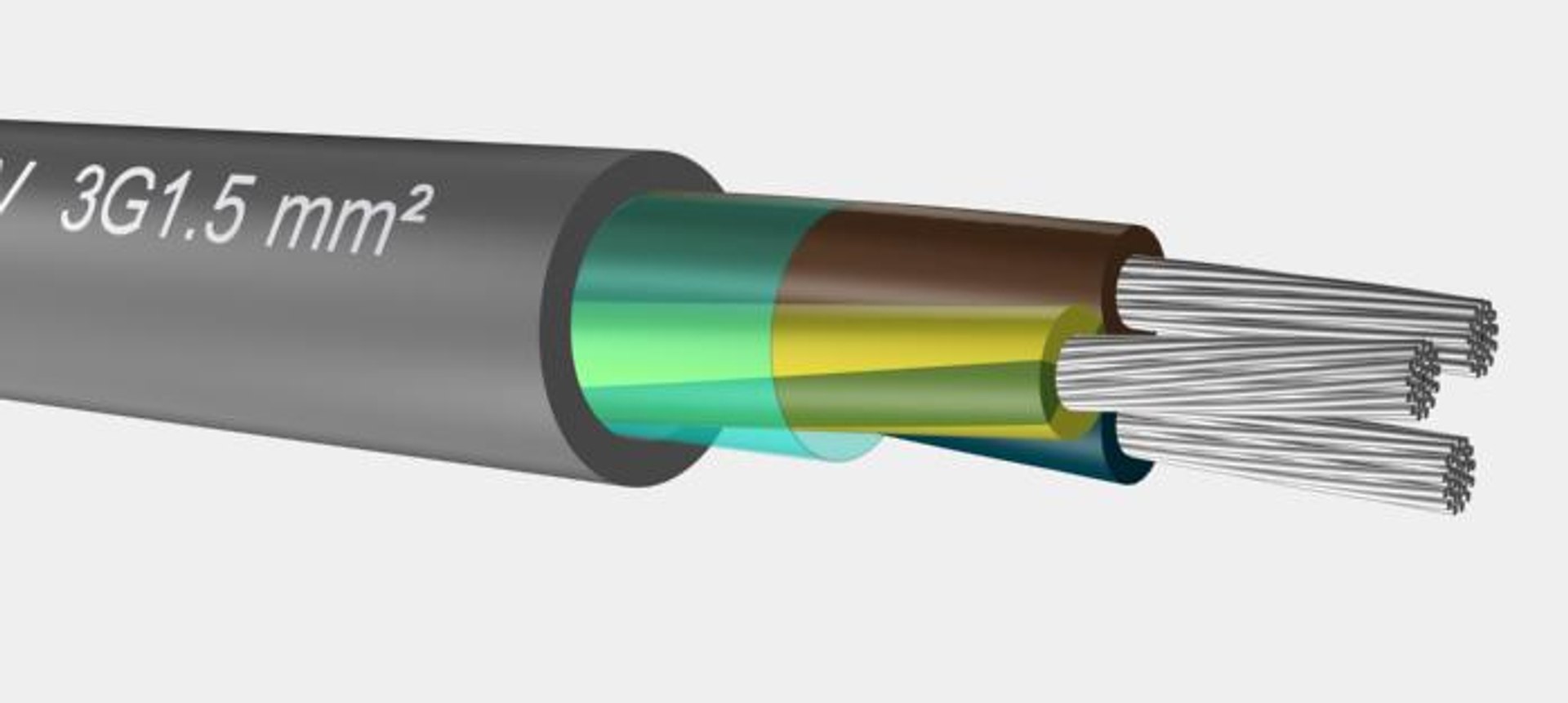

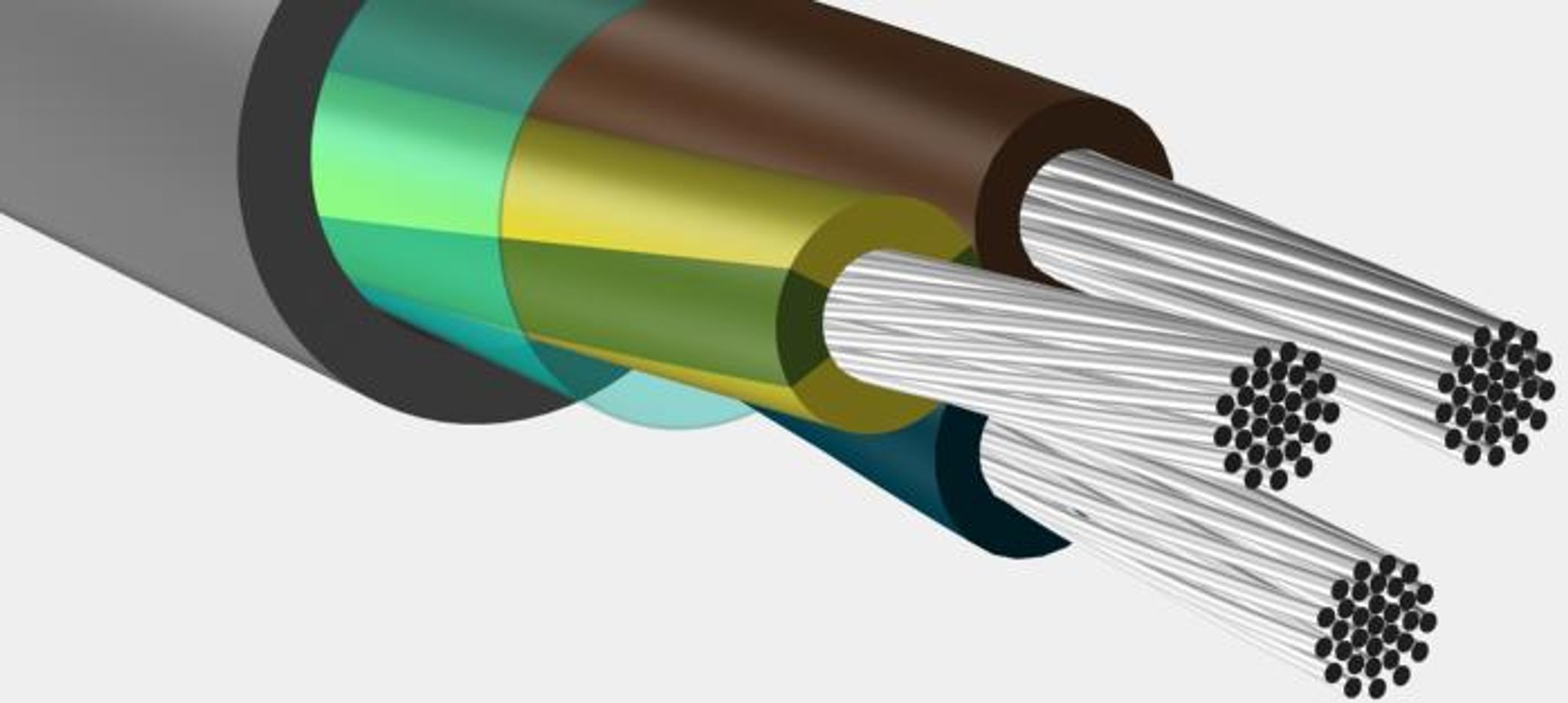

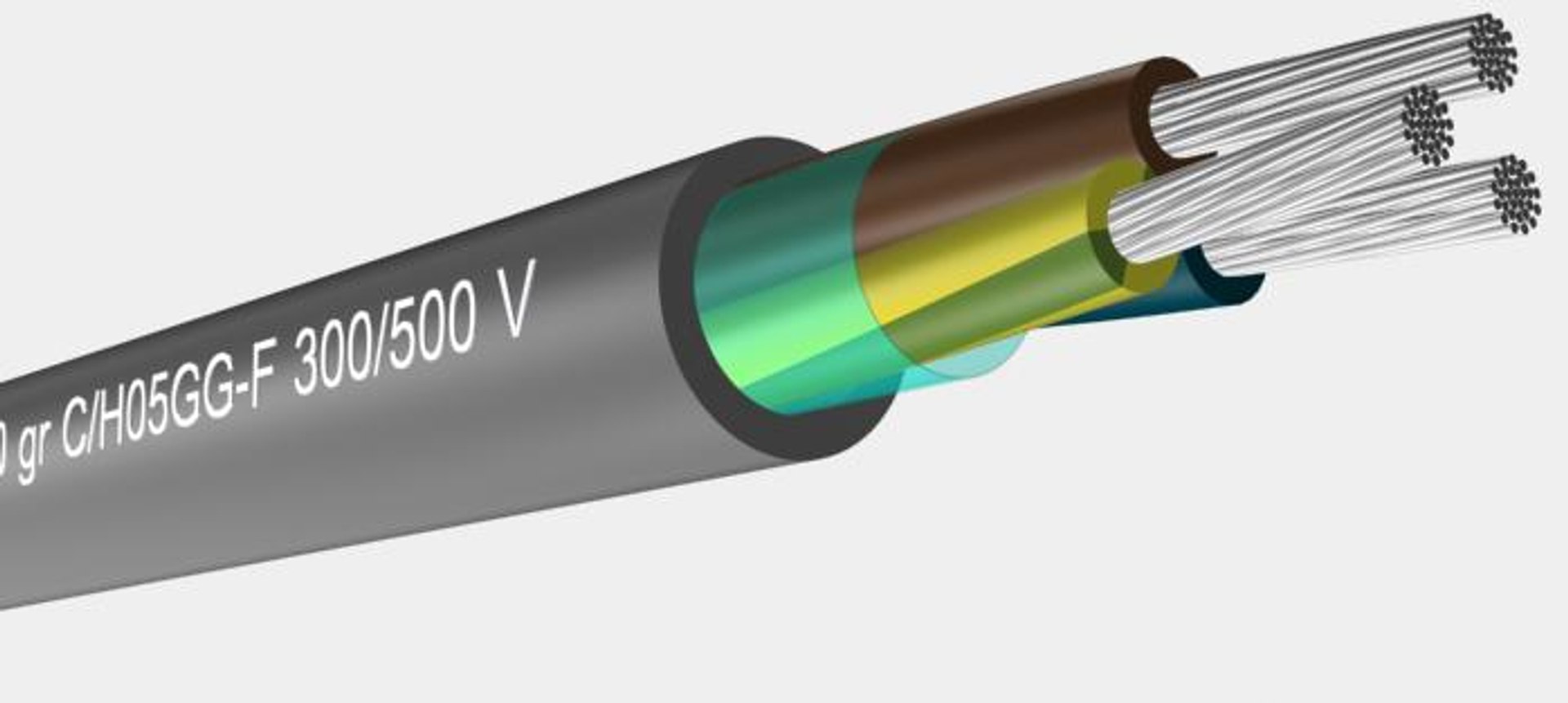

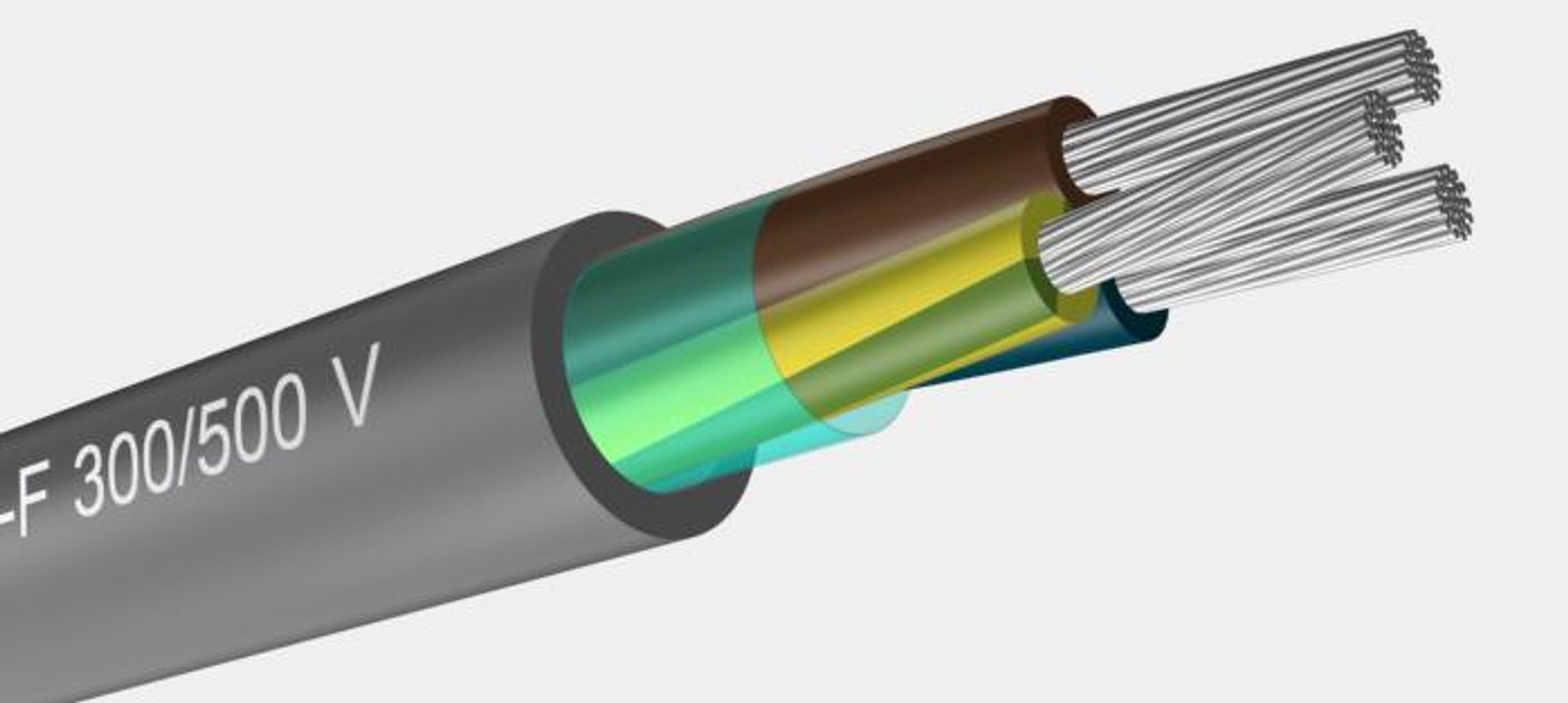

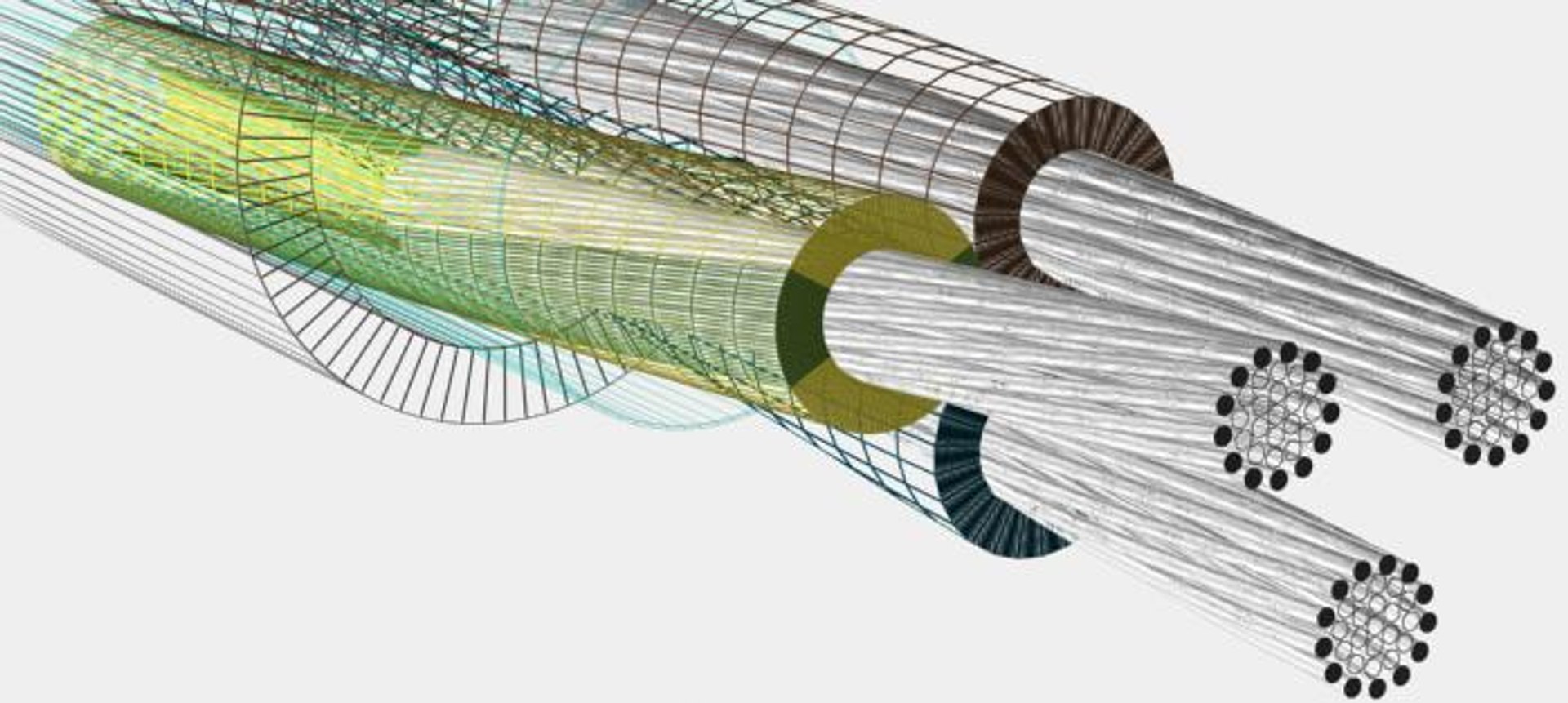

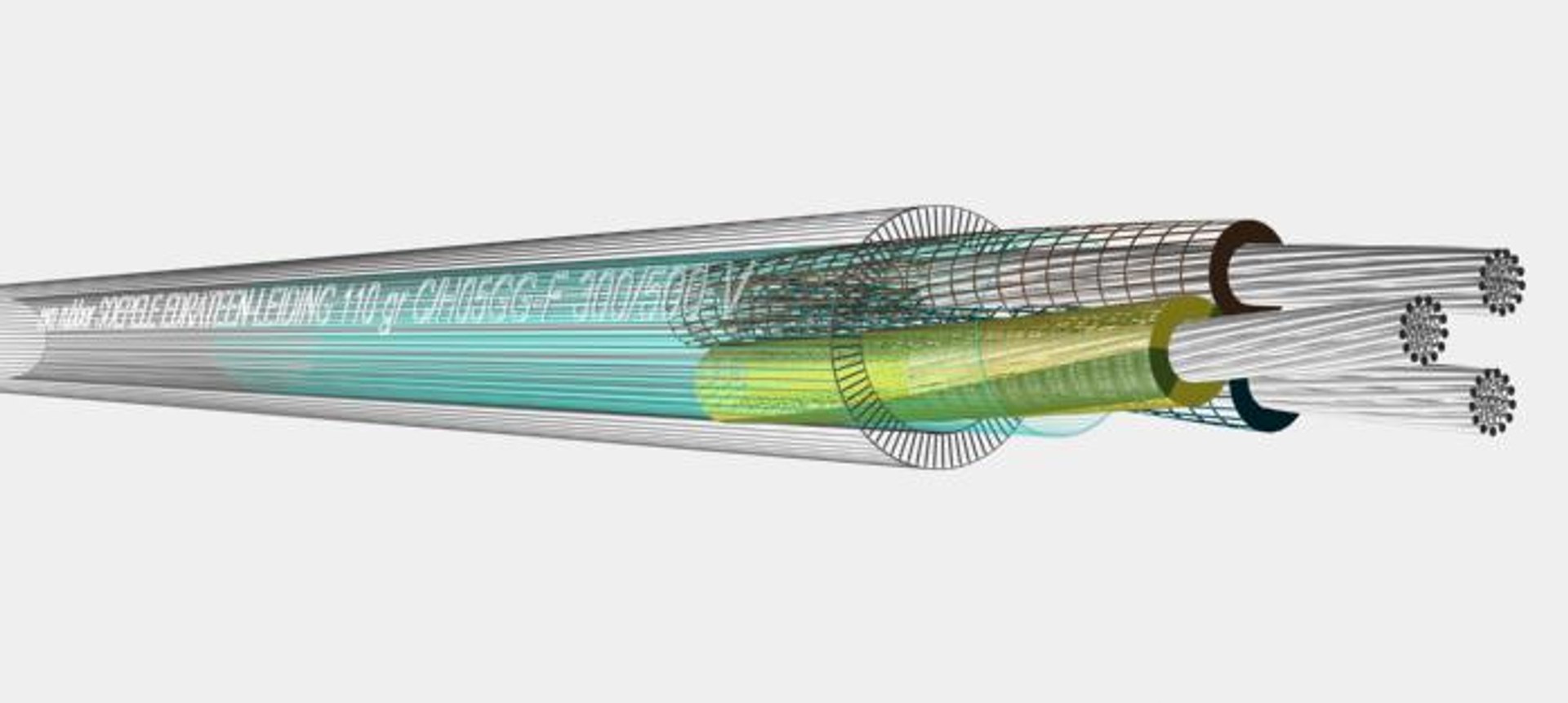

Construction:
Conductor: flexible tinned copper (class 5)
Insulation: ethylene vinyl acetate rubber (EVA)
Assembly: cores cabled together
Separator: fleece tape
Outer sheath: ethylene vinyl acetate rubber (EVA)

Electrical properties:
Voltage rating: 300/500 V
Test voltage: 2 kV

Core colours:
2 cores: brown, blue
3 cores: brown, blue, green-and-yellow
4 cores: brown, black, grey, green-and-yellow
5 cores: brown, black, grey, blue, green-and-yellow

Standards/References:
HD 22

Additional information:
Minimum installation temperature: -25 °C
Maximum conductor temperature: +110 °C
Operating temperature: min. -25 °C, max. +90 °C
Sheath colour: grey
Approval: KEMA-KEUR,
