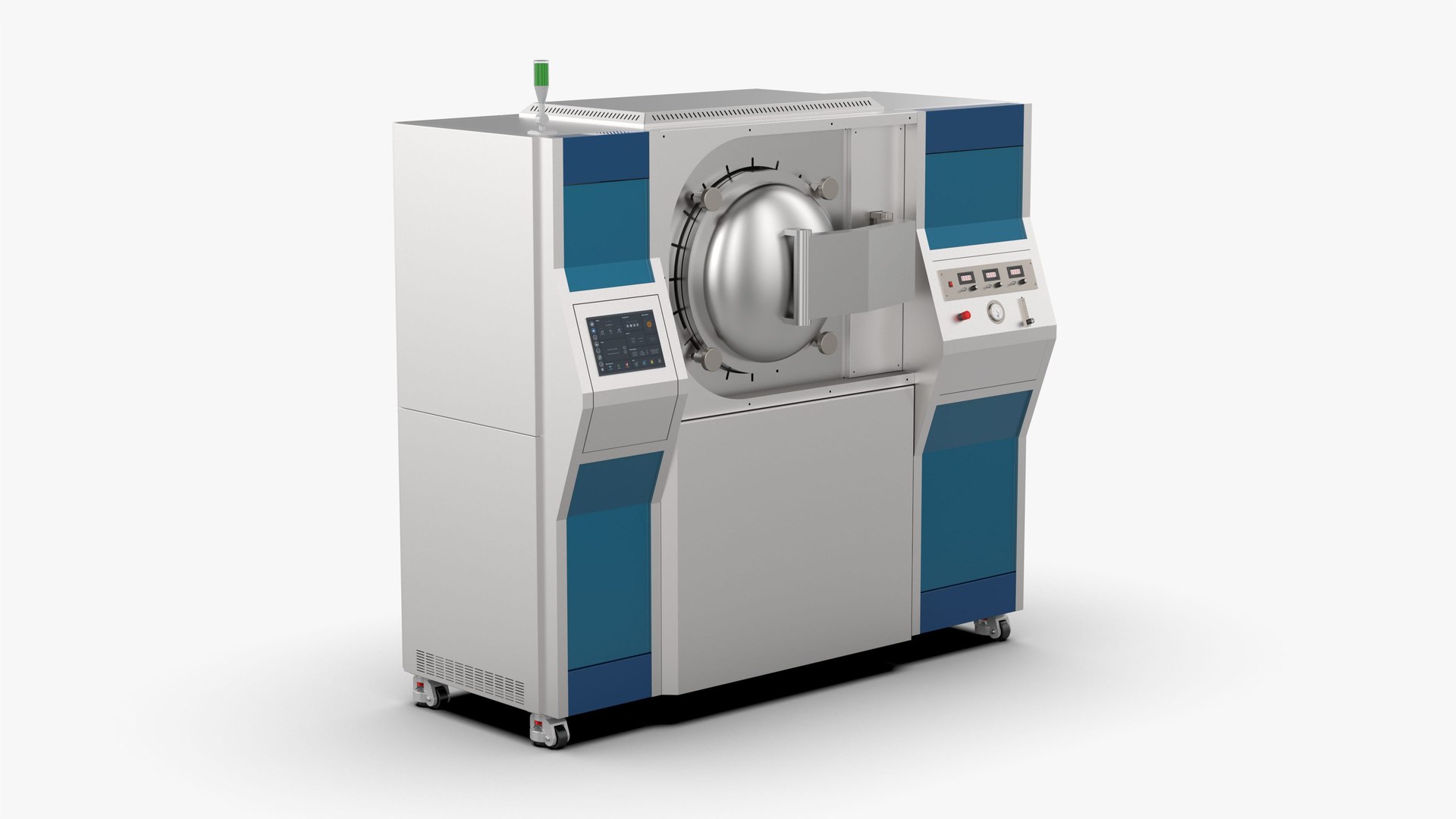

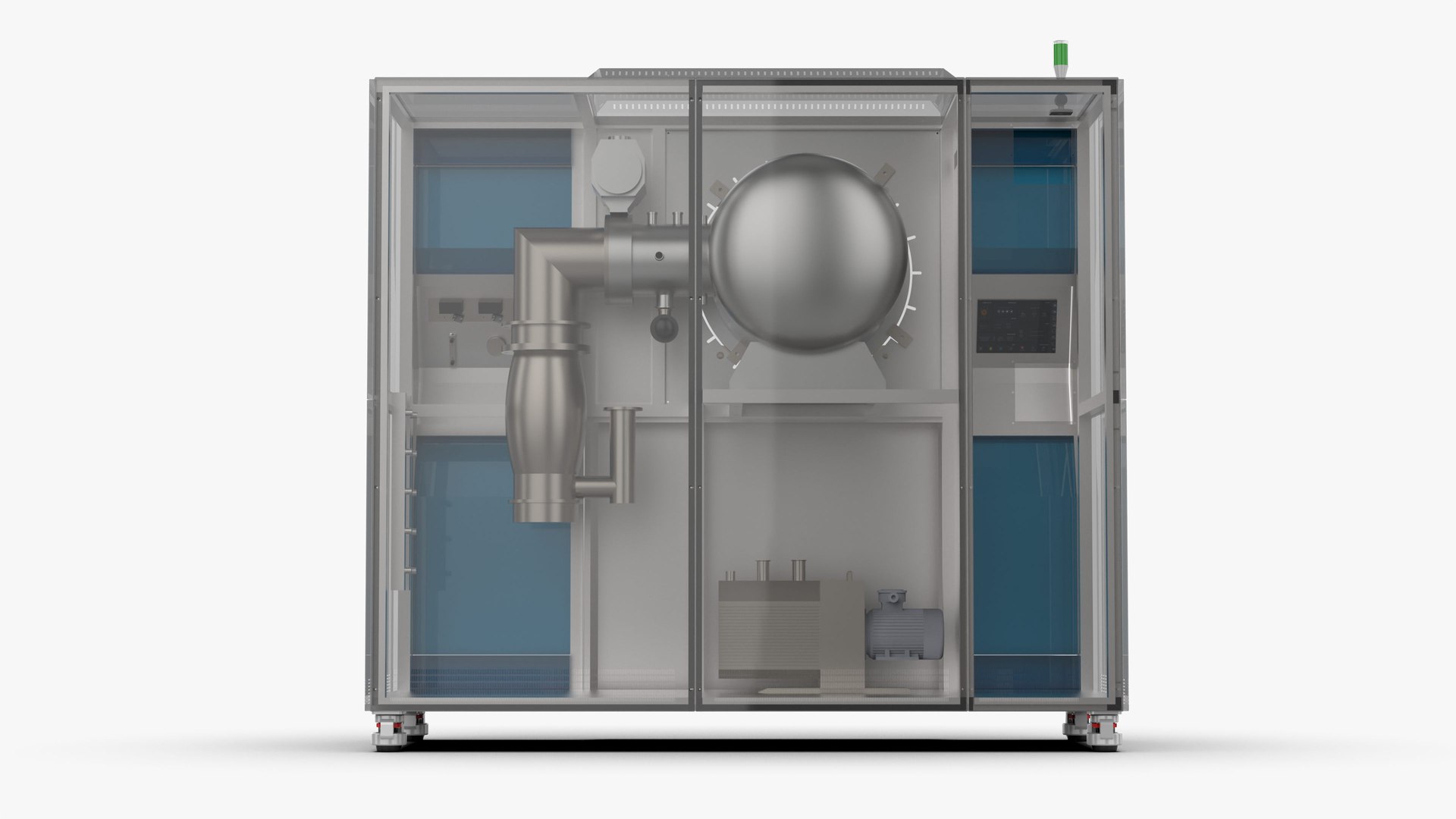

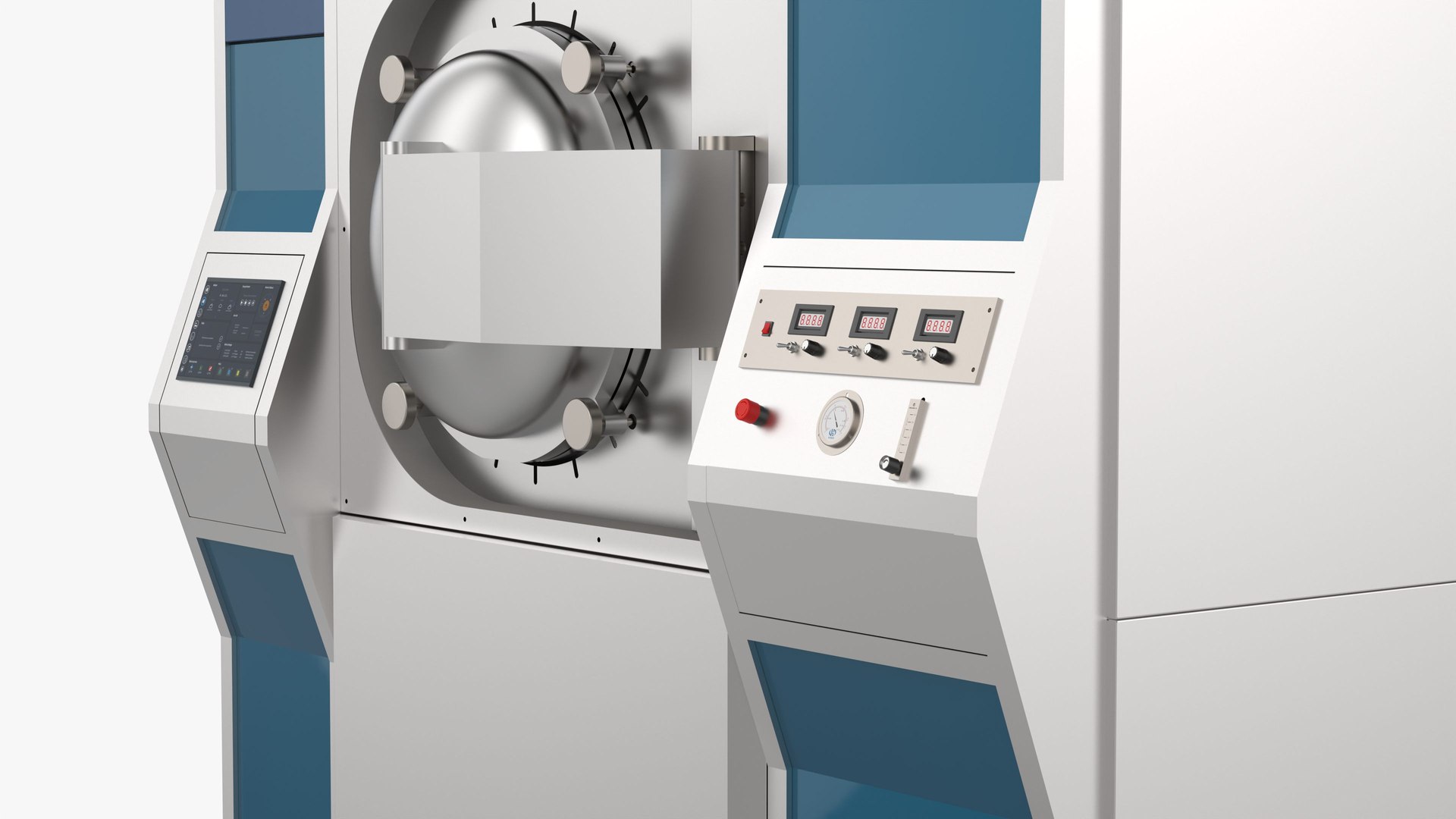

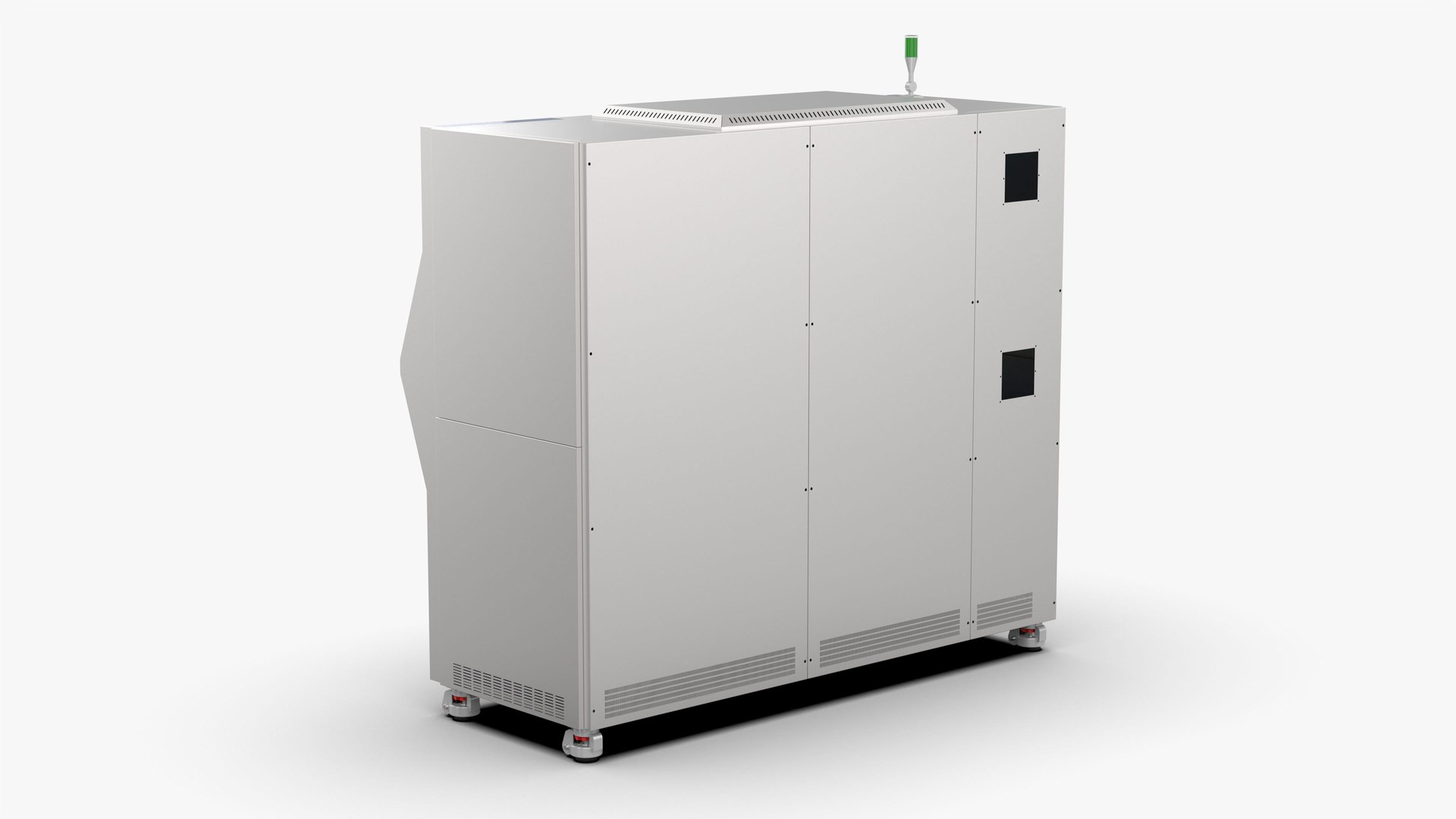

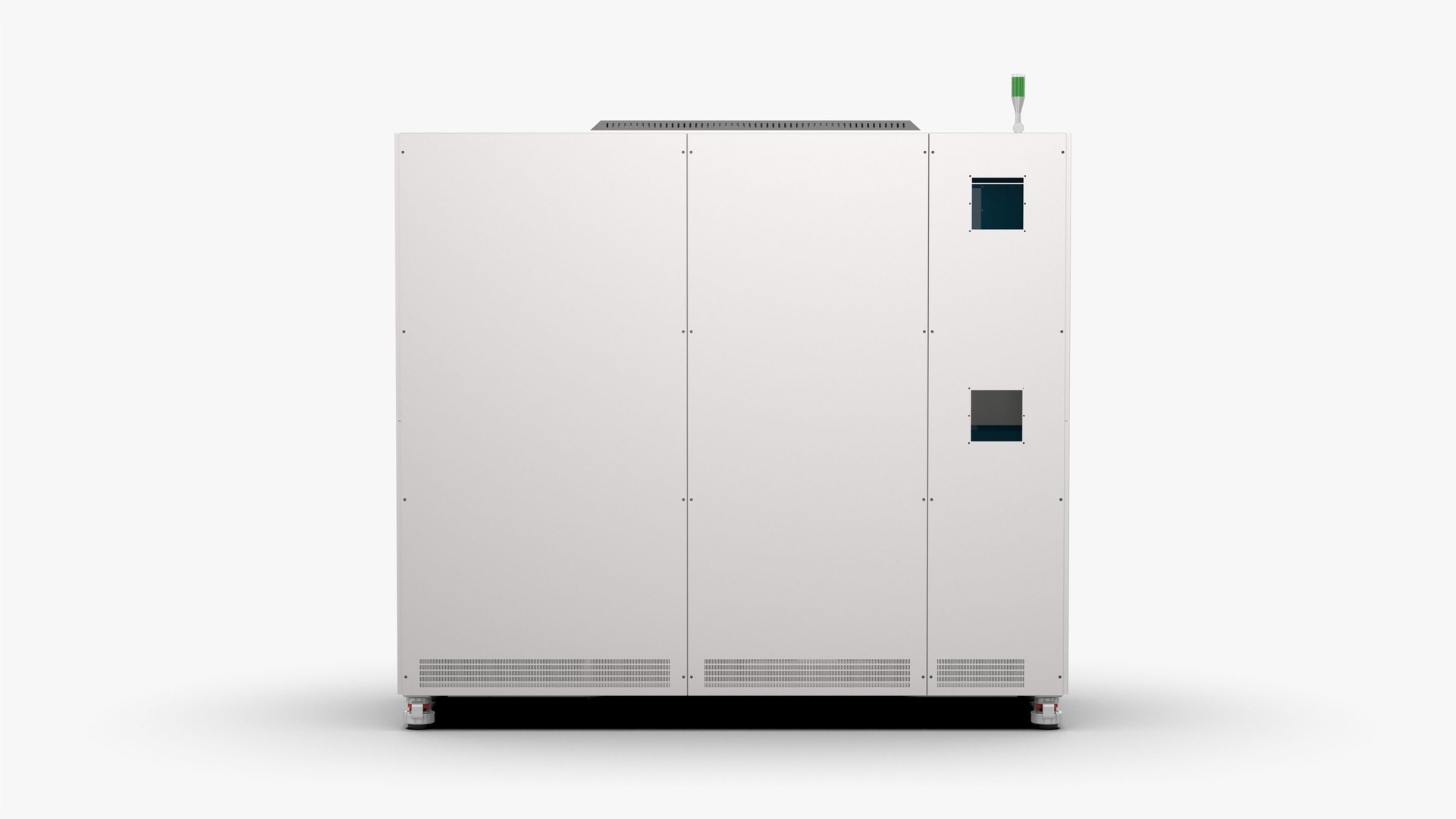

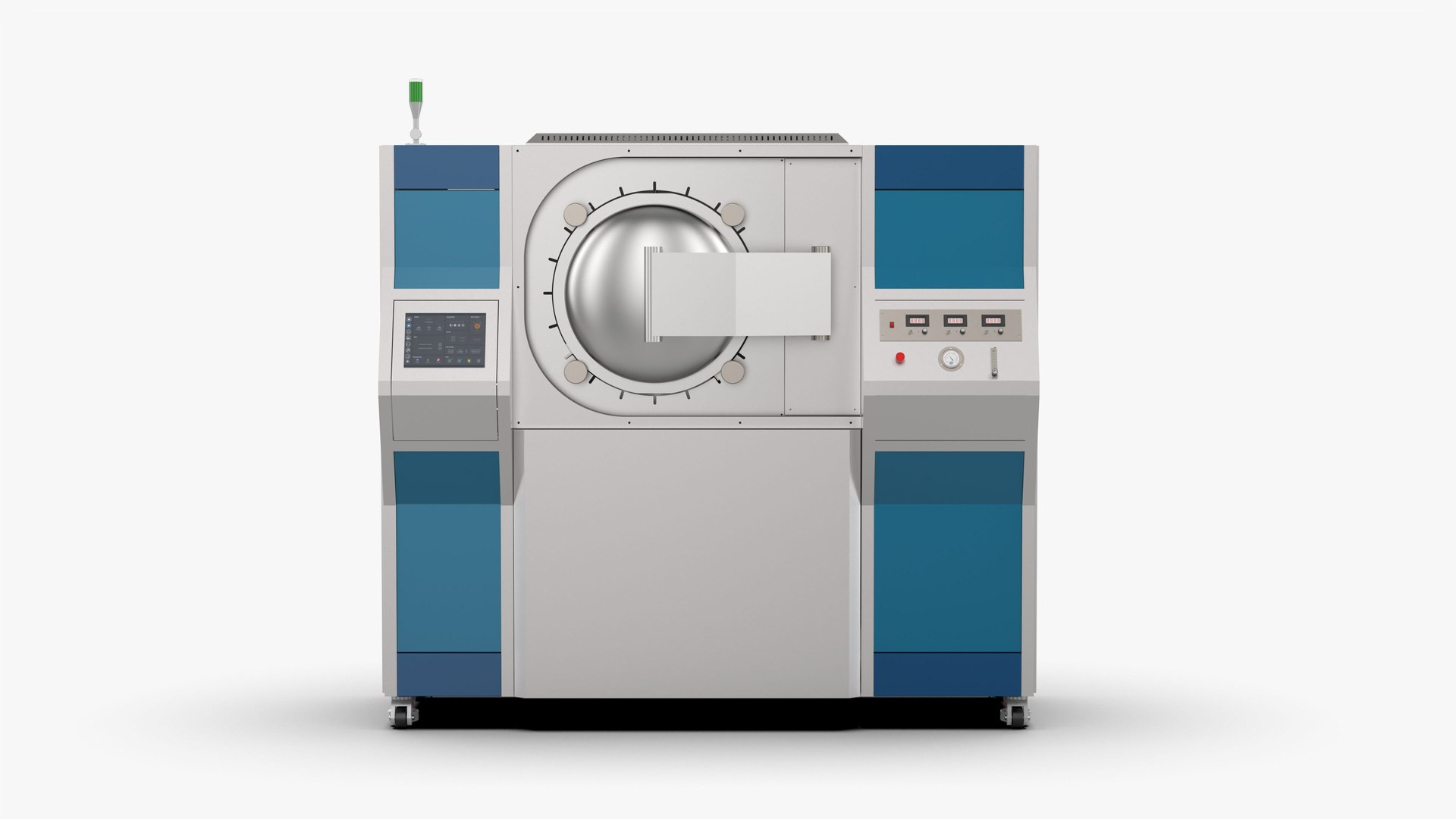

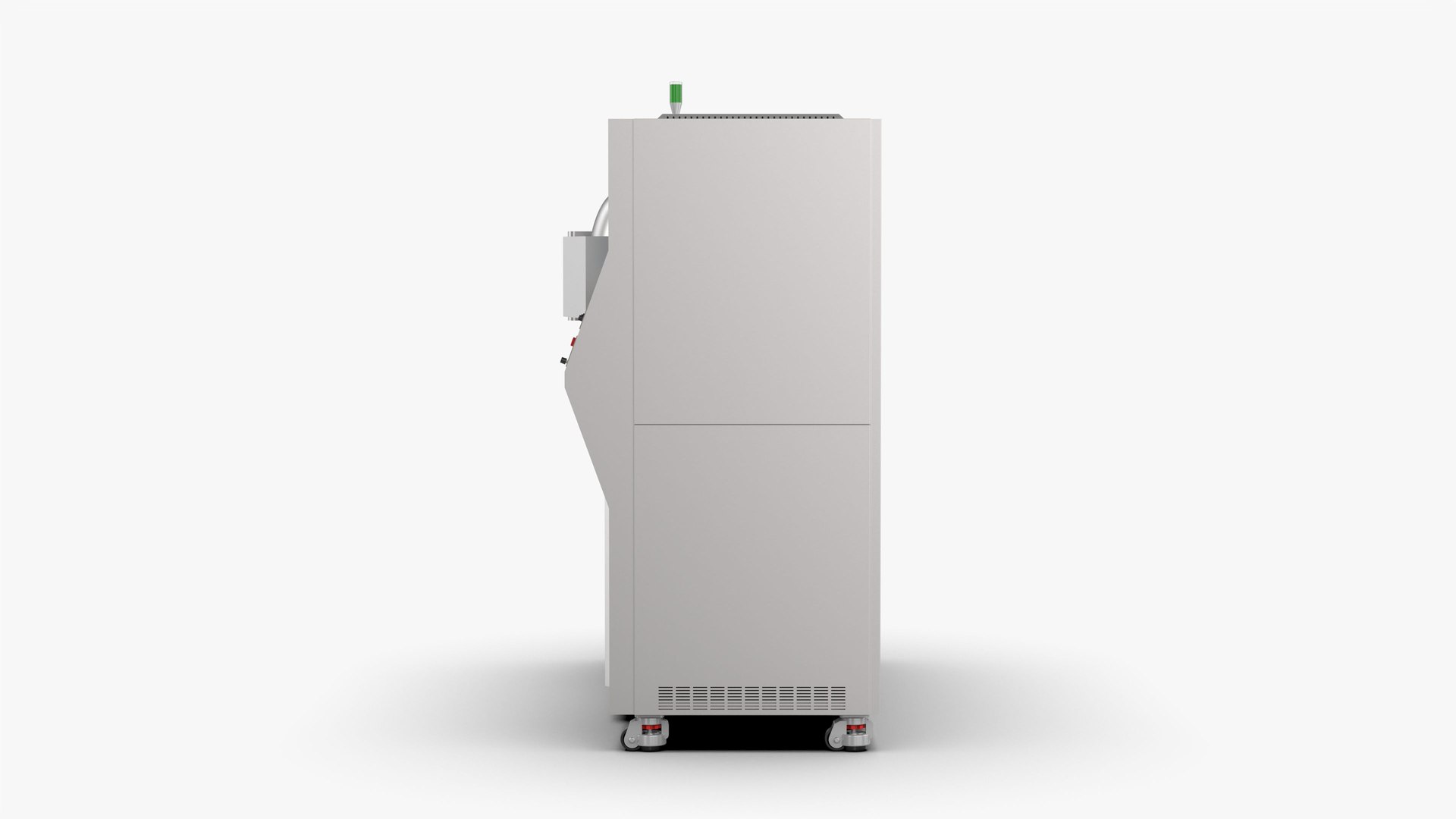

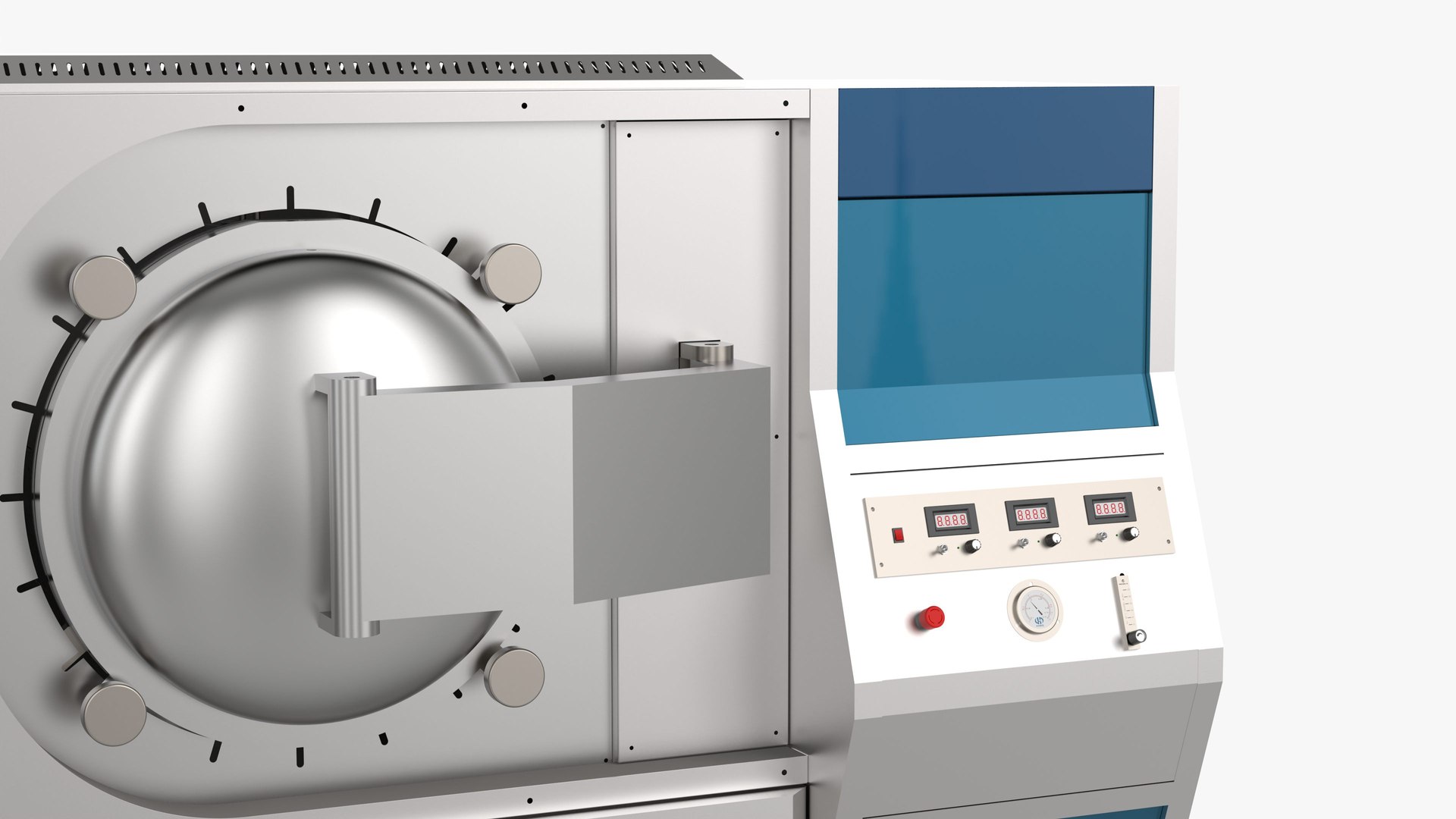

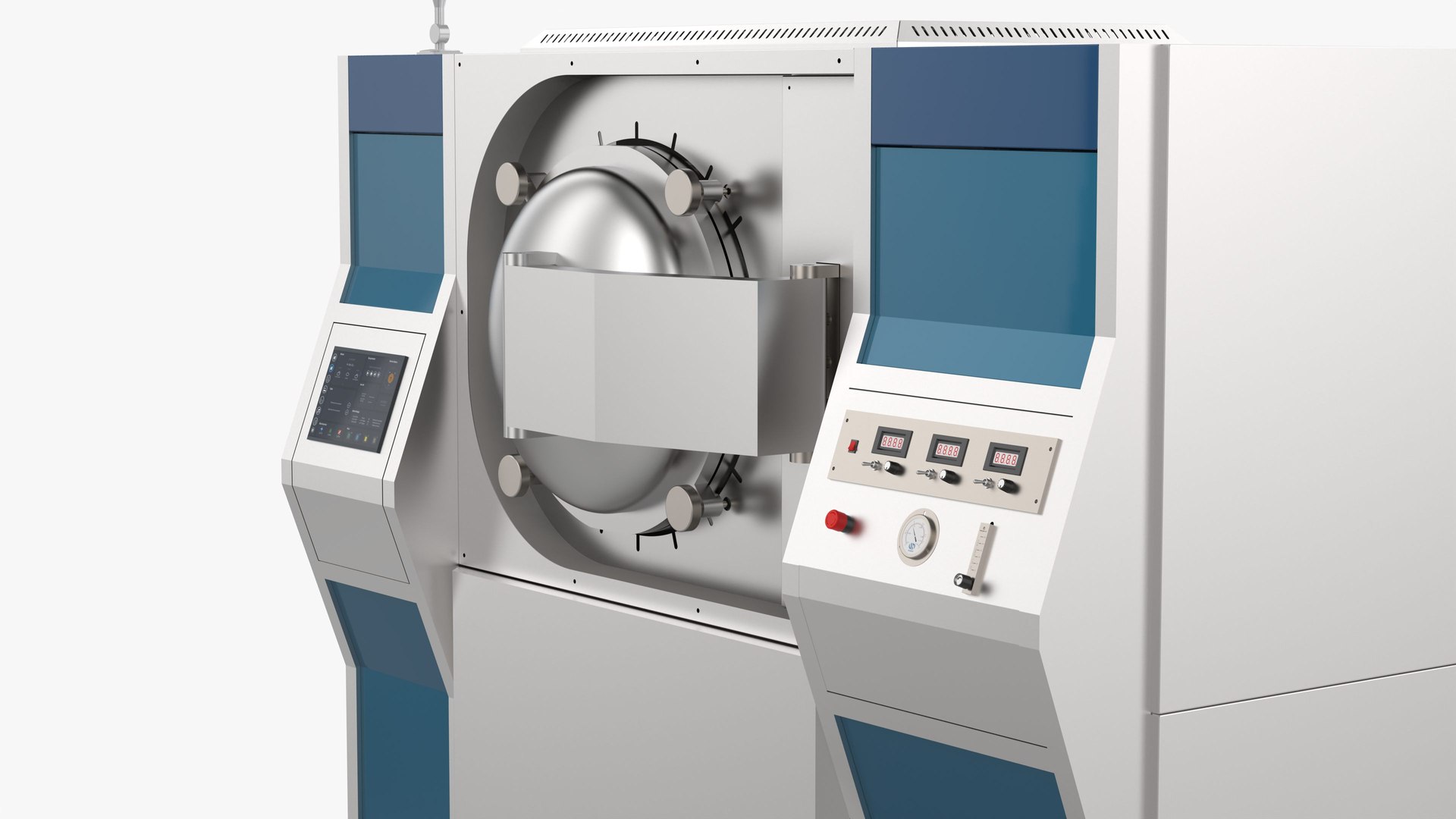

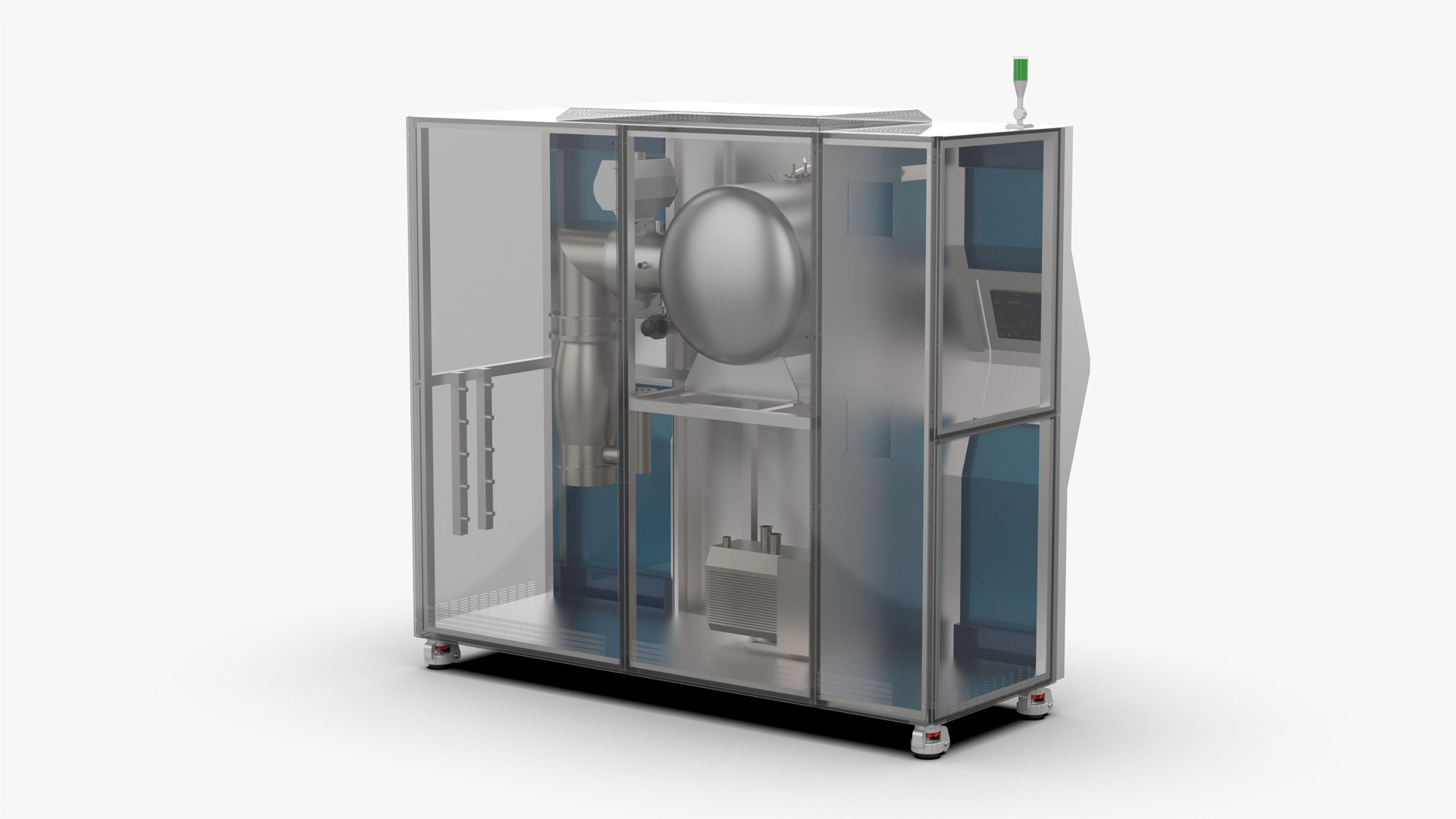

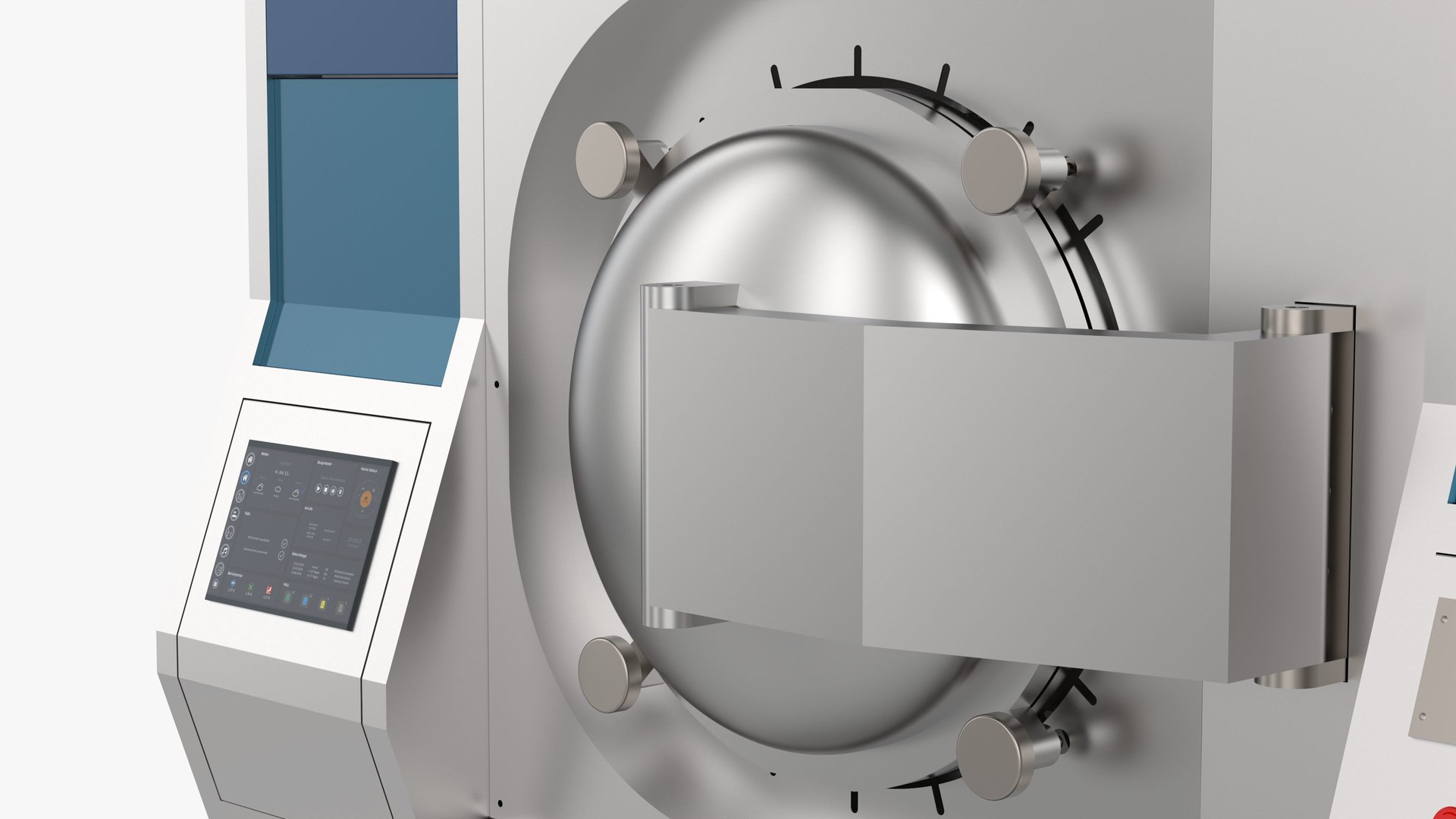

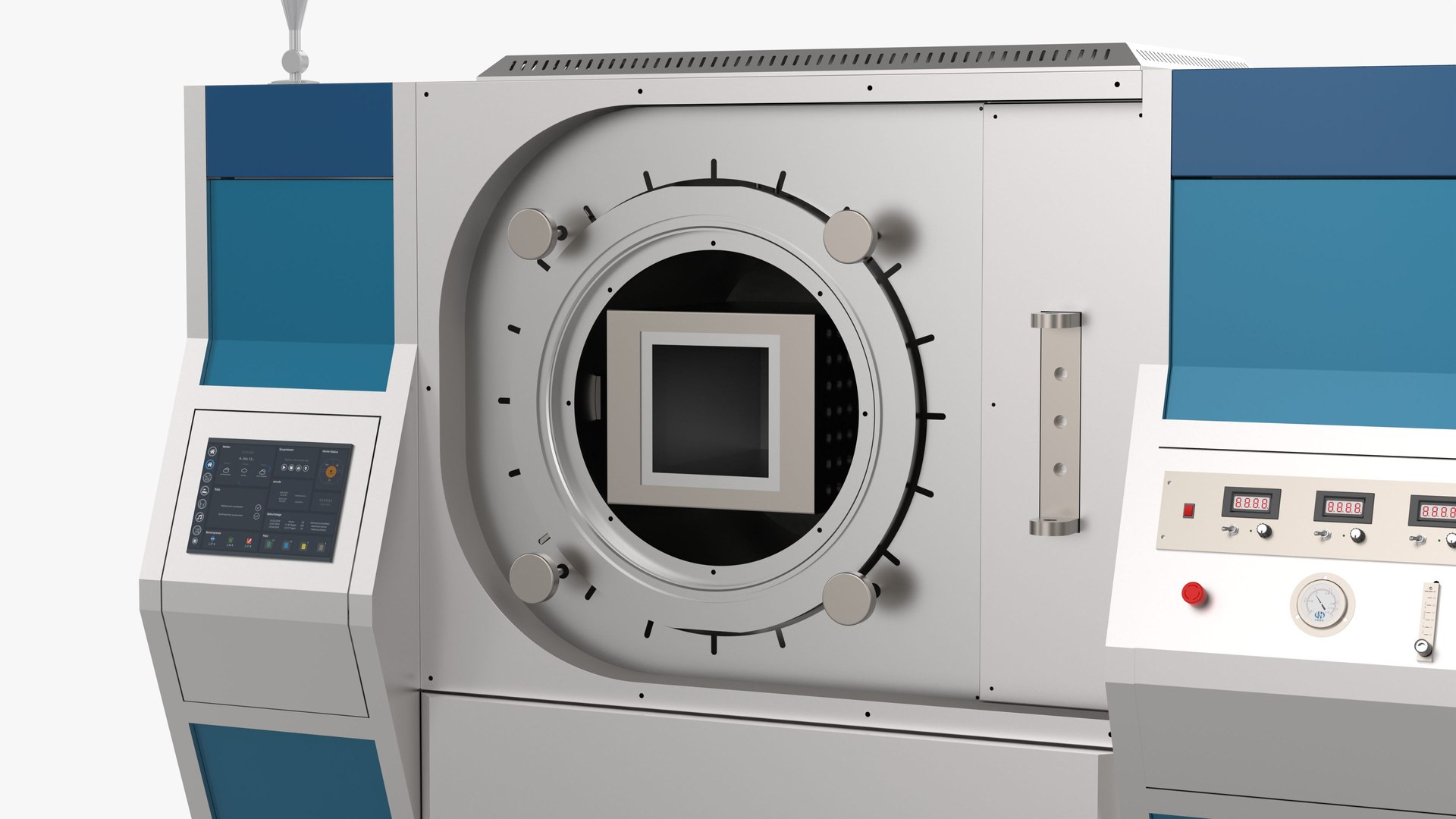

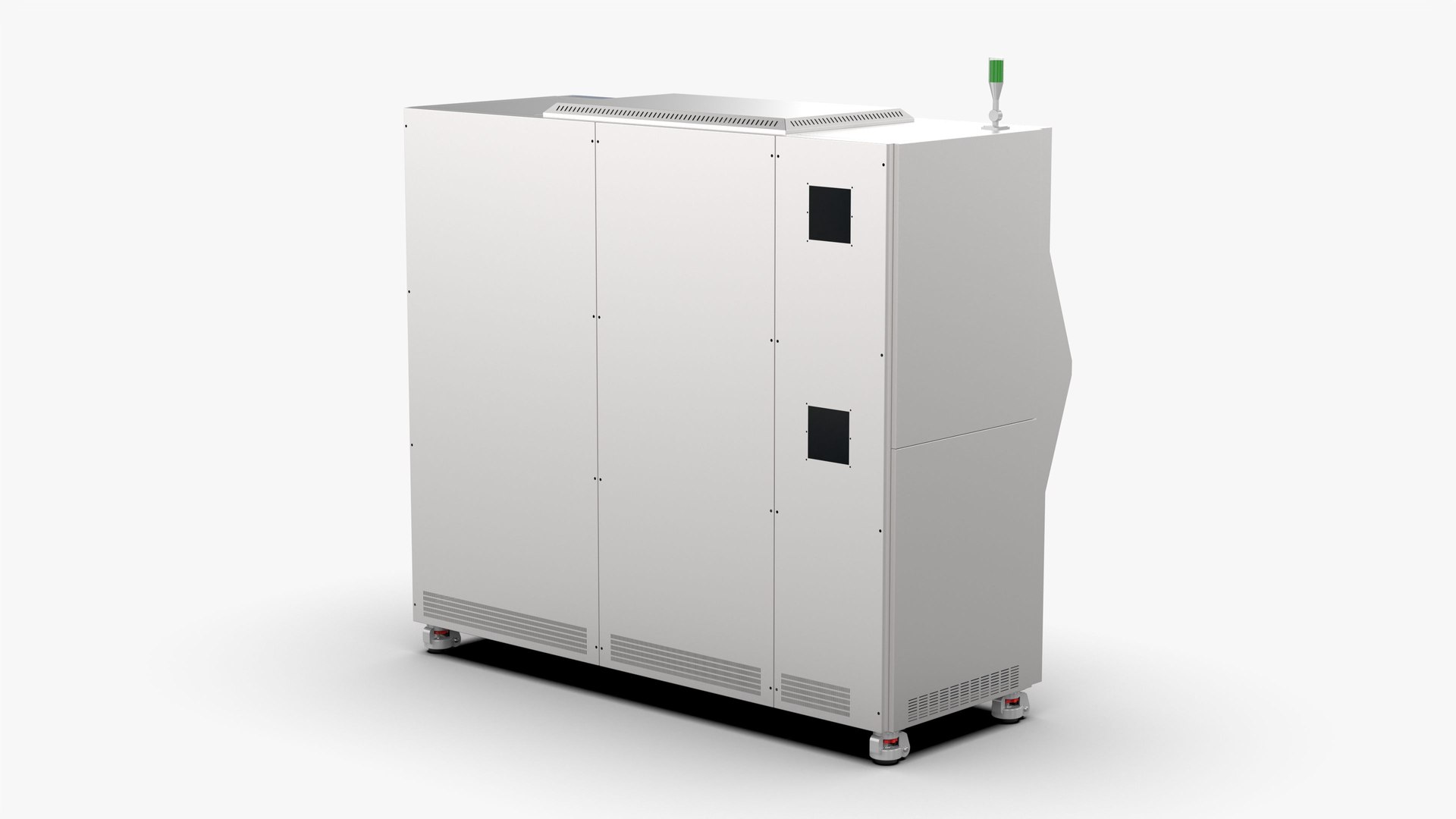

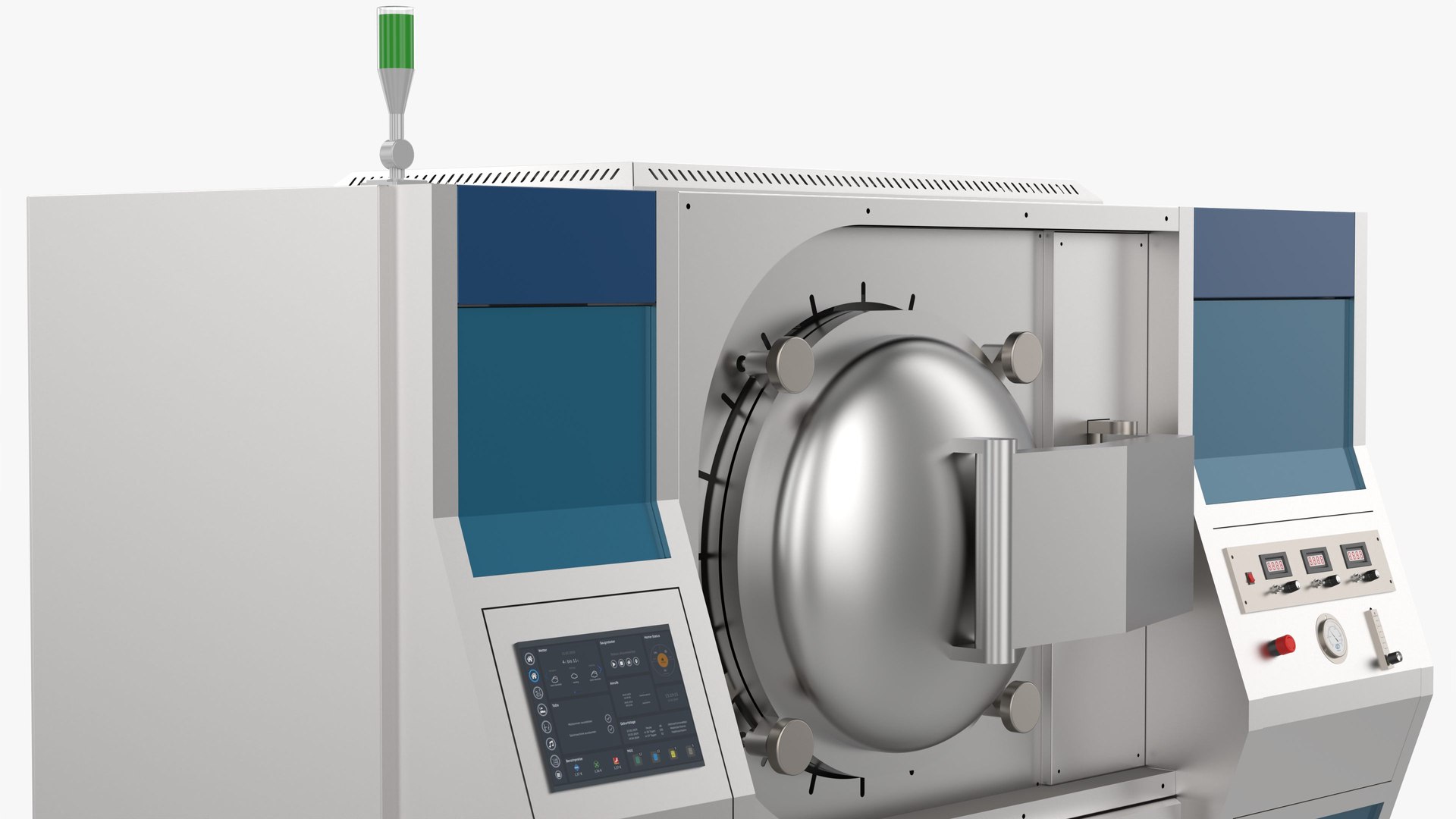

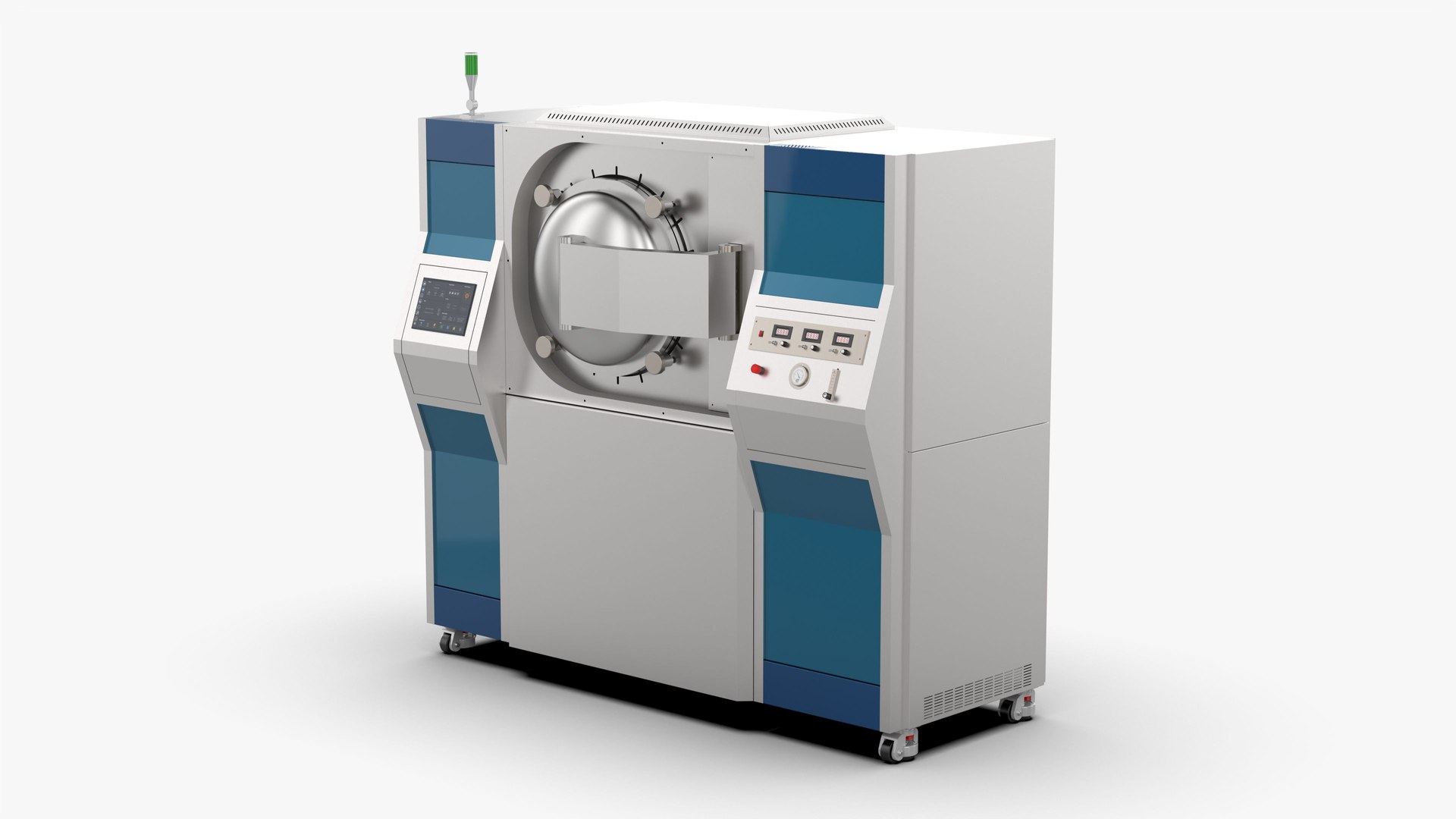

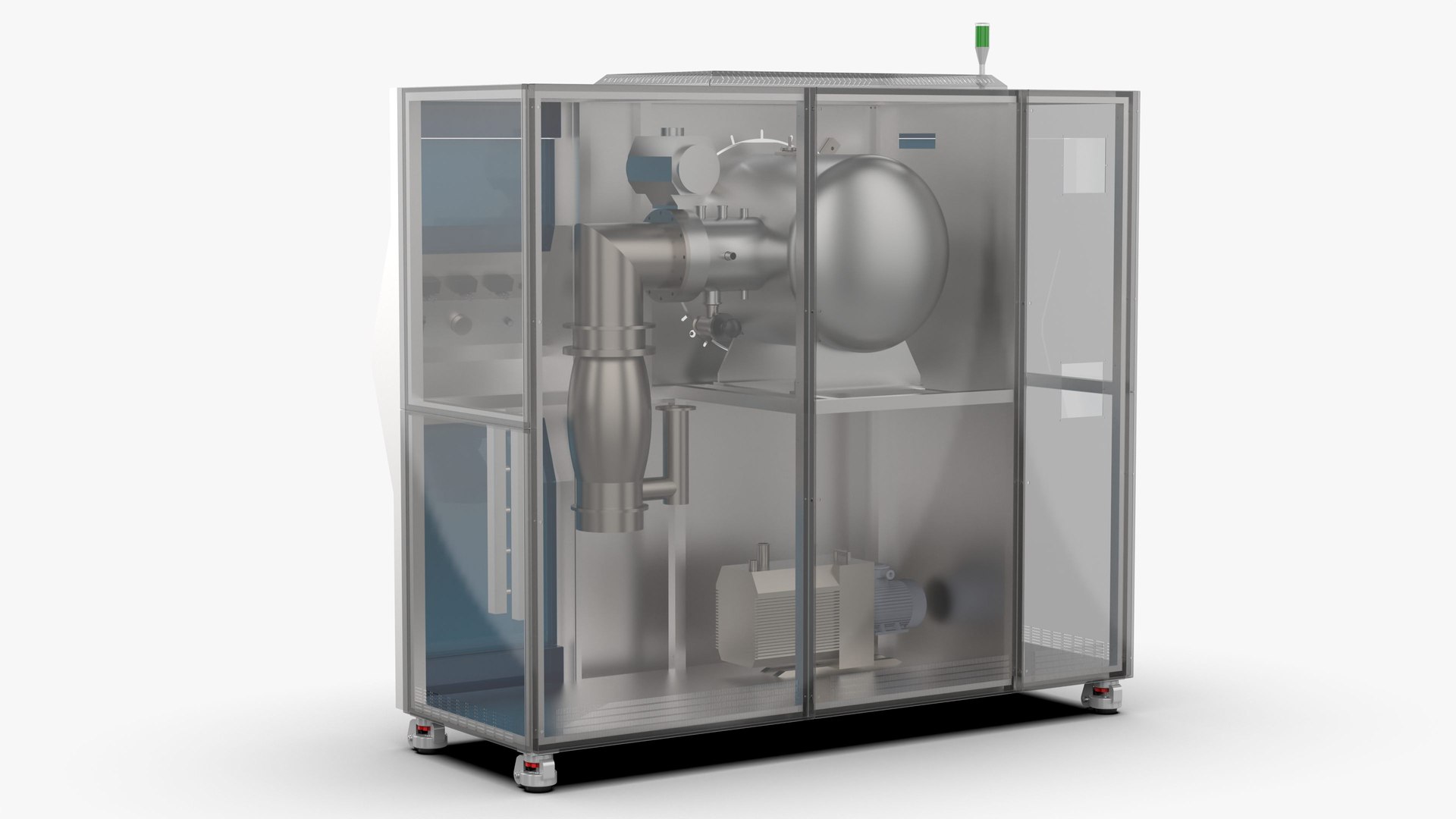

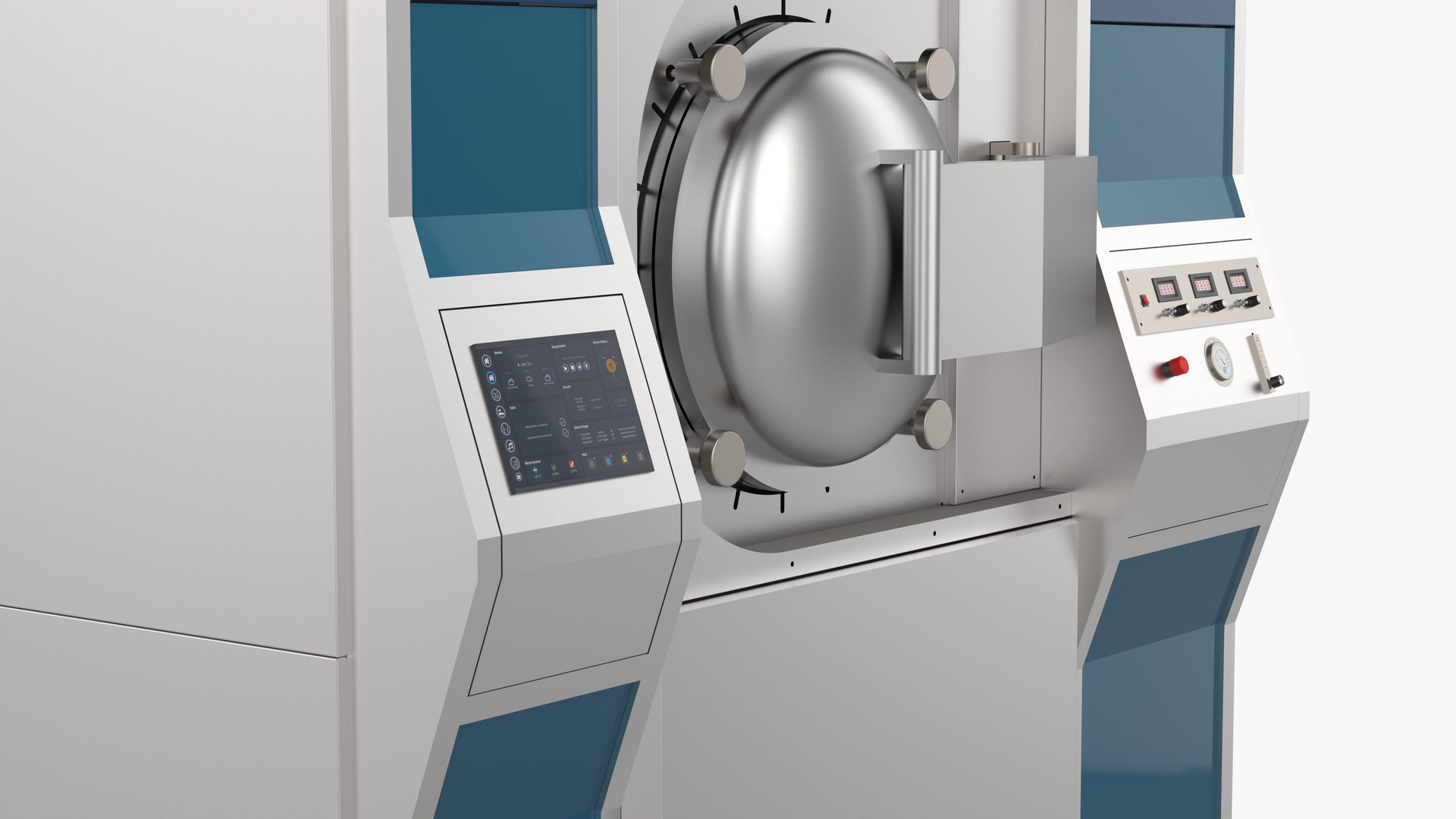

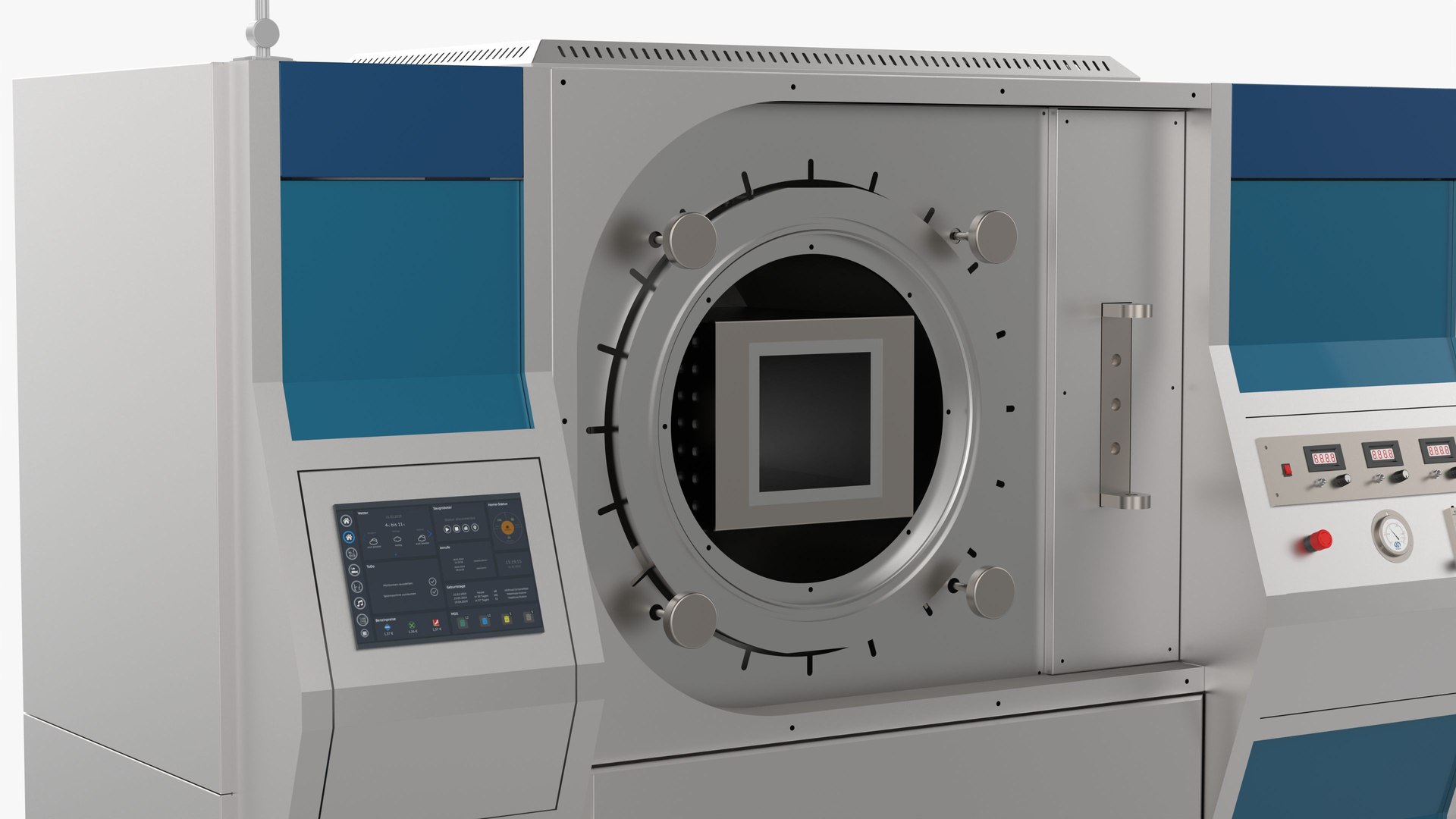

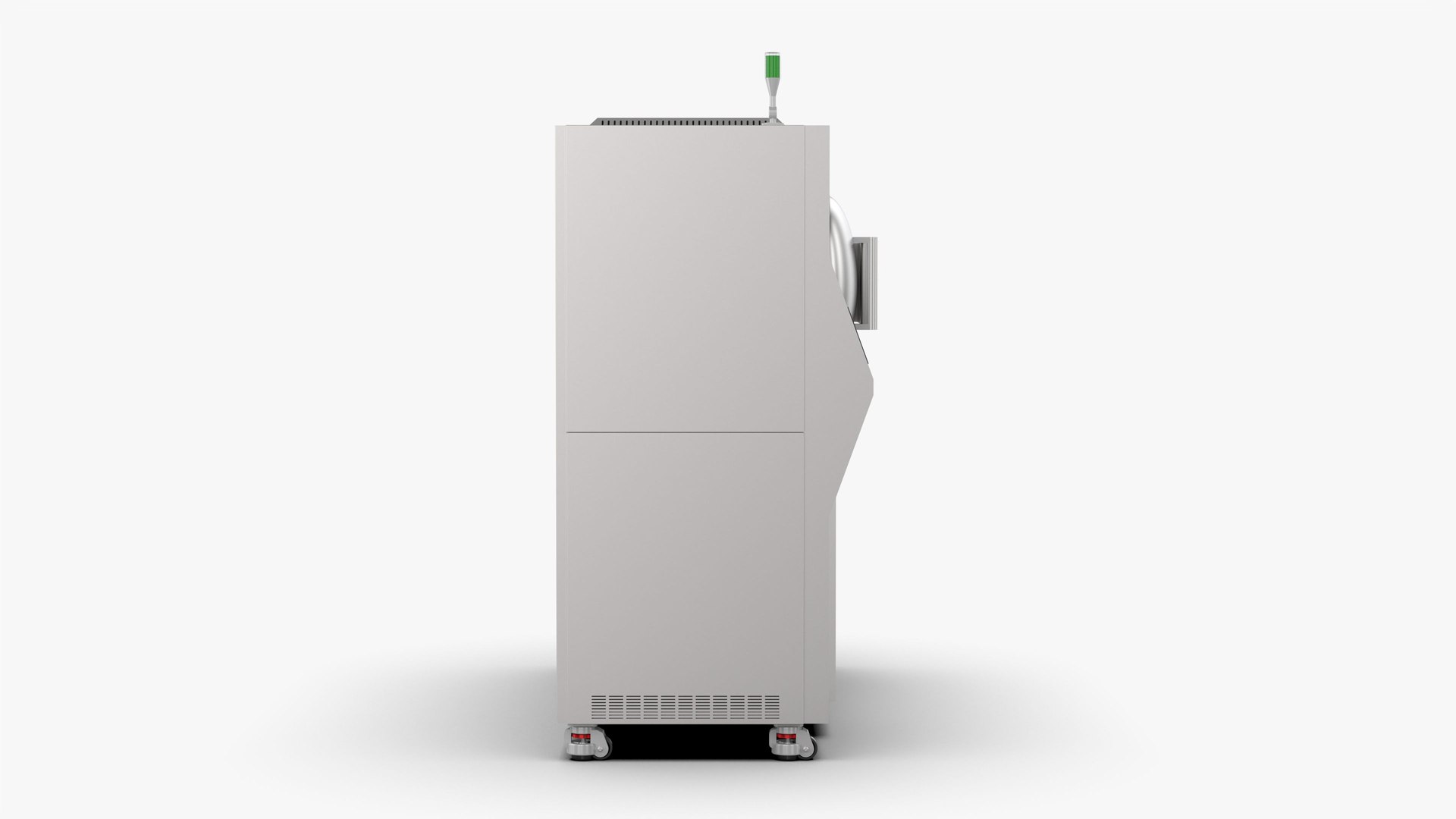

Vacuum Furnace

Introduction

Equipment for heating in a vacuum environment. In the furnace chamber sealed by metal shell or quartz glass cover, it is connected with high vacuum pump system by pipeline. The furnace vacuum can reach 133×(10~10)Pa. The heating system in the furnace can be directly heated by electric resistance furnace wire (such as tungsten wire), or can be heated by high-frequency induction. The highest temperature can reach about 3000°C. It is mainly used for ceramic firing, vacuum smelting, degassing and annealing of electric vacuum parts, brazing of metal parts, and ceramic-metal sealing, etc.

File Formats

– SolidWorks 2021 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

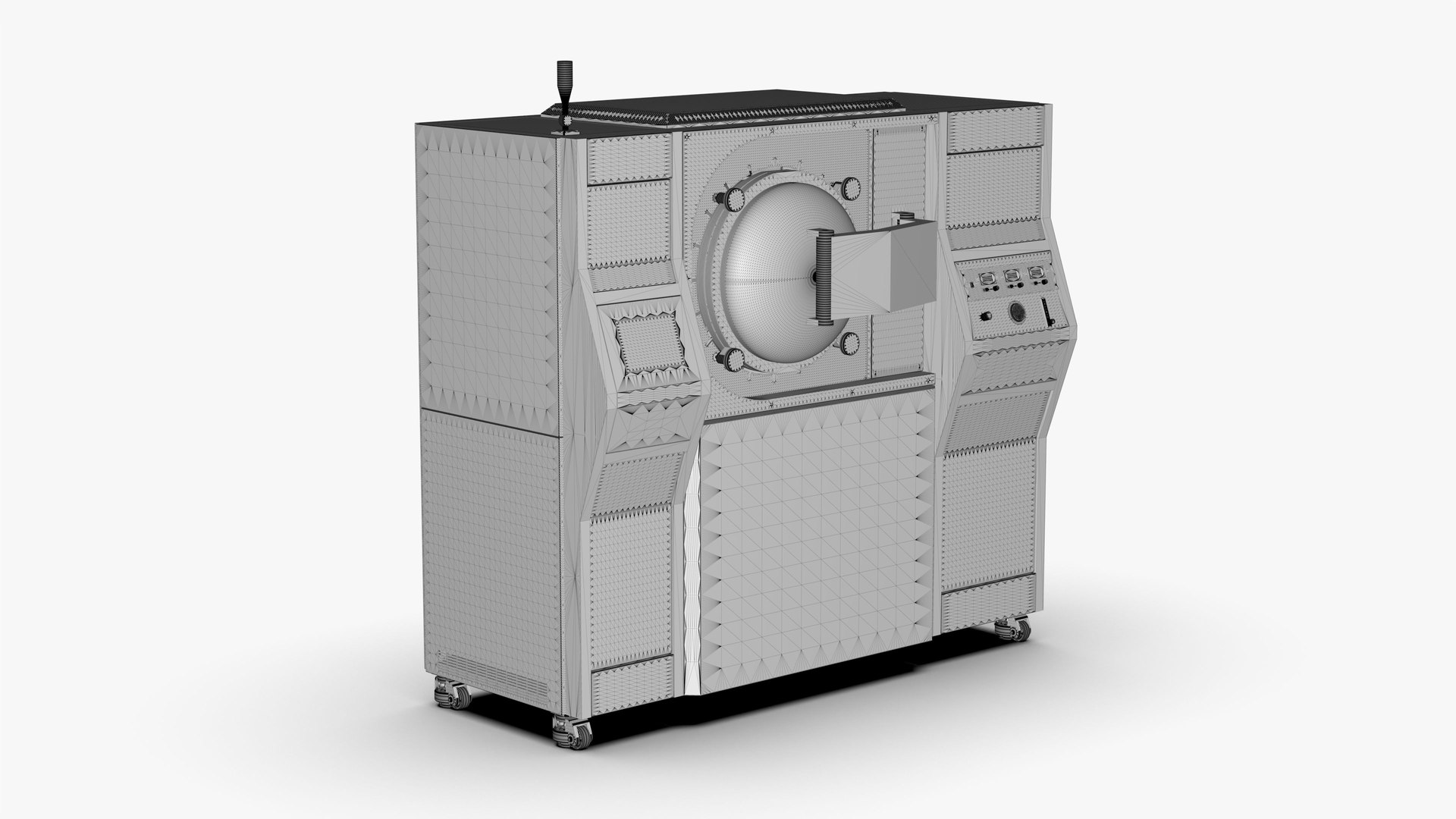

Geometry

– Polygons: 524,410
– Vertice: 1,573,230
