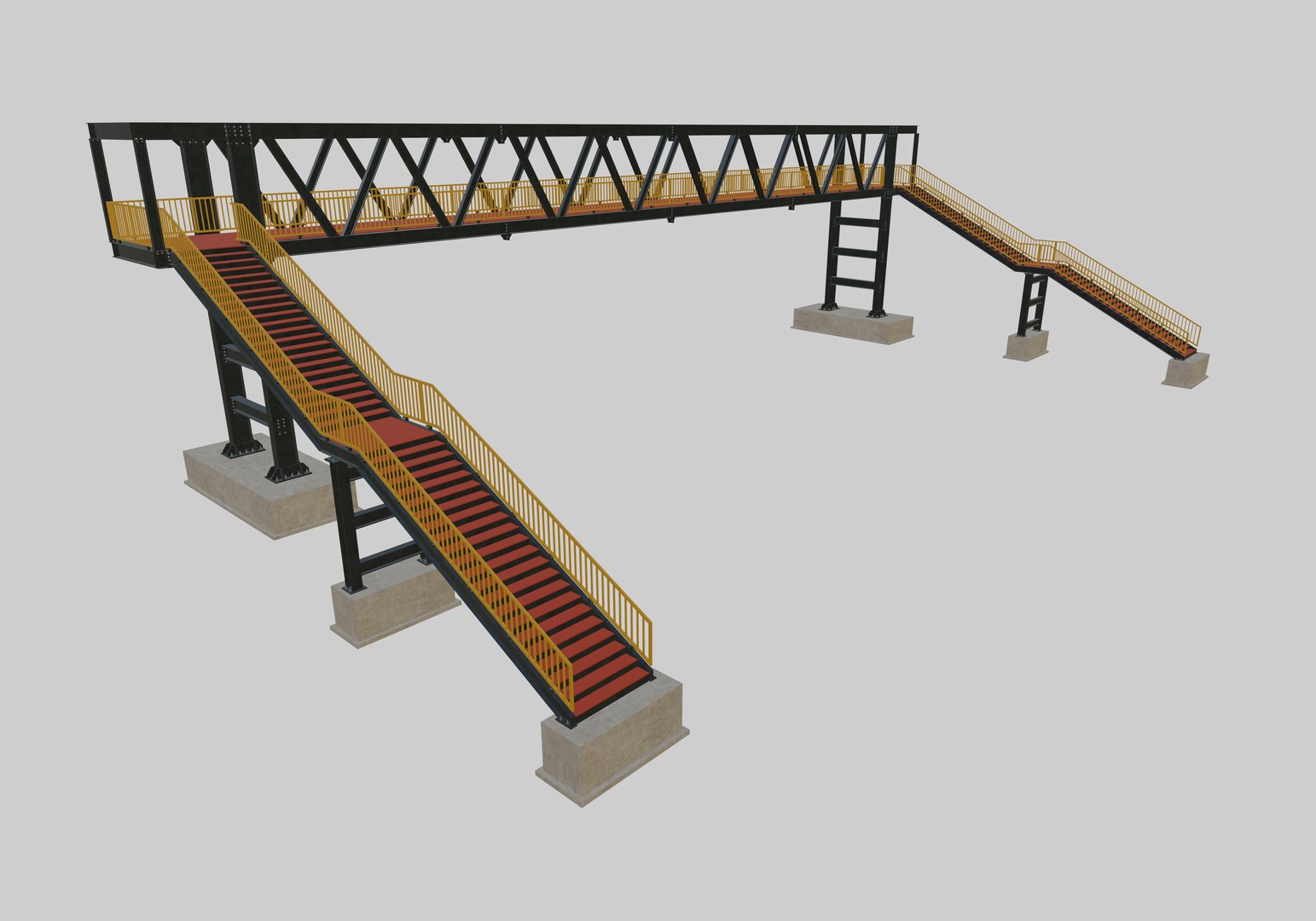

Steel Pedestrian Bridge


Truss Type Platform Construction

Two Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects


Largest Column Span : 32,76 mt.

Distance Between Two Columns : 32,76 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

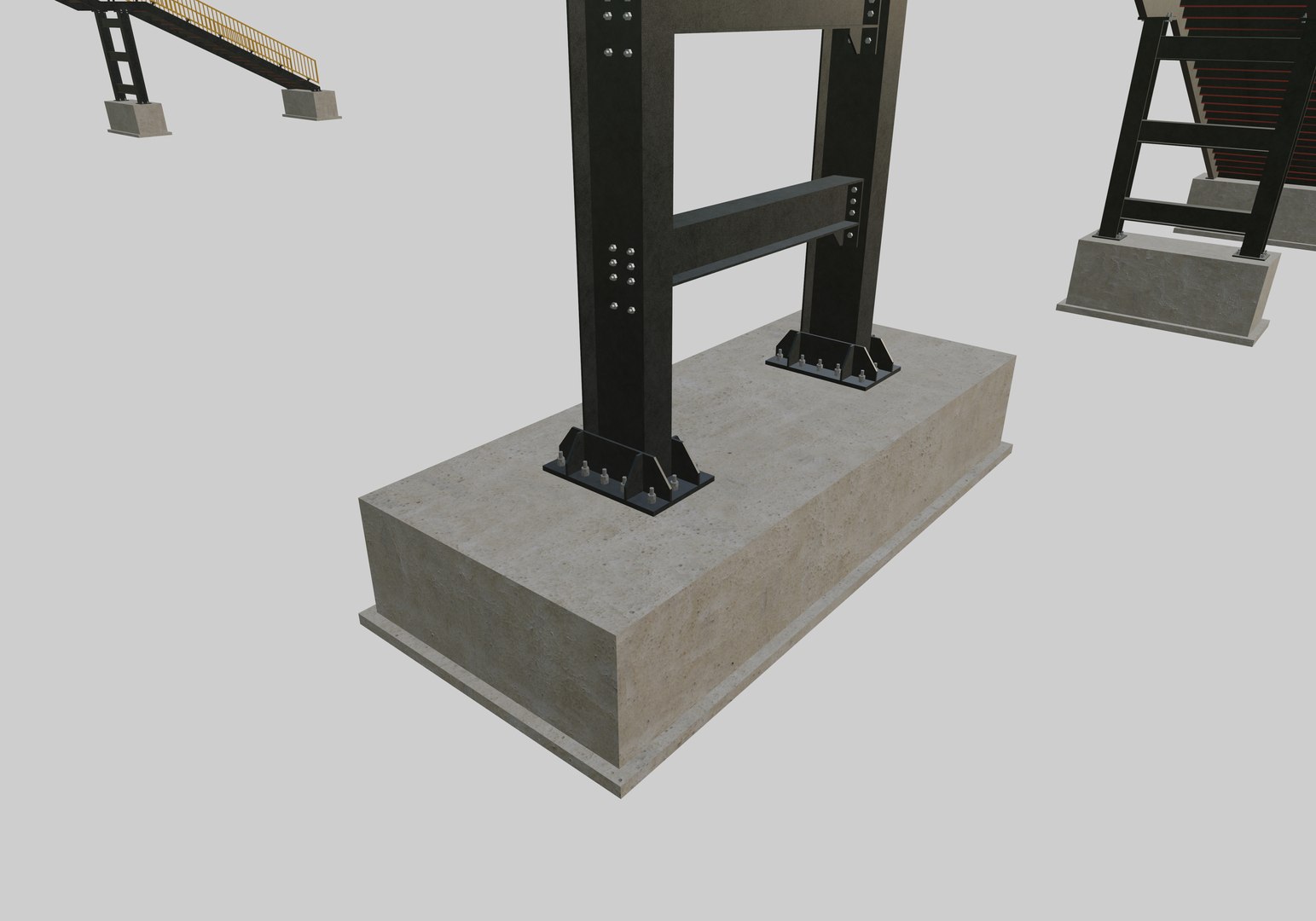

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

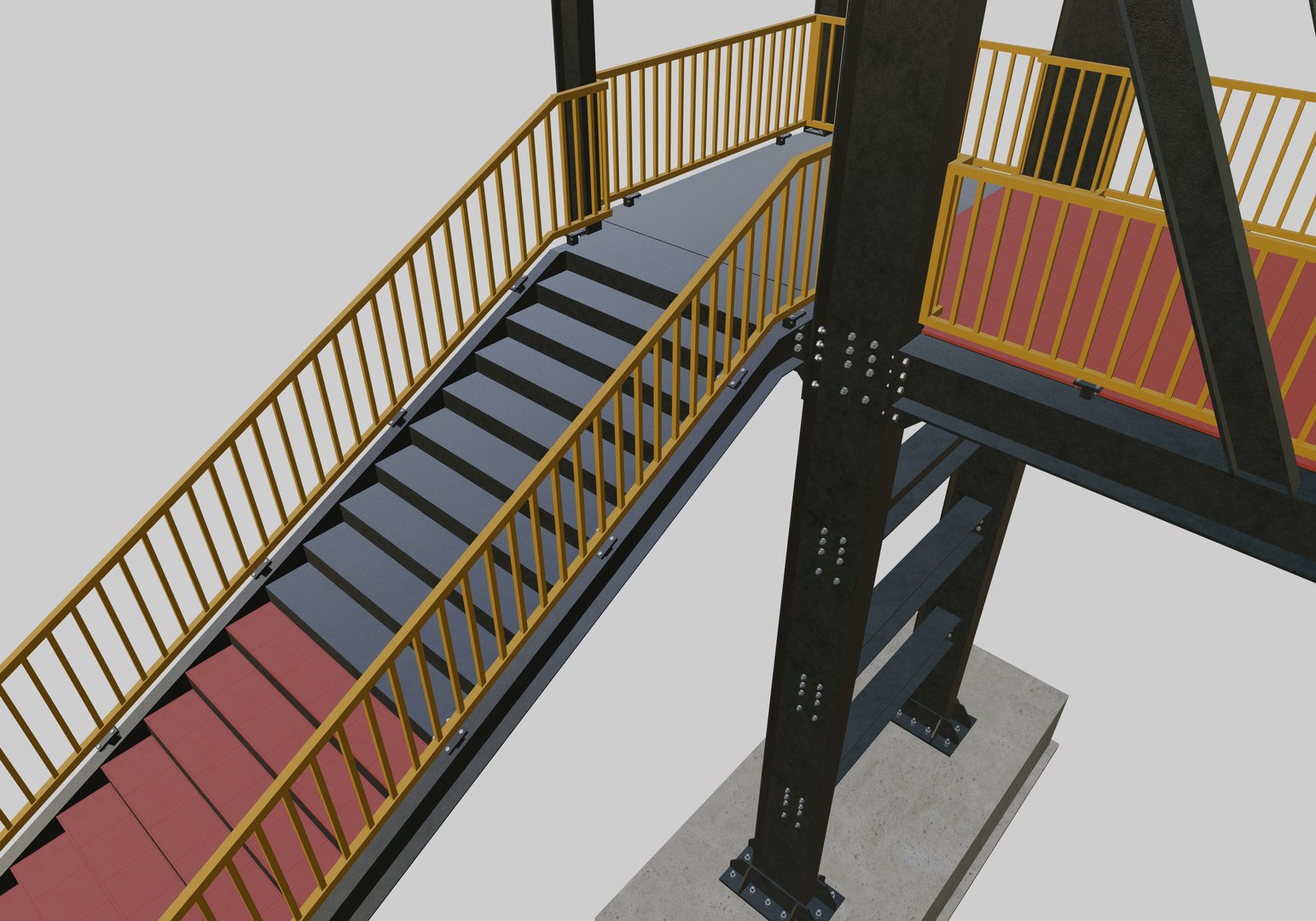

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.


Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

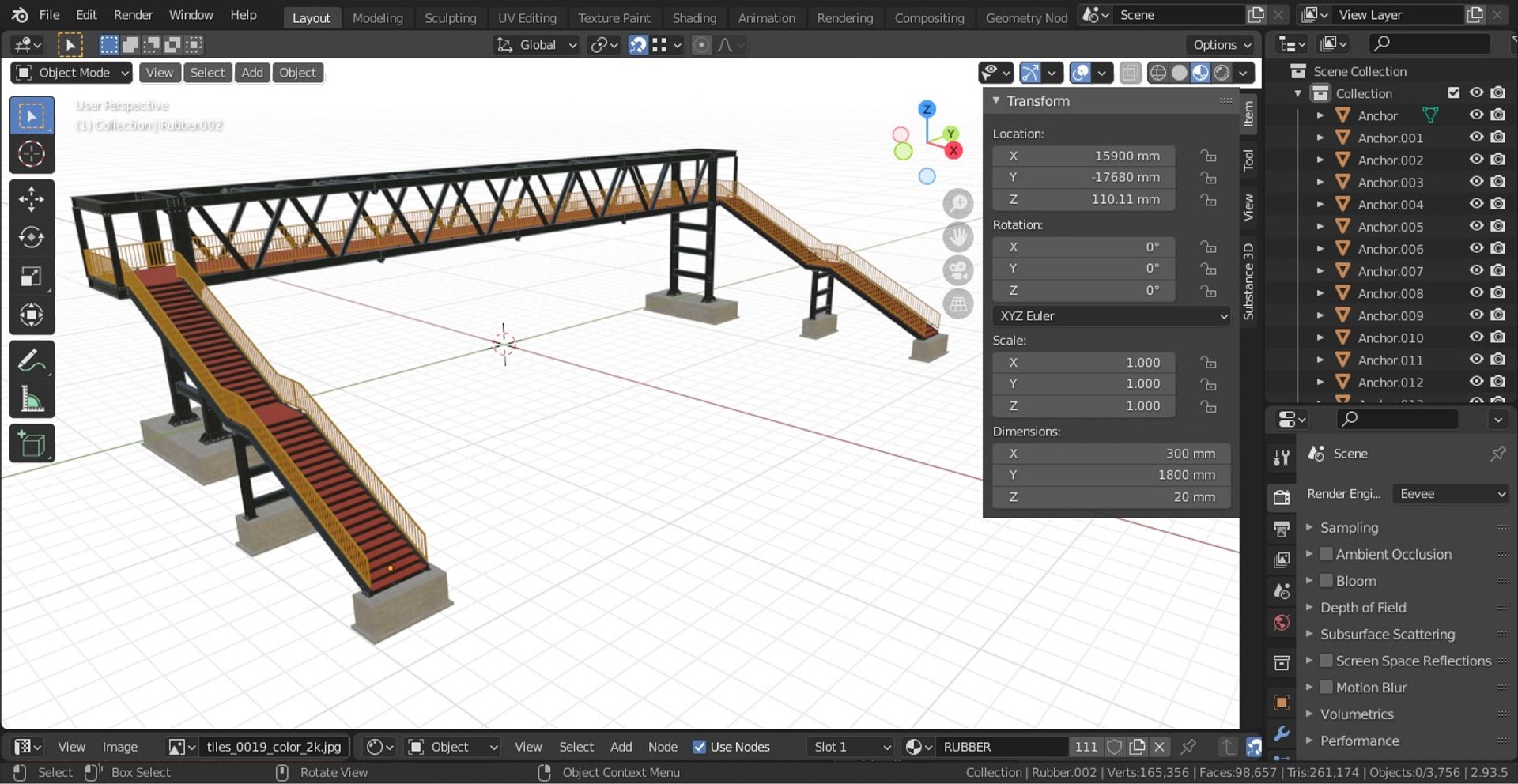

Prepared With BLENDER Version 2.93.5

Polygons : 98657

Vertices : 165356

Objects : 3756
