Rope Tension Pedestrian Overpass Escalator

Escalators are Animated


The Same Model is Available in Two Different Colors.

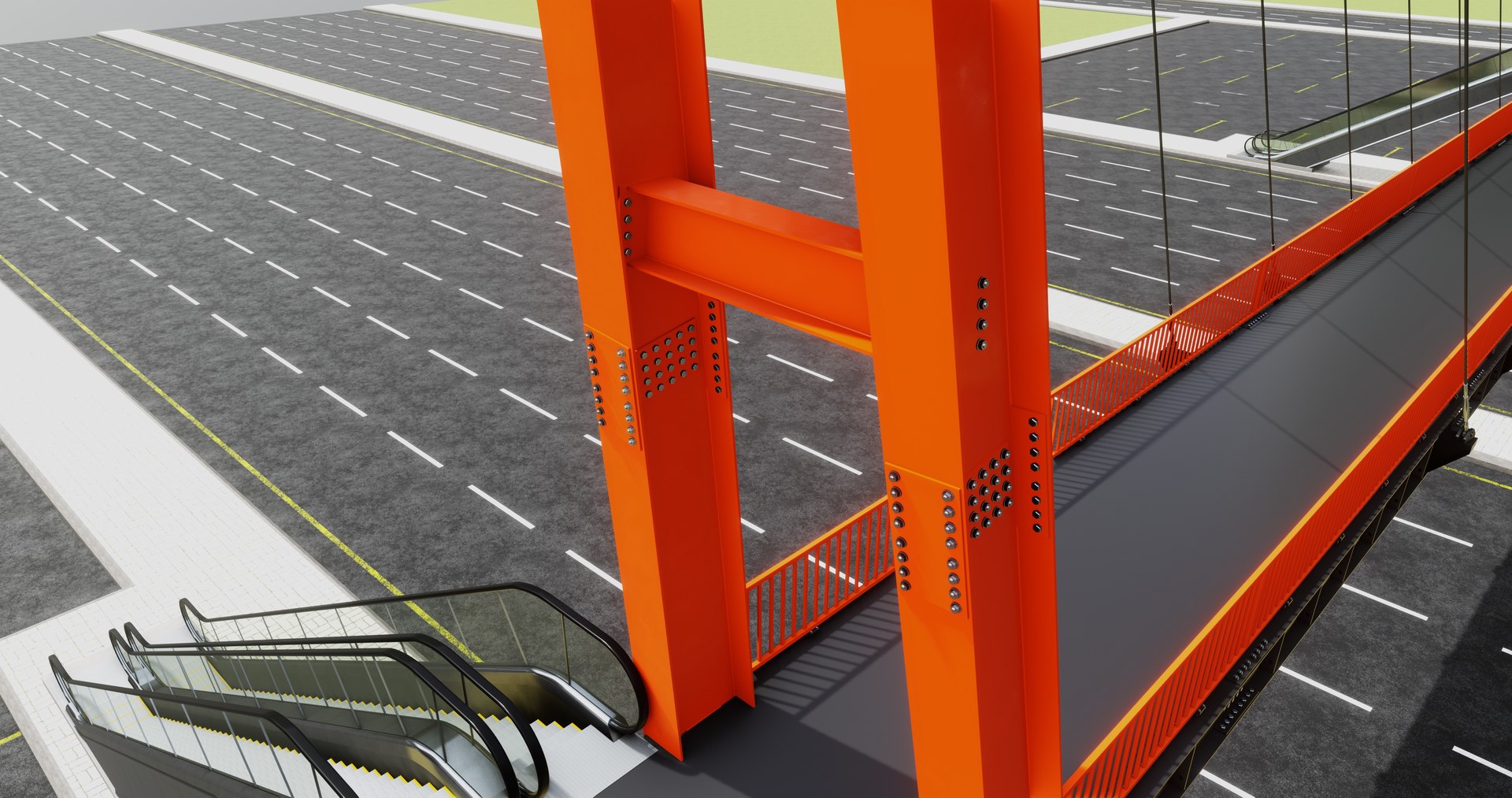

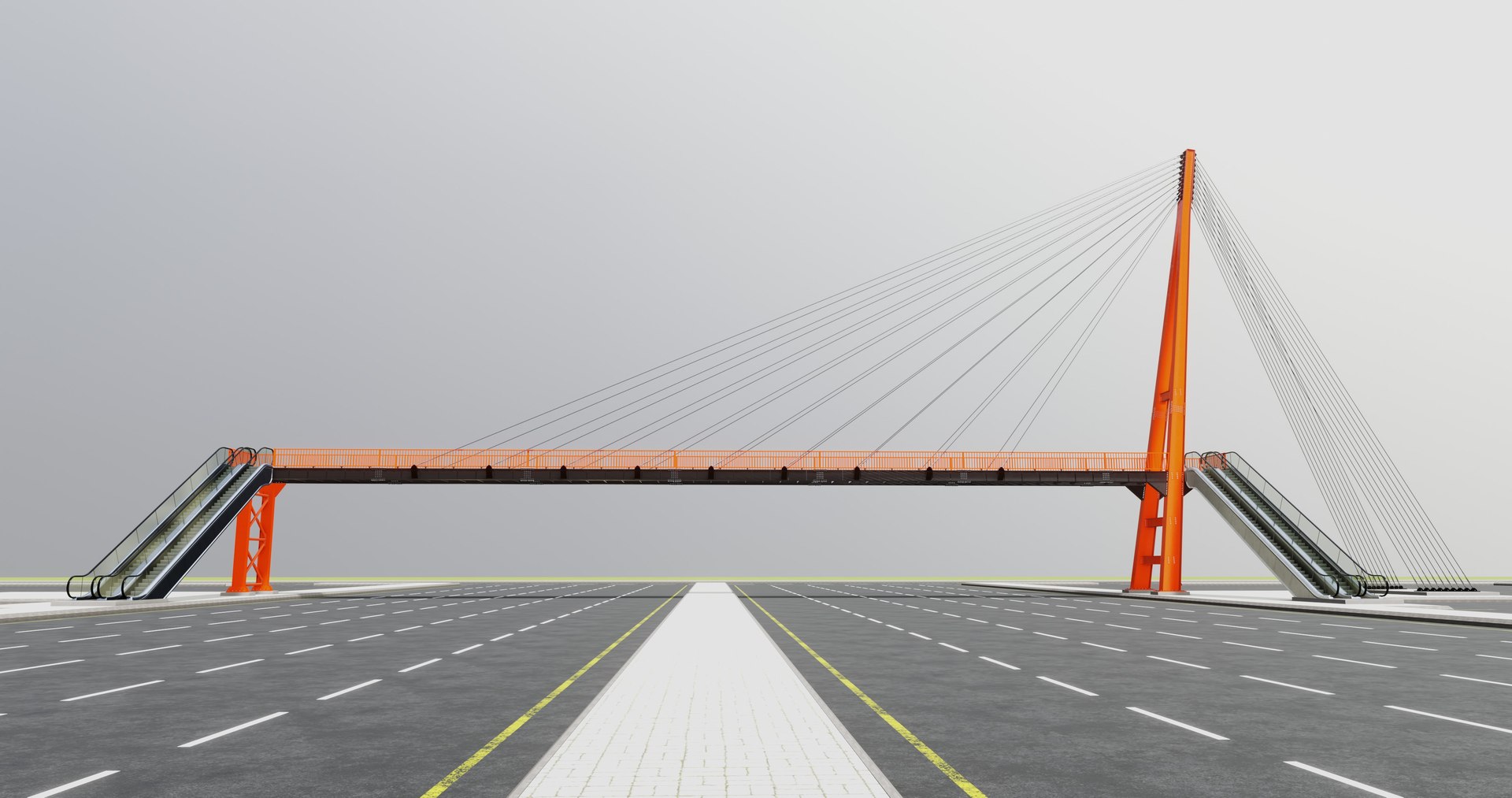

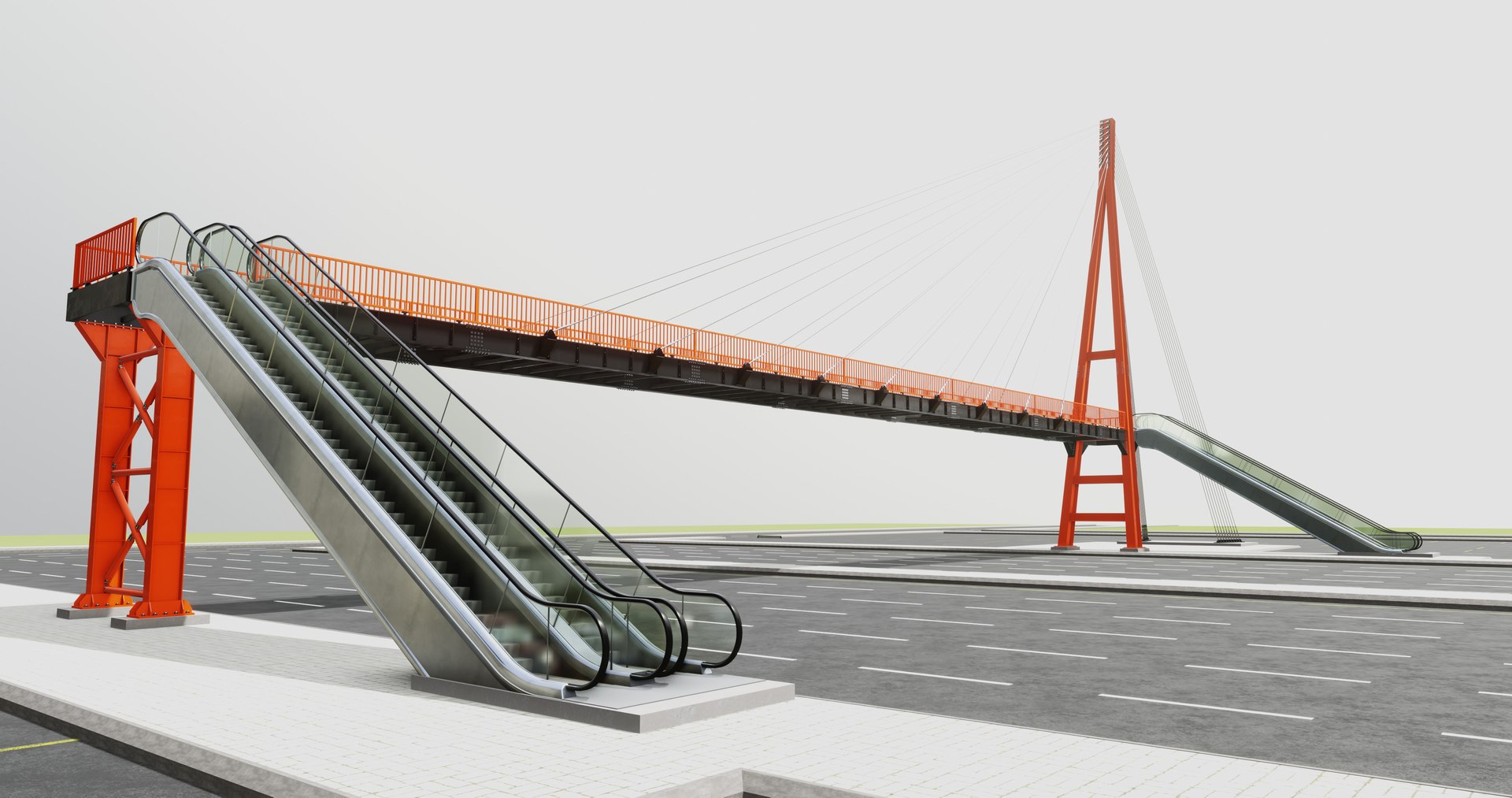

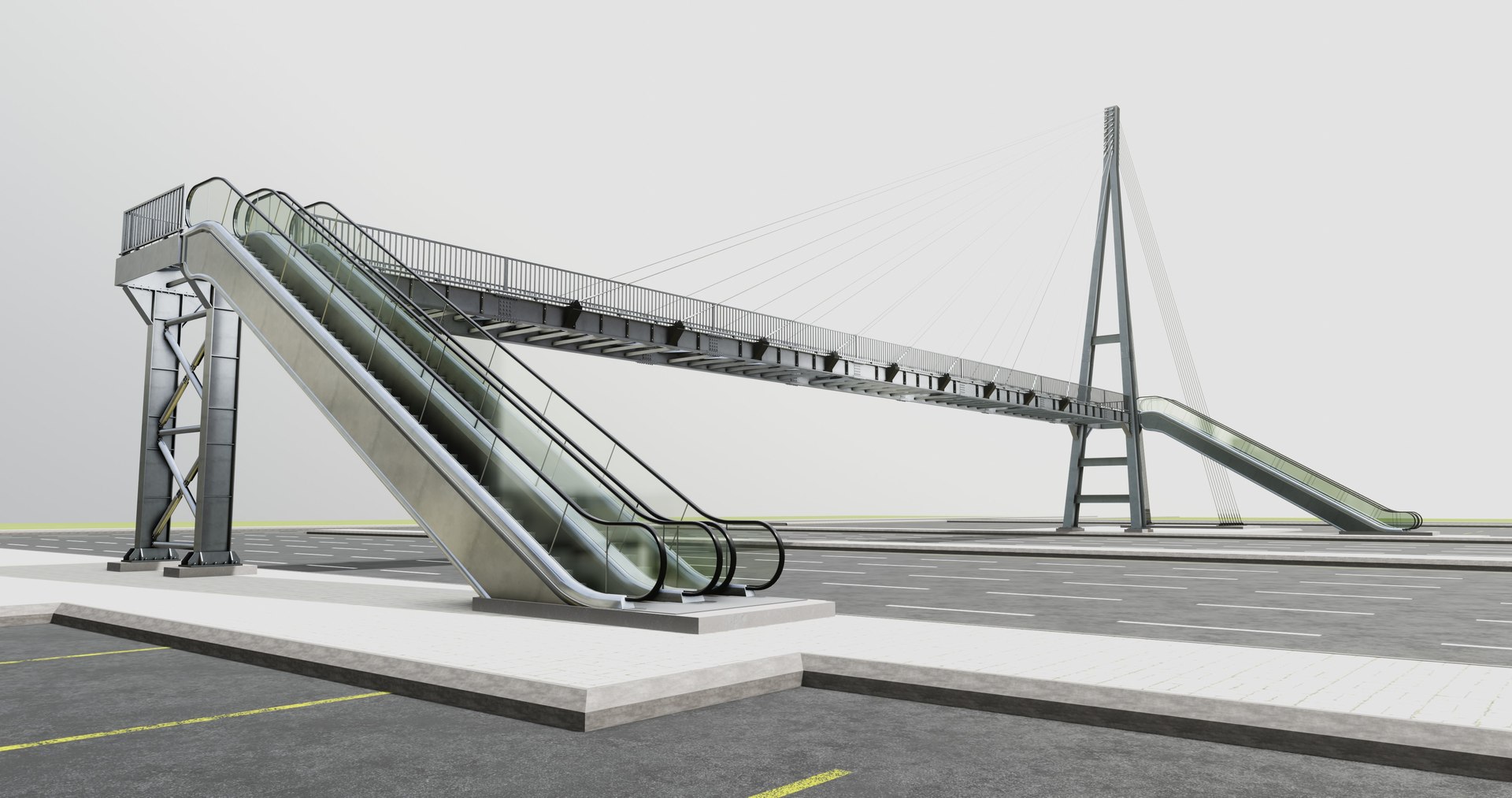

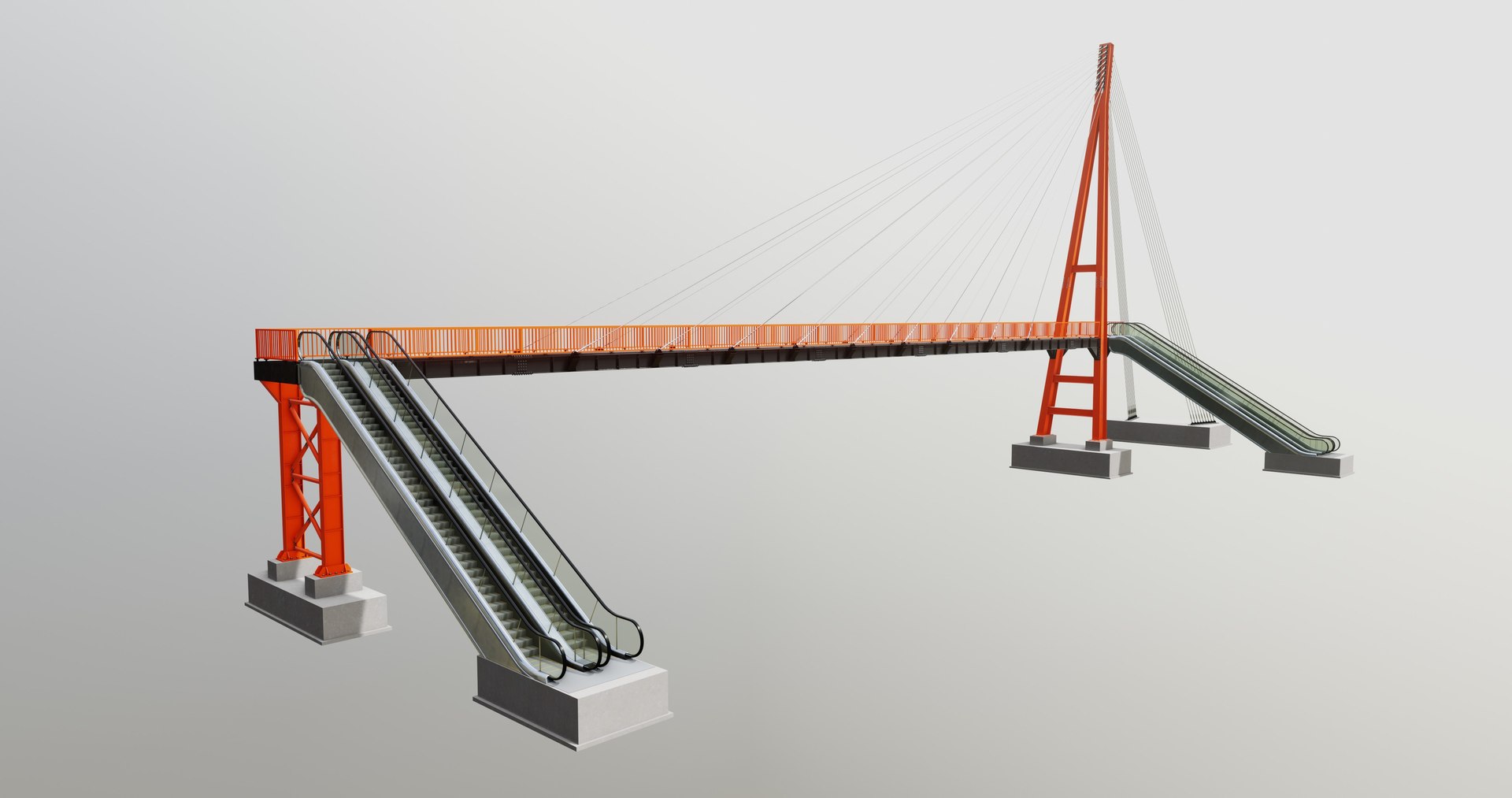

Galvanized Coating Color With Black and Orange Colors

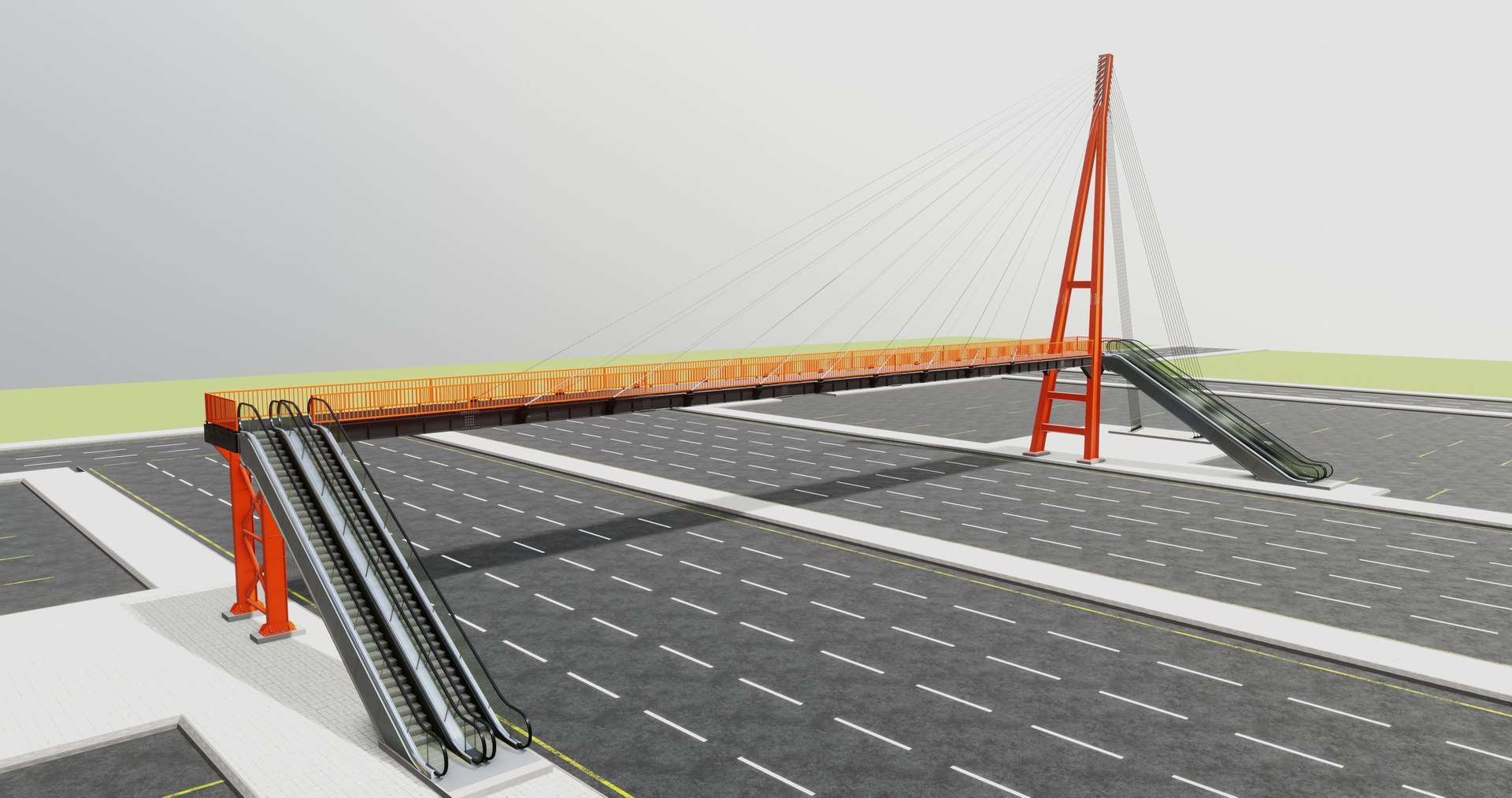

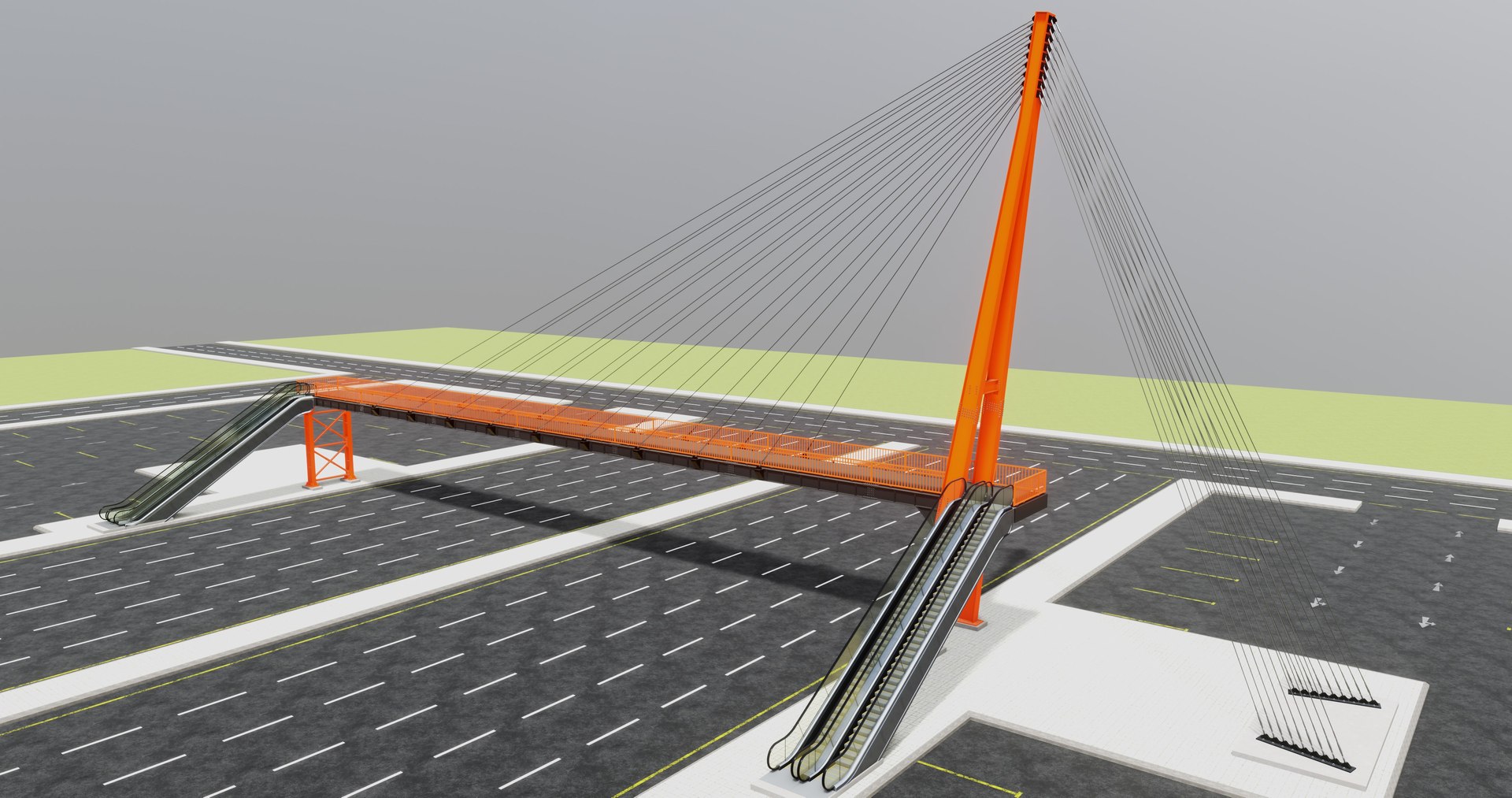

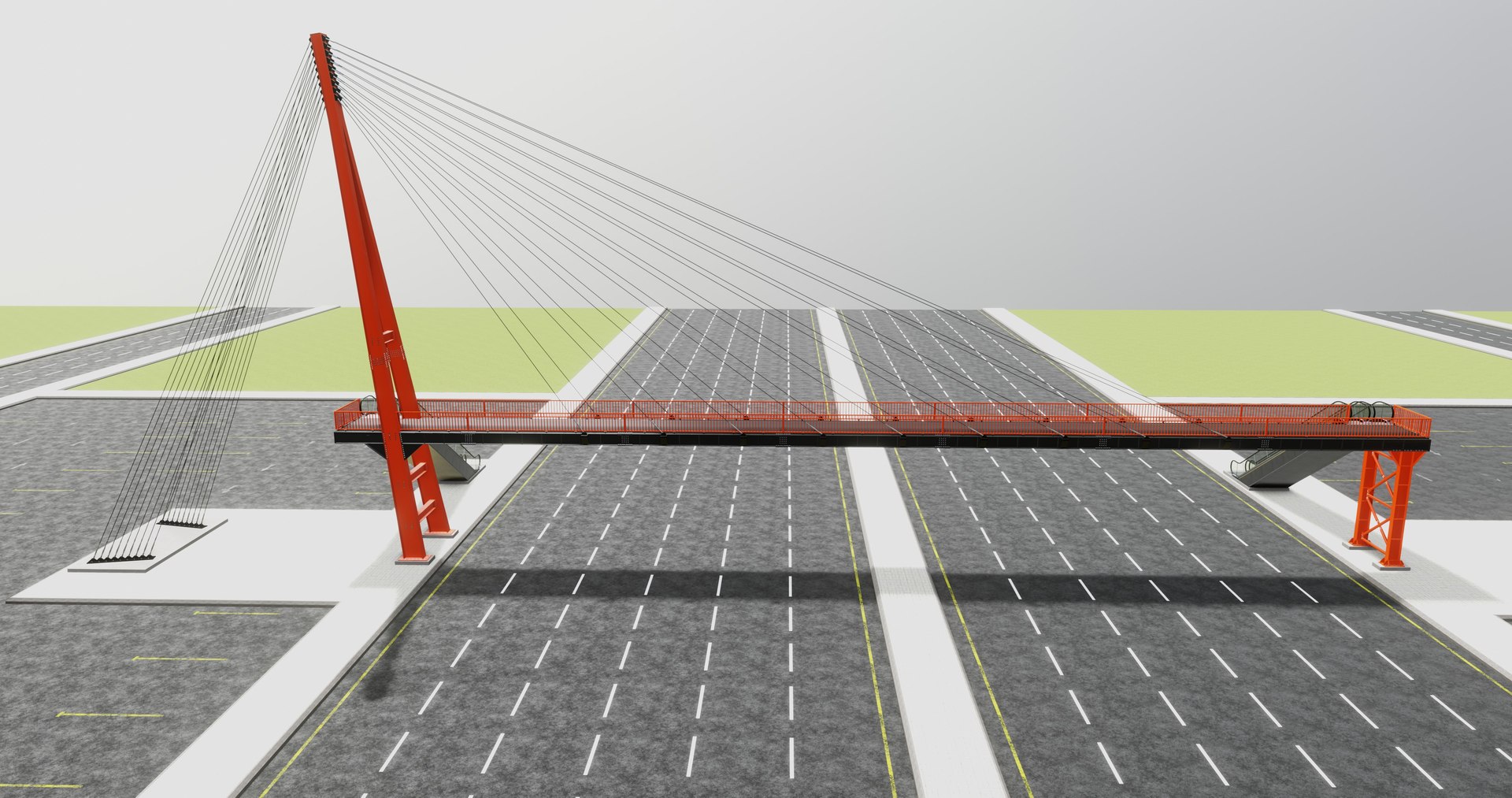

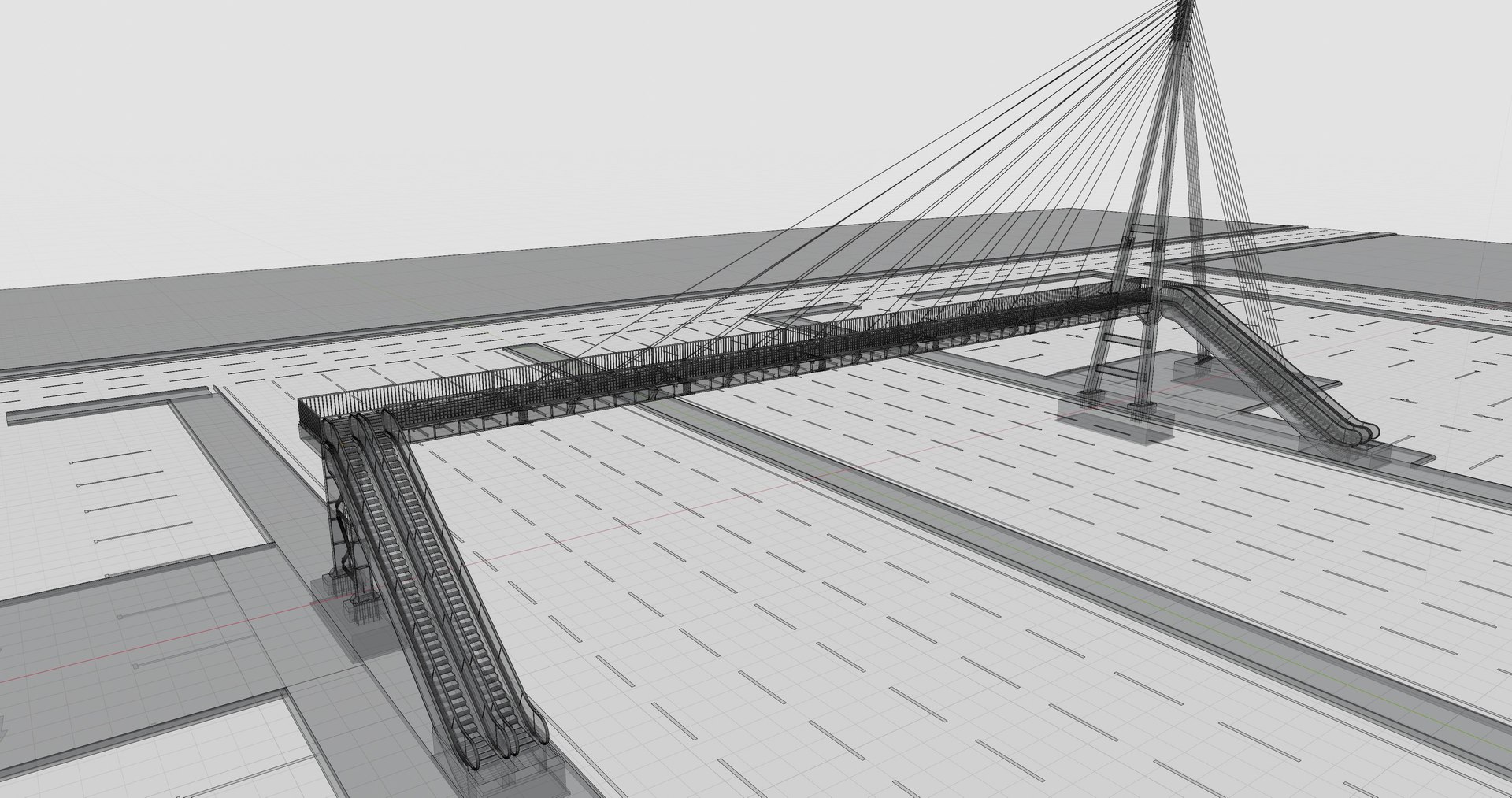

The Long Platform Construction is Connected by Rope Tensioning.

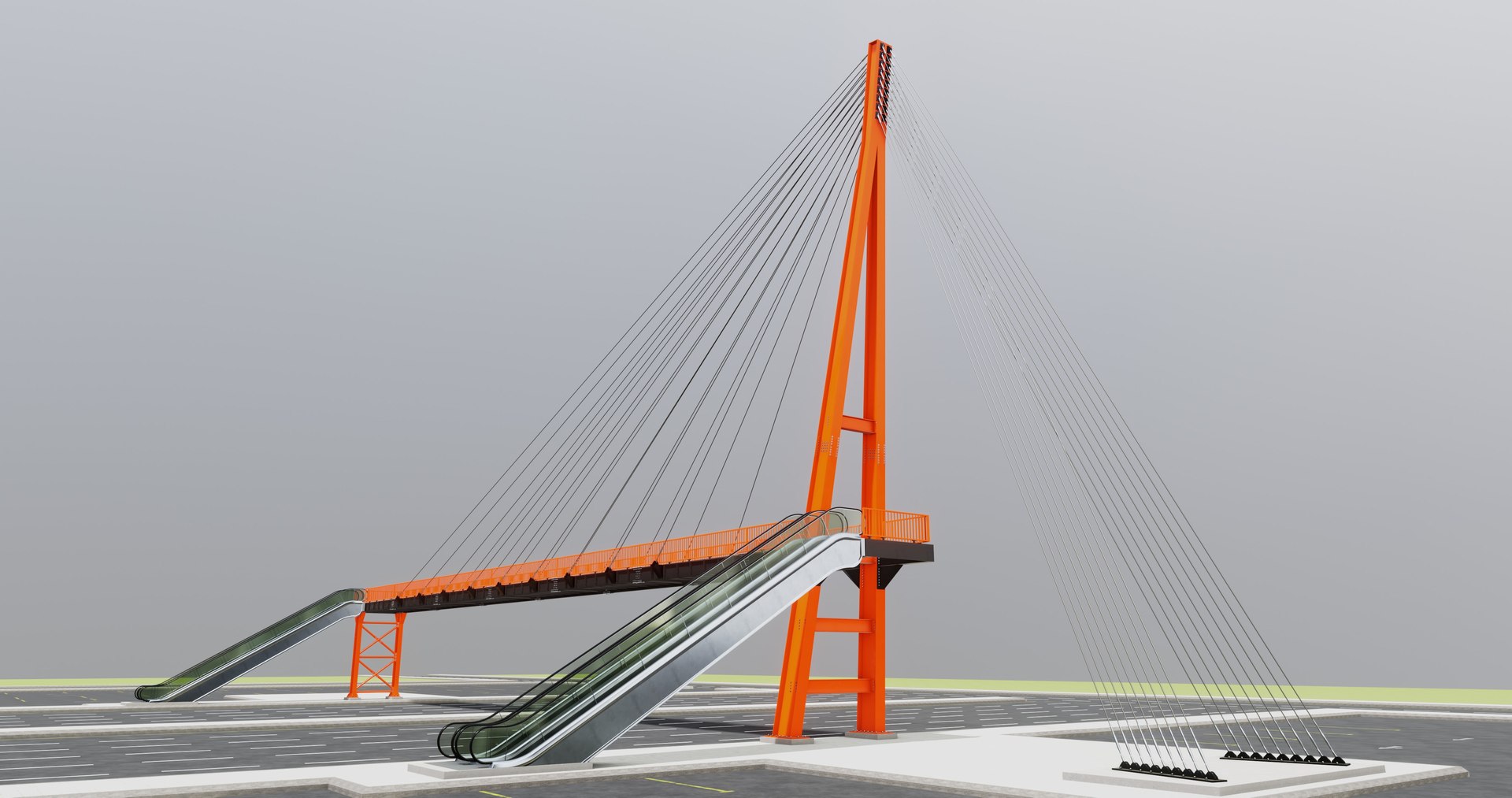

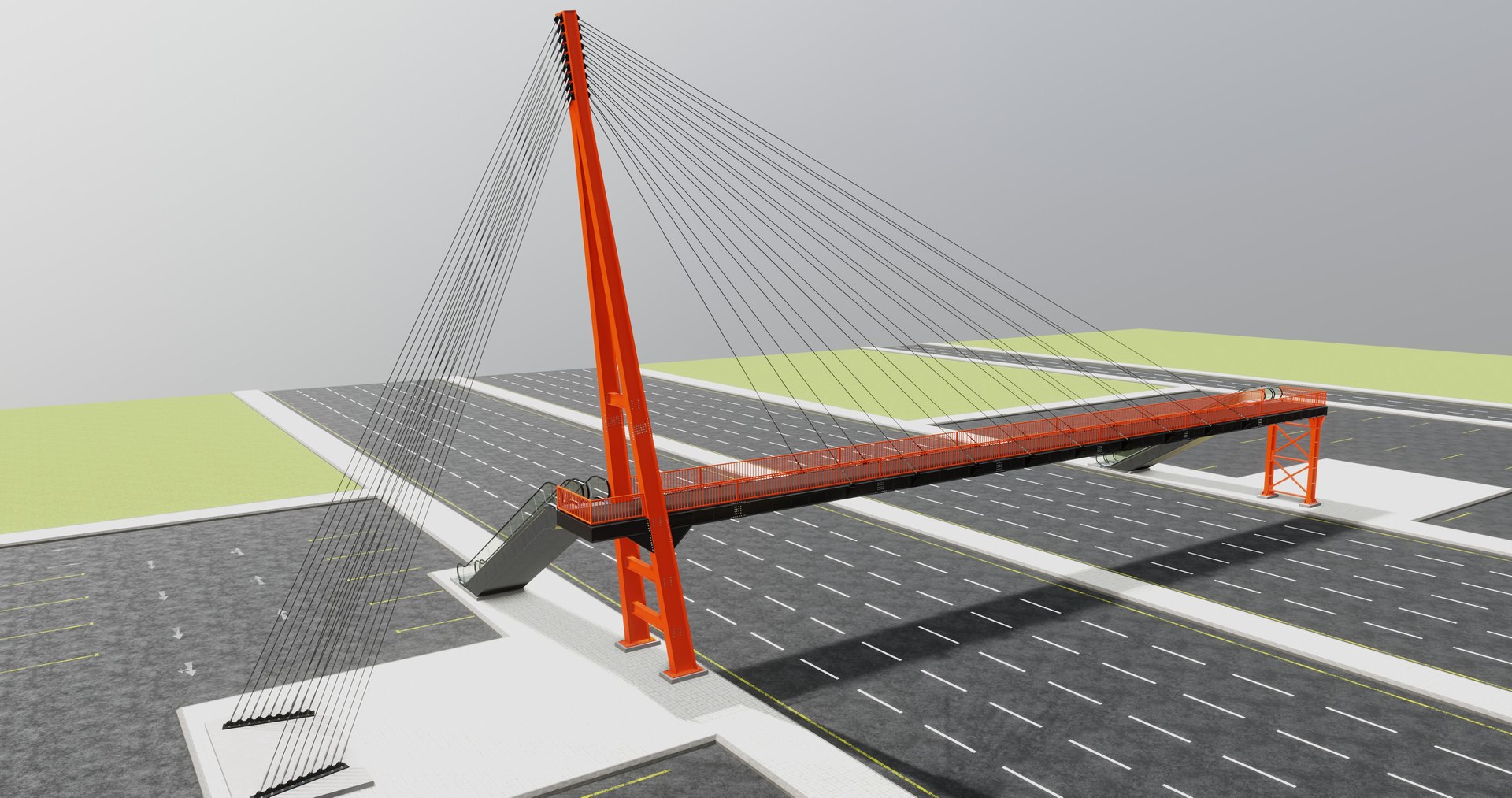

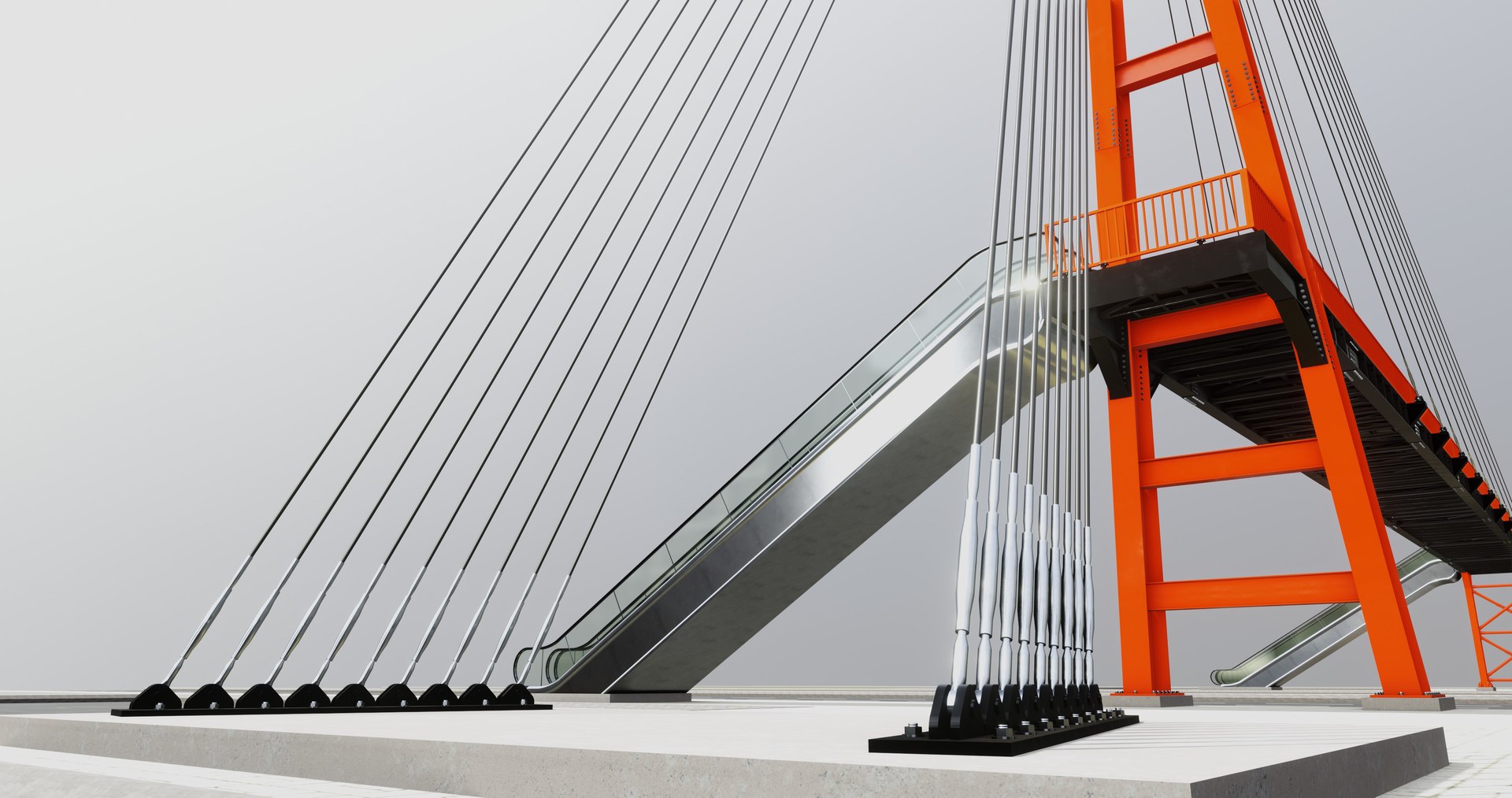

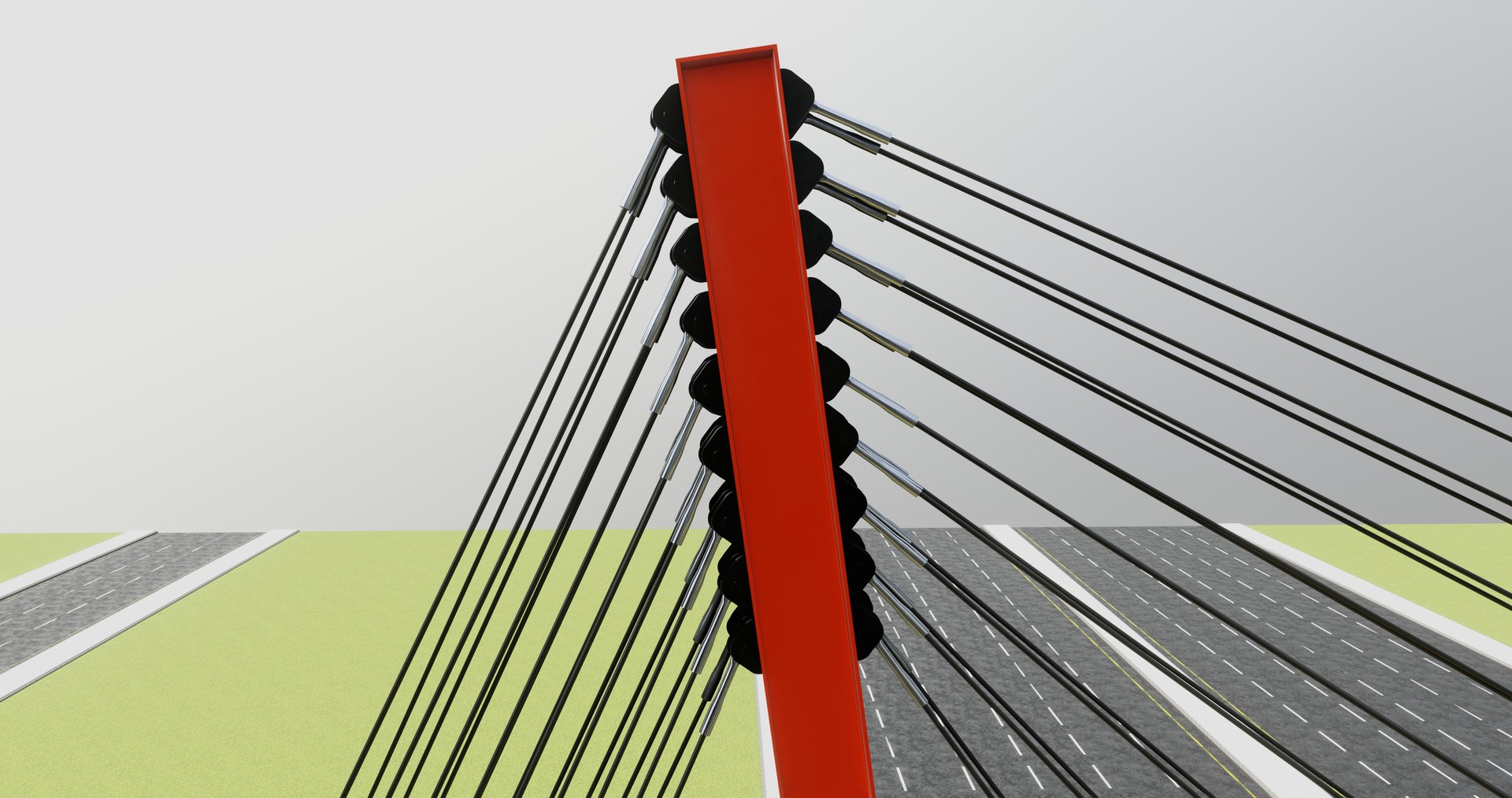

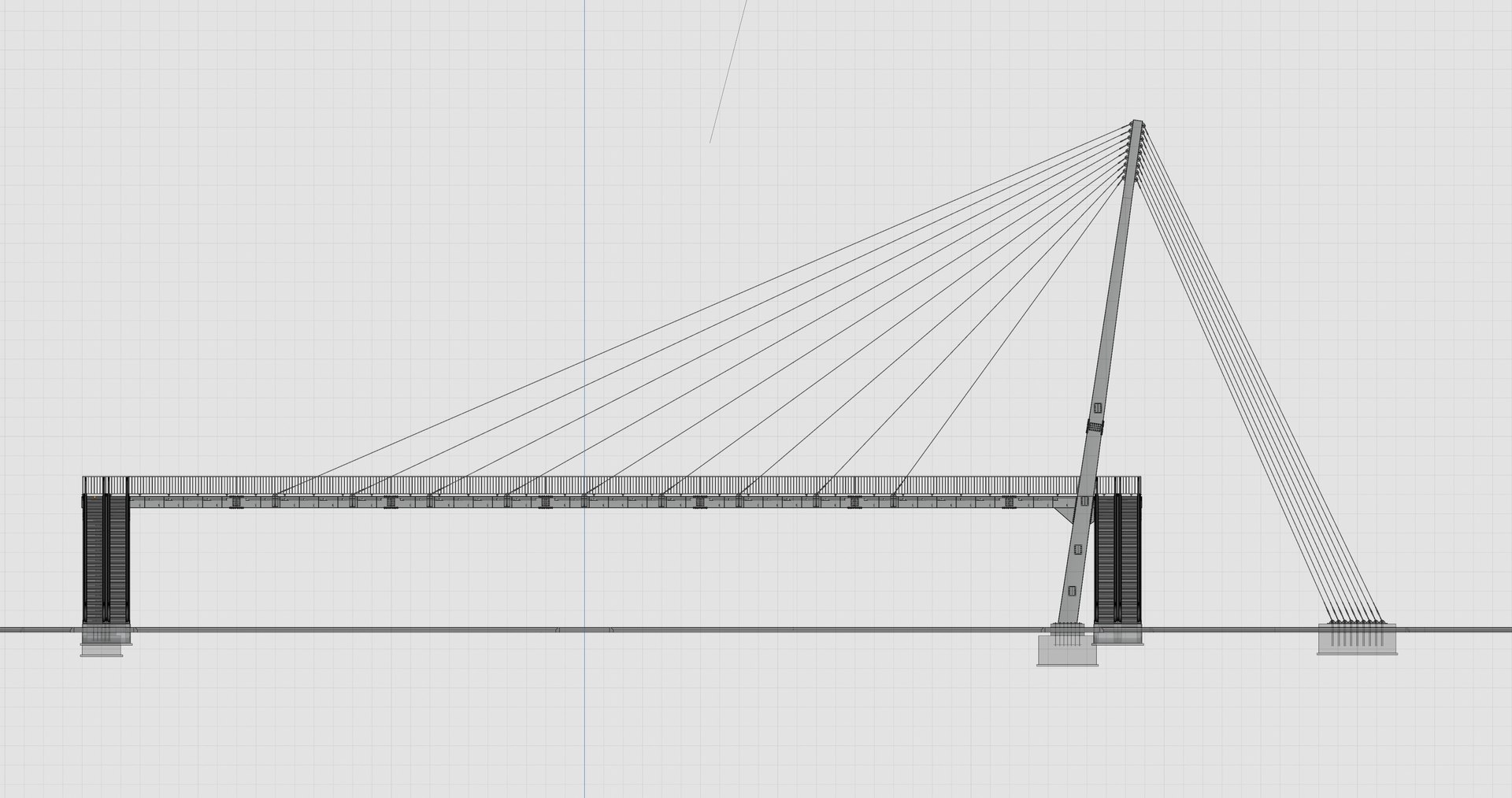

18 Ropes for the Tensioning of the Platforms 18 Ropes for the Moment Balance of the Long Pylon Column Were Tied to the Ground From the Back.

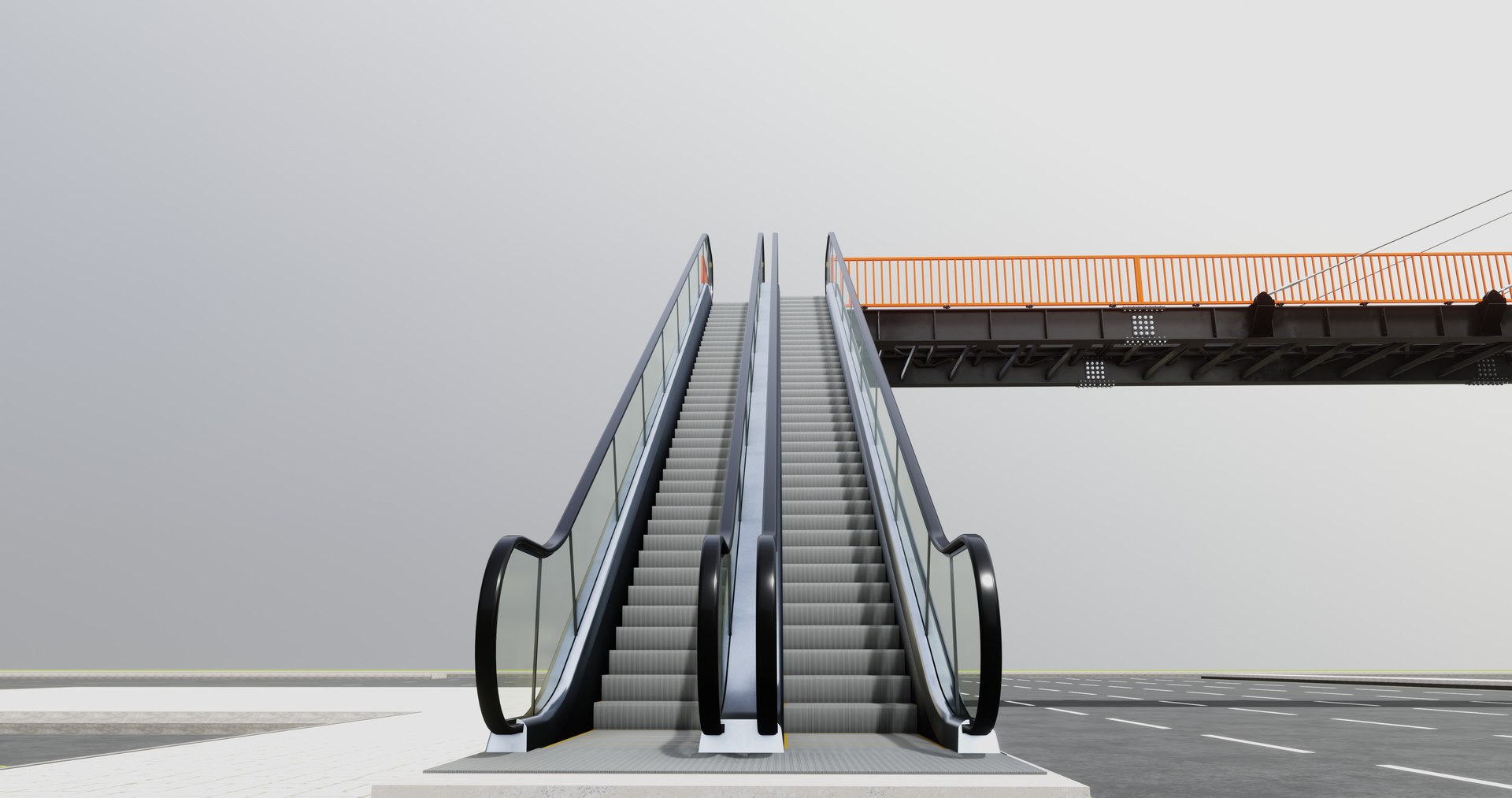

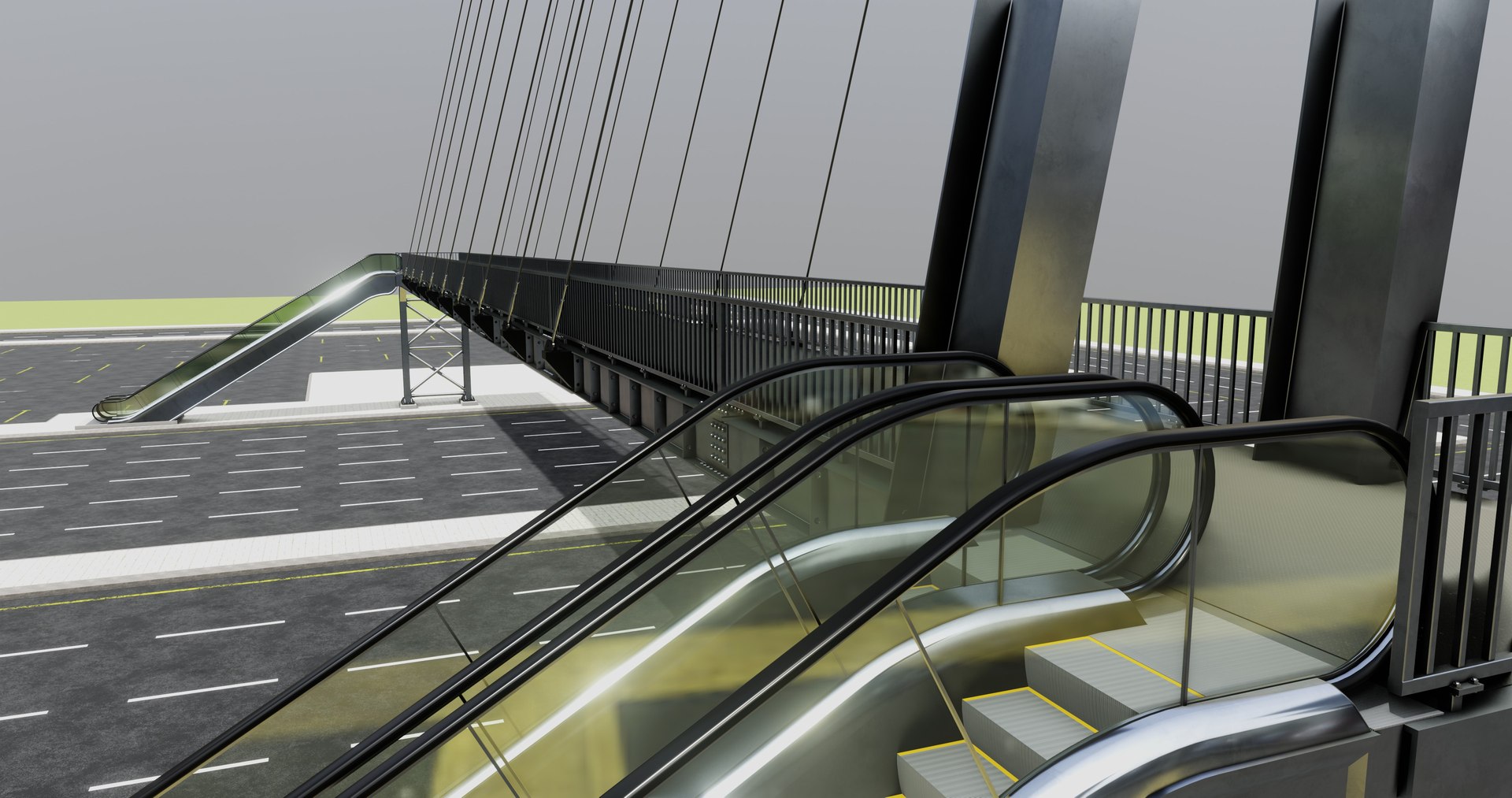

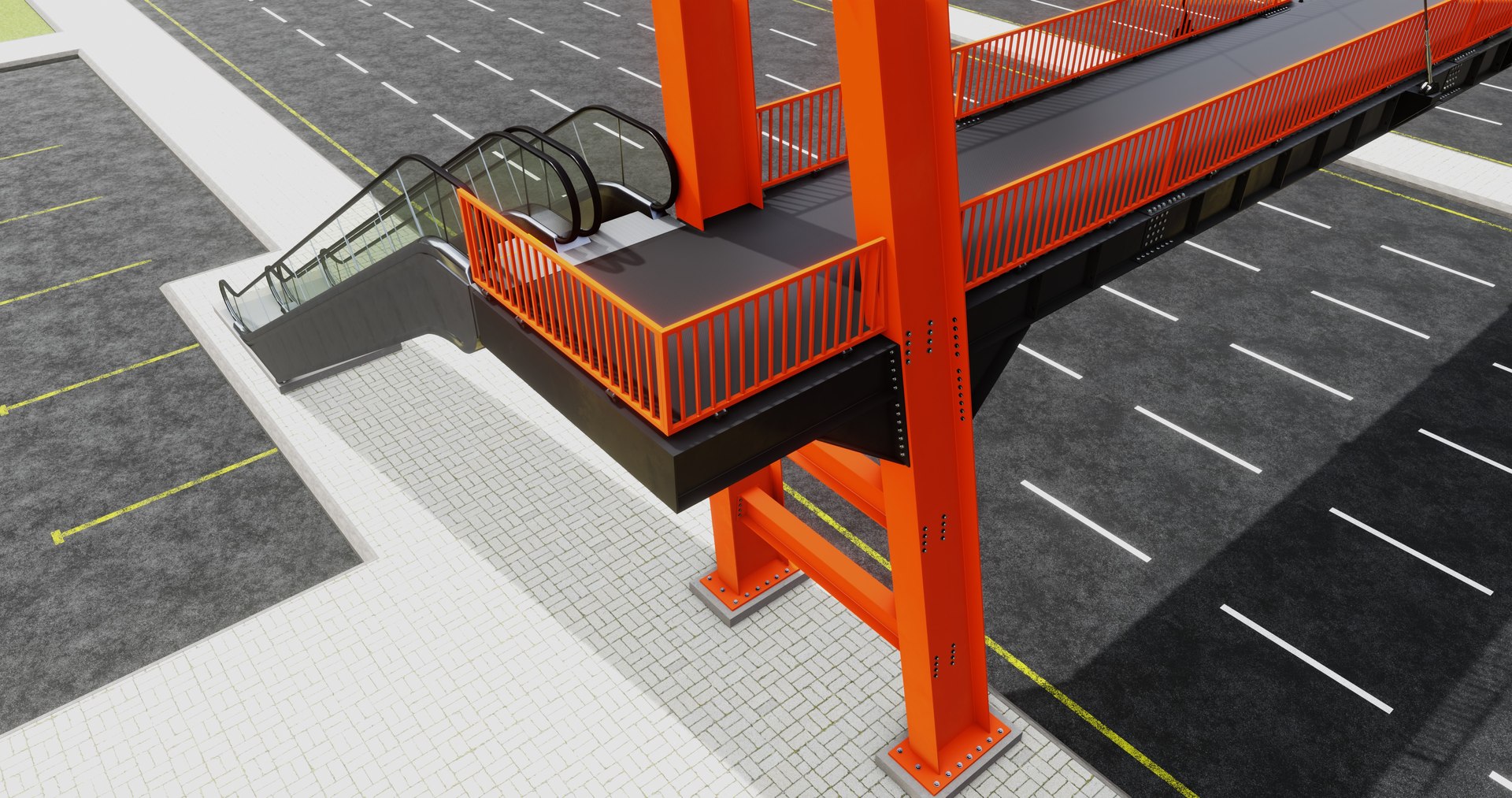

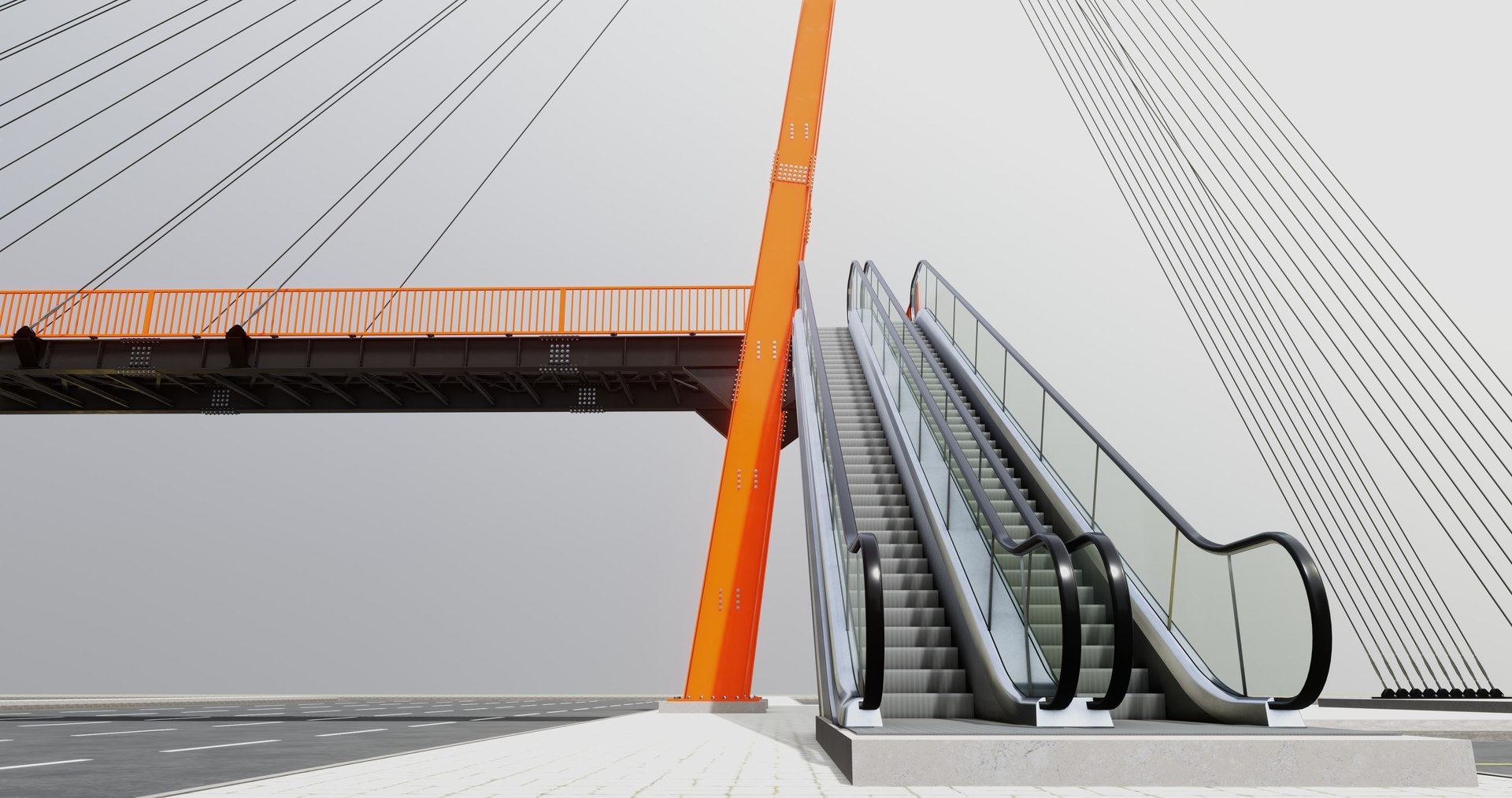

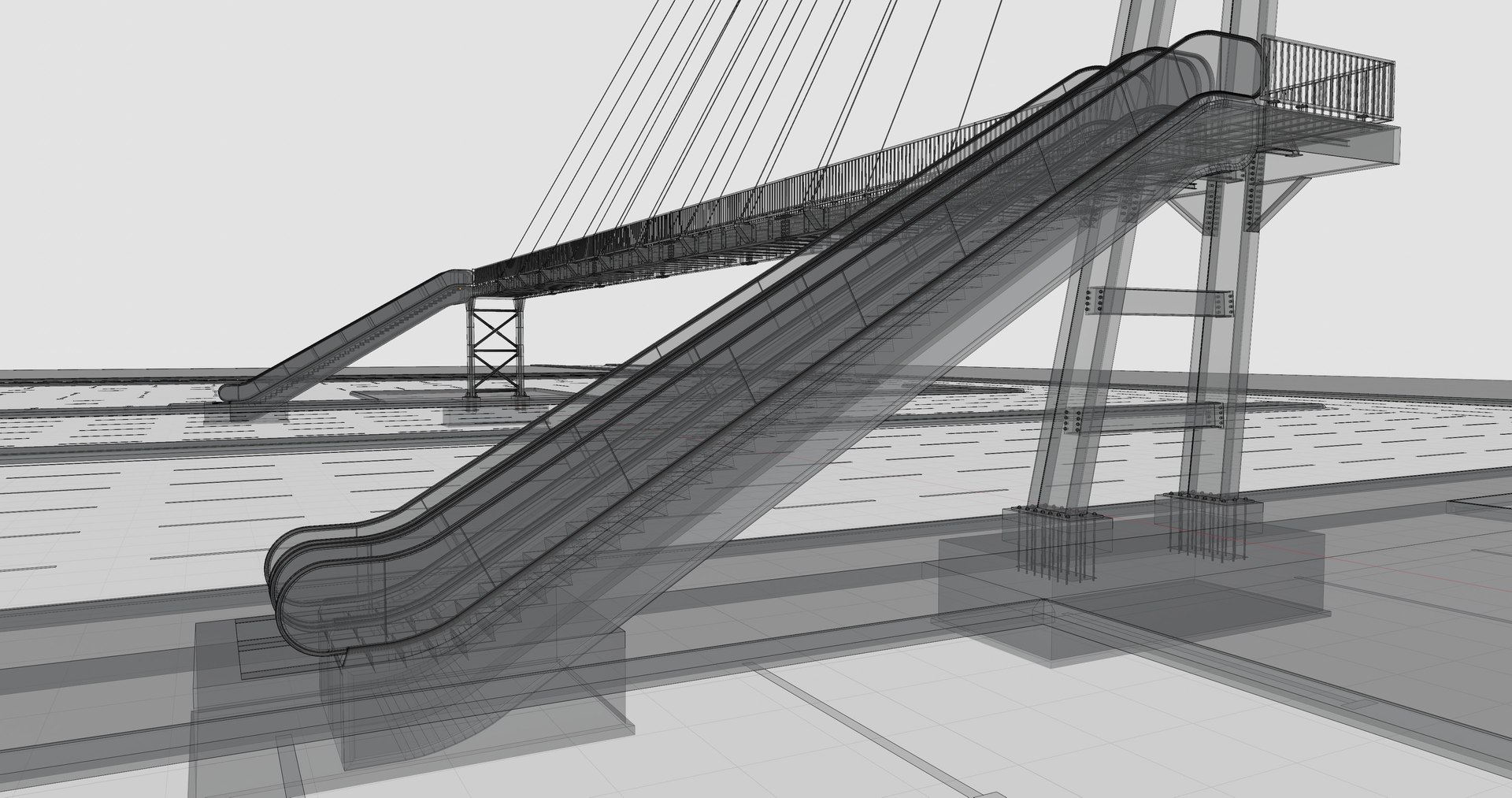

Two Double Escalators
Up and Down Animation Was Prepared for Double Escalators

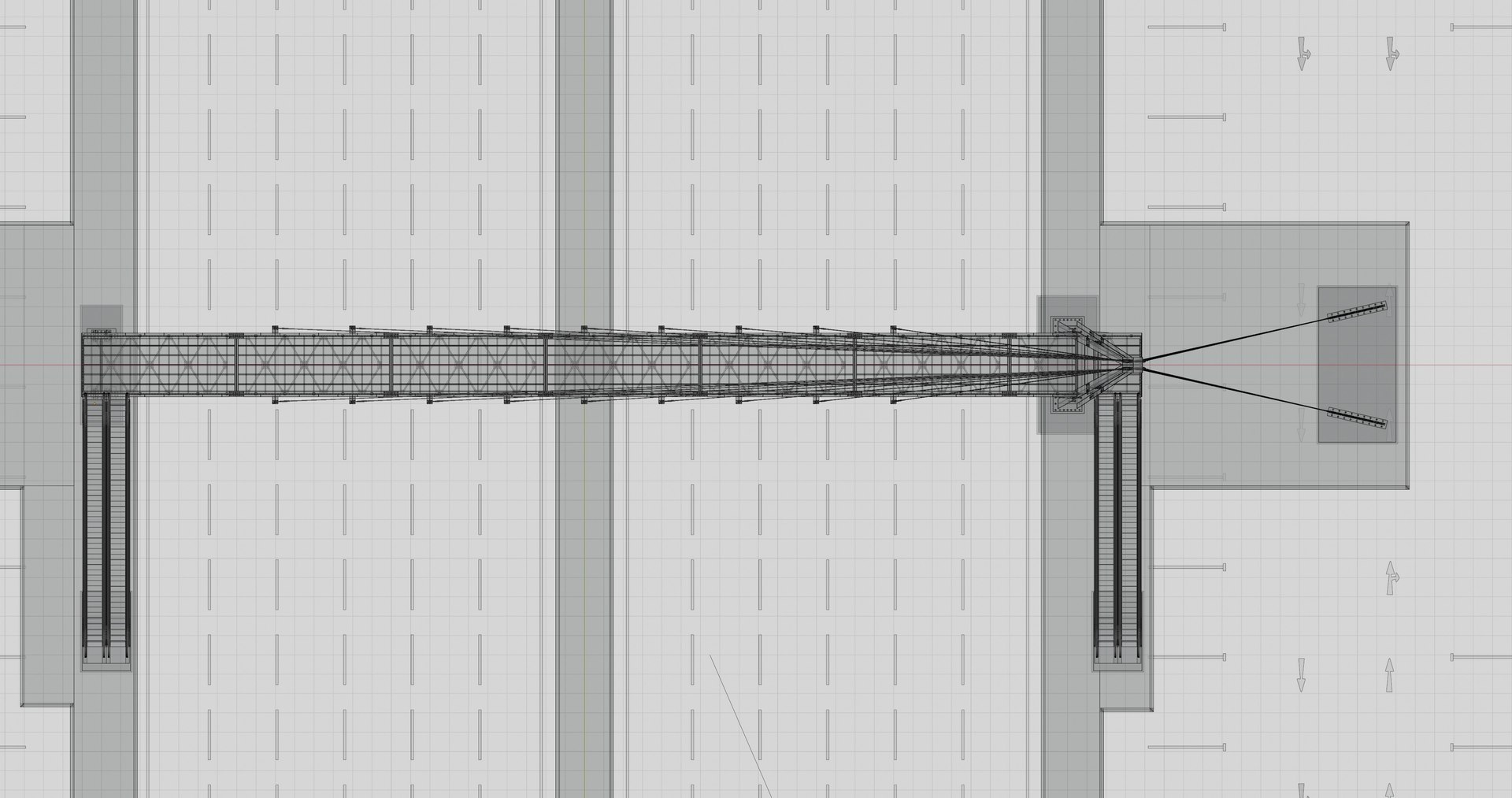

Largest Column Span : 50 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.


Steel Rope : 36 piece

Rope Fixed Press : 16 piece

Rope Tensioning Press System : 16 Piece

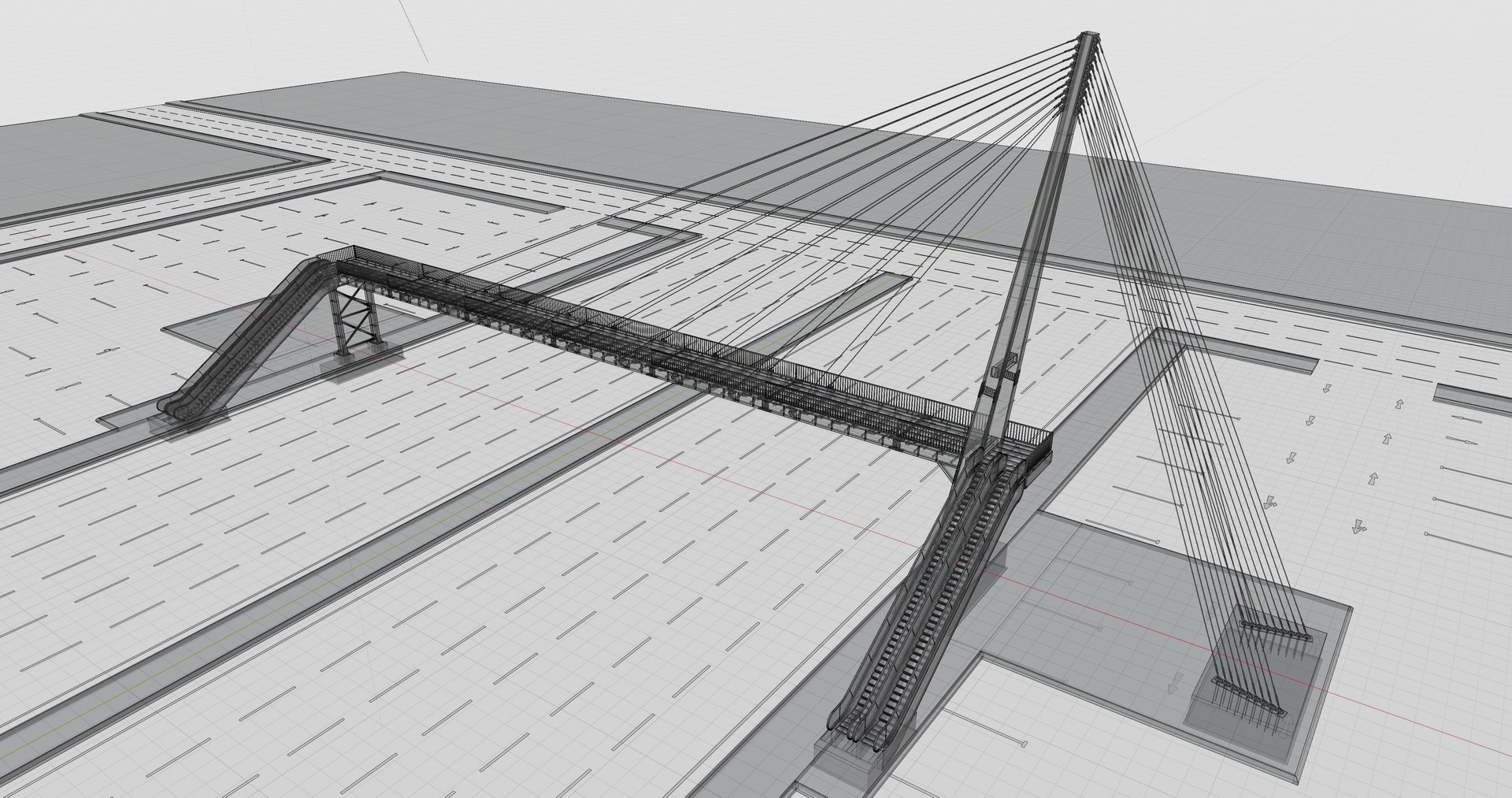

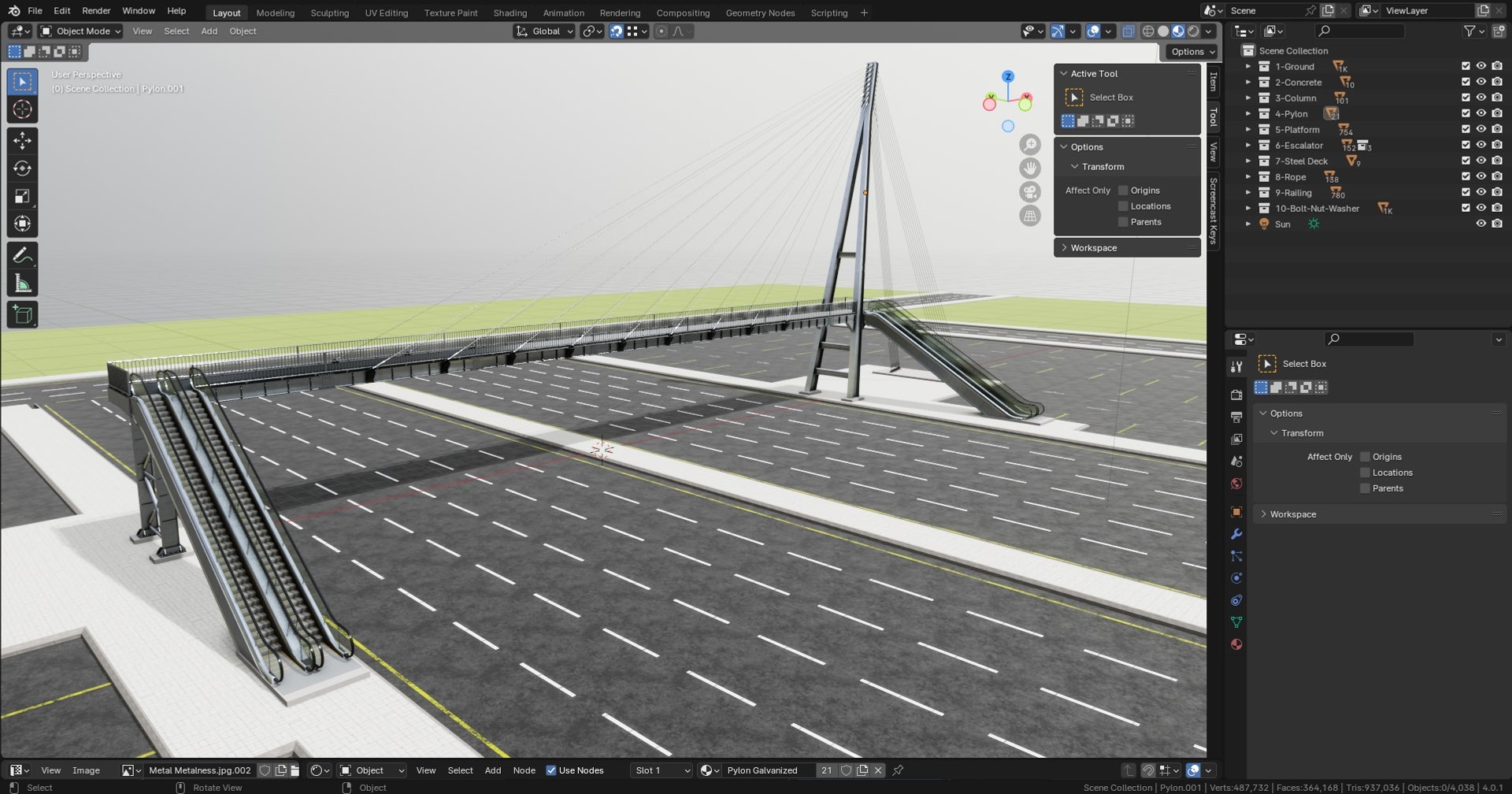

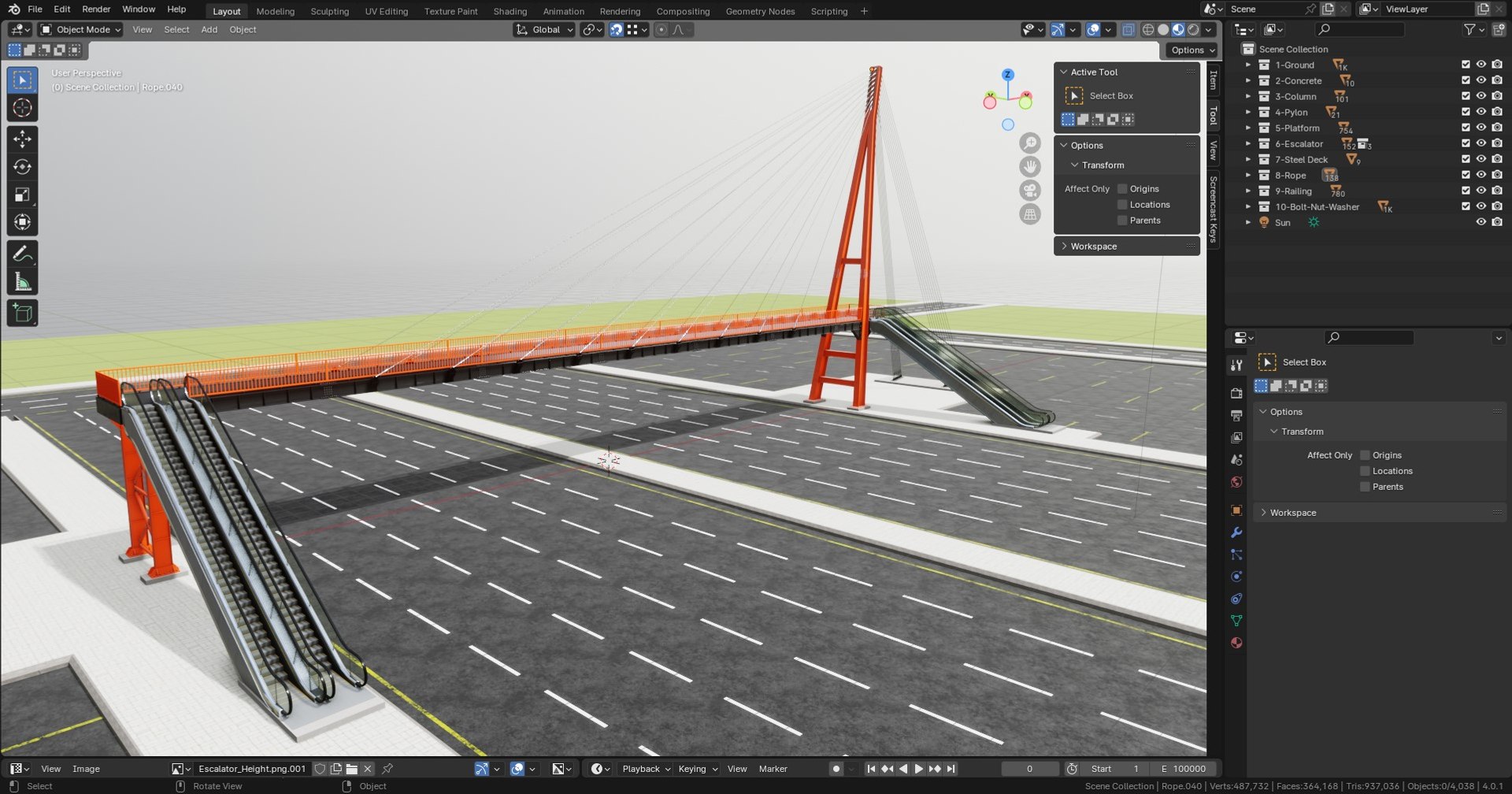

Prepared With BLENDER Version 4.0.1

Polygons : 364168

Vertices : 487732

Objects : 4038
