More than 68 3D Models Collection and 37 Textures [Raw and Painted Steel]! 48 rolled-laser HEA Beams, 8 flats, 12 Bolts&Nuts. Ready for Old and Modern Contemporary Architecture and bolted joints. Real World Scale. STL, REVIT-AUTOCAD, SKETCHUP, VUE!
More than 68 3D Models Collection and 37 Textures [Raw and Painted Steel]
[Bolts & Nuts Pack Content identical to Product ID: 651759]
European Standard Wide Flange HEA Steel Beams Collection with Flats and Bolts:
UNI 5397 / UNI EN 10034-EN 10088-3: 1D / DIN 1025
UNI EU 58 / UNI EN 10058
ISO 261-ISO 262
Real World Scale Model [SmartCgArt Real World System]. Quads [C4D; OBJ; DXF] & Tris [VUE; 3DS; STL].
STL Print-Ready Printable Steel Beams HEA Series & Bolts and Nuts Valid Mesh Certified.
REVIT-AUTOCAD Architecture DXF blocks ready.
SKETCHUP 3DS Files.
Architecture Use: both Old & Modern Contemporary.
Ready to Build Steel Beams Bolted Joints.
48 Correct Models of HEA Steel Beams, according to the International Standard values and parameters: UNI 5397 / UNI EN 10034-EN 10088-3: 1D / DIN 1025.
8 Steel Flats, according to the International Standard values and parameters: UNI EU 58 / UNI EN 10058.
12 Correct Models of Bolts and Nuts Series M14-M16-M20-M22-M24-M27, according to the International Standard values and parameters: ISO 261 and ISO 262.
37 Textures [Raw and Painted Steel]
10 VUE Alternate Materials
24 Rolled HEA Beams 24 Laser HEA Beams 8 Steel Flats to be used with Bolts and Nuts to build Bolted Joints.
Bolts and Nuts also with washers and 2 Series of Bolts and Nuts: with Thread and without Thread [for low-poly rendering].
For STL users: these ISO 261-ISO 262 threads are for visualization and graphical use only and not for Industrial Production.
In the Package you will find:

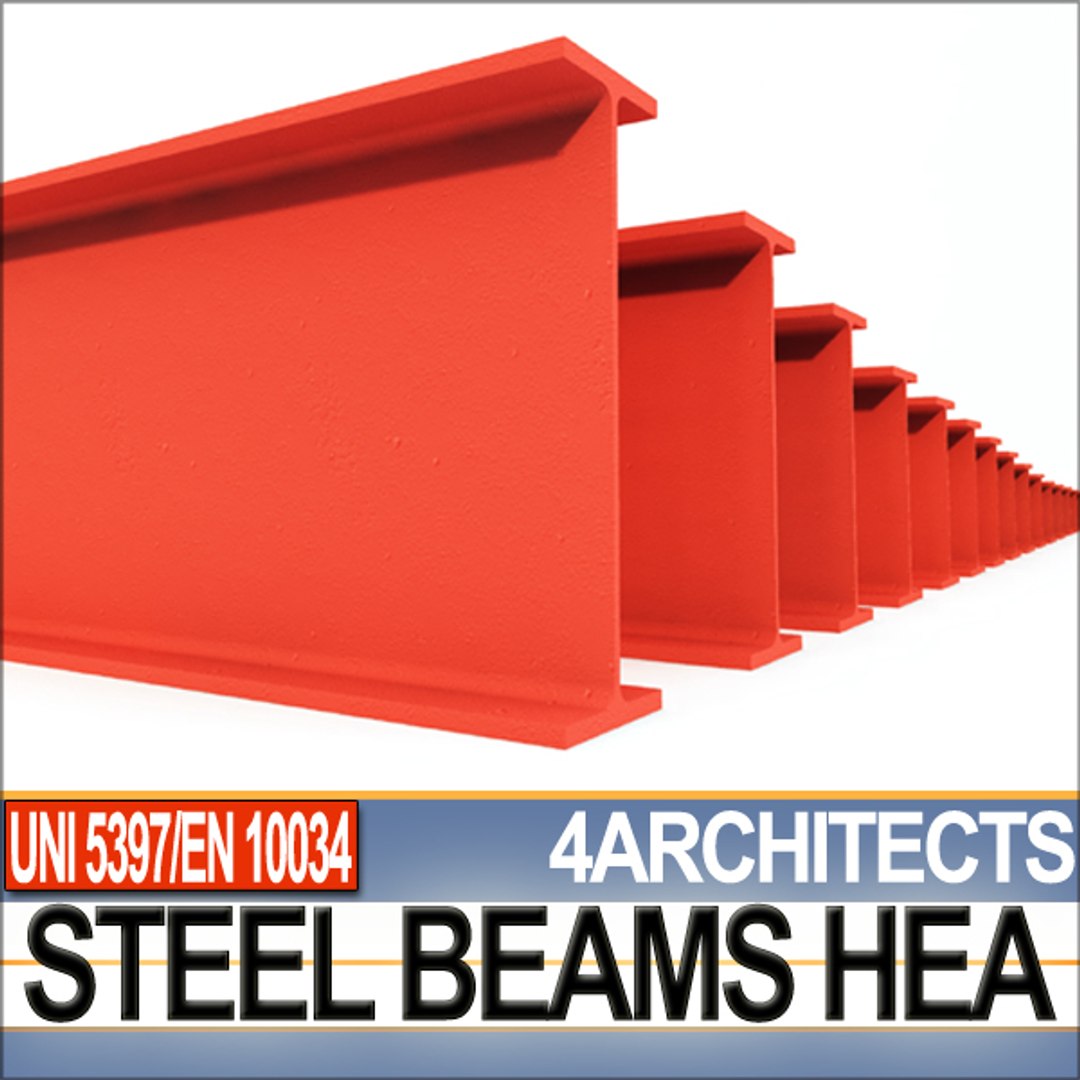

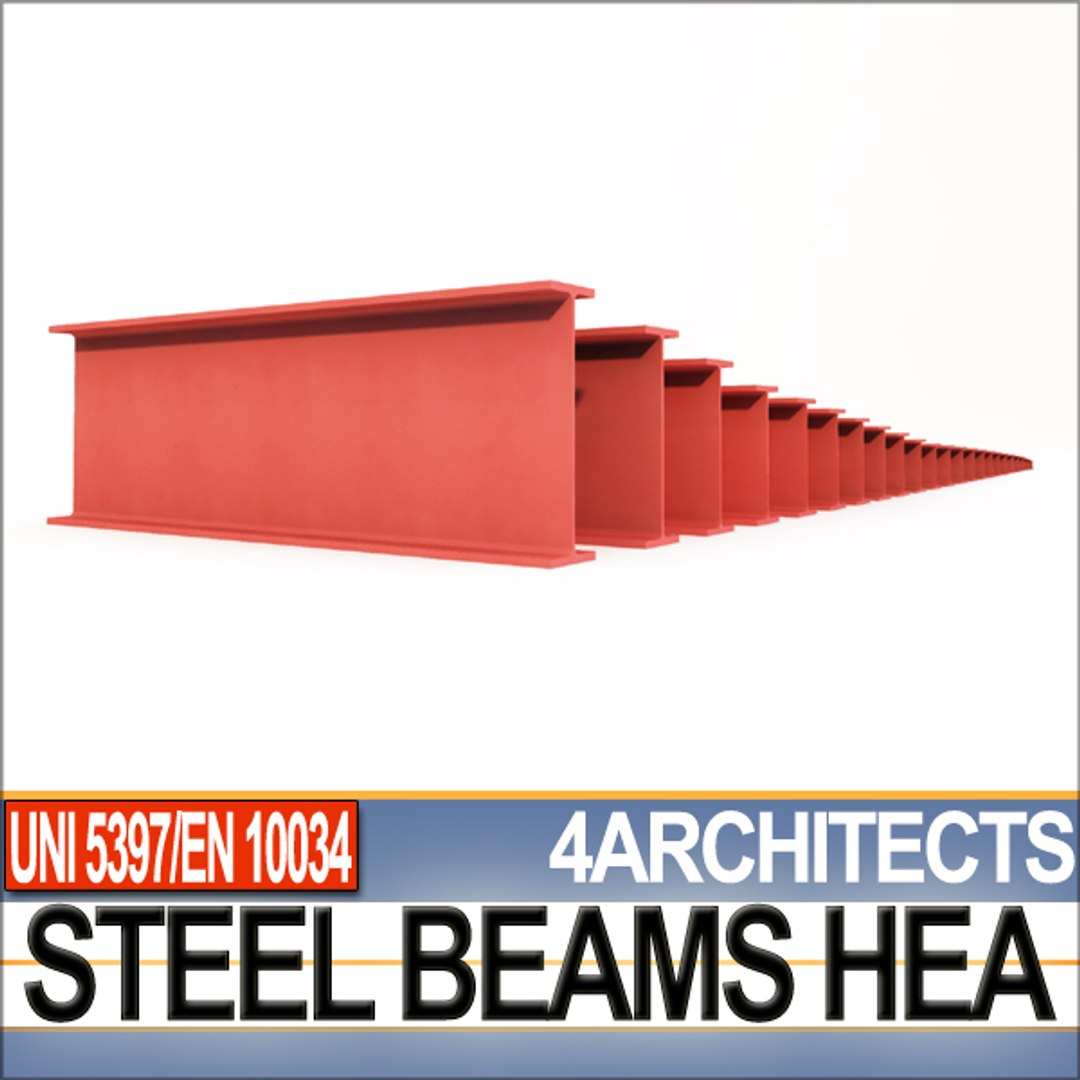

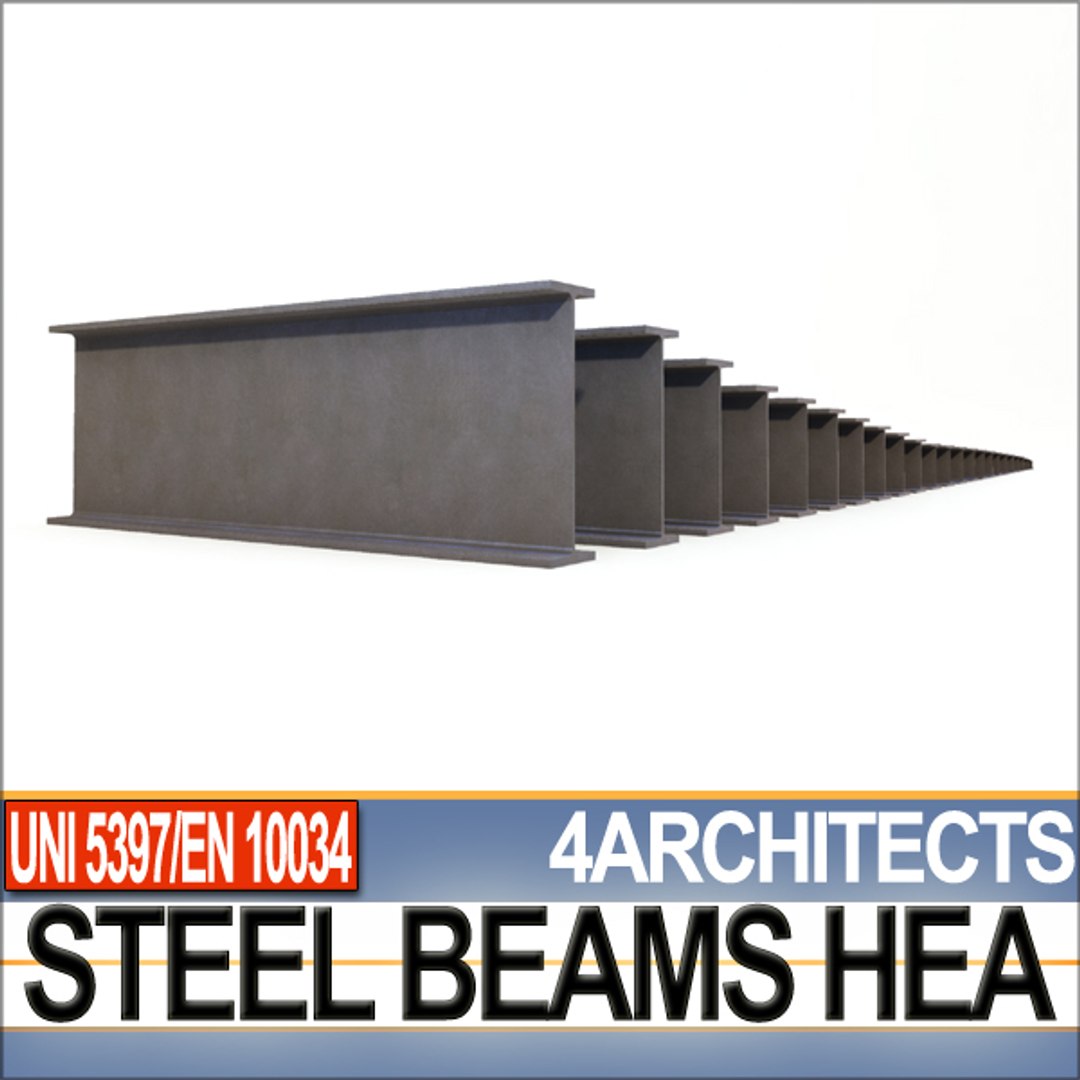

1- 24 European Wide Flange Steel HEA Rolled Beams [UNI 5397 / UNI EN 10034];
2- 24 European Wide Flange Steel HEA Laser Beams [UNI 5397 / UNI EN 10034 EN 10088-3: 1D DIN 1025];

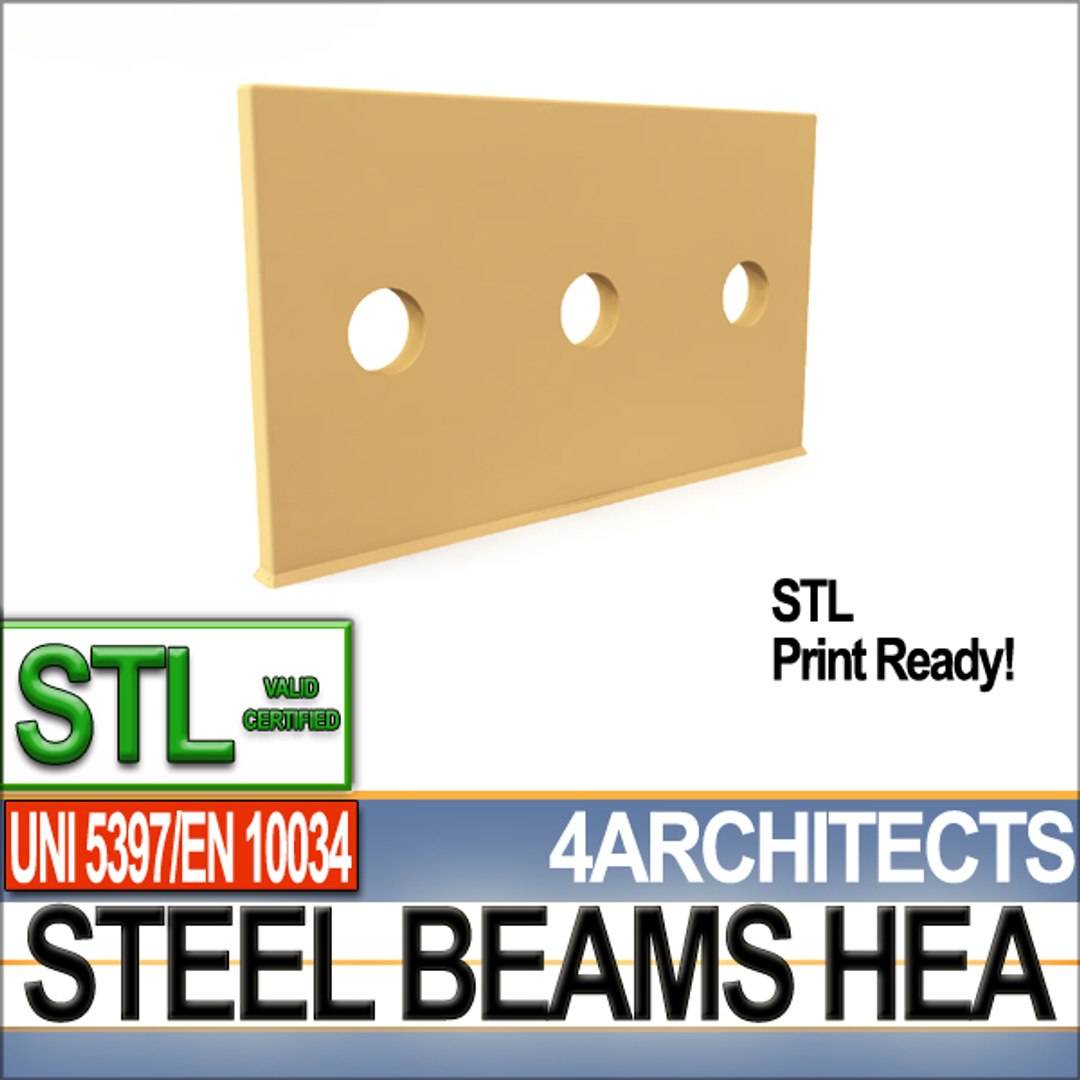

3- 8 Steel Flats [80x6; 90x8; 100x10; 110x10; 120x12; 130x12; 140x15; 150x15][UNI EU 58 / UNI EN 10058];

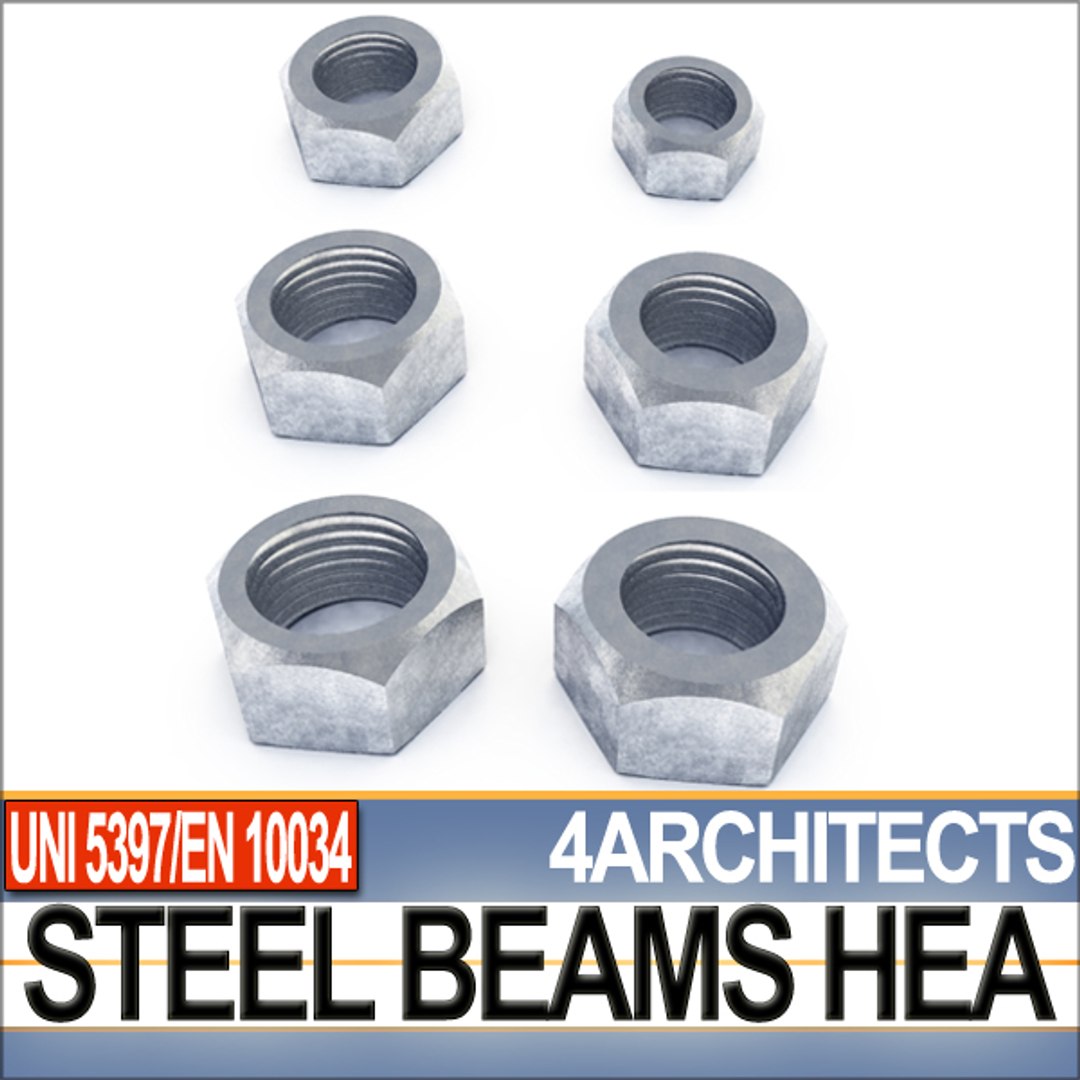

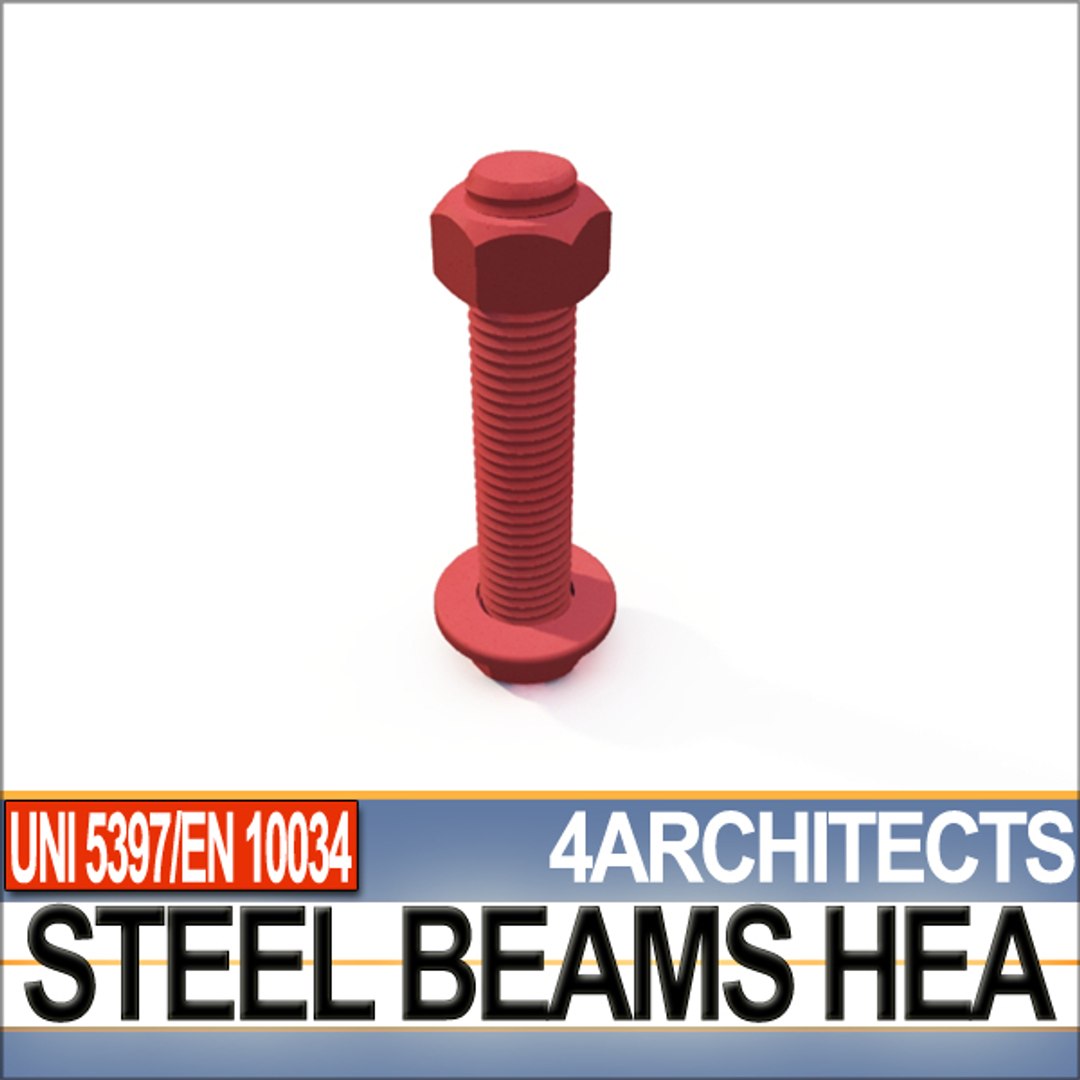

4- 1 Complete Set of 6 Washers, 6 Bolts and 6 Nuts with Thread [M14 to M27: ISO 261-ISO 262];

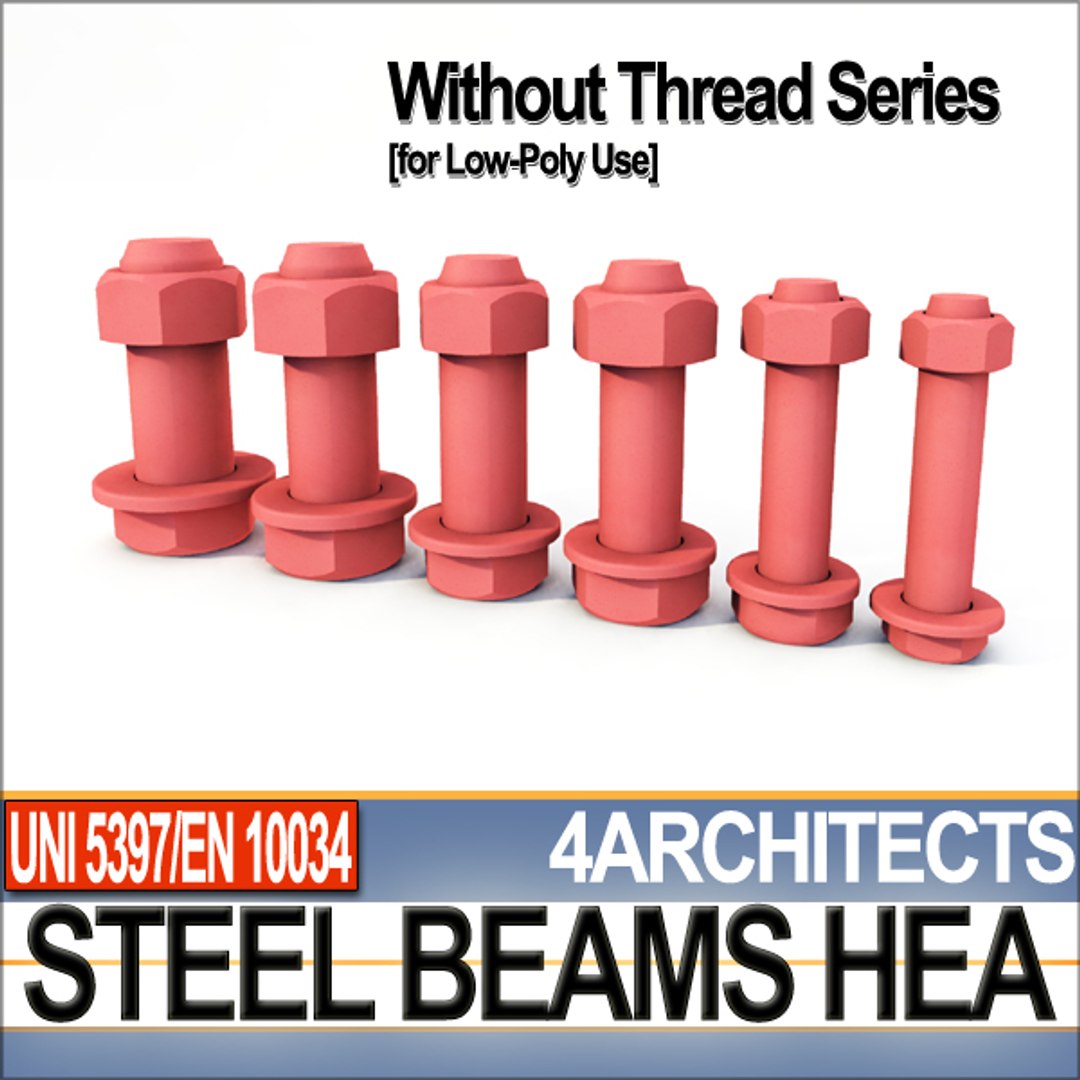

5- 1 Complete Set of 6 Washers, 6 Bolts and 6 Nuts without Thread [for low-poly rendering];
6- REVIT-AUTOCAD Dxf Beams, Flats and Bolts & Nuts ready to be combined and used;
7- 3DS Version Files ready to be used with SKETCHUP;
8- STL 3D Ready Printable of Beams, Flats and Bolts & Nuts [with Valid Mesh Certificate];
9- 34 High Quality textures for Metal Rendering [1600x1600; 1121x843; 1024x1024; 700x700];
10- 10 Vue Alternate Materials for Steel Chrome, Raw Steel and Painted Steel;
11- Real World Scale SmartCgArt Man Reference System with models [C4D, VUE, 3DS, OBJ, DXF].
POLYGONS/VERTICES COUNT [Values for HEA Beams]

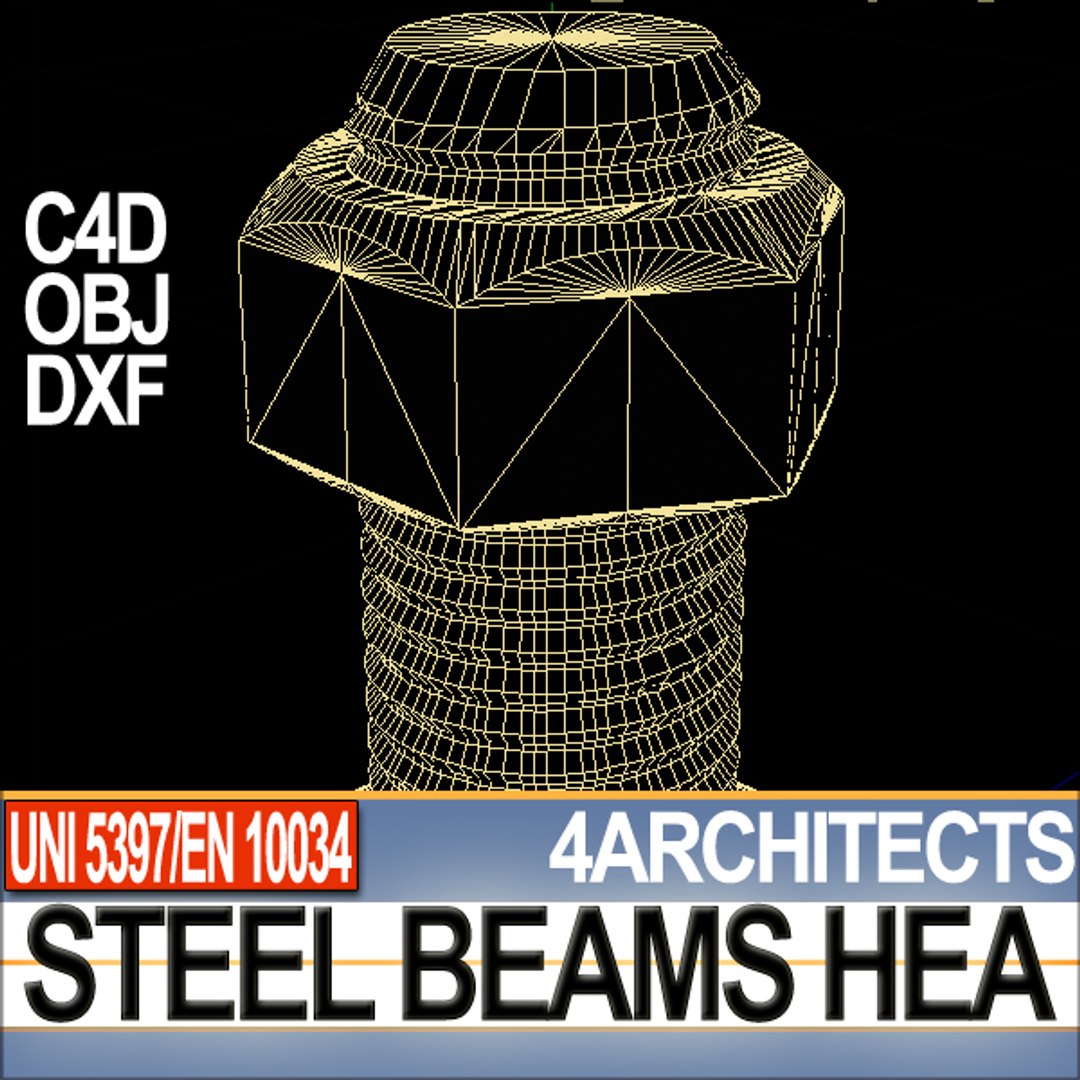

C4D-OBJ-DXF: only/mostly quads [506; 352]
VUE-3DS-STL: triangulated [700; 352]
POLYGONS/VERTICES COUNT [Values for Flats]
C4D-OBJ-DXF: only/mostly quads [1852; 1668]
VUE-3DS-STL: triangulated [3344; 1668]
POLYGONS/VERTICES COUNT [Values for M27 BoltWasherNut with Thread]
C4D-OBJ-DXF: only/mostly quads [9295; 8727]
VUE-3DS-STL: triangulated [17450; 8727]
POLYGONS/VERTICES COUNT [Values for M27 BoltWasherNut without Thread]
C4D-OBJ-DXF: only/mostly quads [2244; 1826]
VUE-3DS-STL: triangulated [3648; 1826]
All the Models are Photoreal and Hi-DEF so they are suitable also for Hi-Def Rendering and Close-Up Shots.
