German U-BOAT Type VII by LRRJSFX - February 2017
------------------------------------------------------
|| PRODUCT DESCRIPTION ||

This is a model of "German U-BOAT Type VII" submarine.
Originally created with 3ds Max 12,0.
Other included formats: FBX.

The "German U-BOAT Type VII" were the most common type of German World War II U-boat and the most numerous U-boat type to be involved in the Battle of the Atlantic. This was one of the combat submarines most recognized for its efficiency and performance during the service.

U-BOAT stands for "UNTERSEEBOOT", which means "UNDERSEA BOAT" in German.

Type VII submarines were the most widely used U-Boats of the war and were the most produced submarine class in history with 703 built. The type VII had several modifications.

|| TECHNICAL CHARACTERISTICS (Type VIIC) ||

Displacement:
769 tonnes (757 long tons).

Length:
67.10 meter (220 ft 2 in).
o/a 50.50 meter (165 ft 8 in) pressure hull.

Beam:
6.20 meter (20 ft 4 in).
o/a 4.70 meter (15 ft 5 in) (pressure hull).

Height:
9.60 meter (31 ft 6 in).

Draft:
4.74 meter (15 ft 7 in).

Propulsion:
2 supercharged 6-cyl, diesel engines.
Totalling 2,8003,200 shp.
Max Engine RPM: 470490

Speed:
17.7 knots (32.8 km/h) (20.4 mph) surfaced.
7.6 knots (14.1 km/h) (8.7 mph) submerged.

Range:
8,500 nmi (15,700 km; 9,800 mi) at 10 knots (19 km/h;
12 mph) surfaced.
80 nmi (150 km; 92 mi) at 4 knots (7.4 km/h; 4.6 mph) submerged.

Test depth:
230 meter (750 ft)

Calculated crush depth:
250295 meter (820968 ft)

Complement:
44-52 officers & ratings

Armament:
5 533 mm (21 in) torpedo tubes (4 bow, 1 stern)
14 torpedoes.
1 88 mm C/35 naval gun.
2 x 20 mm C/30 antiaircraft gun.

In commission:
1936 1970 (G-7).
First unit = U 27
Last unit = U 1308
The cost of a Type VII is estimated at $2.25 million USD.

|| SPECS ||

This model contains:
295 objects.
205324 vertices.
364088 polygons.
All materials included in the folder.
The renderer used is Default Scanline Renderer
using Catmull-Rom antialiasing filter.

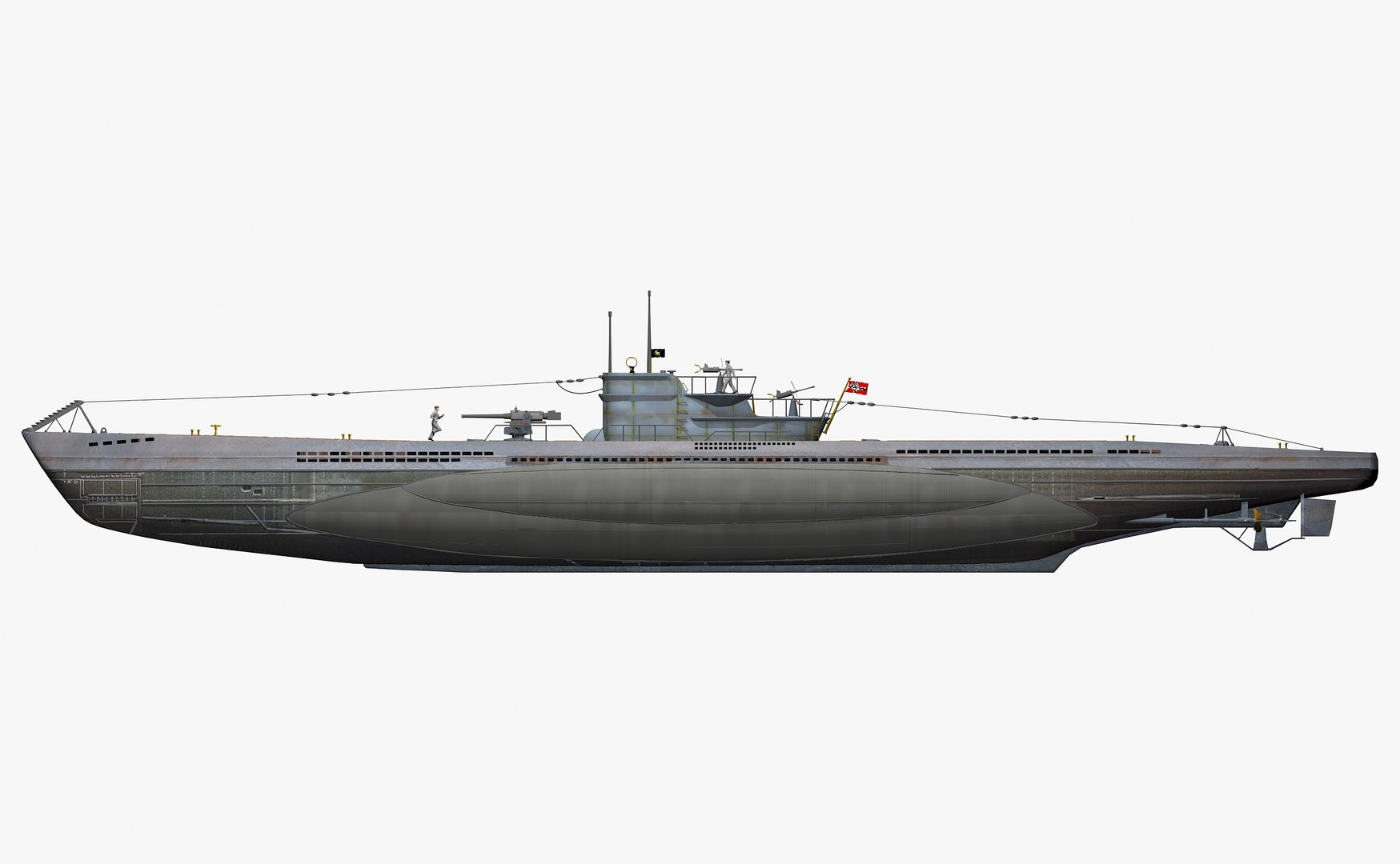

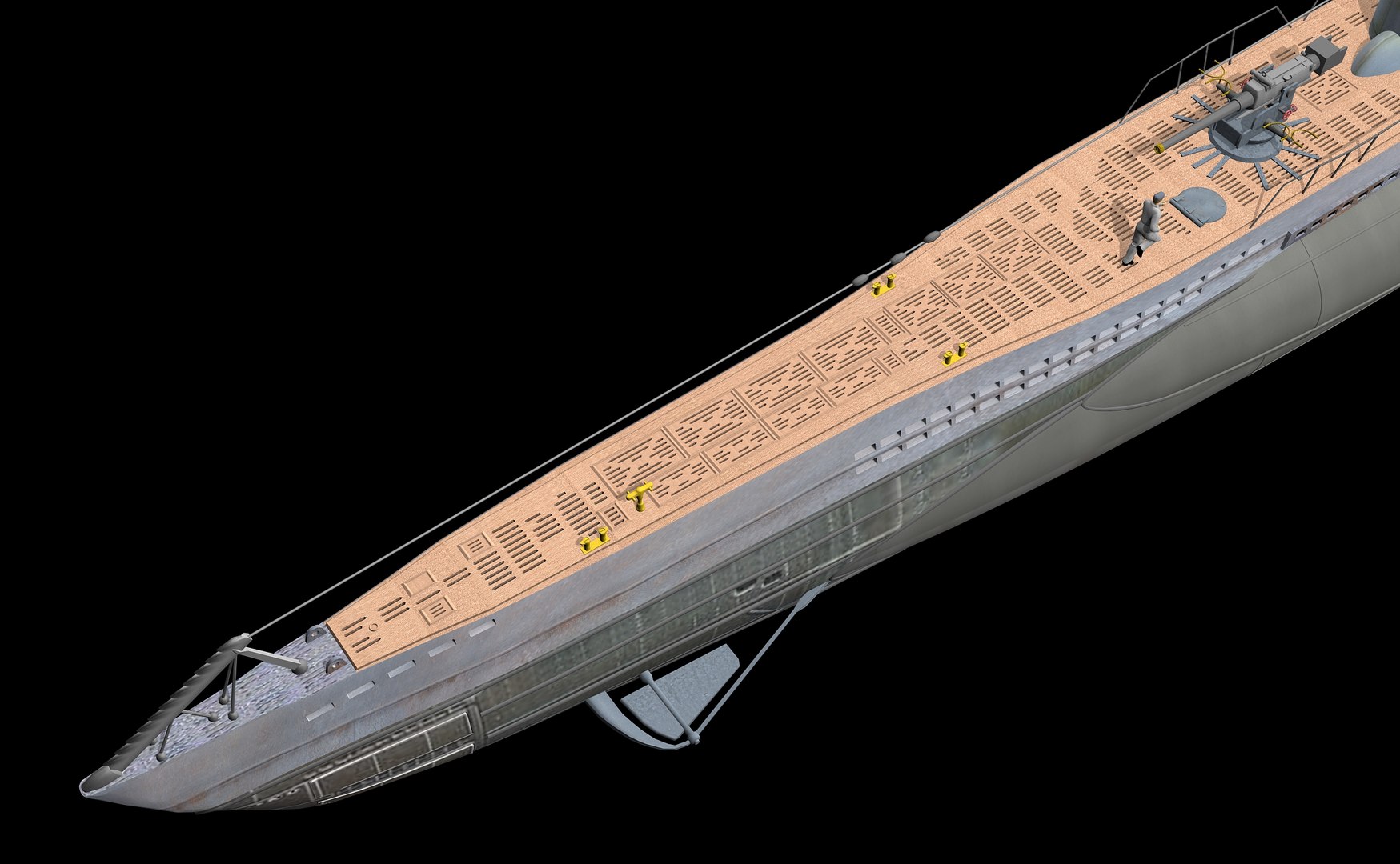

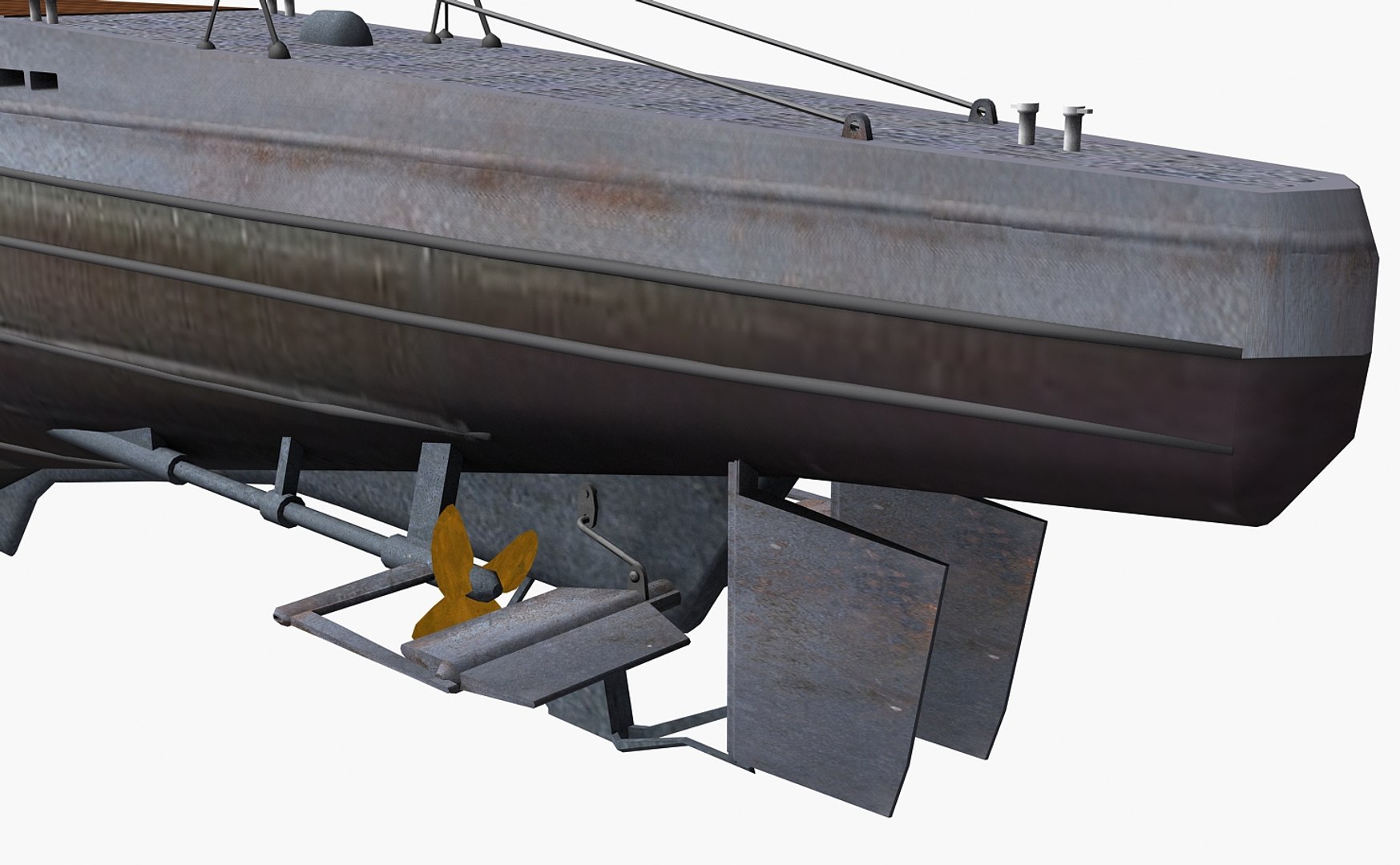

|| PREVIEW IMAGES ||

Model has no badges or identification for the customer to place them as he wishes.
All human figures are included.
All preview images are rendered with Default Scanline Renderer using Catmull-Rom antialiasing filter.
No Photoshop or compositing used.
File is ready to render Out-Of-The-Box.
Lights are included in the file.

| TEXTURES & MATERIALS ||

All textures and materials are included.

|| GENERAL ||

Model is built to scale 1:100
Units used: Milimeters.
Model objects are organized by groups.
No third-party renderer or plug-ins needed.

|| ADDITIONAL NOTES ||

"German U-BOAT Type VII" 3ds Max file format have standard
textures & materials applied and will render like the preview images.

Others included files:
-German U-BOAT VII_README.txt
-German U-BOAT VII_Parts & Groups.pdf
-German U-BOAT VII_FBX, FBX format.
