Standard flanged 45° bend socket for 24 inch pipe
Modeled for ASTM and ASMI compatible engineering dimensions (Long radius, Schedule 40, Class 150)

Pipe Section
Pipe Size – 24 inch
Outside Diameter – 24.00 inch
Inside Diameter – 22.624 inch
Wall thickness – 0.688 inch
Centre to End – 36 inch (without Flange section)
Pipe Schedule No – 40

Flange Section
Flange Outside Diameter – 32.00 inch
Flange Thickness – 1.81 inch
Bolt Circle Diameter – 29.5 inch
Diameter of Holes – 1.38 inch
Number of Holes – 20 (per flange)

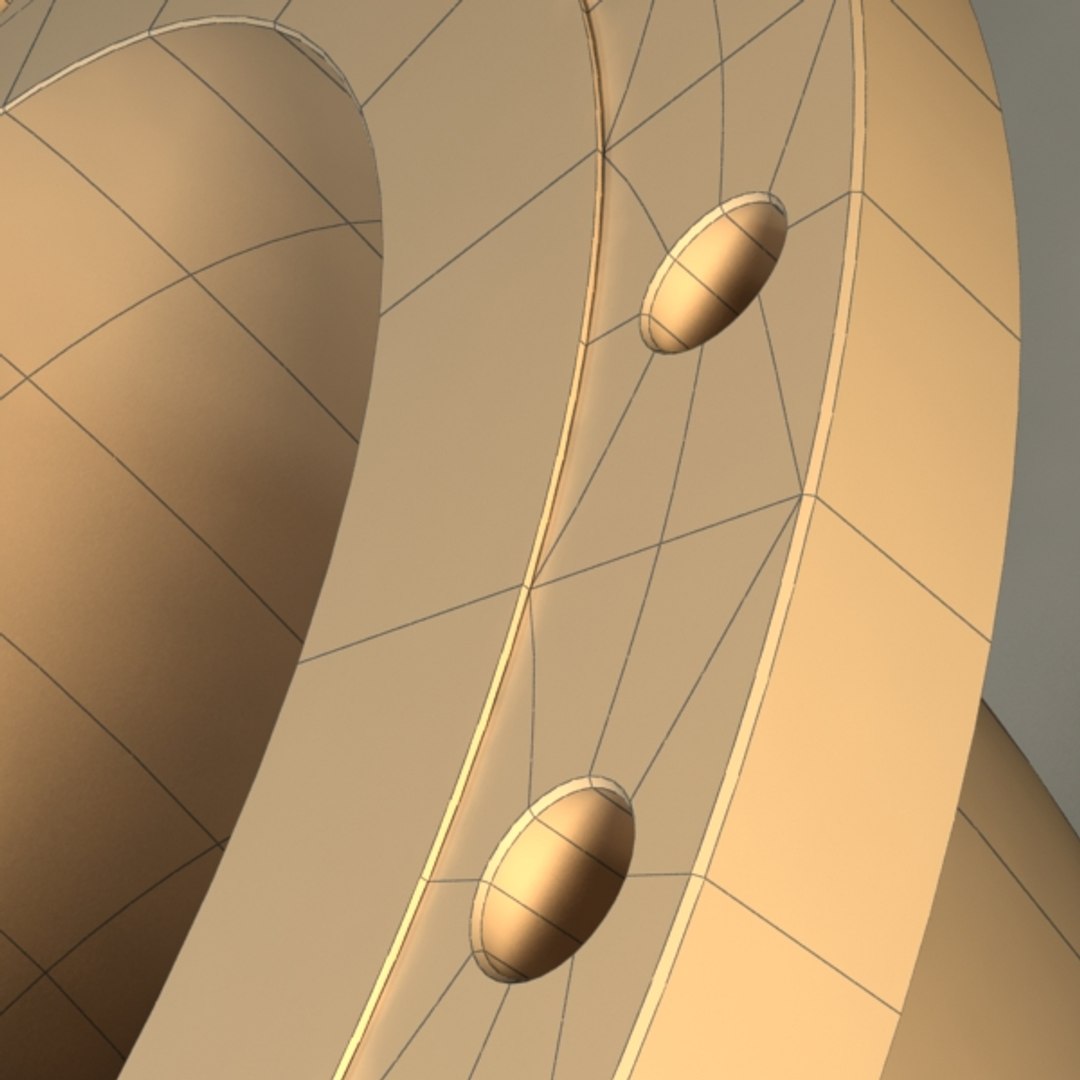

Poly/Vert Details
Poly without Turbosmooth - 2,400
Vert without Turbosmooth - 2,360
Poly with 2 Turbosmooth iterations - 77,440
Vert with 2 Turbosmooth iterations - 38,640

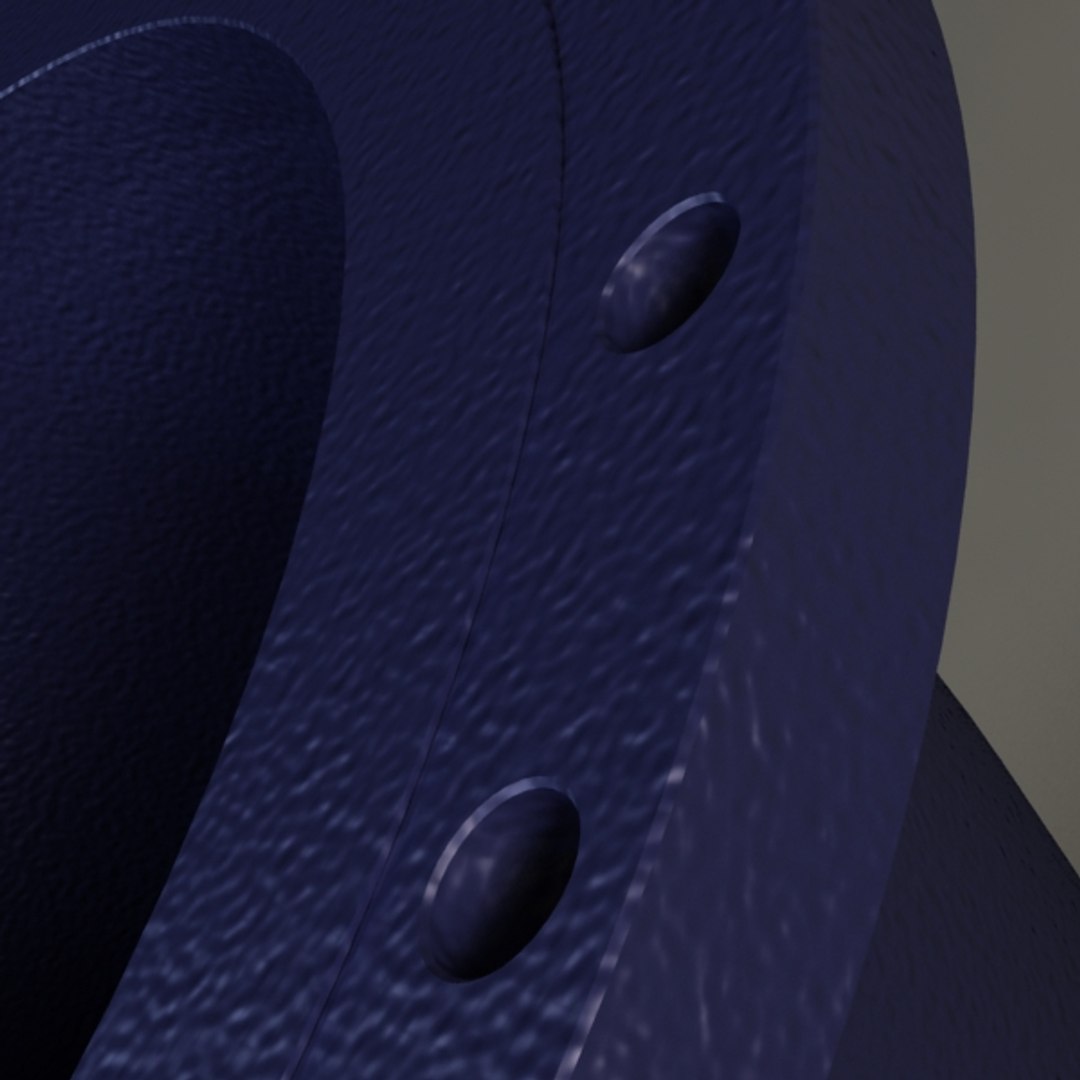

Material – Vray

3D Max file content model with TurboShooth modifier, and the other file types having the model without modifier

Other types of sockets (45° bends, 60° bends, return bends, straight sections, Tees, Etc.) also available with different sizes
