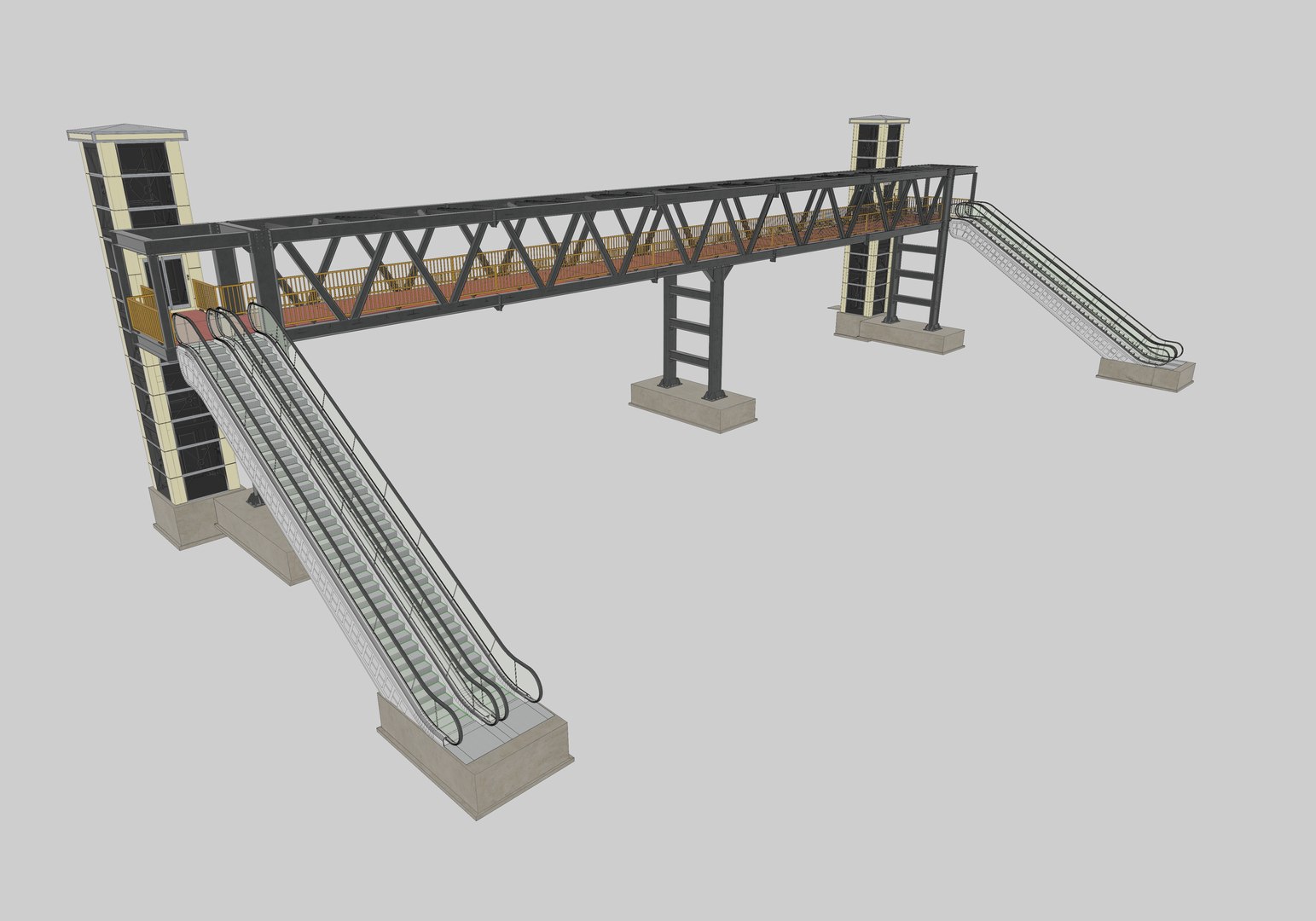

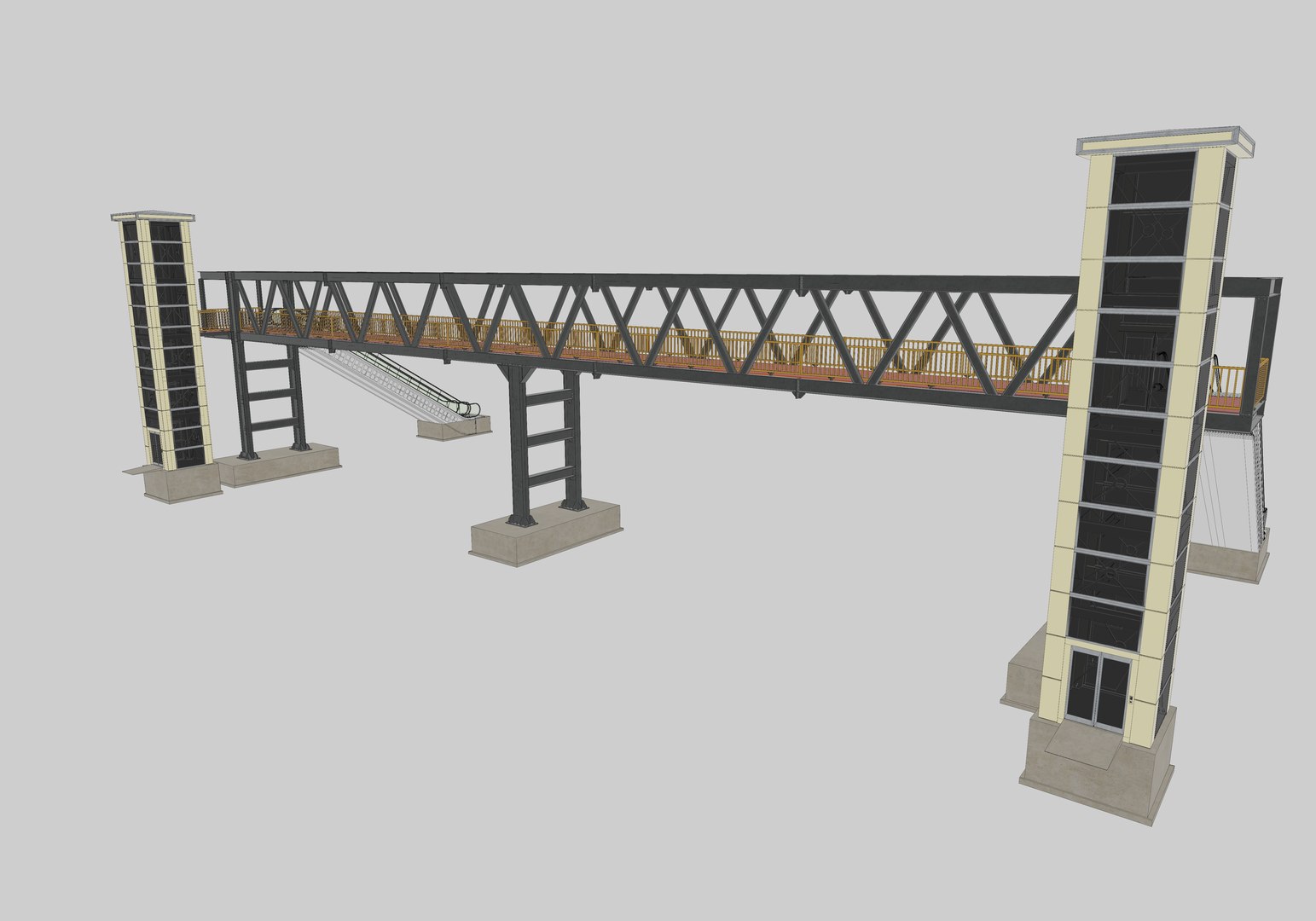

Steel Pedestrian Bridge

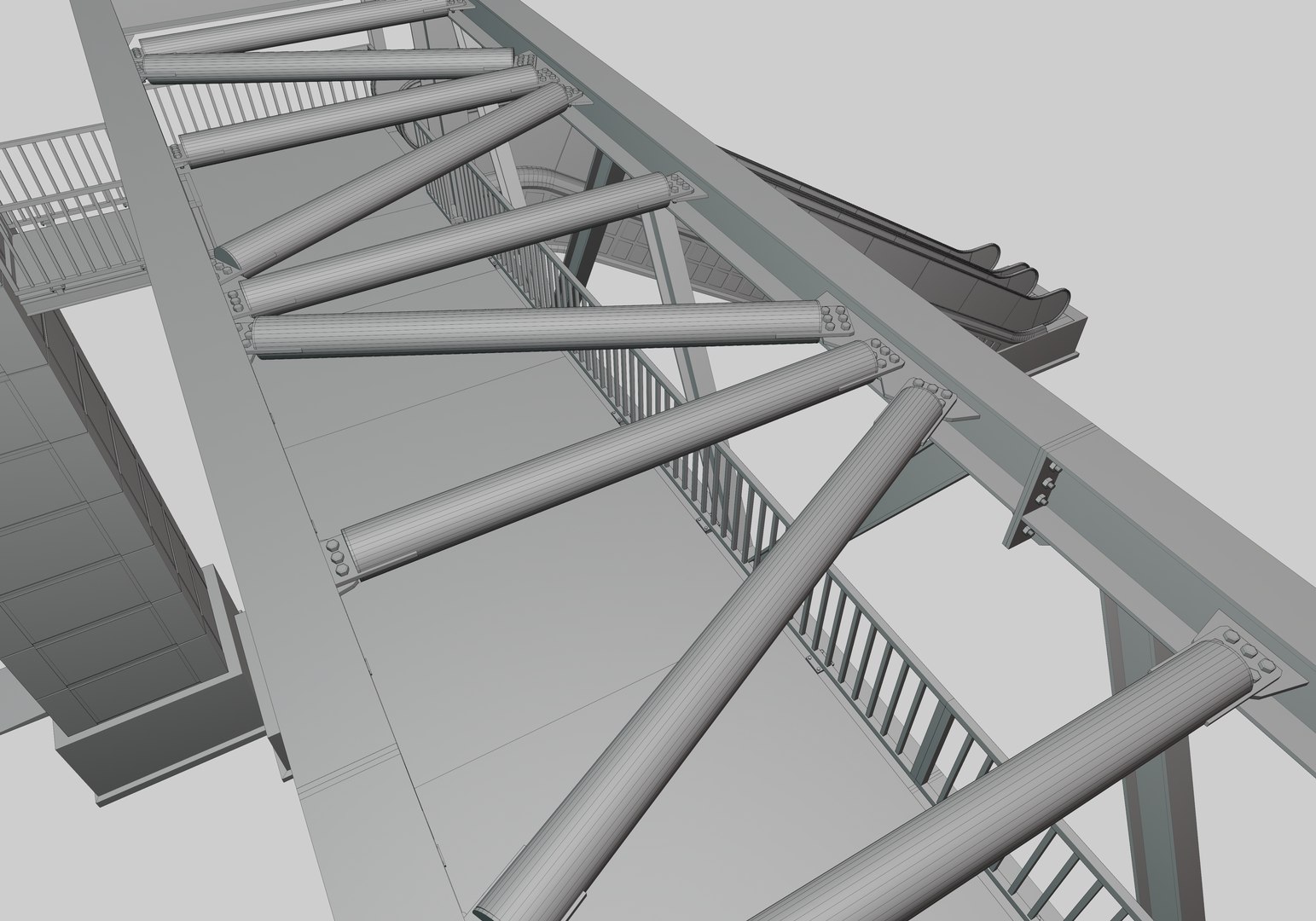

Truss Type Platform Construction

Three Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects


Largest Column Span : 40,8 mt.

Distance Between Two Columns : 20,4 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

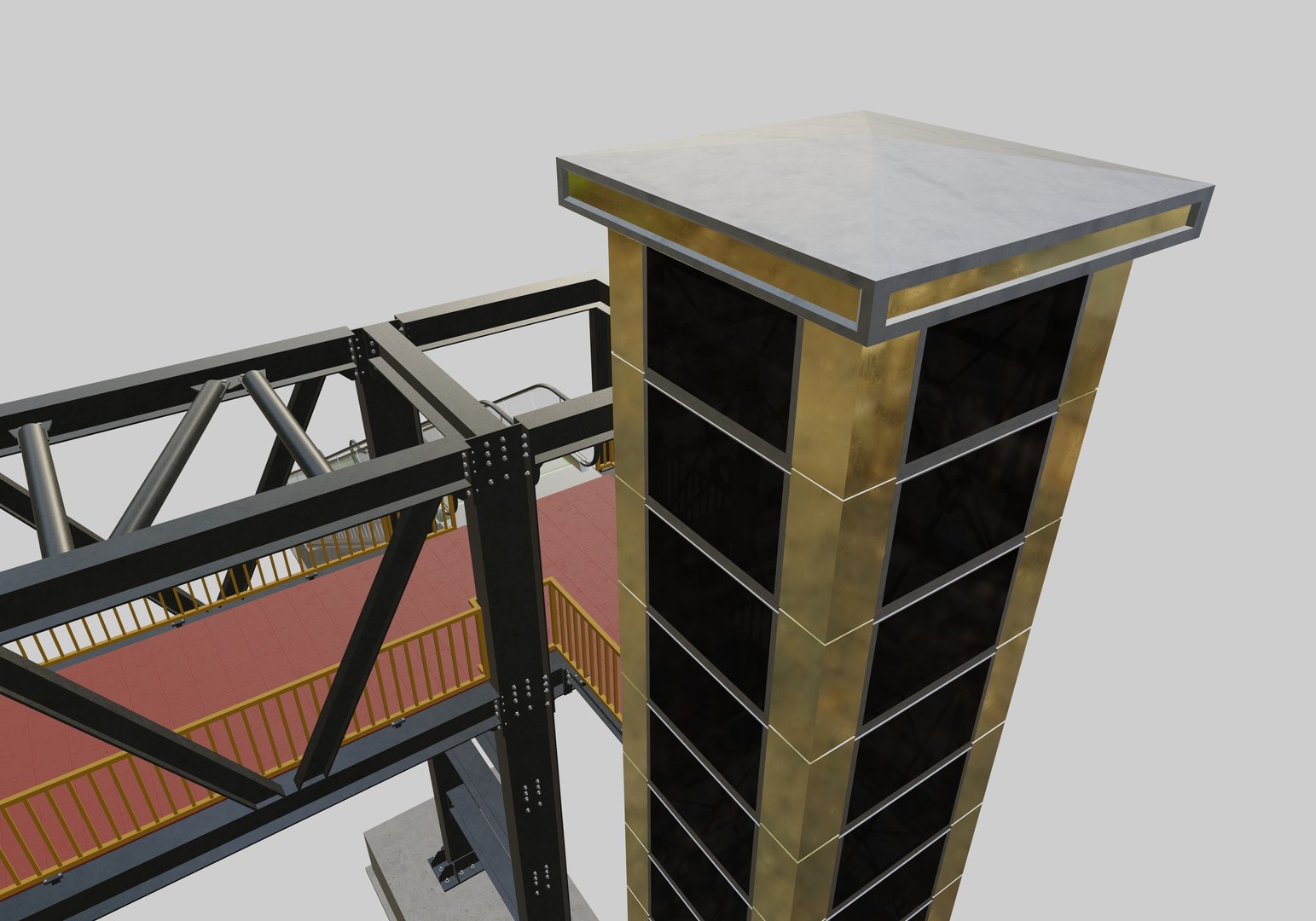

Elevator Steel Construction And Composite Coating

Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.

Elevator Cabin : not prepared

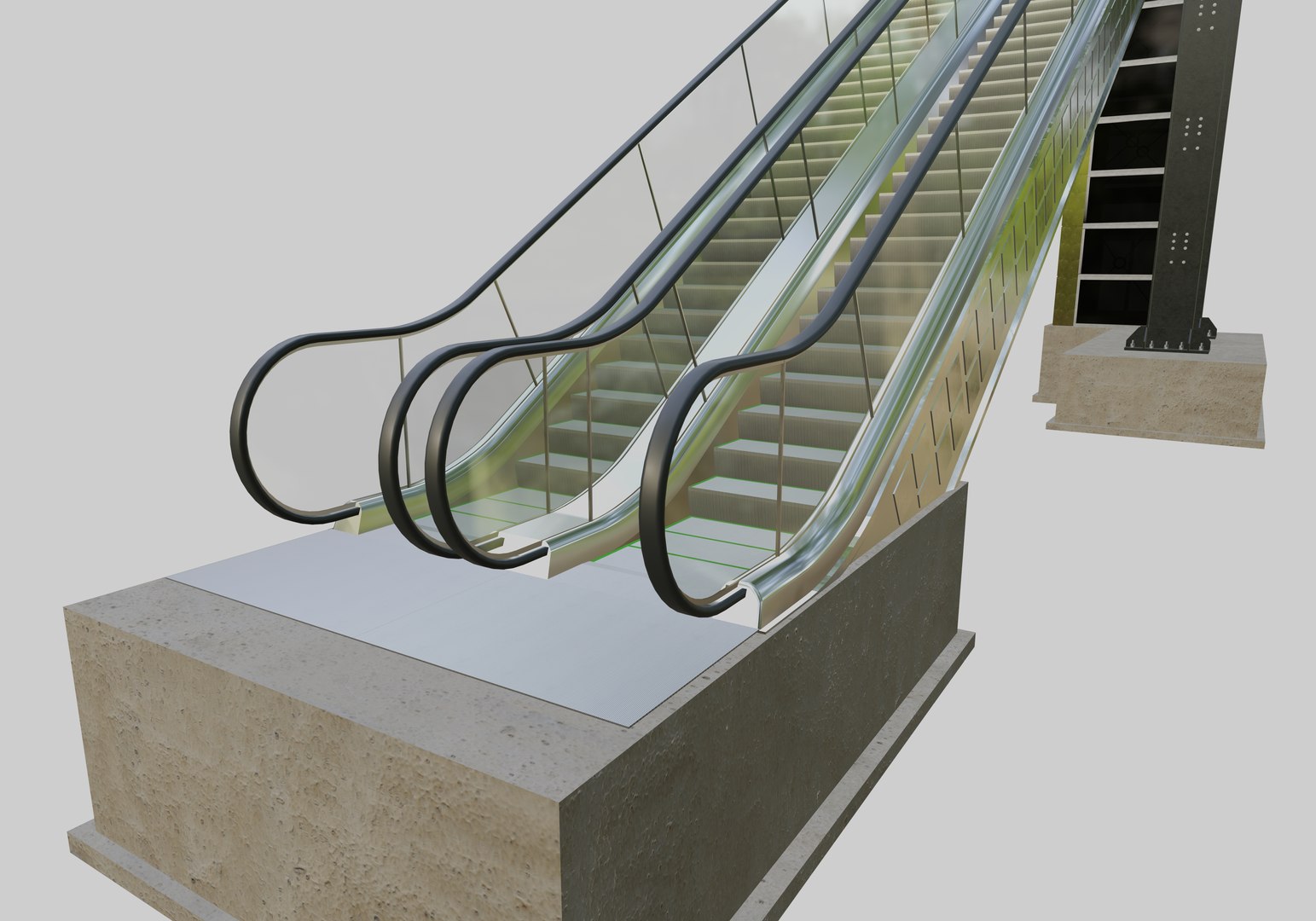

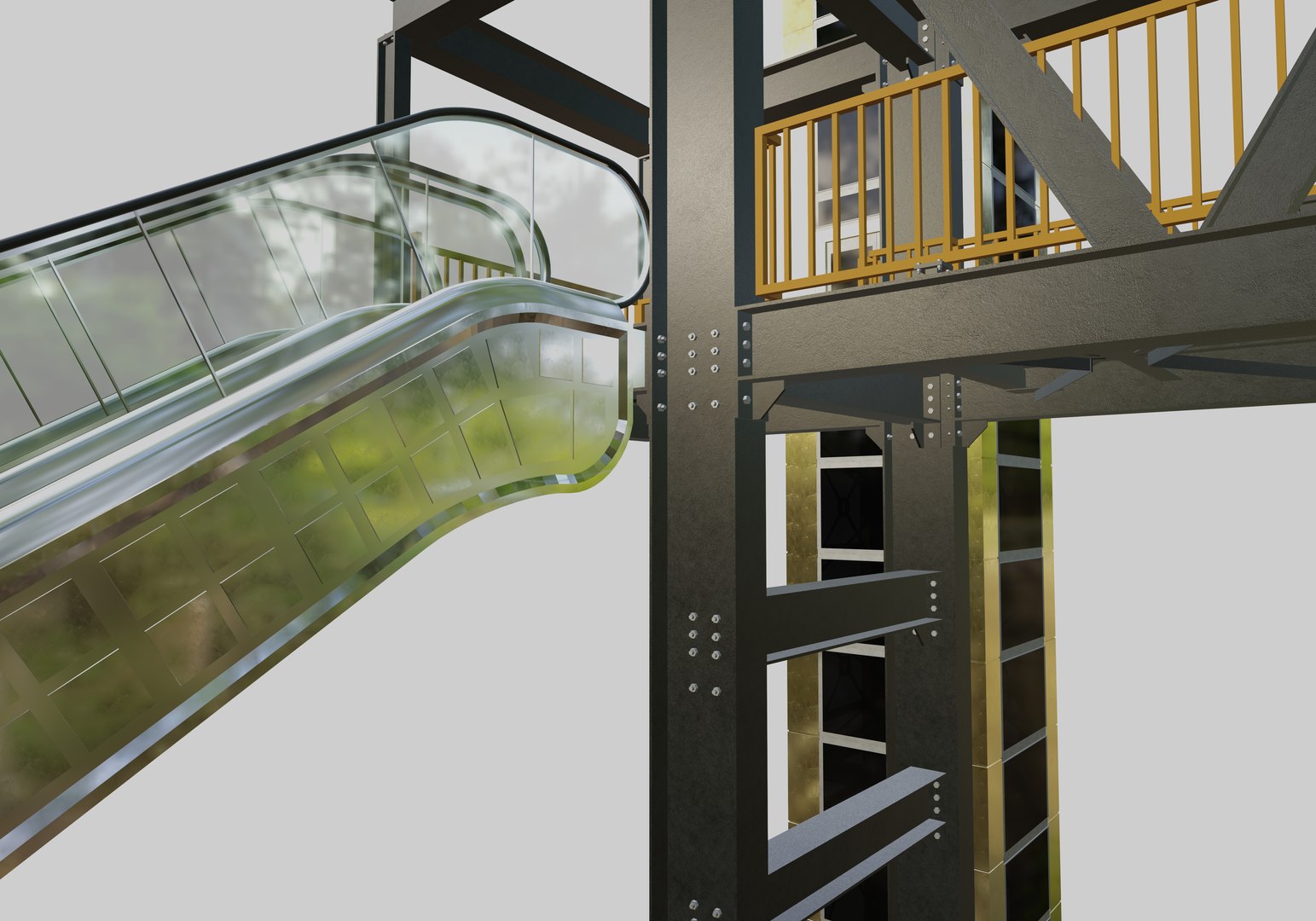

Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.


Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.


Steel Stair : not prepared


Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

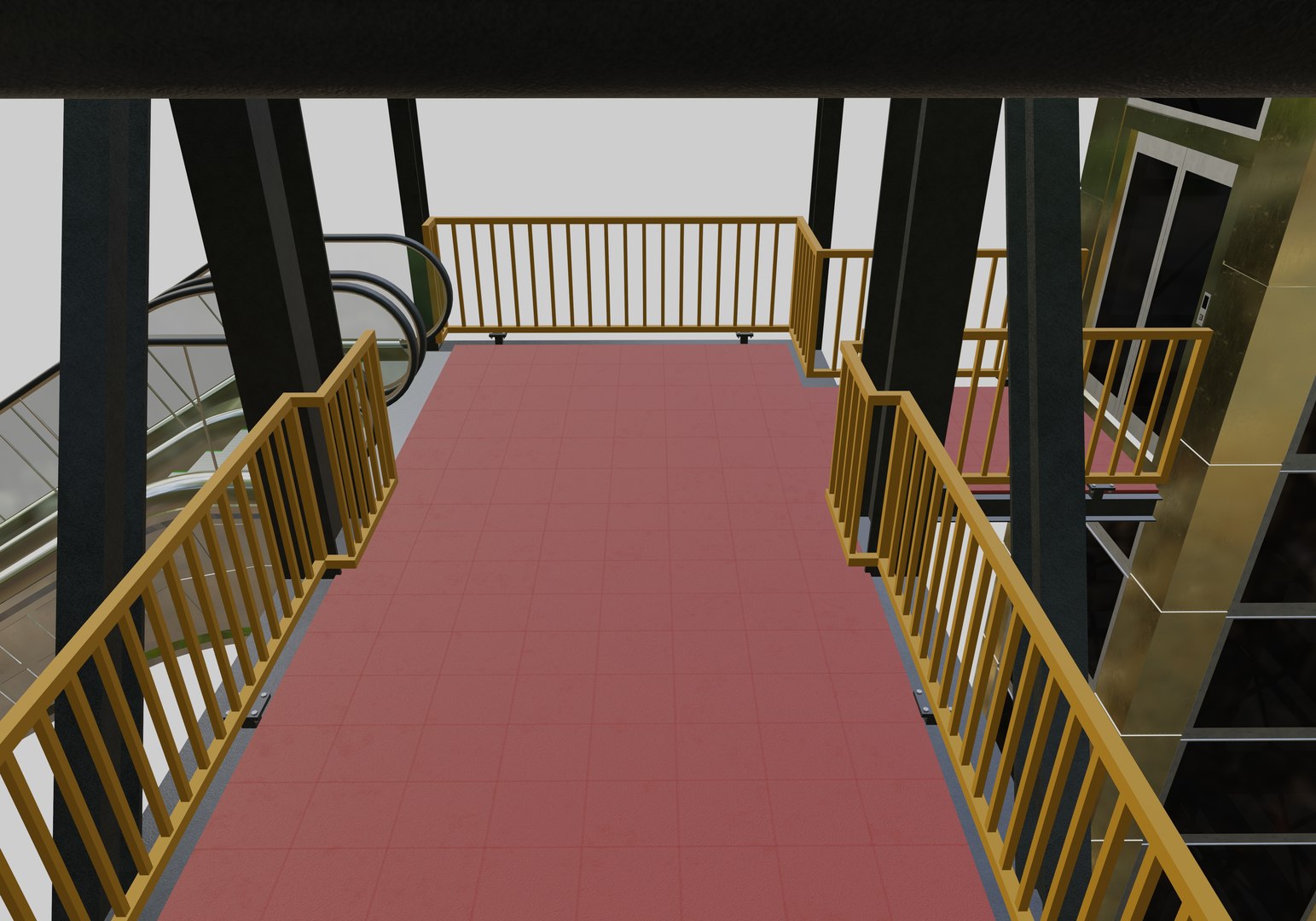

Walking Surface : 2 cm. Rubber Flooring


Prepared With BLENDER Version 2.93.5

Polygons : 152049

Vertices : 236782

Objects : 5308
