Steel Pedestrian Bridge


Two Column Consruction

Open Top Construction

Straigth Beam Type

Oblique Cone Column Type

Three Rows Of Platform Beams

Named Objects


Largest Column Span : 29,5 mt.

Distance Between Two Columns : 29,5 mt.

Platform Asphalt Height : 6 mt.

Handrail Asphalt Height : 5,3 mt.

Platform Width : 3 mt.


Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.


Column Raft Concrete : width 2,5 mt * length 18 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.



Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.


Platforms Curved Railing Type And Railings Box Profile

Stairs Pipe Railing Type And Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

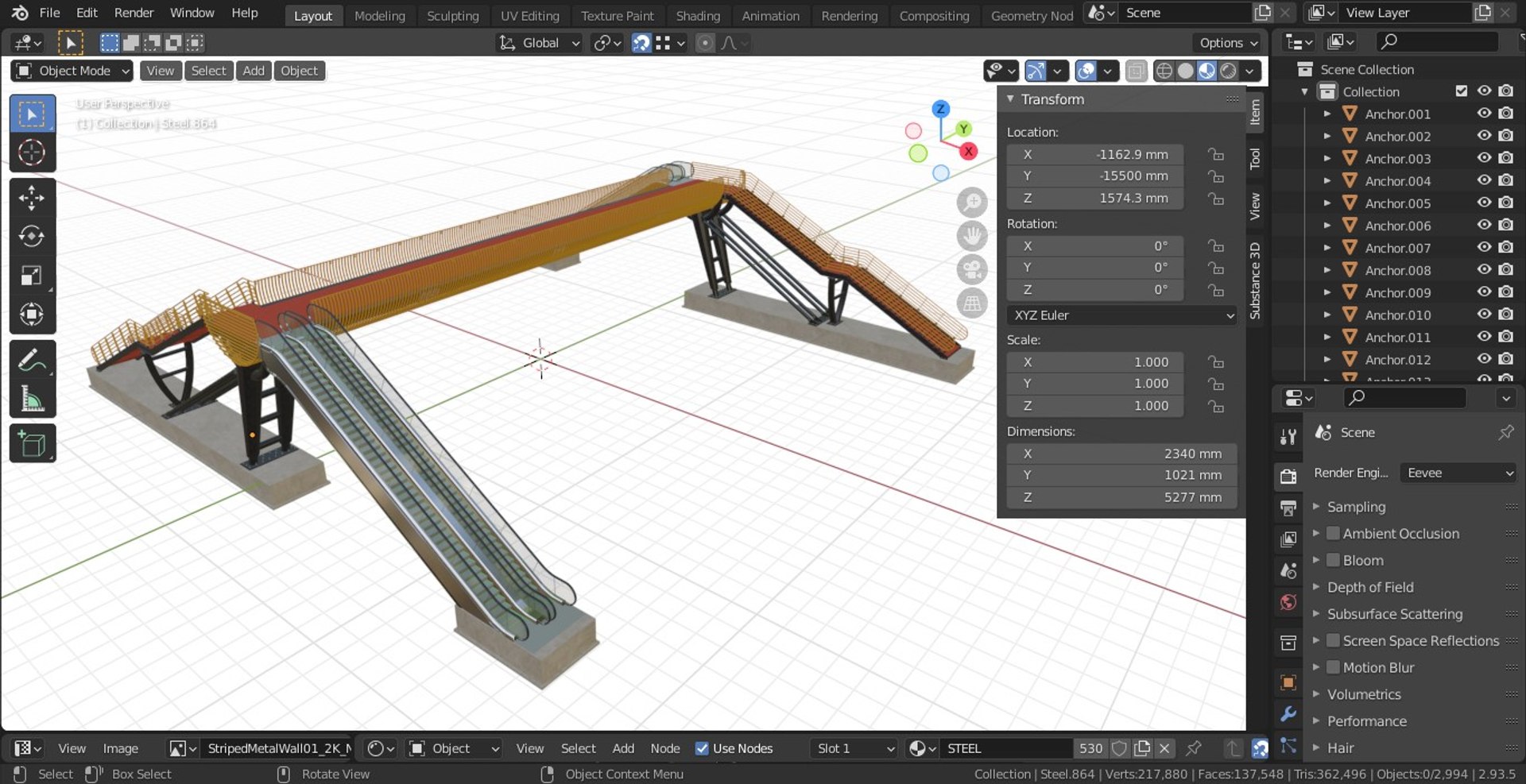

Prepared With BLENDER Version 2.93.5

Polygons : 137548

Vertices : 217880

Objects : 2994
