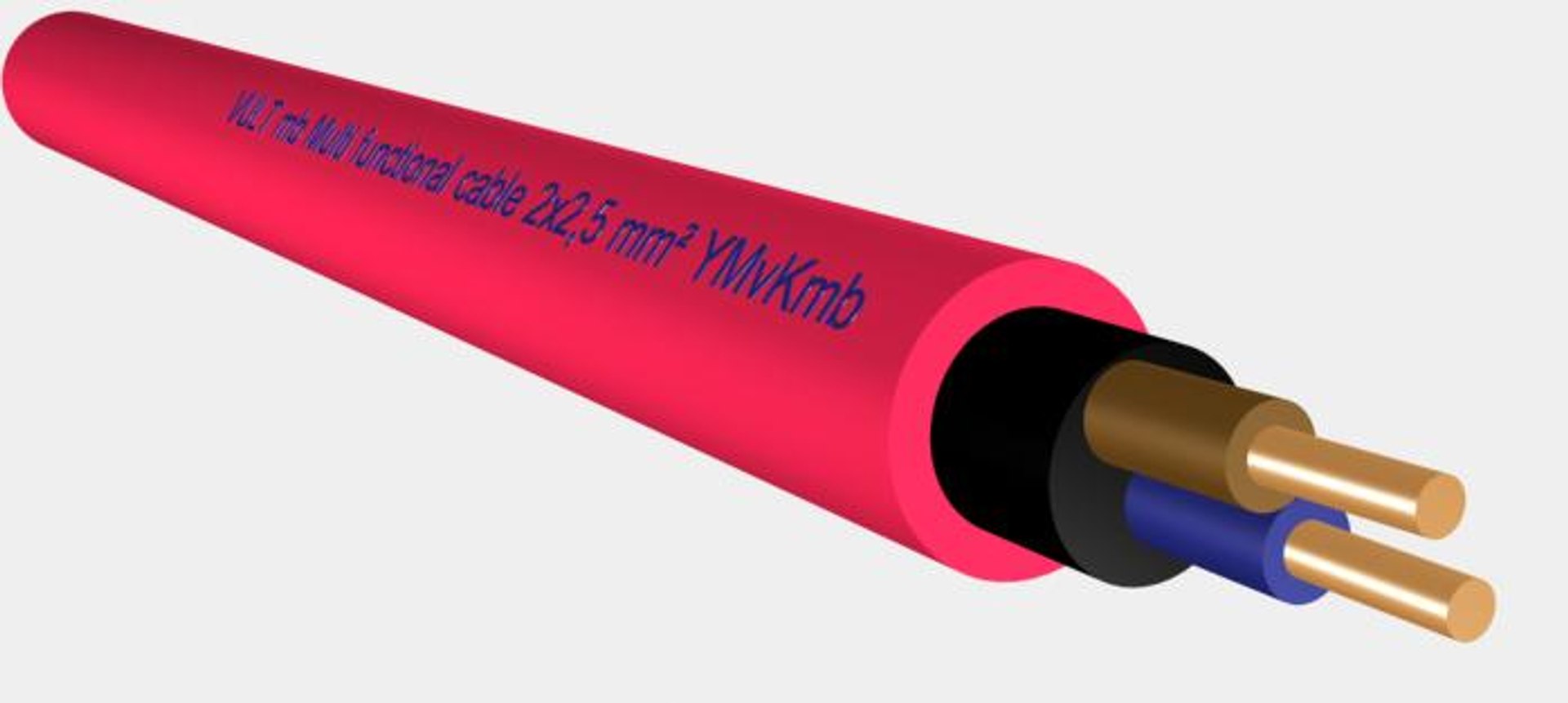

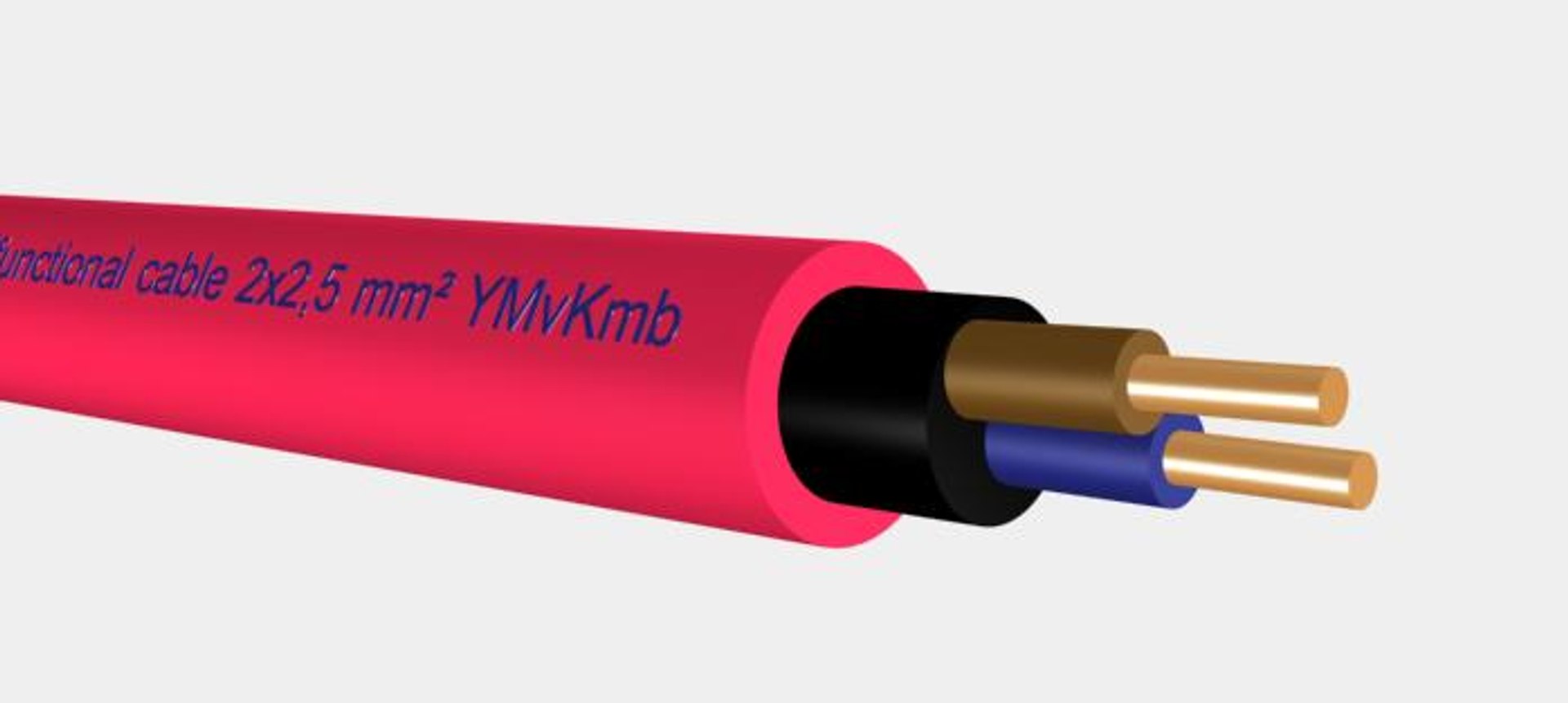

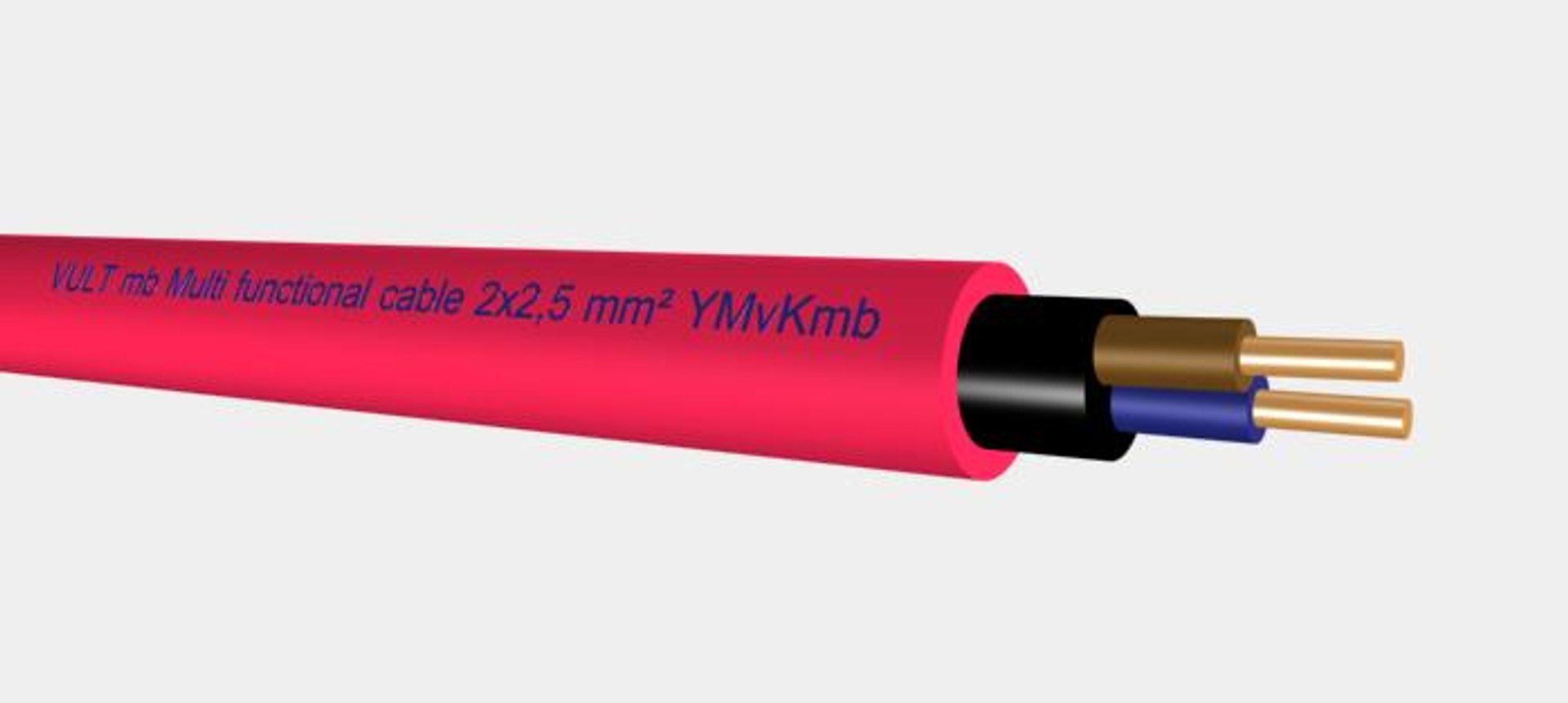

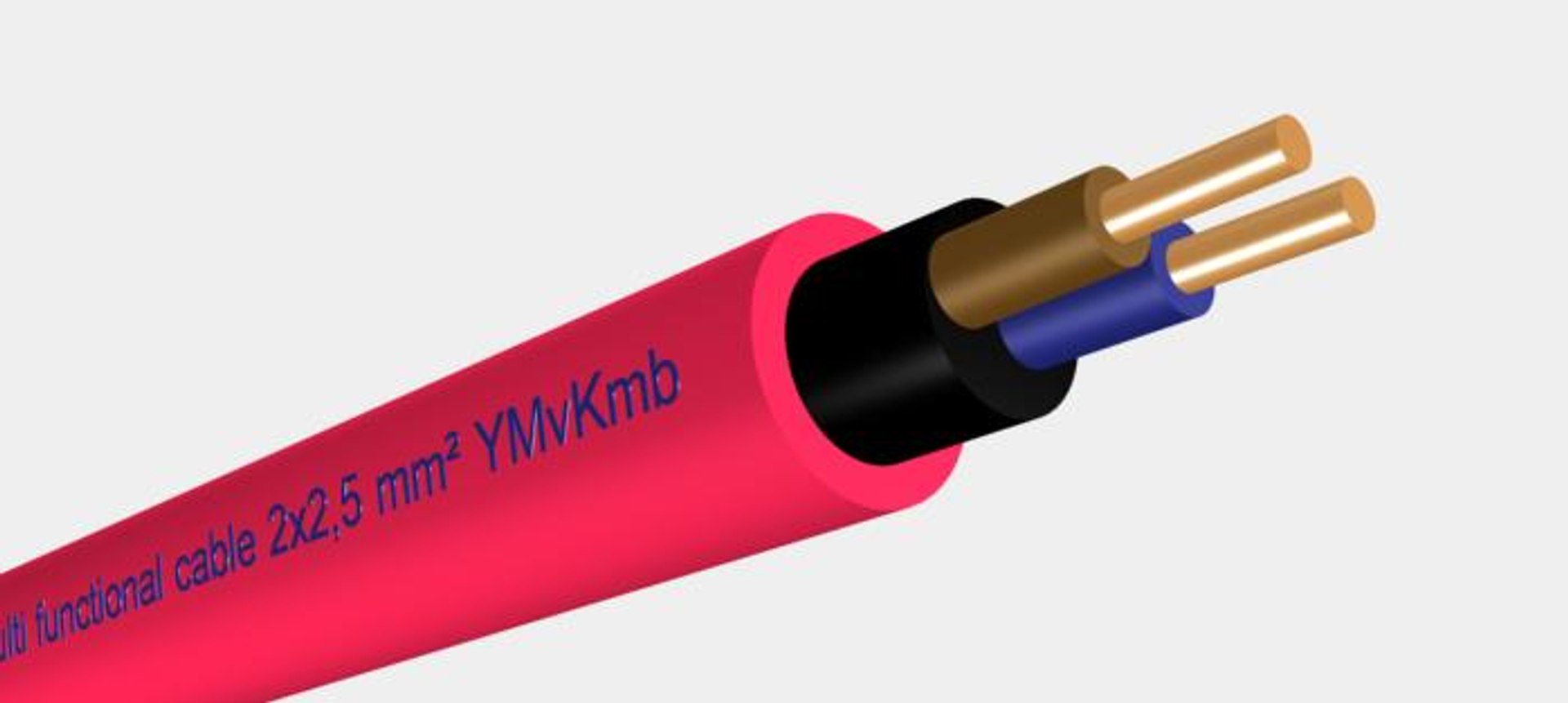

YMvKmb 0.6_1kV 2x2,5 mm2 VULT

Installation cable with red sheath

NEN: YMvKmb 0,6/1kV

Application:
· Especially for fire protection installations
· Power and control cable for general use in low voltage installations up to 1 kV, suitable for all applications indicated in NEN 1010
· Also suitable as signal cable

Properties regarding fire performance:
· Flame retardant in accordance with NEN-EN 50266-2-4 (IEC 60332-3-24 cat. C)

Remarks:
· For a halogen free version of this product see HULT mbzh BM
· For Fire Resistance applications use HULT FB 30/60 or HULT FB 90

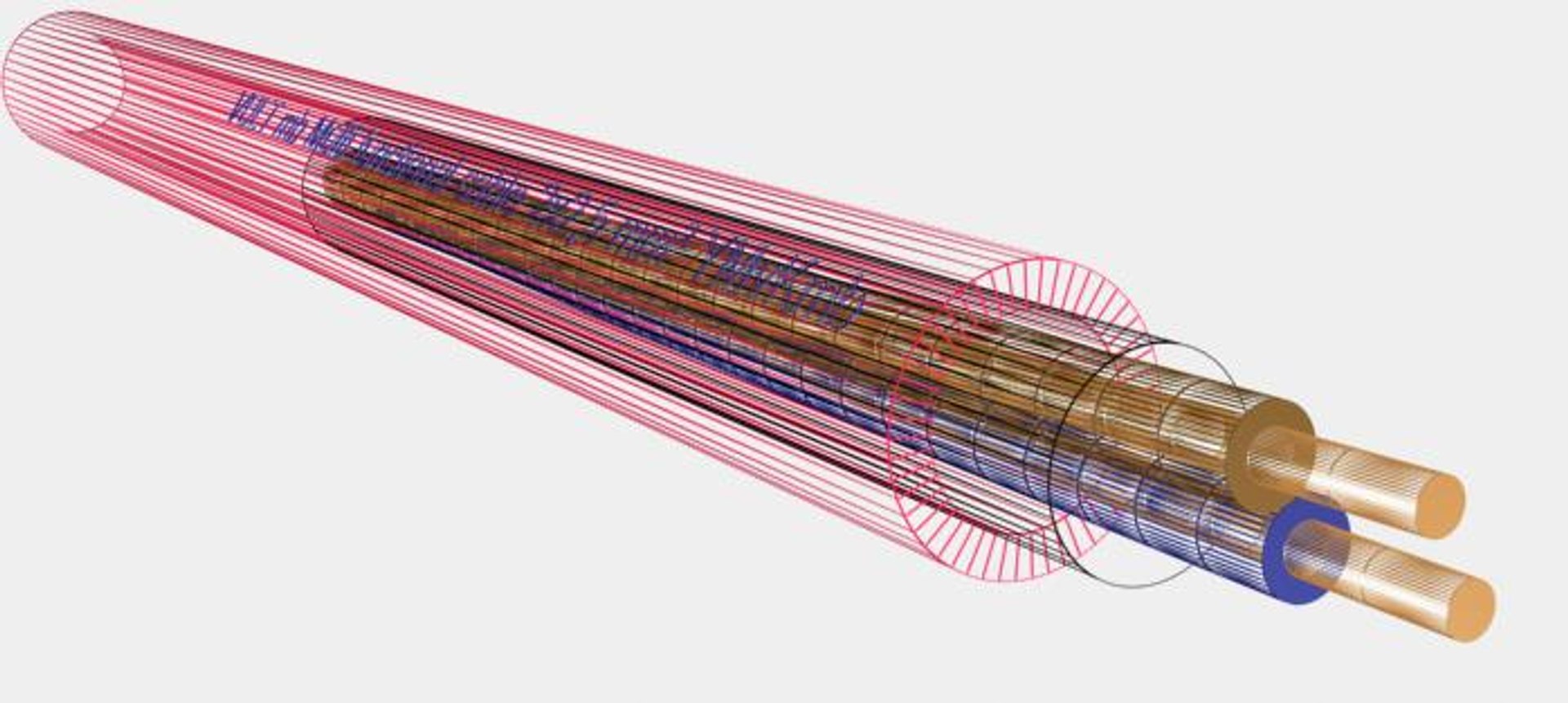

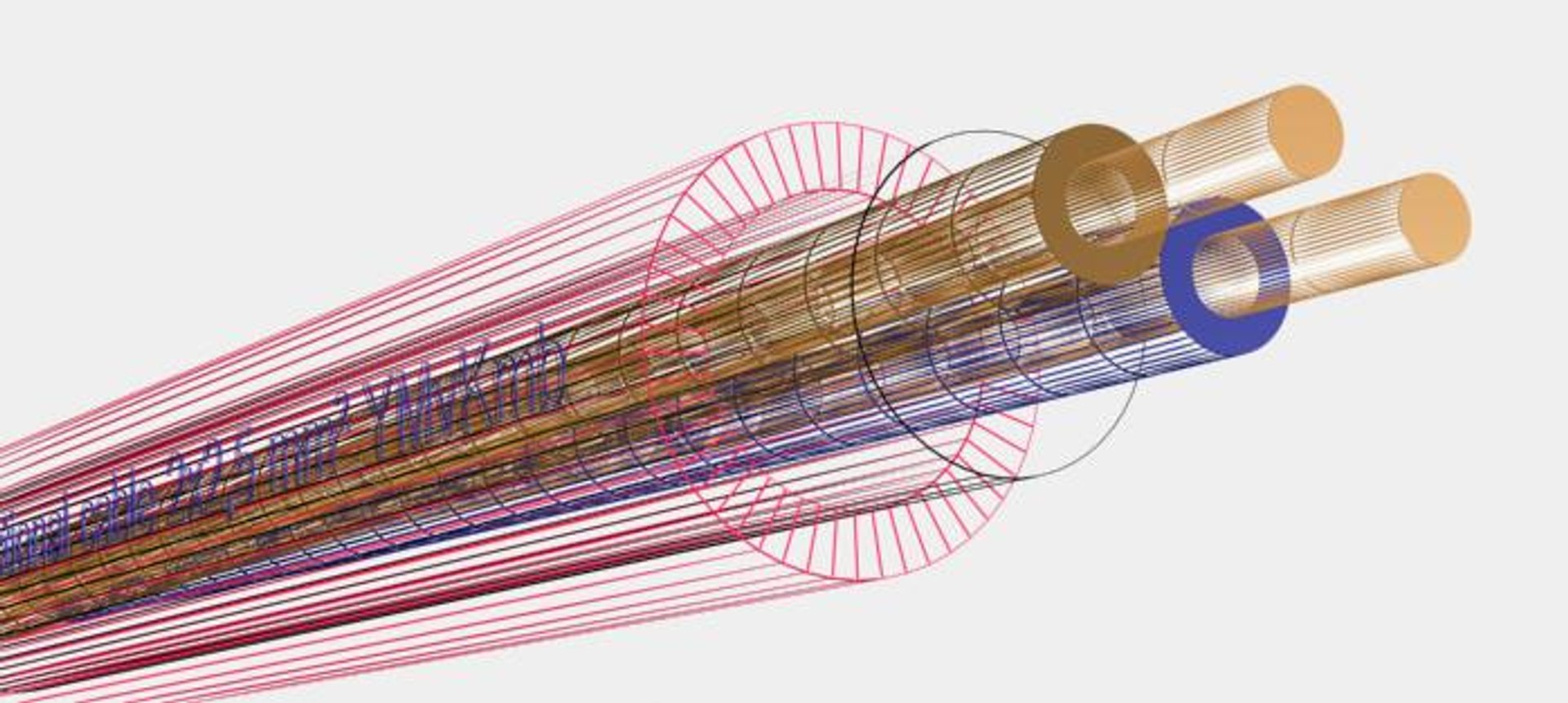

Construction:
Conductor: plain annealed copper, round (class 1)
Insulation: cross-linked polyethylene (XLPE)
Assembly: cores cabled together, filled to make a round shape
Outer sheath: polyvinyl chloride (PVC) flame retardant (mb)

Electrical data:
Voltage rating: 0,6/1 kV
Test voltage: 3,5 kV

Core colours:
2 cores: brown, blue
3 cores: brown, blue, green-and-yellow (G-version)
4 cores: brown, black, grey, green-and-yellow (G-version)
brown, black, blue, green-and-yellow (variant version)
5 cores: brown, black, grey, blue, green-and-yellow (G-version)

Standards/References:
NEN 3617
KEMA 42C-1-4
HD 604-4-D
NEN-EN 50266
IEC 60332-3

Additional information:
Minimum installation temperature: 0 °C
Maximum conductor temperature: +90 °C
(temporary overload permissible until +130 °C)
Operation temperature: min. -40 °C, max. +80 °C
Outer sheath: red
