The cams mechanism

$9

Standard License | Upgrade License
Formats (8)
Native | 3ds Max 2017 | Other view360
3D Studio
FBX
IGES
OBJ
Other Textures
STL
Specifications
Publish Date May 11, 2018
Product ID 1285275
Polygons 50,135
Vertices 100,722
Polygonal
Materials
member avatar
forestlsls
434 Products | Contributor Since 2017
Have questions? Chat with us now.

Description

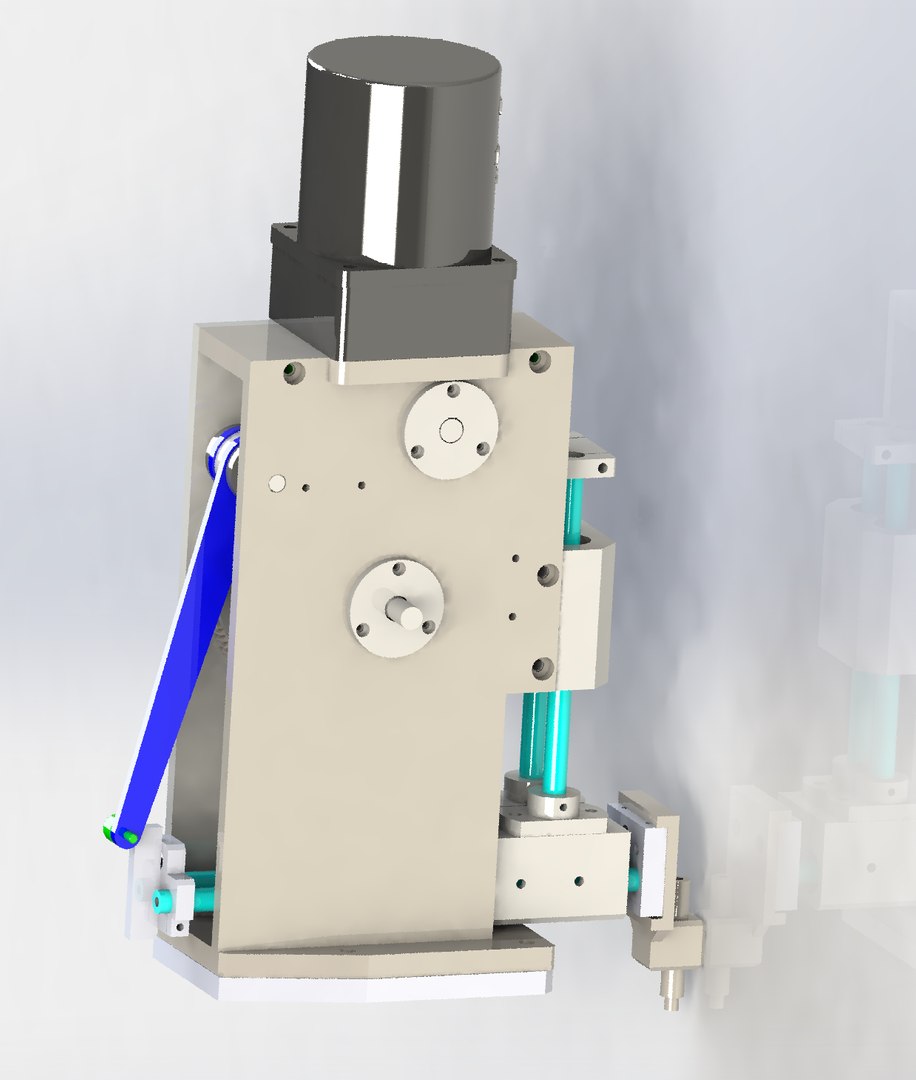

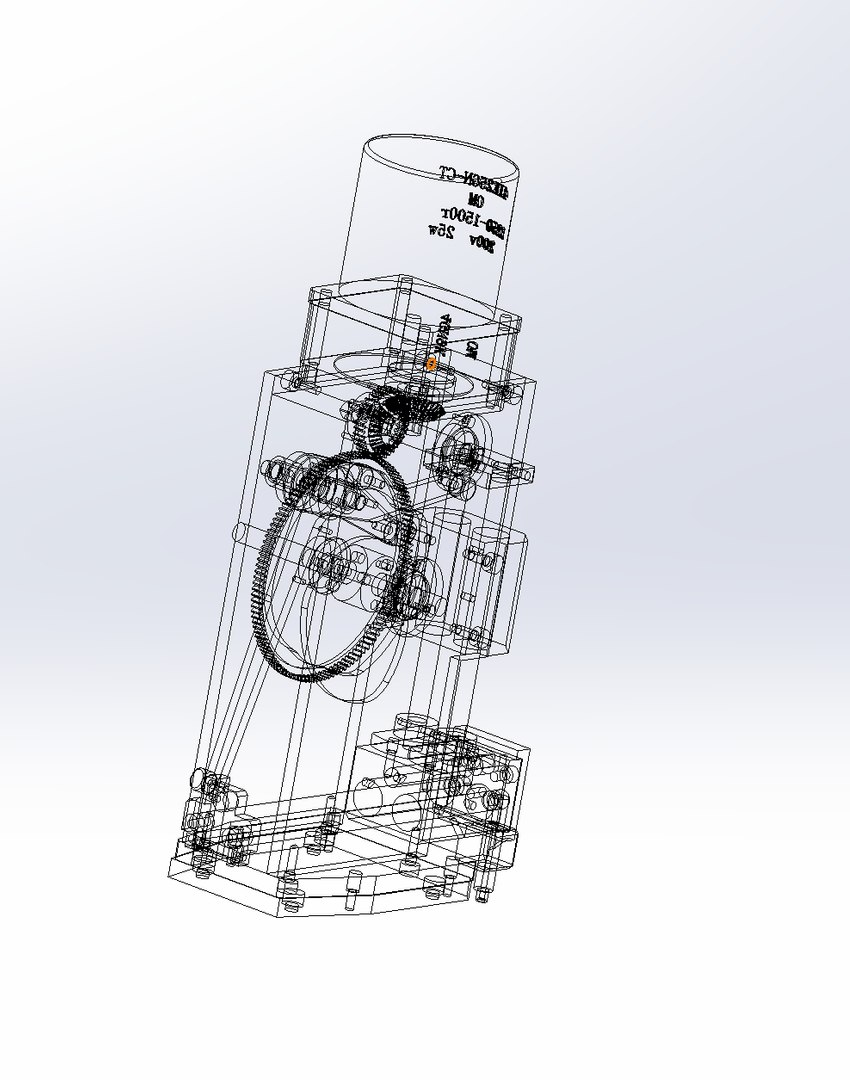

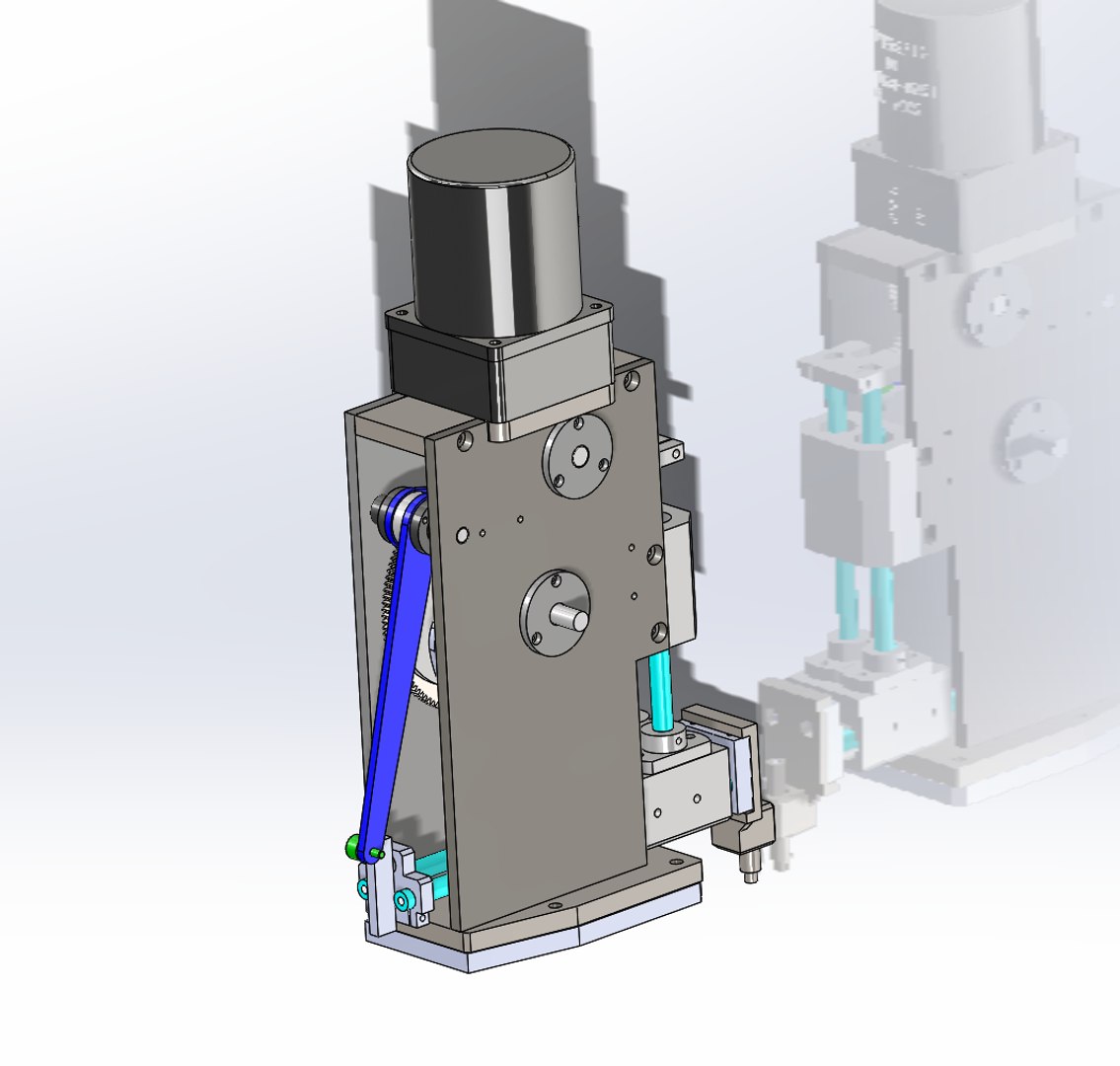

The cams mechanism, the mechanism through a set of motor through multiple sets of CAM structure, both x and z axis fine tuning, after due to the movement, do different shape of the CAM mechanism can solve the problem of common application group action, a way is very clever application in mechanism
The mechanism includes:
1. Gear meshing mechanism.
2. CAM mechanism
3. Z-axis fine tuning structure.
4. X axis fine tuning mechanism.
**************************************
Files format contains
-solidworks 2017
-step
-iges
-stl
-obj
-3ds
- and other formats
**************************************
If you like,you can paypal for you to get this models or if you have any questions also you can email to me.
Designed with SolidWorks 2017, render with PhotoView 360
**************************************
