Steel Pedestrian Bridge


Three Column Consruction

Closed Top Construction

Straigth Beam Type

Straight Column Type

Named Objects


Largest Column Span : 38 mt.

Distance Between Two Columns : 19 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.


Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.


Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.


Pipe Railing Construction

Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring


Top Coating Solid Polycarbonate

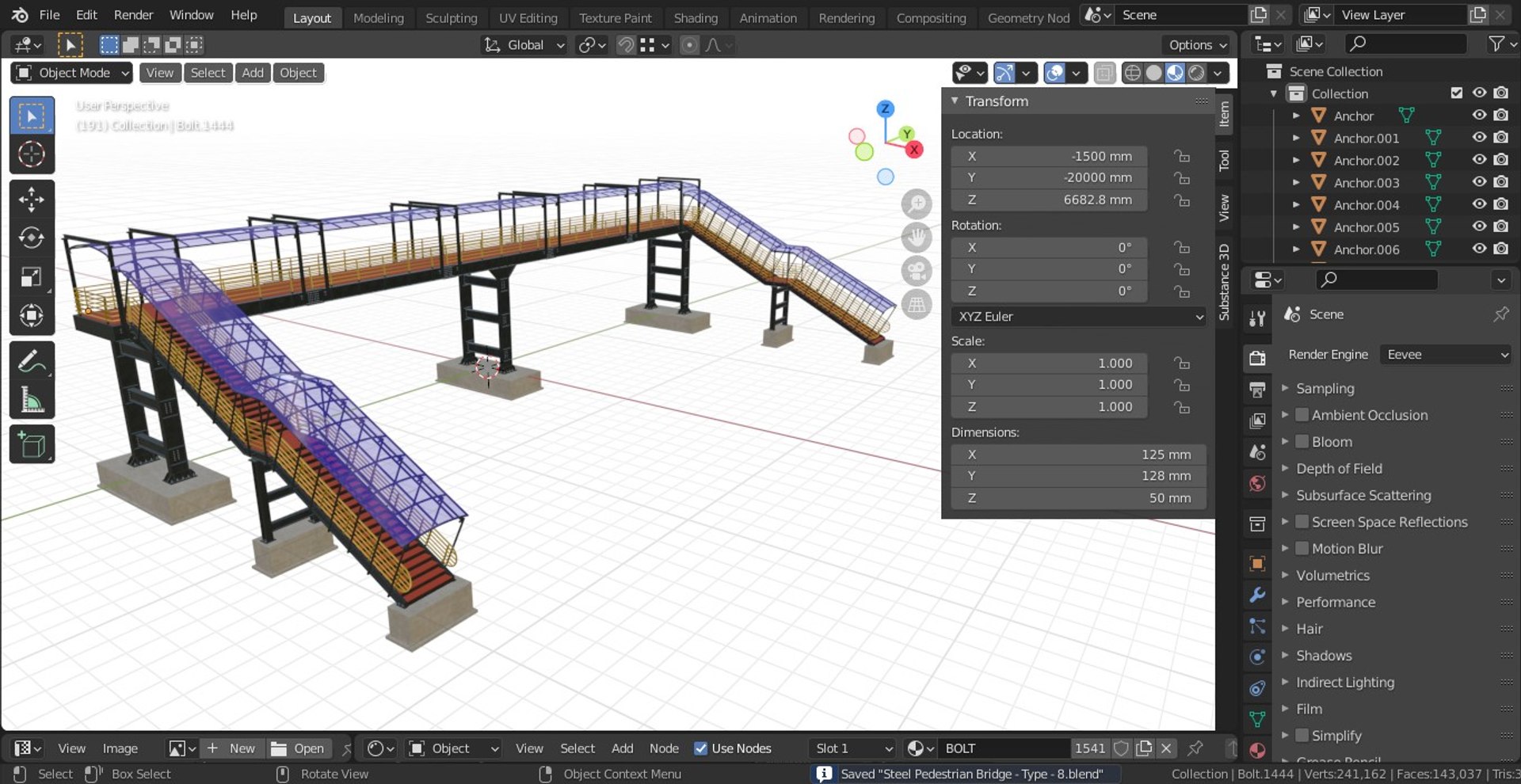

Prepared With BLENDER Version 2.93.5

Polygons : 143037

Vertices : 241162

Objects : 3453
