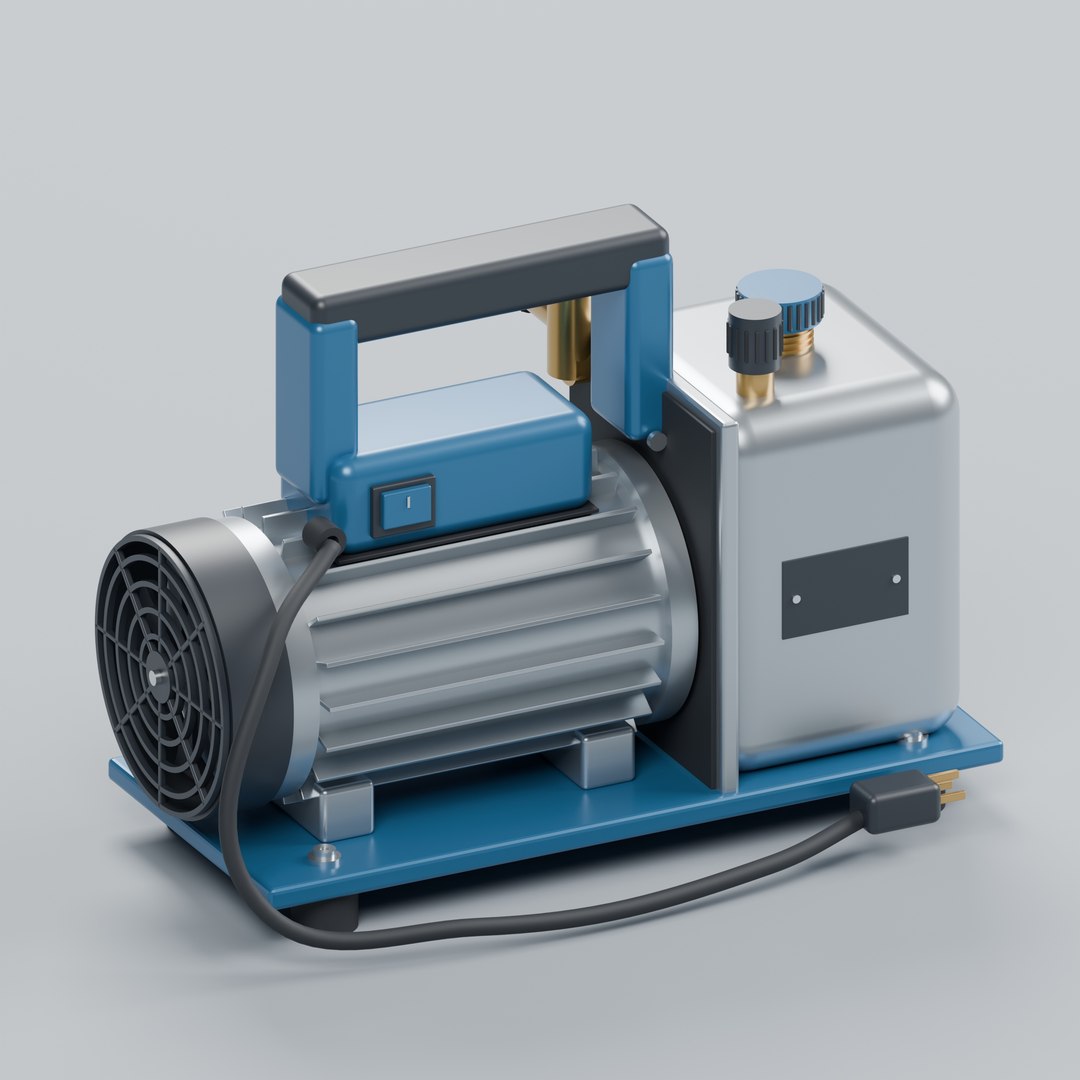

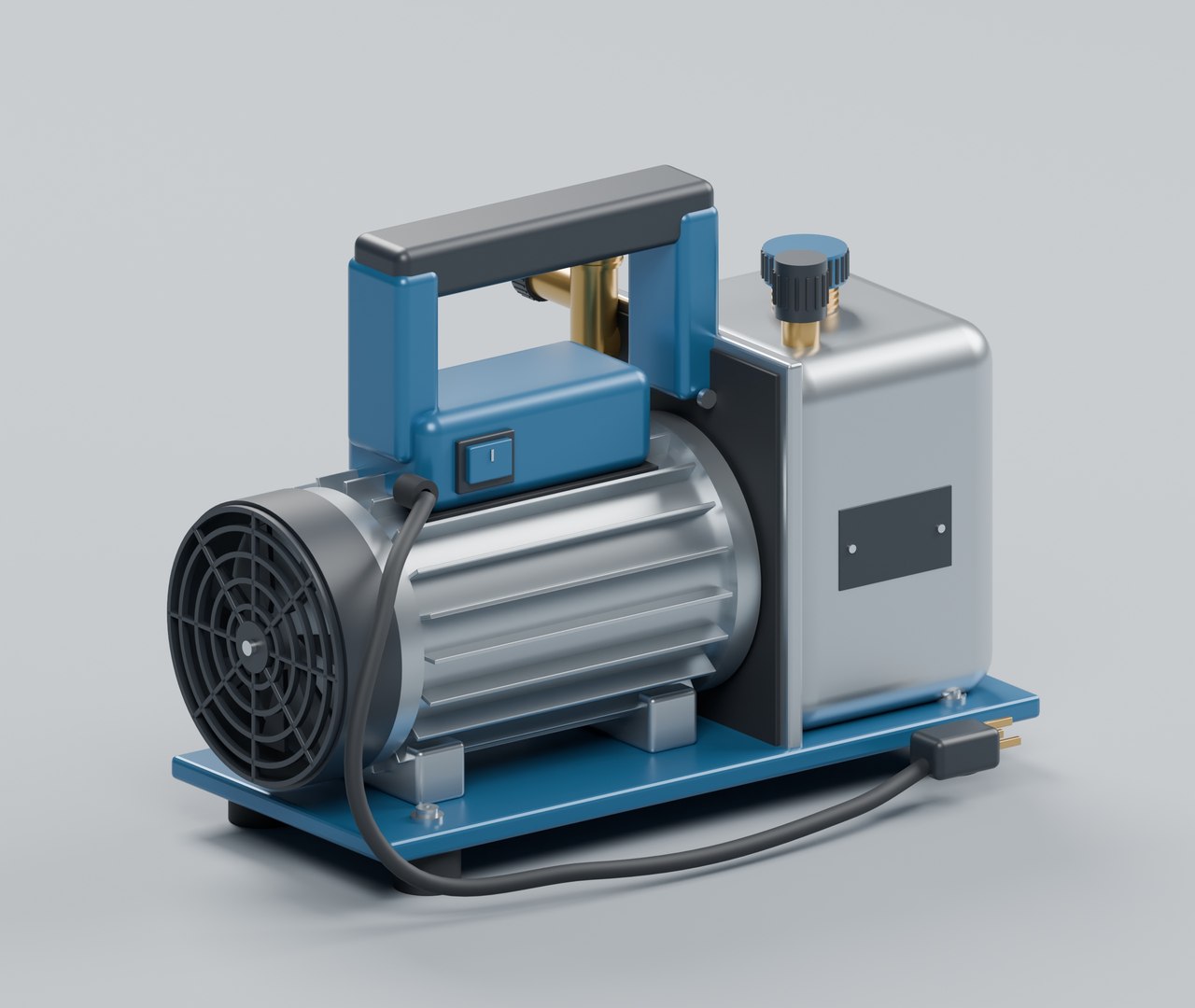

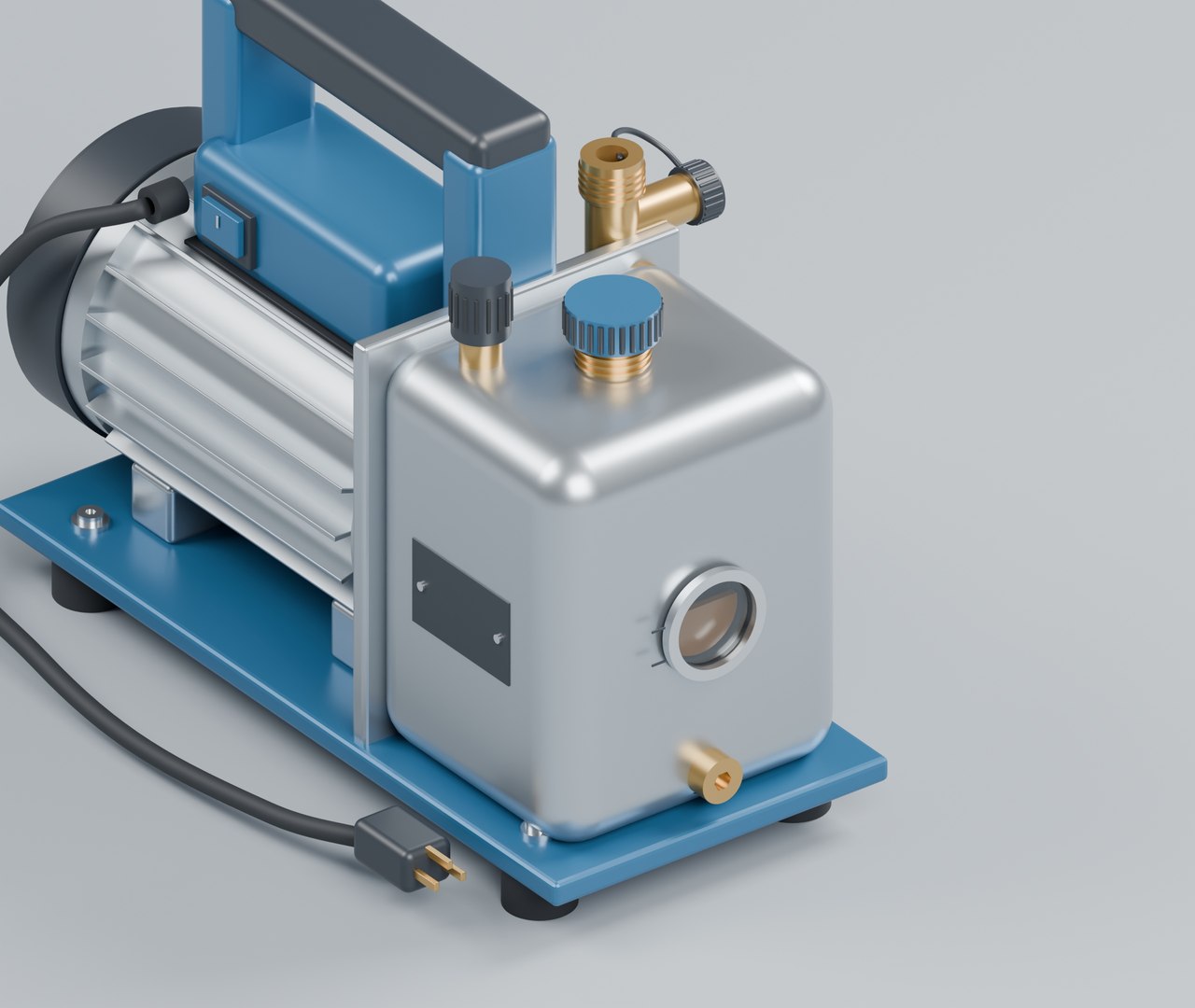

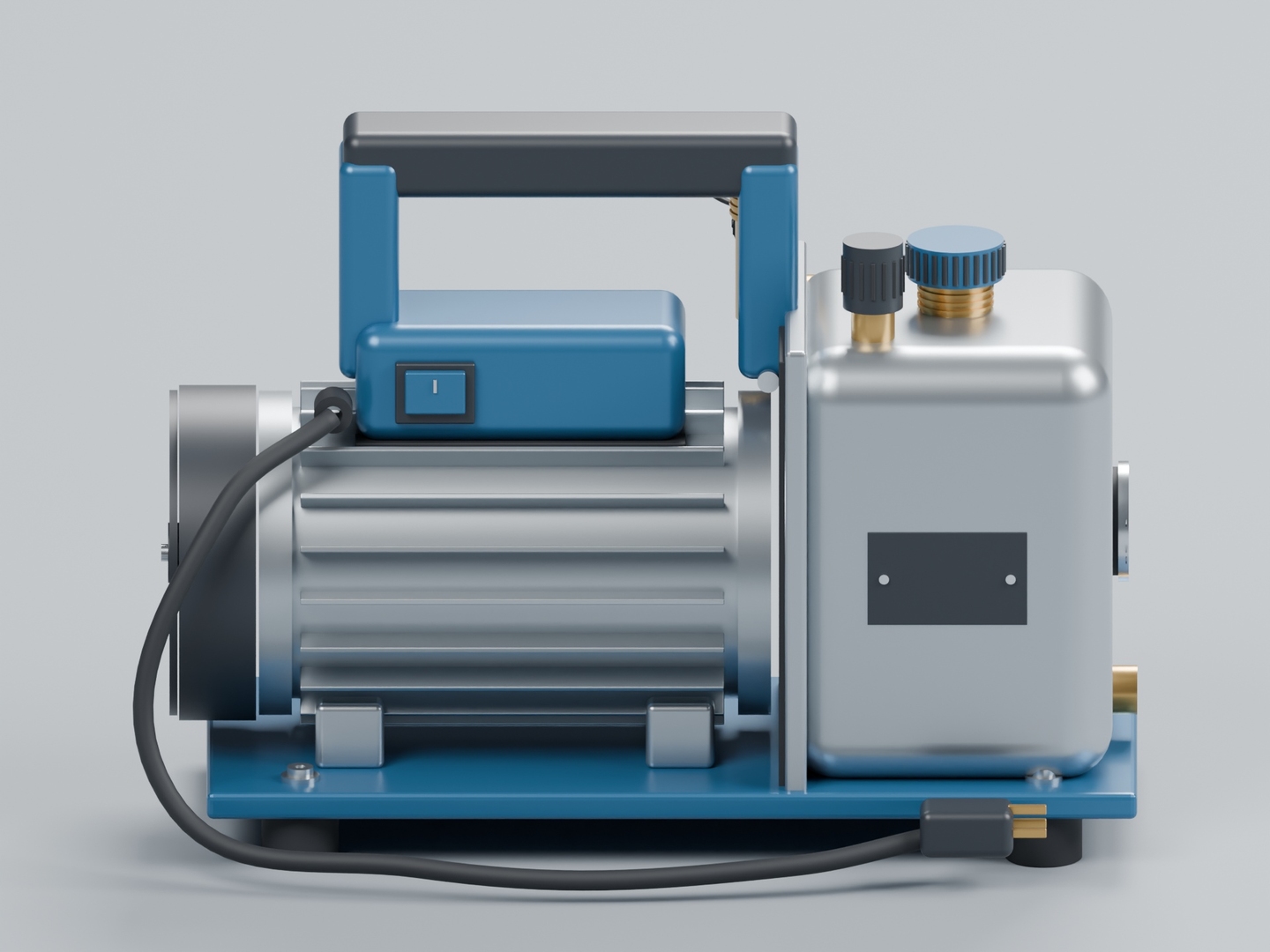

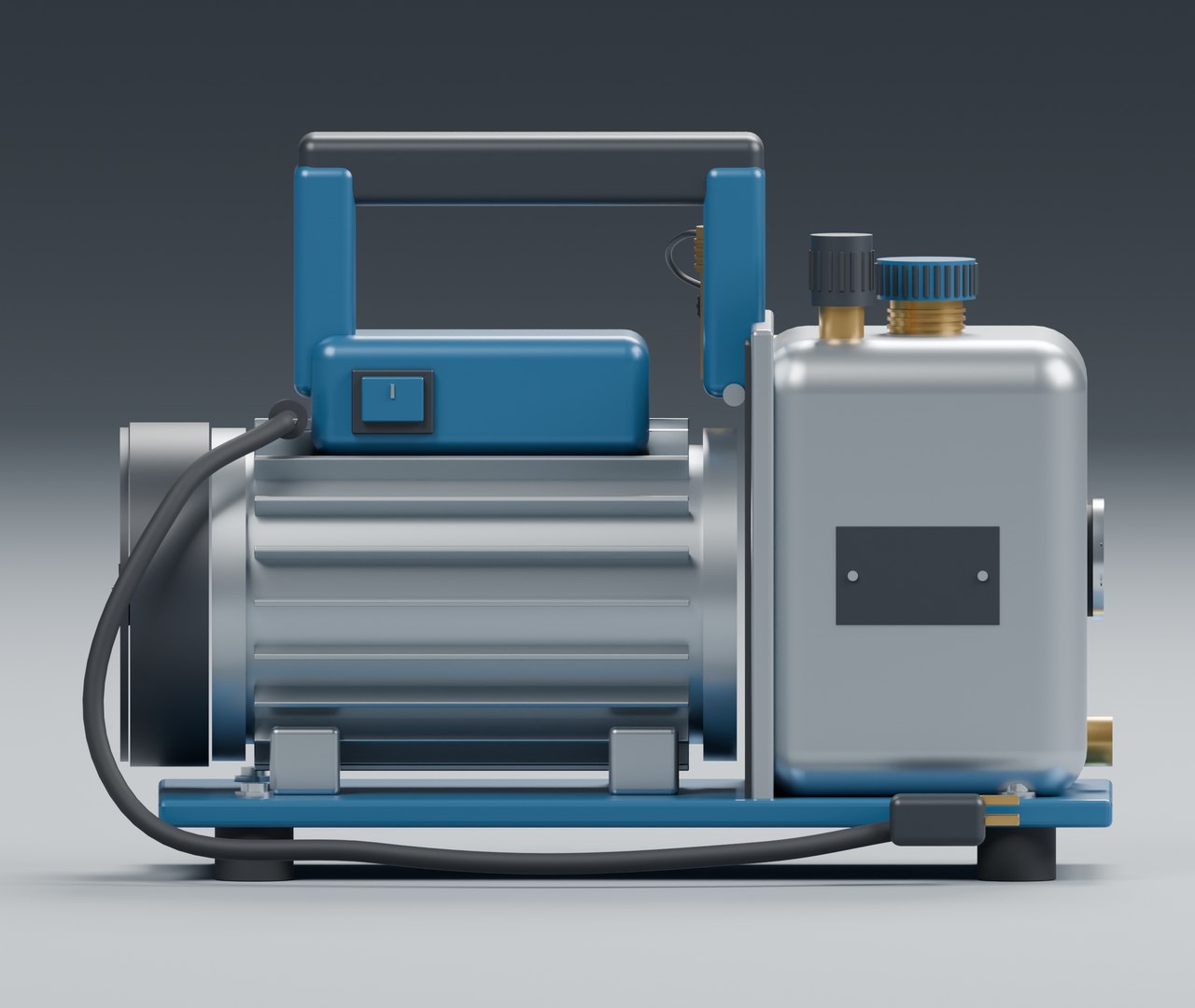

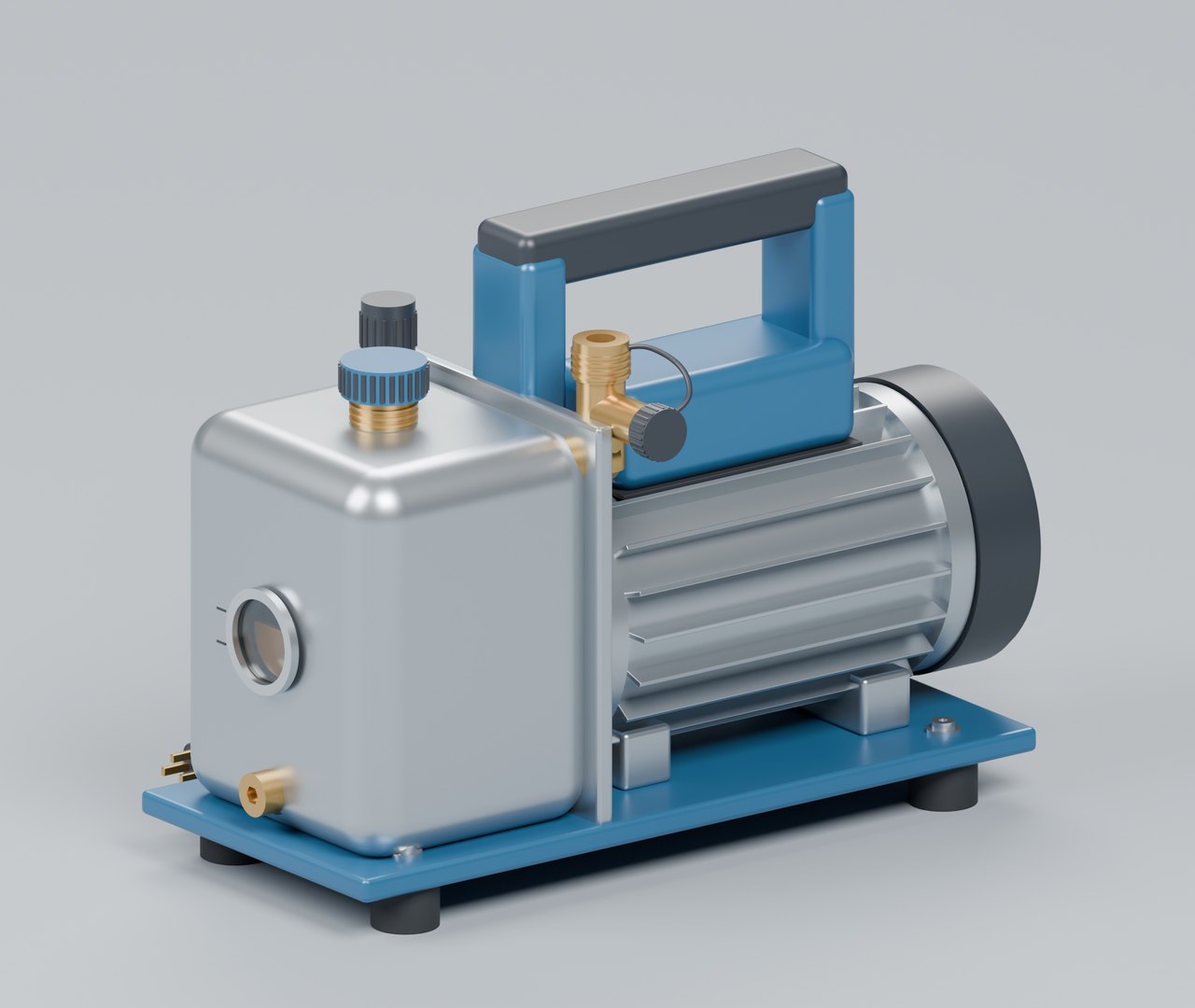

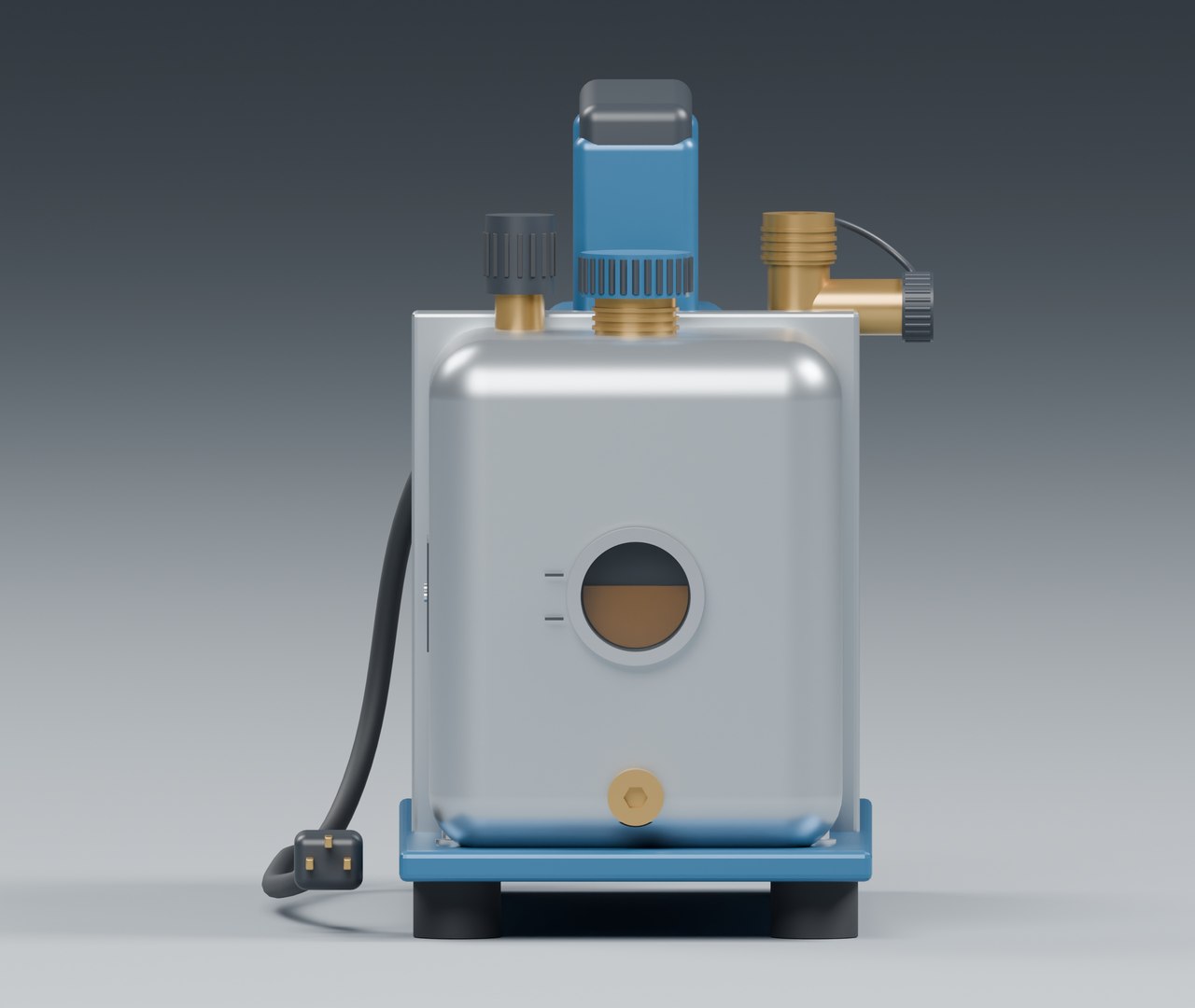

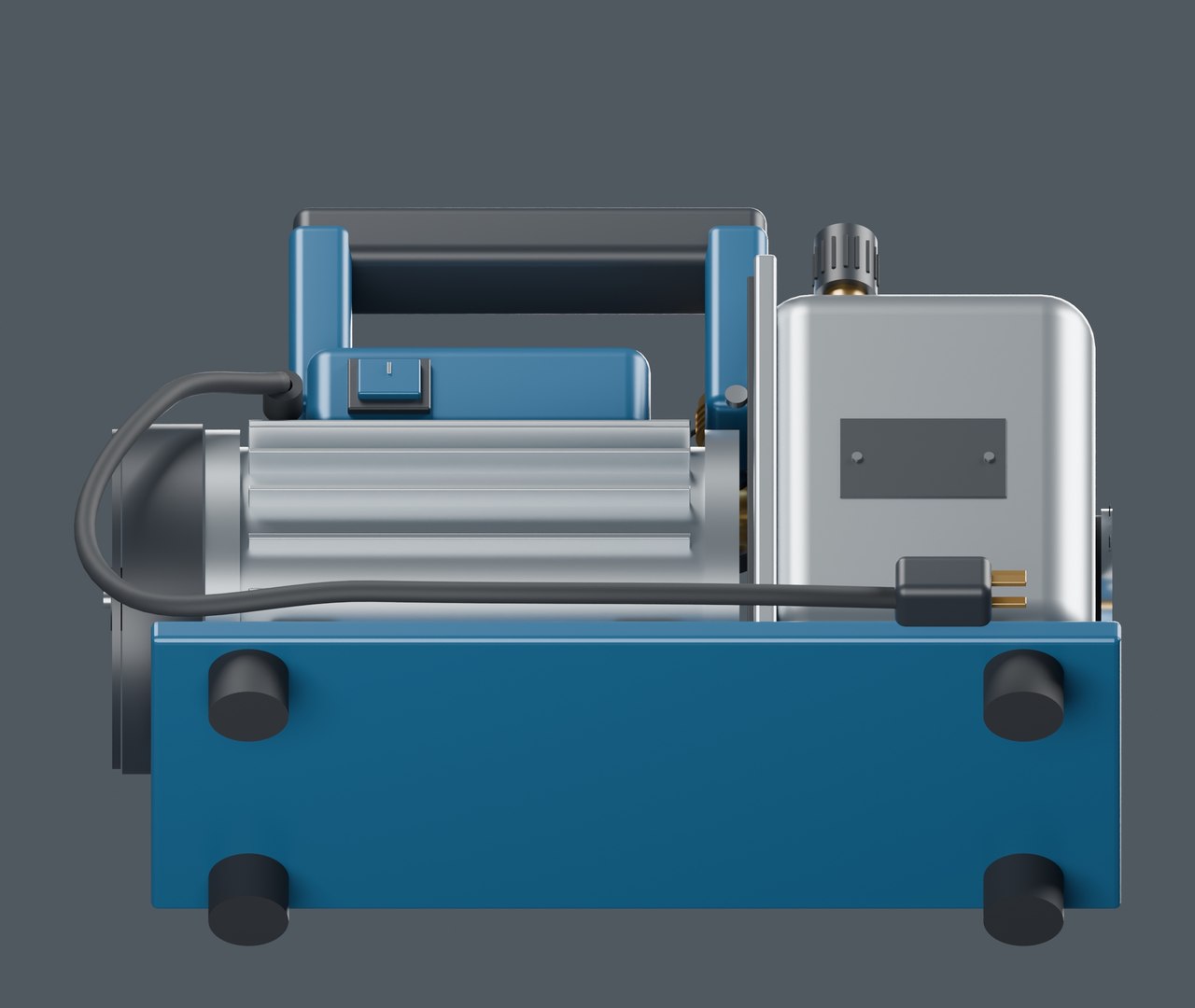

Detailed unbranded rotary vane vacuum pump with finned motor, open ring-and-spoke fan guard, separate cooling blades, gasketed cast reservoir, recessed oil window, fill and drain fittings, bored brass intake tee, capped service branch, carry handle, rocker switch and power lead. Individual fixings, grip ribs and threaded collars are modeled.

FILES AND SCALE

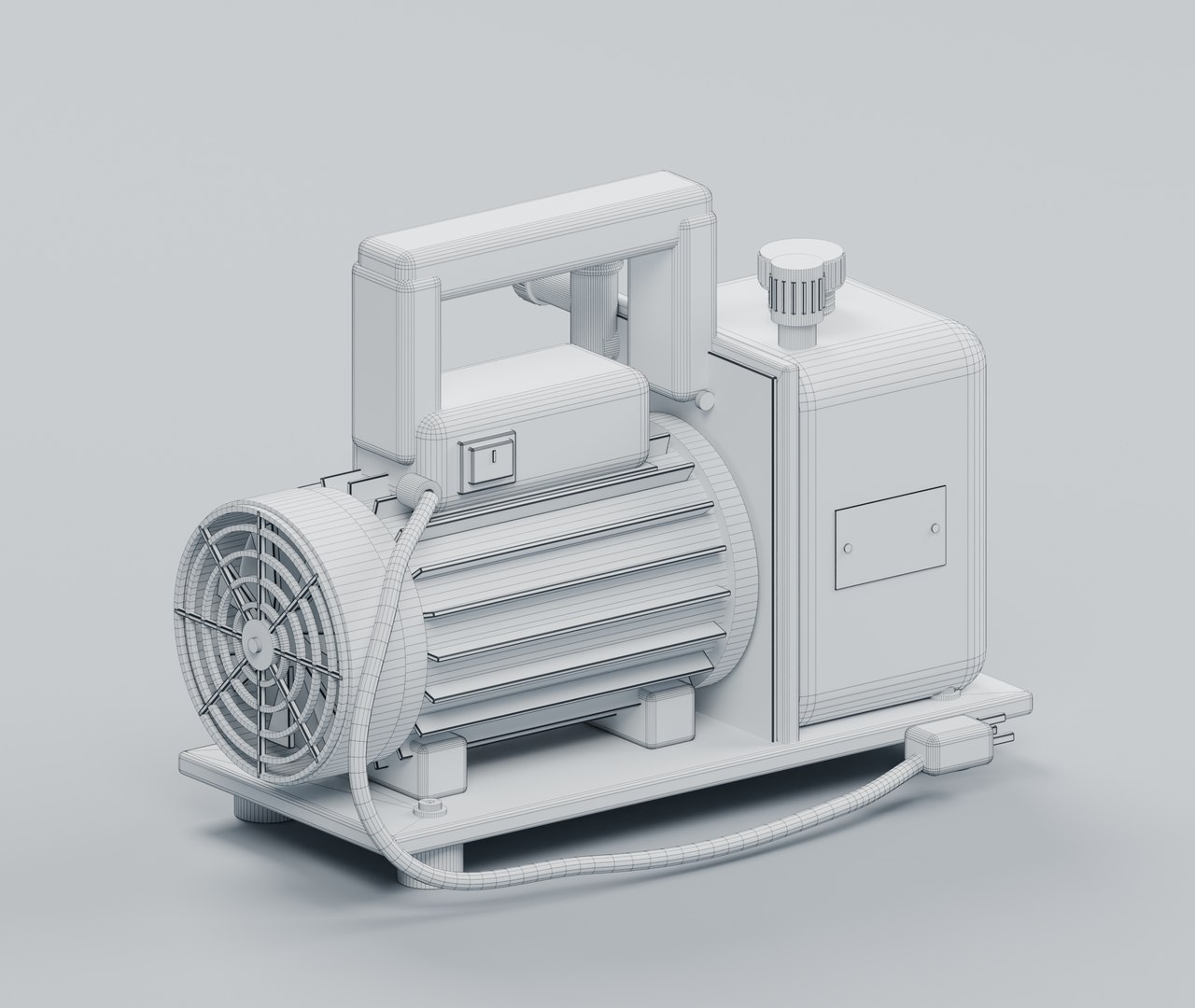

Native Blender 5.2.2 asset and a separate Cycles studio scene, plus a polygon-preserving FBX 7.4 file. Metric scale; overall dimensions approximately 36.5 x 21.4 x 26.2 cm. 183 mesh components, 32,237 polygons, 35,251 vertices and 69,894 evaluated triangles; 99.2% quads.

MATERIALS AND UVS

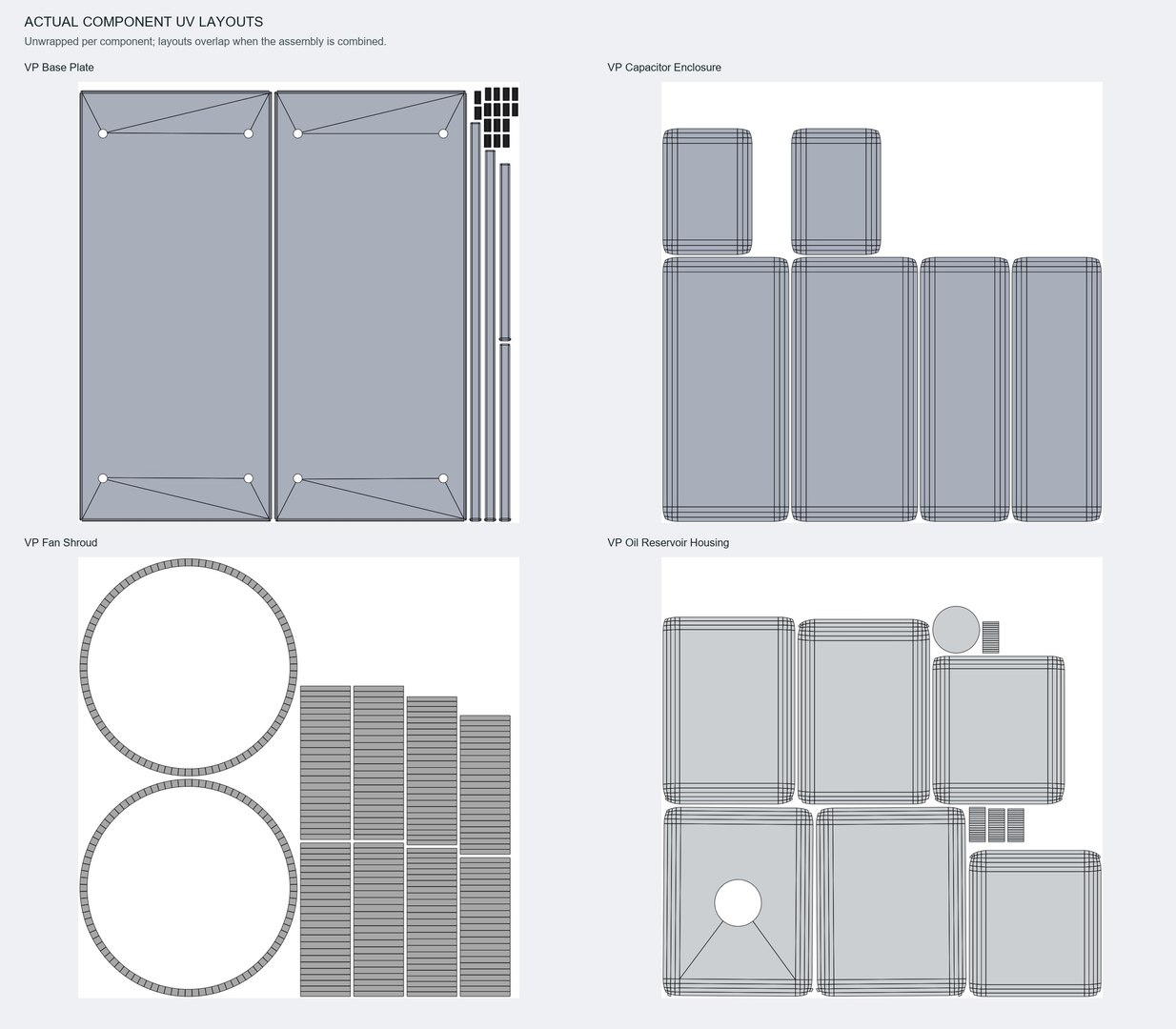

Eight editable PBR materials including cast aluminium, blue powdercoat, steel, brass, polymers, glass and oil. No image textures. Component UVs overlap across the assembly. FBX cannot preserve every Cycles glass setting; use the supplied material guide for renderer-specific glass adjustment.

NOTES

Static visualization model. Exterior and visible fittings modeled; no pump internals, operational simulation or manufacturing specification. Named components and a separate Cycles studio.
