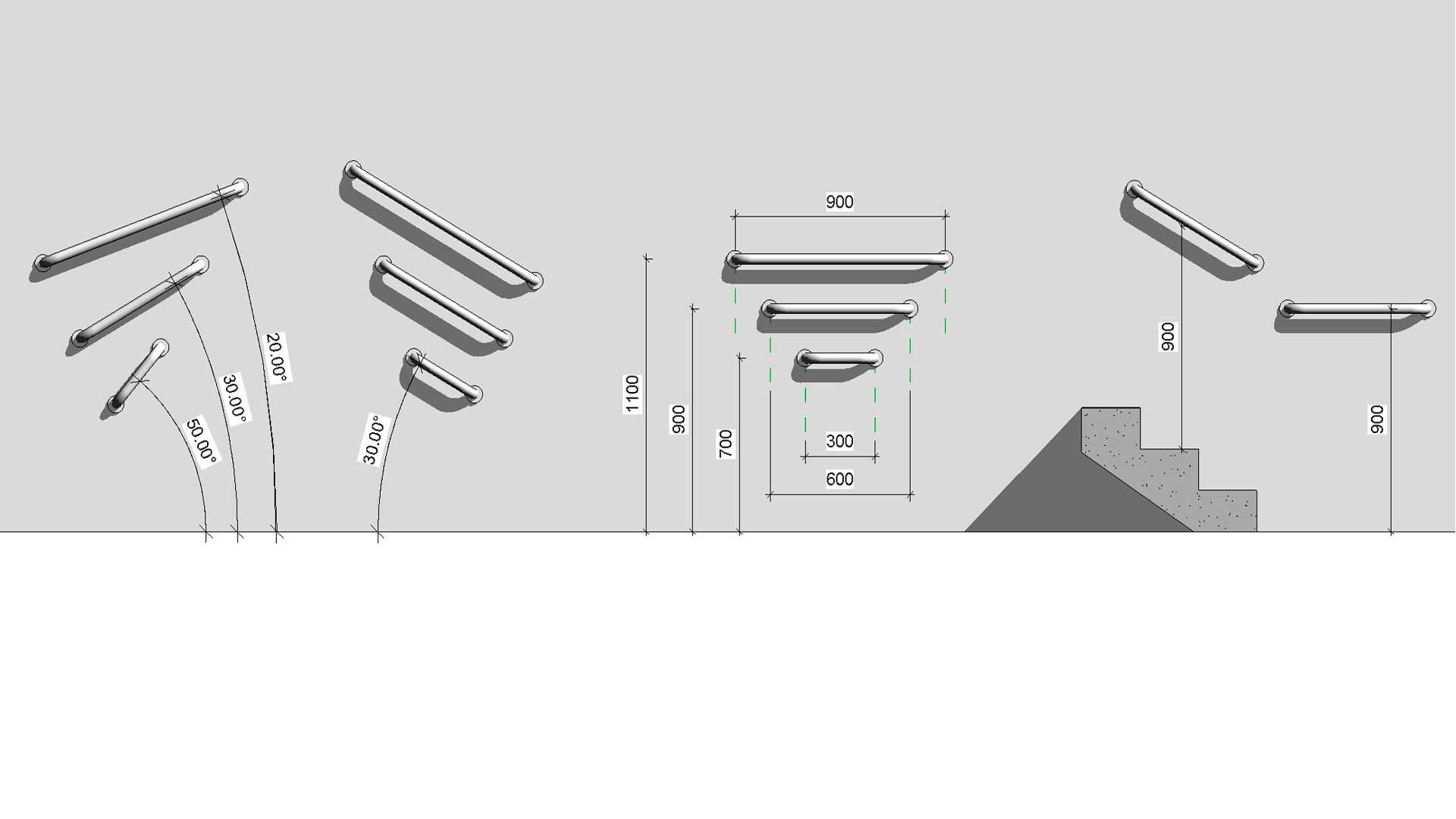

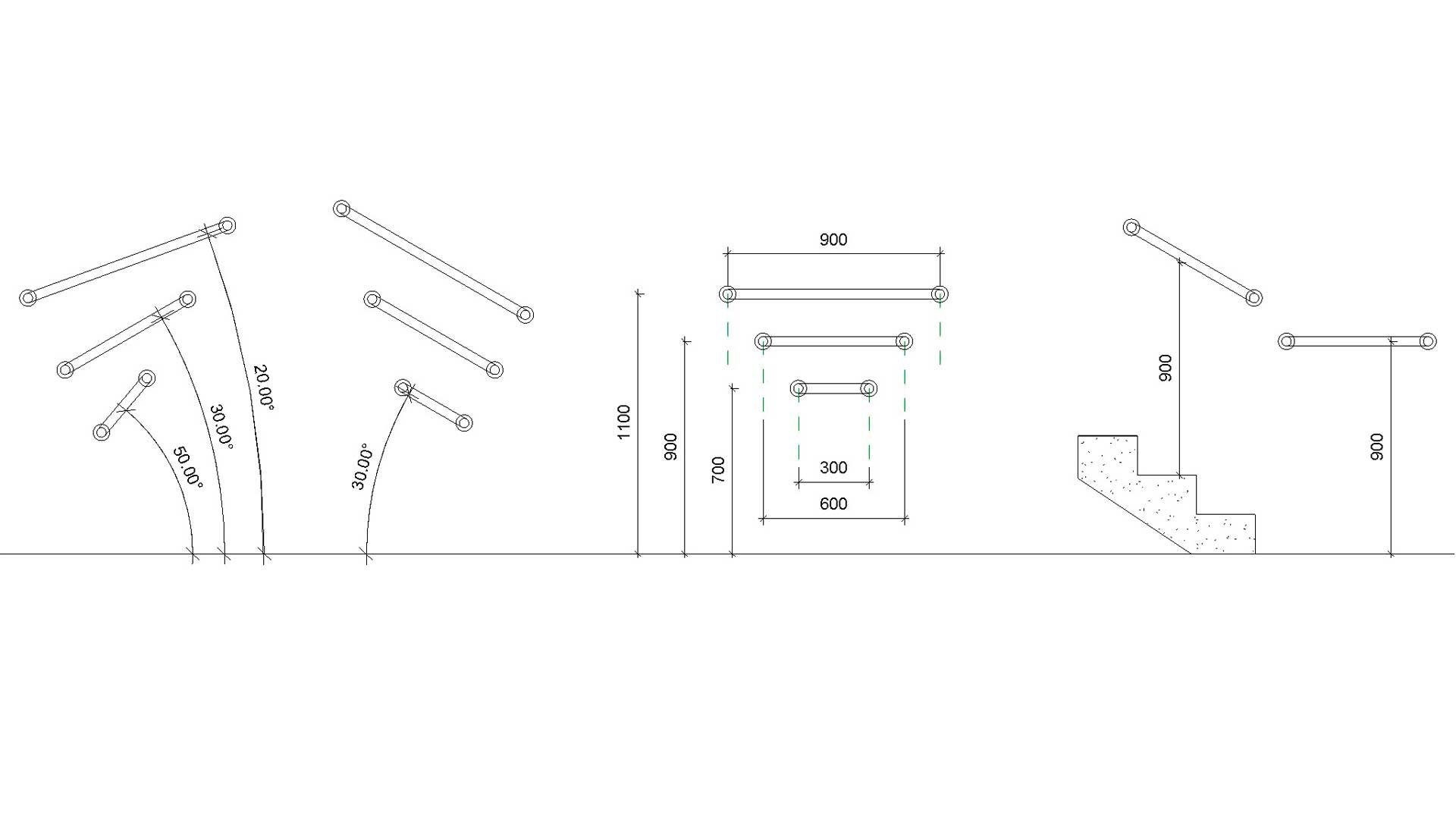

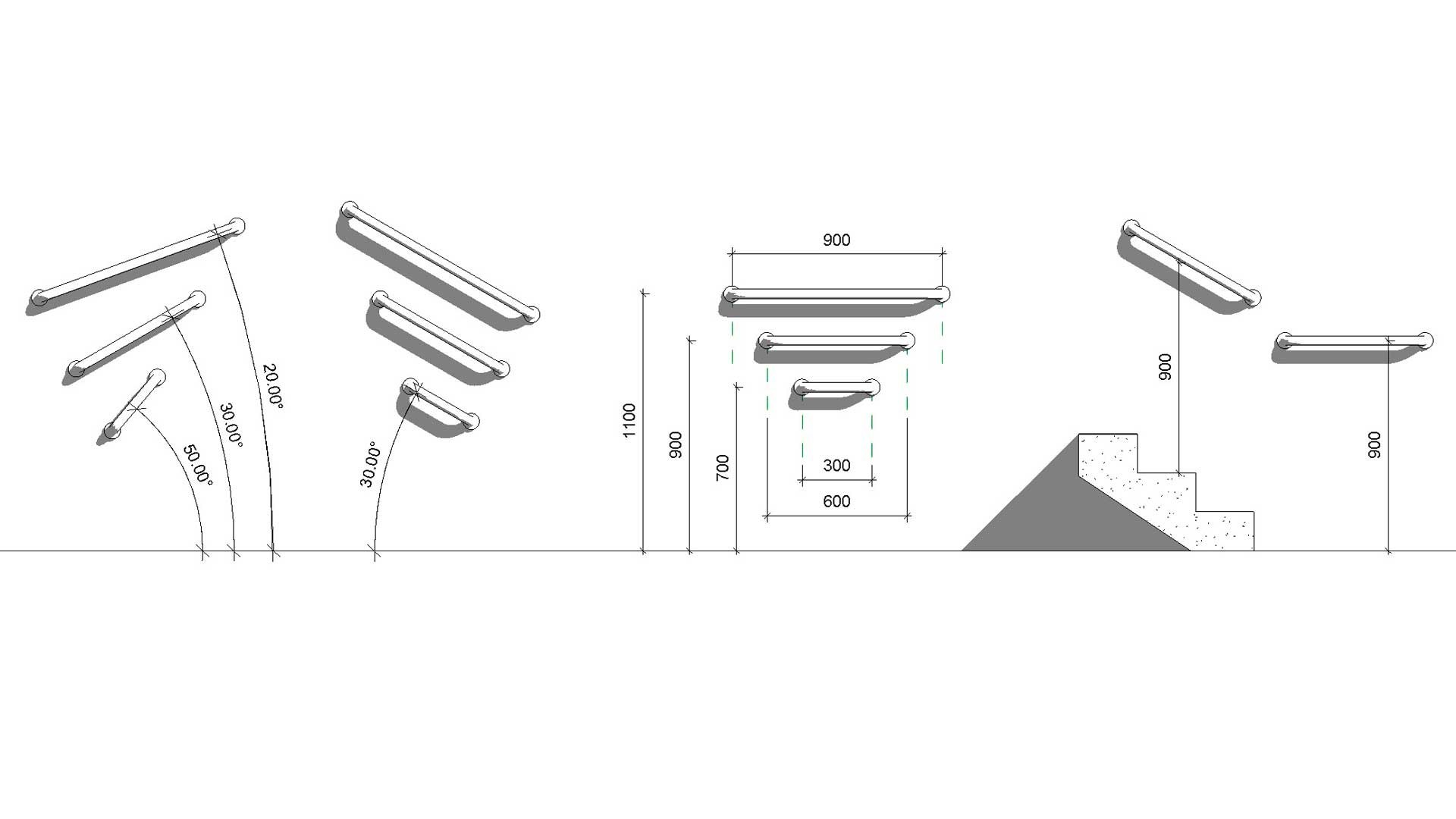

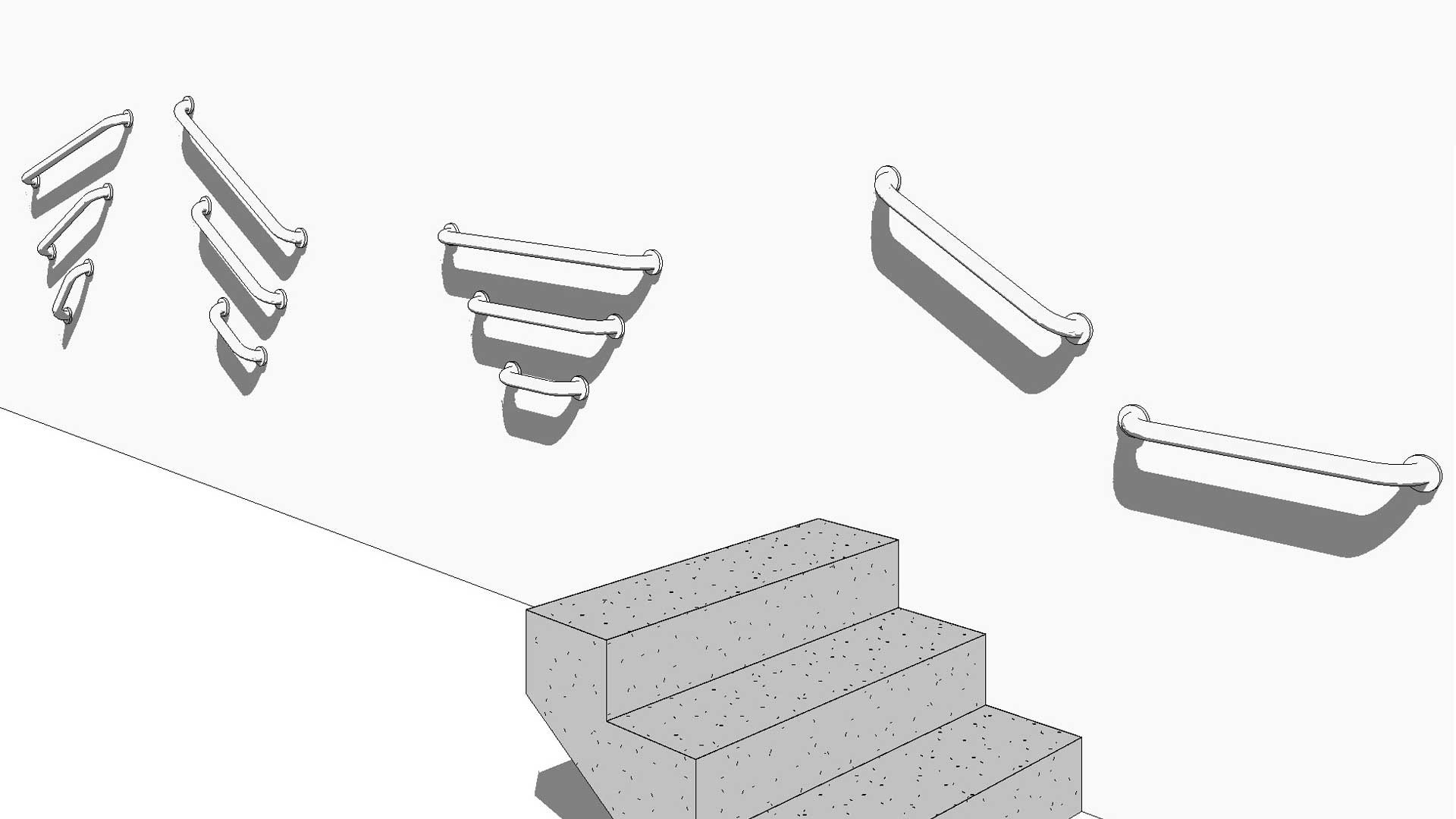

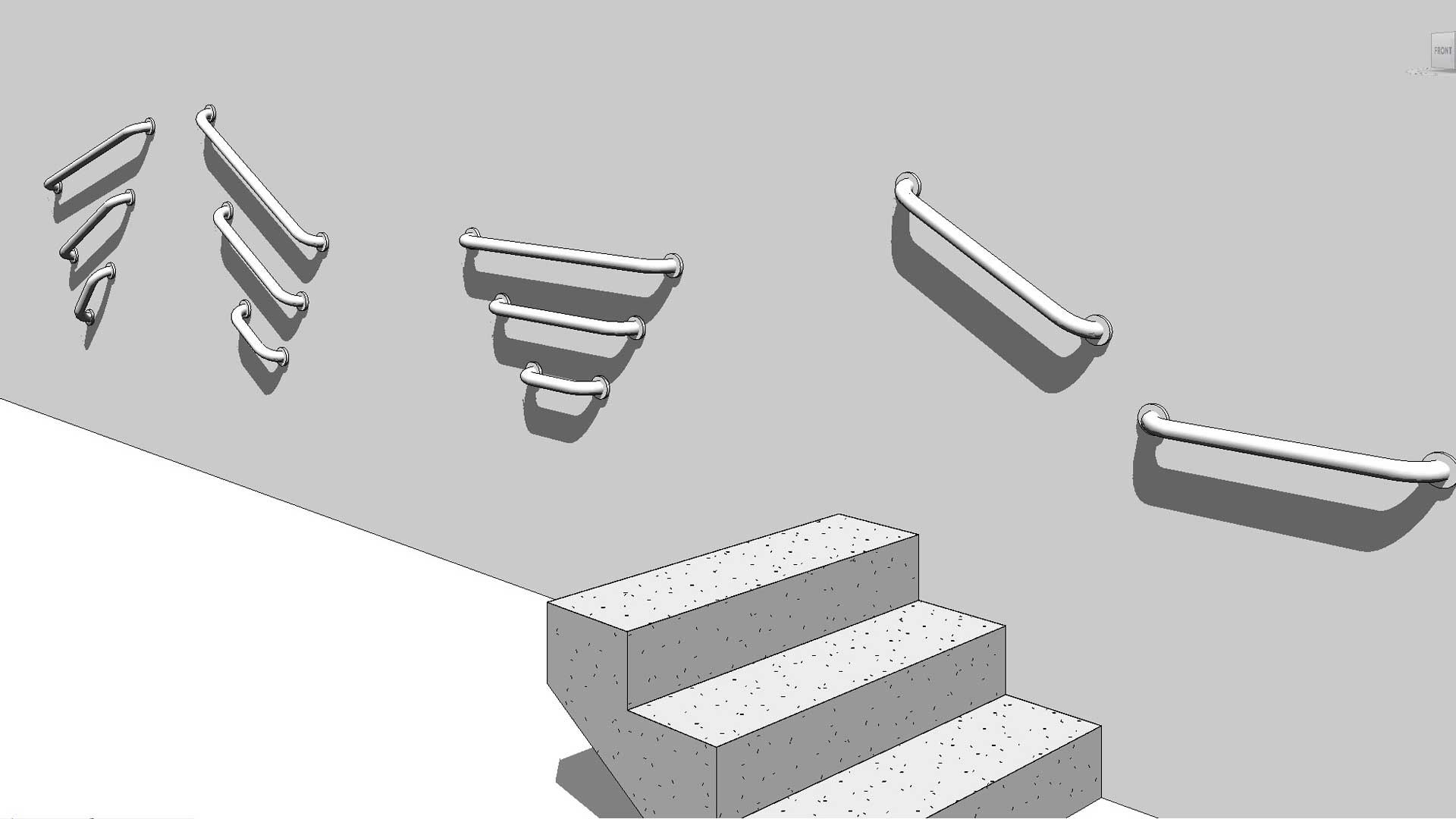

This is a revit family for wall based grap bar and/or towel rail. Family is fully parametric. As a wall based family model it can be placed onto any wall face, with adjustable tilt angle in both directions, elevation height from reference level and length of the bar.

Fully Parametric

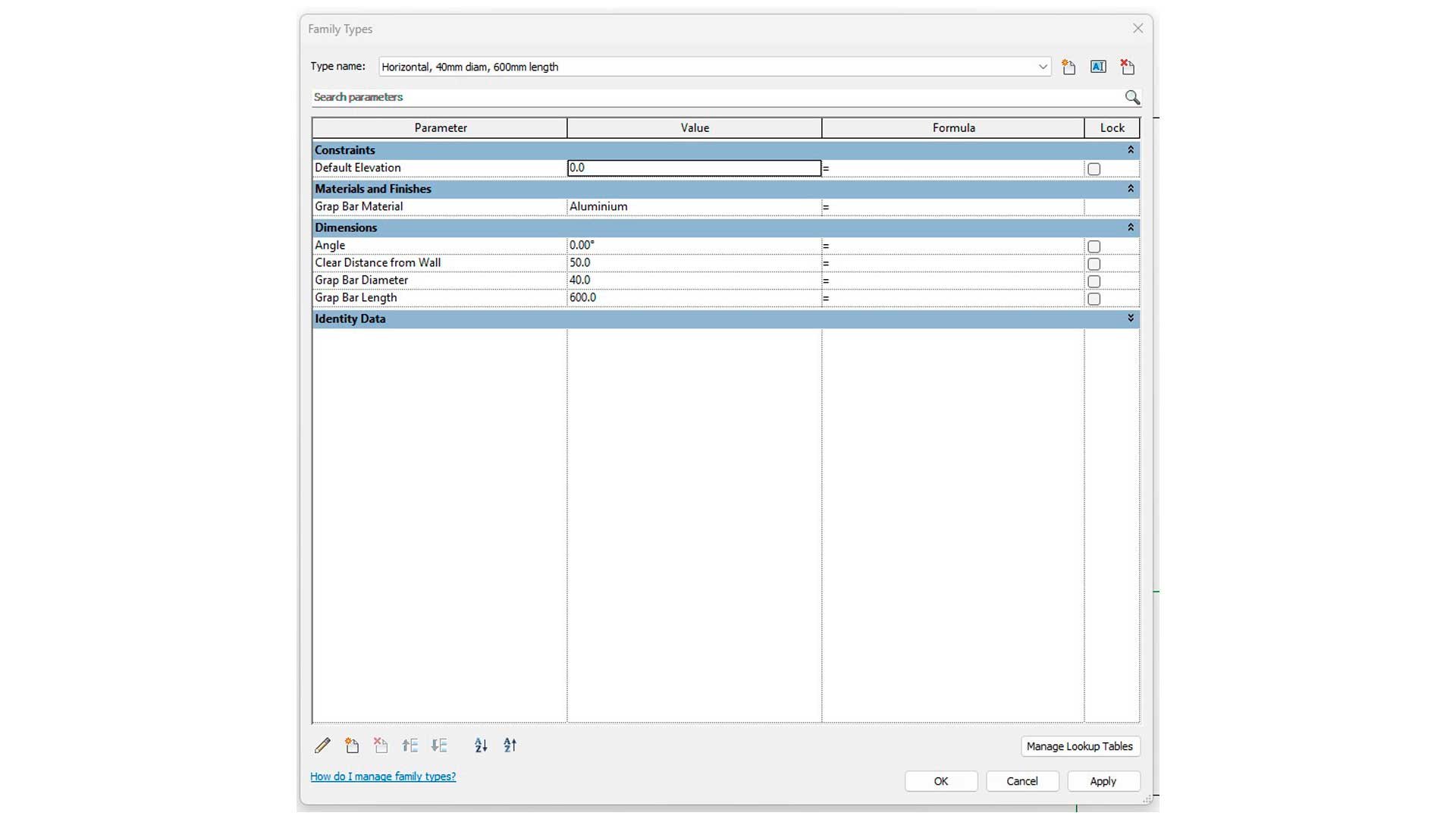

Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

Model can also be flipped on both vertical and horizontal axis for correct placement on either side of a wall.

PARAMETERS

• Bar Length
• Bar diameter
• Bar clear distance from wall
• Elevation from reference level
• Material

ATTRIBUTES

• Revit version : 2022
• Family Type : Wall Based
• File Extension : .rfa

PRESET FAMILY TYPES

• Horizontal, 40mm diam, 300mm length
• Horizontal, 40mm diam, 600mm length
• Horizontal, 40mm diam, 900mm length
• Diagonal 30degrees, 40mm diam, 300mm length
• Diagonal 30degrees, 40mm diam, 600mm length
• Diagonal 30degrees, 40mm diam, 900mm length
• Horizontal, 30mm diam, 300mm length
• Horizontal, 30mm diam, 600mm length
• Horizontal, 30mm diam, 900mm length
• Diagonal 30degrees, 30mm diam, 300mm length
• Diagonal 30degrees, 30mm diam, 600mm length
• Diagonal 30degrees, 30mm diam, 900mm length

User can create as many family types as needed within any project to match every project’s needs.
