ASF - H05VVC4V5-K 3x0.75mm2.max

$24.95

Standard License | Upgrade License
Formats (1)
Free file format Conversions available
3ds Max
Also available in
Other Files
Koper.jpg Symmetrische-vlechtwerk.jpg Symmetrische-vlechtwerk1.jpg
Specifications
Publish Date May 26, 2009
Product ID 465744
Polygons 0
Vertices 0
Unknown Geometry
UV Mapped
Unknown Unwrapped UVs
TurboSquid Exclusive
member avatar
Cable Master
274 Products | Contributor Since 2007
Have questions? Chat with us now.

Description

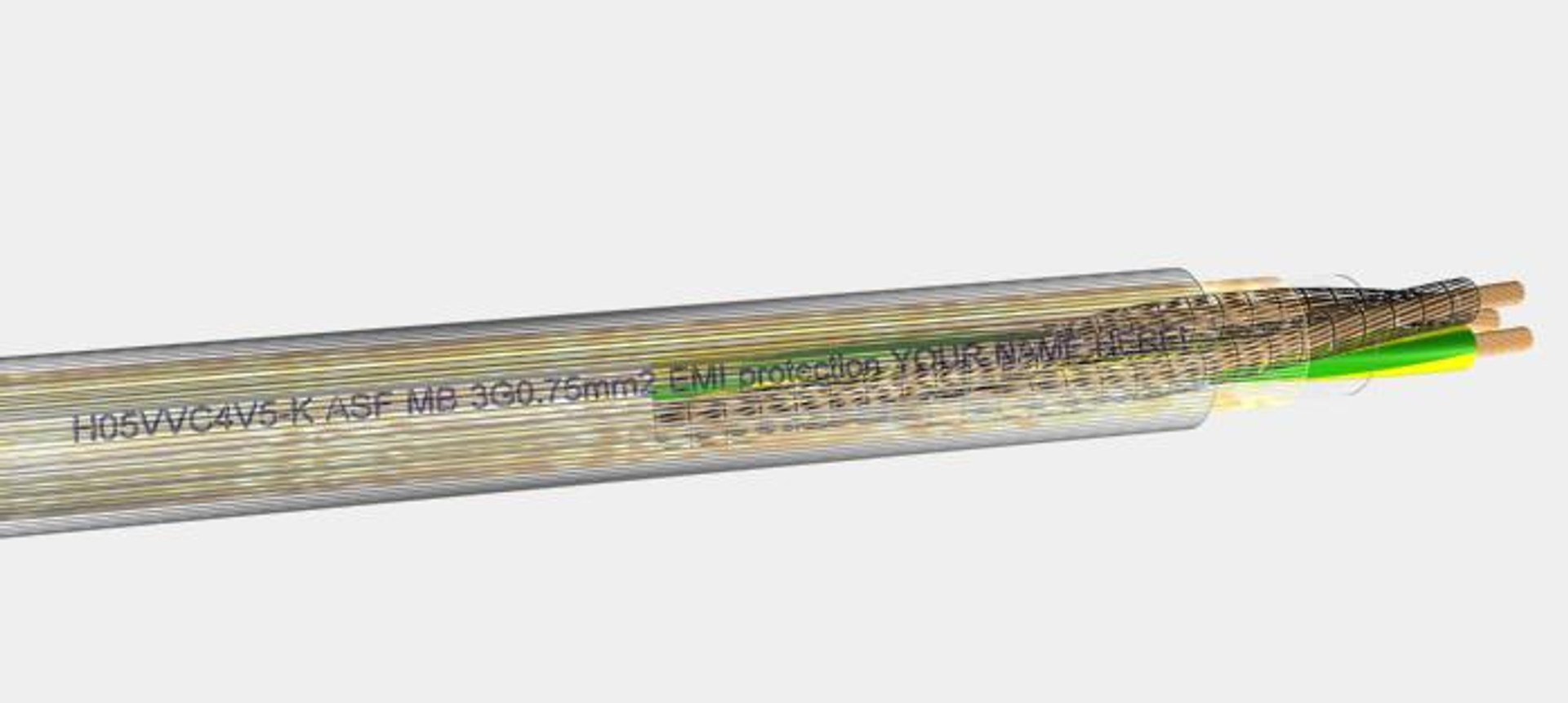

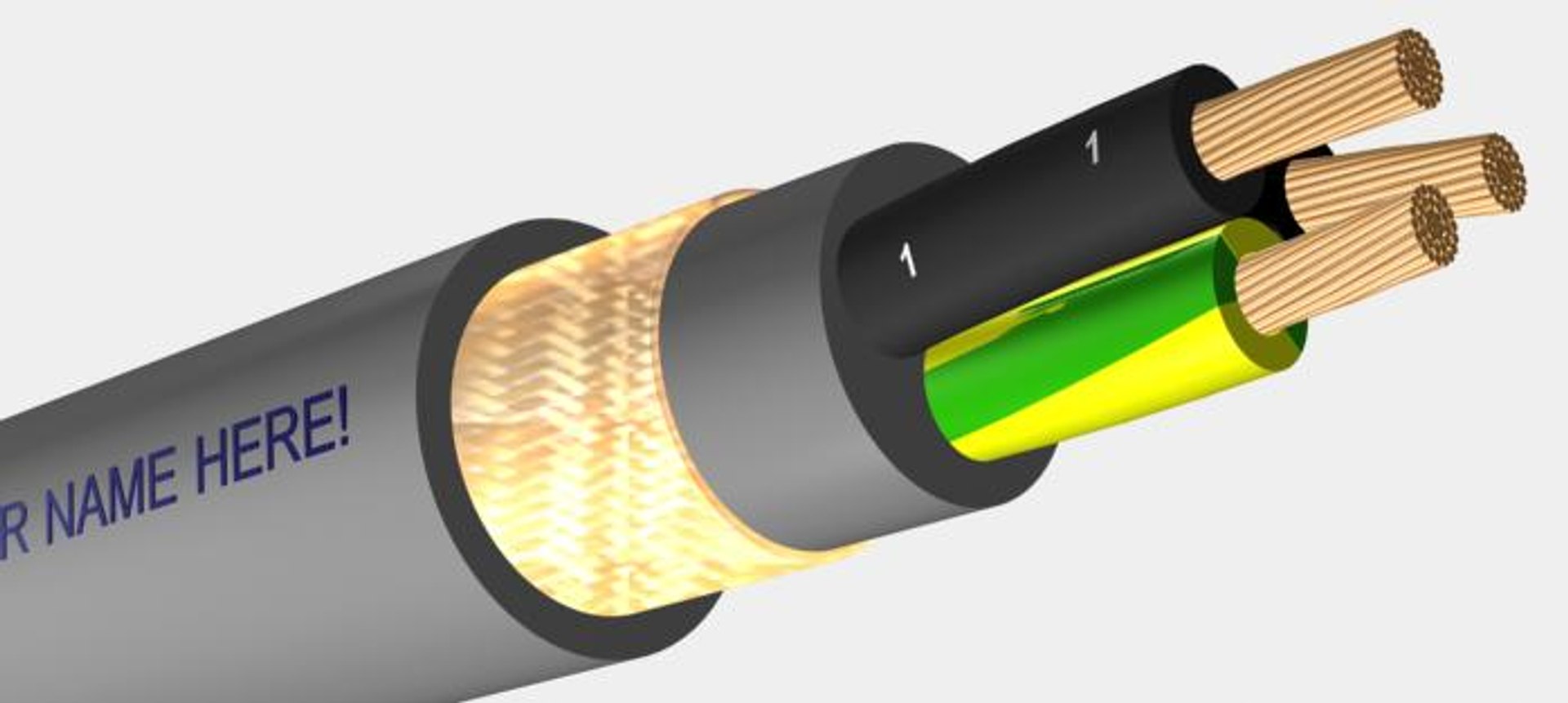

ASF - H05VVC4V5-K 3G0.75mm2
This cable prevents;
Electromagnetic compatibility (EMC) is the branch of electrical sciences which studies the unintentional generation, propagation and reception of electromagnetic energy with reference to the unwanted effects (Electromagnetic interference, or EMI) that such energy may induce. The goal of EMC is the correct operation, in the same electromagnetic environment, of different equipment which use electromagnetic phenomena, and the avoidance of any interference effects.
In order to achieve this, EMC pursues two different kinds of issues. Emission issues are related to the unwanted generation of electromagnetic energy by some source, and to the countermeasures which should be taken in order to reduce such generation and to avoid the escape of any remaining energies into the external environment. Susceptibility or immunity issues, in contrast, refer to the correct operation of electrical equipment, referred to as the victim, in the presence of unplanned electromagnetic disturbances.
Interference, or noise, mitigation and hence electromagnetic compatibility is achieved primarily by addressing both emission and susceptibility issues, i.e., quieting the sources of interference and hardening the potential victims. The coupling path between source and victim may also be separately addressed to increase its attenuation.

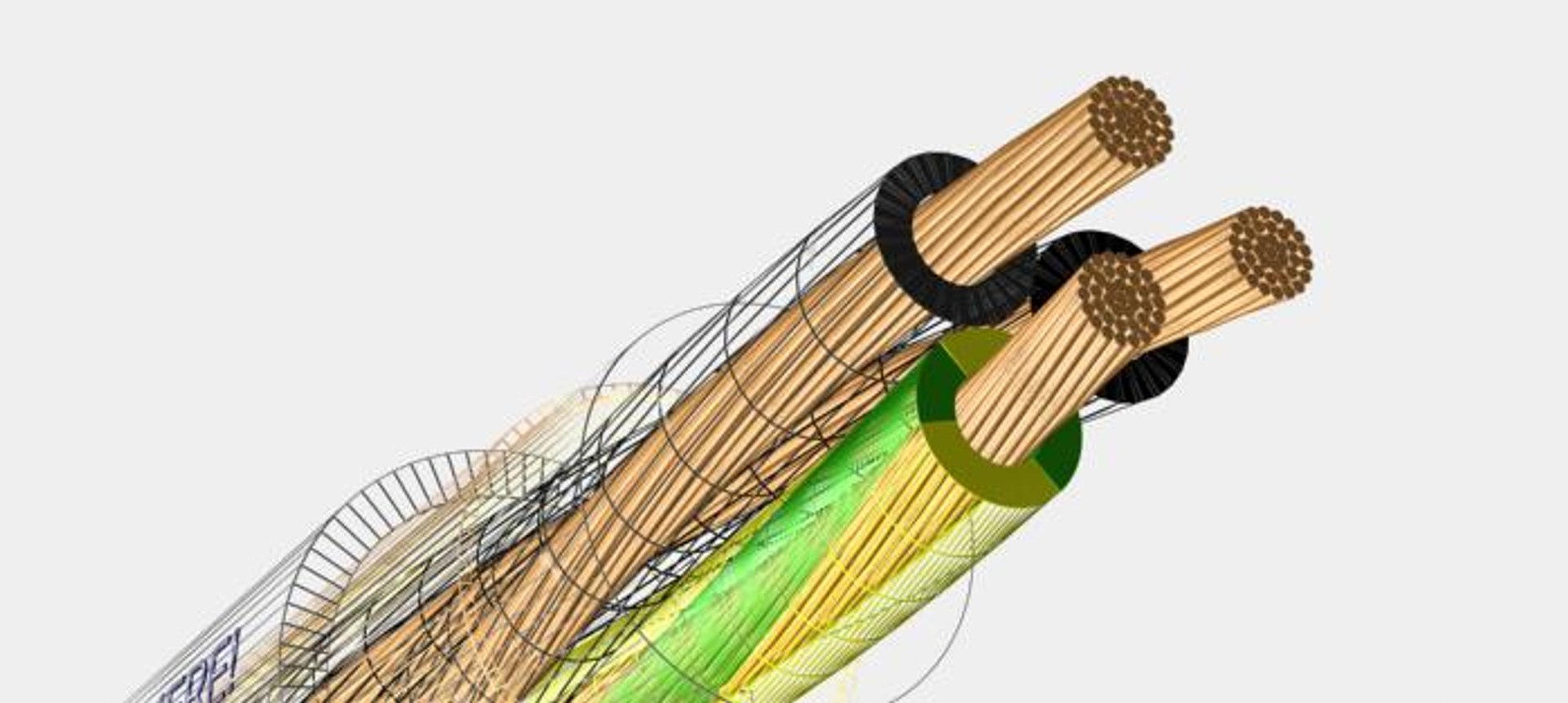

Electrical cables may be made flexible by stranding the wires. The technical issue is to reduce the skin effect voltage drop while using with alternating currents.In this process, smaller individual wires are twisted or braided together to produce larger wires that are more flexible than solid wires of similar size. Bunching small wires before concentric stranding adds the most flexibility. A thin coat of a specific material (usually tin-which improved striping of rubber, or for low friction of moving conductors, but it could be silver, gold and another materials and of course the wire can be bare - with no coat
