THIS IS NOT A REAL OBJECT, THIS IS A 3D MODEL ONLY, A FILE THAT YOU CAN USED ONLY WITH 3D SOFTWARE .

Add my username to your favorites to not miss anything and be the first to catch the new models published each everyday .

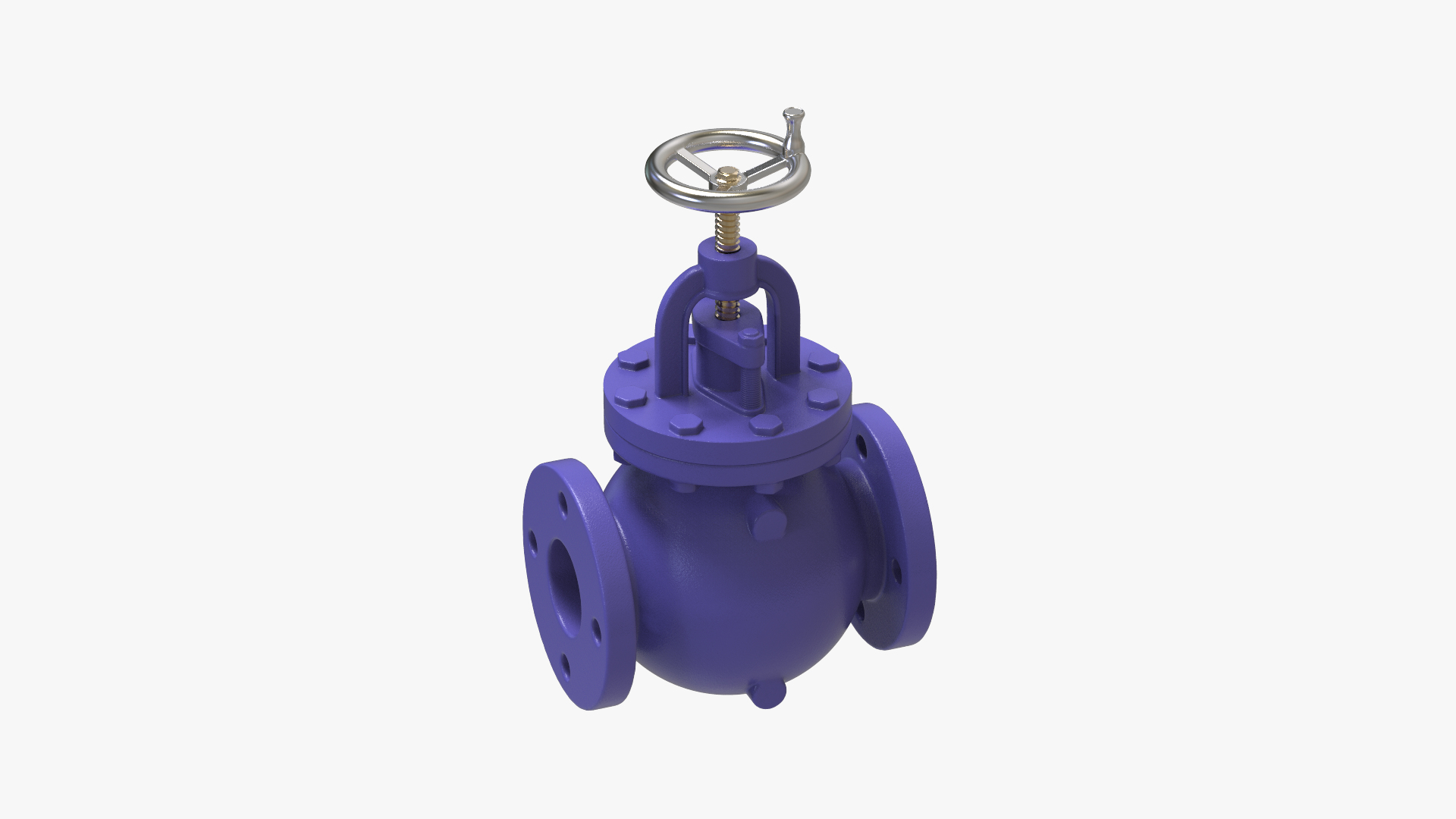

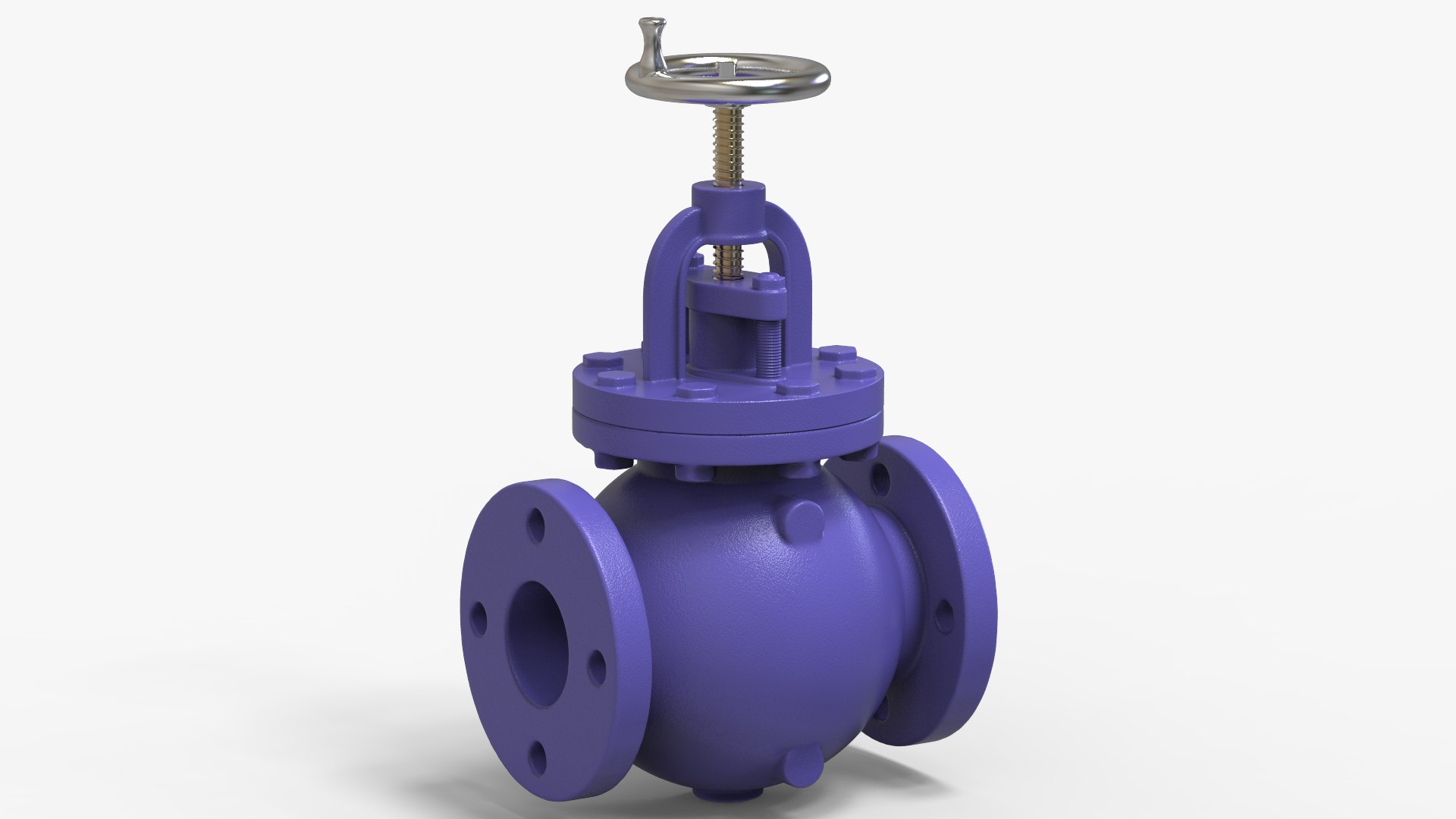

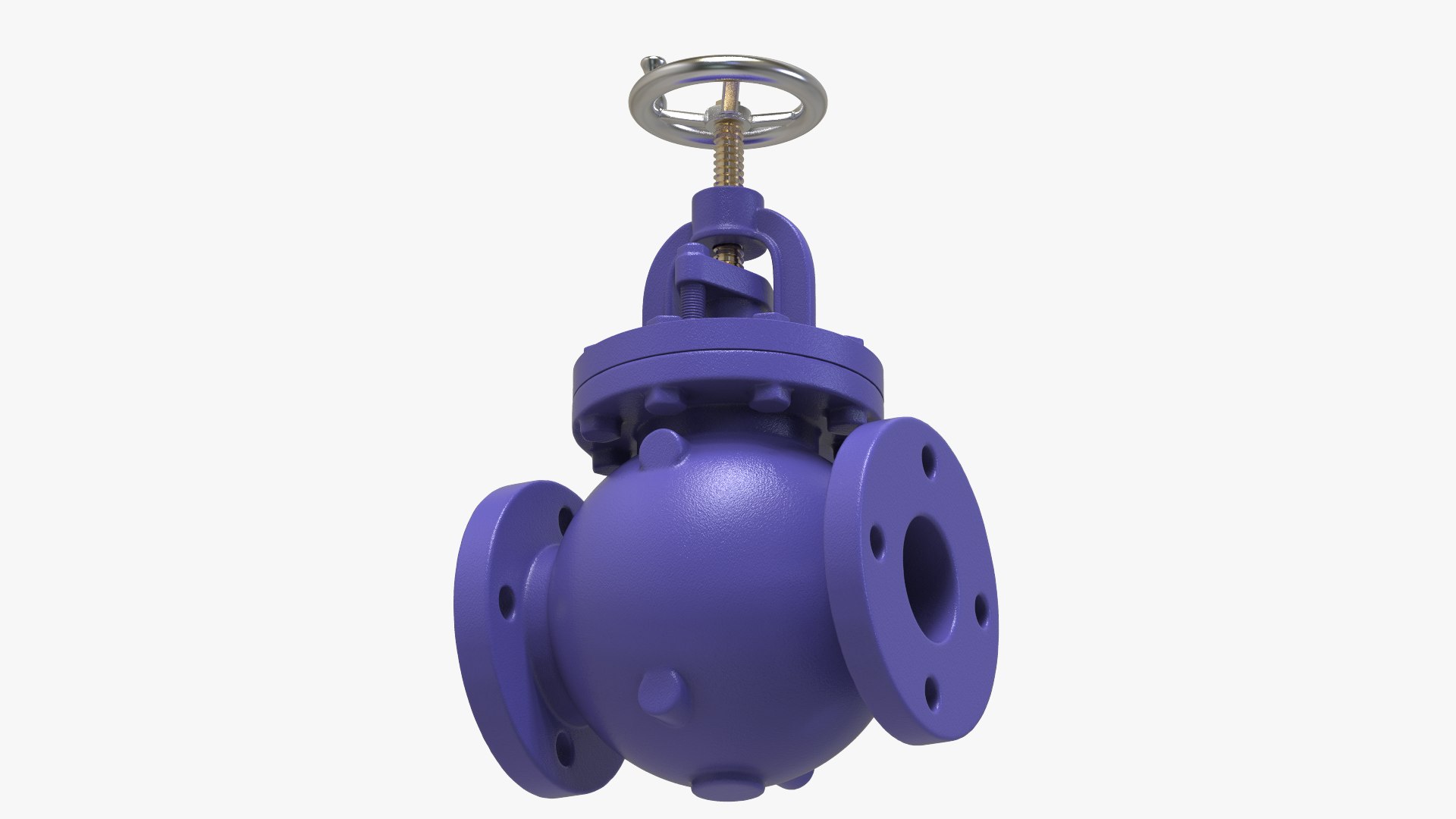

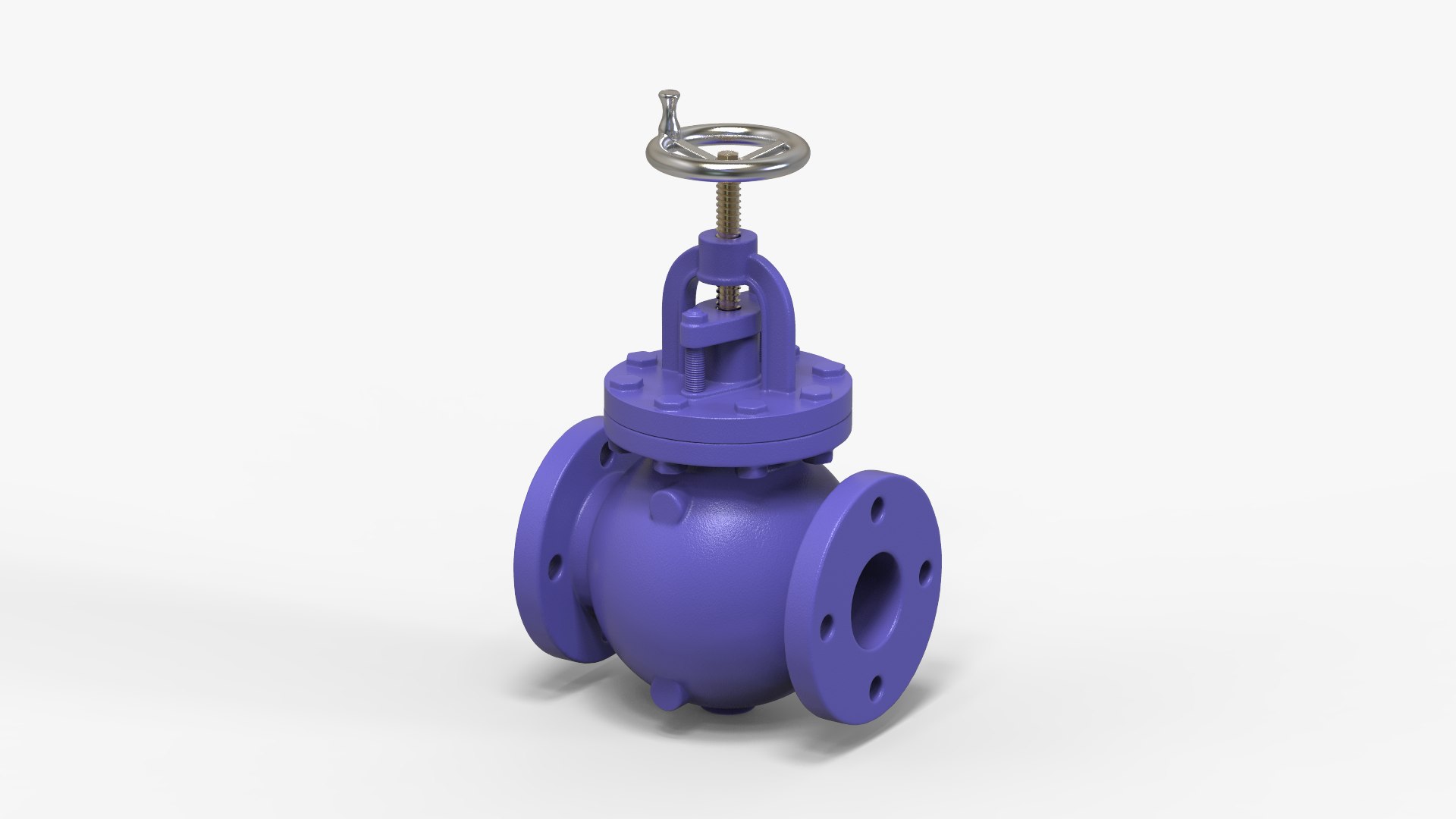

This 3D model represents an industrial globe valve, used to regulate the flow of fluid within a piping system.
It is designed with a high level of detail, making it suitable for mechanical design, technical visualization, and educational purposes.

Technical Description

• Valve type: Manually operated globe valve.
• Valve body: Main spherical body with flanged connections on both sides for bolted pipe installation.

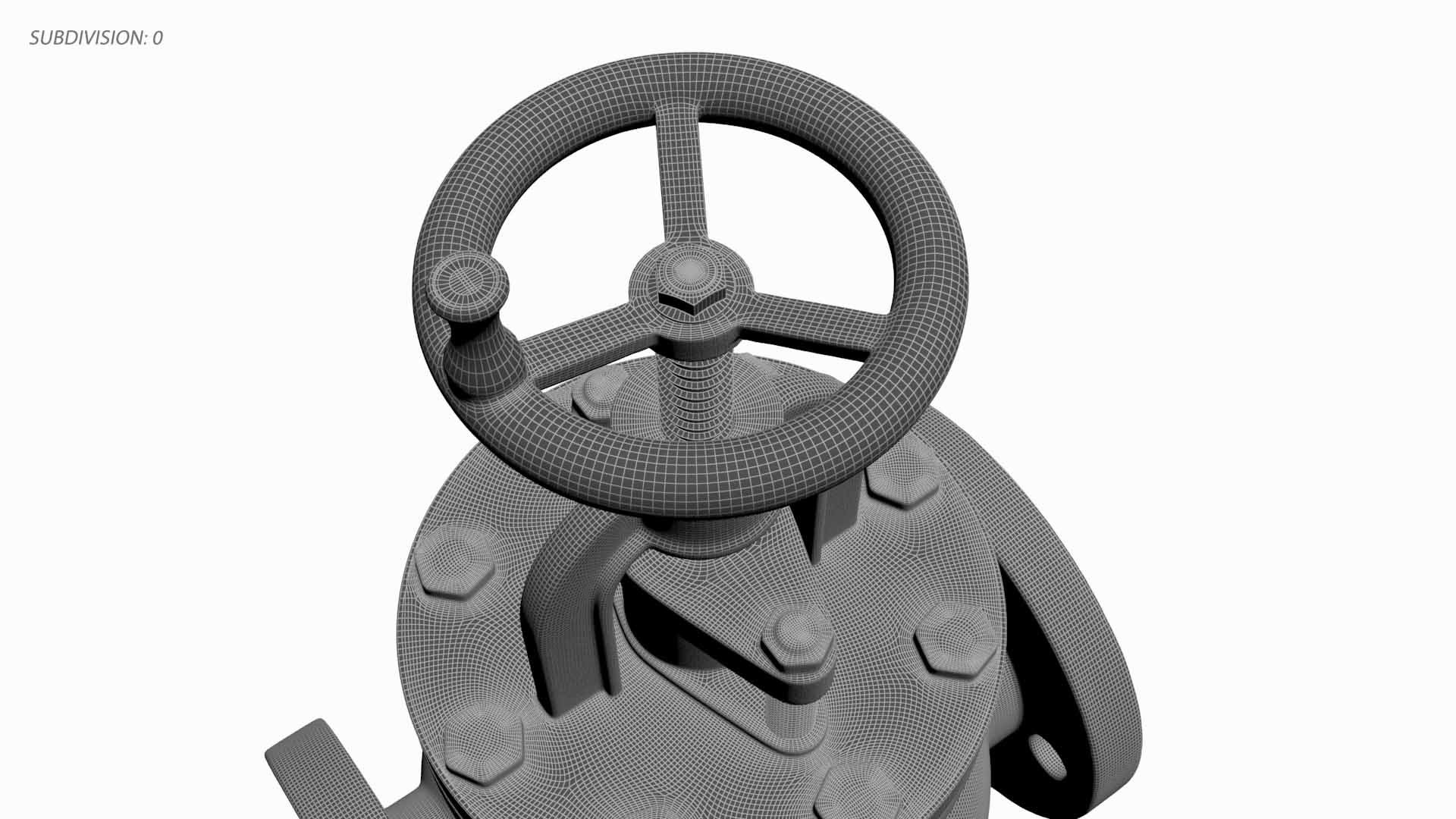

• Operating mechanism: Handwheel located at the top for opening and closing. Threaded stem enabling vertical movement of the internal disc (plug).

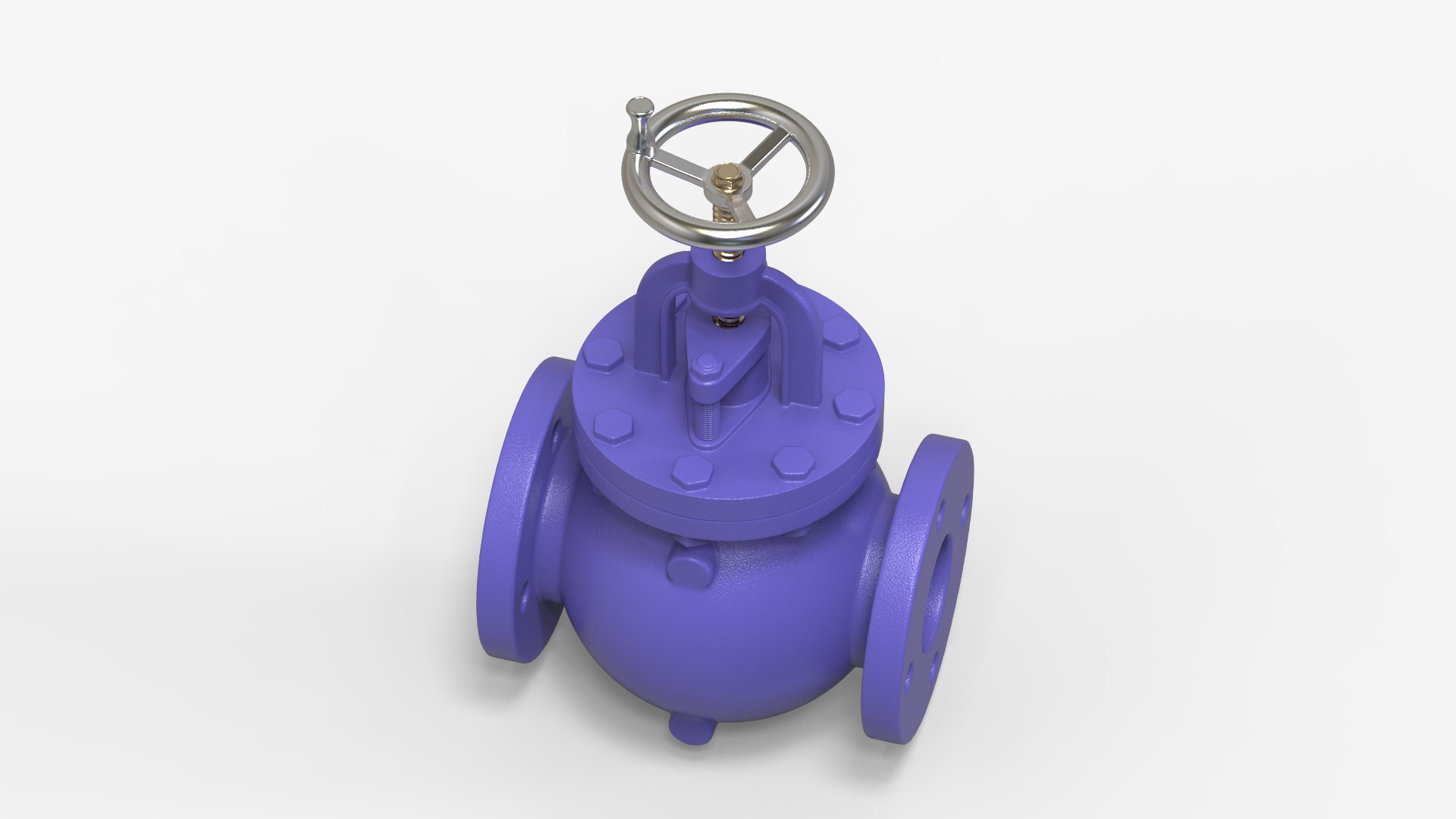

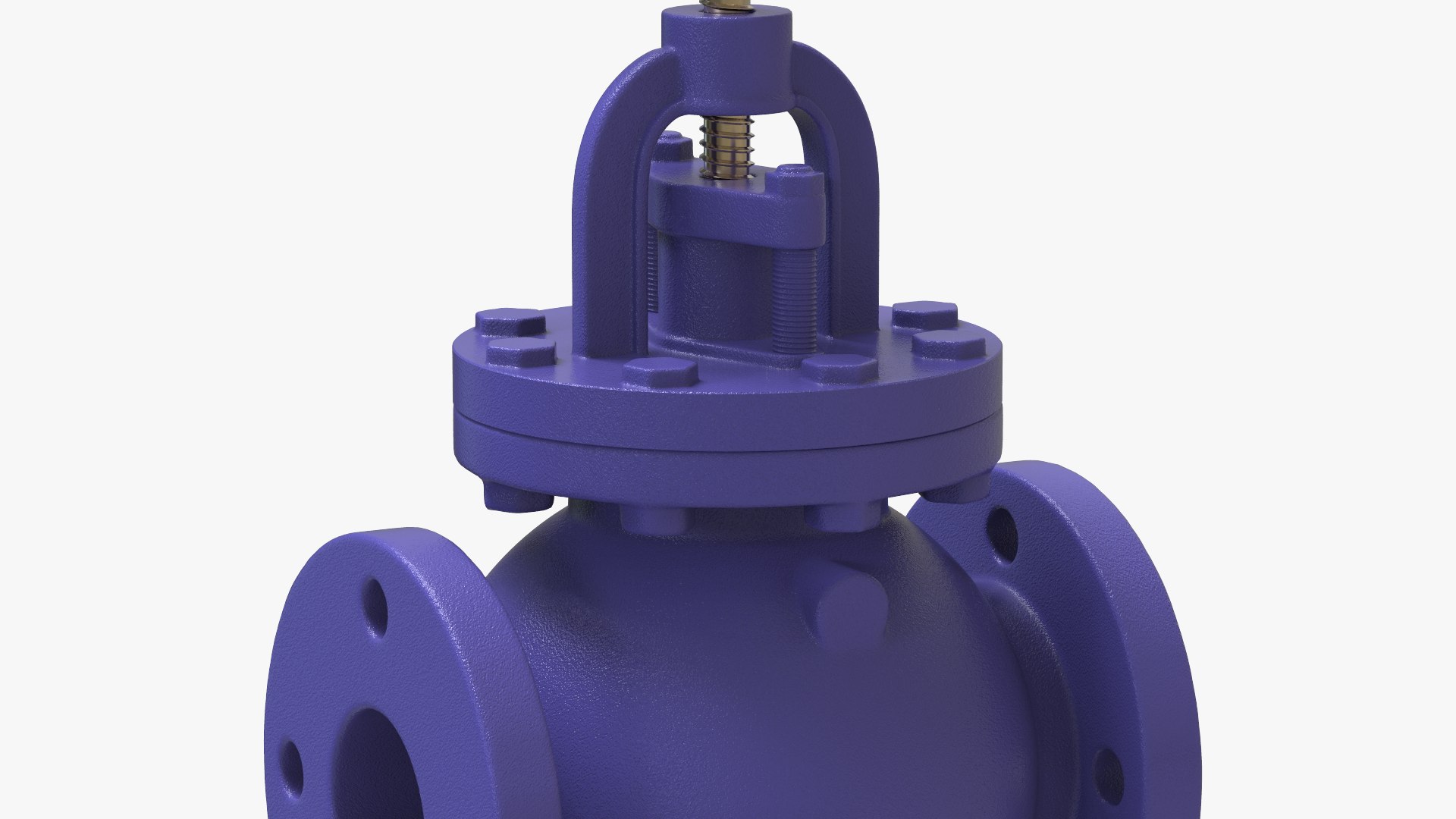

• Top cover: Bolted bonnet with six hexagonal bolts, allowing internal maintenance access.
• Simulated materials: Body: Painted metal (blue/purple), representing cast iron or coated steel. Handwheel: Polished stainless steel with gold-colored hardware for fastening elements.

Model Purpose

• Technical use: Integration into industrial piping assemblies.
• Educational use: Demonstration of the globe valve operation (flow regulation through vertical disc motion).
• Visual use: Realistic illustration for training materials, manuals, or 3D presentations.

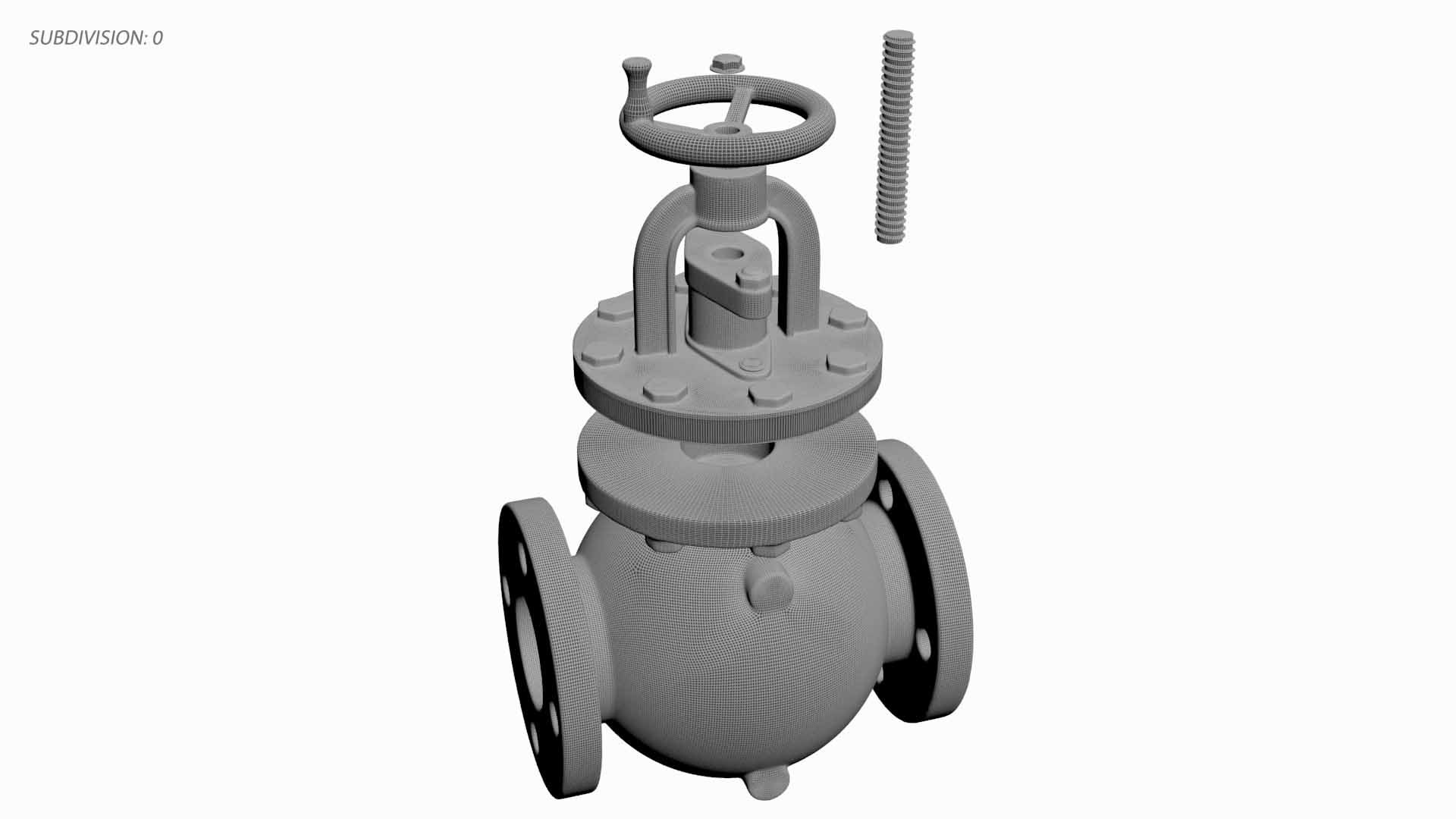

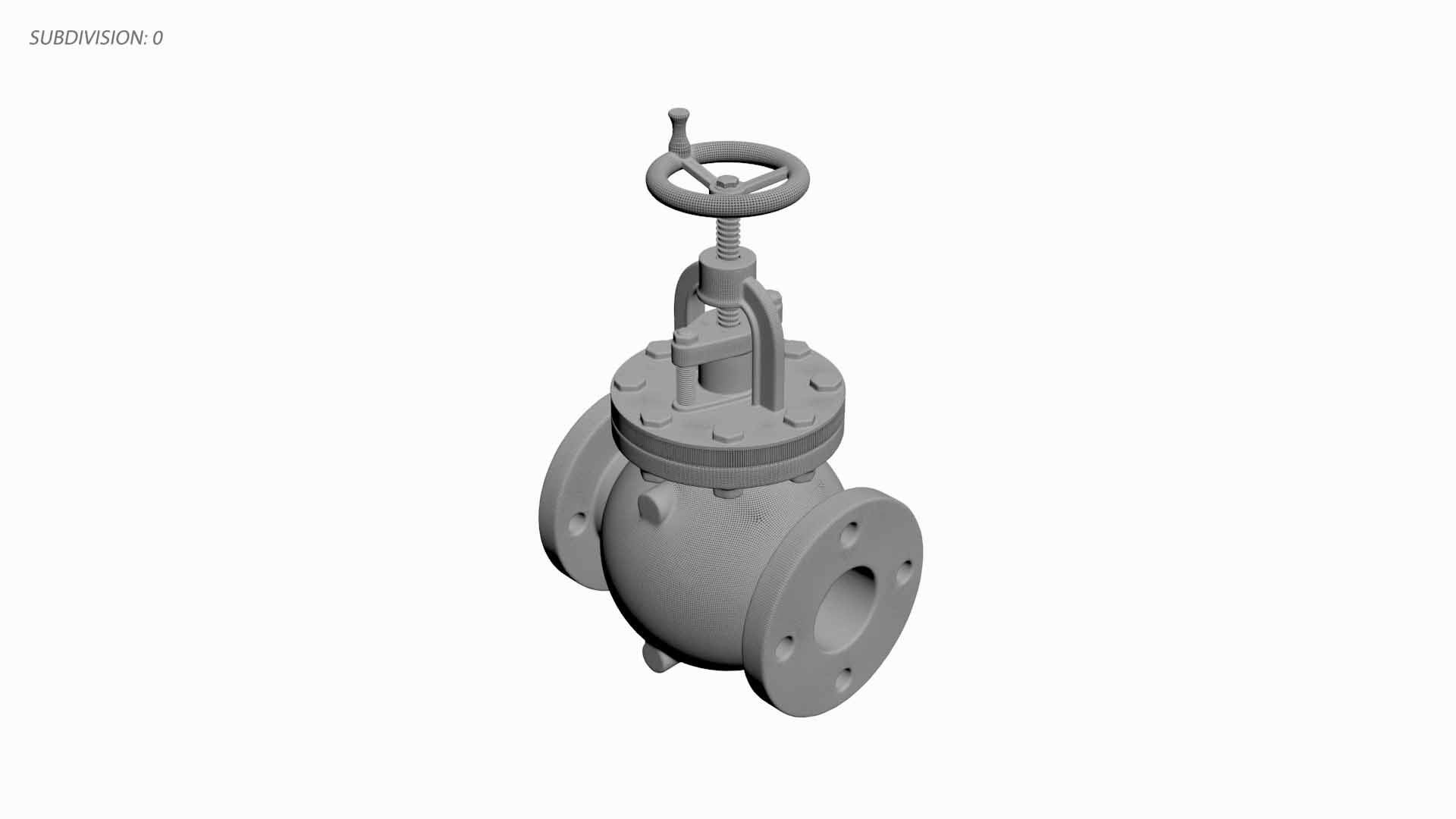

Modeling Details

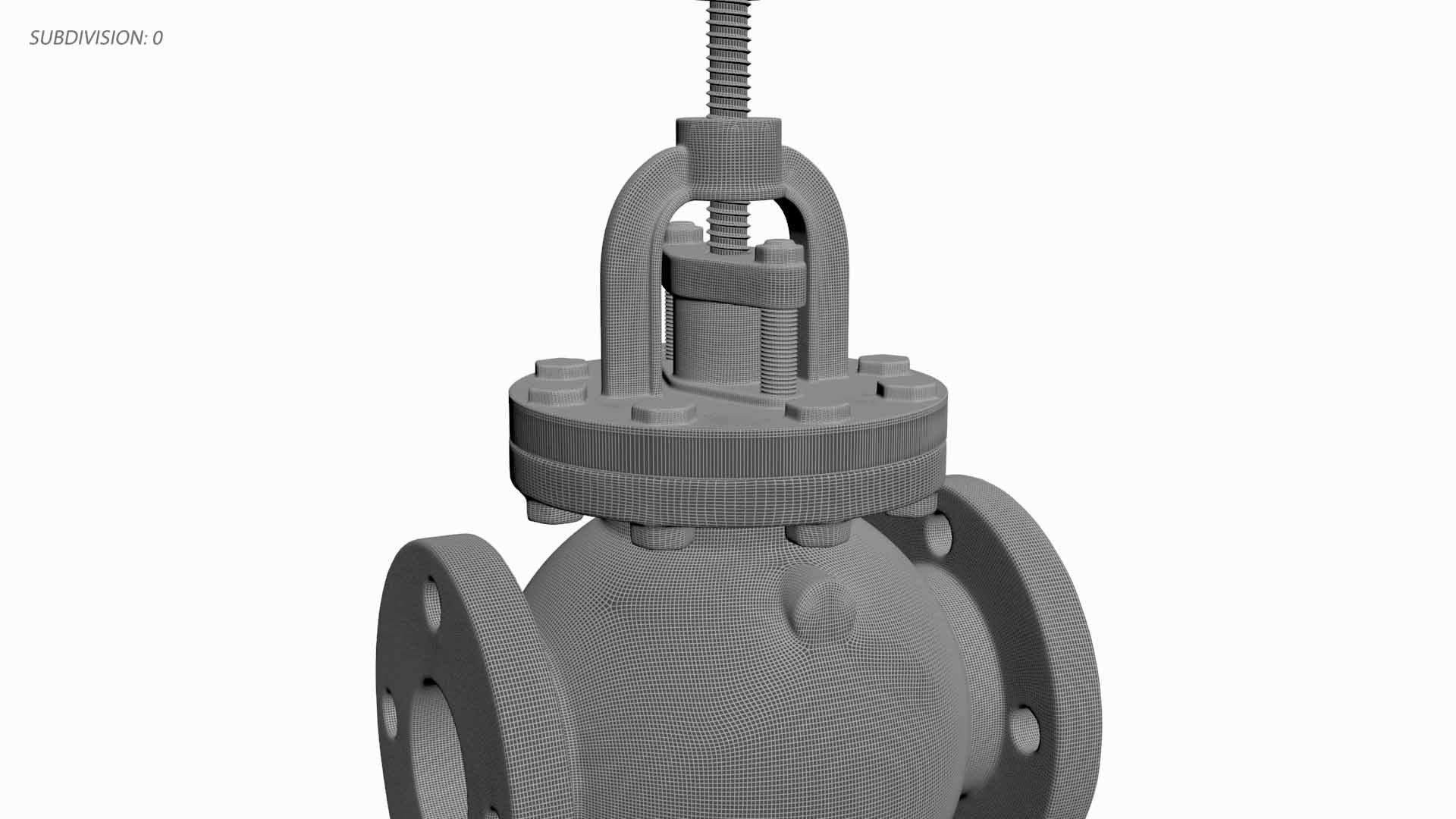

• Designed with precise geometry and realistic industrial proportions.
• Smooth edges and metallic textures ensure a photorealistic rendering.
• Compatible with major CAD/3D software (SolidWorks, Blender, KeyShot, etc.).

Tags: globe valve, industrial valve, 3D model, piping system, mechanical design, valve assembly, CAD model, flanged connection, manual operation, handwheel, threaded stem, bolted bonnet, cast iron valve, stainless steel, flow control, fluid regulation, engineering model, photorealistic rendering, industrial equipment, mechanical component
