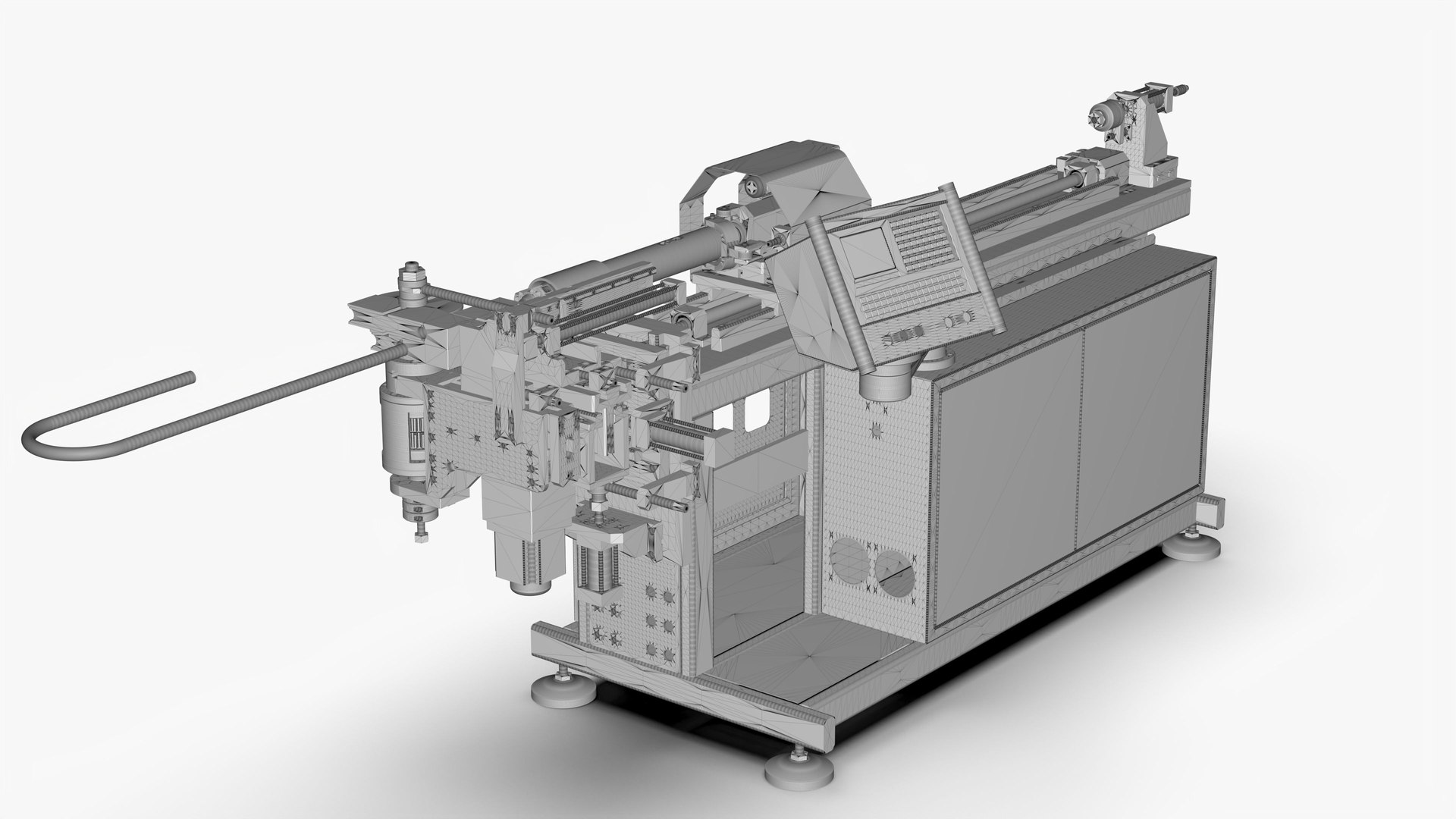

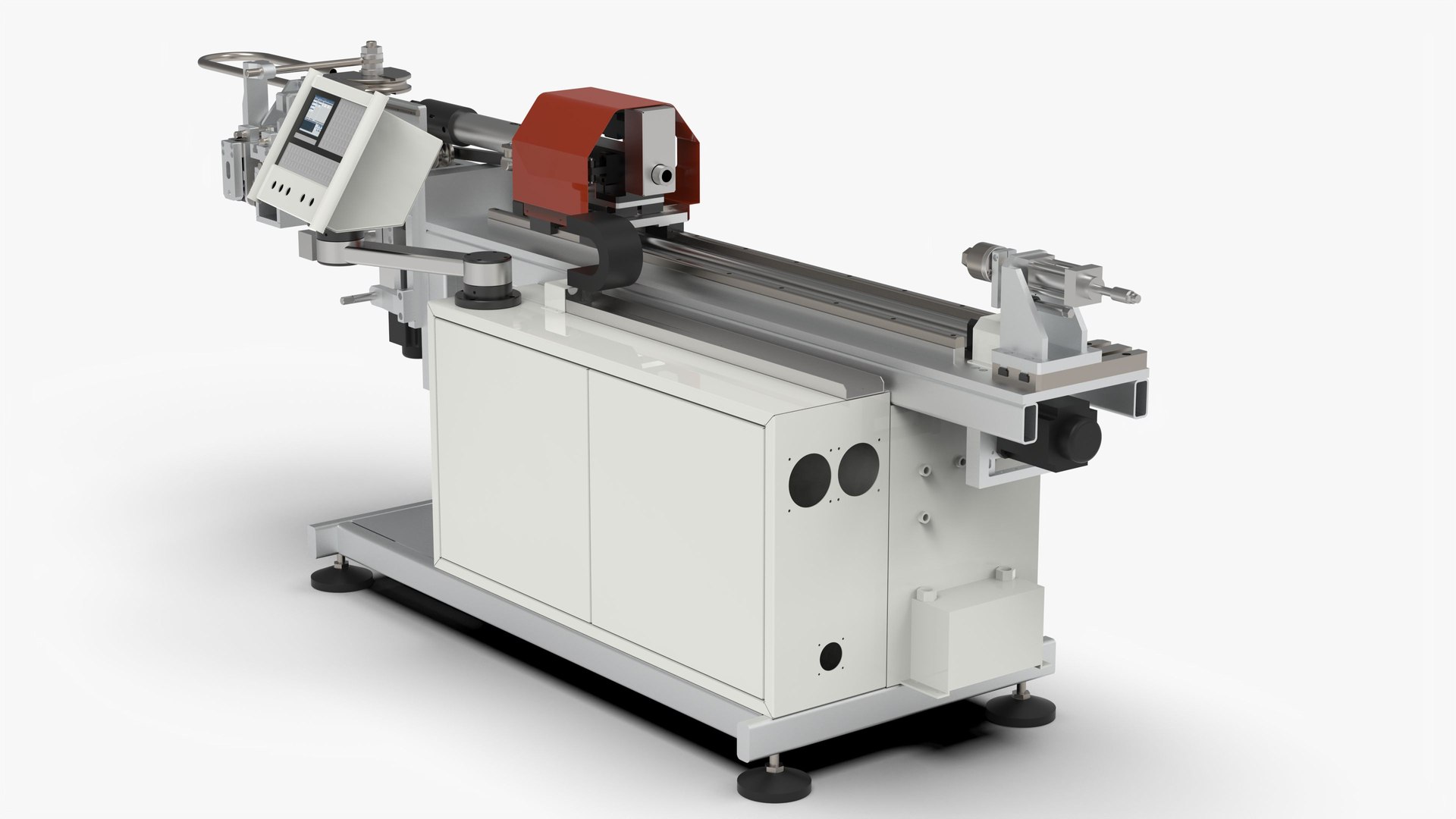

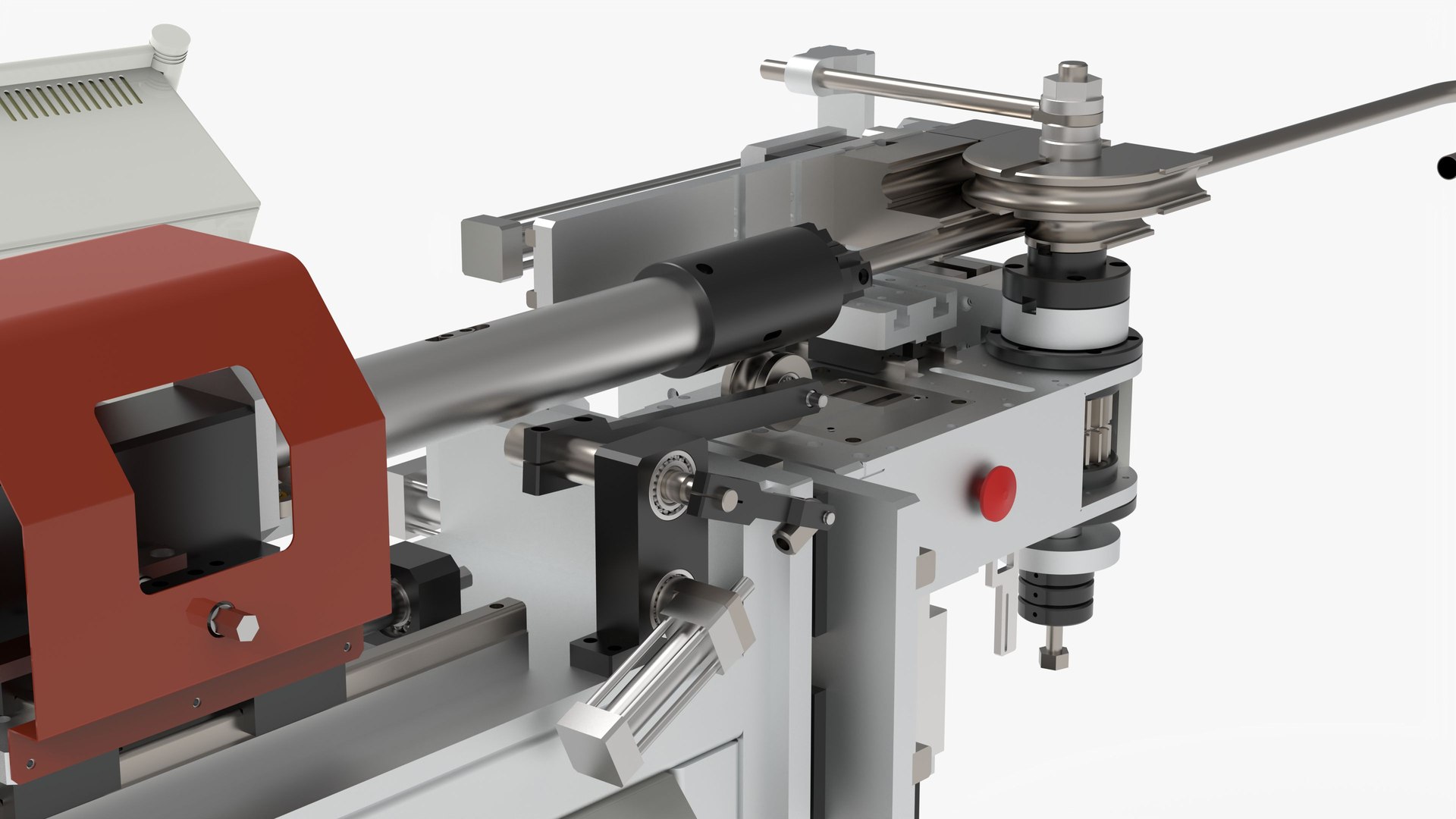

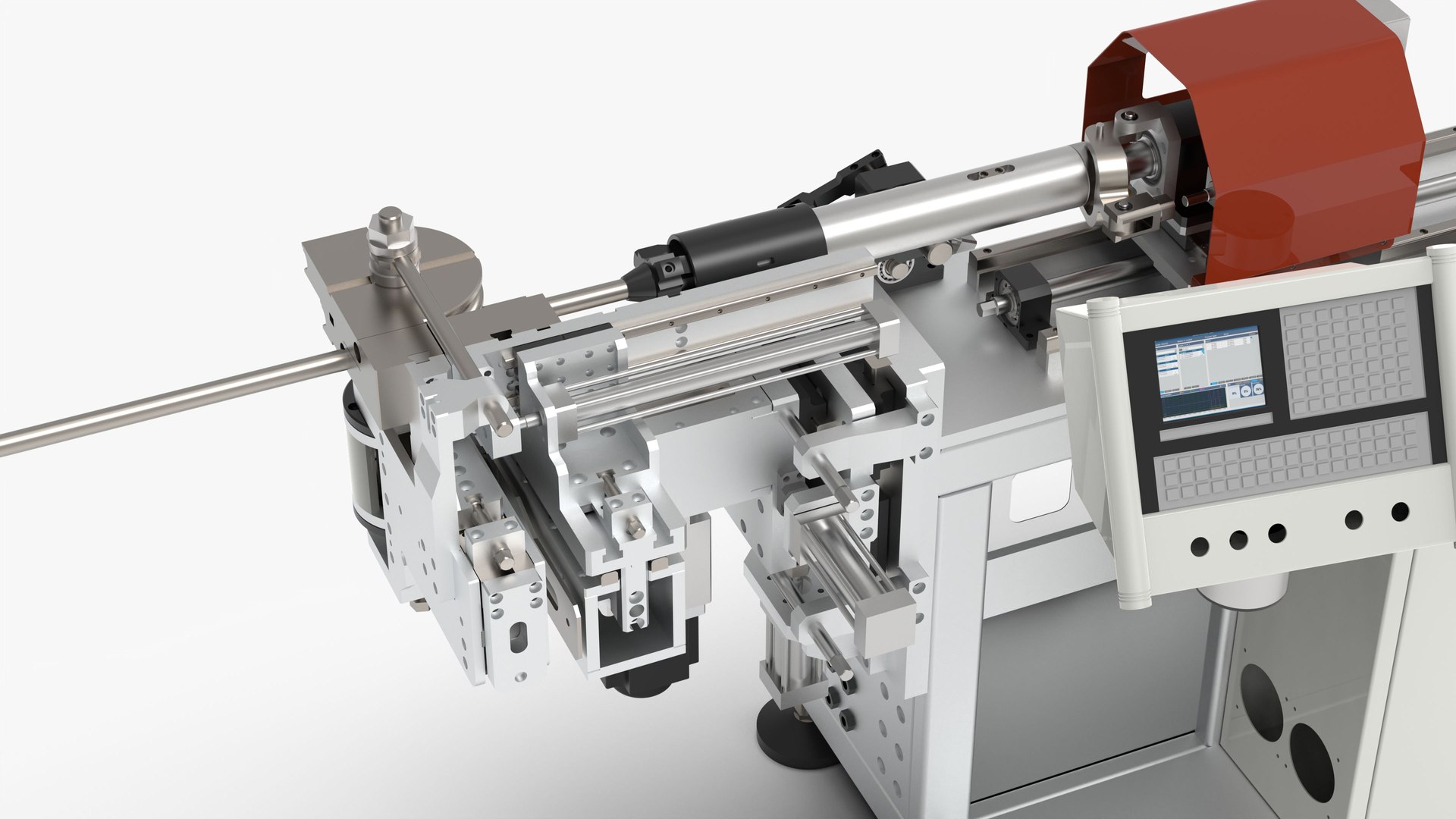

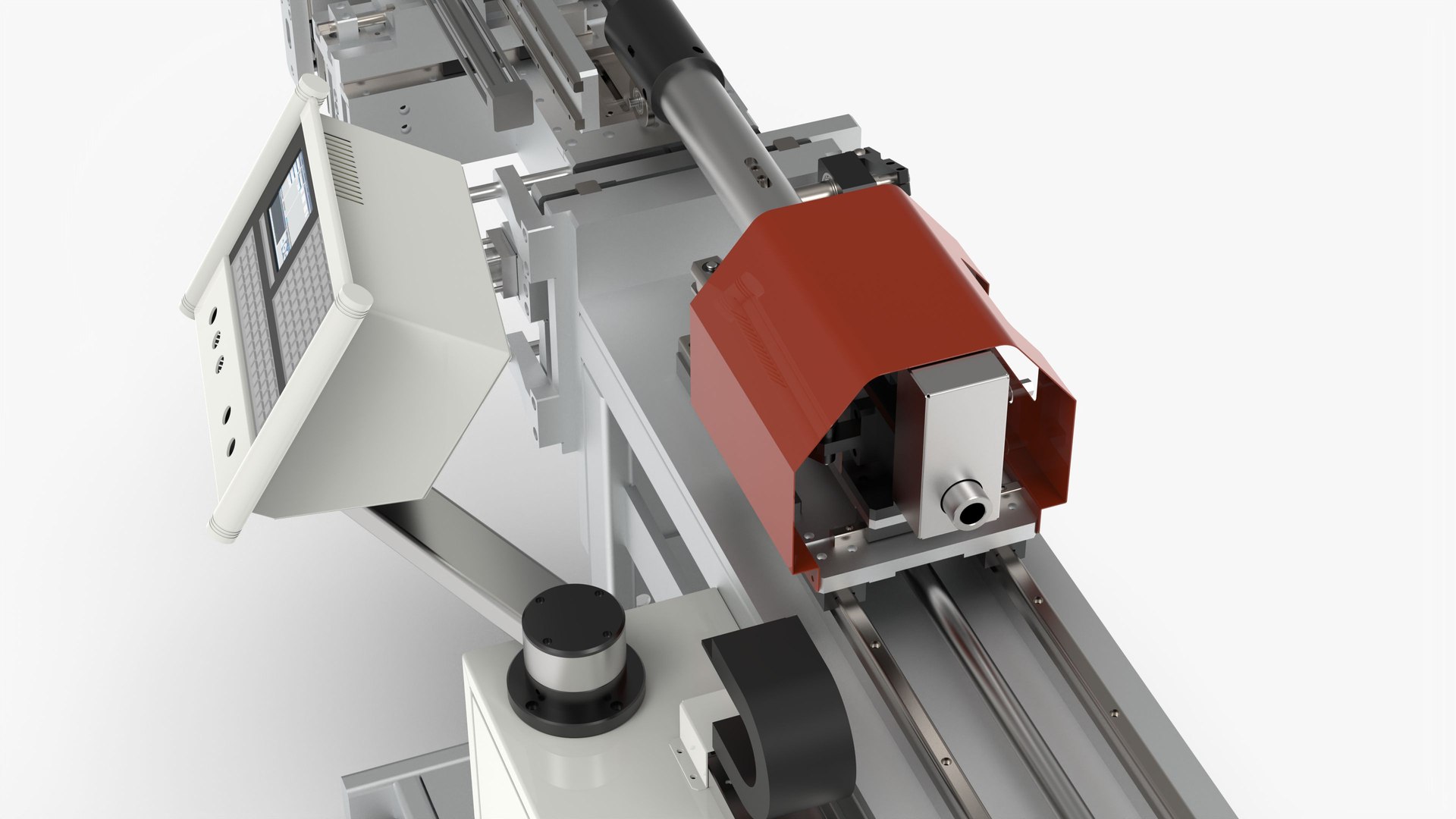

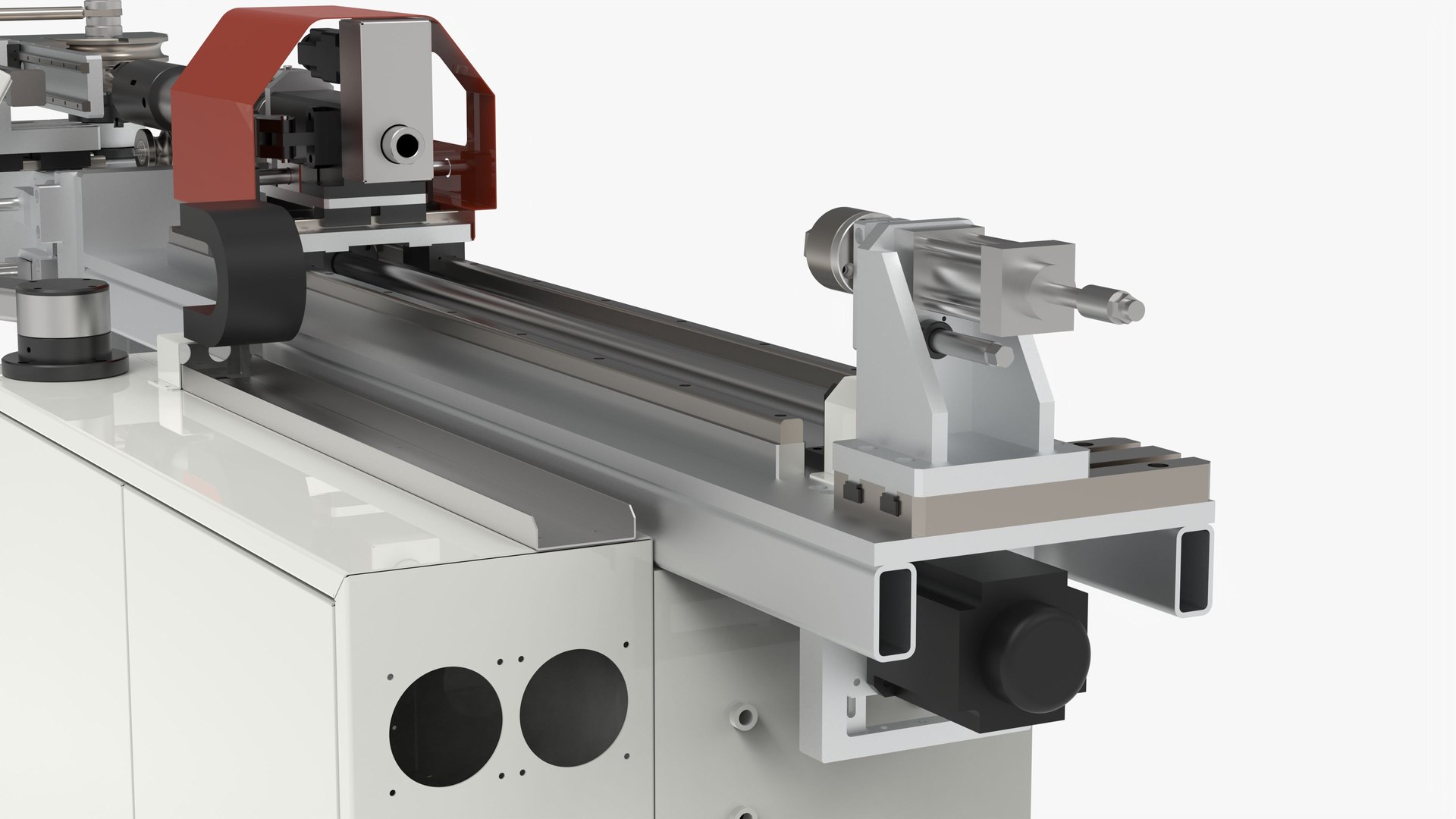

Automatic Dual Mode Pipe Bending Machine

Introduction

SMW25 dual-mode pipe bending machine equipment adopts numerical control system, controls oil pressure system for clamping, and adopts screw feeding system for long and short feeding. It has high reference value, reasonable structure.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 810,238
– Vertice: 2,430,714
