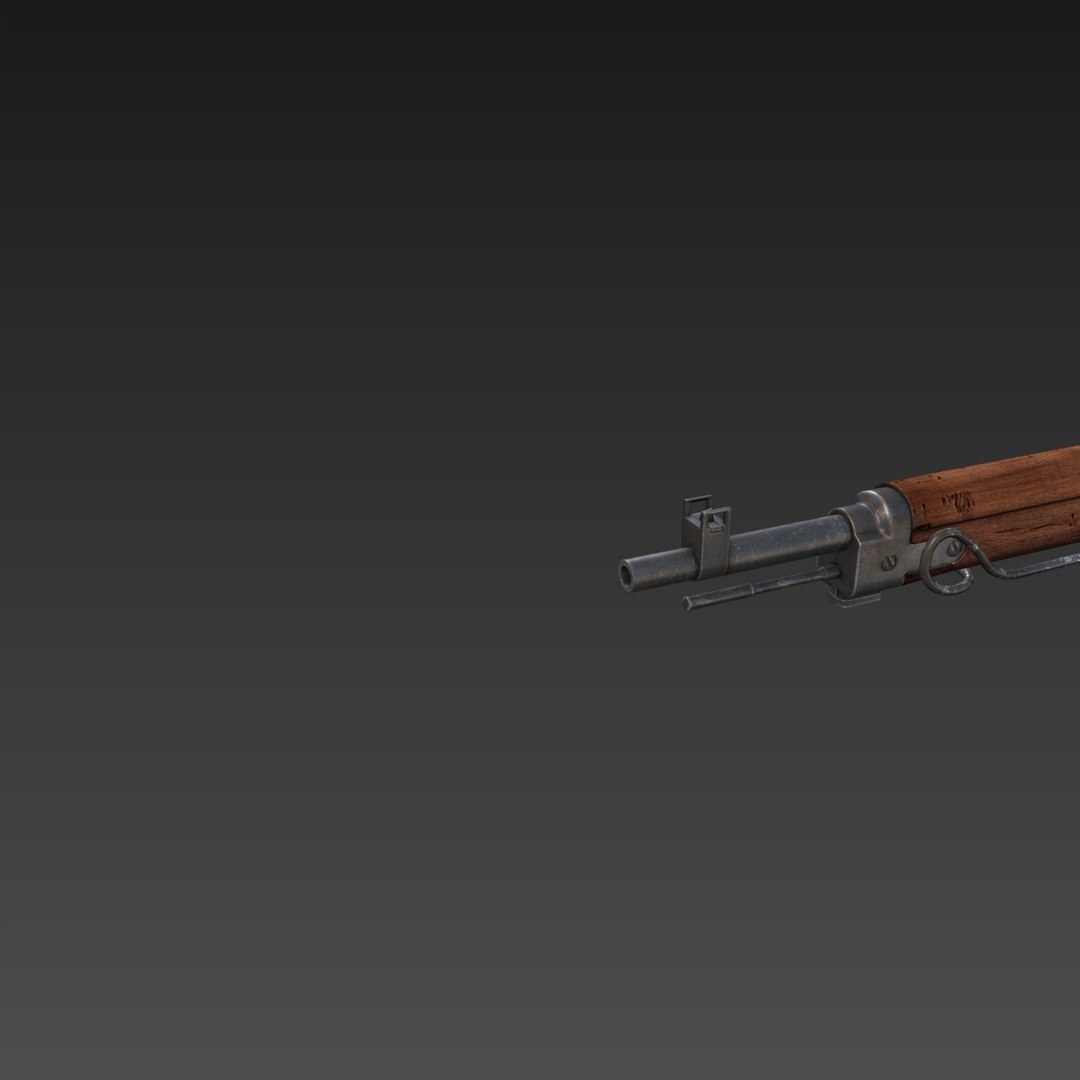

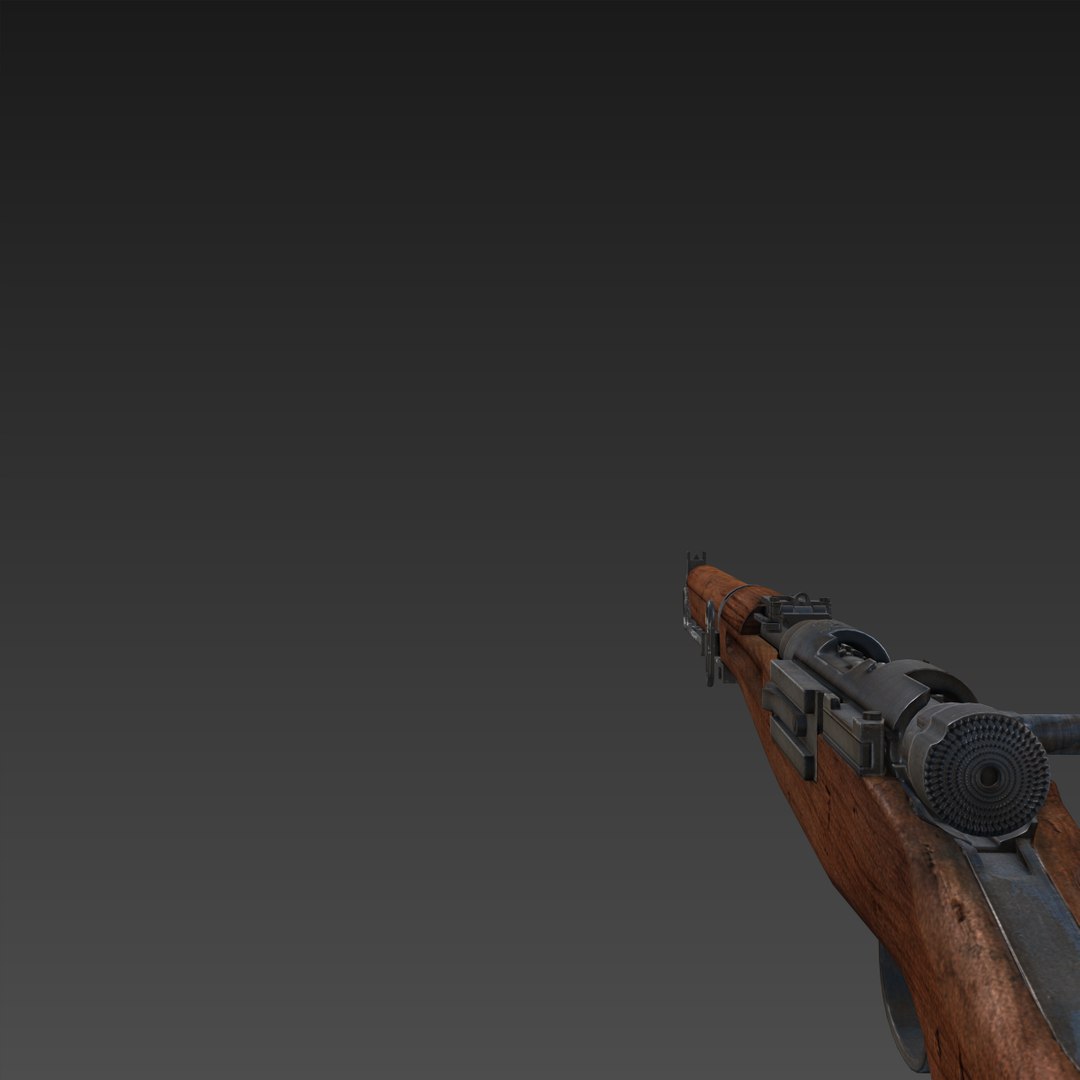

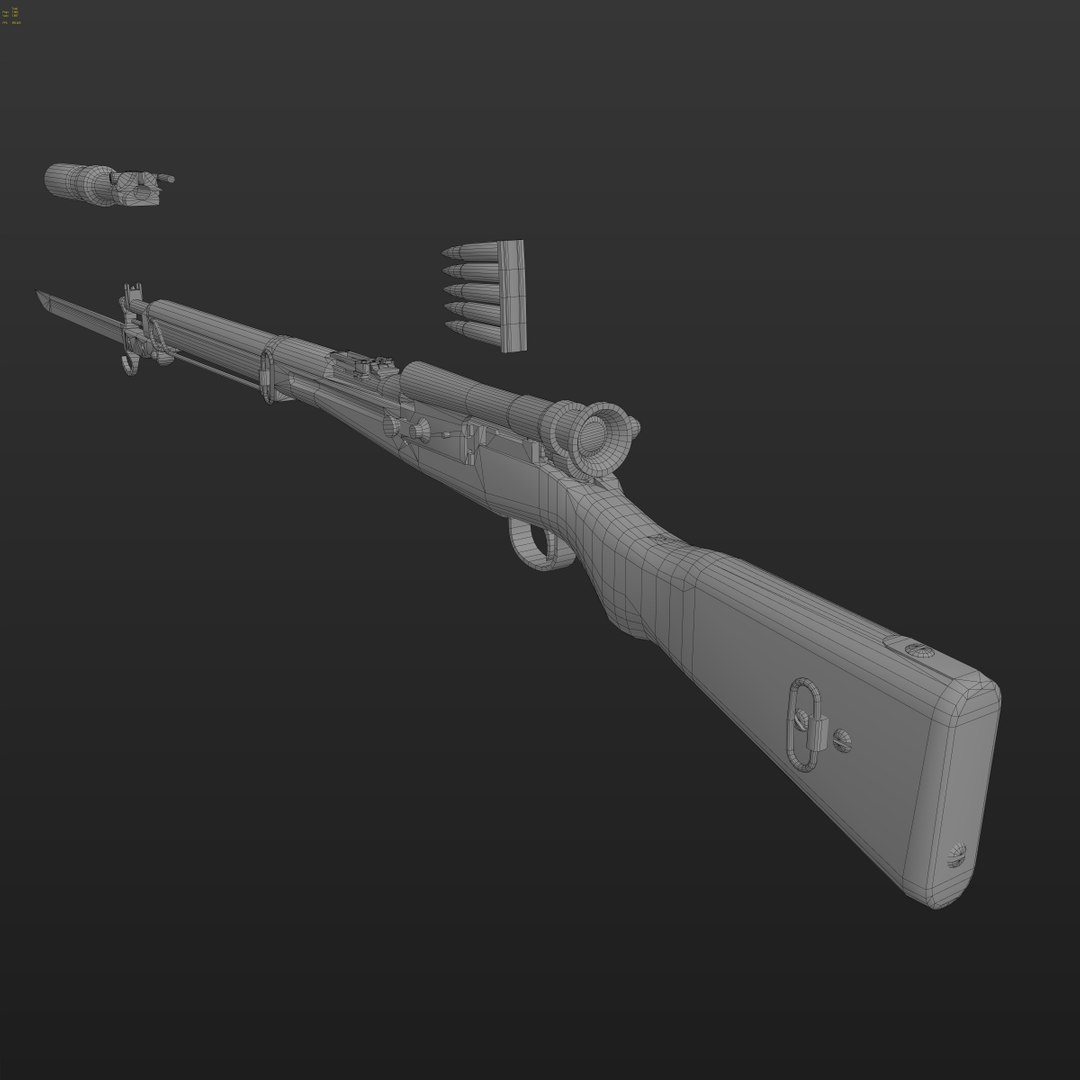

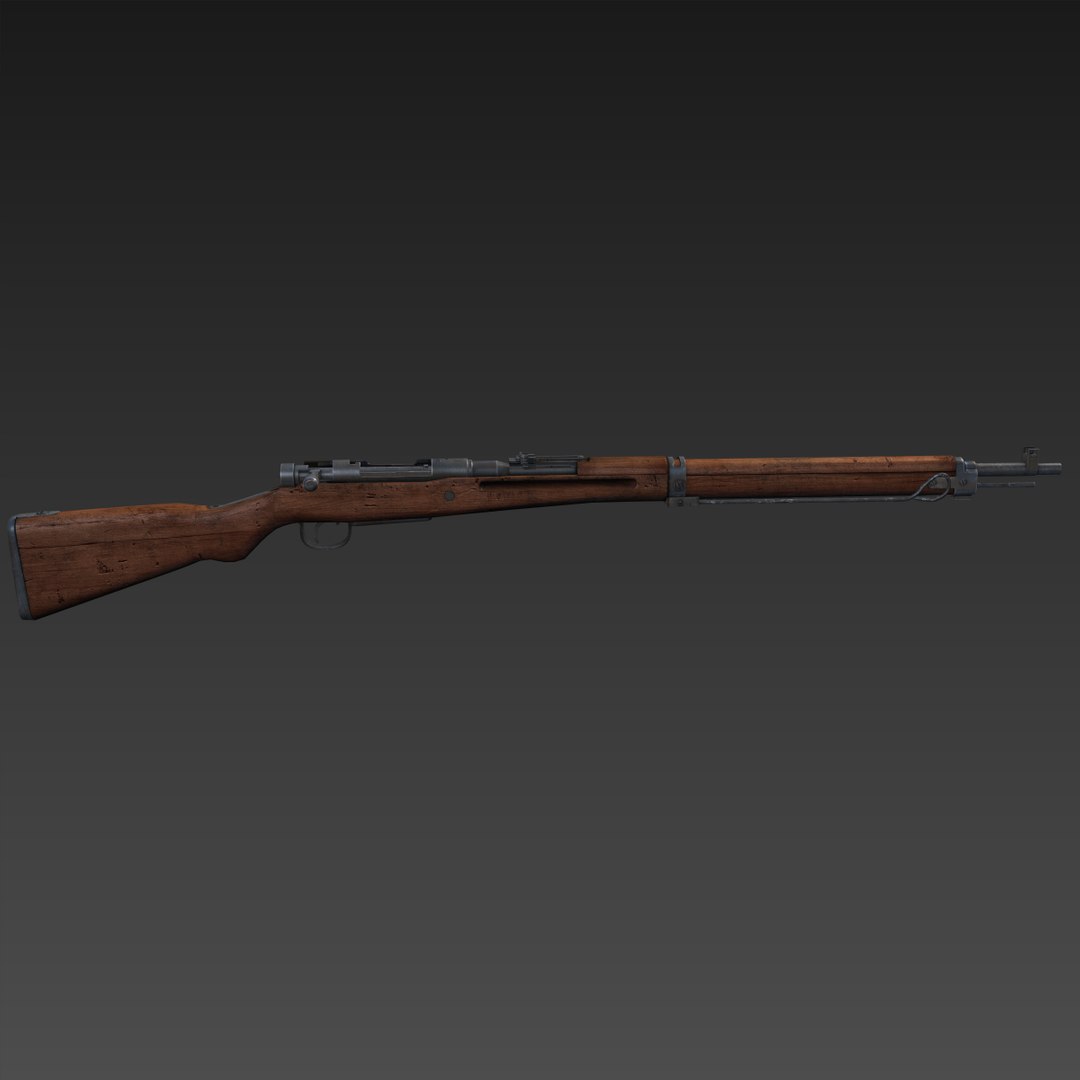

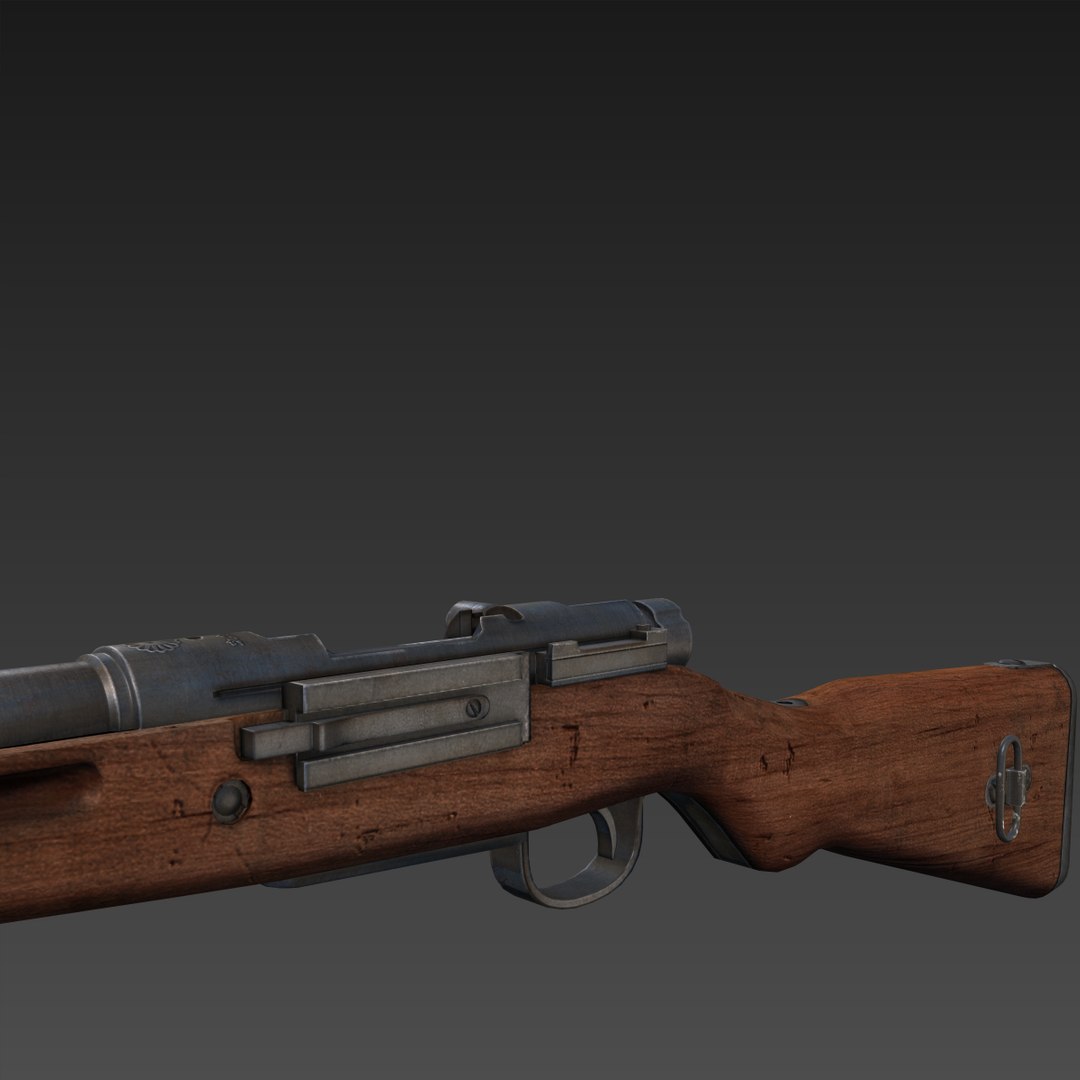

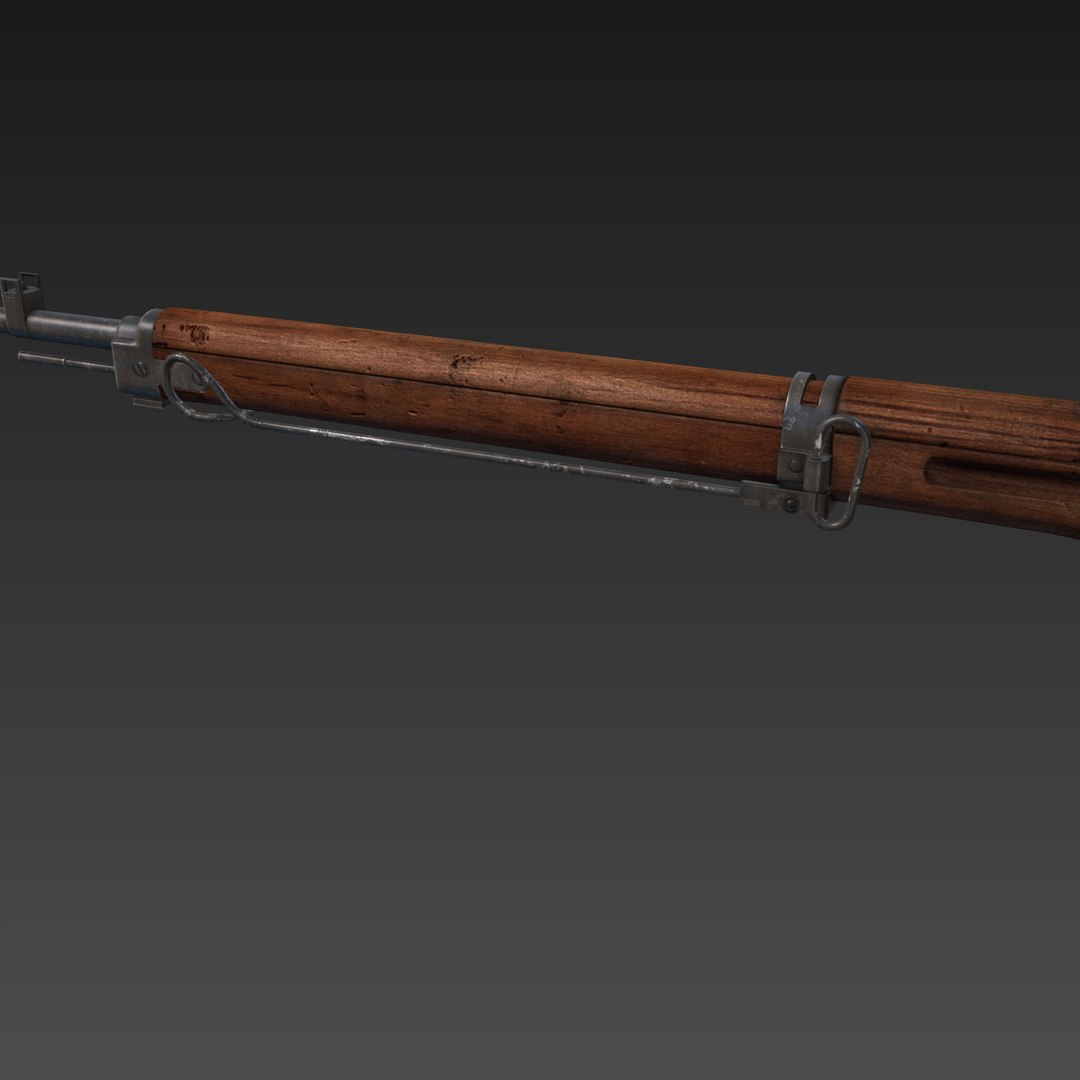

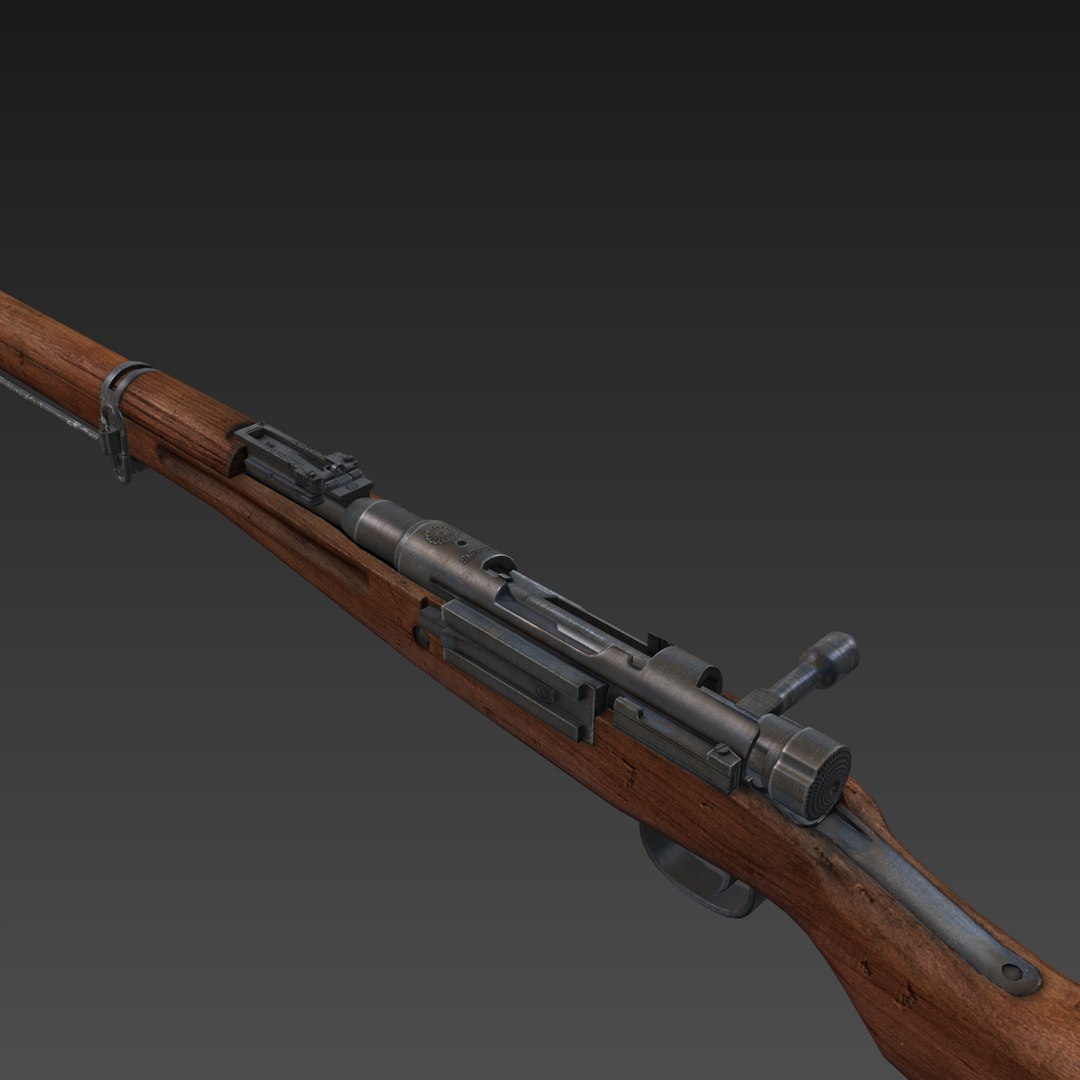

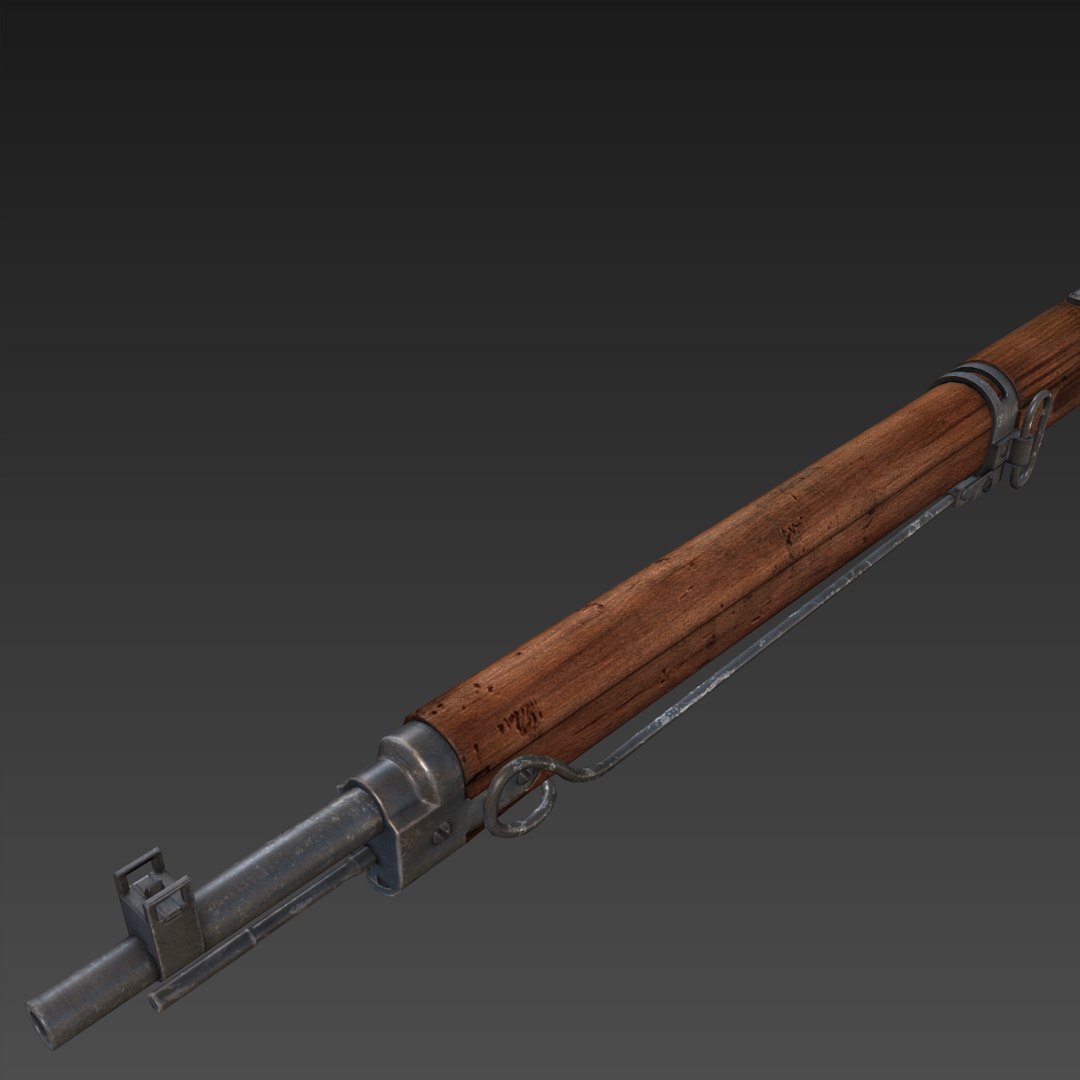

• Arisaka Type 99 is low poly and ready for use in games or renders.
• Not intended for subdivision
• Modeled in 3ds Max 2013
• Normal map was baked from a high poly model

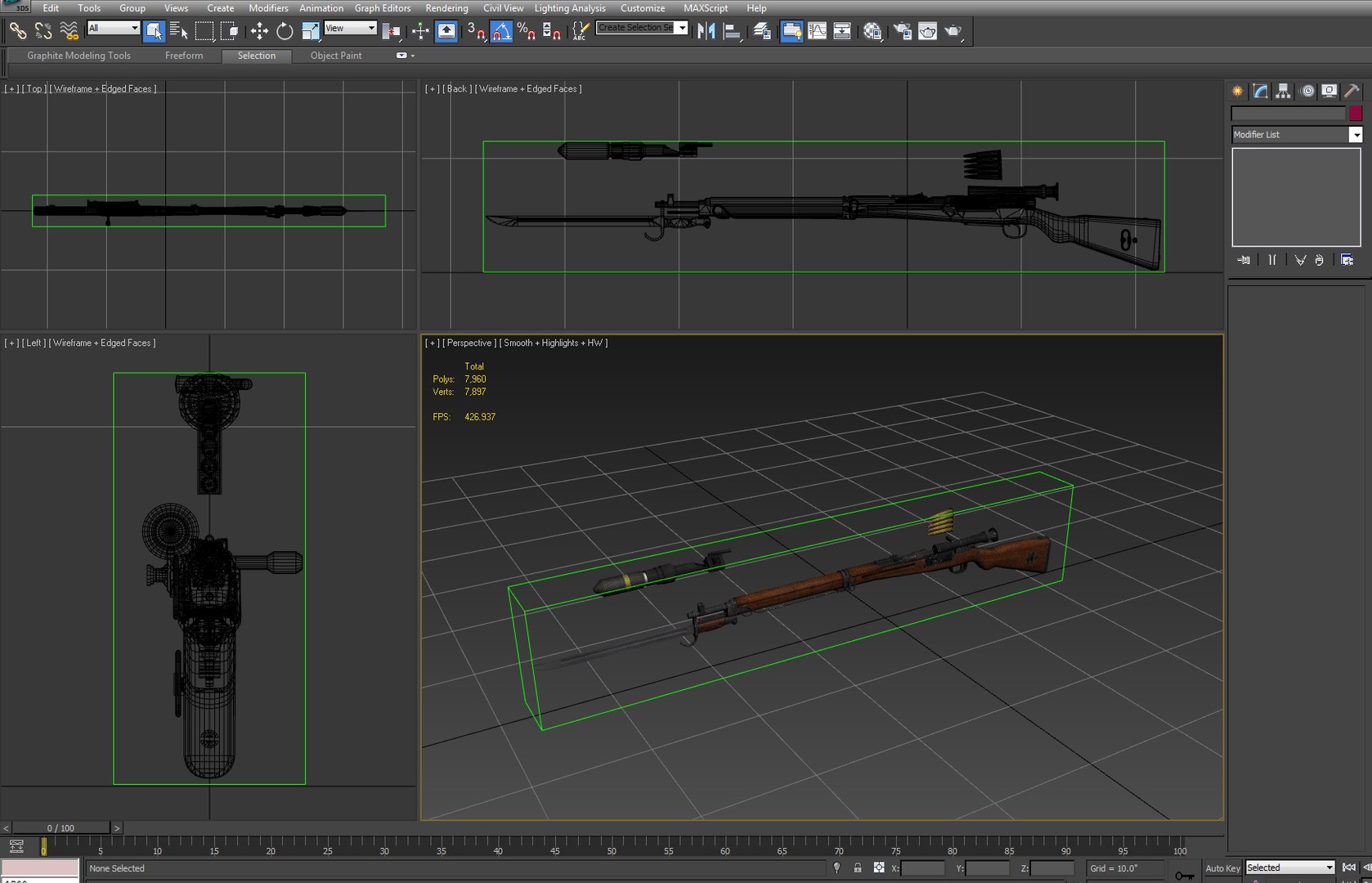

• Renders are taken from the viewport using a Direct X shader

||SPECS||

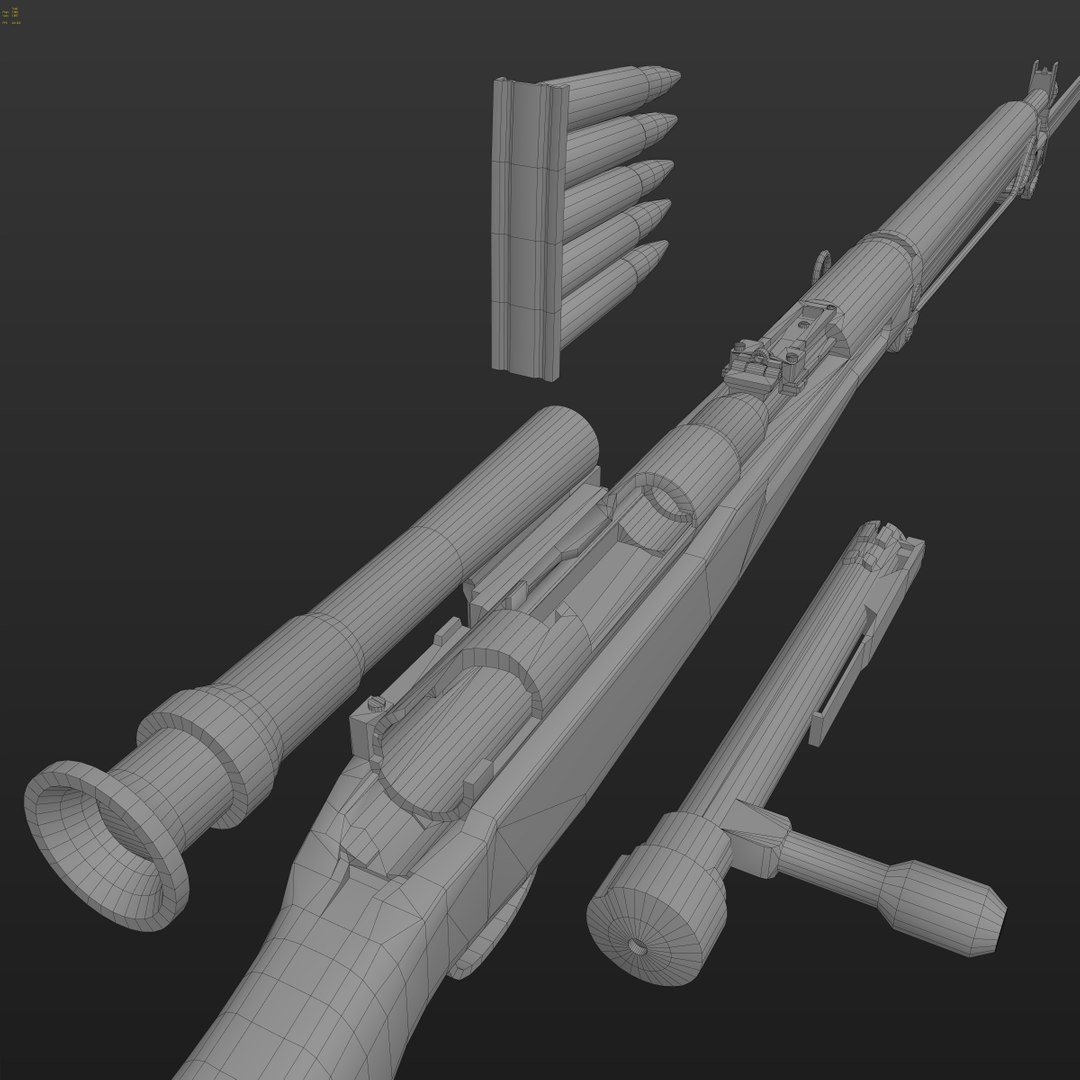

Low Poly Model (11 Objects):

Weapon consists of separate objects linked in the following hierarchy:

• arisaka_parent (Dummy node, all other objects are children of this node)
• arisaka_body

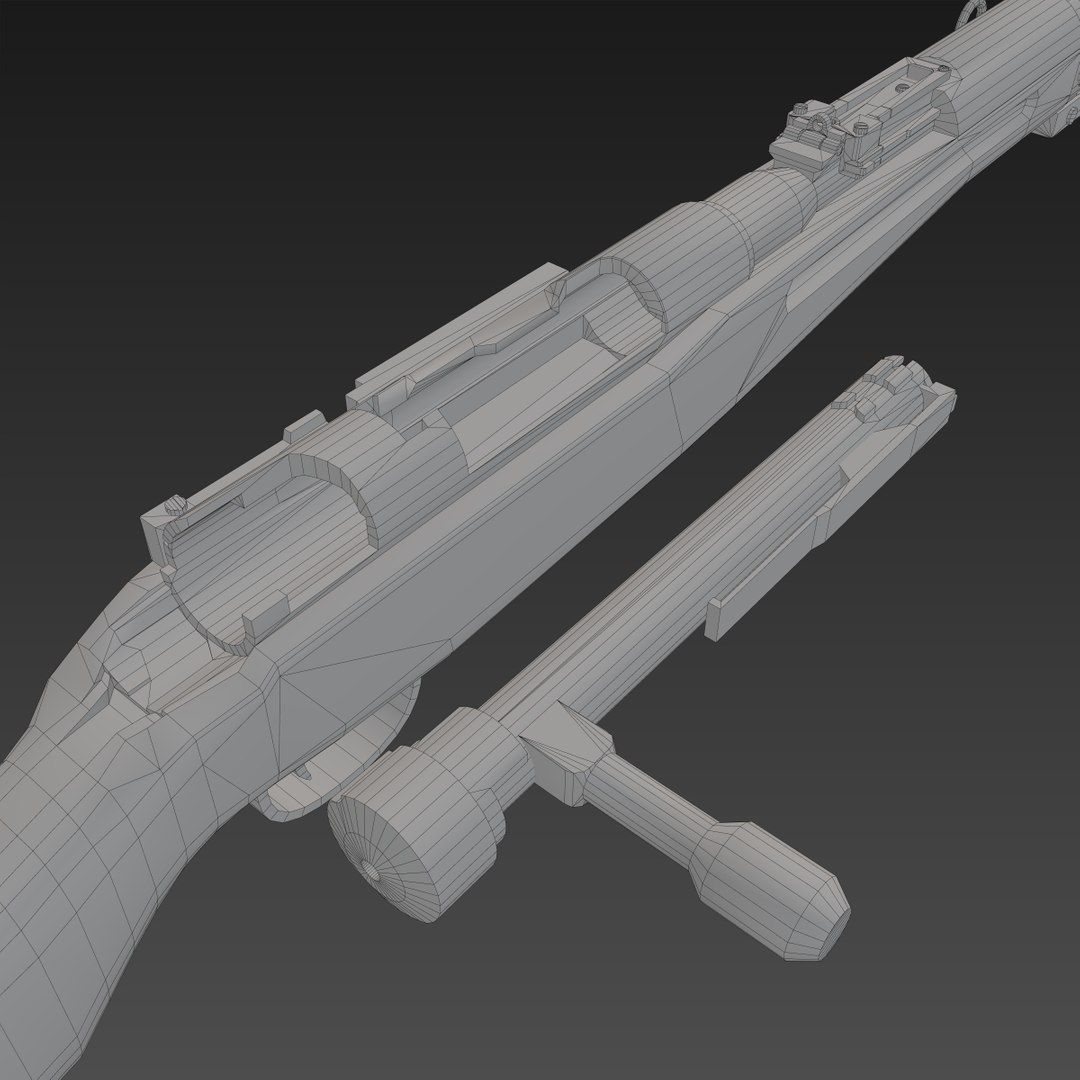

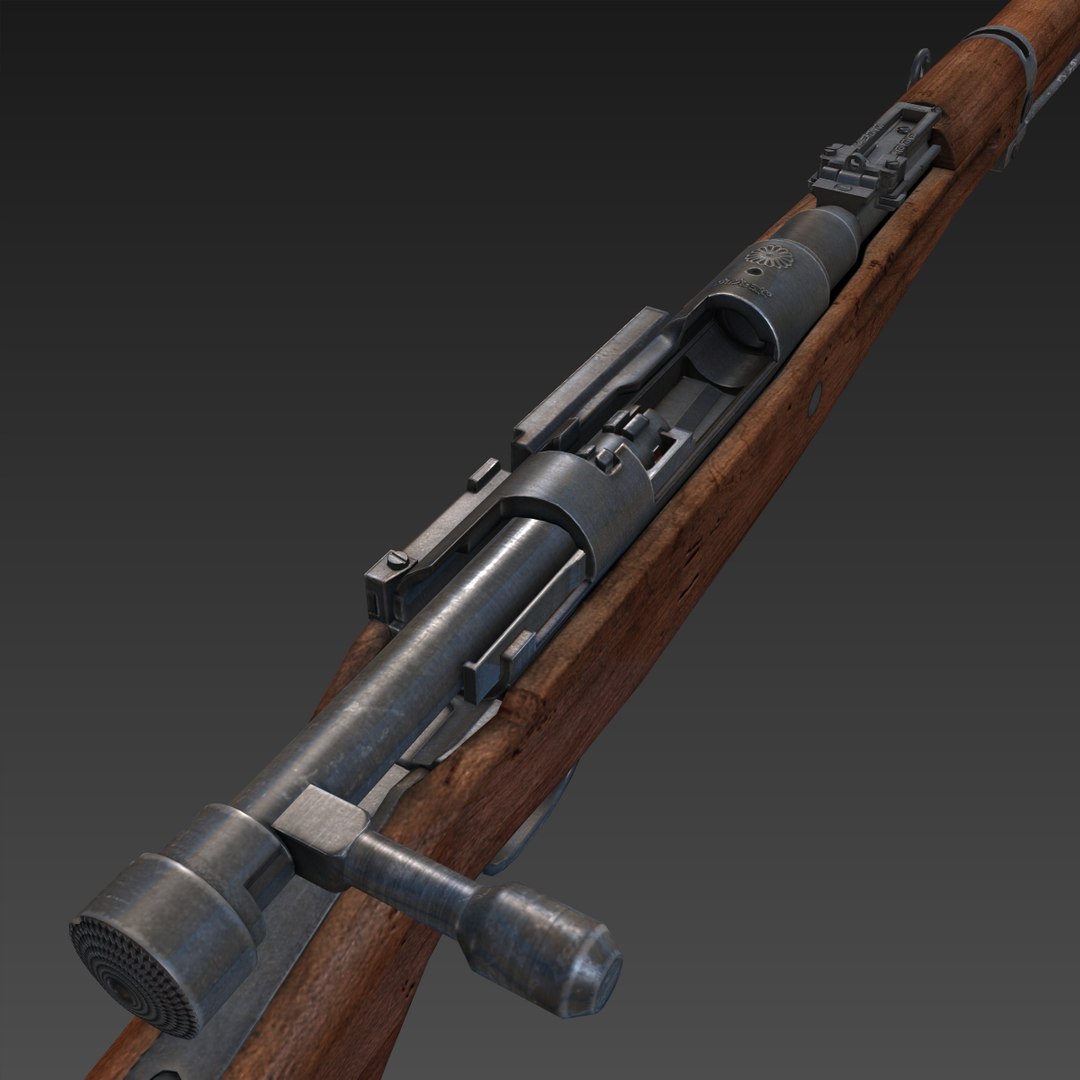

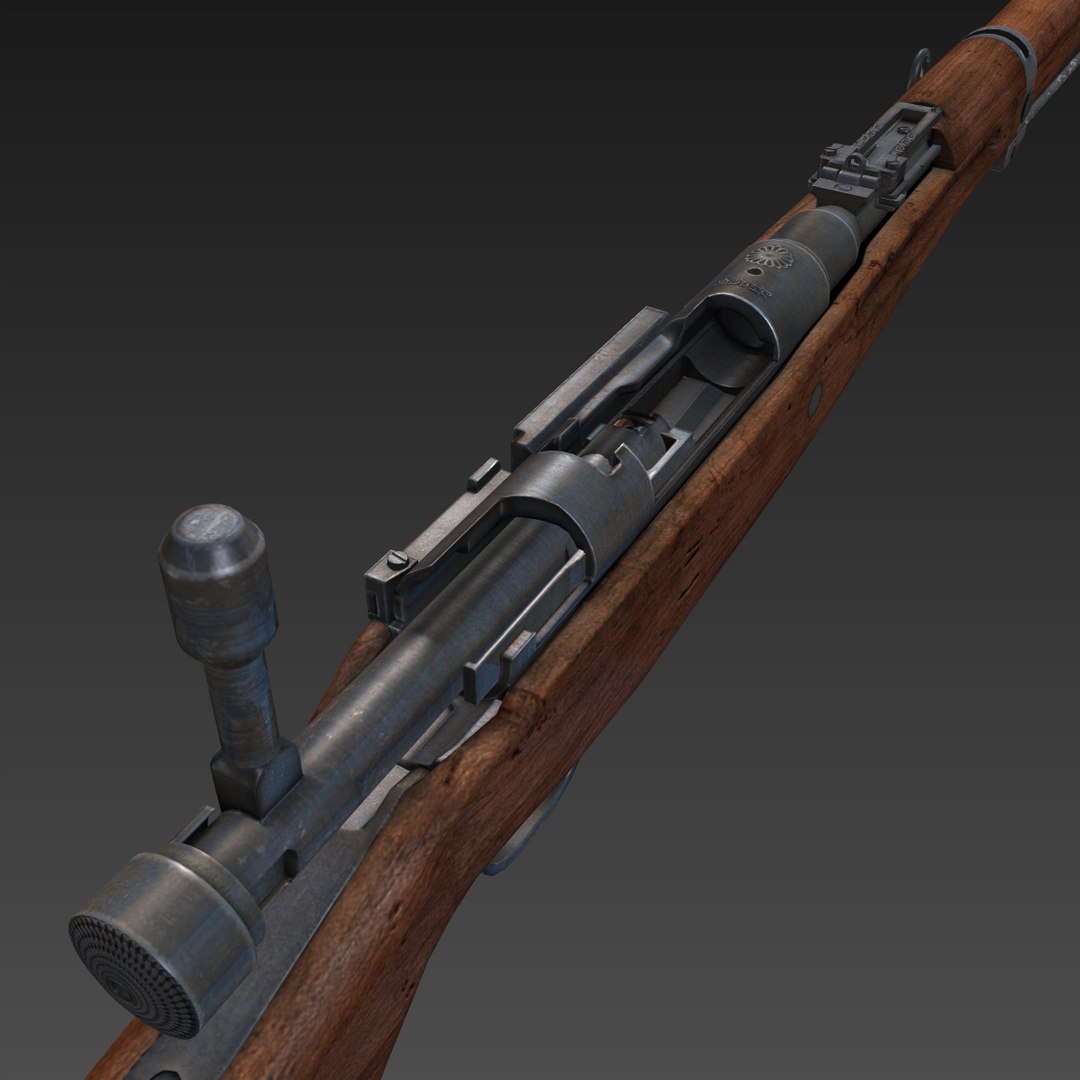

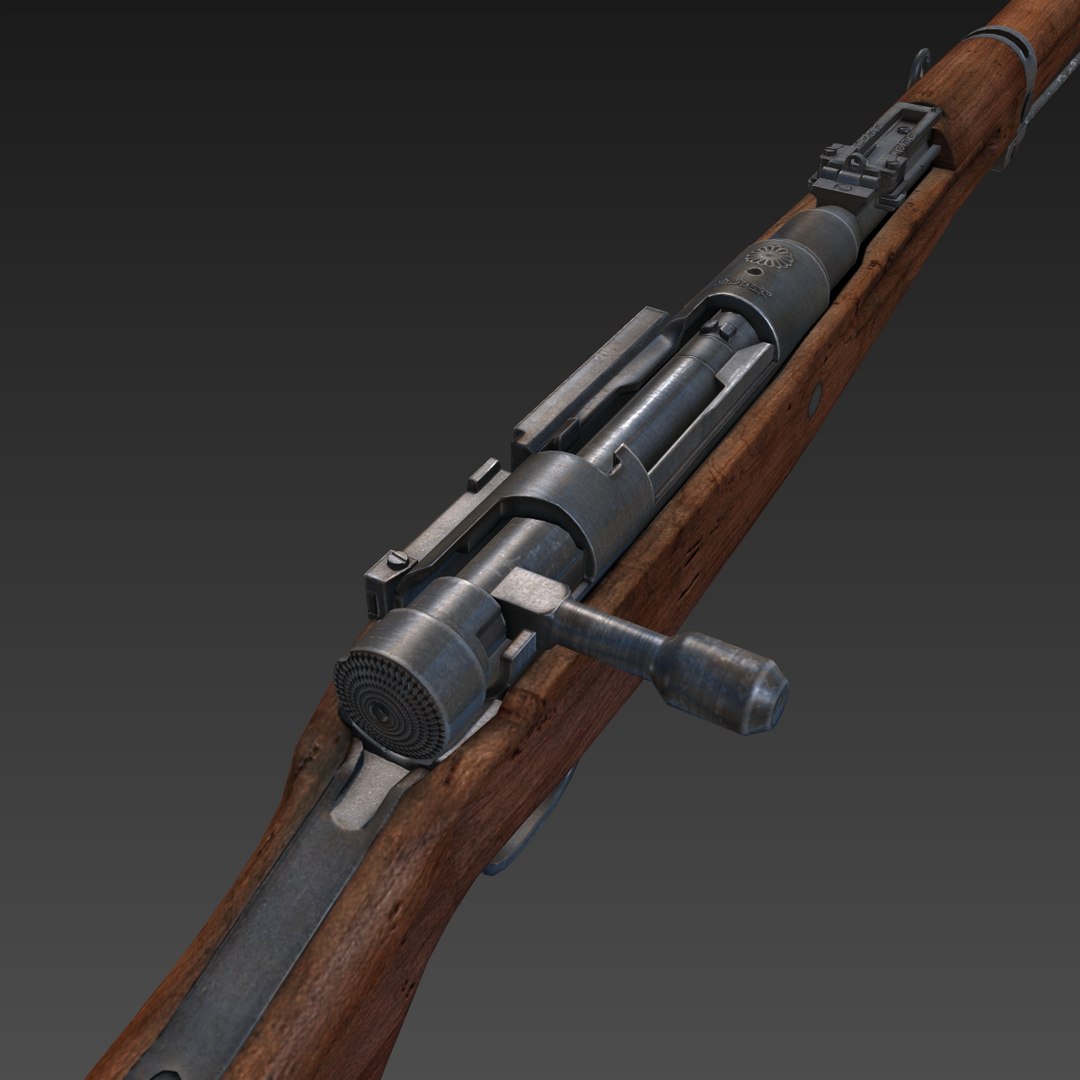

• arisaka_bolt

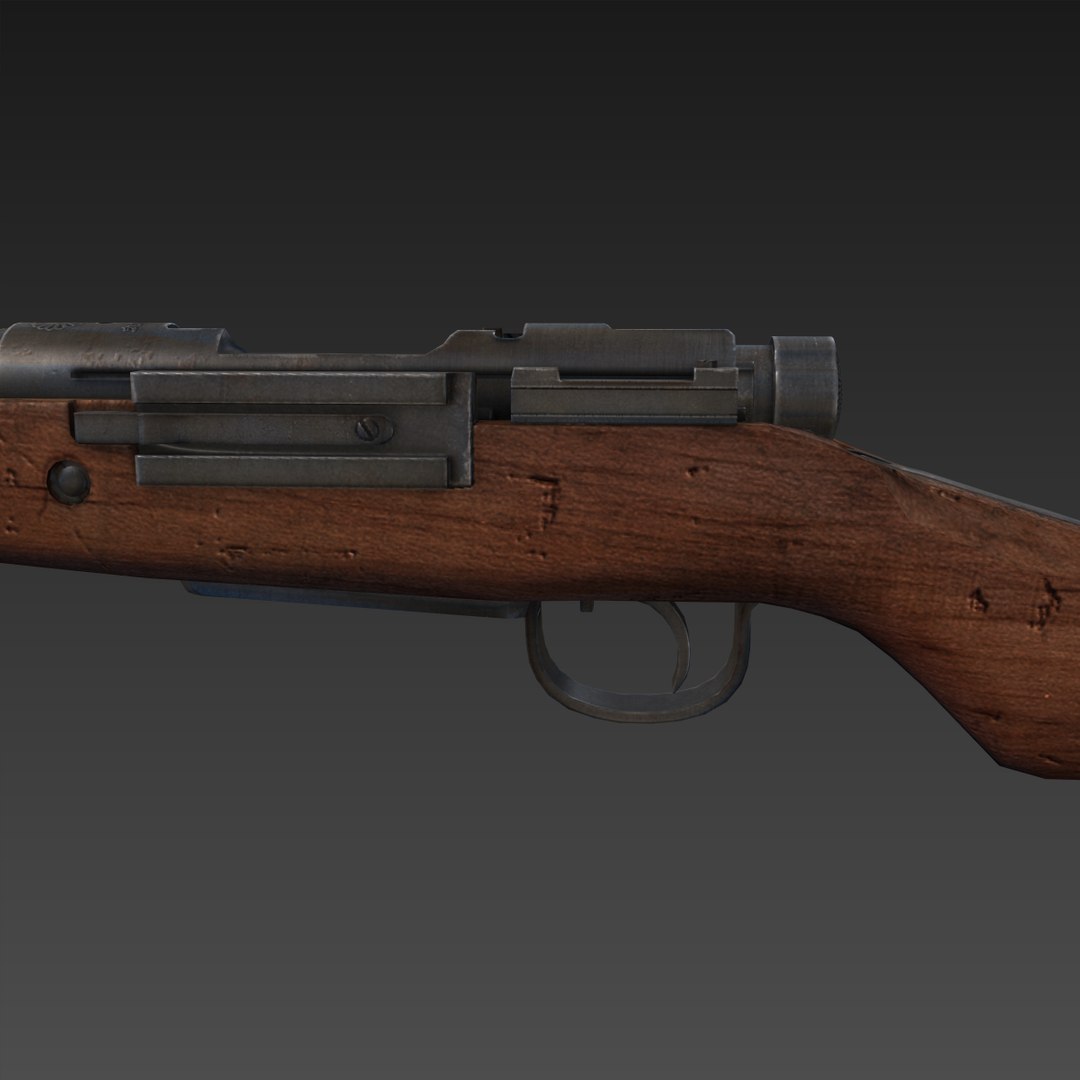

• arisaka_trigger

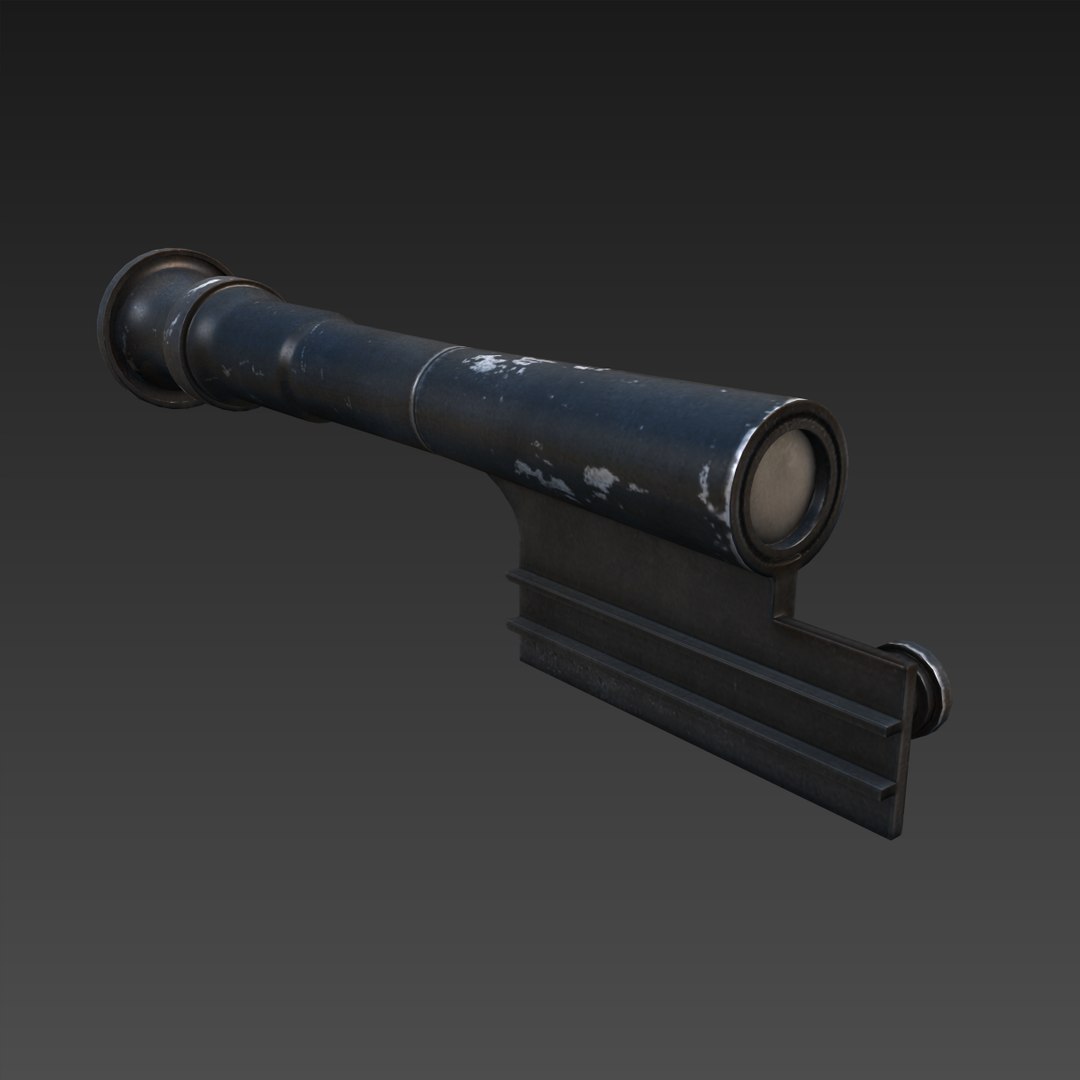

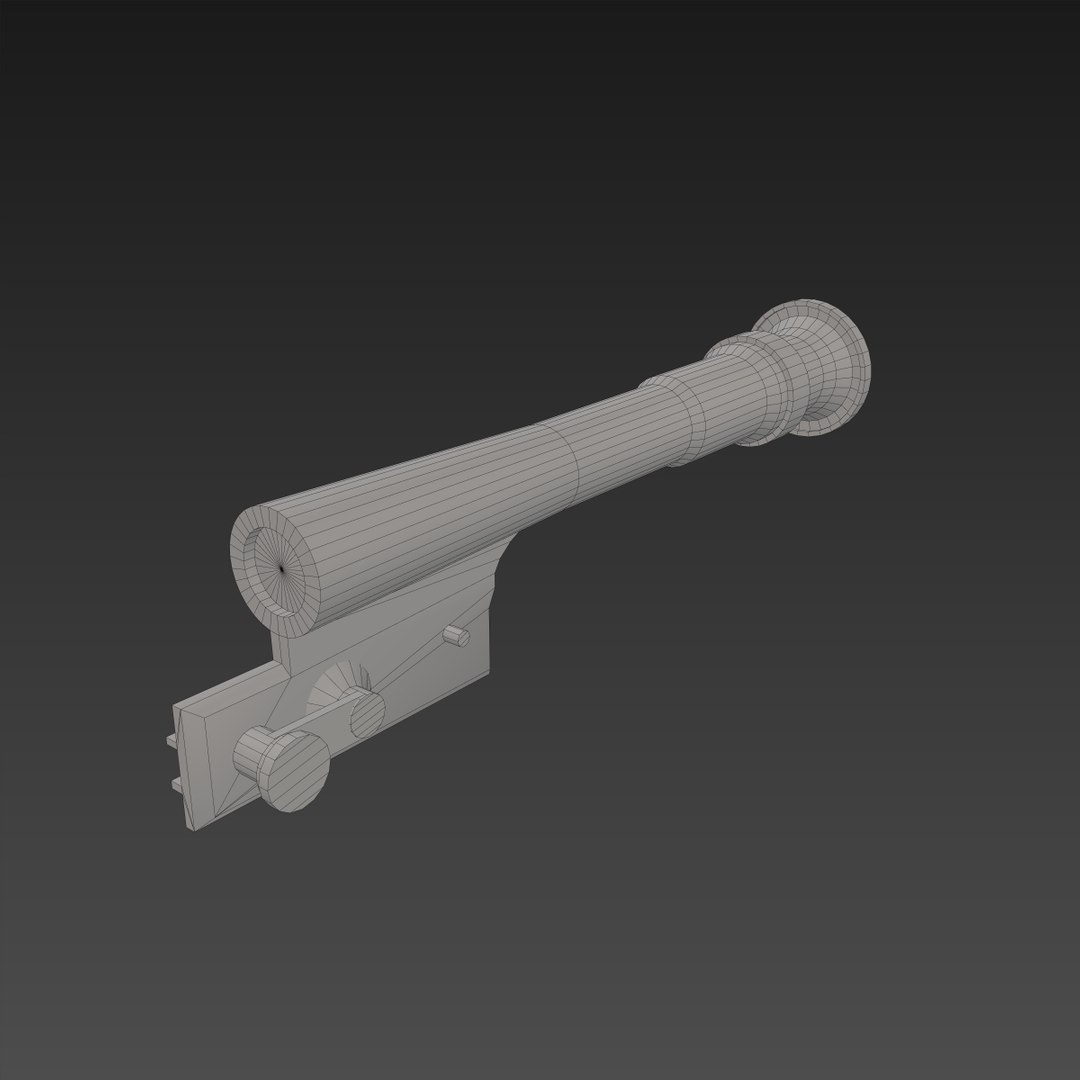

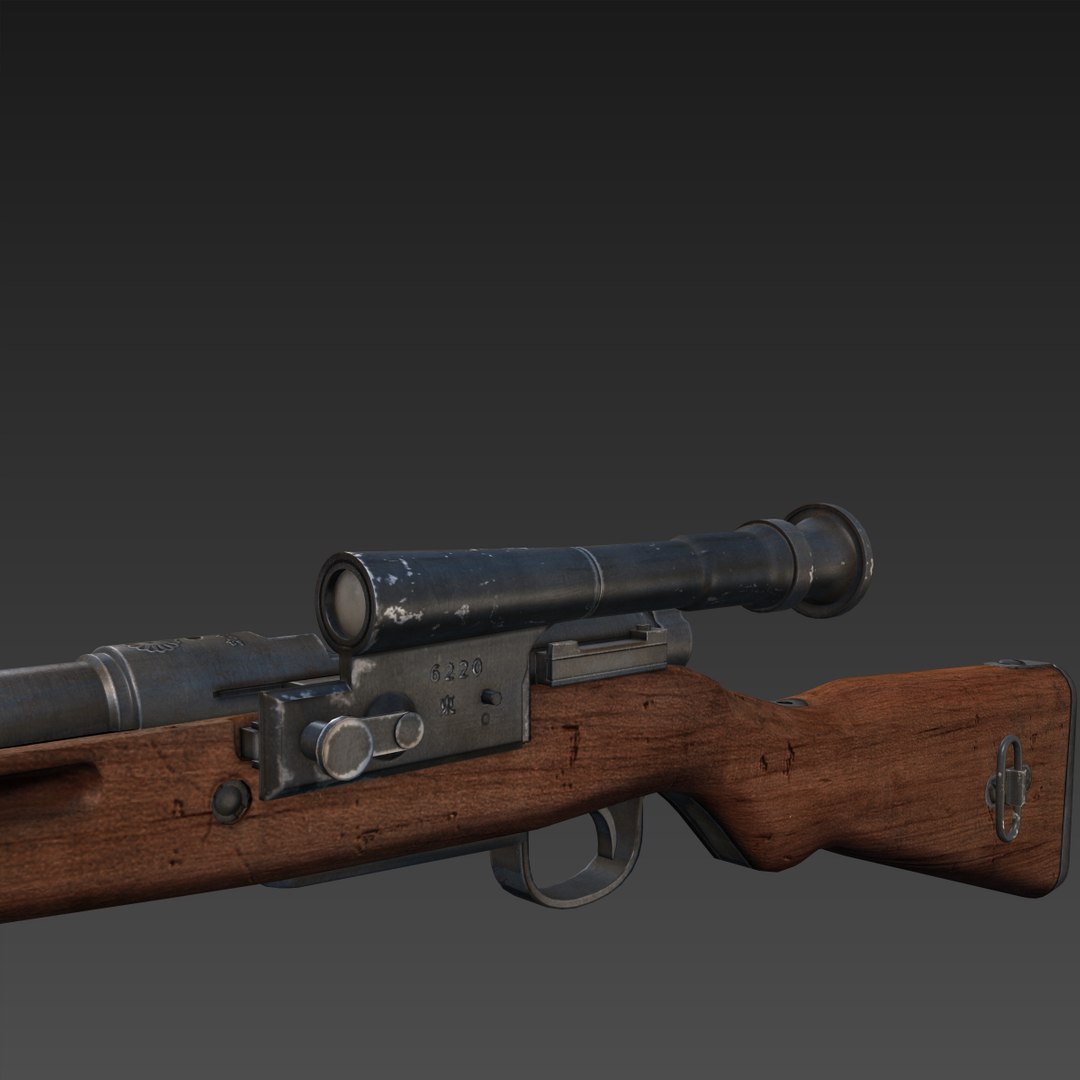

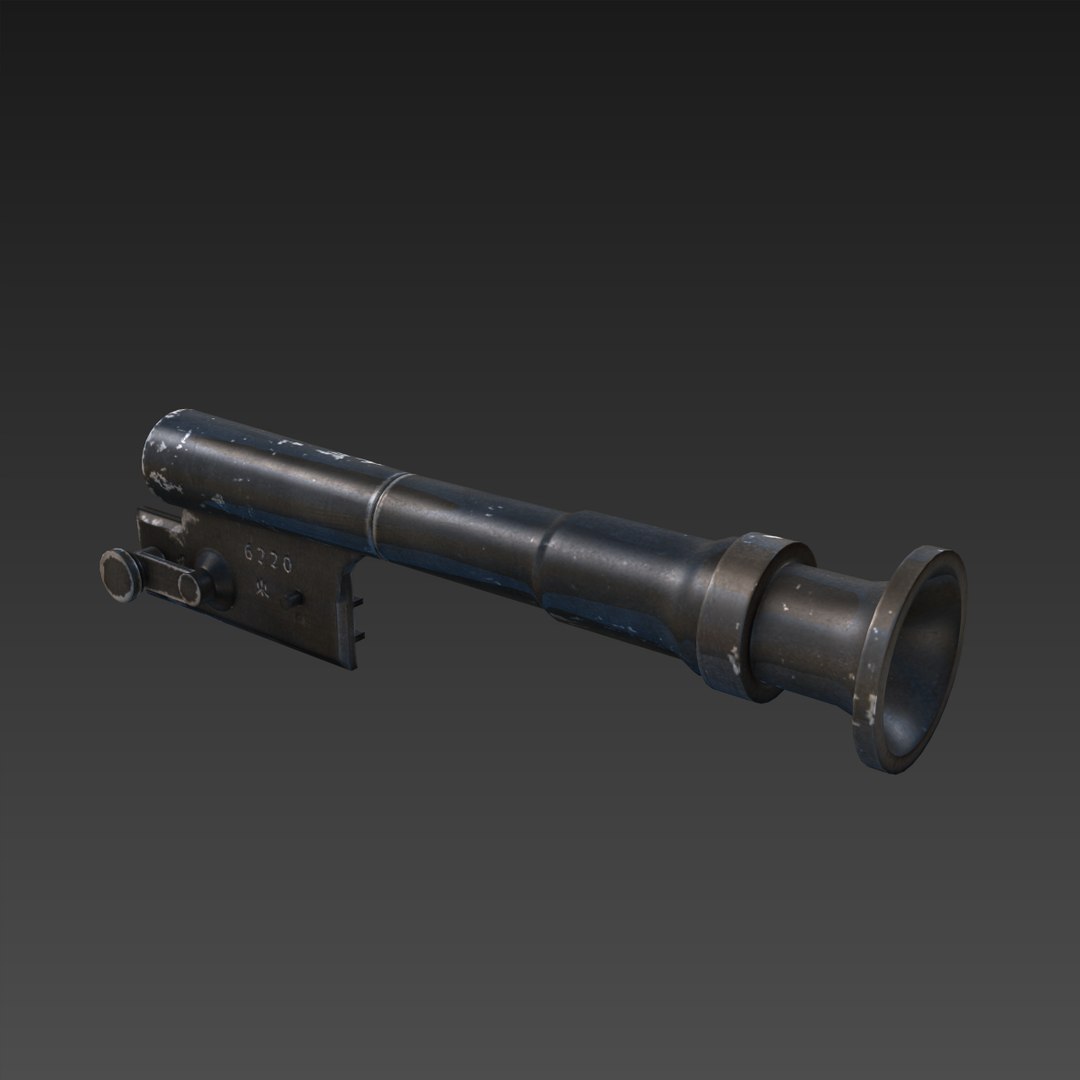

• arisaka_scope

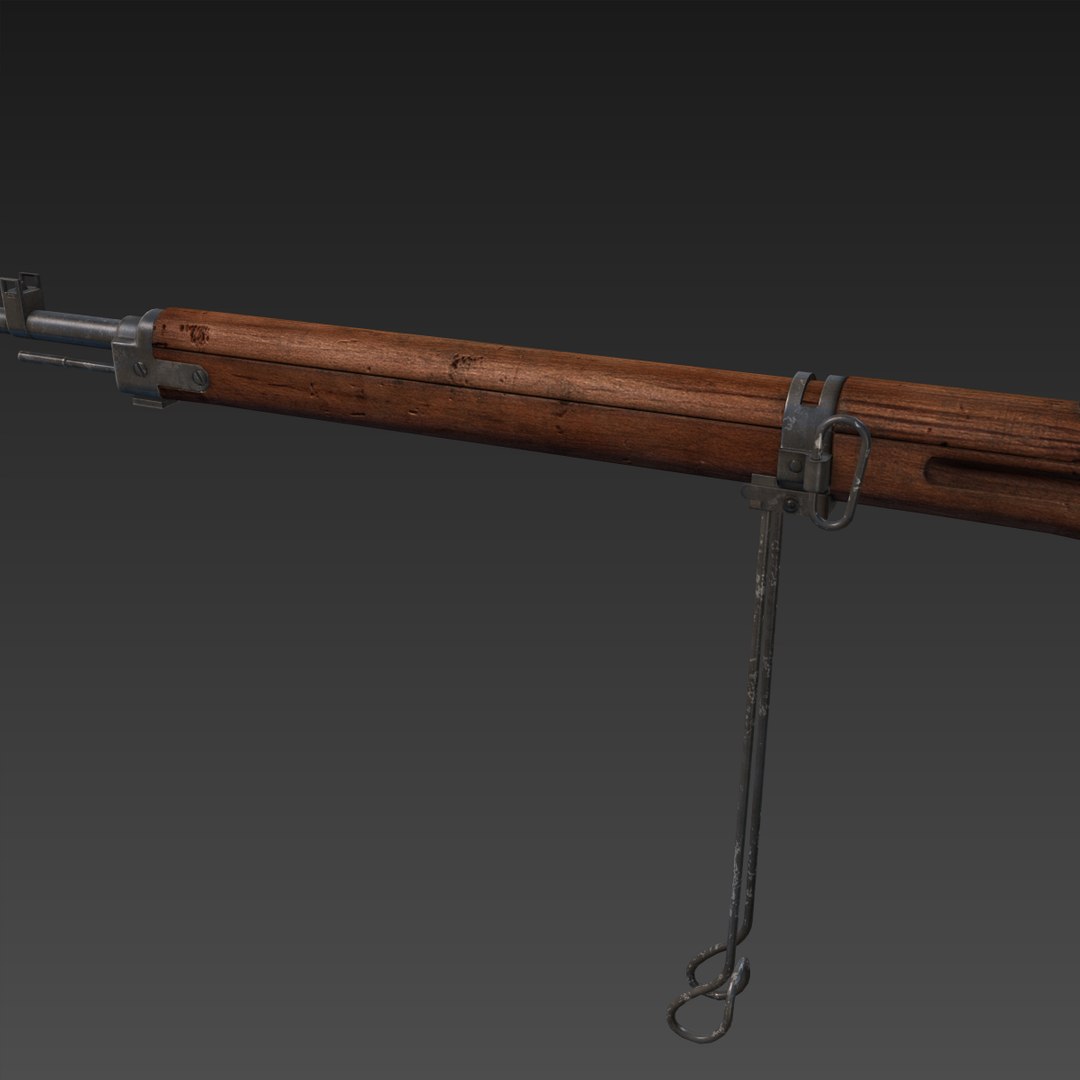

• arisaka_monopod

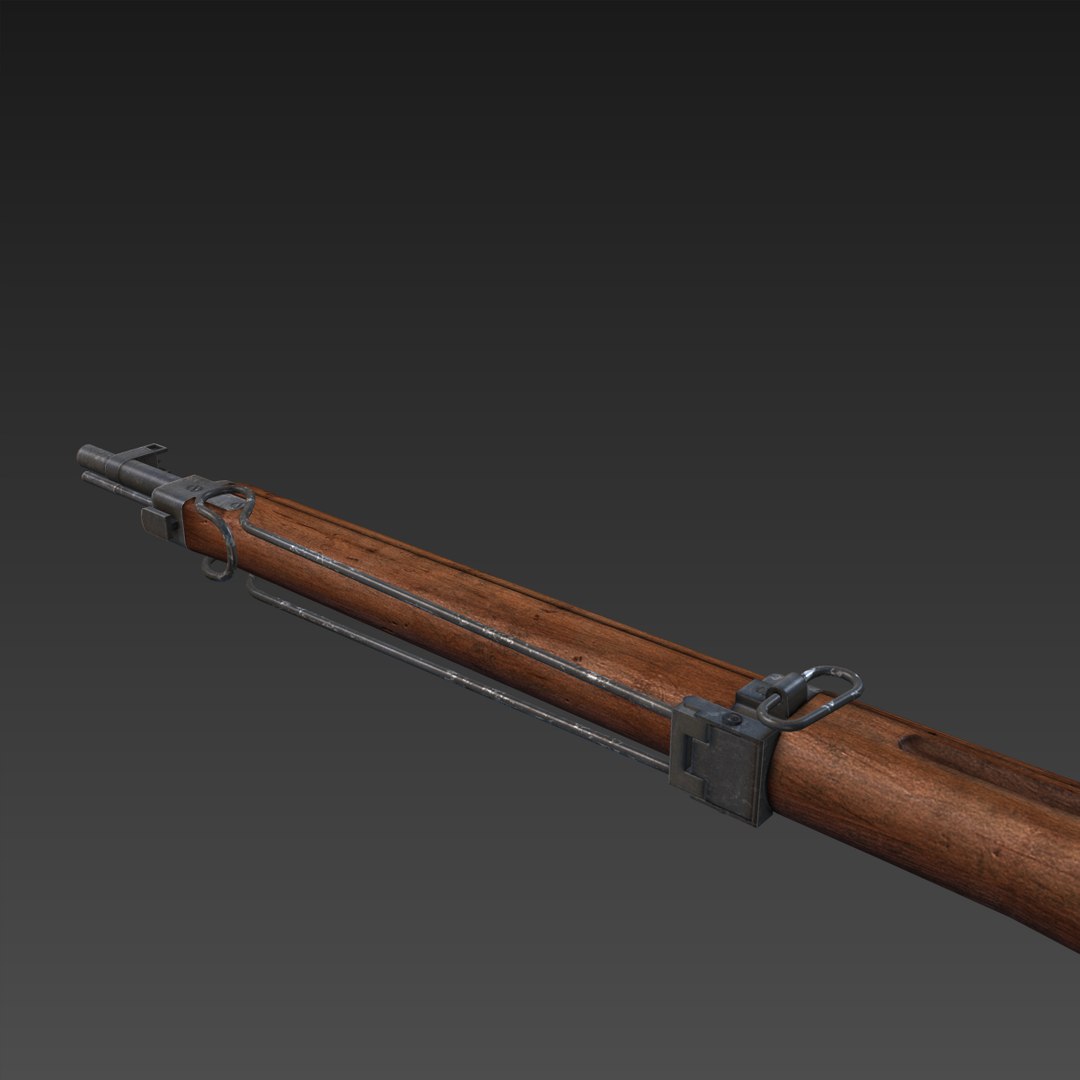

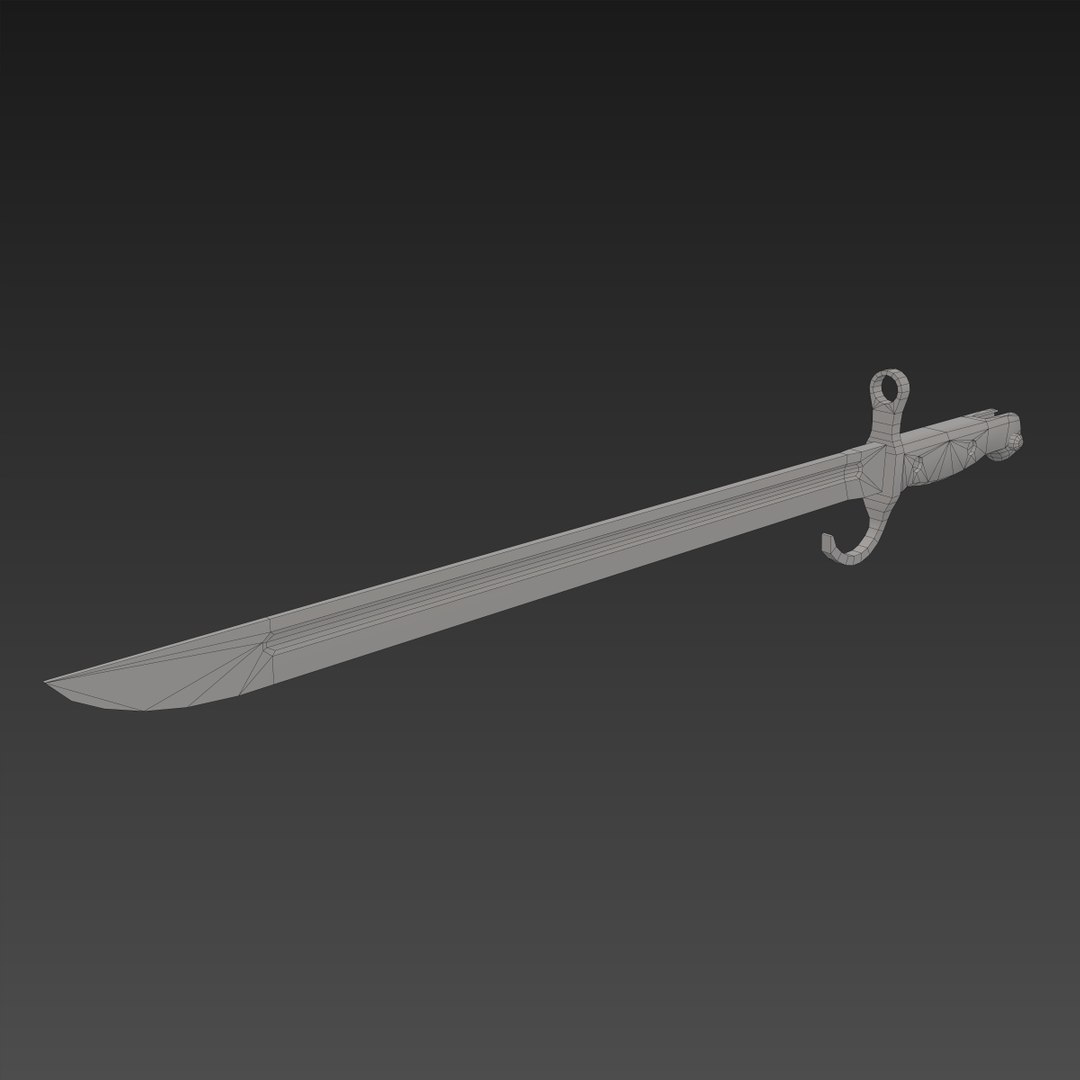

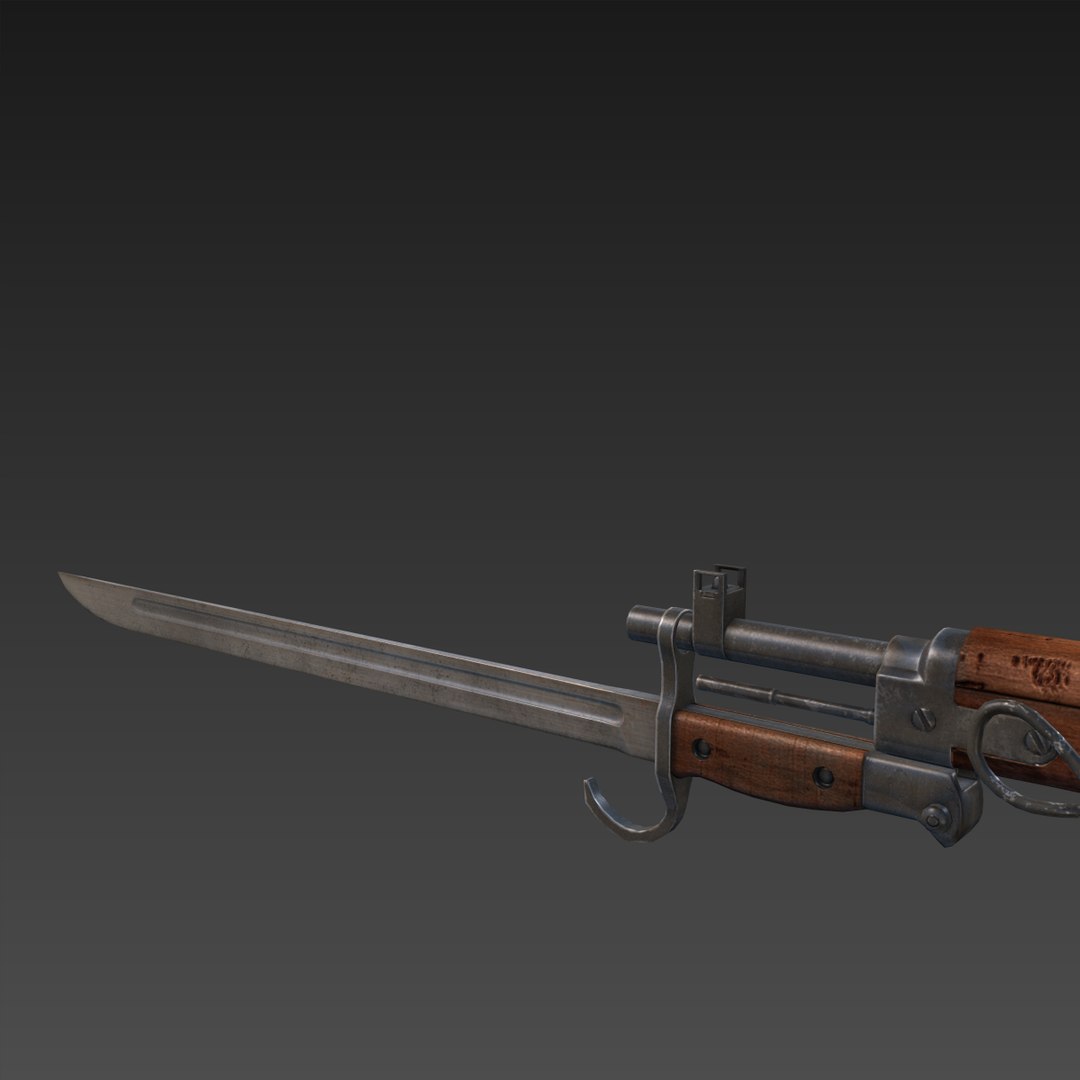

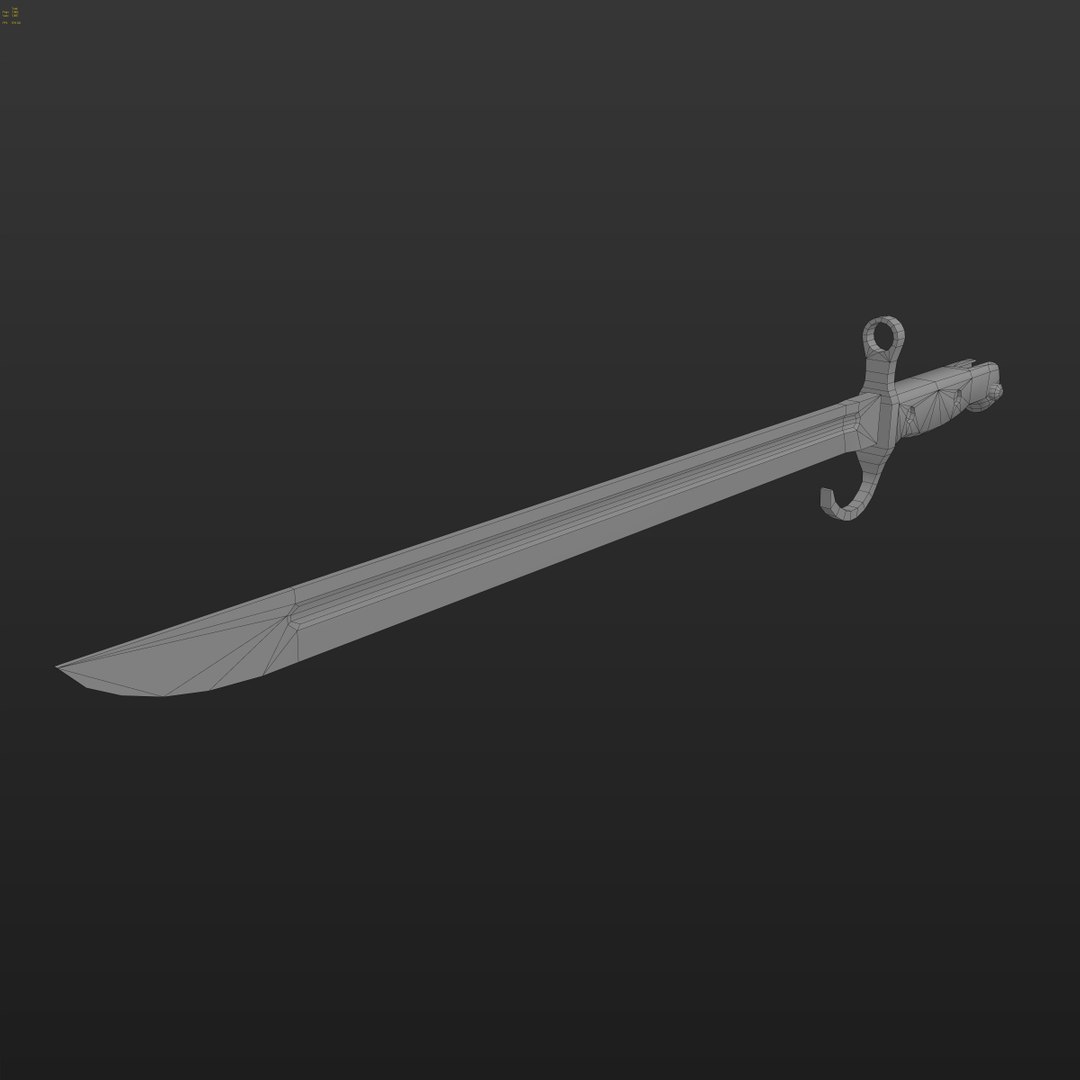

• arisaka_bayonet

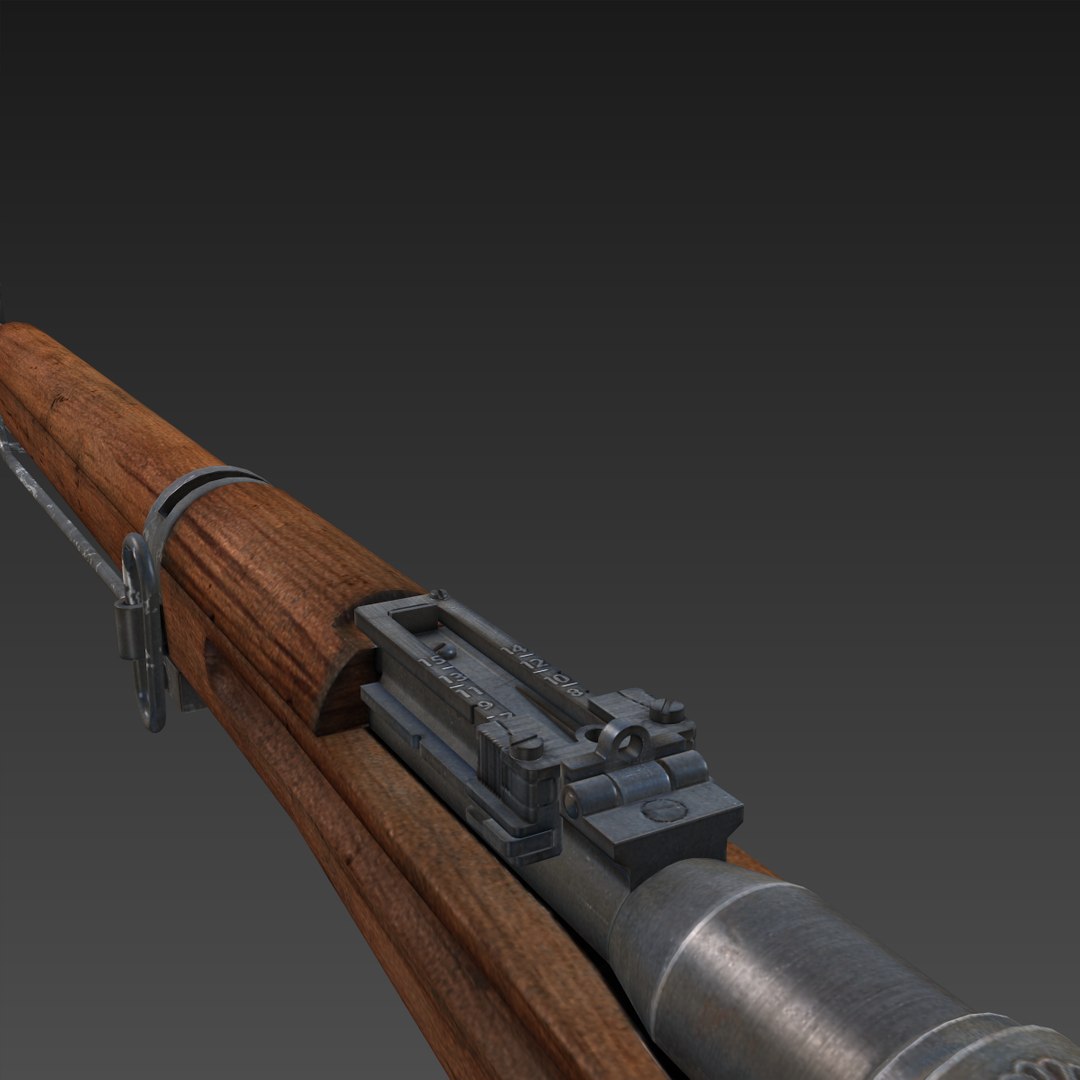

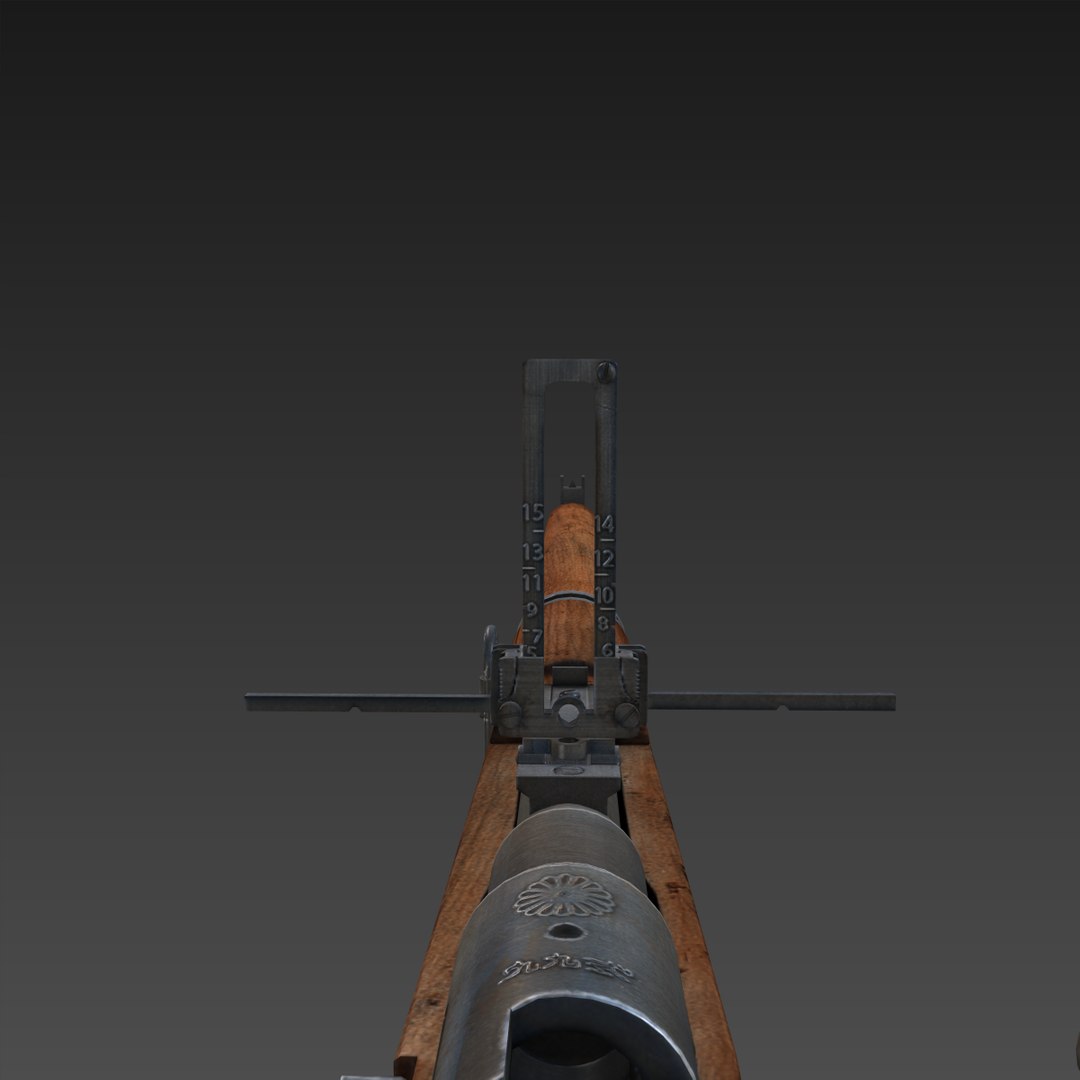

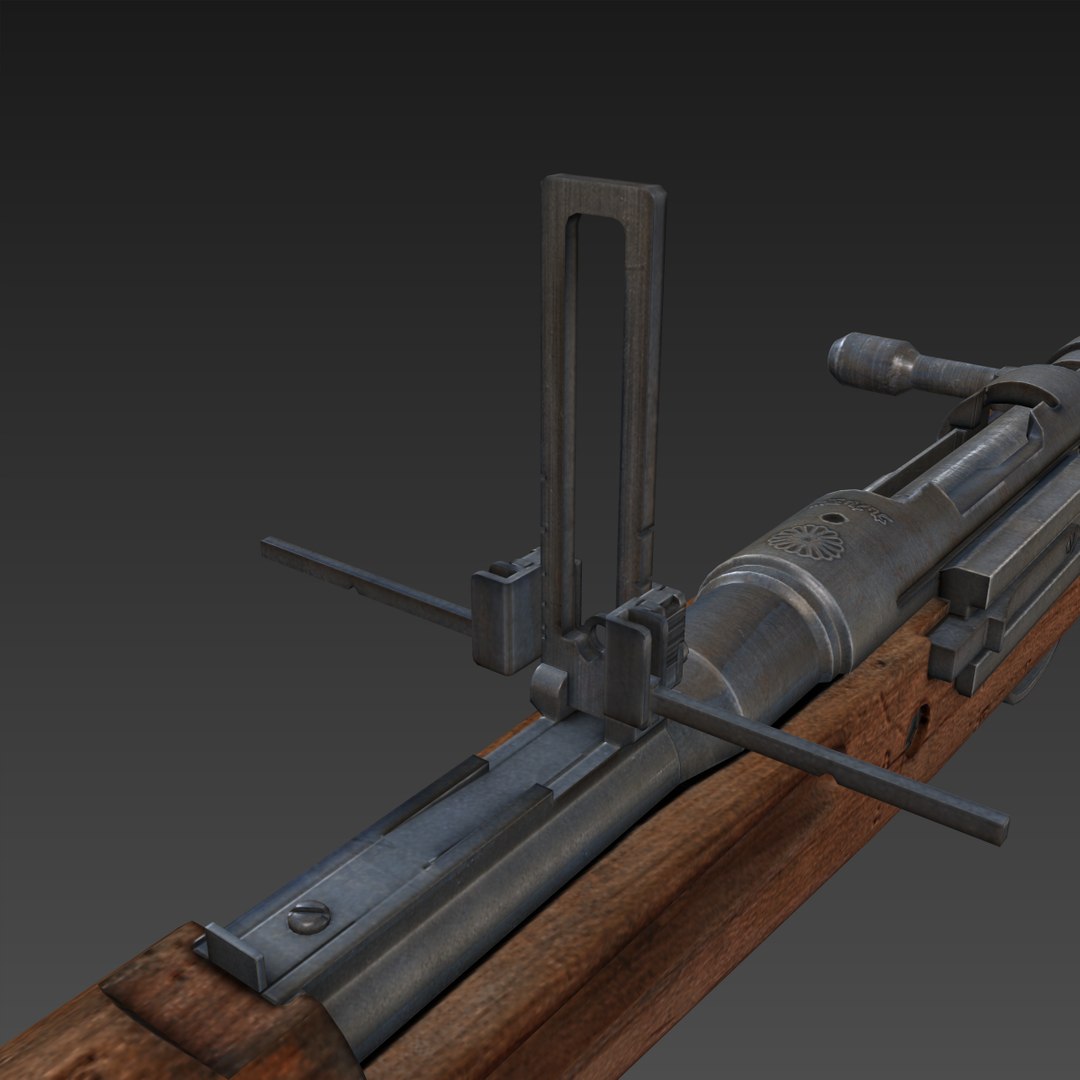

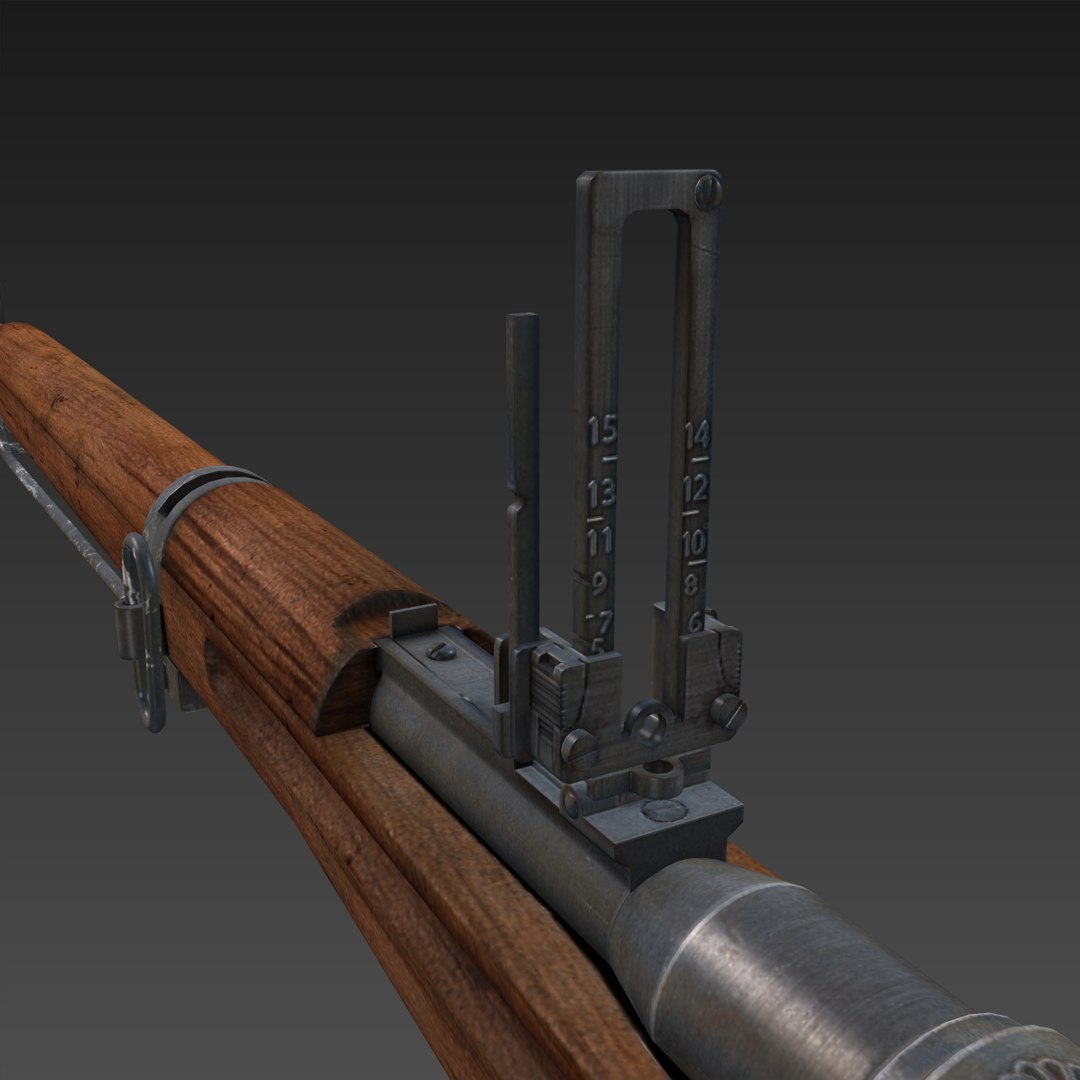

• arisaka_rearsights

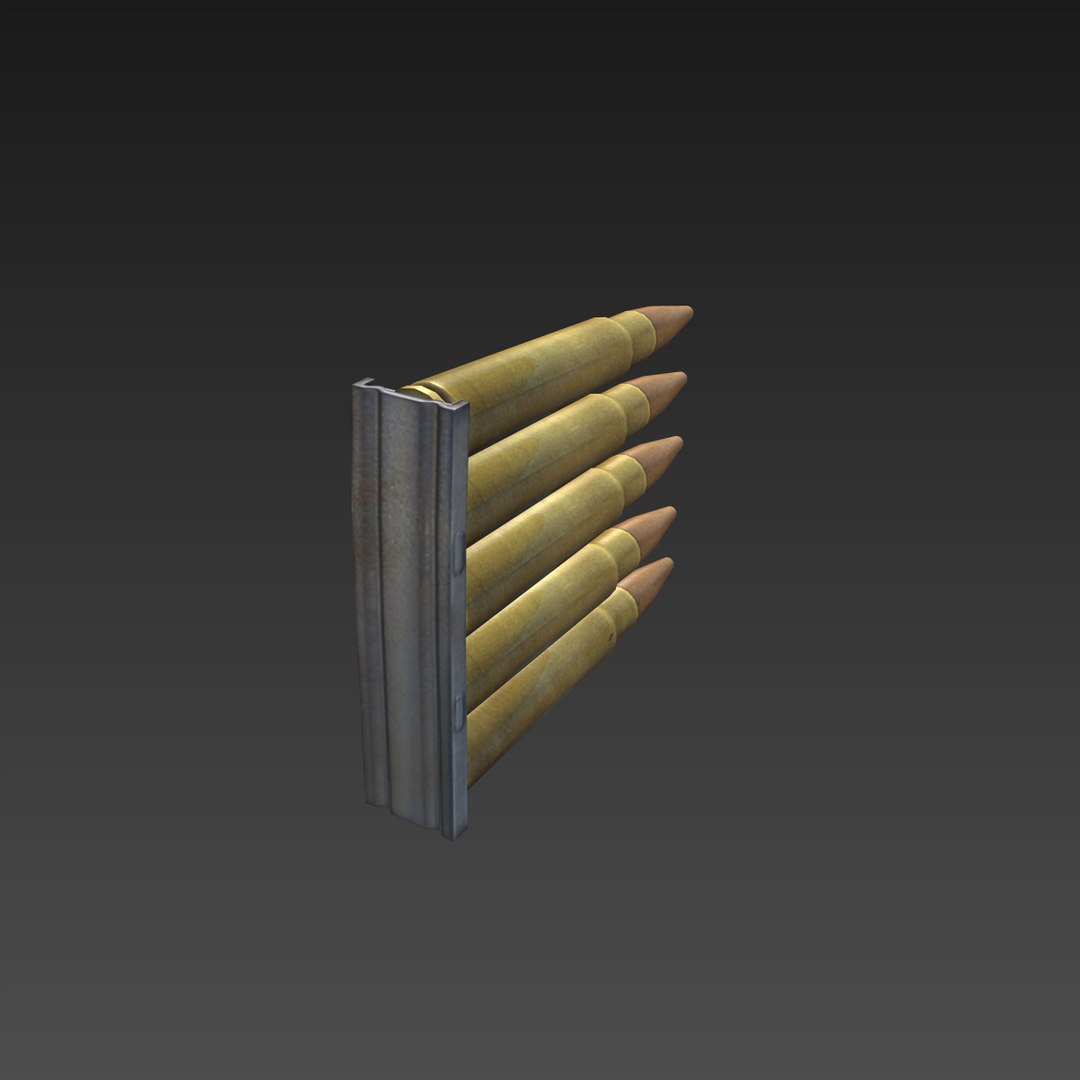

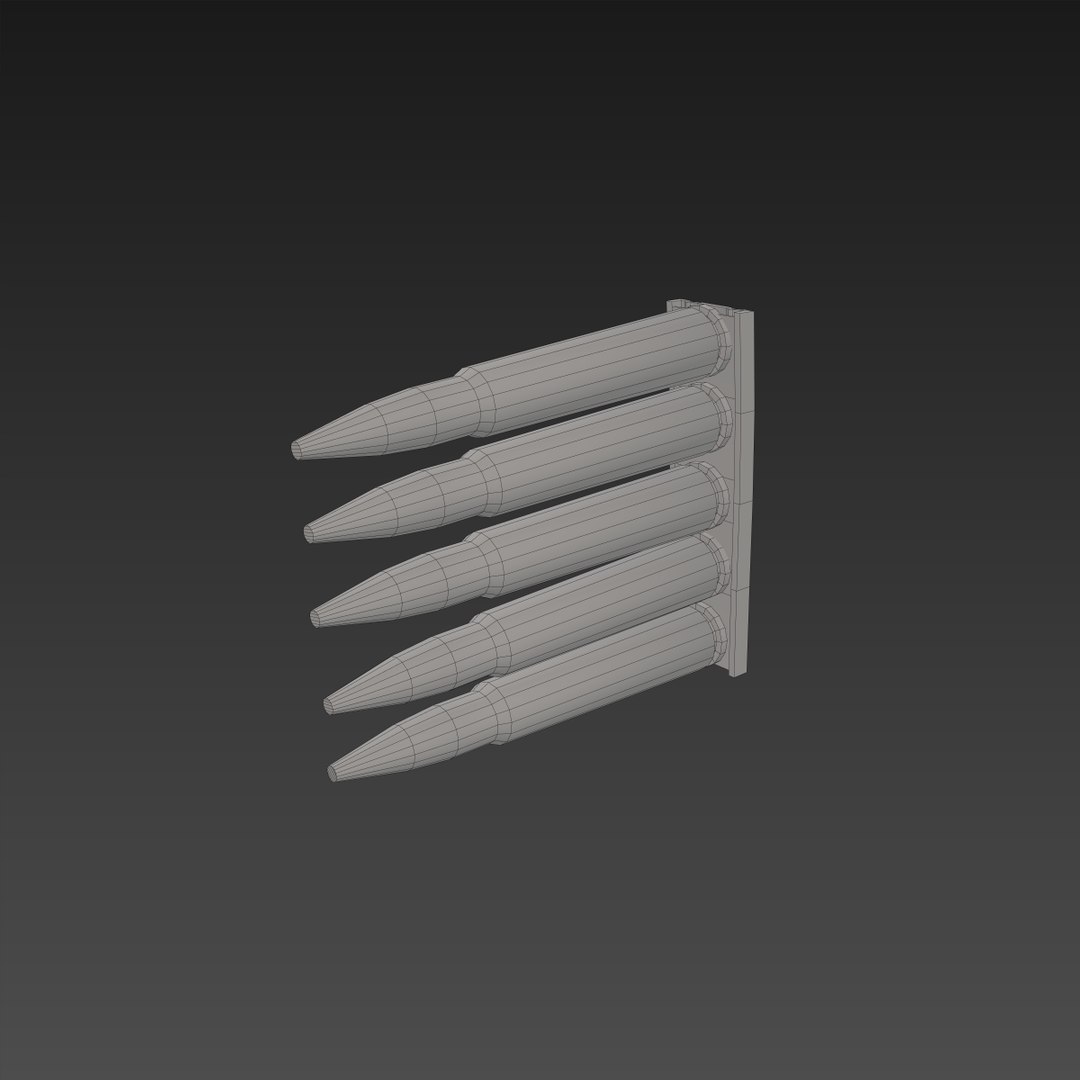

• arisaka_clip

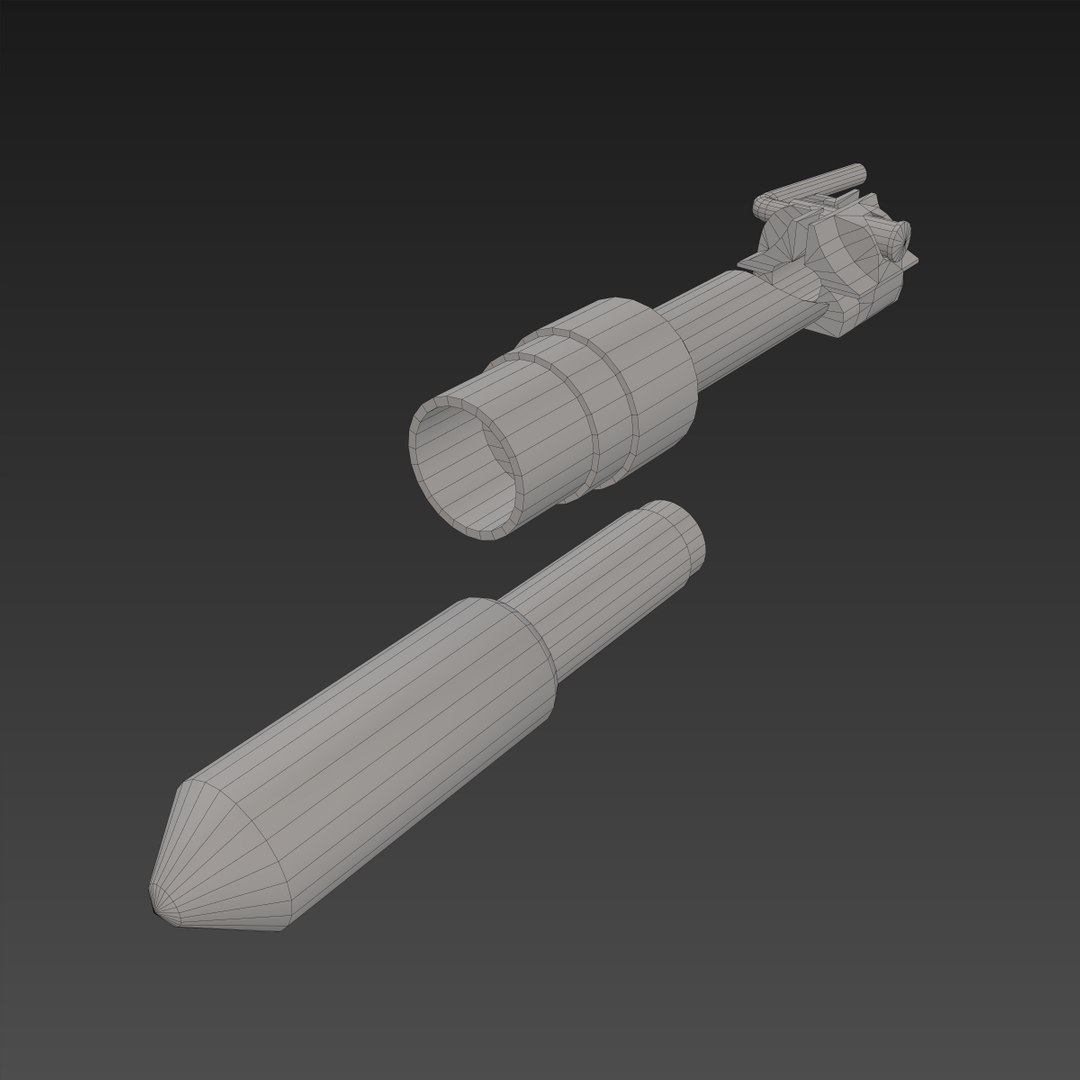

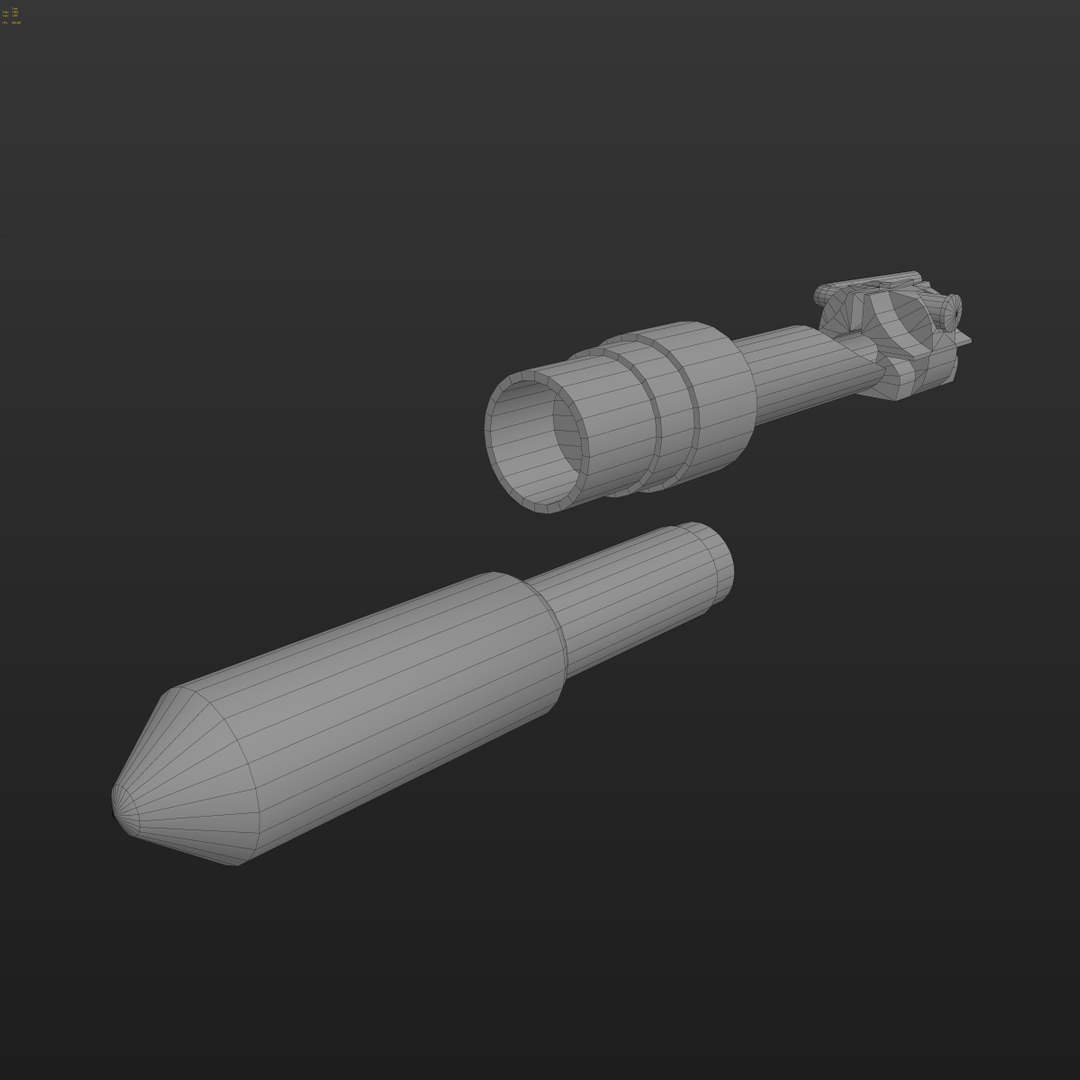

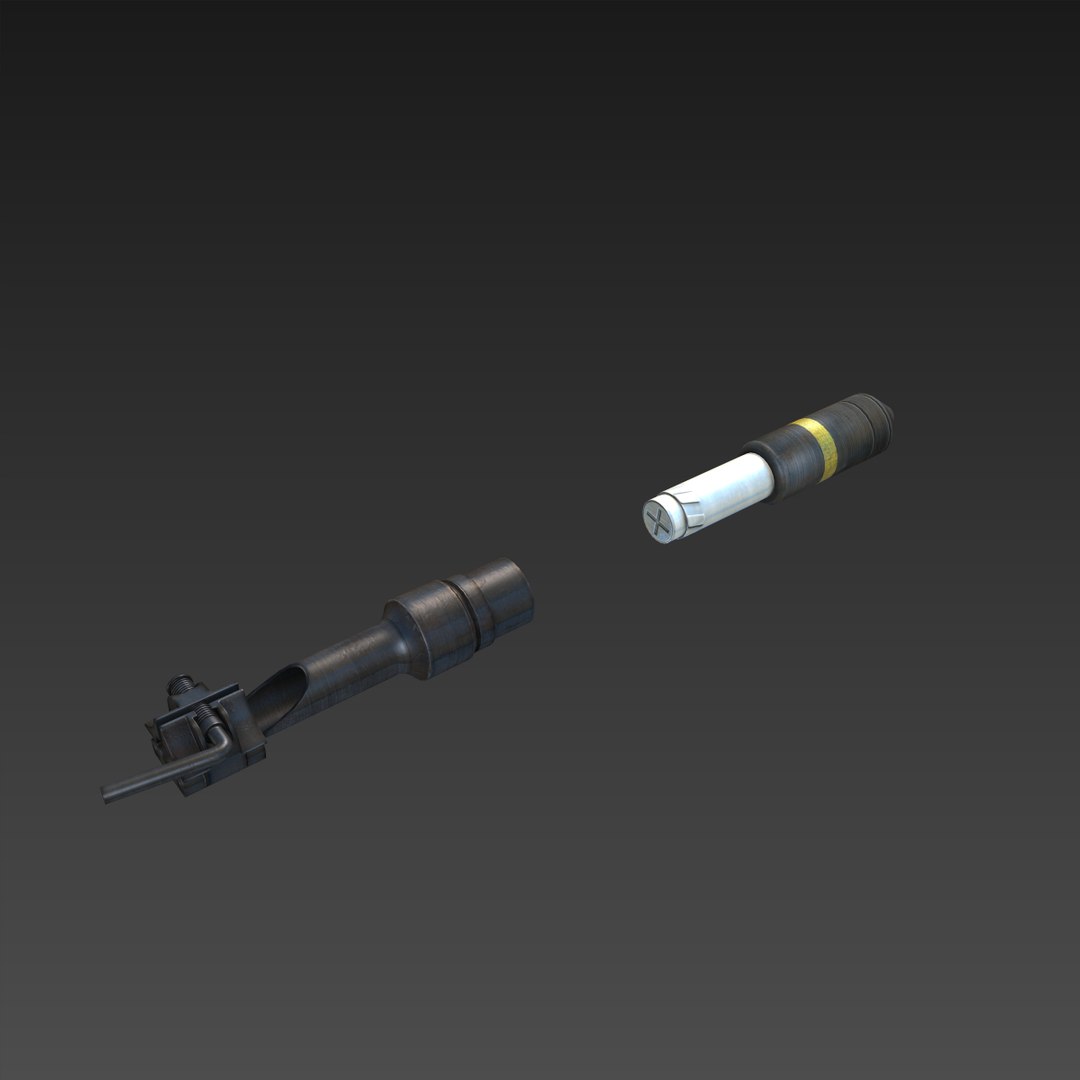

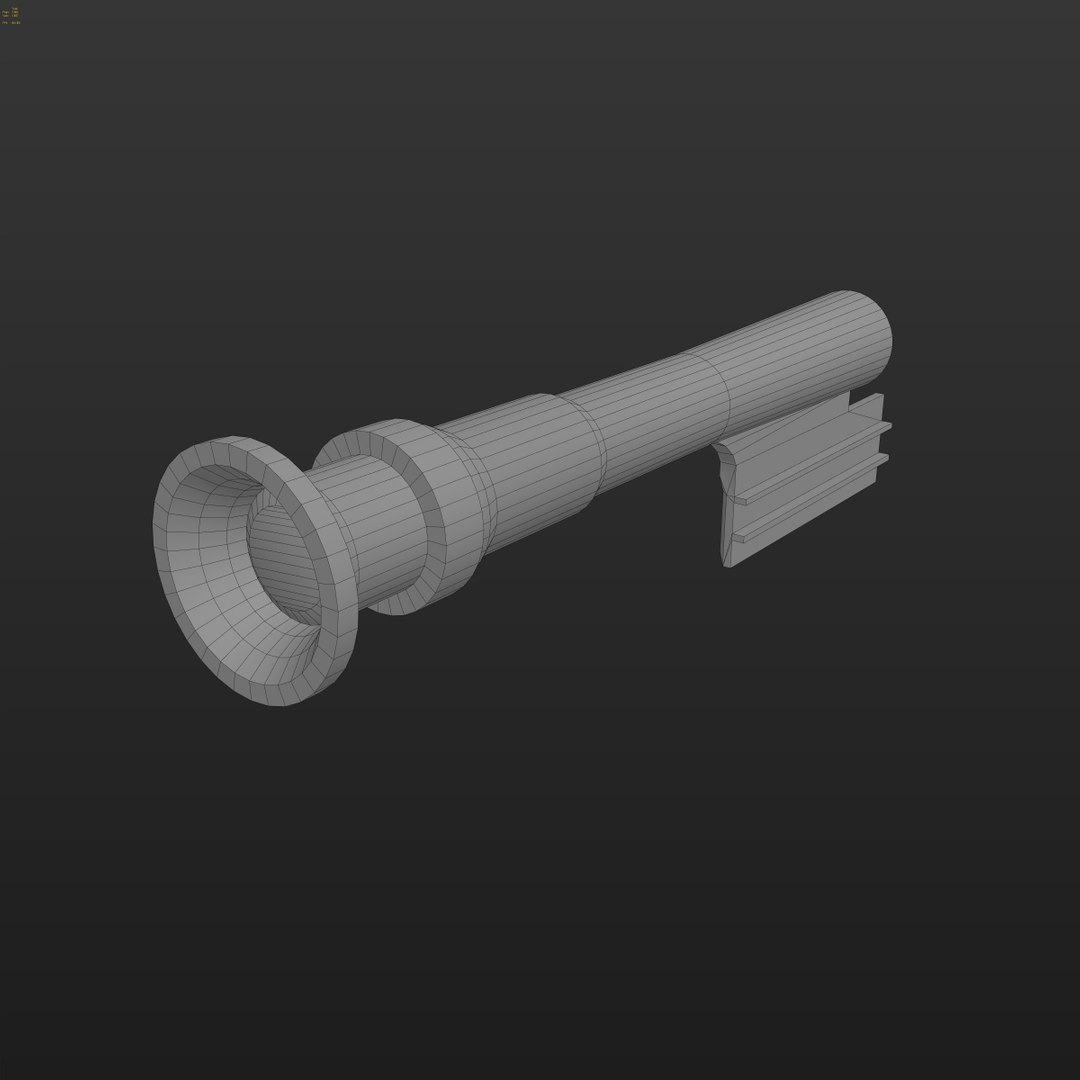

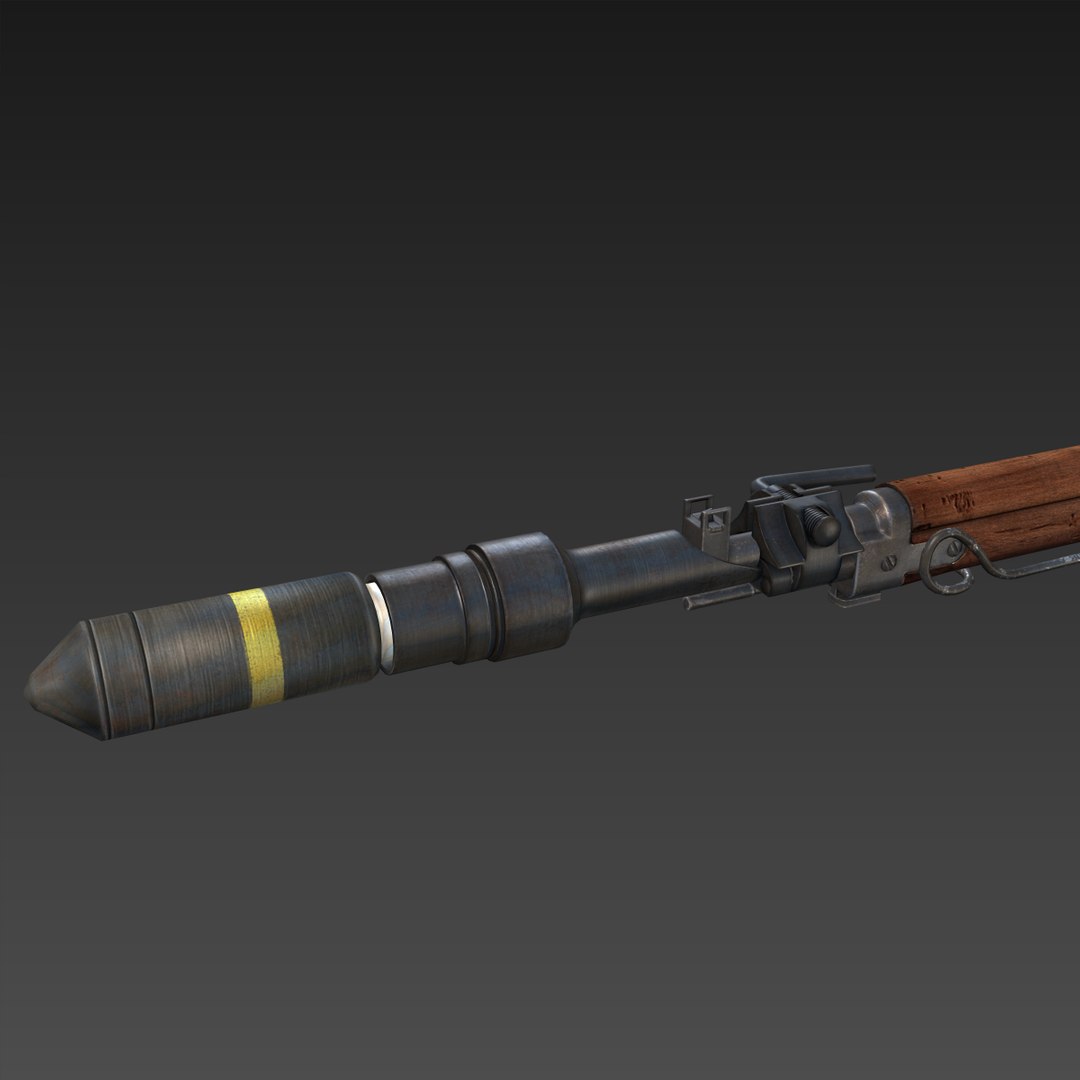

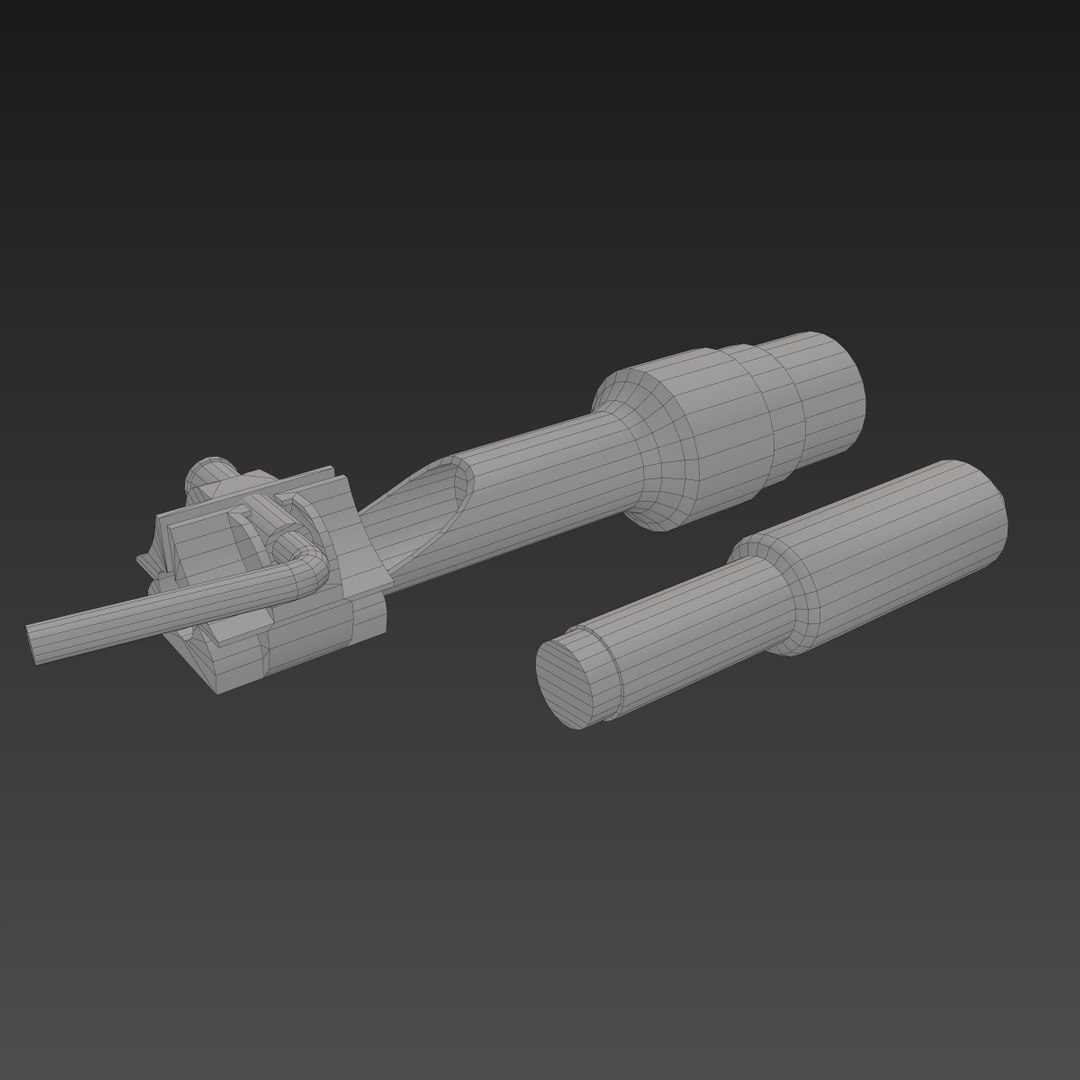

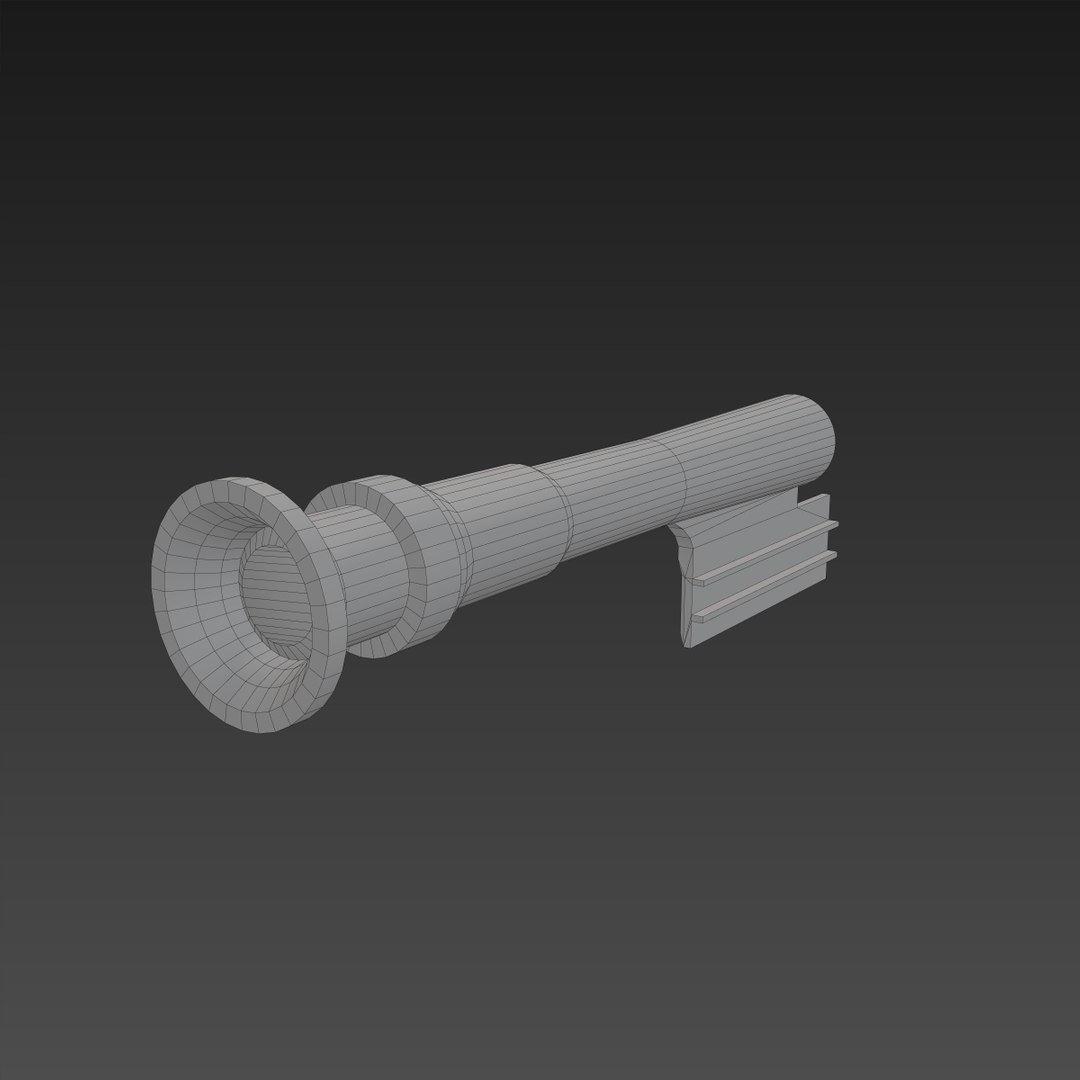

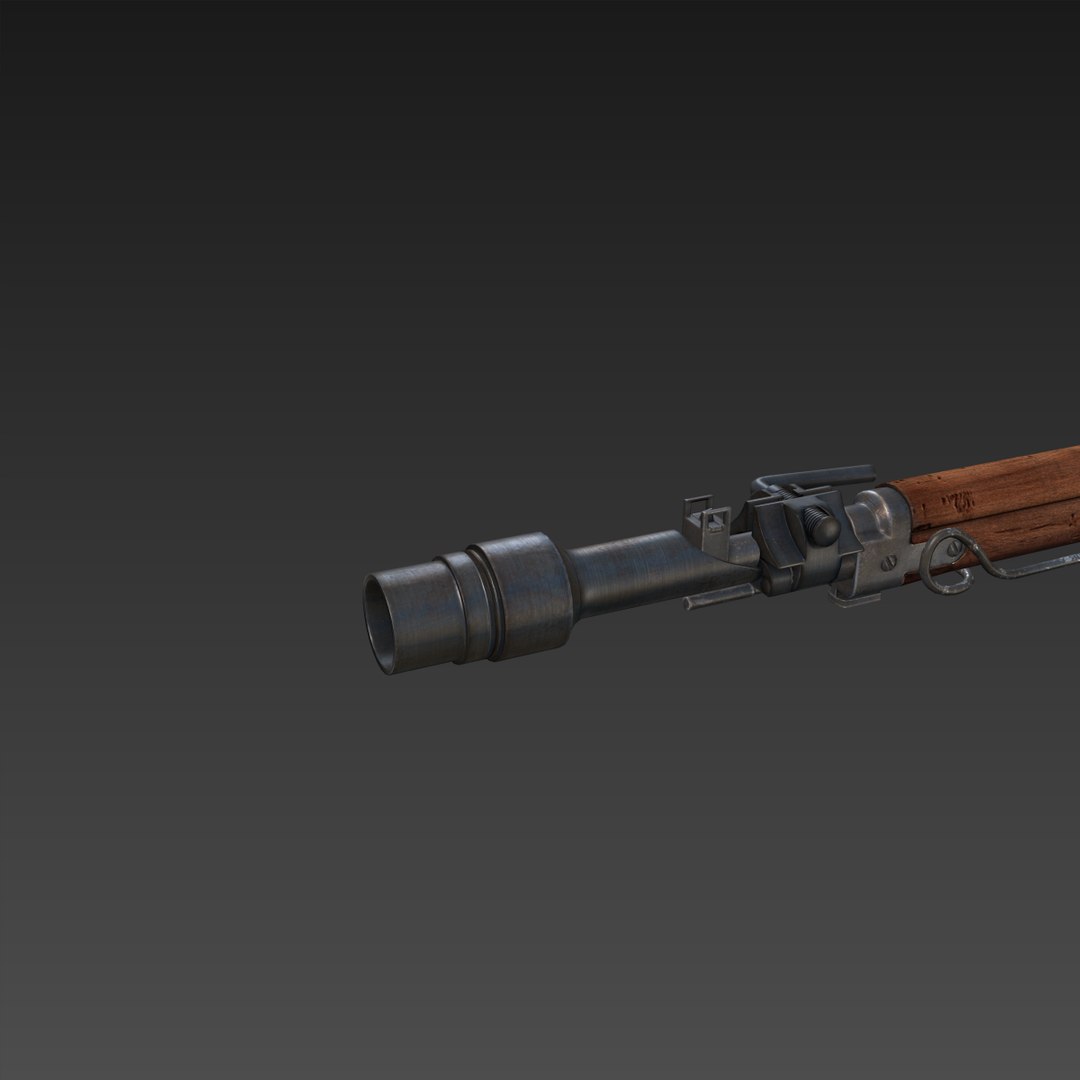

• arisaka_grenadelauncher

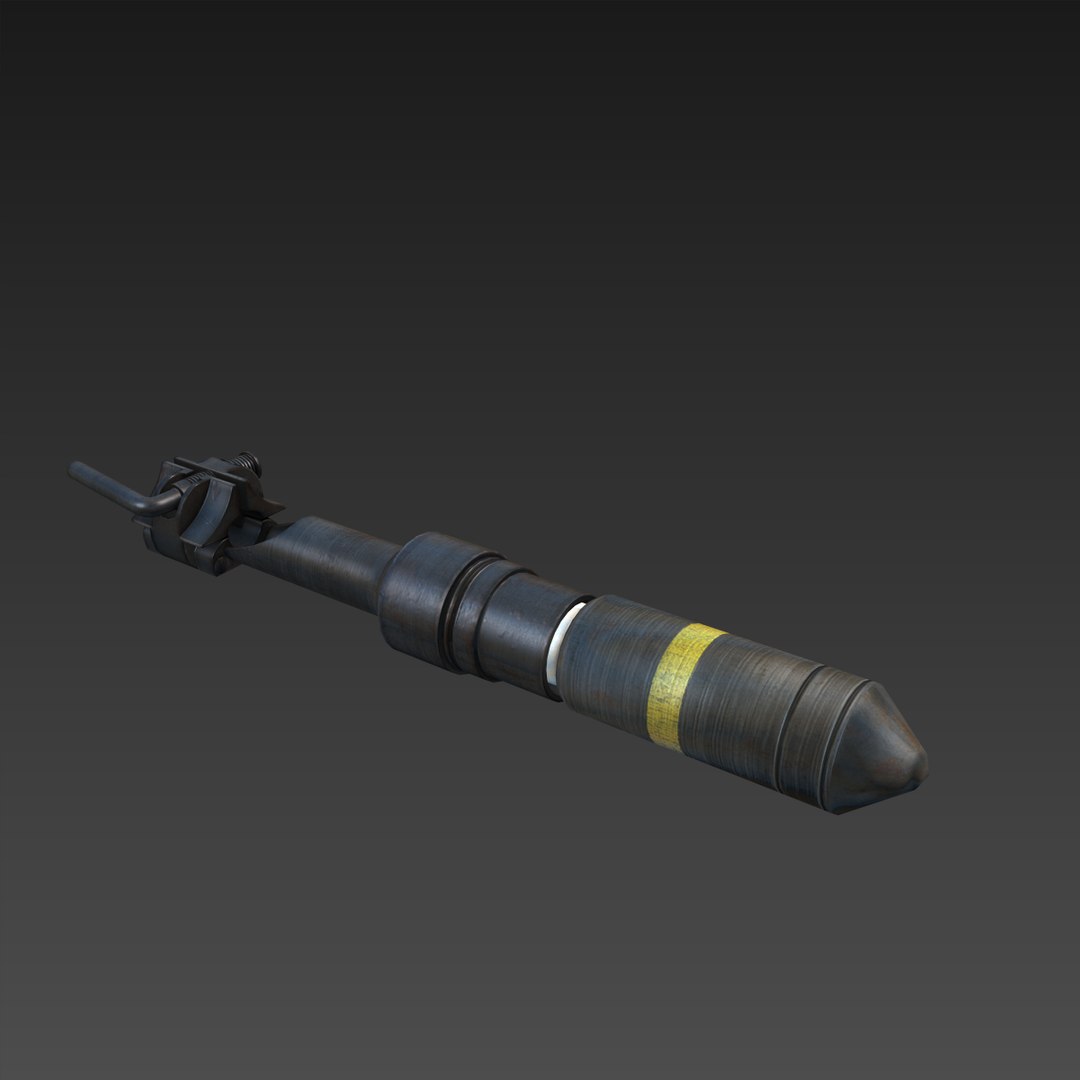

• arisaka_grenade

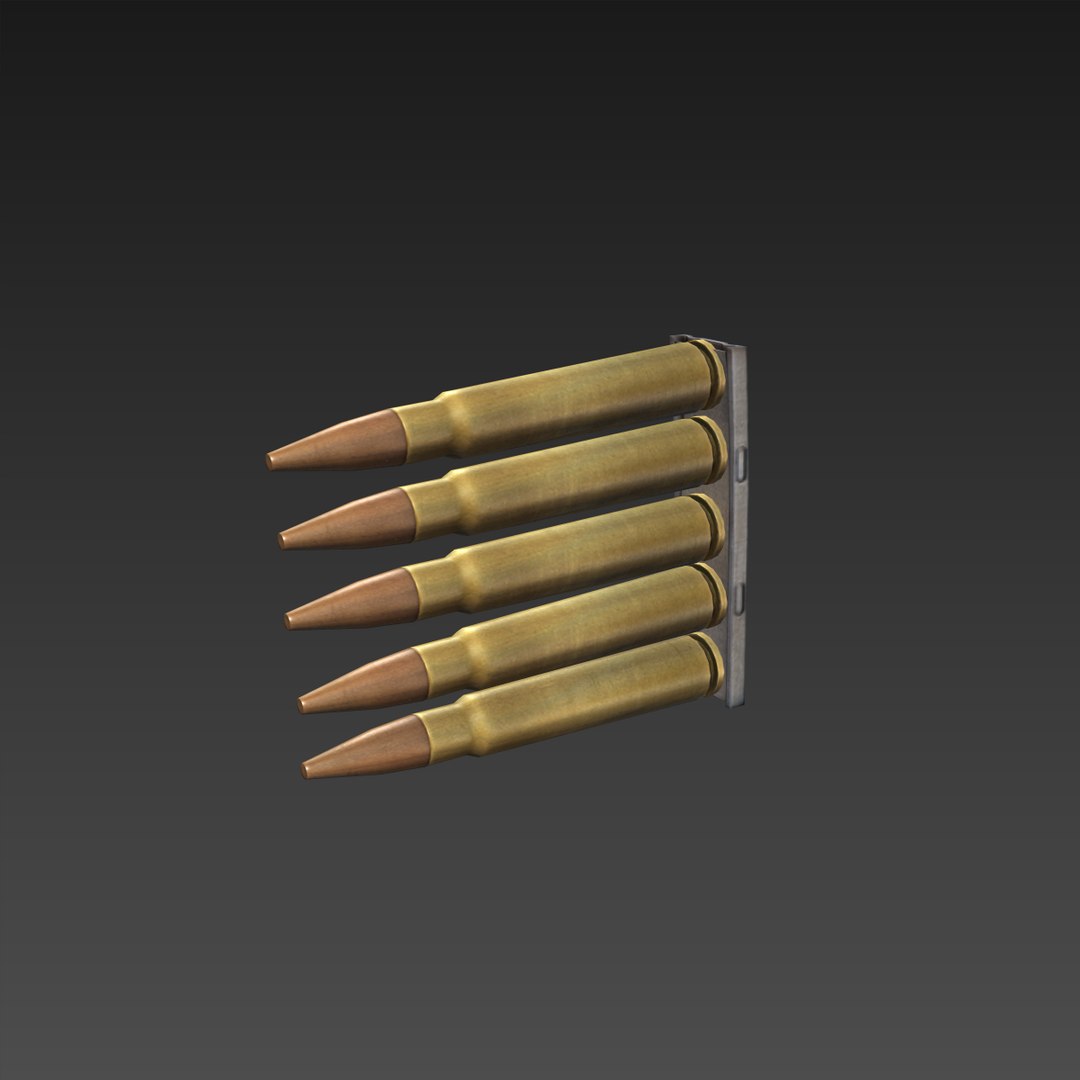

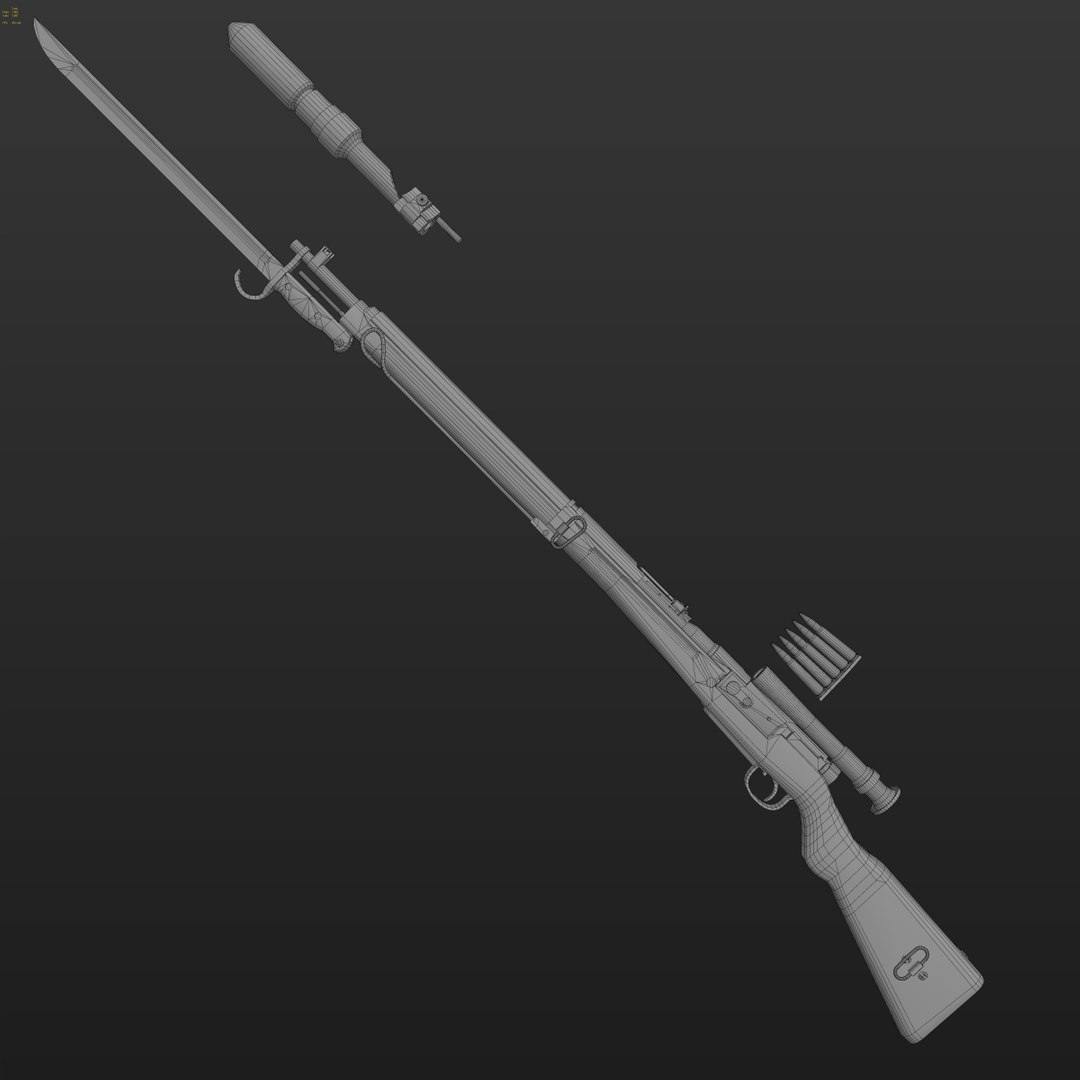

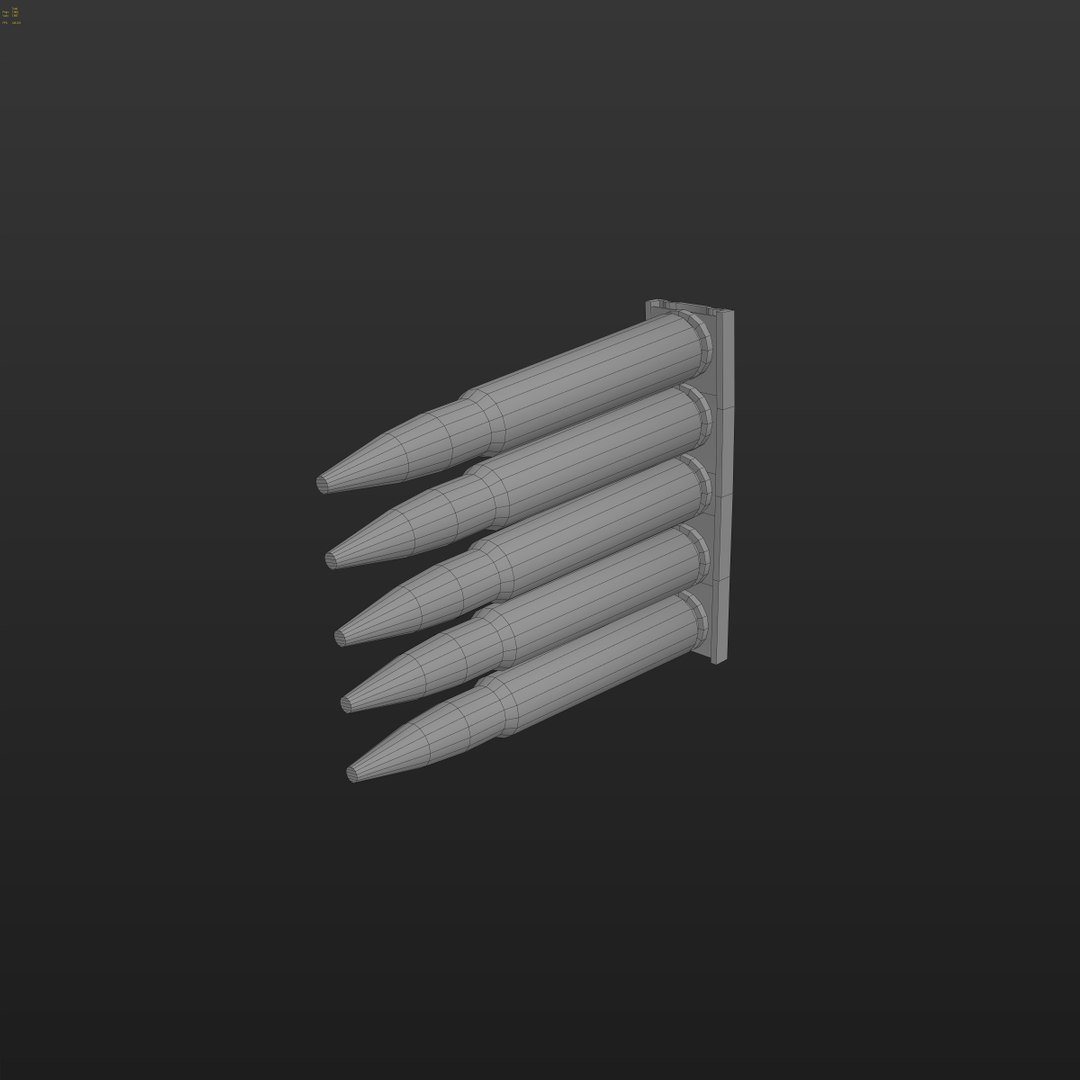

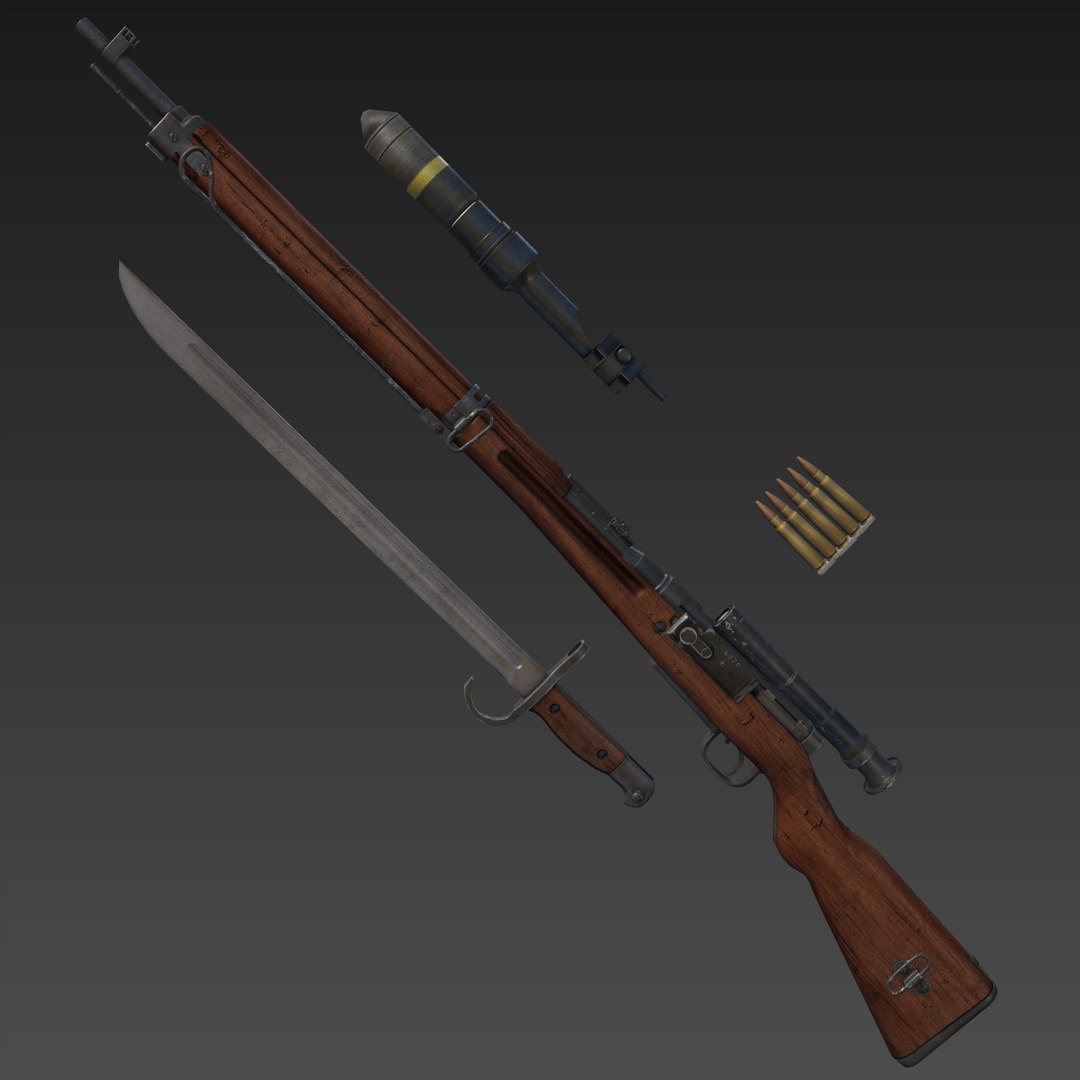

• Product includes optional bayonet, grenade launcher, grenade, scope, monopod, 7.7x58mm rounds and stripper clip.

|| Geometry ||
• 7960 Polys
• 7897 Verts

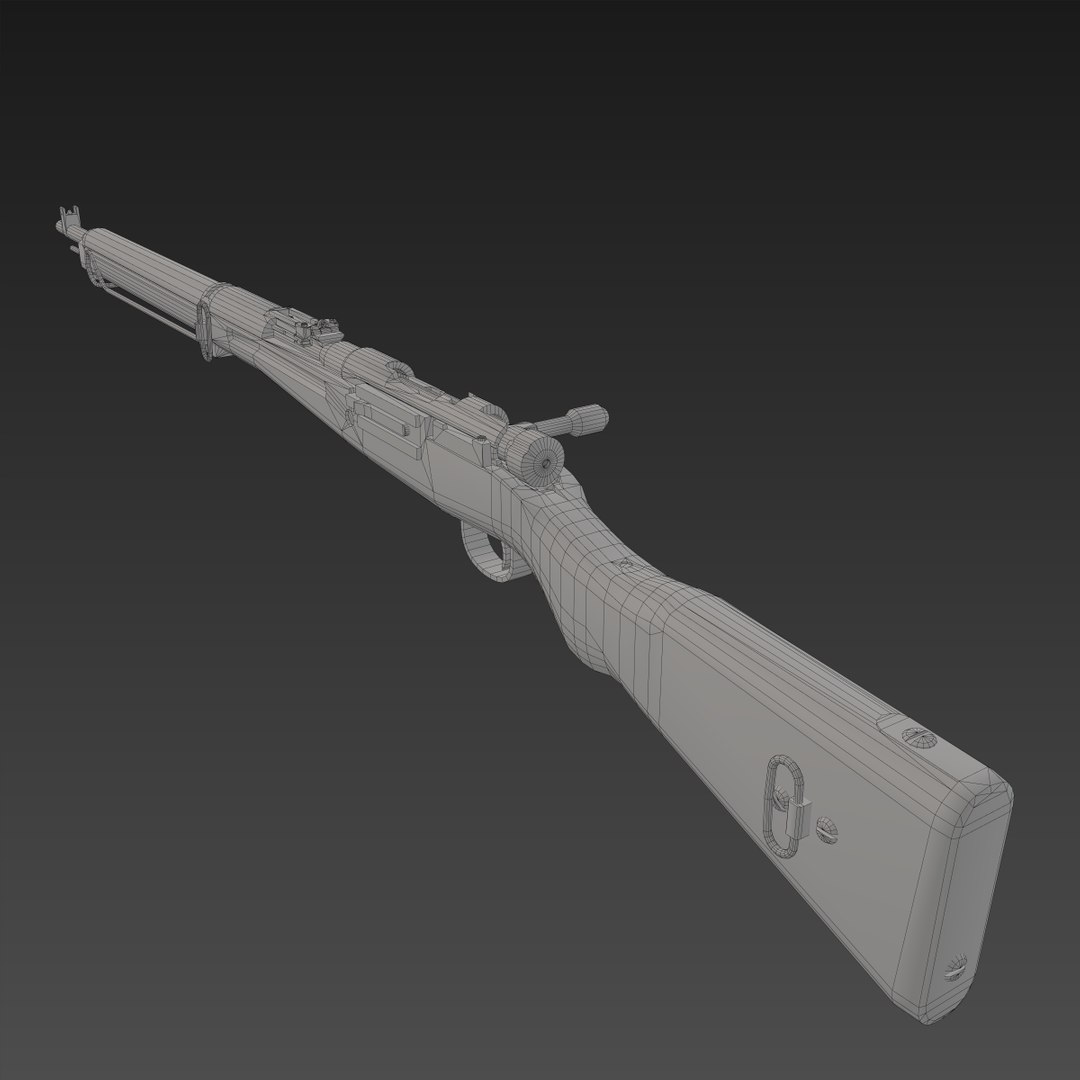

• The base rifle without accessories is 5,038 polys and 4,999 verts

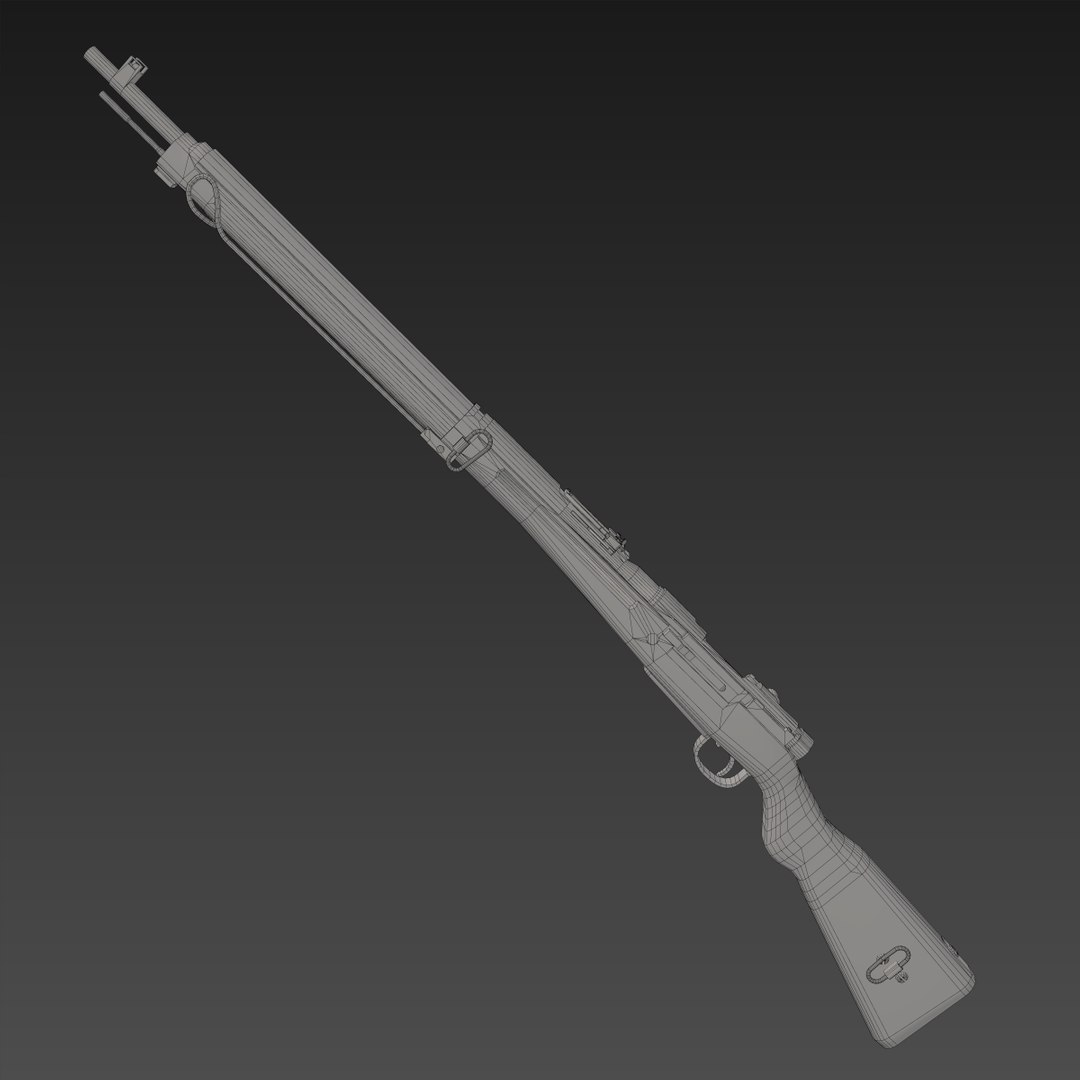

• Polygons are all quads or tris, no n-gons
• Parts such as the bolt, scope and trigger are separate objects which can be moved or animated
• Model unwrapped manually to make most efficient use of the UV space
• No special plug-ins needed to use this product
• All materials and objects named appropriately
• Renderer is default scanline, no lights or extraneous objects included.
• Object pivot points at logical locations
• Object scaled to approximate real world size (inches)
• Tested in the UDK
• .obj and .fbx versions exported from 3ds Max 2013
• 3ds Max 2010 files also available for compatibility

|| Textures ||

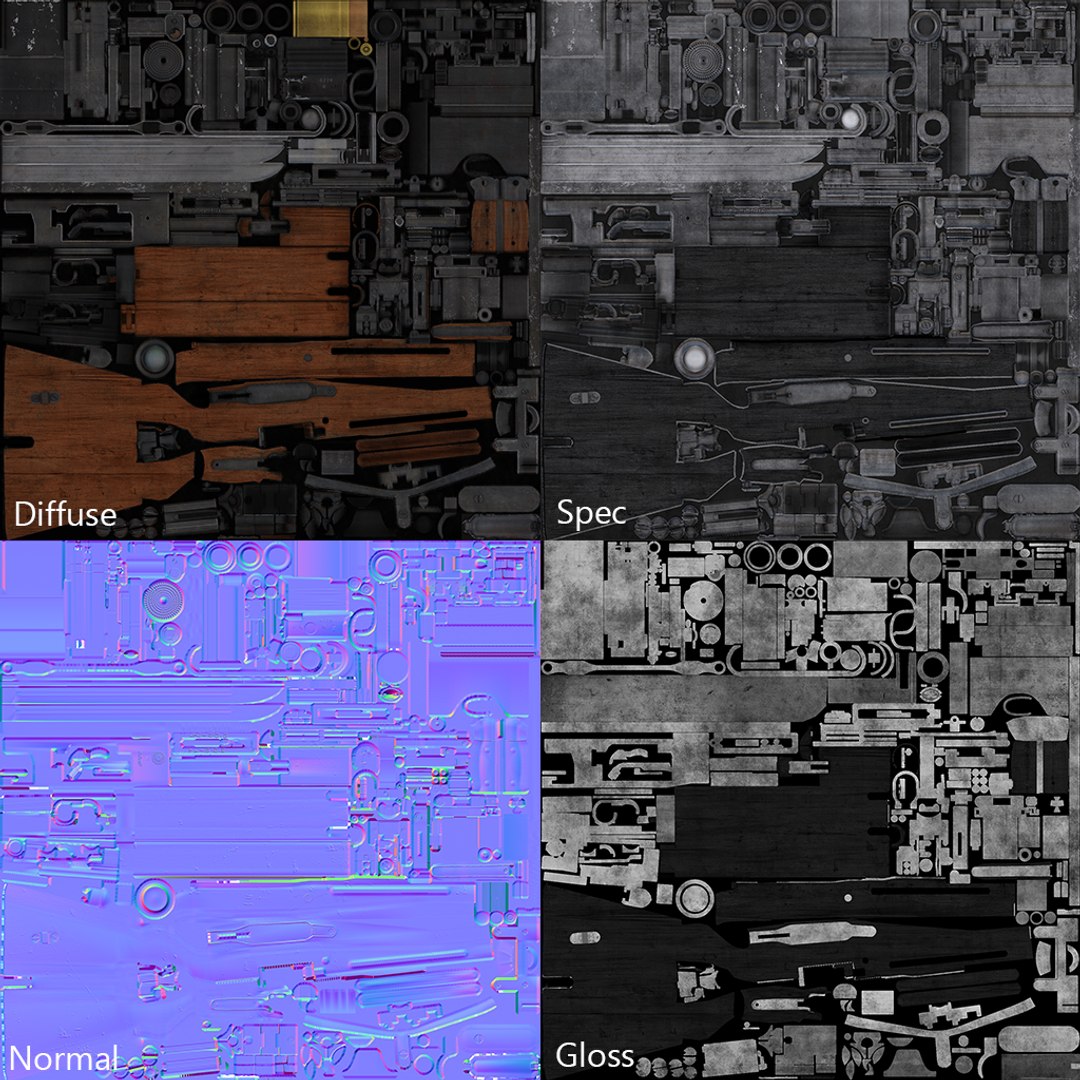

4x 2048 resolution for rifle
• arisaka_diffuse
• arisaka_spec
• arisaka_gloss
• arisaka_normal

3x 512 resolution for grenade
• grenade_diffuse
• grenade_spec
• grenade_normal

• Textures in .tga, .png and .jpg formats
• Model texture paths are stripped
• Product includes Photoshop CS6 source files for the textures with named layers and groups

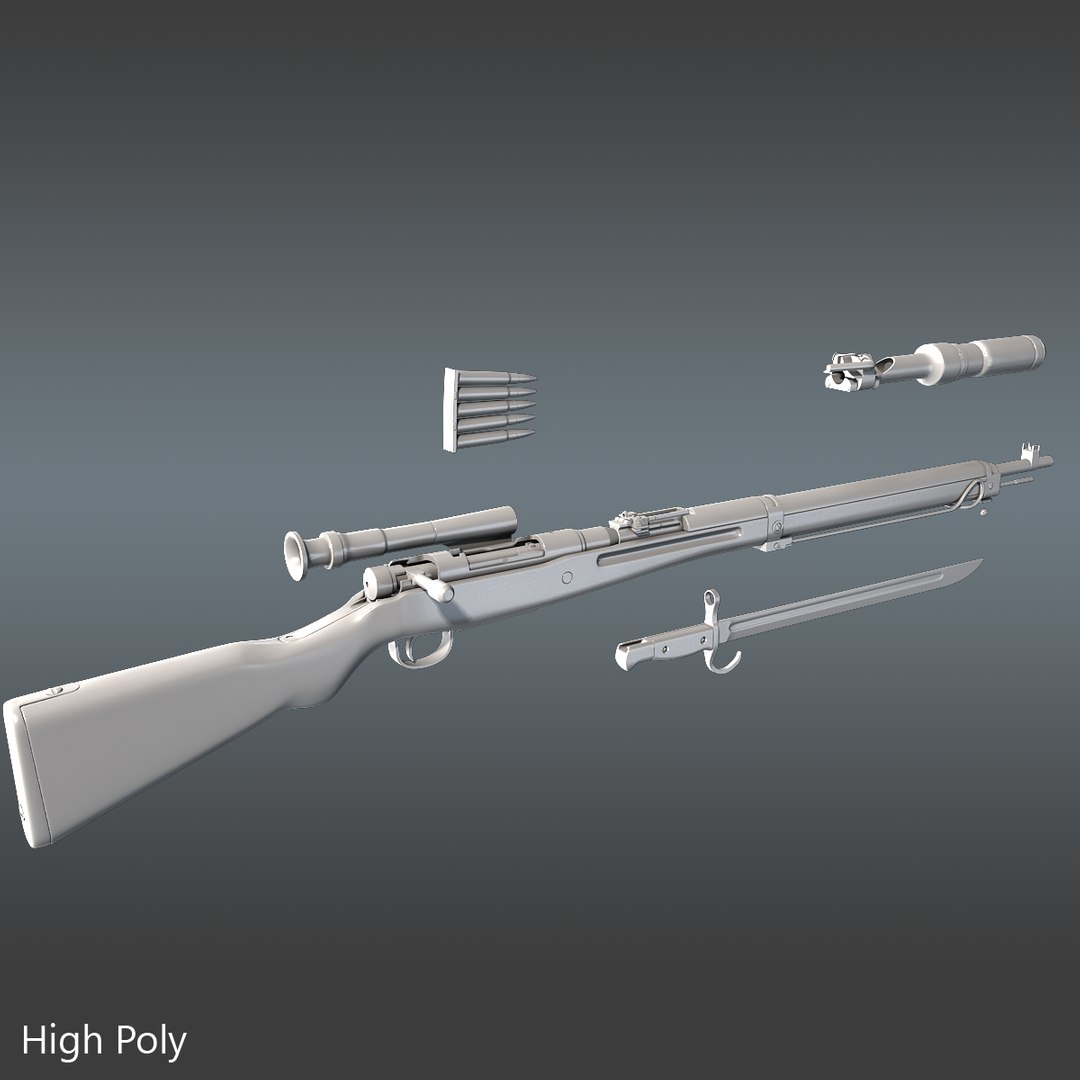

|| High Poly ||

• High poly model also available for download in .fbx format and ready for TurboSmoothing.
• No TurboSmooth: 47,631 Polys
• 1 iteration: 383,052
• 2 iterations: 1,532,208
