AIR HANDLING UNIT
An air handler, or air handling unit (often abbreviated to AHU), is a device used to regulate and circulate air as part of a heating, ventilating, and air-conditioning (HVAC) system. An air handler is usually a large metal box containing a blower, heating or cooling elements, filter racks or chambers, sound attenuators, and dampers. Air handlers usually connect to a ductwork ventilation system that distributes the conditioned air through the building and returns it to the AHU.

PARTS
DUCT
FRESH AIR DAMPER
FILTERS
COOLING COIL
CENTRIFIGUAL FAN
MOTOR
T/H SENSOR
SMOKE DETECTOR
PRESSURE SENSOR
AIR VELOCITY SENSOR
SERVING ROOM


STATES
Off State (GREY COLOR)
On State (GREEN COLOR)
Alarm State Animation (RED COLOR With Alarm Symbol)
Stage Animation (Air Flow Arrow Animation, Cooling coil animation)
GIF Animation (Fan Running/Trip Animation)

3D DESCRIPTION

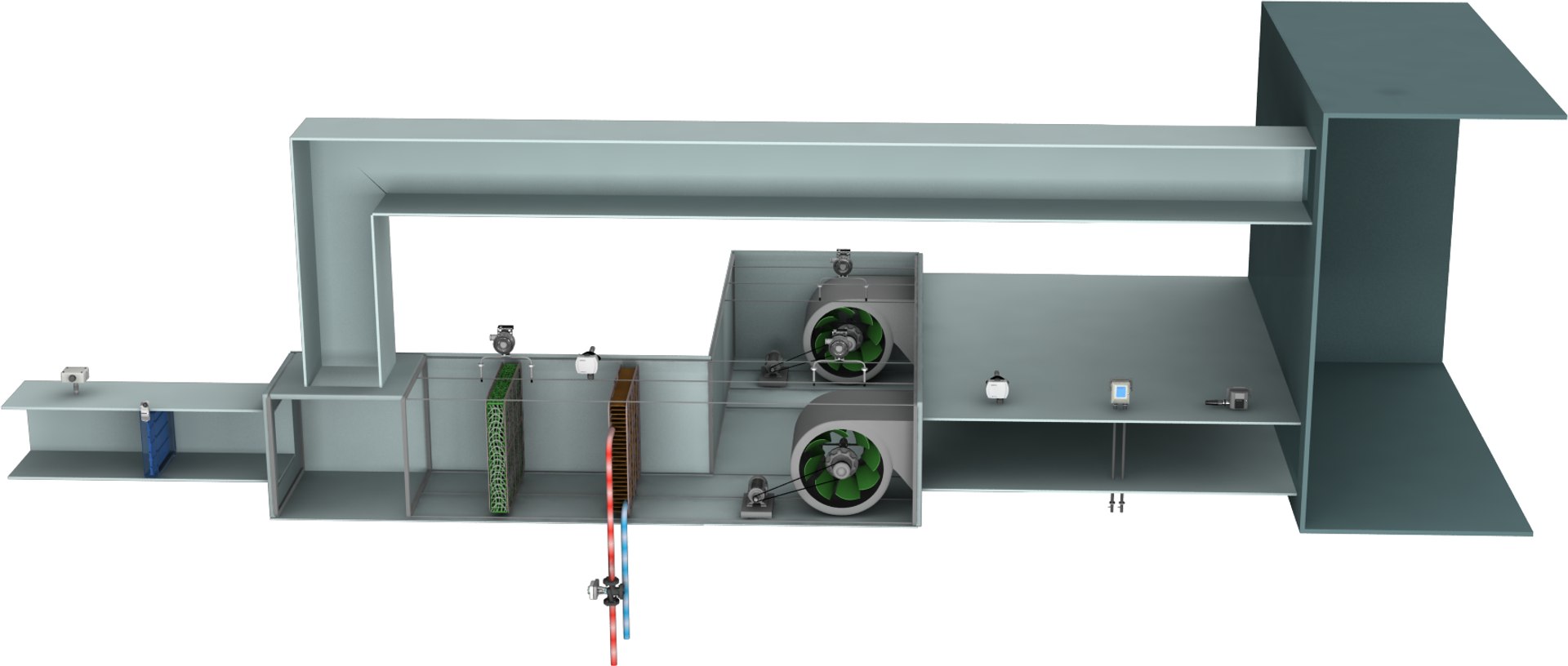

3D Model of Ventilation System

Model is created in 3dsmax2009
Rendered with Vray

* Materials included
*Polygonal geometry (quad/tris)
*All vray material are included

Model is highly detailed and is suitable for close-up

You can create a larger composition

Fully detailed, textured model. Detailed enough for close-up renders. Comes with detailed normal materials,

This set will allow you to collect the ventilation system of any complexity in a few minutes.

Originally modeled in 3ds Max 2009. Final images rendered with V-Ray.

The 3ds Max zip file contains also V-Ray and standard materials scenes.

- Easy to convert model in other formats.
- No need for any special plug-in to open the model.
- Useful for BMS, BAS, high resolution renders, magazines and production.

- No multi/Sub-Objects materials.
- Materials, textures and objects are clearly named.
- Export formats works correctly.
