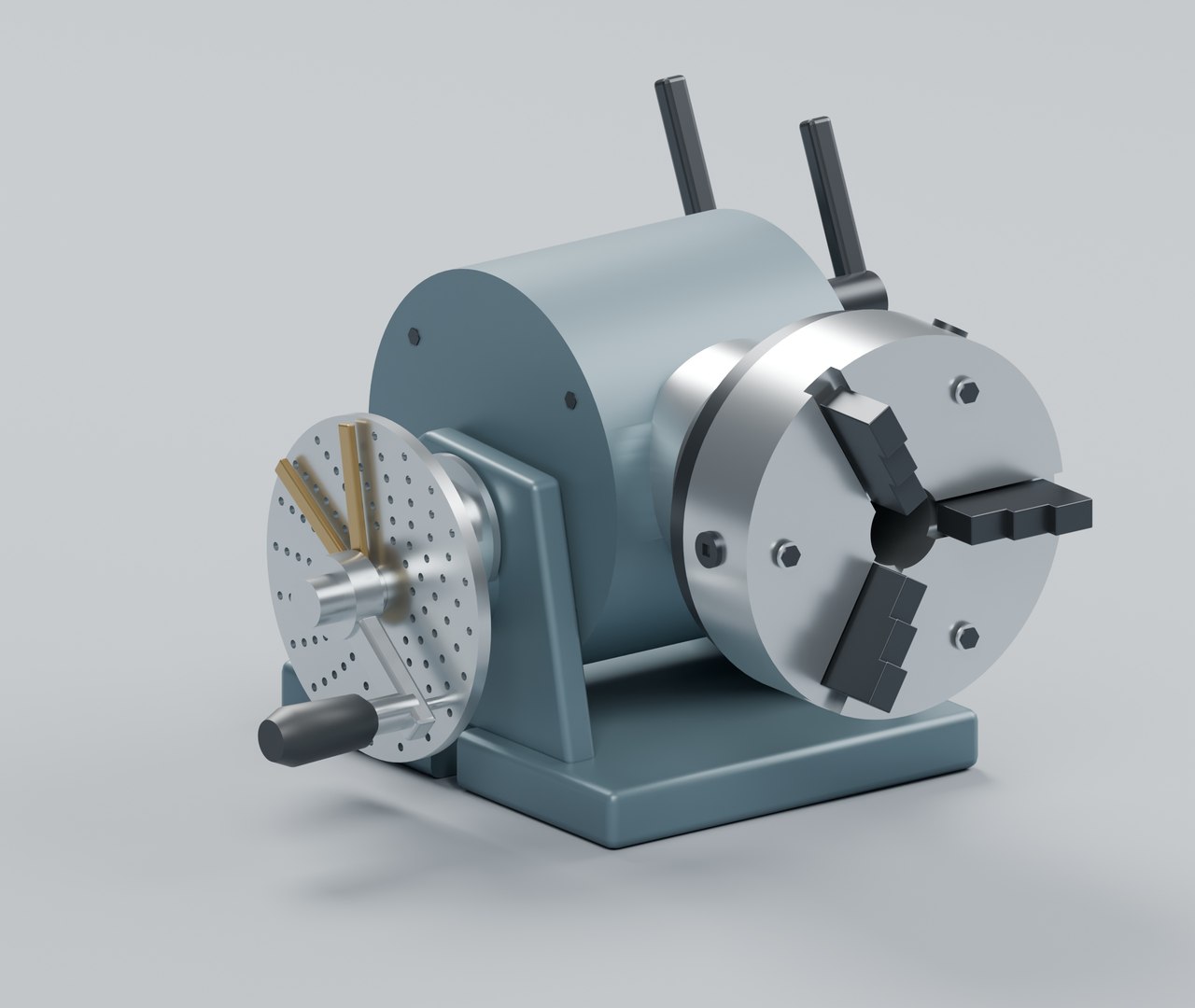

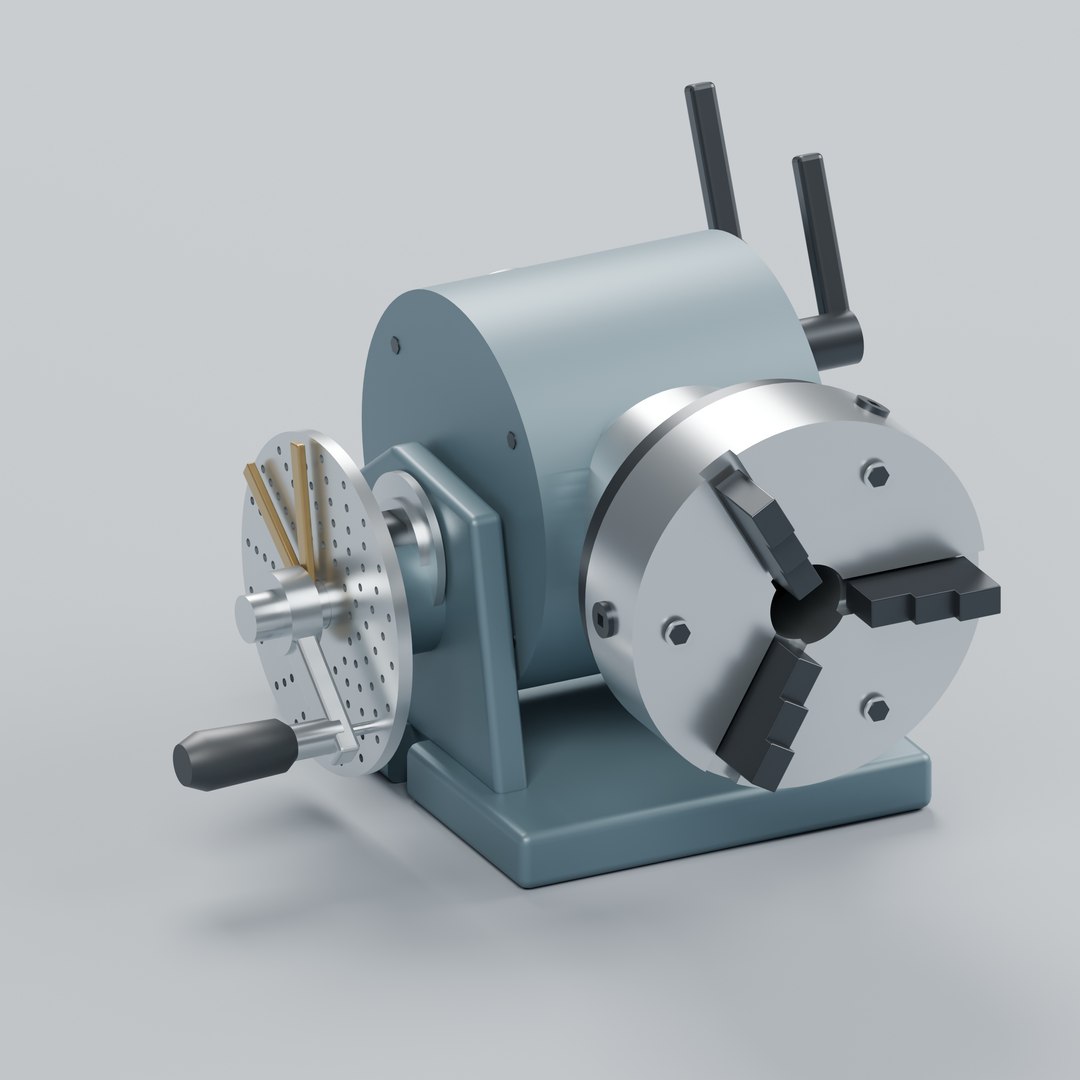

Detailed generic dividing head with pivot cradle, bored spindle and worm housing, guided stepped three-jaw chuck, six-circle drilled index plate, sector arms, spring pin crank, tilt graduations and locking controls.

FILES AND SCALE

Native Blender 5.2.2 asset and a separate Cycles studio scene, plus a polygon-preserving FBX 7.4 file. Metric scale; overall dimensions approximately 25.0 x 26.2 x 20.0 cm. 119 mesh components, 9,475 polygons, 13,152 vertices and 26,316 evaluated triangles; 91.6% quads.

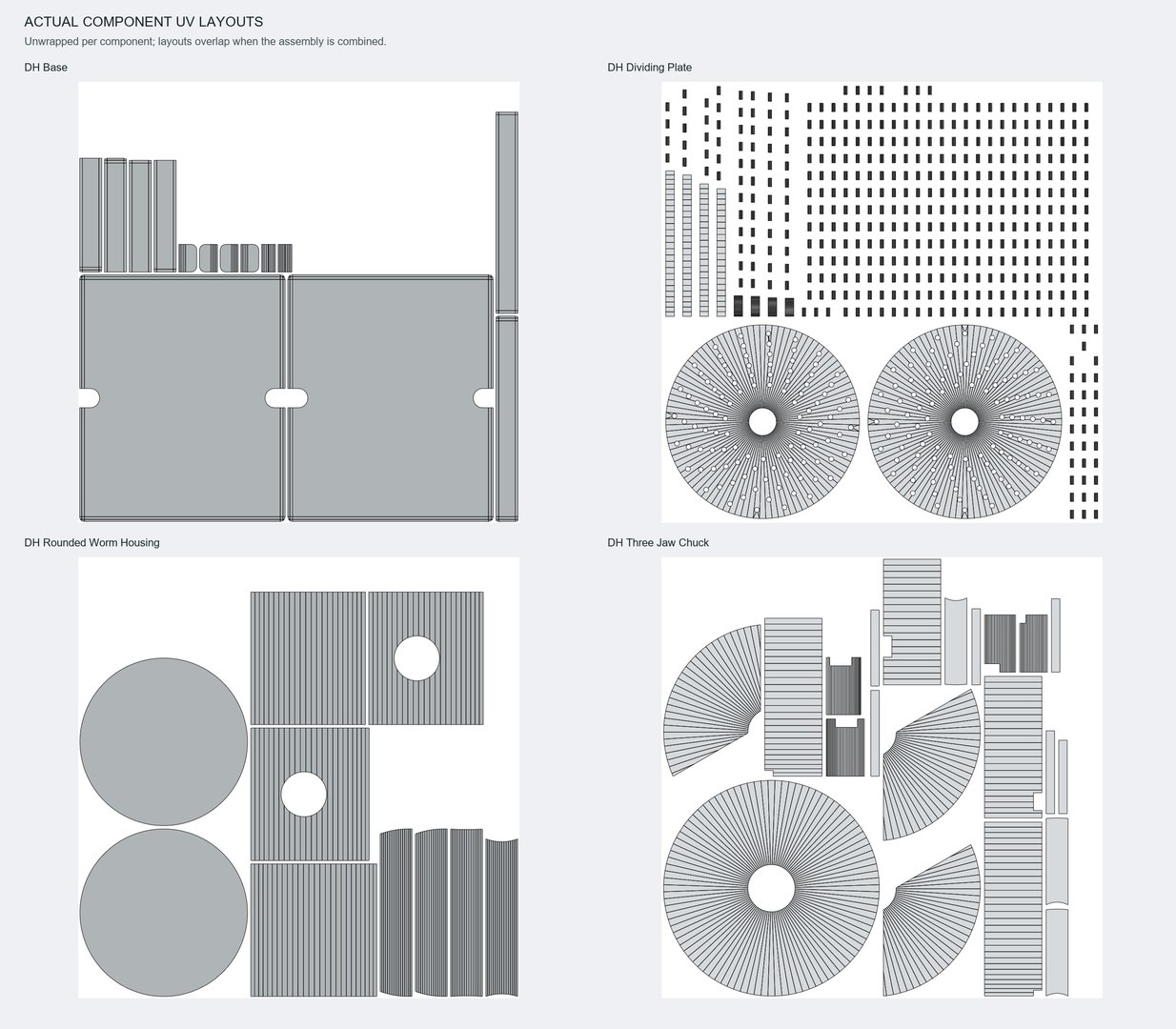

MATERIALS AND UVS

Editable numeric PBR materials. No image textures. Component UVs overlap; FBX shader values may require renderer adjustment.

NOTES

Static visualization asset. No operational simulation or manufacturing geometry. Named components and a separate Cycles studio.
